Forklift Scale: Advanced indicator, +/-1% Accuracy of machine capacity

Premium Indicator With Advanced Functionality (Add, Subtract, Total). Over 10,000 Units Sold.


The ‘WEIGHT MASTER TOTALISER’ onboard weighing system is a premium, multifunctional onboard weighing solution. It offers all the features of the expensive competitors minus the price tag, and with sales exceeding 10,000 units, you can choose it with confidence.

This scale features smart software which provides ultimate weighing accuracy (±1% machine capacity) and offers a range of options such as weigh, add/subtract and totalising of lifted loads.

You can rely on this system to perform accurately and reliably on most forklifts, reach trucks, walkie stackers and side loaders. The scale can also be customised to better suit your applications with a range of peripheral devices including printers, alarm safety interlocks and software.

FEATURES:
- Simple one-touch weigh-and hold operation
- Full function totaliser module with add in, subtract out, total and auto-add
- Accuracy ± 1% of machine capacity
- Printer option with date and time
- 9VDC to 70VDC
- Heavy-duty construction
- Rugged weatherproof design
- Rubber-mounted bracket
- No loss of lifting capacity
- Overload alarm
- Autocal facility
- Backlit display
- Zero function
- Percentage (%) adjustment on the go for calibration

BENEFITS:
- Improved WHS for operators and all people in the surrounding area
- More efficient materials handling, no more secondary weighing of pallets on a floor scale or weighbridge
- Prevent machinery and racking overload
- Avoid under/over loading trucks and save money
- Check incoming/outgoing goods
- Data traceability

HOW THE WEIGHT MASTER TOTALISER WORKS:

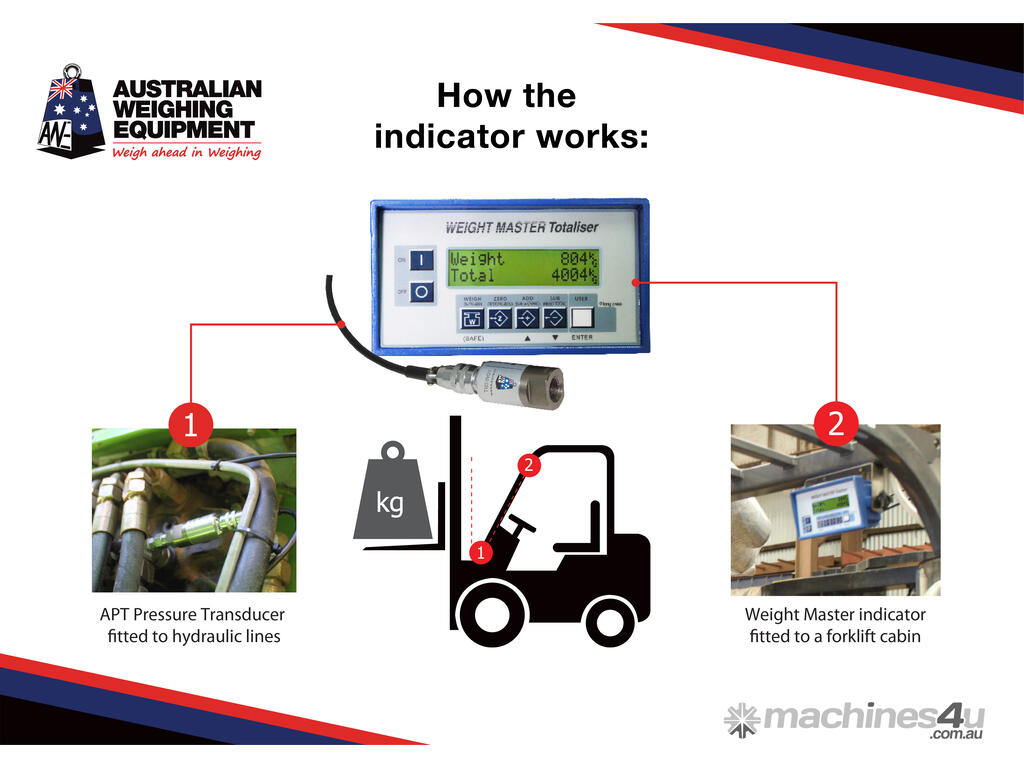

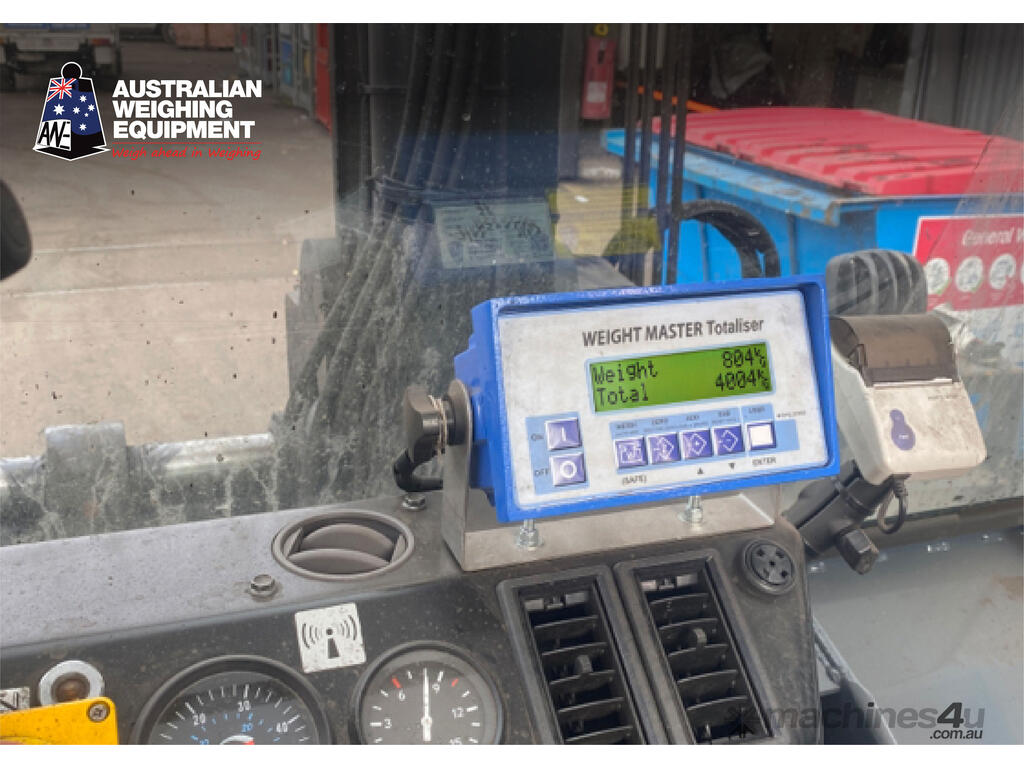

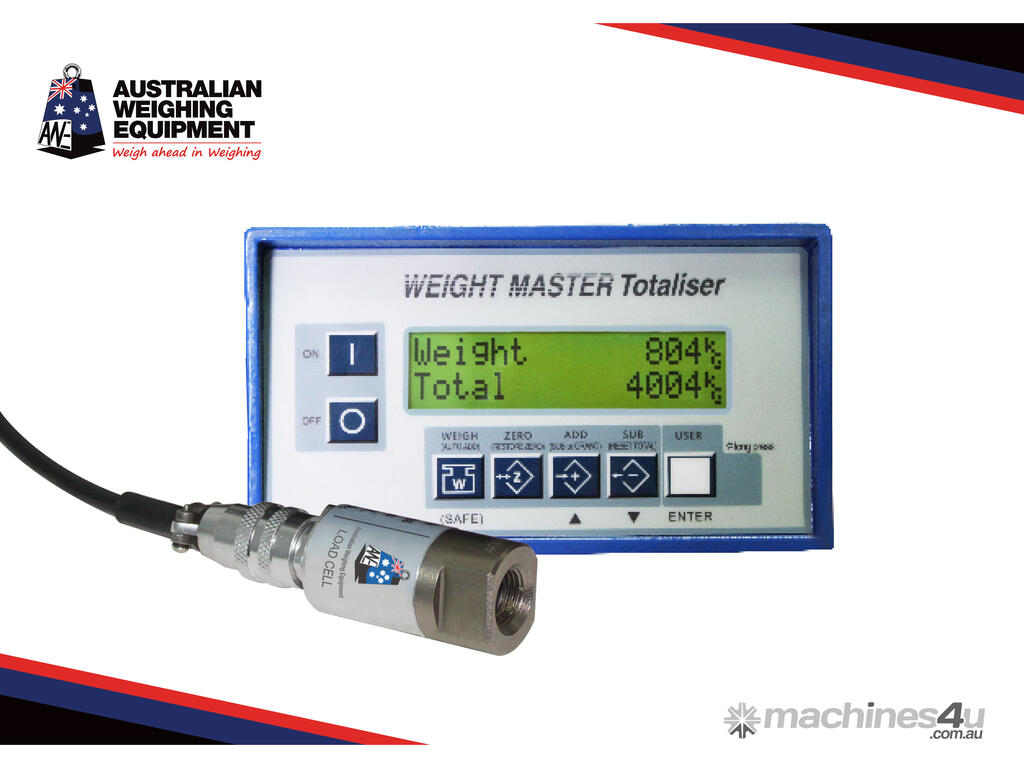

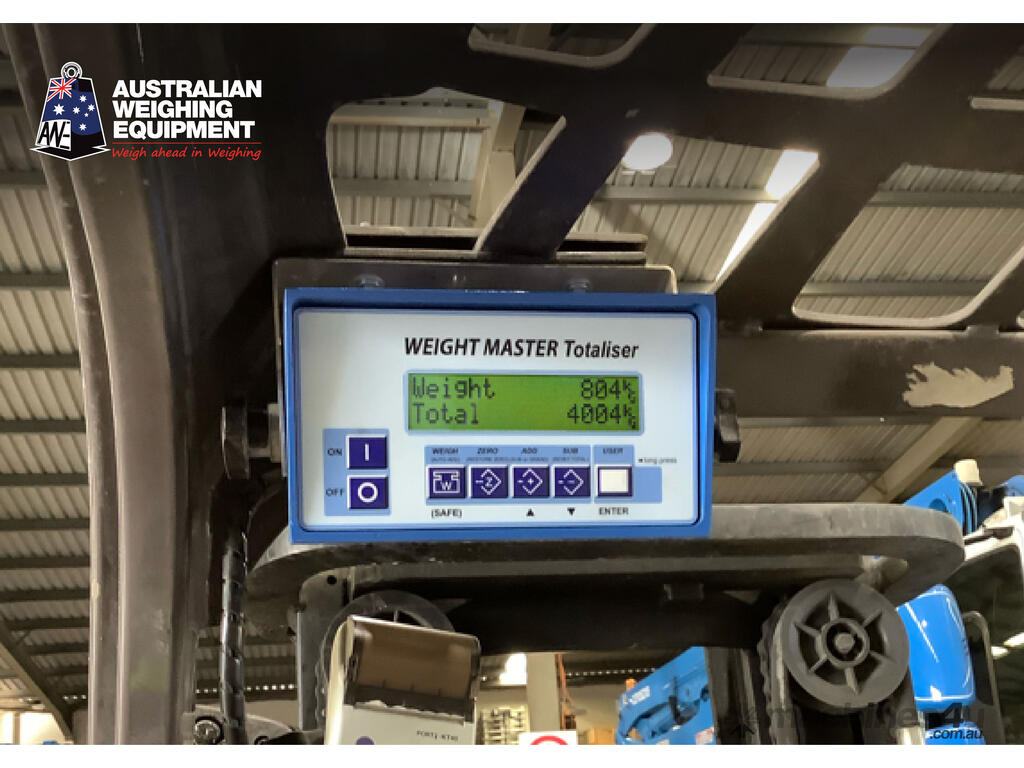

The ‘Weight Master’ instrument produces a weight reading via a pressure transducer that is fitted to the hydraulic lines of the fork truck. The pressure transducer has a sensing element which responds to force applied by the hydraulic fluid in the fork truck hydraulic lines when a load is lifted. The ‘Weight Master Totaliser’ instrument is mounted in the cabin where the
operator can easily read and access the display.

PRINTER AND ALARM OPTIONS:
AWE offers a range of additional accessories which can be paired with the Weight Master instrument. These accessories help customise your scale to better suit your workplace applications. Our safety accessories are a great solution to prevent machinery overloading by operators - an event which can have serious consequences to machinery and operators.

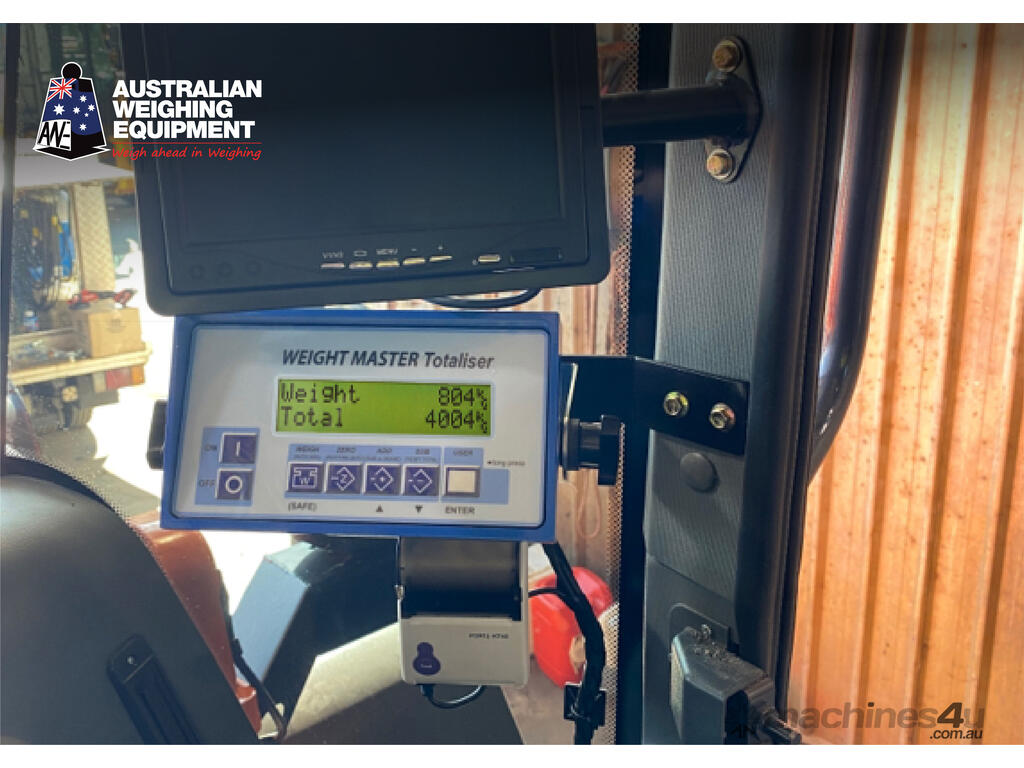

- Blue Tongue 2.0 Printer: Produce hard copies of your weight readings with this compact printer. Comes with a swivel mount allowing easy mounting in your cabin. It is hard wired to your machine so no need to ever change batteries.

- Hydraulic Bypass: The ultimate safeguard against overloading you forklift. When a lifted load exceeds the forklifts capacity, the forklift will stop lifting - only allowing the load to be lowered. The capacity ratings are adjusted based on load centre principles.

- Red Light / Overload Alarm: A red light and/or audible alarm can be fitted to your scale as an extra safety device. These features are activated when the forklift exceeds the safe working load to alert an operator.

SPECIFICATIONS:
Type: Digital with microprocessor control

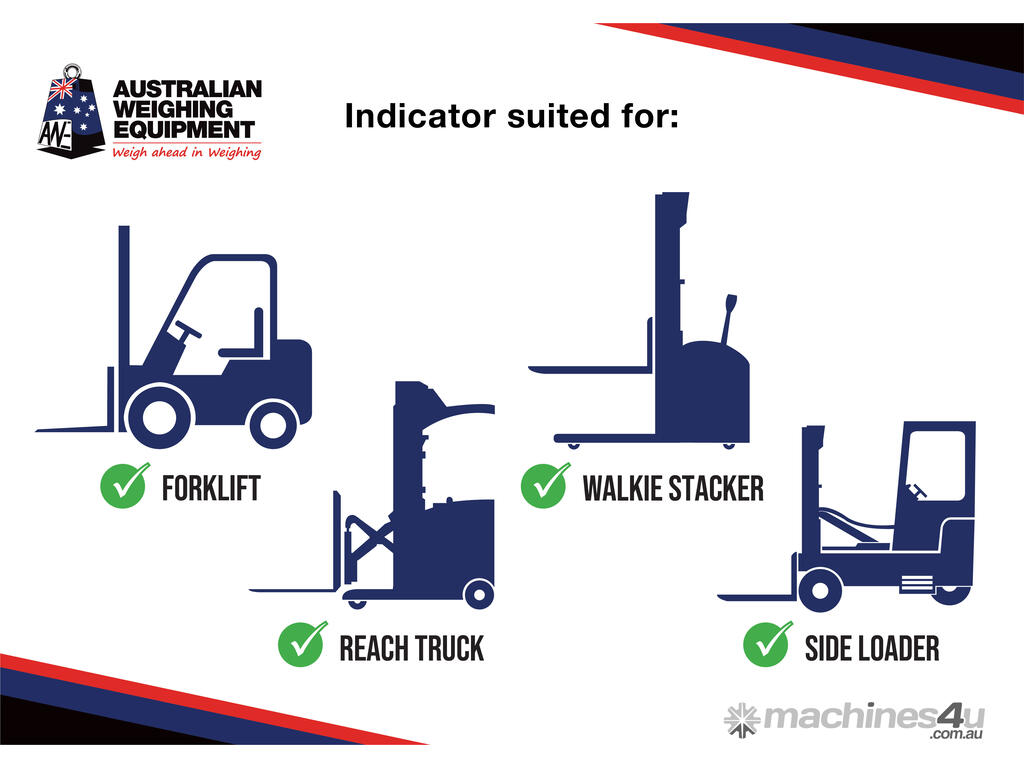

Applications: Suitable for most forklifts, reach trucks, walkie stackers, side loaders

Accuracy: ±1% of capacity (e.g. If lift capacity is 1000kg then accuracy is ±10 kg)

Resolution:
1, 2, 5, 10, 20, 50, 100, 200 (selectable to suit installation)

Temperature: 0°C to 40°C operating range

Supply voltage: 9VDC to 70VDC standard

Supply current: Less than 250mA

Housing: Rating: Weatherproof (IP65)

Size: W:250mm, H:150mm, D:125mm

Material: Powder-coated aluminium case with stainless-steel bracket

Display: 10mm (H) x 32 digits supertwist alphanumeric LCD with extended temperature range

Backlight: LED fibre-optic (where fitted)

Warranty: 12 months on instrument and sensors

Fitting time: Typically two hours

Recalibration: Six monthly (recommended) 12 monthly (standard)

Manufacture: 100% Australian made


Printer (optional): 60mm plain paper

Characters: 20 per line

Supply:
-12VDC
-16 to 60v with optional adapter

Current:
-200mA standby
-1A peak printing

Fields
-Weight
-Date,
-Time
-Gross weight
