Forklift Scale: Weighing System for fork truck +/-0.5% Accuracy of machine capacity

The ‘Chain Load Cell System’ is a simple and versatile scale that is suitable for most forklifts, reach trucks, walkie stackers, stock pickers and side loaders.

The system is capable of sensing weight with an amazing ±0.5% accuracy of machine capacity. This information is displayed on a SafeWeigh Digital Indicator. With this scale fitted to your machines, the operator can get an instant weight reading of any lifted load, meaning no need to deviate from their working path to weigh loads on a platform scale or weighbridge.

The ‘Chain Sensor System’ is compatible with a range of peripheral devices such as printers and safety devices including alarms and lock out devices to help improve safe operation in the workplace. (Sold separately)

Enjoy the benefits of installing the ‘Chain Sensor System’ to your machines, including:

- Improved safety and maintain compliance with CoR & SOLAS standards
- Quicker and more efficient materials handling
- Eliminate overload fines on loaded trucks
- Check consignment weights and incoming/outgoing goods
- Avoid trips to the weighbridge or platform scales
- Prevent machinery and racking overloading


FEATURES & BENEFITS:

- ± 0.5% Accuracy of machine capacity
- No loss of lifting capacity
- Rubber-mounted bracket
- Rugged electronic design
- Australian designed and manufactured
- Digital backlit display
- Internal reeving kits included
- Suits most chain types, custom designs are available
- Weatherproof housing
- Continuous weight read-out
- Proof loaded to 300% of capacity
- Wide range power supply designed for mobile equipment 9VDC to 70VDC


HOW IT WORKS

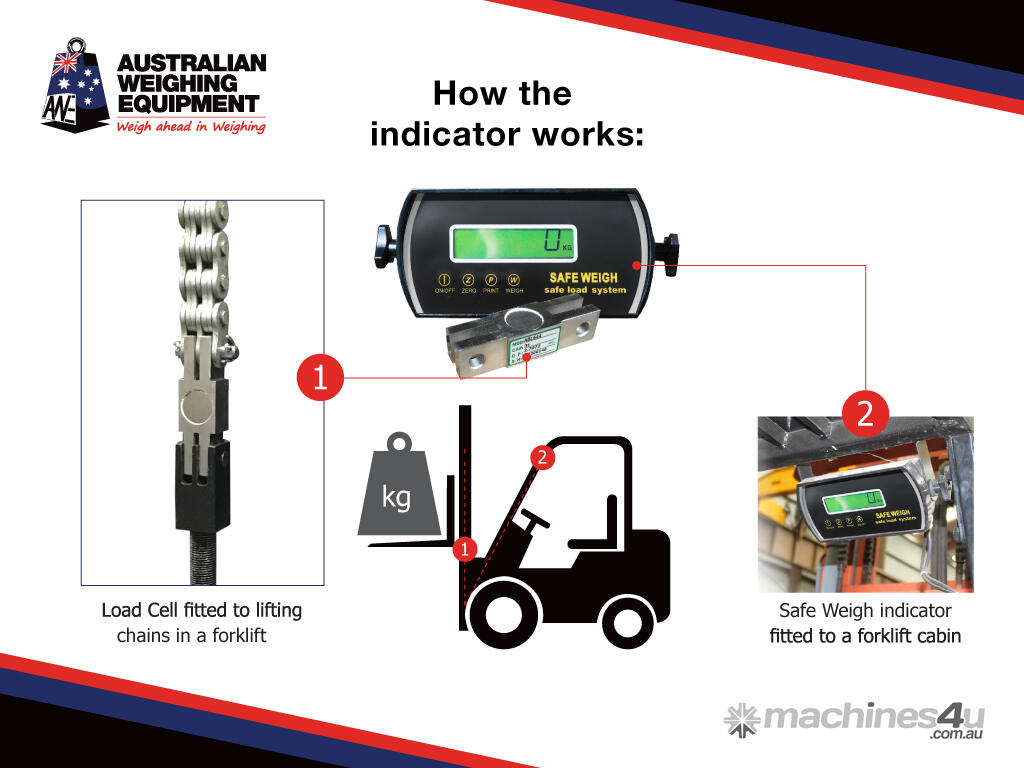

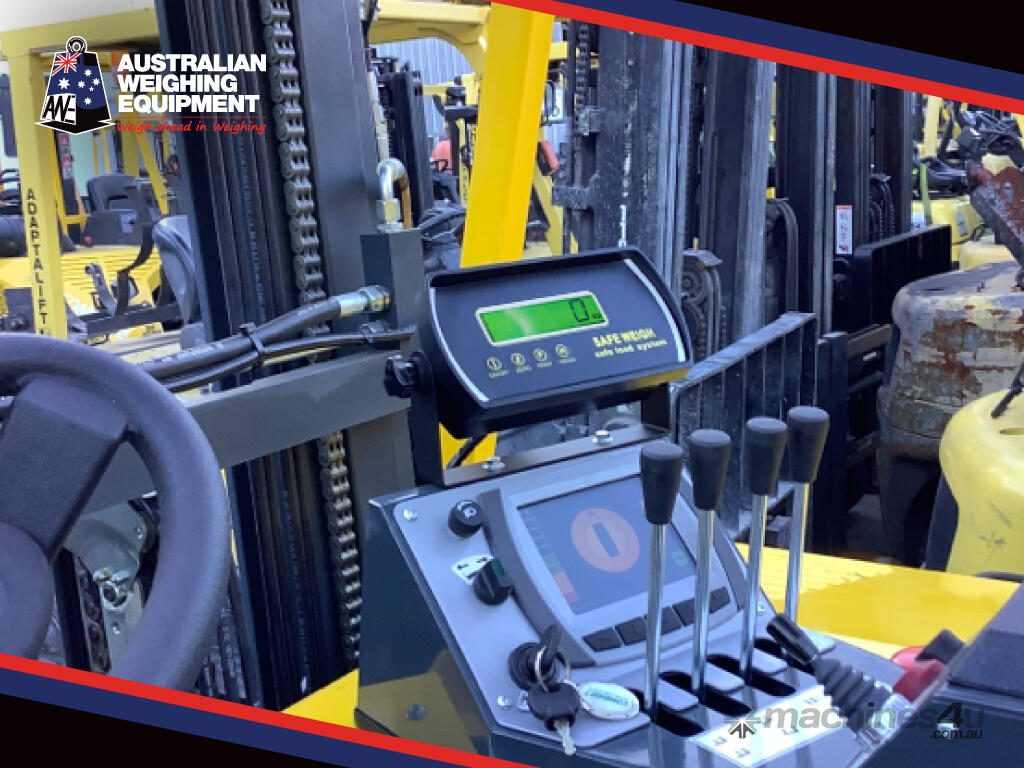

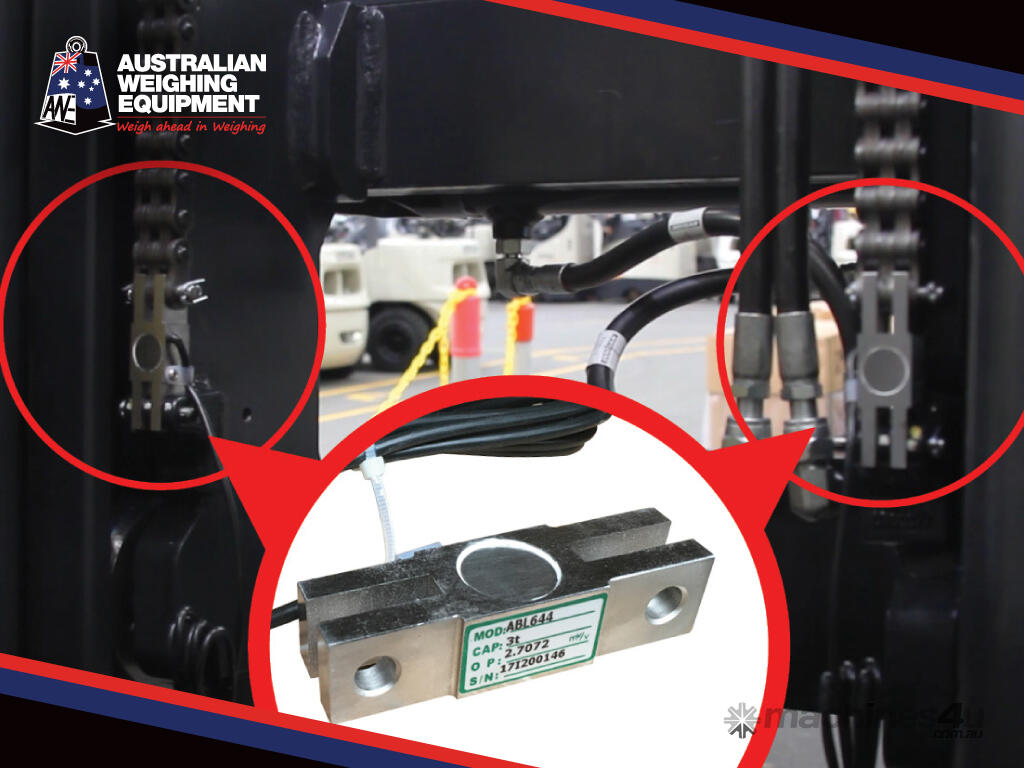

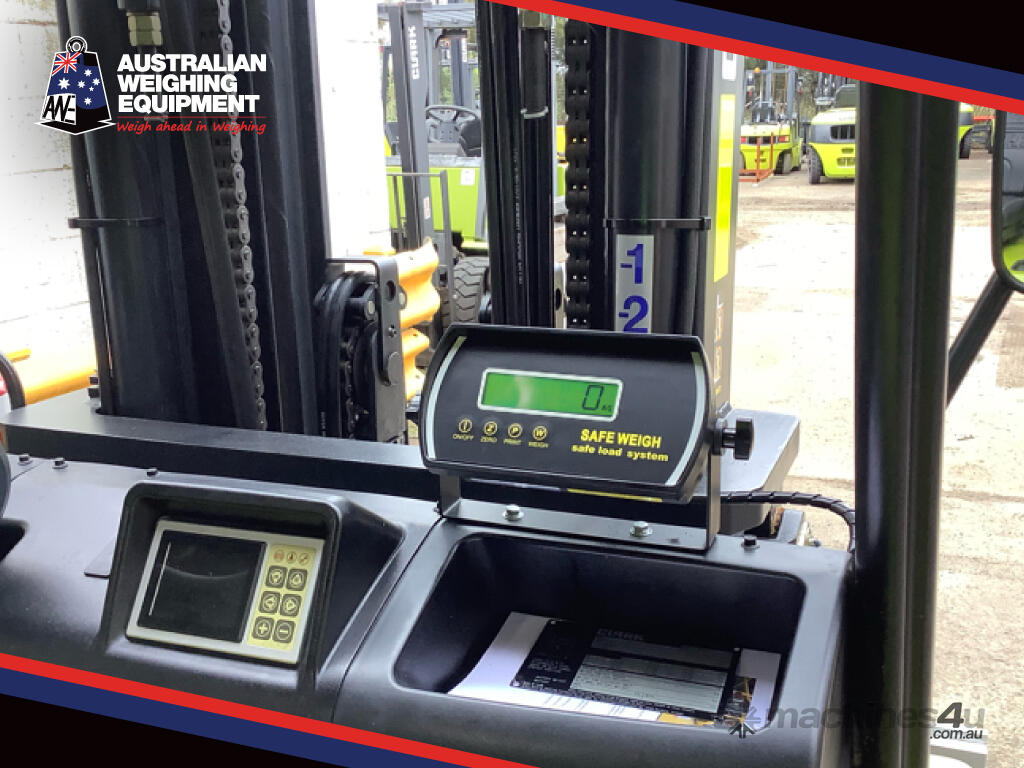

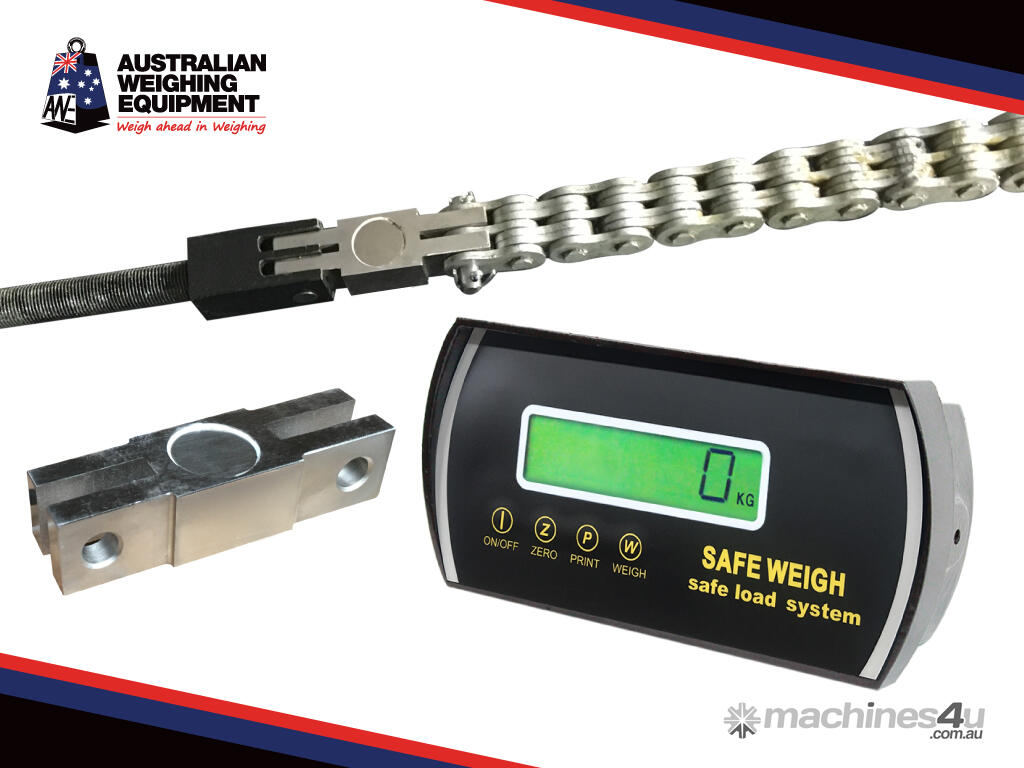

The ‘Chain Sensor System’ load cell is fitted as a replacement link in the lifting chains of the forklift. When a load is lifted, the load cell senses the tension in the chain and sends data to the indicator mounted near the controls. A weight reading is then displayed on the indicator for the operator to view.

This system can be paired with either a “Safe Weigh” indicator or a “Weight Master Totaliser” indicator.
