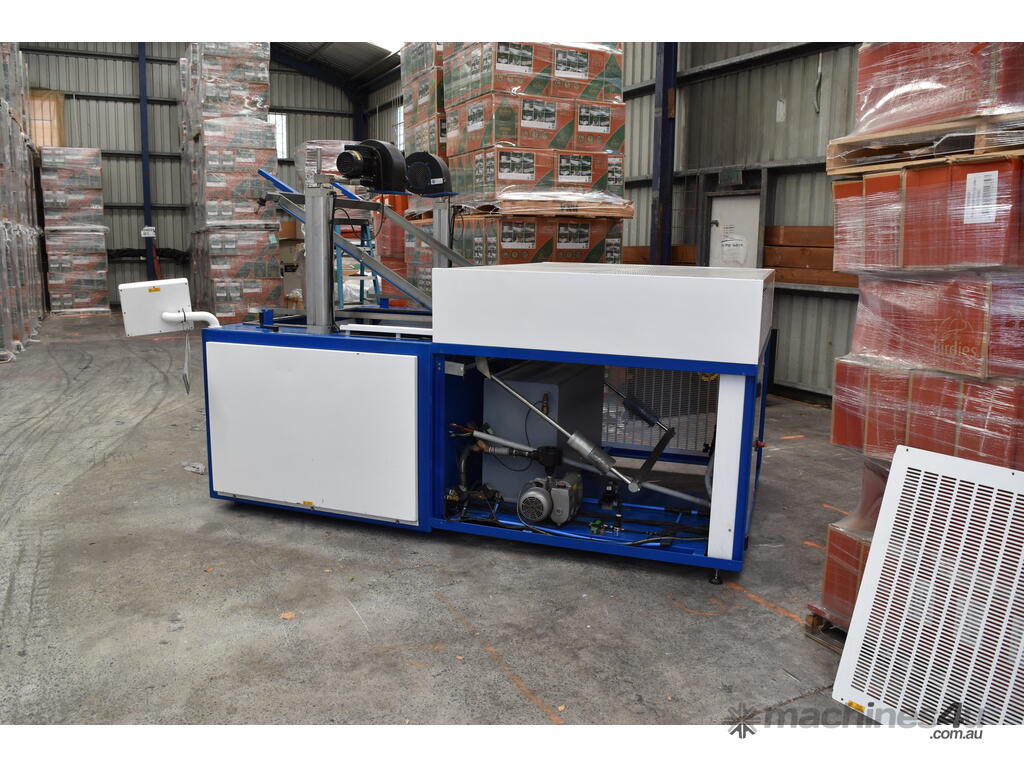

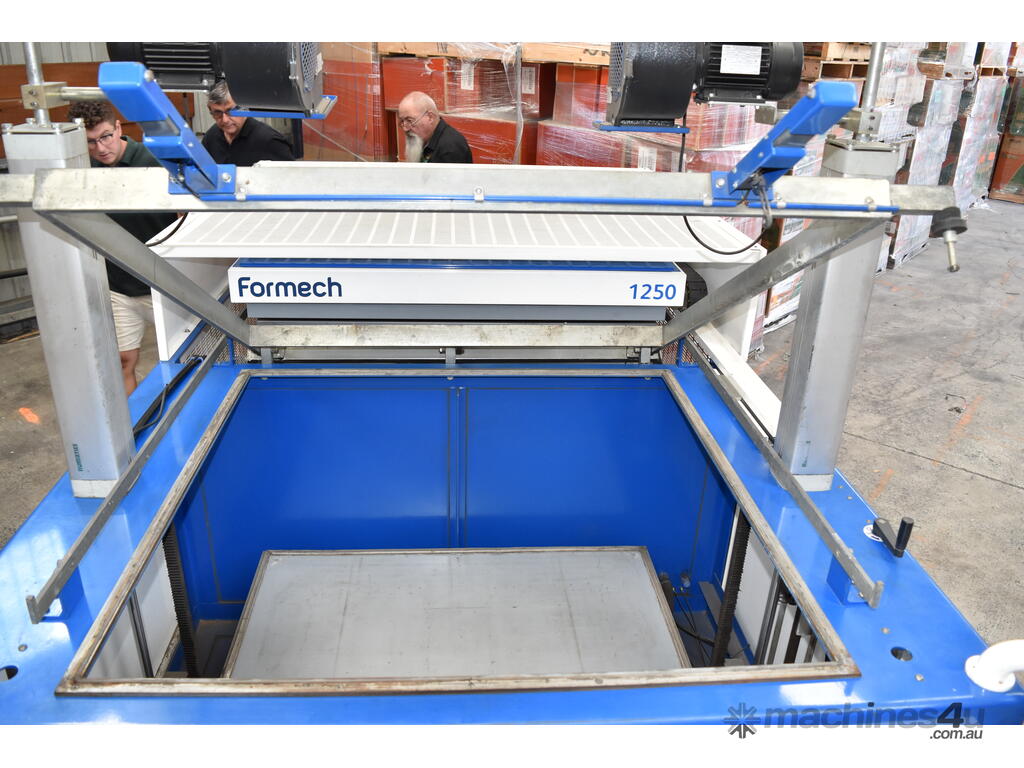

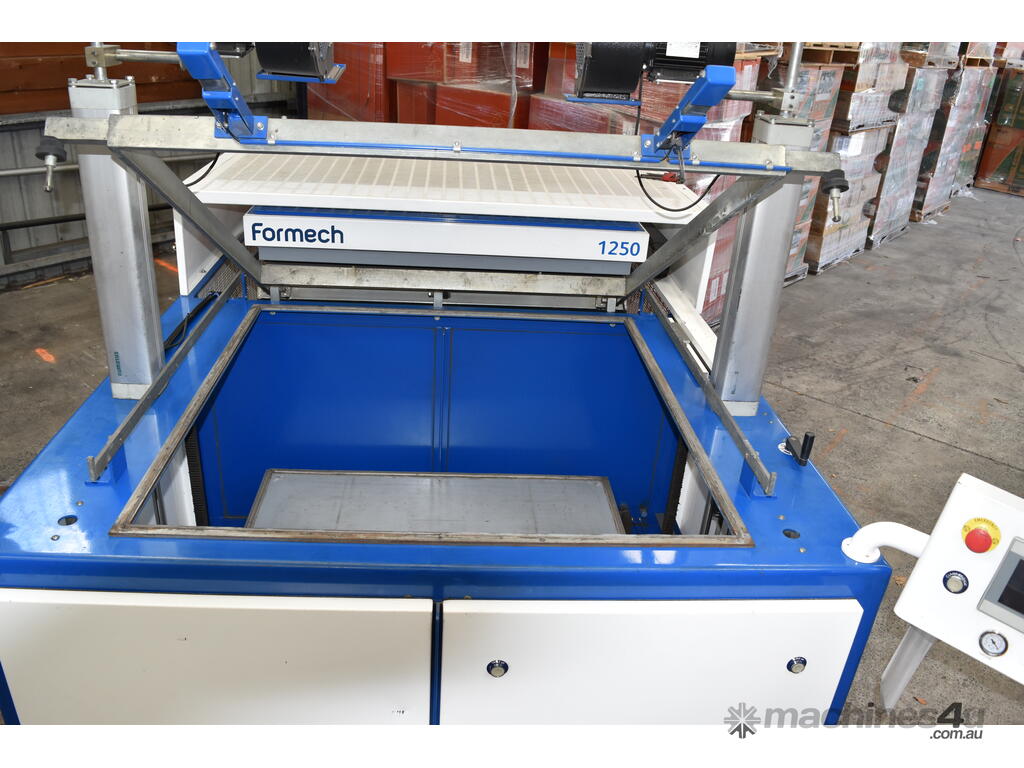

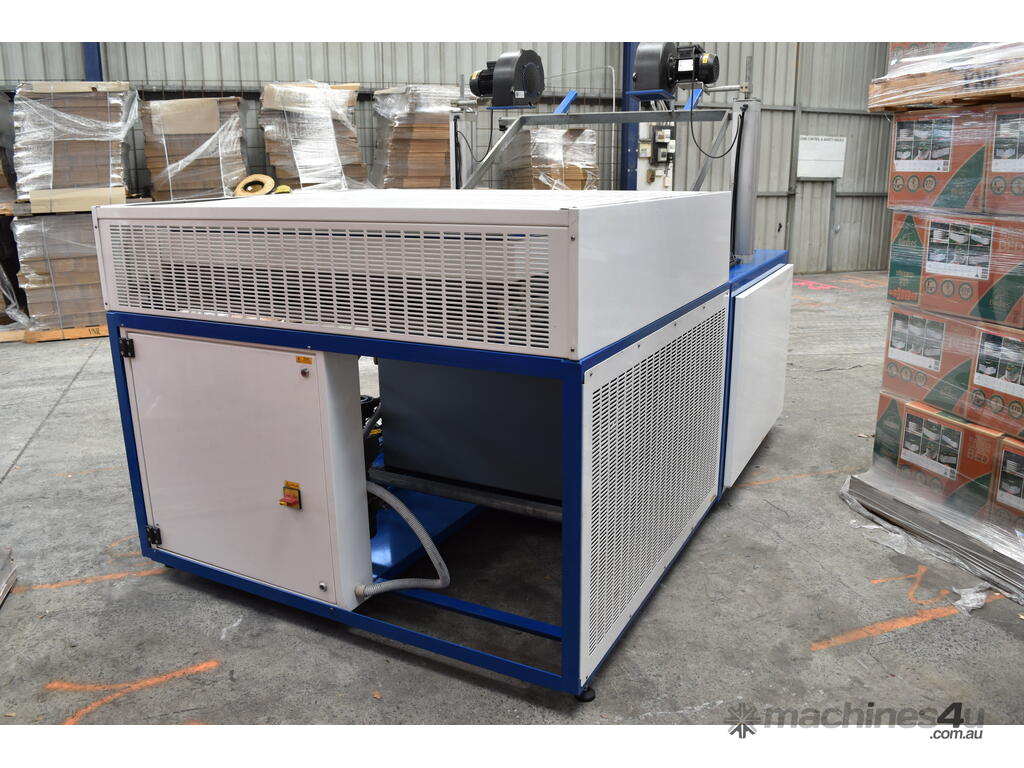

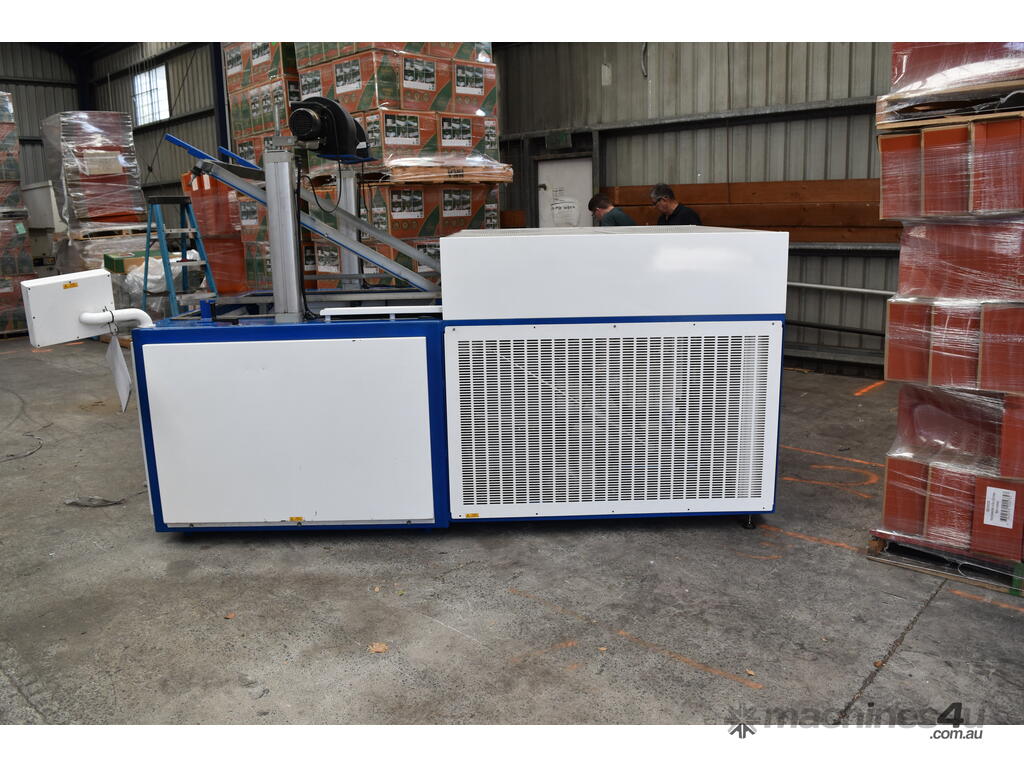

Formech 1250 Large Format Vacuum Former (Quartz-Heated, half sheet size)

Very low usage Formech Vacuum Former for thermoforming plastic sheets. Only 1 owner.

In excellent condition and perfect working order. Has had very low usage over the years and has always been kept clean and maintained indoors.

Features:
Electric heat drive for rapid heat response
Pneumatic table and clamping
Table heigh adjuster
Sheet sizing - 1220mm x 1220mm or 1250mm x 1250mm

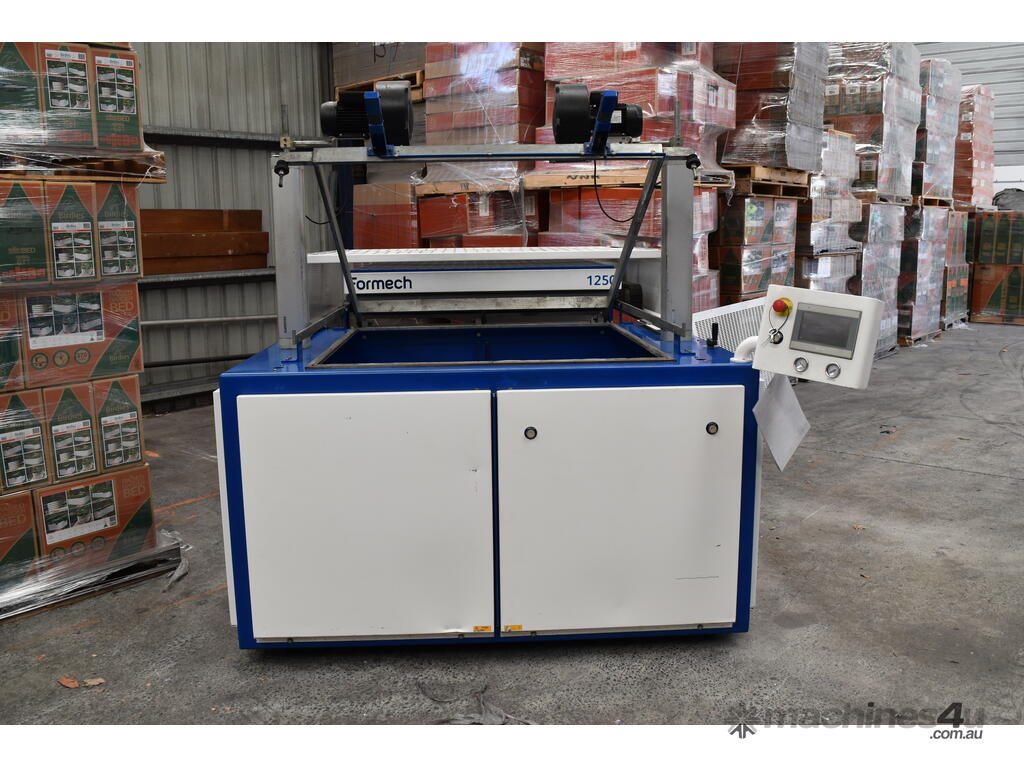

7 inch colour PLC
1% heat increment control
40 preset memories

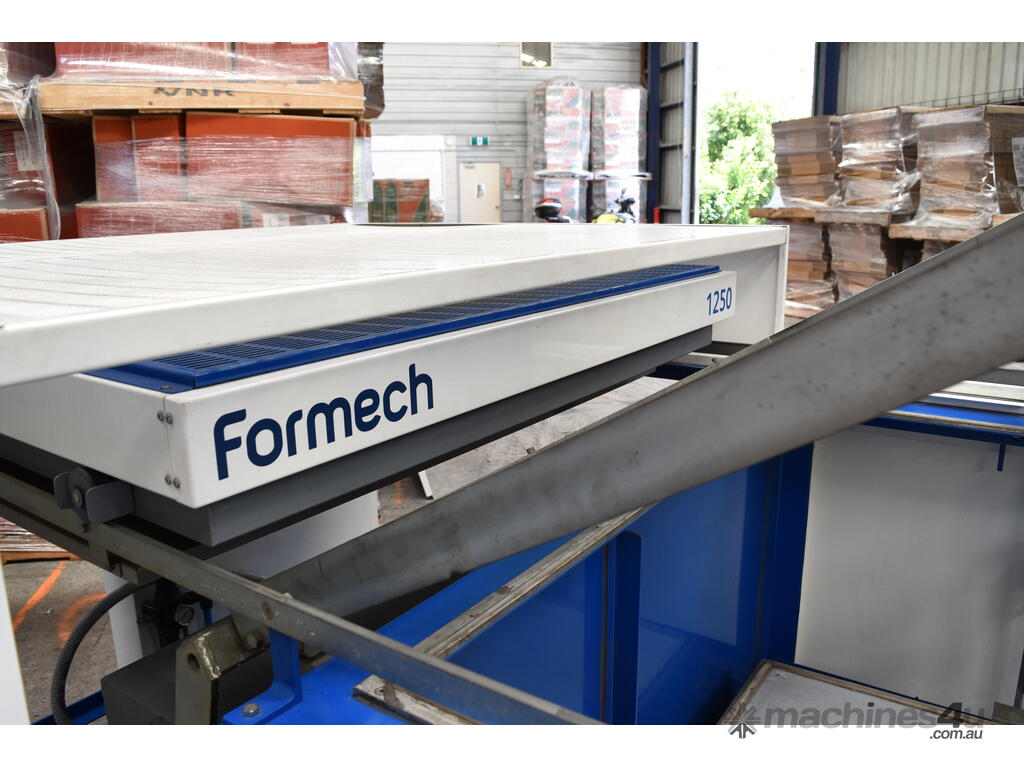

Quartz heaters with rapid response and high efficiency
25 independently controlled heating zones
Pre-stretch - pumps air into heated sheet to avoid thinning of material with deeper tools
Auto-level - avoids material sag during heating
Vacuum receiver tank - provides instant stored vacuum
Vacuum and pressure gauges

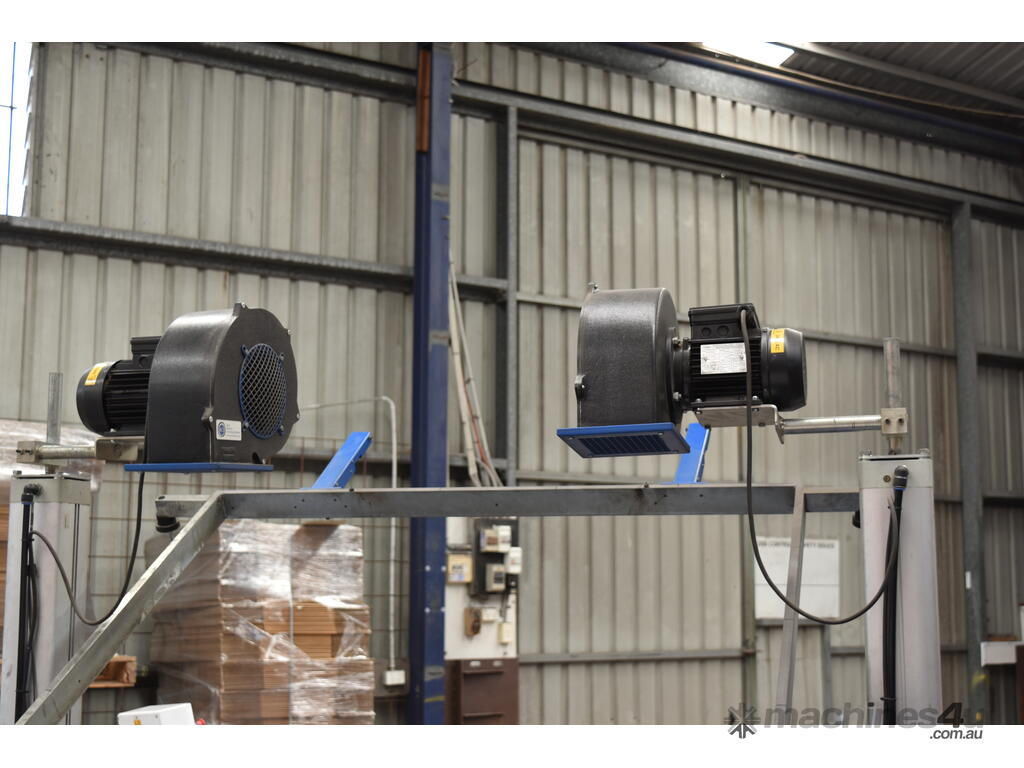

Twin cooling fan system - 550W fans to cool formed material
Oil filled rotary vane pump

Technical Specifications:
Forming area - 1180mm x 1180mm
Sheet Size - 1220mm x 1220mm or 1250mm x 1250mm
Max depth of draw - 600mm
Max material thickness - 6mm
Heating zones - 25
Heater - Quartz
Width - 2113mm
Height - 2200mm
Depth - 3278mm
Weight - 1050kg
Single Phase power requirement - N/A
3 Phase power requirement - 415V/40A
Power consumption - 25kW
Air requirement - 80PSI
