Freight Weigh | Above Ground Weighbridge | Heavy Duty - High Accuracy

AWE Above-Ground Weighbridges are custom made to suit your application, available in trade & non-trade configurations, and designed for long-term industrial use

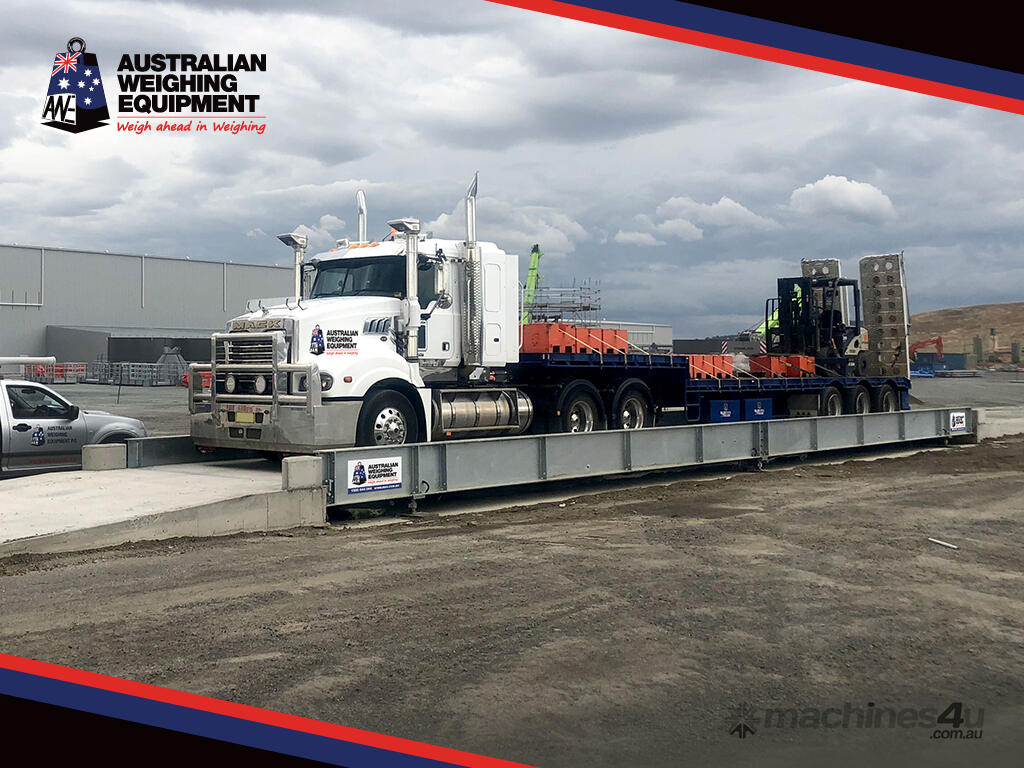

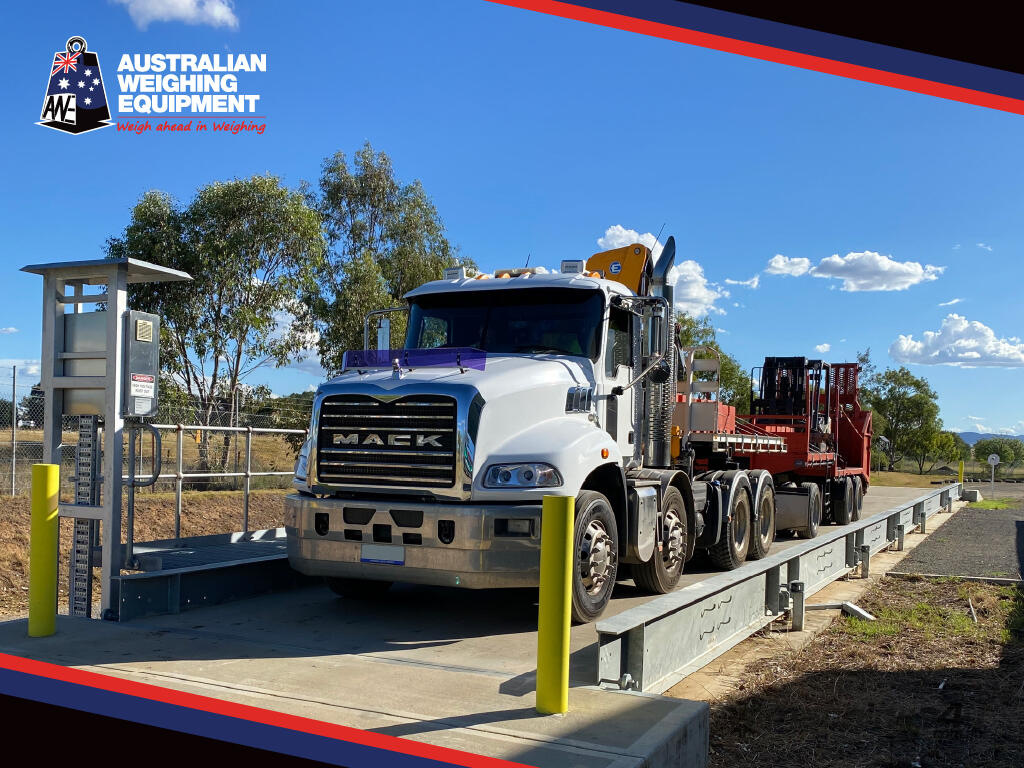

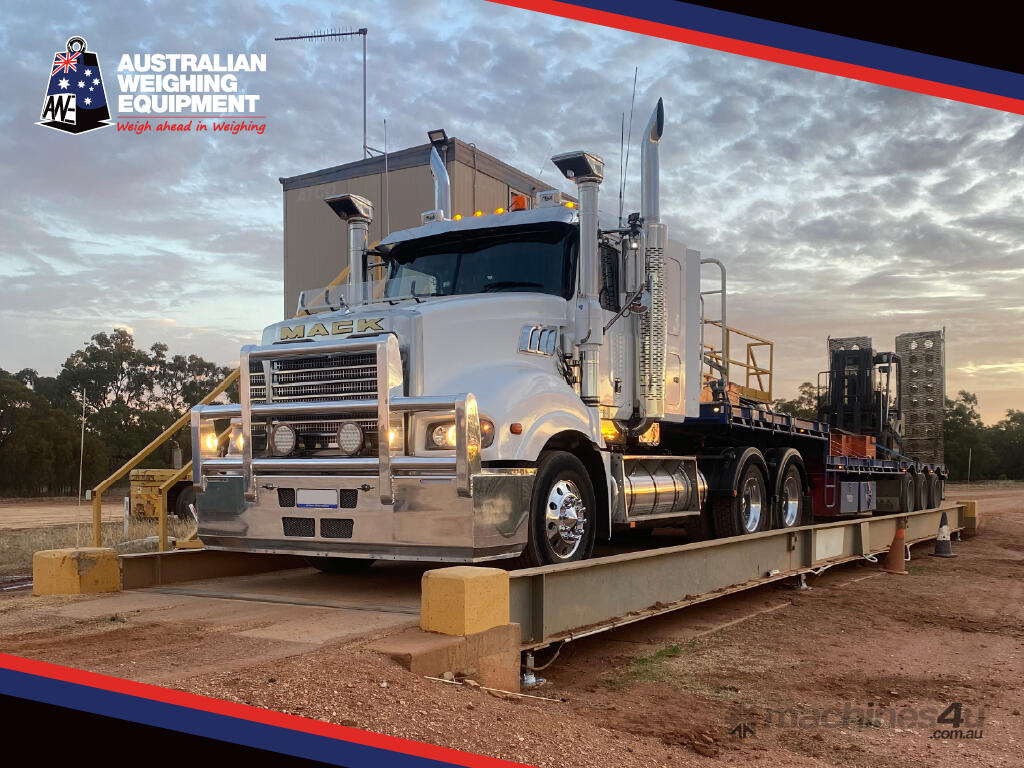

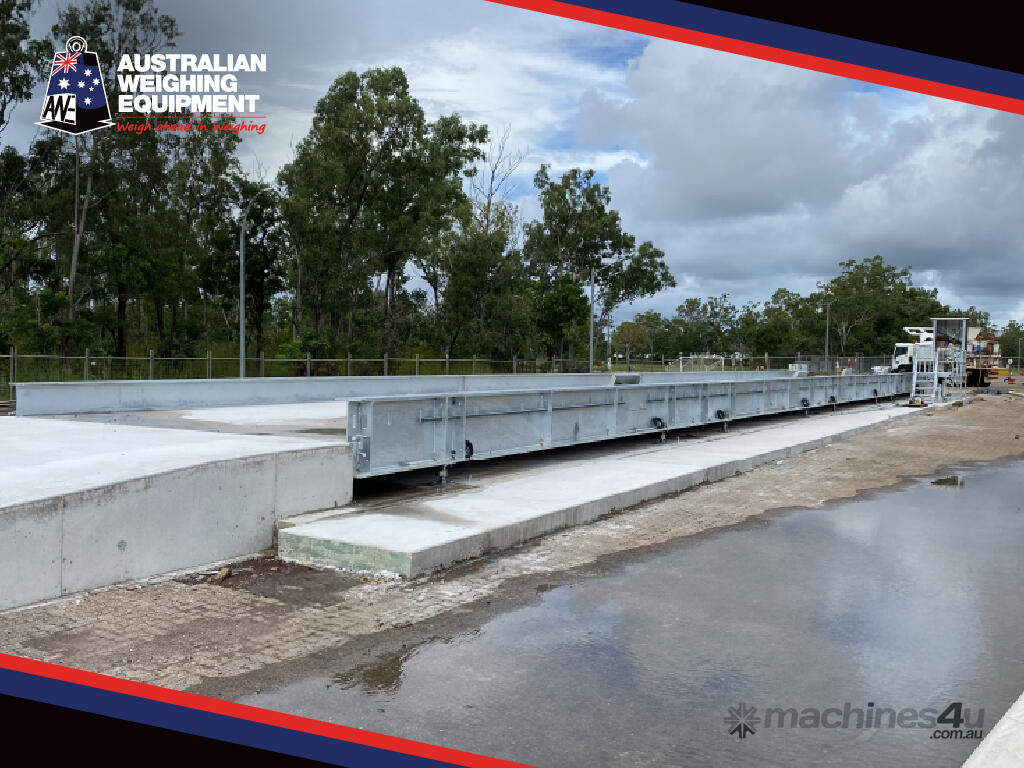

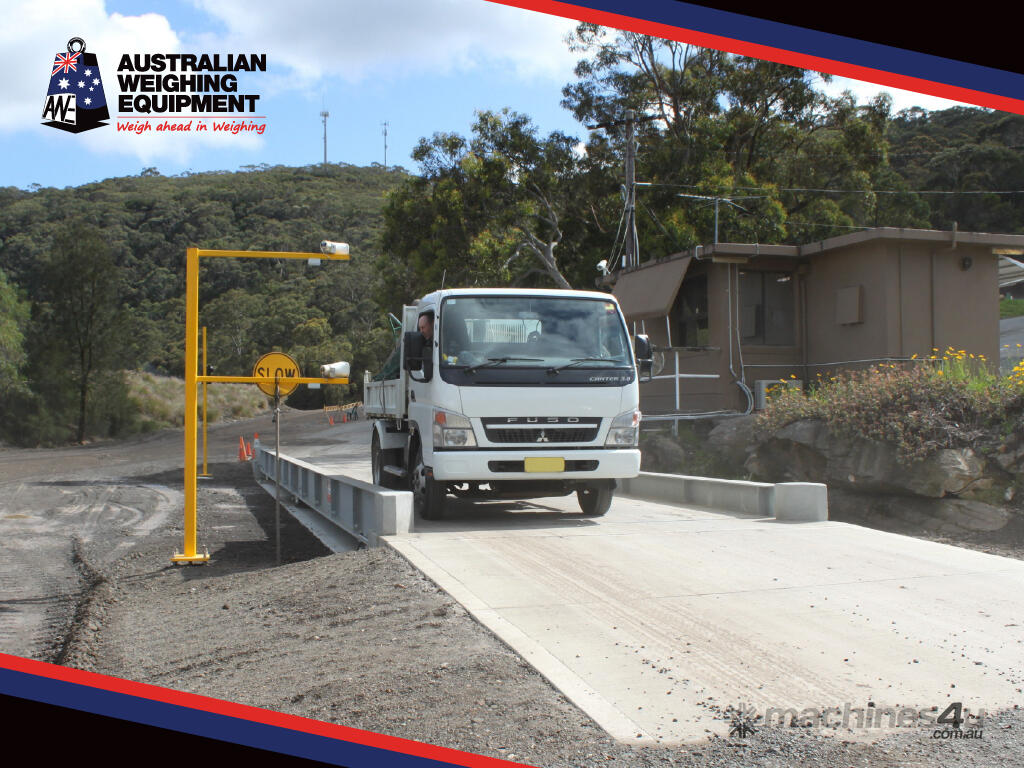

Installed on a concrete foundation with approach ramps, this configuration provides excellent drainage, straightforward access to load cells, and simplified inspection and maintenance compared to pit-mounted designs.

Above-ground weighbridges typically require less complex civil works and offer flexibility in site layout, making them a practical and widely adopted choice for permanent installations where reliability, serviceability, and long-term performance are critical.

KEY FEATURES:
• Made from Strong Steel - 530mm to 600mm Steel Universal Beams are used for the structural frame to minimise bending.
• Reinforced - Cross bracing every 5 metres to prevent twisting. Plus, all welds of the steel structure are 8mm.
• Rust Proof - Galvanised steel frames & components protects your investment from corrosion.
• Weather-Proof Load Cells - Our weighbridges are powered by hermetically sealed load cells made from 17-4PH stainless steel.

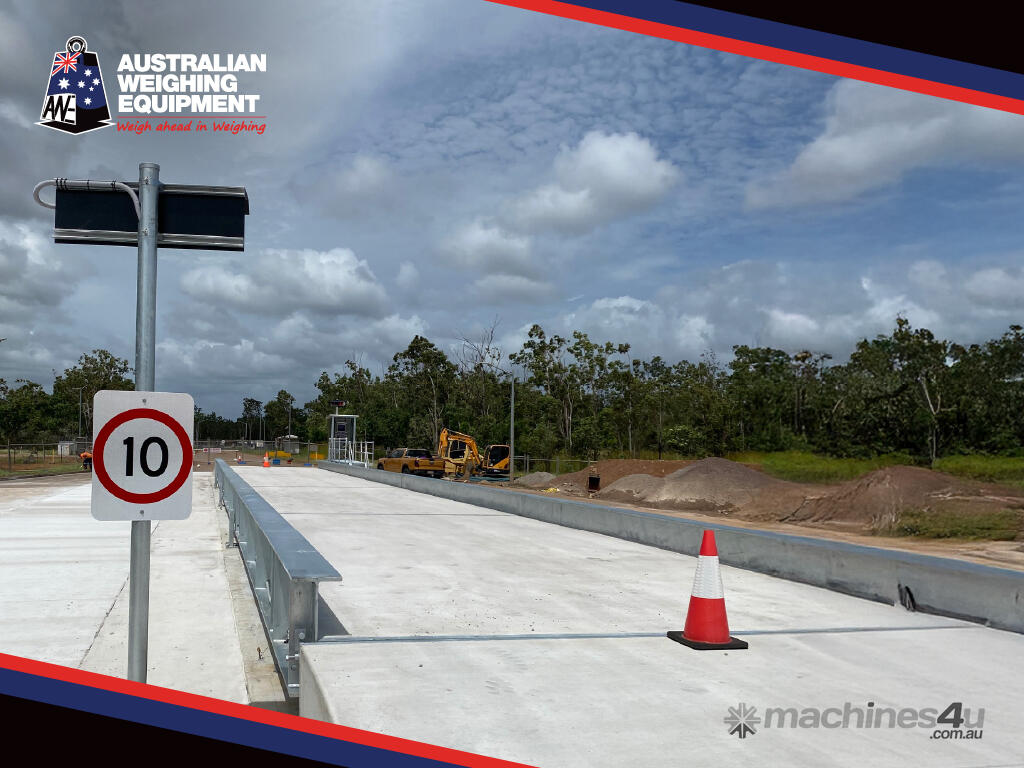

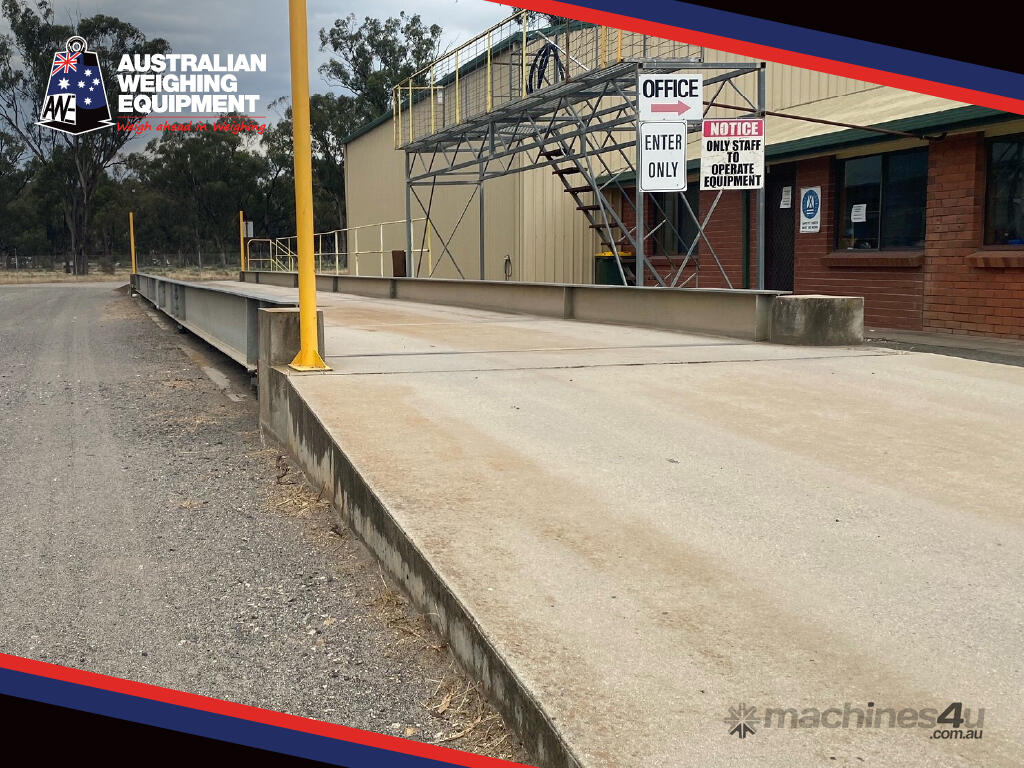

• Steel or Concrete Available - Steel decks are relocatable. Concrete for permanent installations.

MAXIMUM AXLE LOADING:
• Single Axle 9 Tonne
• Tandem Drive Axle 16.5 Tonne
• Tri Drive Axle 20 Tonne

DESIGNED AXLE SPACING:
• 1.3 Metre

STANDARD CAPACITIES:
• 10 Tonne
• 30 Tonne
• 60 Tonne
• 80 Tonne
• 100 Tonne
• Other capacities available upon request

ACCURACY:
± 10 KG
± 20 KG
± 50 KG

CONSTRUCTION:
Construction: Galvanised Steel Installation
Deck Construction: Steel
Load Cell Model: Titan Industrial Stainless Steel (Hermetically sealed IP68)

LOAD CELL CAPACITY (each)
• 20,000 KG
• 40,000 KG
• 45,000 KG

Sealing & Load Cell Cabling: Rigid PVC & Flexible Steel Conduit
Digital Indicator: Gedge Instrument
Design Loading: Designed to comply with RTA Axle load limits
Ground Compaction: 160 kPa required
NMI Approved (For Trade Version Decks): Load Cell Weighbridge 6B/206

POPULAR WEIGHBRIDGE ADD-ON OPTIONS:
Safety & Traffic Add-Ons: Security Cameras, Traffic Lights, Guard Rails, Boom Gates
Display Add-Ons: Remote Displays, Digital Indicators
Remote Management Add-Ons: Driver Control Stations, Control Huts
Reporting Add-Ons: Truck Fleet Management Software, Printers, Accounting System Interfacing Software
Quality Control Add-Ons: Wireless Link to Front End Loaders, Wheel Washers
