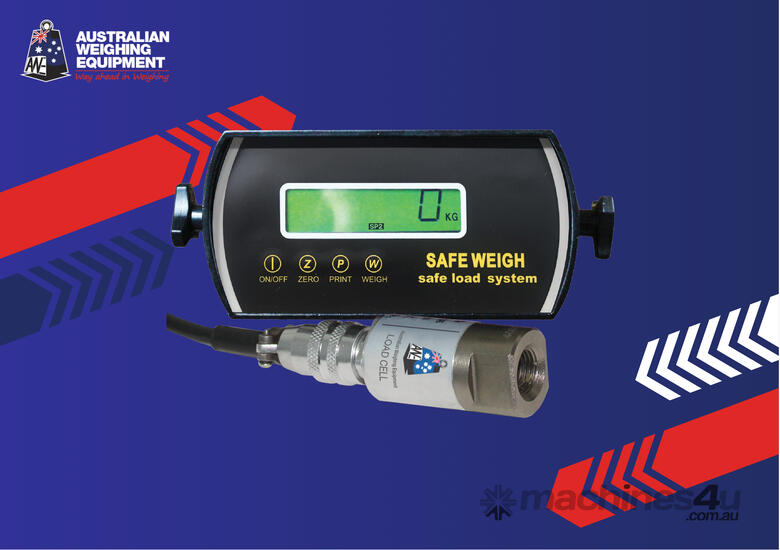

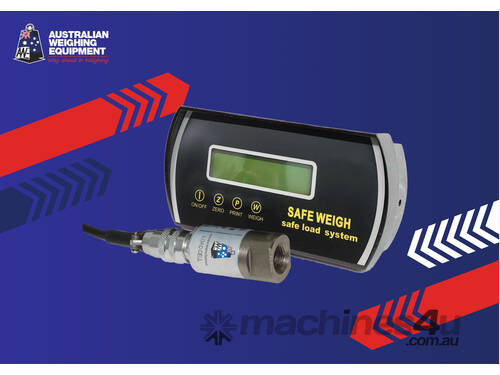

Front End Loader: Safe Weigh System

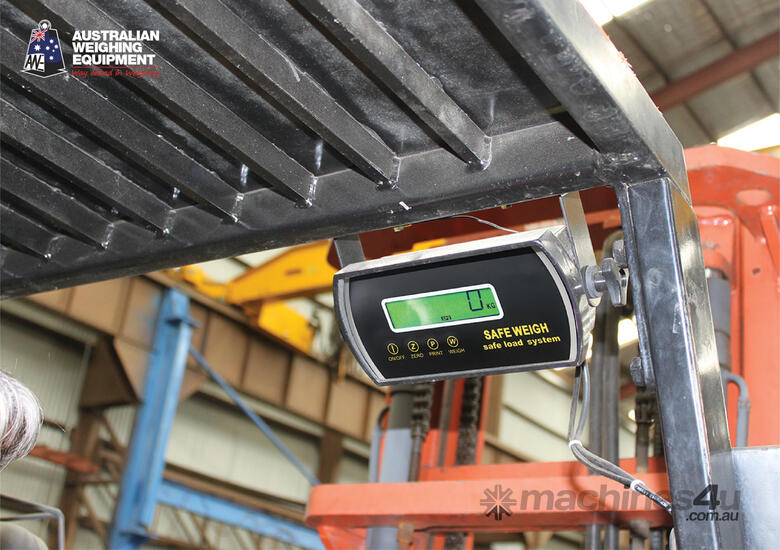

Safe Weigh System The Digital Materials Handling Weighing Scale. The low cost Digital solution L.C.D display. Quick and easy installation retro-fitable to any forklift. Typical accuracy is +/-1% of the forklift capacity. Non Expandable

The “Safe-Weigh” onboard weighing system is specially designed to handle Australian needs and conditions. It is the tough digital solution to your on-board weighing needs.

Improved safety
Low install costs
Low purchase price
Eliminate Overload Fines
Check consignment weights
Reduce under-loading trucks
Reduce trips to the weighbridge
Check incoming/outgoing goods
Eliminate machinery and racking overload

With an increasing awareness in OH&S and Safety in the work place, it has never been more important to have a method of continuously monitoring loads on your materials handling equipment.

The Safe Weigh instrument is a cost effective solution to onboard weighing when you do not require printers, alarms, totalising or other advanced features.

The measuring system and reliability of our Safe Weigh is identical to our Weightmaster series without all the bells and whistles and of course the price tag.

Accuracy +/- 1% of system capacity
10-70 volt DC
Custom Heavy-Duty Case
Maintenance-Free
Rugged electronic design
Rubber mounted bracket
No loss of lifting capacity
Easy Change-Over
Low-Cost Install
Backlit display
Australian Design & Manufactured

Type Digital with microprocessor control
Capacity Suitable for most forklifts, skidsteers & wheel loaders
Accuracy ±1% of capacity (e.g. if lift capacity is 1000kg then accuracy is ±10 kg)
Dimension (mm) 260 (W) x 140 (H) x 90 (D)
including bracket
215 (W) x 106 (H) x 90 (D)
instrument only
Resolution 1, 2, 5, 10, 20, 50, 100, 200 selectable
Temperature 0°C to 50°C operating range
Supply Voltage 10v to 70v DC
Supply Current Less than 250mA
Housing Rating Weatherproof (IP65)
Display 20mm (H) x 6 digits LCD extended temparature range
Plain message prompting
Backlight LED fibre optic
Warranty 12 months on instrument and sensors
Fitting Time Four (4) hours maximum as per other specs
Recalibration Recommended six monthly
Approvals C Tick, CE Approved
Notes Not legal for trade use. Safe-Weigh instruments are not expandable. They do not support printers, alarms & totalising
