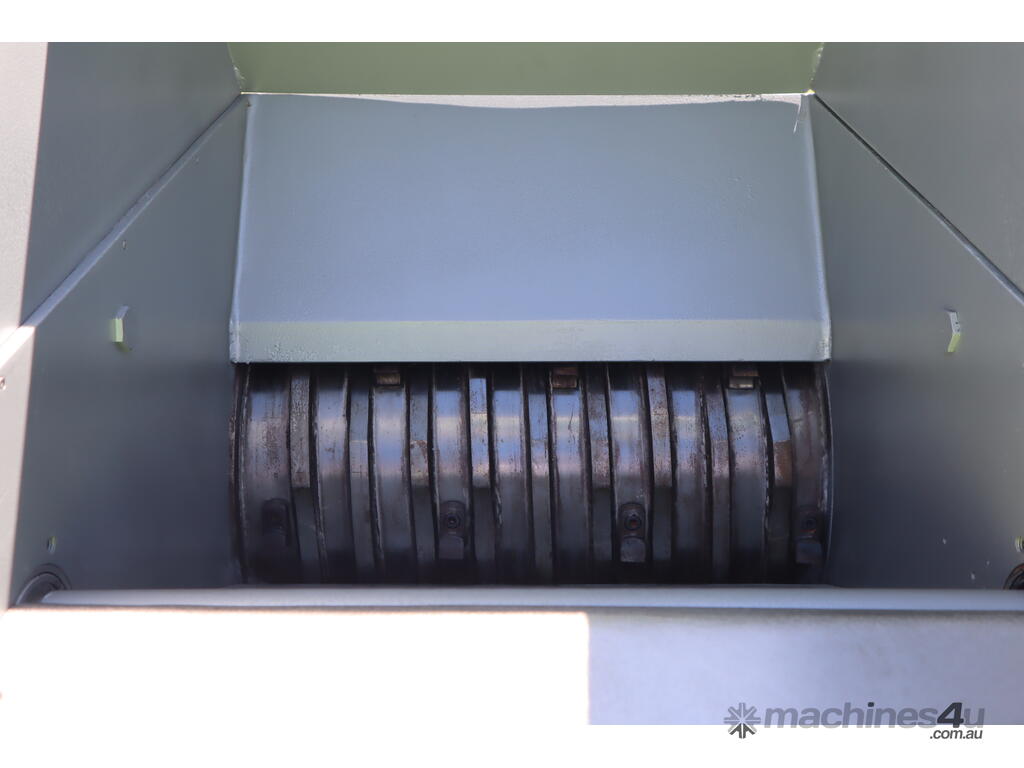

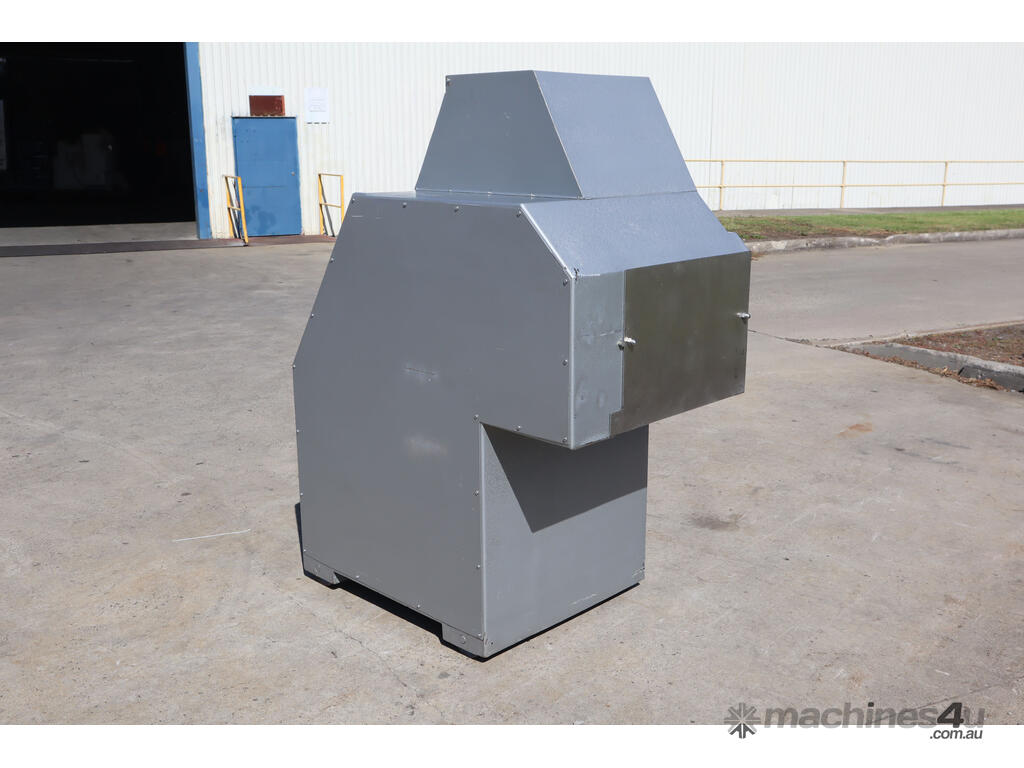

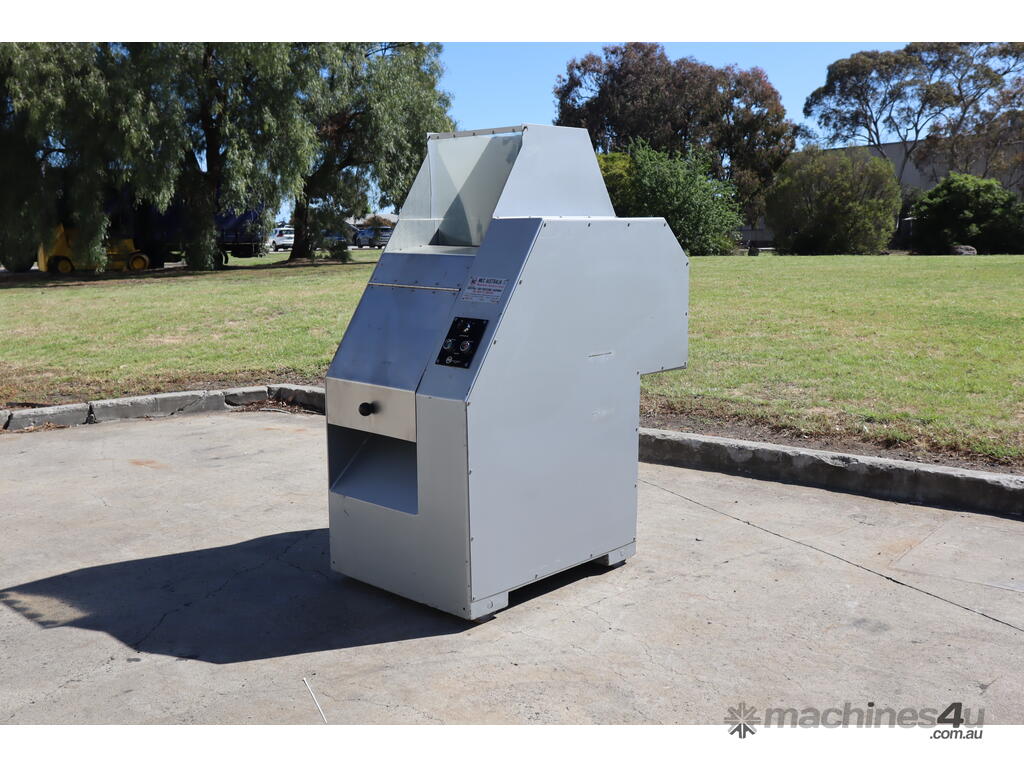

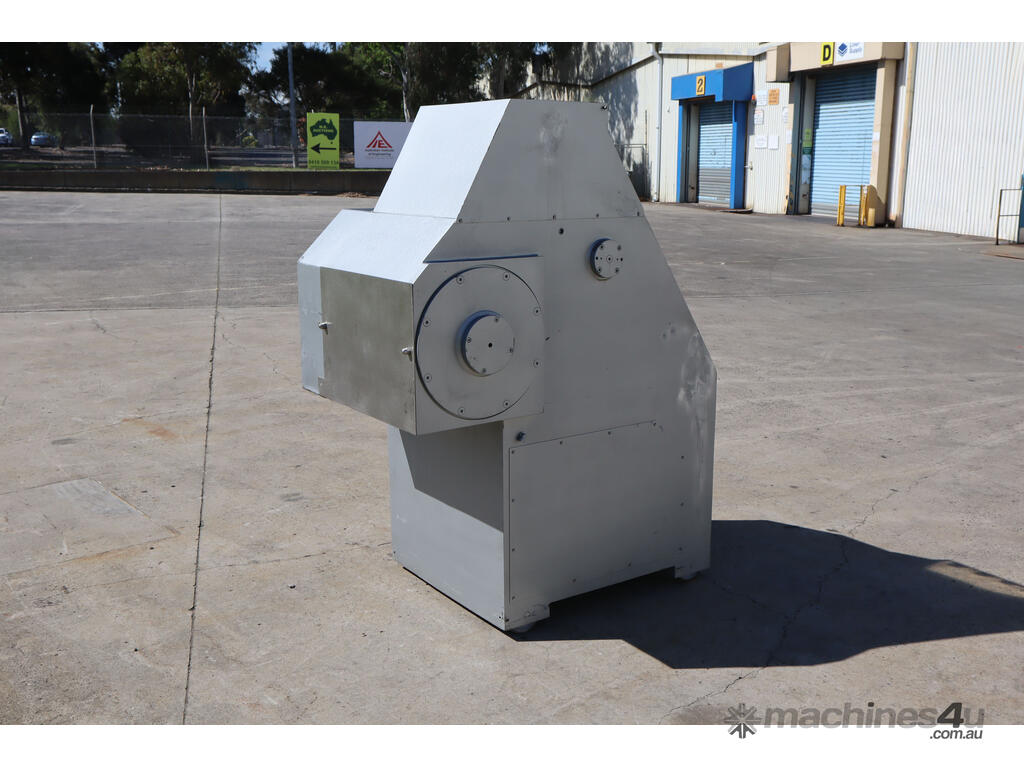

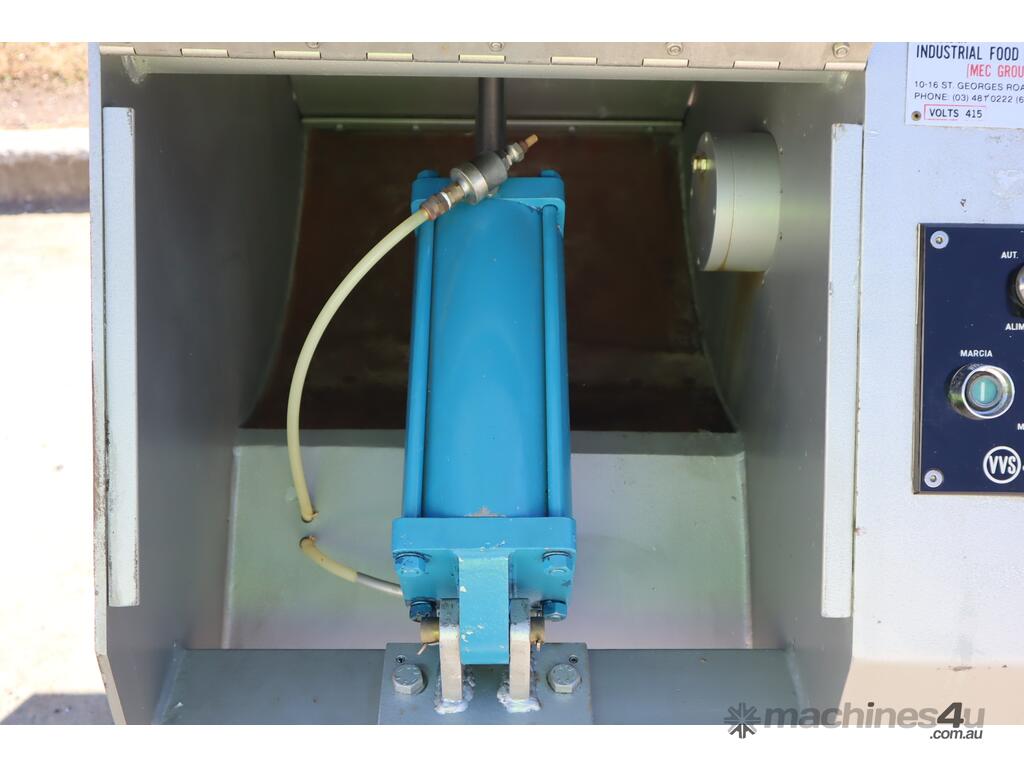

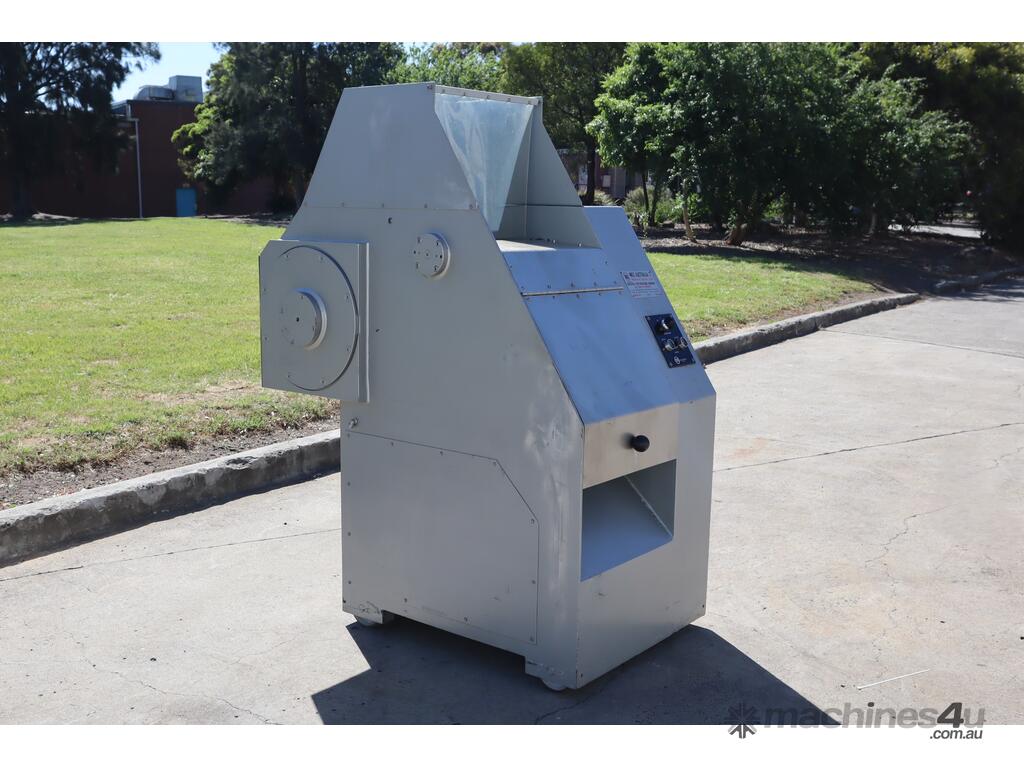

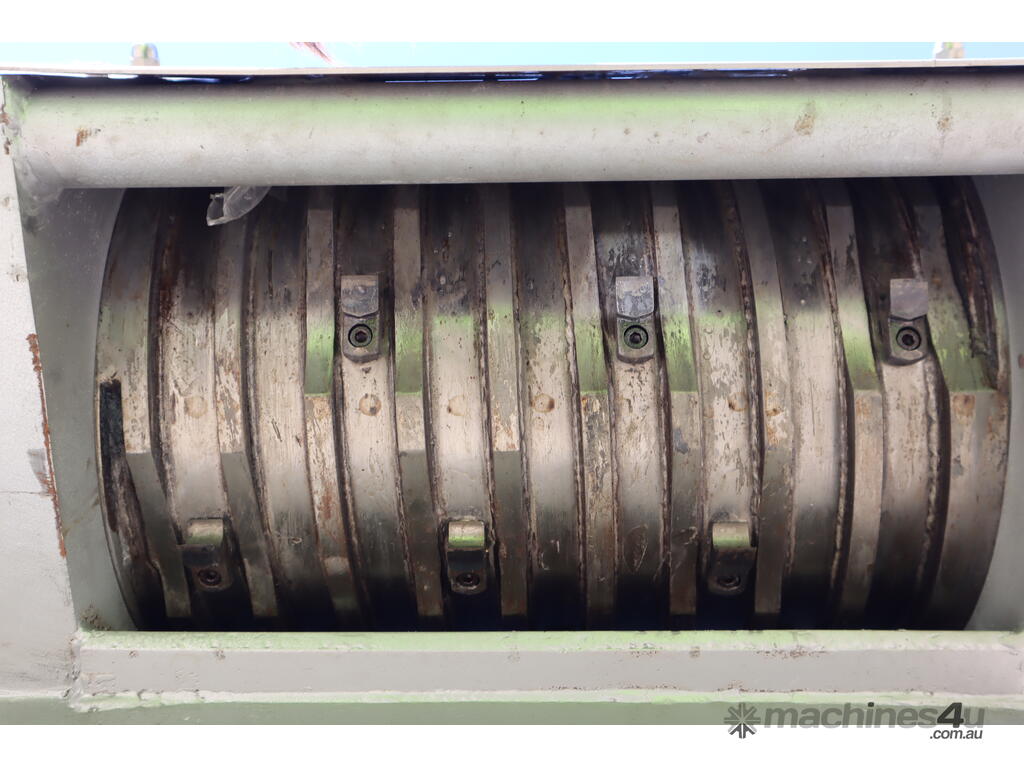

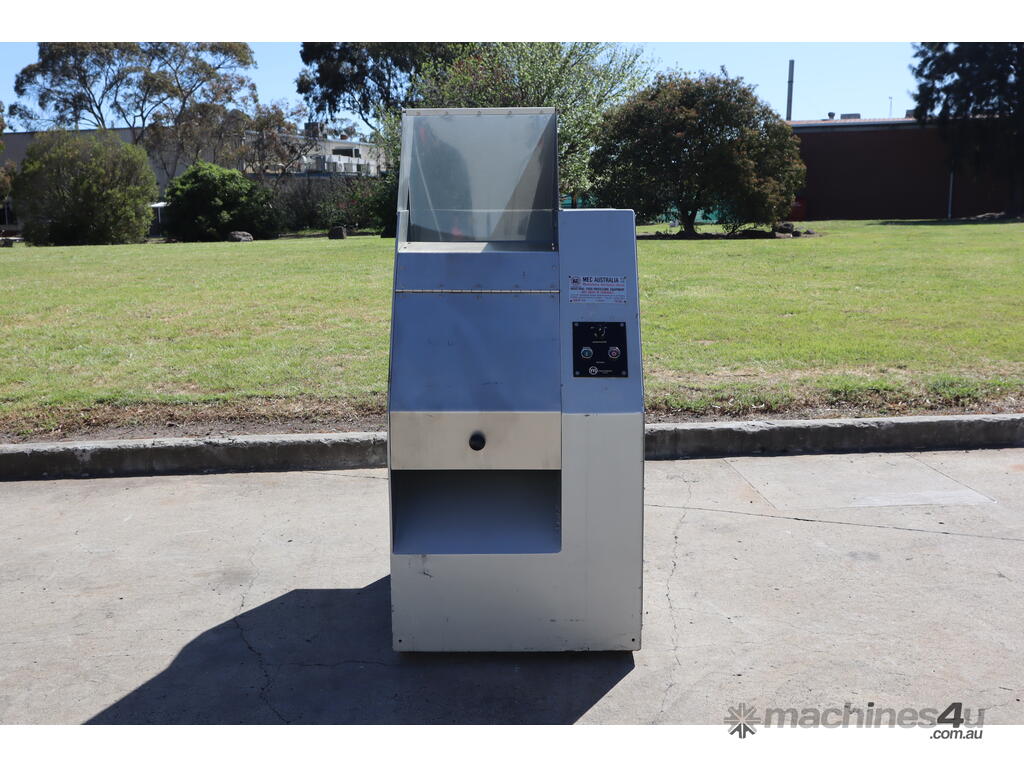

Industrial hogger designed for breaking down meats and/or other food products into manageable chunks prior to grinding, mixing, or further processing etc. The machine features a hydraulic ram and a heavy duty rotating drum. Built with a robust enclosed steel body and fitted with simple button controls.
Make: VVS Concorezzo / MEC
Output: 3000 kg/hr approx.
Flakes 25-30mm
Rotor length (mm): 500
Rotor diameter (mm): 350 approx
Cutting Teeth thickness (mm): 15
Cutting Teeth height/flights (mm): 20
Feeder opening - top (mm): 500 x 360
Feeder height - top (mm): 1675
Feeder opening - front (mm): 500 W x 430 H
Feeder height - front (mm): 1230
Discharge (mm): 500 x 250
Discharge height (mm): 735
Power Requirements: 415V 3 Phase
Overall Dimensions (mm): 1250 L x 800 W x 1675 H
