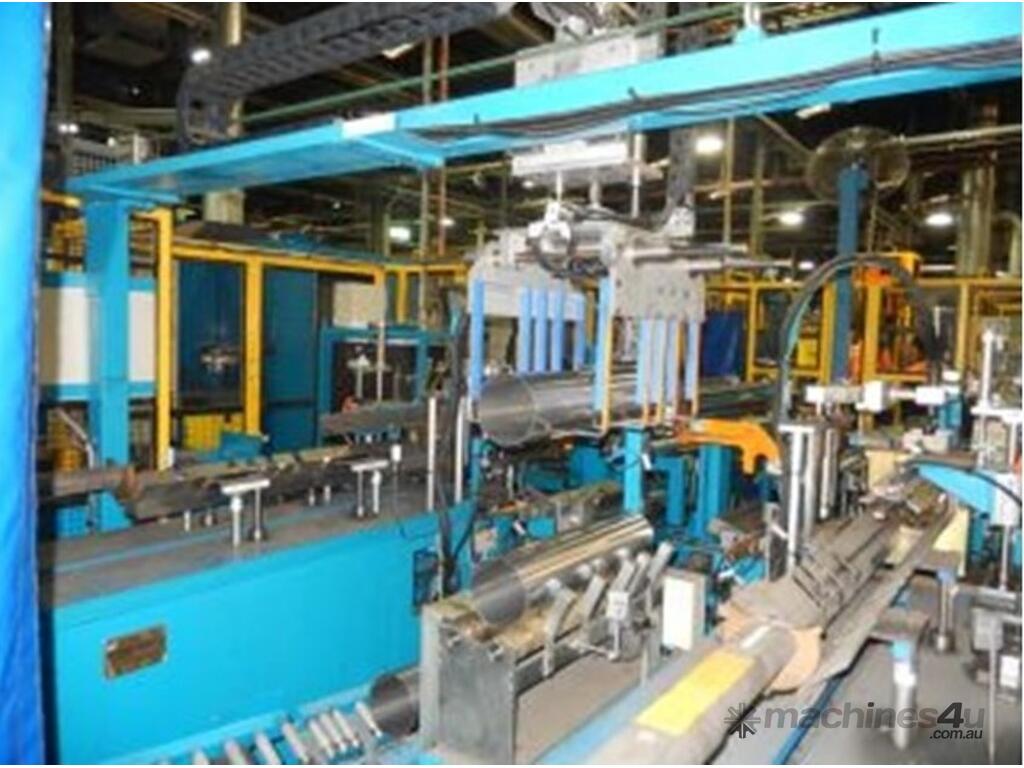

Fuji Muffler Exhaust Metal Forming Plasma Weld Line De-Stacker Multi Roll Bending Shrinking Trim

Fuji Muffler Exhaust Metal Forming Plasma Weld Line De-Stacker Multi Roll Bending Shrinking Trim for making muffler casing.... ex Monroe.

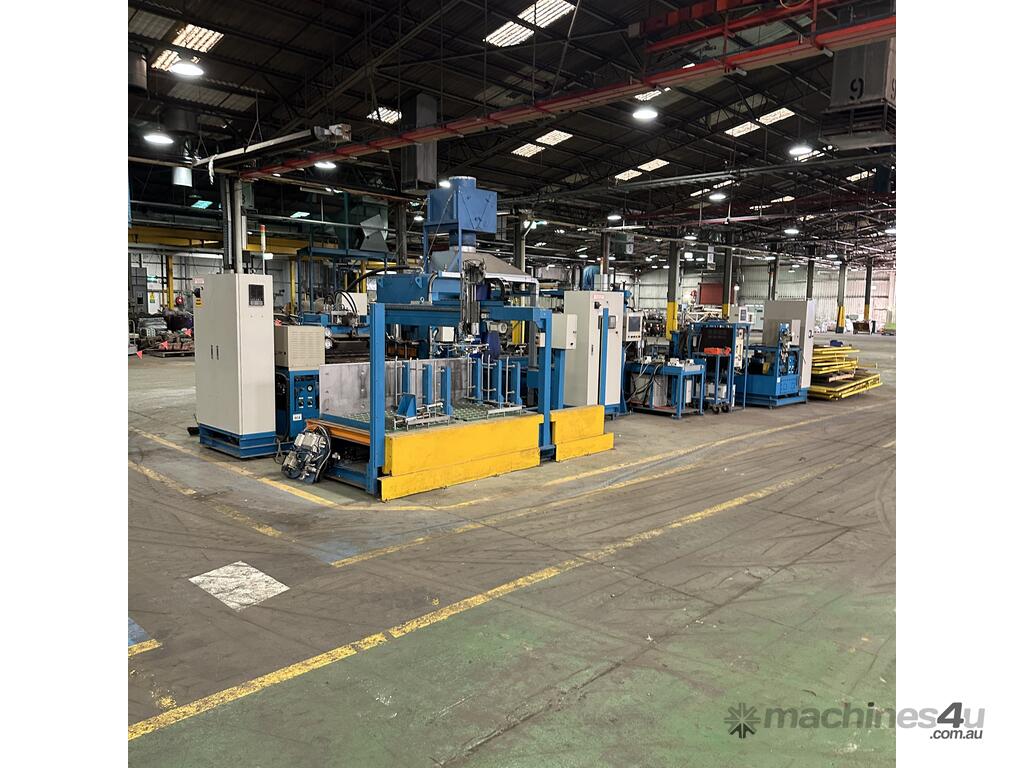

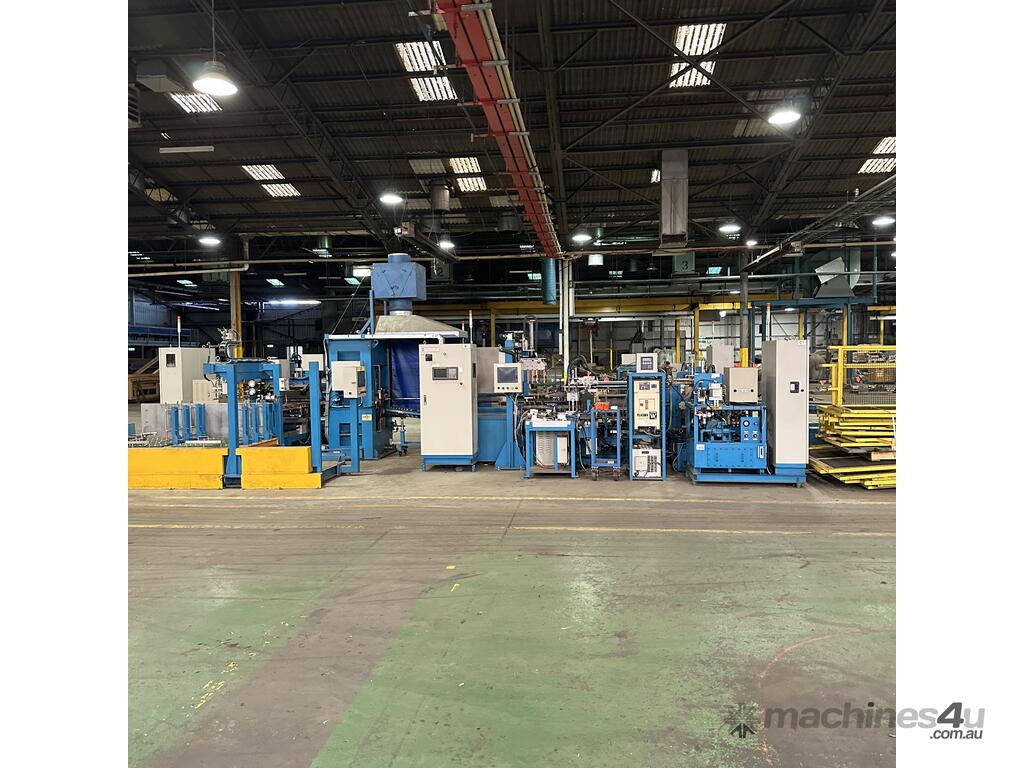

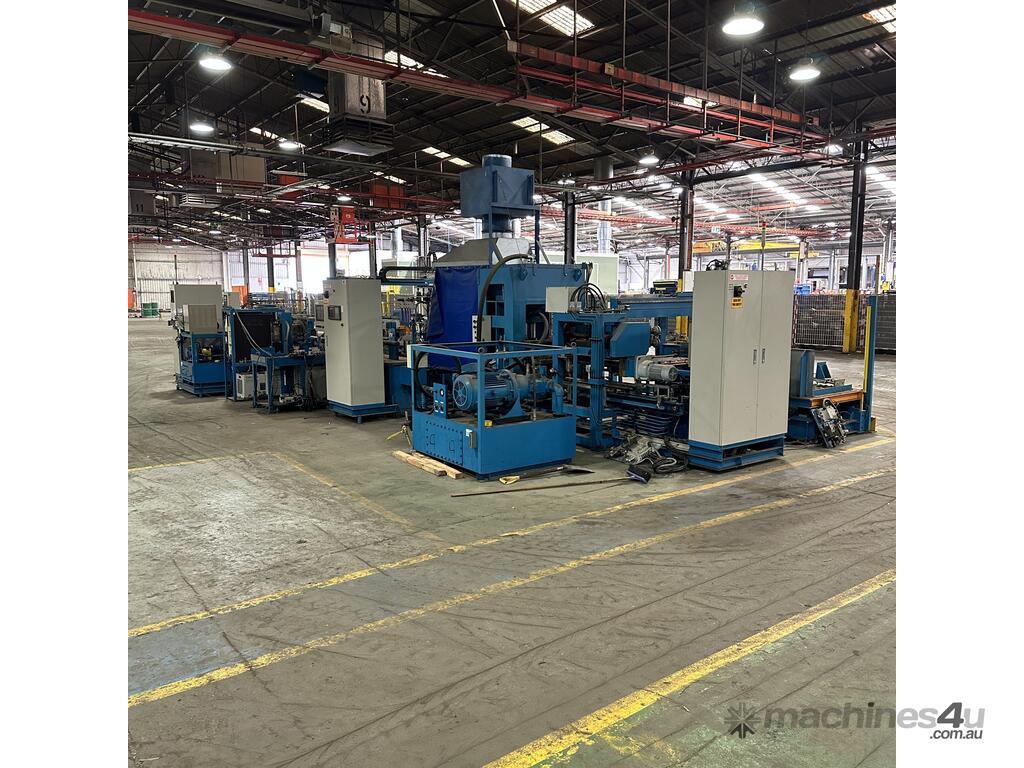

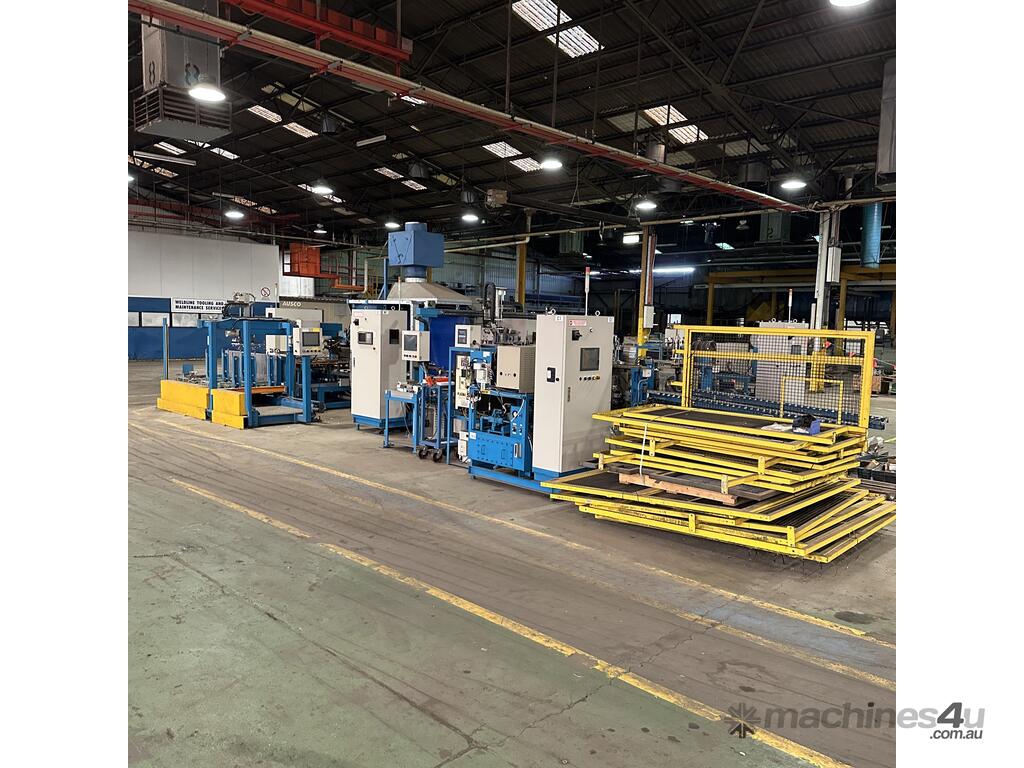

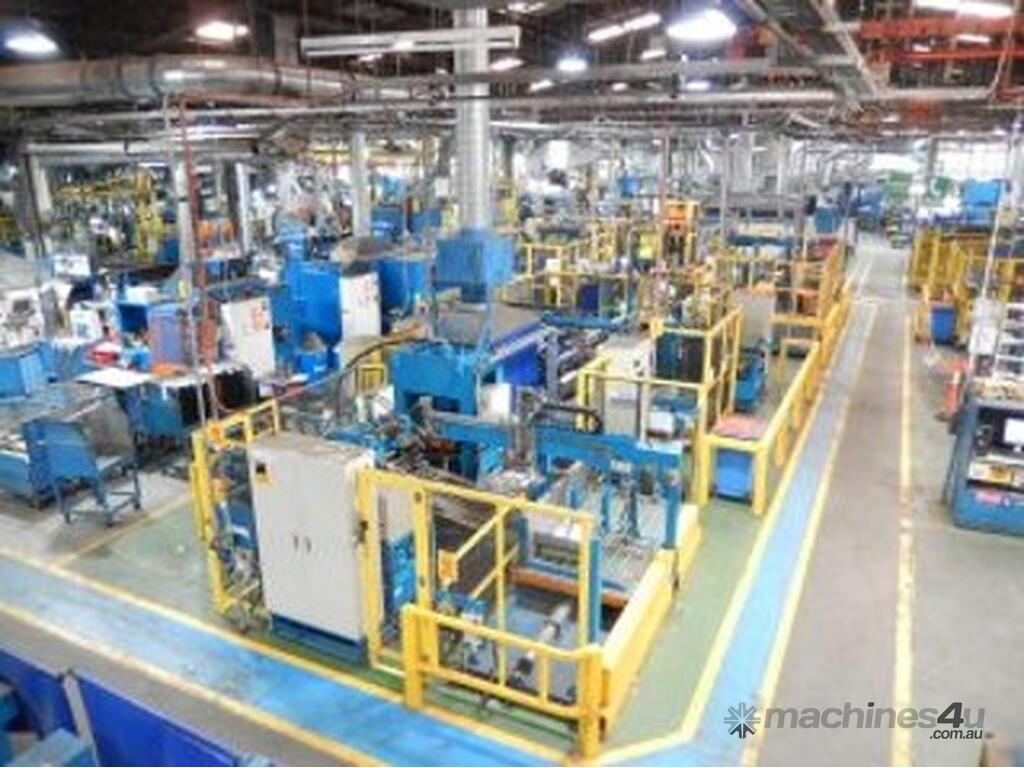

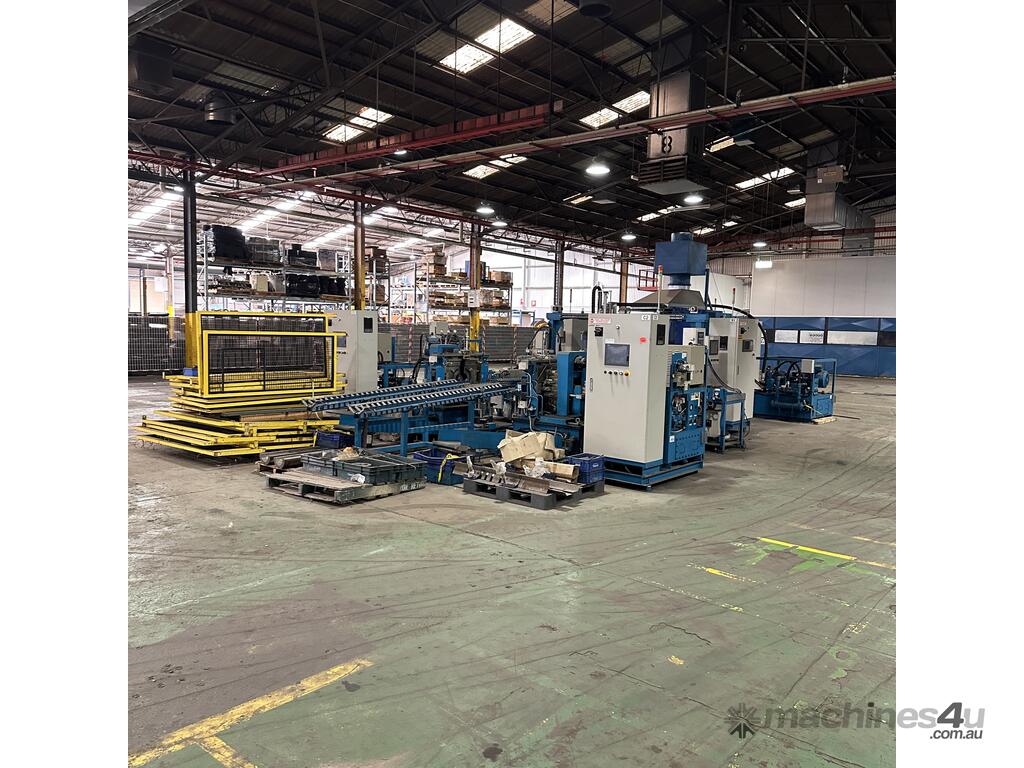

This is a complete system, the listing is for the entire system.

Comprising of:

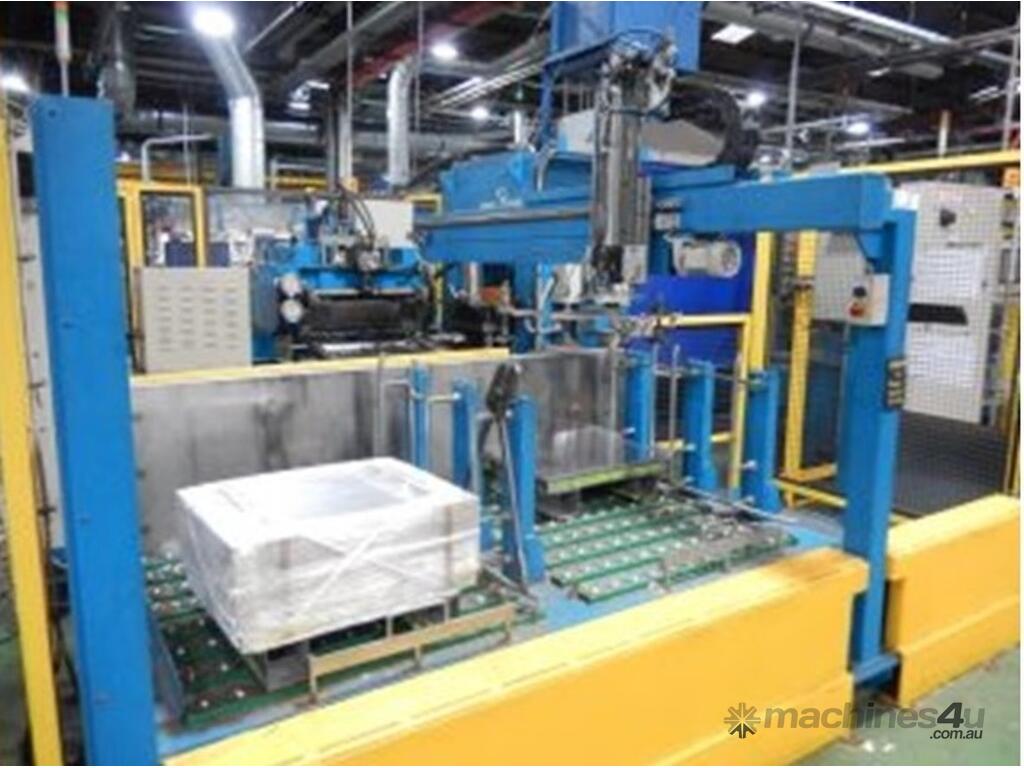

De-Stacker / Loader

CNC Pick and Place Machine, Fuji, Model: 2008.06 842LRS, Year: 2008, Pneumatic unloading station, twin stack, approx. 2000mm x 1050mm capacity,

with optical gaurding Snhineider Electric Magellis Compact PC Touch Screen Control.

• Automatic two loading station system allows for continuous operation of line

• Versatile design allows for almost all blank sizes, material and shapes

-------------------------------

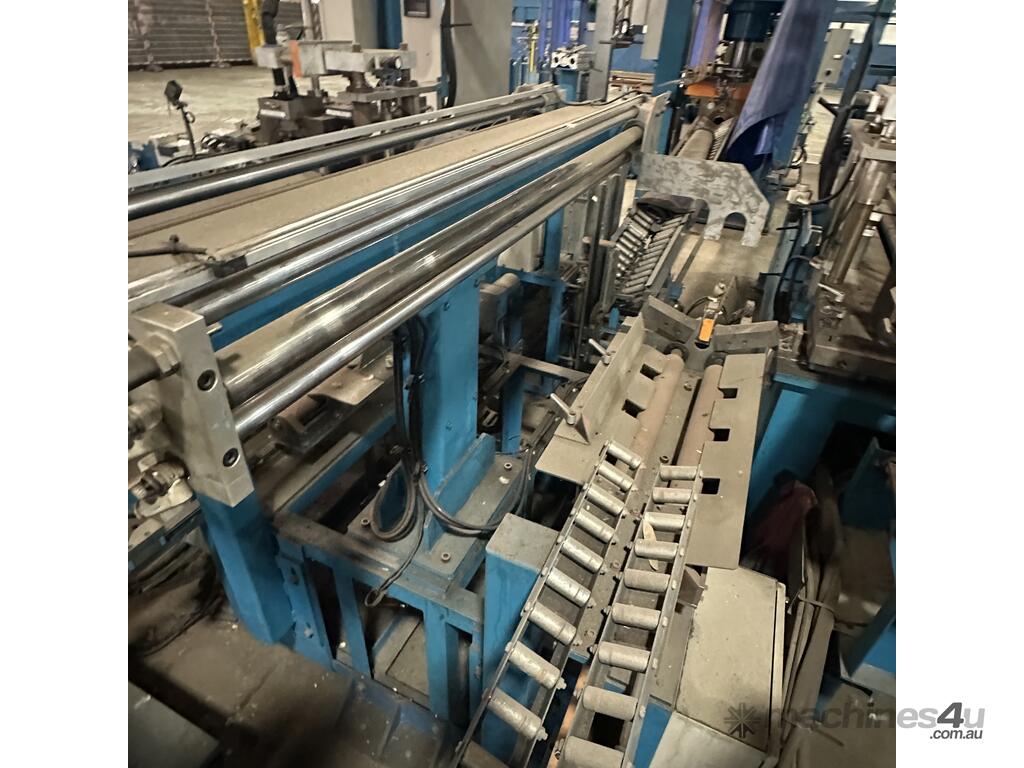

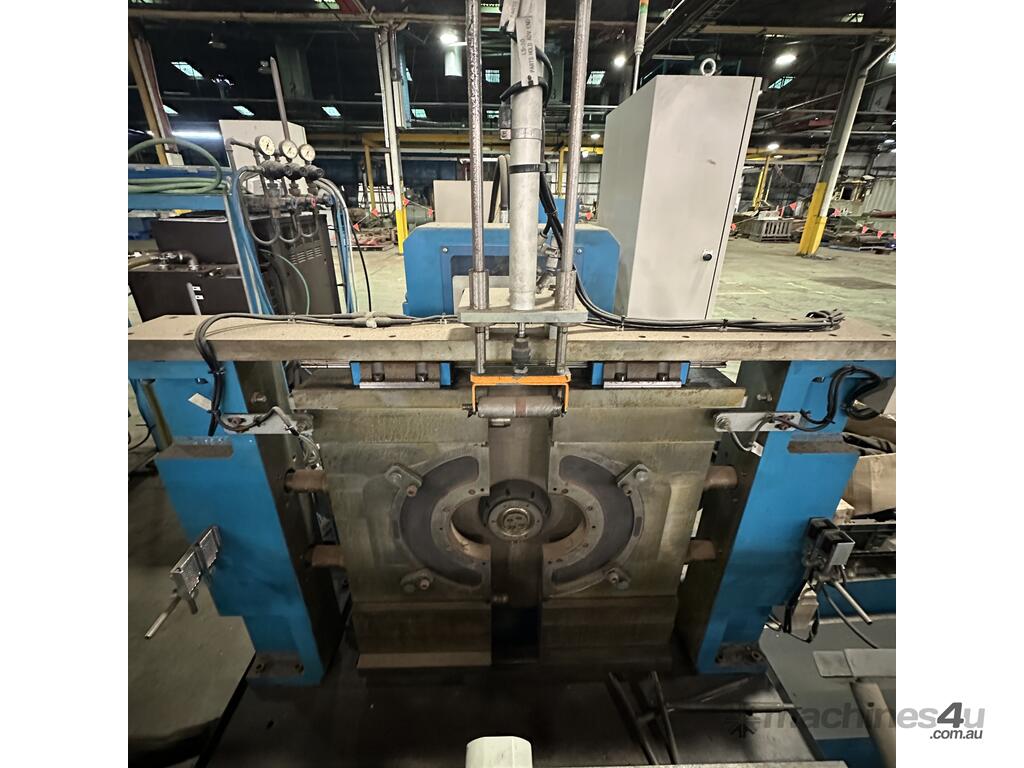

Multi Roll Bending Machine

CNC Shell Rolling Machine, Fuji, Model: 2008.06 842LRS , Year: 2008, approx 600mm sheet capacity, PLC controller.

• No straight edges Unique Patented Roll Configuration allows for near perfect roundness

• Length, thickness, and diameter dimensions can easily be configured

• Work finishes in easy to remove position, with joint to be welded facing up, to minimize production time

• Diameter setting can be changed in 15 seconds

---------------------------------------

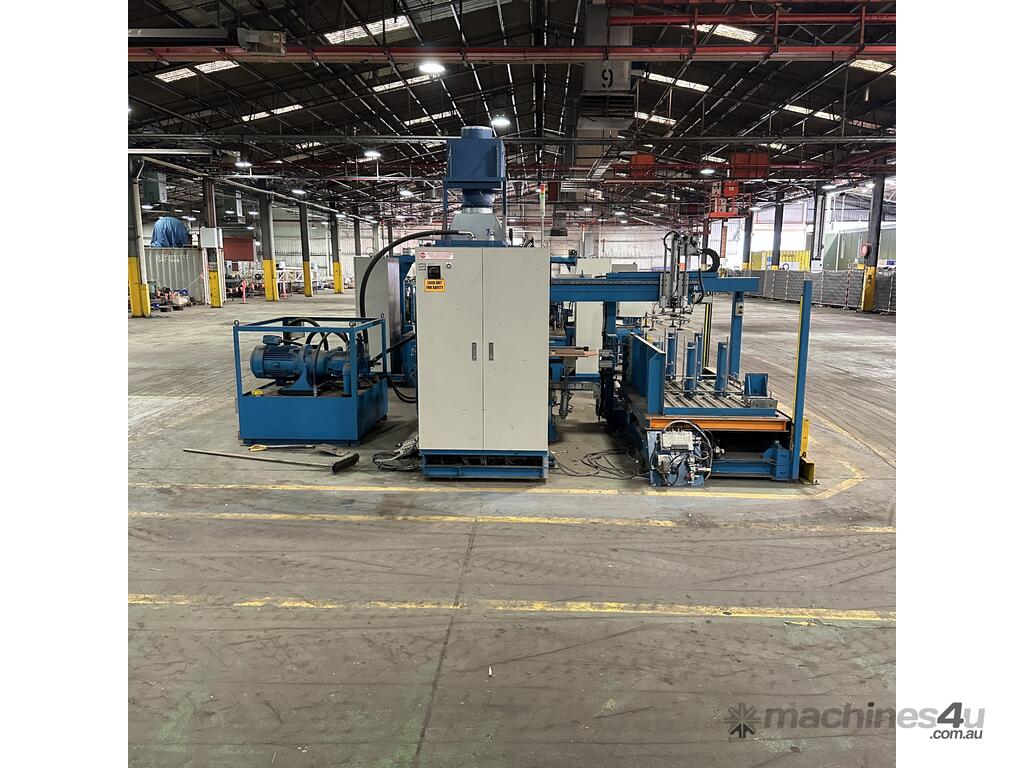

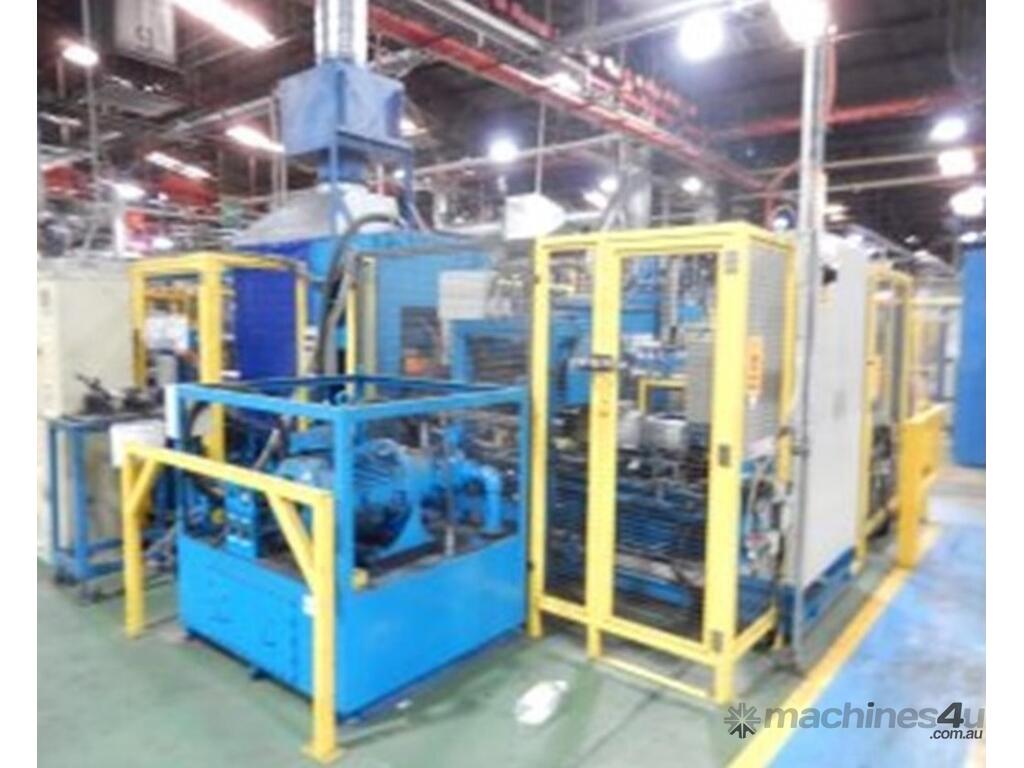

Shrinking Machine
CNC Shell Shrink Press, Fuji, Model: 2008.06 842LRS, Year: 2008, Serial Number: 842LRS, With Mahi decline roller conveyor, PLC control

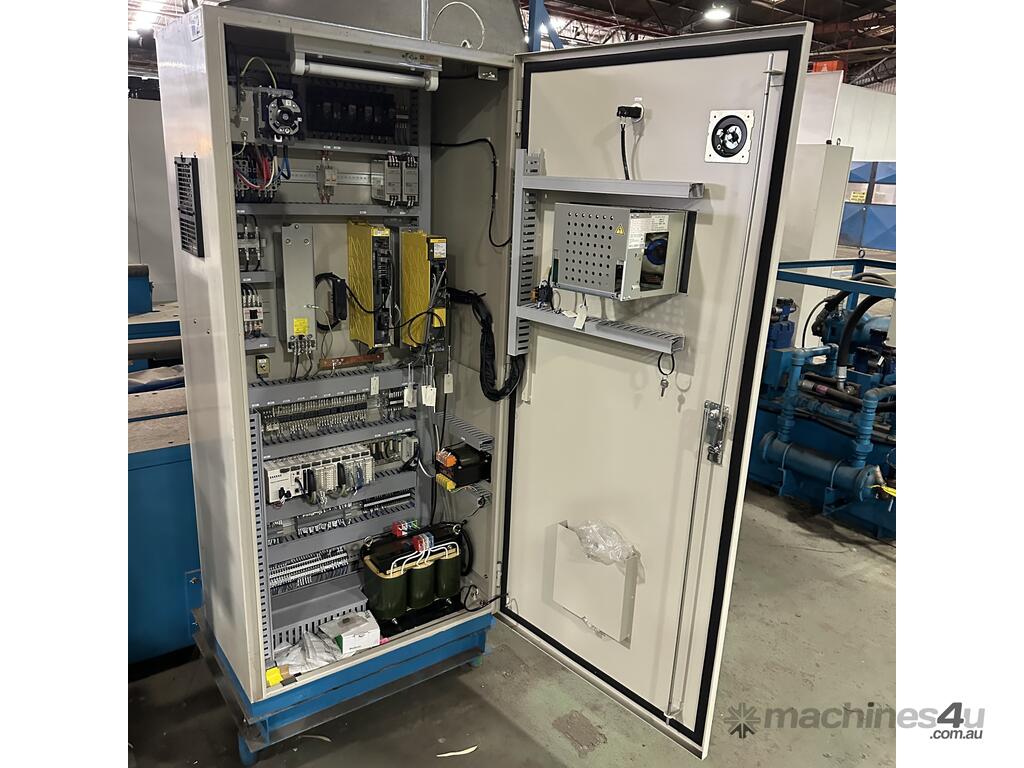

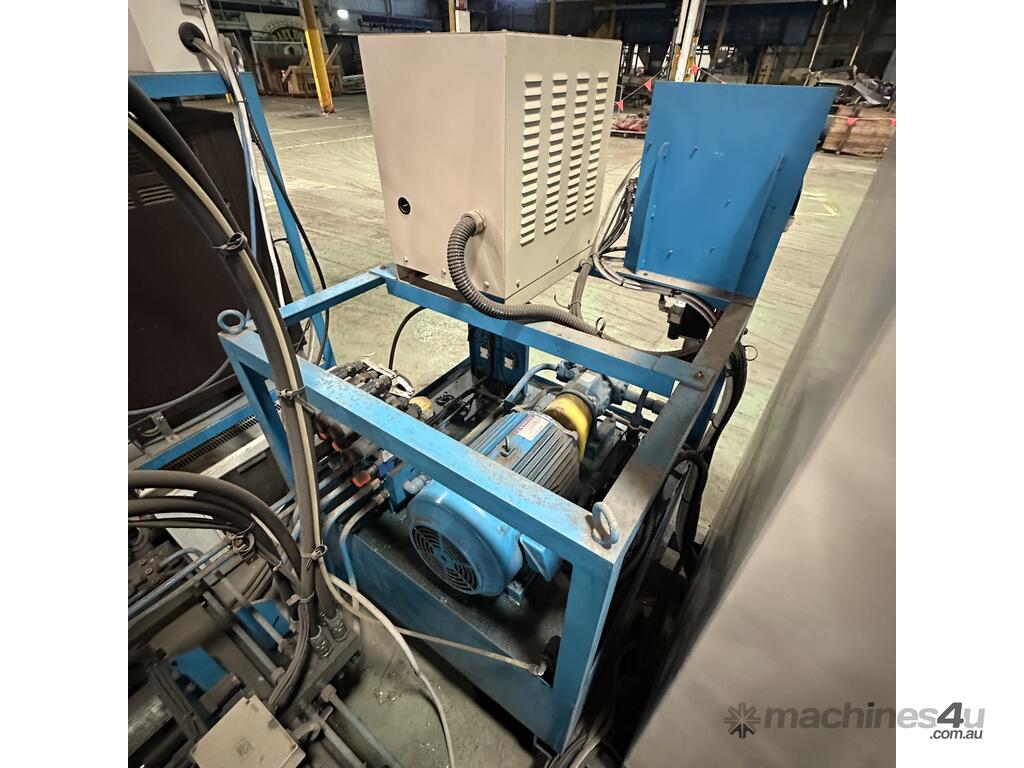

with Fanuc Powermate control, Schnieder Electric Magellis Compact PC touch screen controller, Hydraulic Powerpack (approx 15-20HP motor)
and tank approx 1350x1200x440mm..
• Promotes a high level of stability and strength in seams, greatly reducing the number of defects later in the production process
• Achieves high degree of precision in circumference

------------------------------------------------

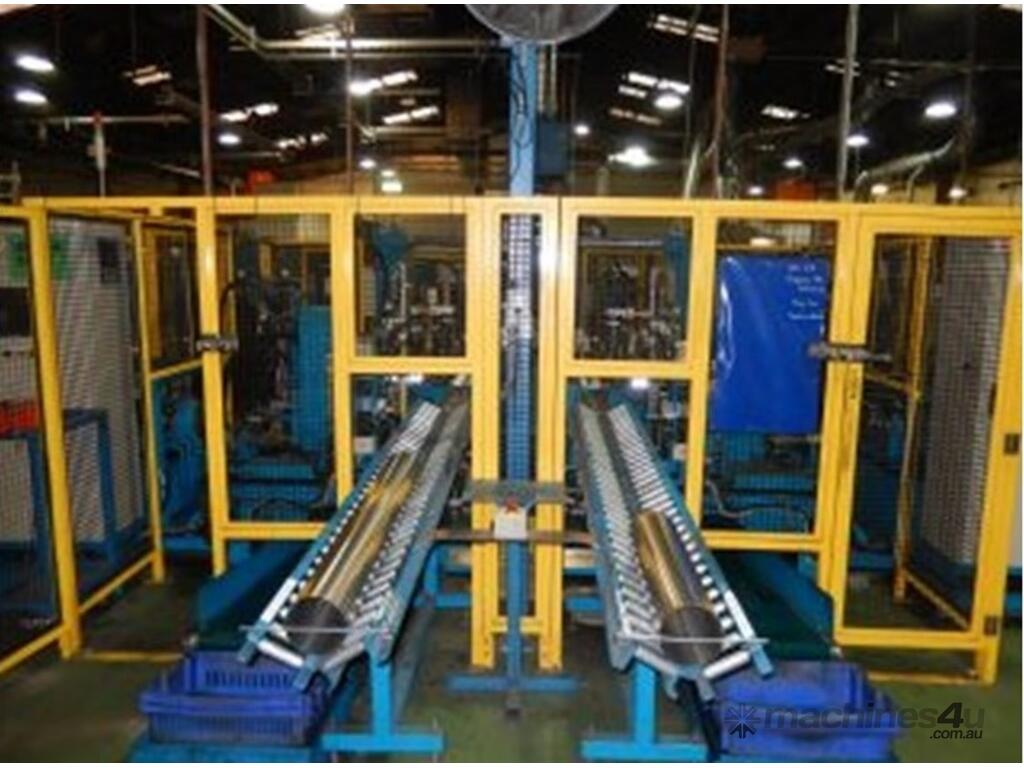

2 Welding Machines

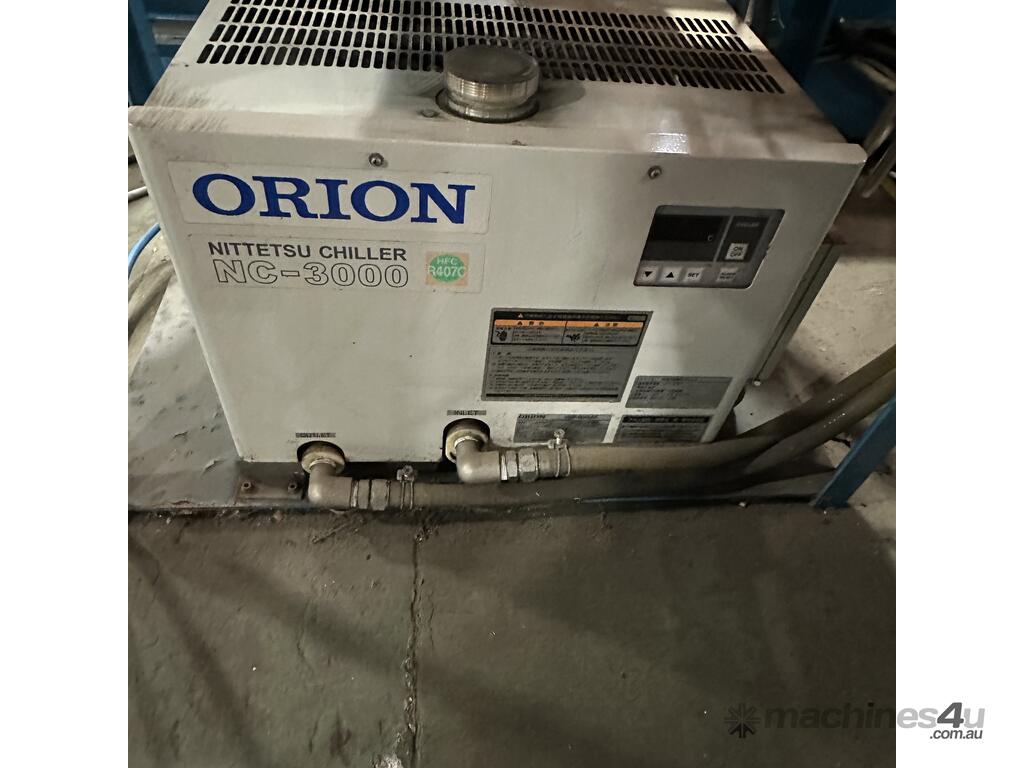

CNC Shell Welding Machine, Fuji, Model: 2008.06 842W1, Year: 2008, Serial No: 842W1, Nippon Plasma 350AH-III Inverter Welder, Orion Nc3000
Air Chiller mounted in steel frame with Digital controller, with loading and off loading station, pneumatic controlled height roller conveyor.

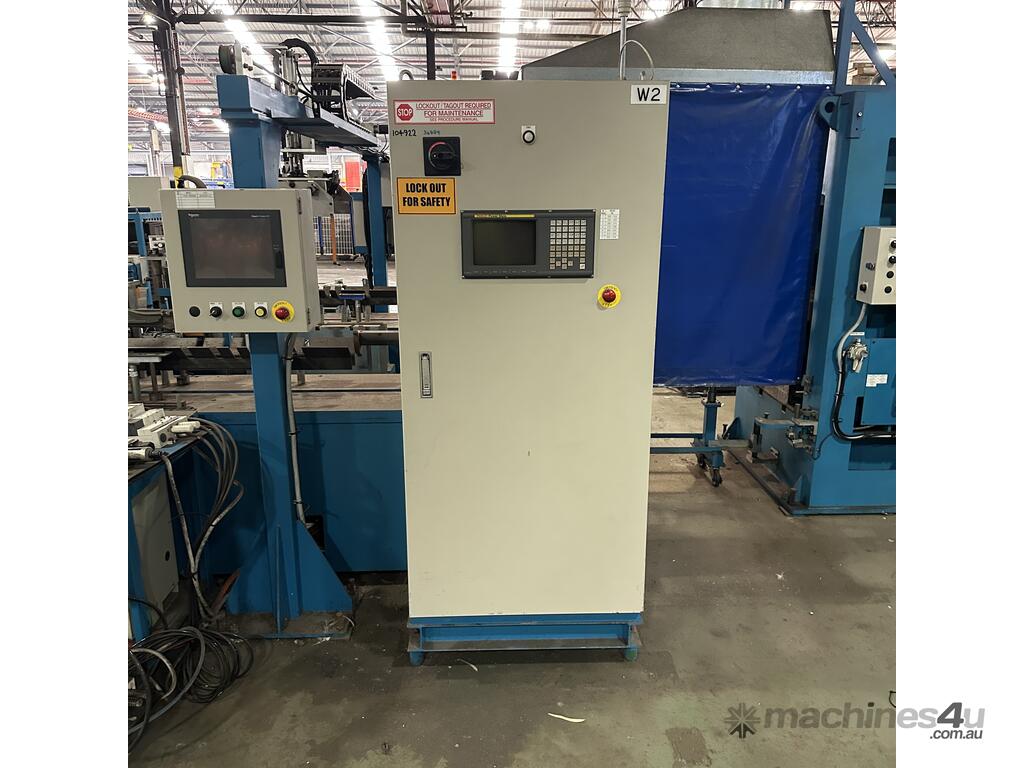

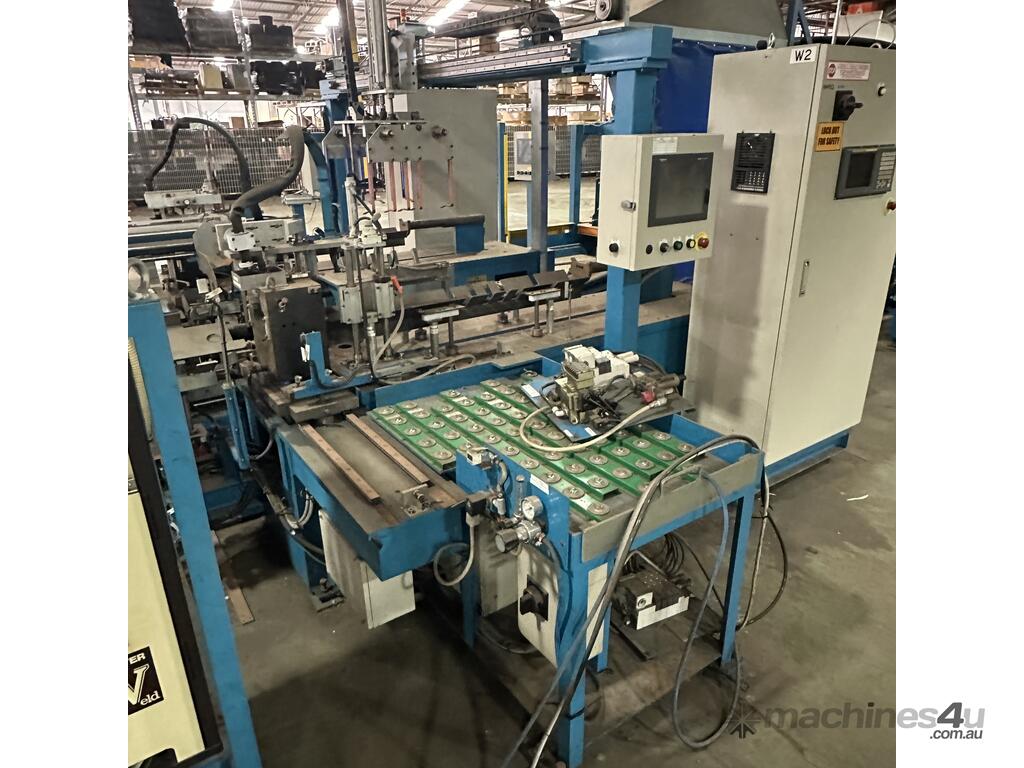

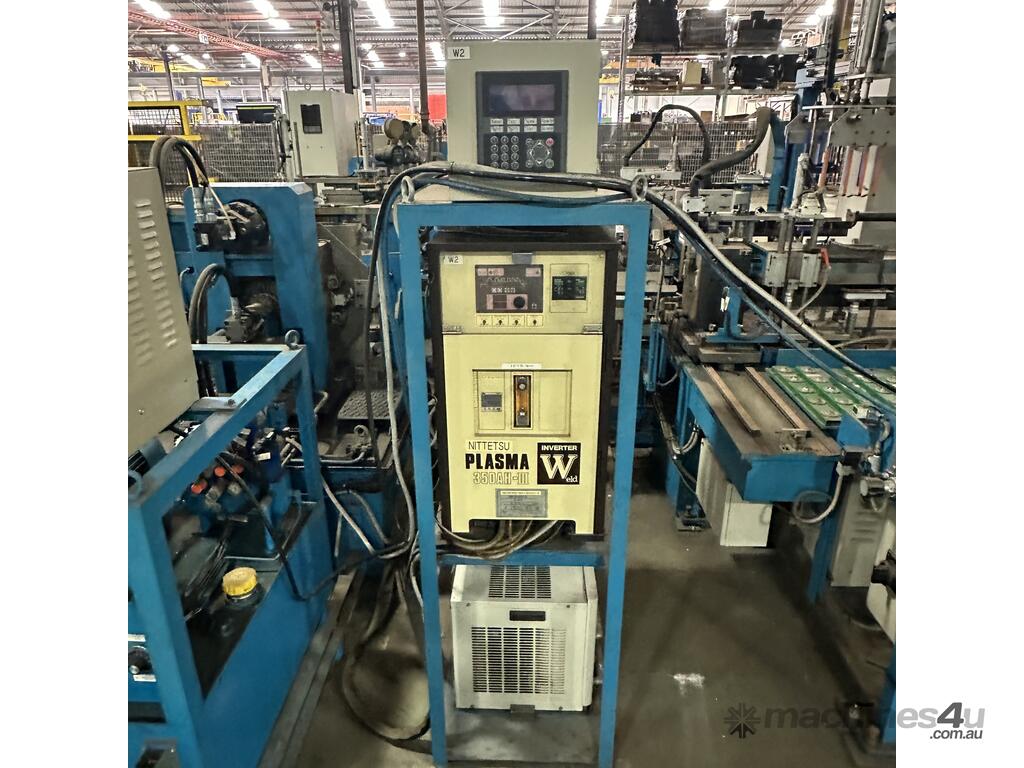

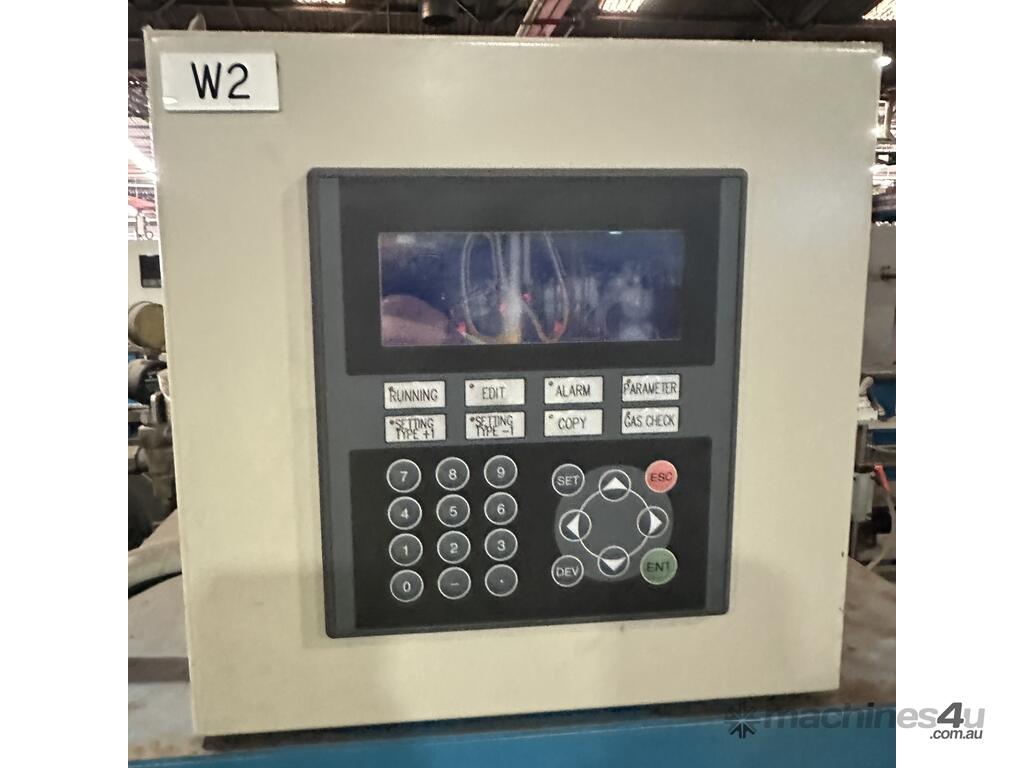

CNC Shell Welding Machine, Fuji, Model: 2008.06 842W2, Year: 2008, Serial No: 842W2, Nippon Plasma 350AH-III Inverter Welder, Orion Nc3000
Air Chiller mounted in steel frame with Digital controller, with loading and off loading station, pneumatic controlled height roller conveyor.
• The "Tunnel Welding System" strongly secures the work in place as it passes through a stationary torch in the "tunnel", creating strong, perfectly
straight welds every time that won't crack or mark.
• Patented design automatically maintains alignment and prevents slippage drastically reducing defects compared to traditional seamwelders
• Plasma welding equipment with power source
• Incorporated into lines work-piece enters and exits on one path
• CNC Controls regulate the speed of the work for higher productivity without sacrificing performance

------------------------------------------------------------------

2 Trimming Machines

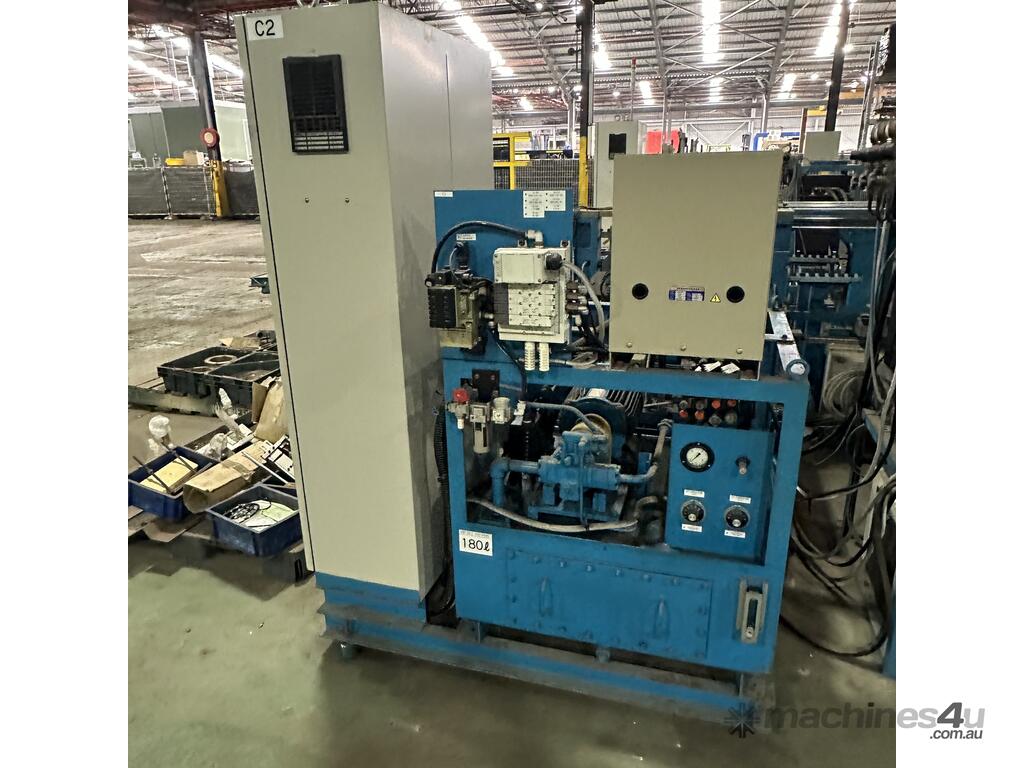

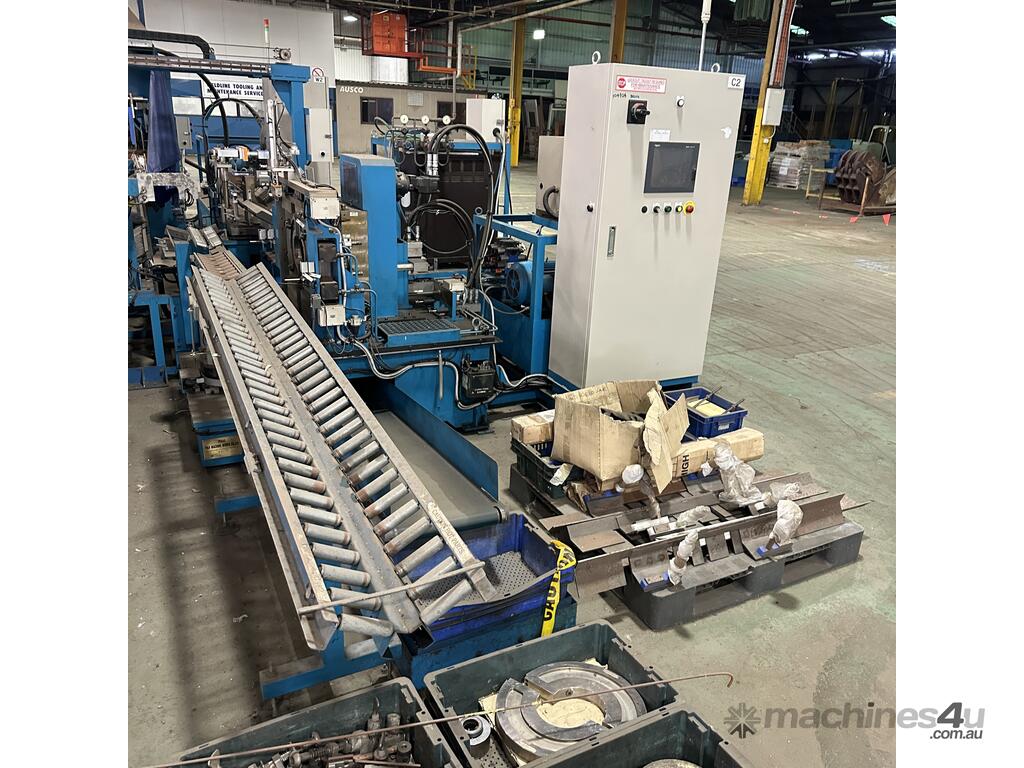

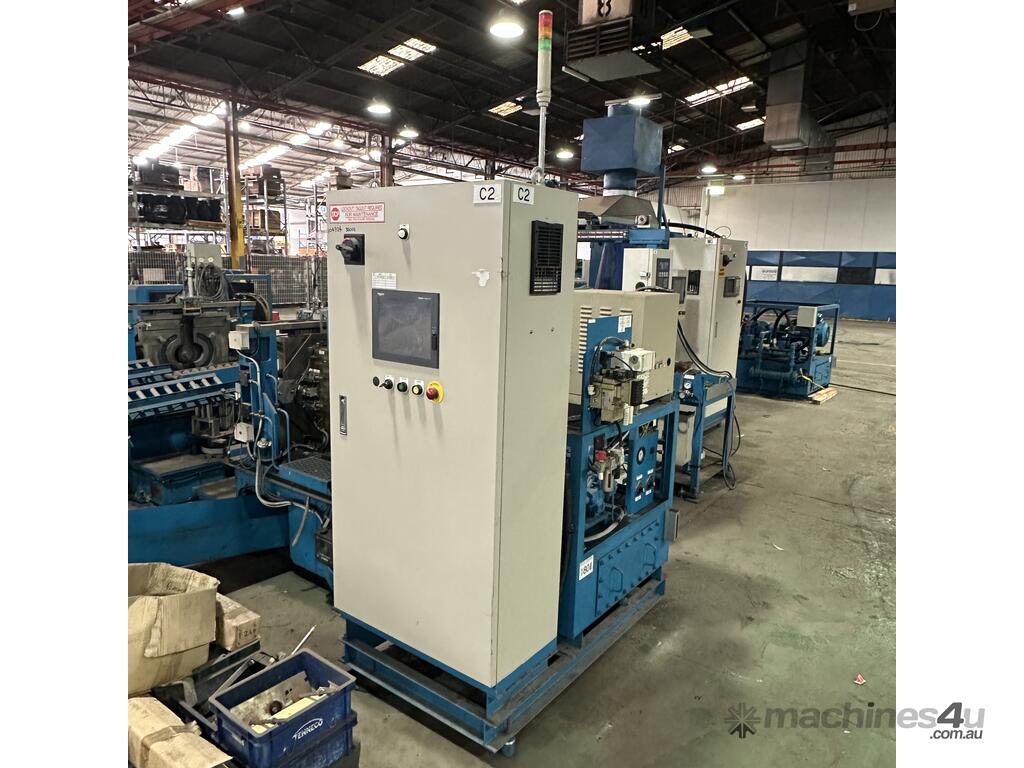

CNC Rotary Shell Cutting Machine, Fuji, Model: 2008.06 842C1, Year: 2008, Serial No: 842C1, Hydraulically powered rotary cutter, with pnuematic

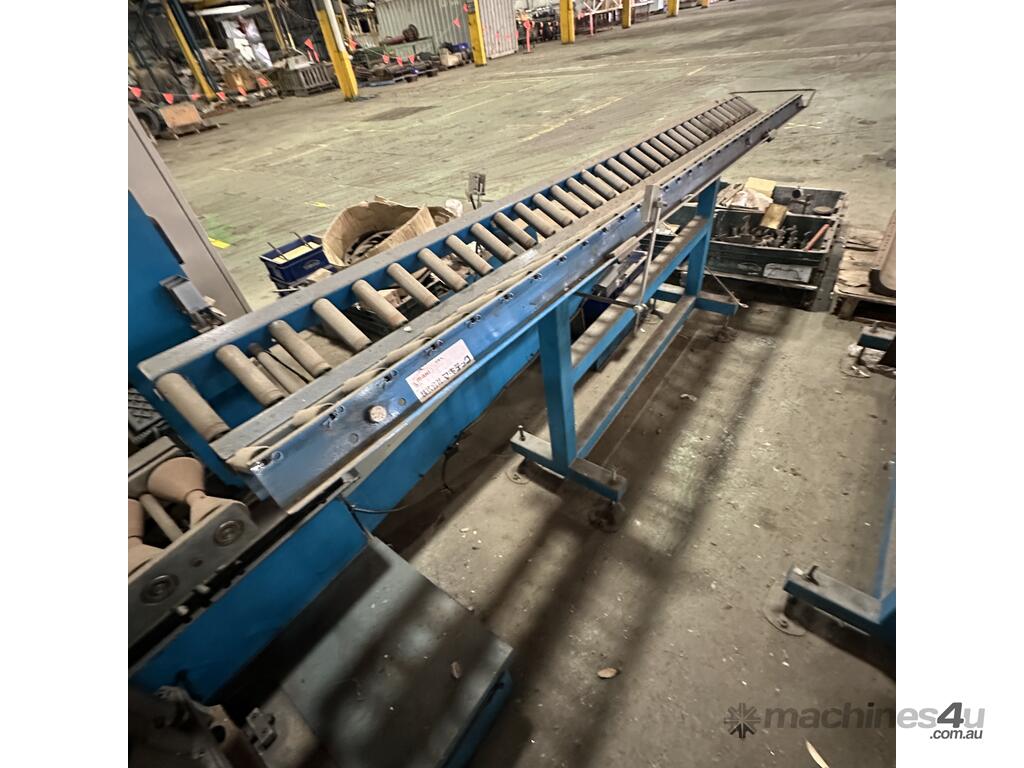

rotating roller conveyor, bottom mount powered rubber waste conveyor (approx 230mm long), gravity outfeed roller (approx 2500mm long).
CNC Rotary Shell Cutting Machine, Fuji, Model: 2008.06 842C2, Year: 2008, Serial No: 842C2, Hydraulically powered rotary cutter, with pnuematic
rotating roller conveyor, bottom mount powered rubber waste conveyor (approx 230mm long), gravity outfeed roller (approx 2500mm long).
• Using NC Controls trims to the most precise measurements every time

-----------------------------------------------------------

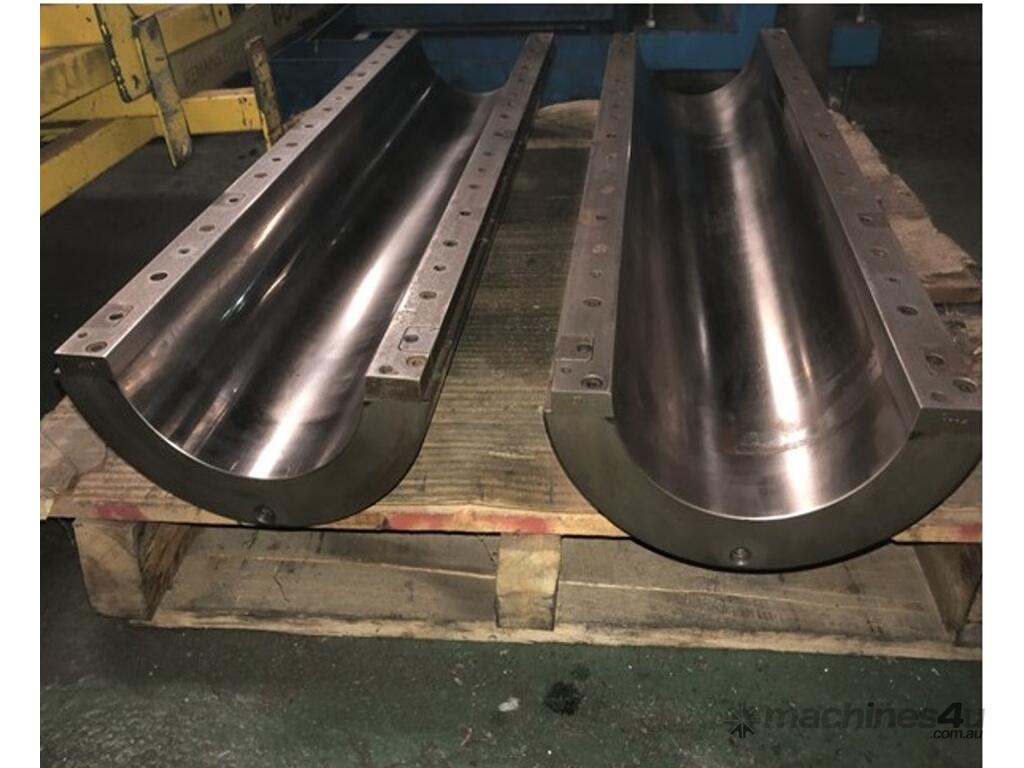

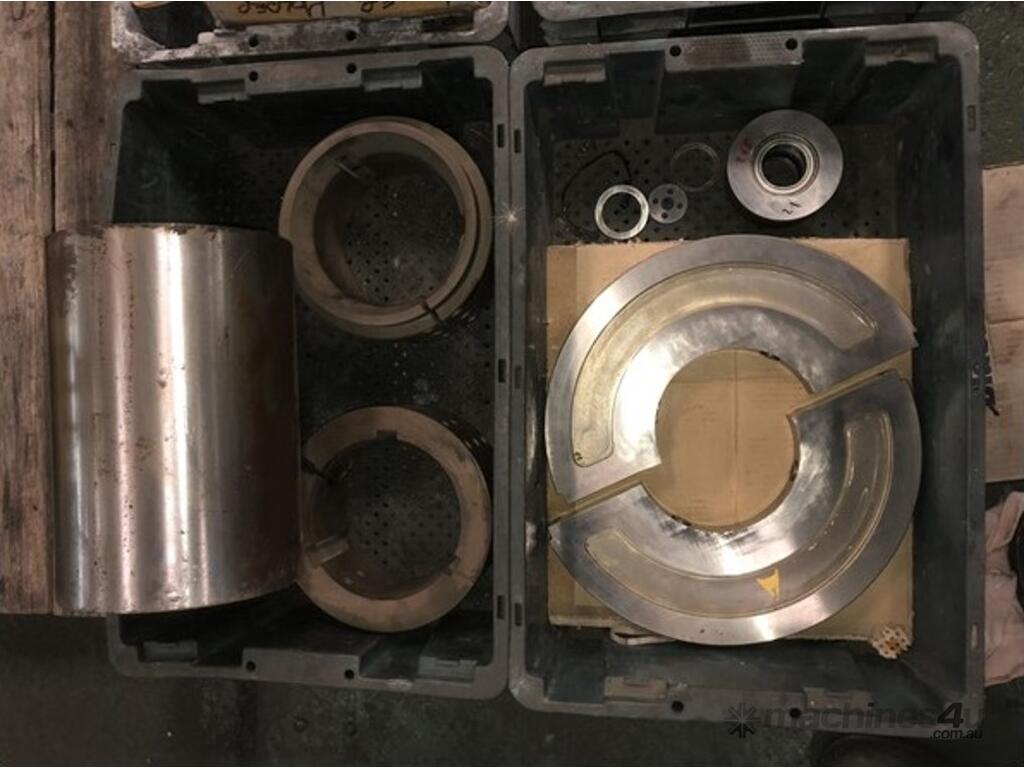

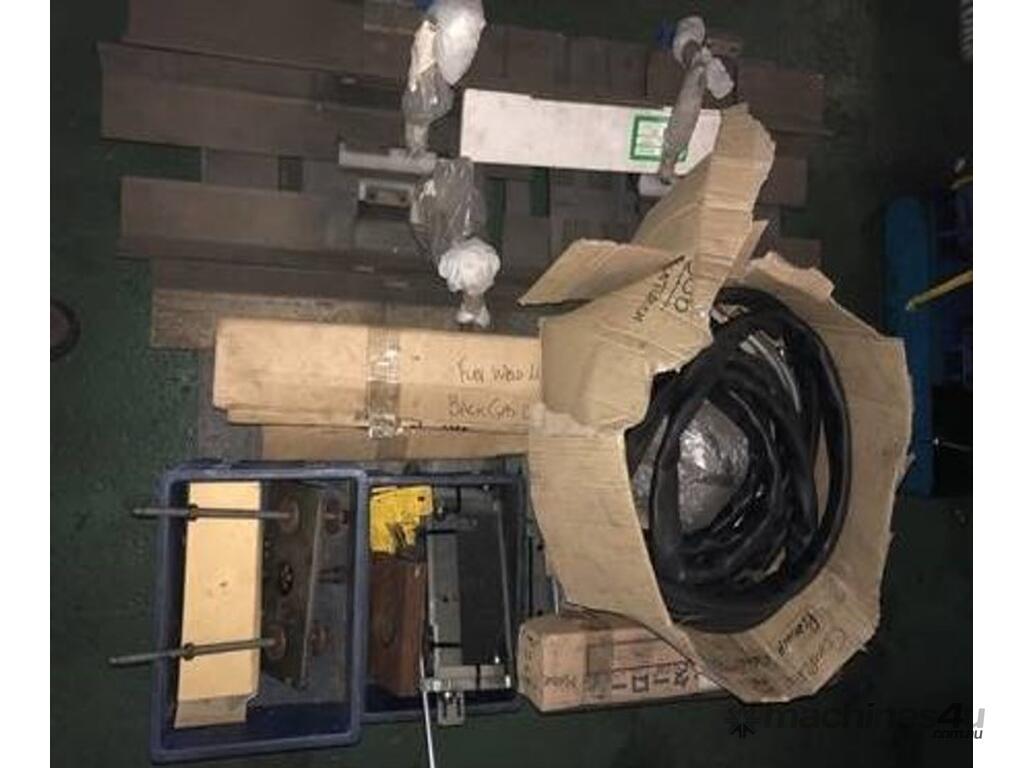

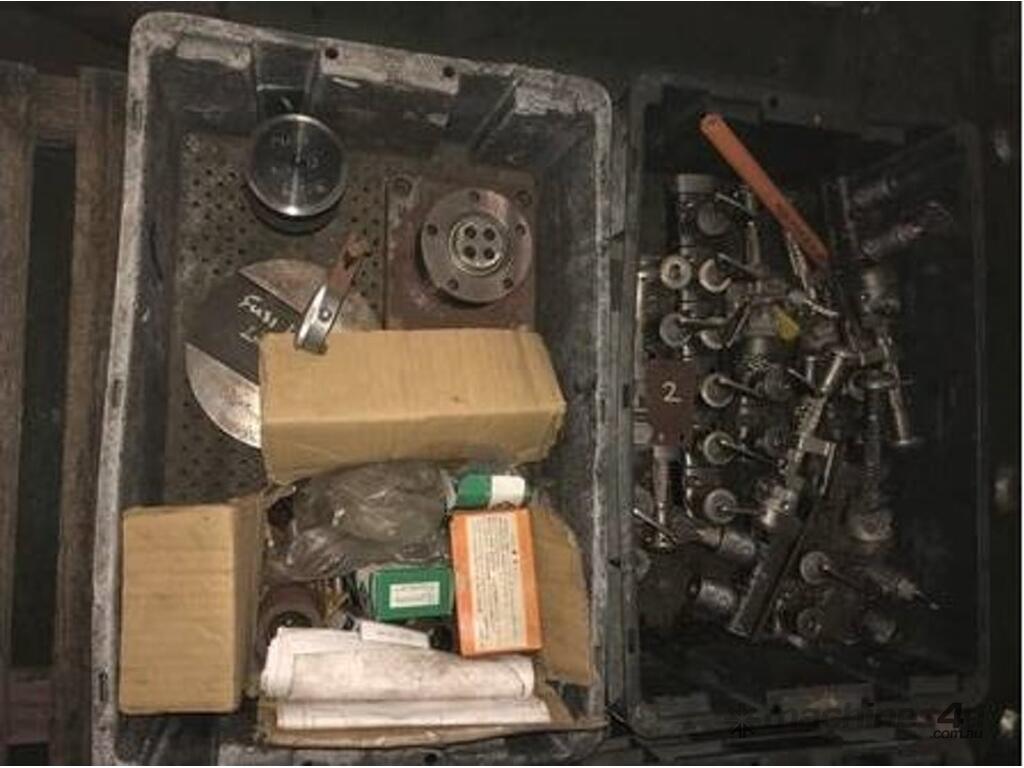

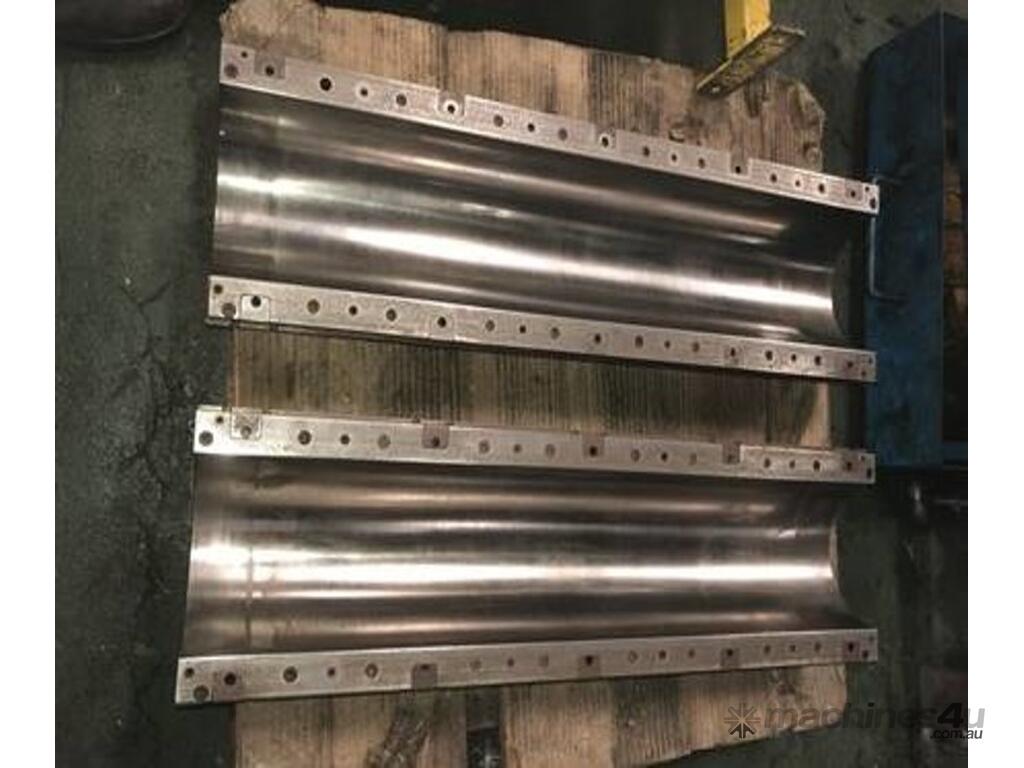

Includes Various Machine Spare parts and Tooling

--------------------------------

We have heaps more photos of this system.
We may sell individual parts down the track.... but prefer to sell as an entire system.
A tax invoice will be issued, payment by bank deposit please.
Big Discount if you purchase before 31/03/2025

I have other similar items in my store, please check it out.

Too heavy to post but we can assist with making freight arrangements. Please send your full DETAILS (needs to be a business address) if requesting a freight quote.

Contact and inspection of goods
Please contact Tim Marshman with any questions. This item may be inspected by appointment at 9 Vernon Smith Court, Ottoway, South Australia
