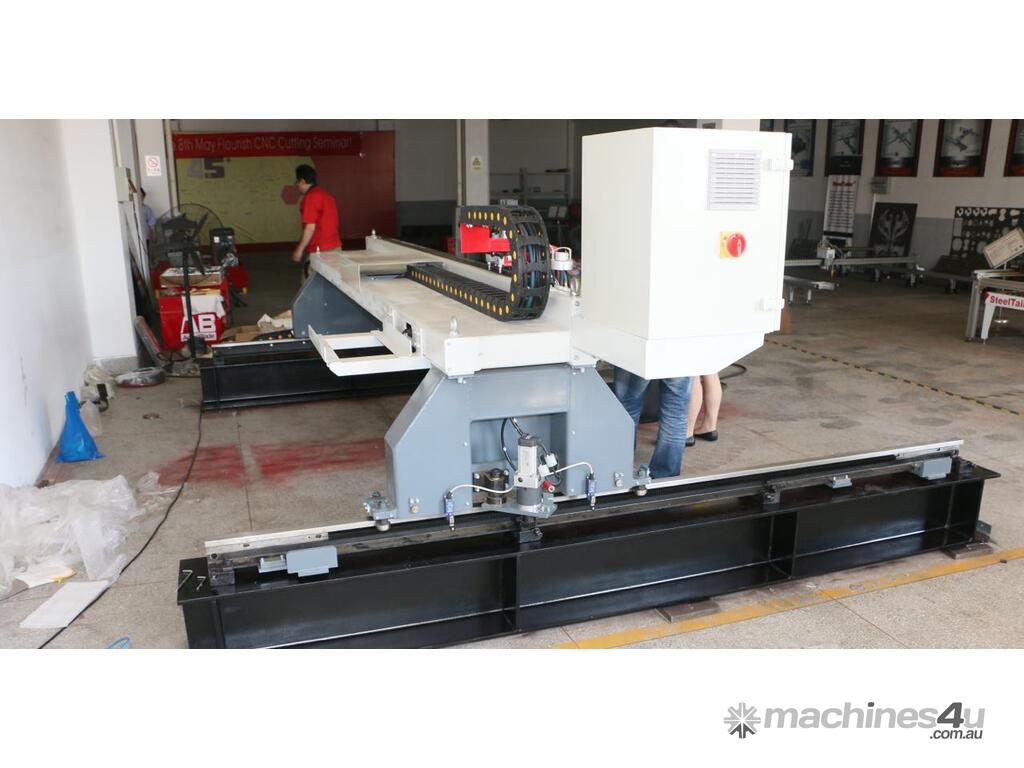

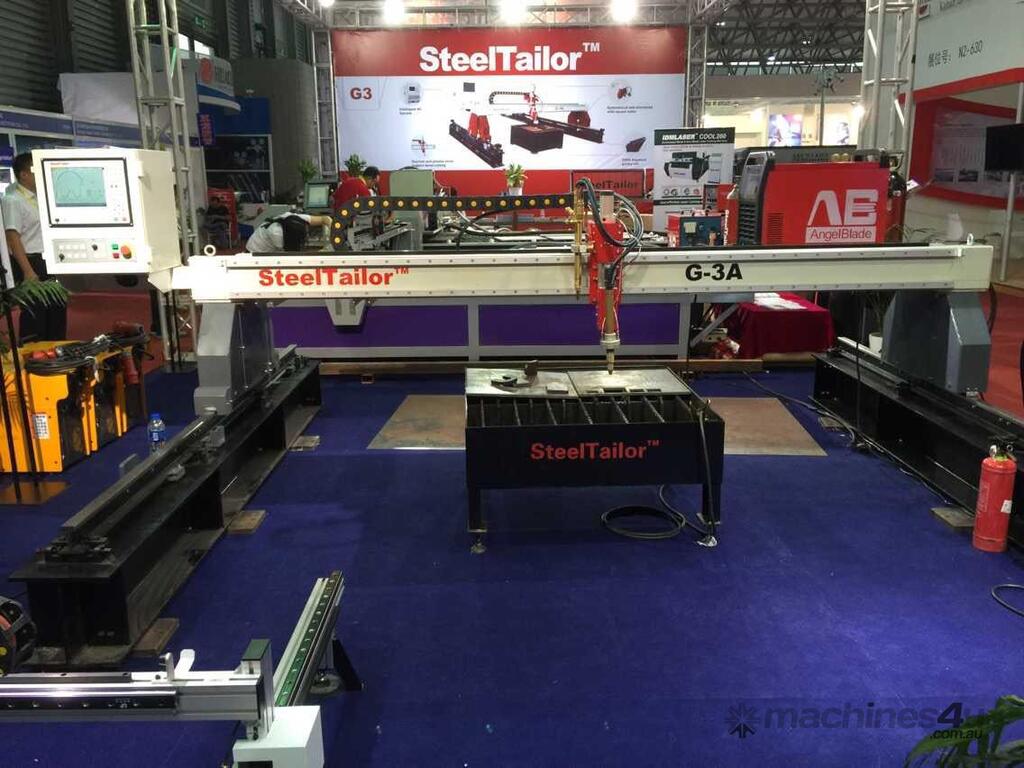

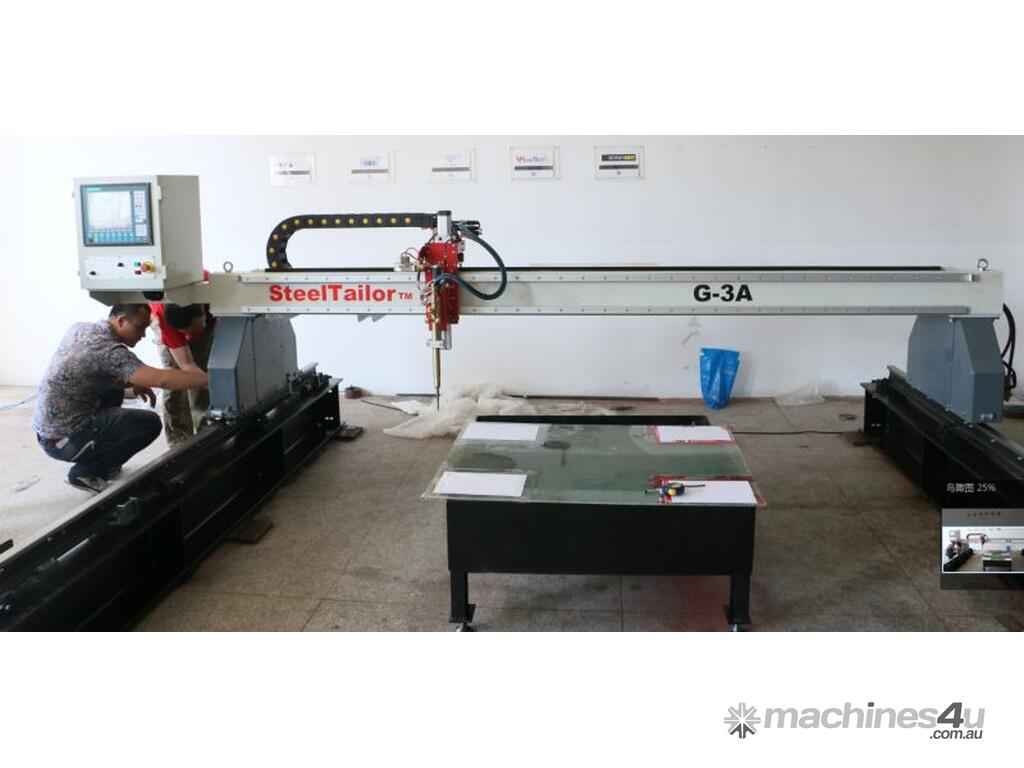

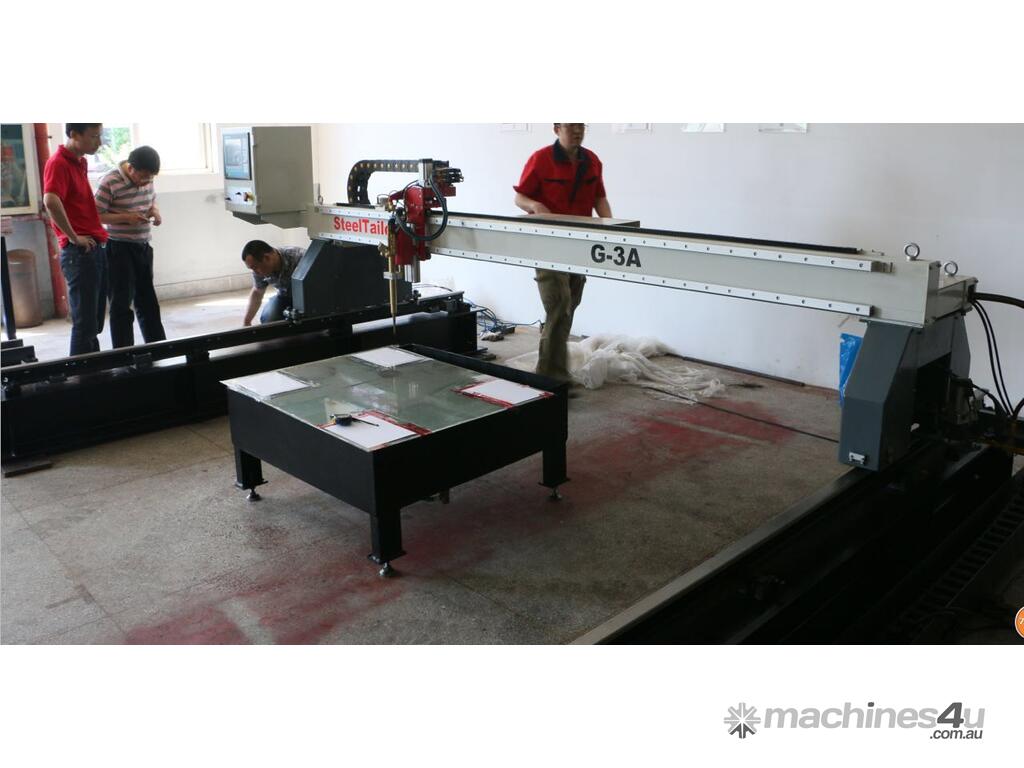

G3 – High Performance Gantry Flame / Plasma

STEELTAILOR G3 – High Performance Gantry Flame / Plasma Combo. 3000mm Wide Capacity, Fastcam CNC
Operating System, Torch Height Control (THC), Servo Drive System, Power Source (Plasma) Added To Suit

Australian supported Hypertherm Power Sources!
Australian supported Fastcam CNC operating system!
Australian supported back up service and parts!

Description

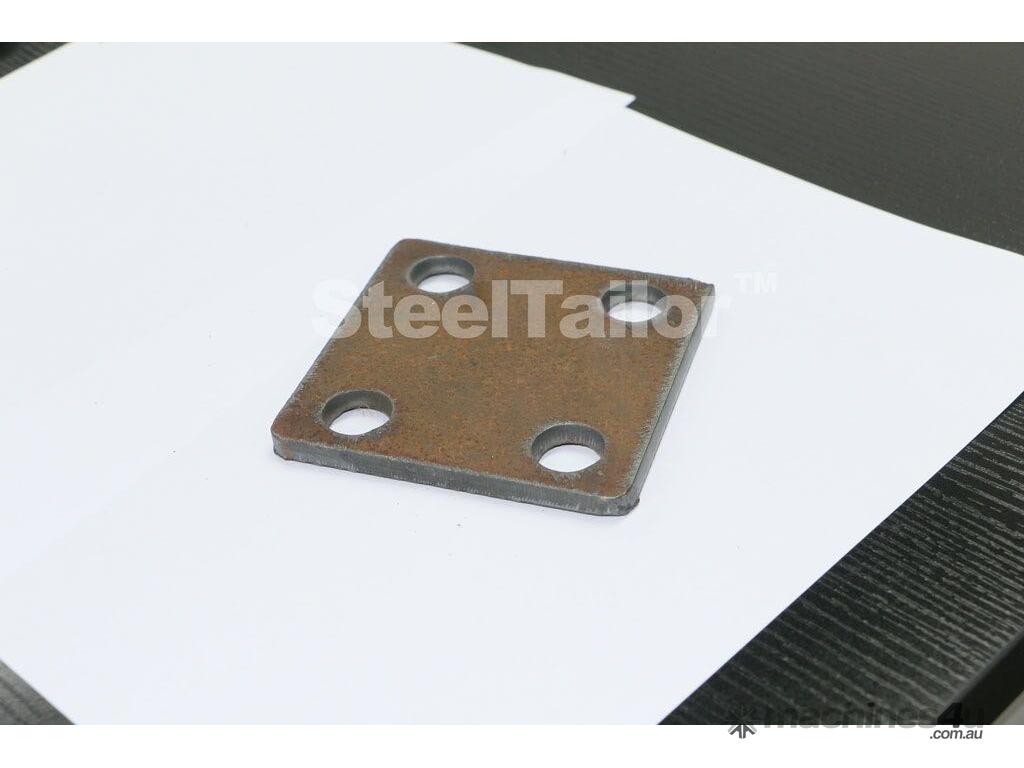

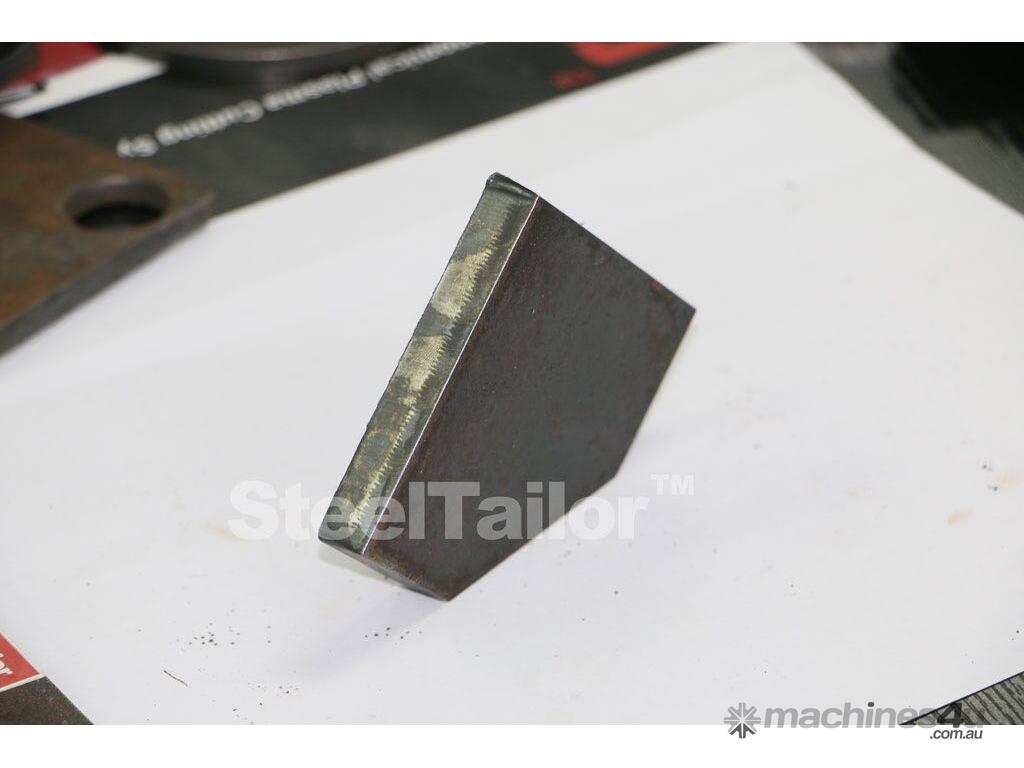

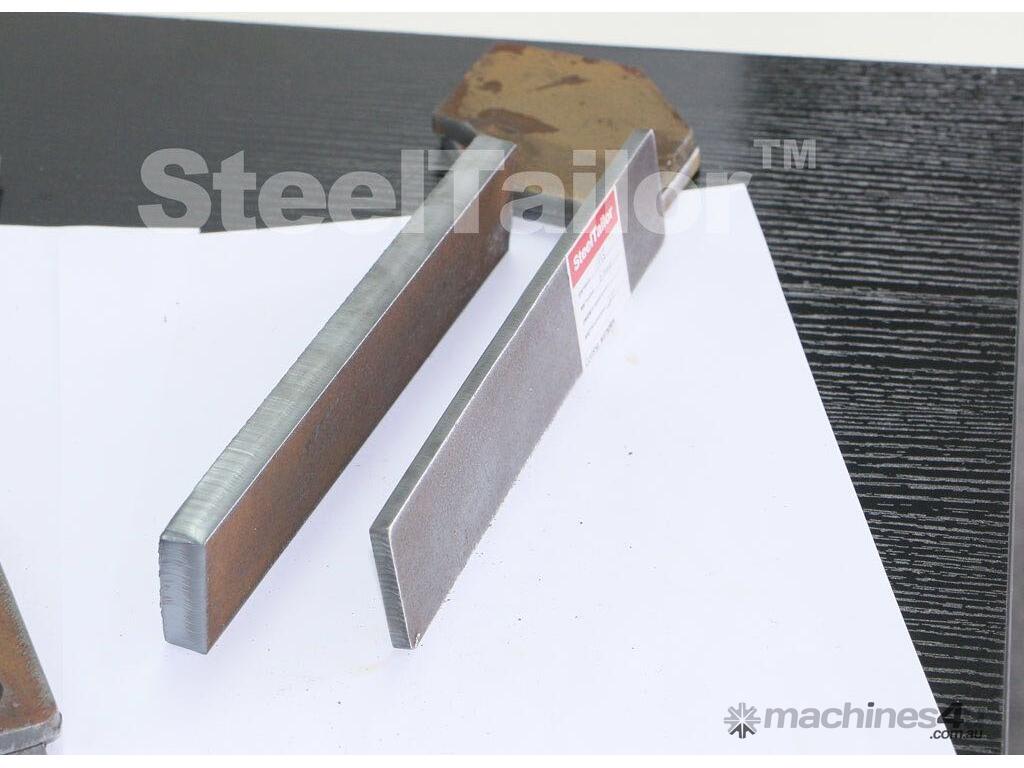

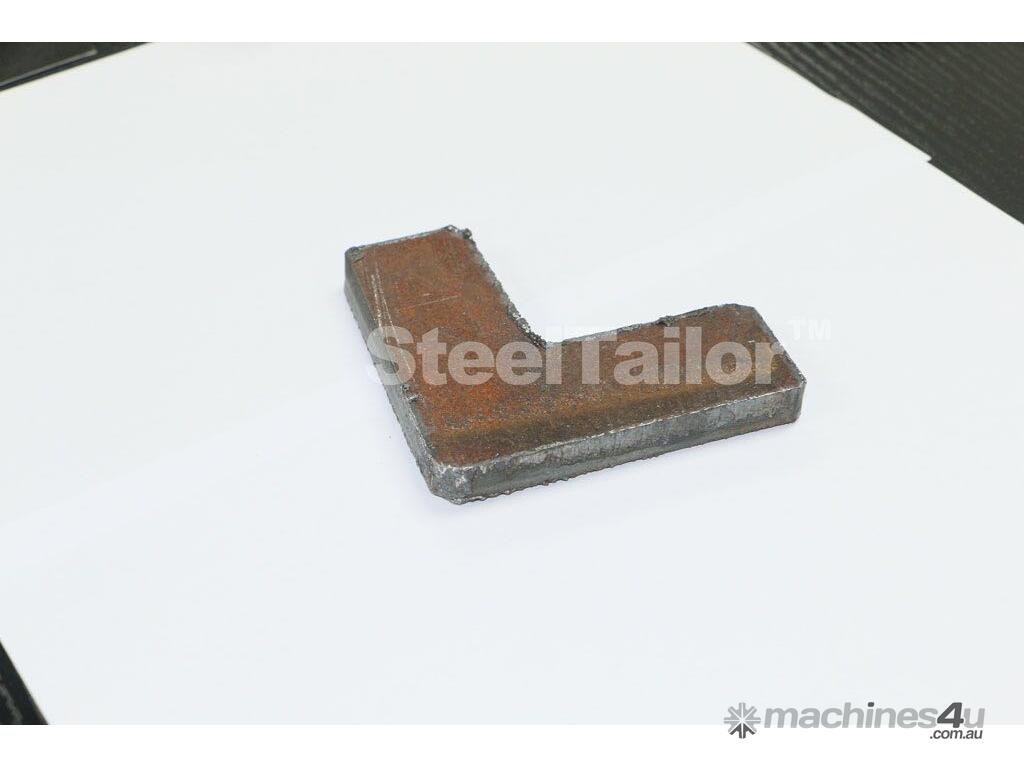

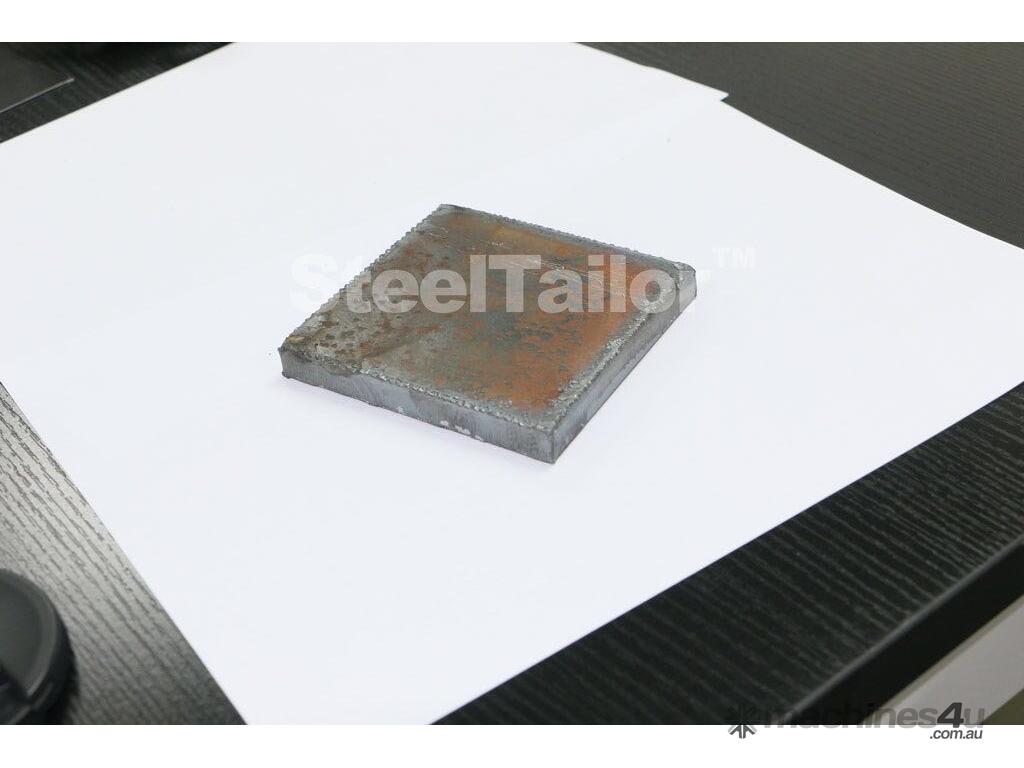

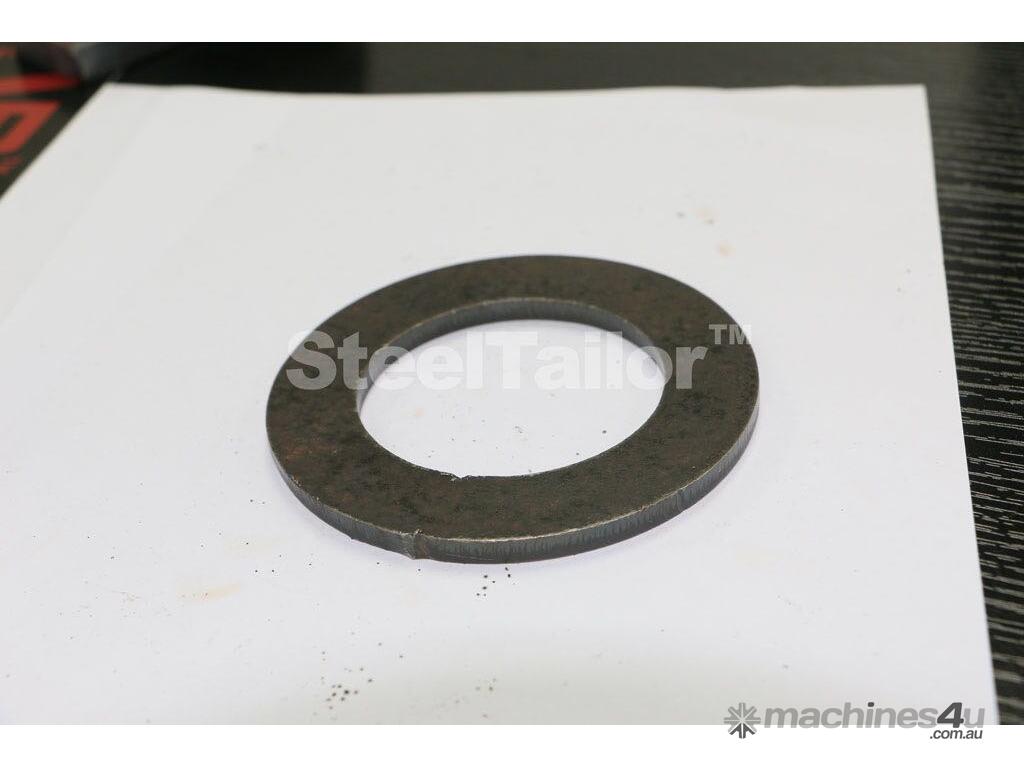

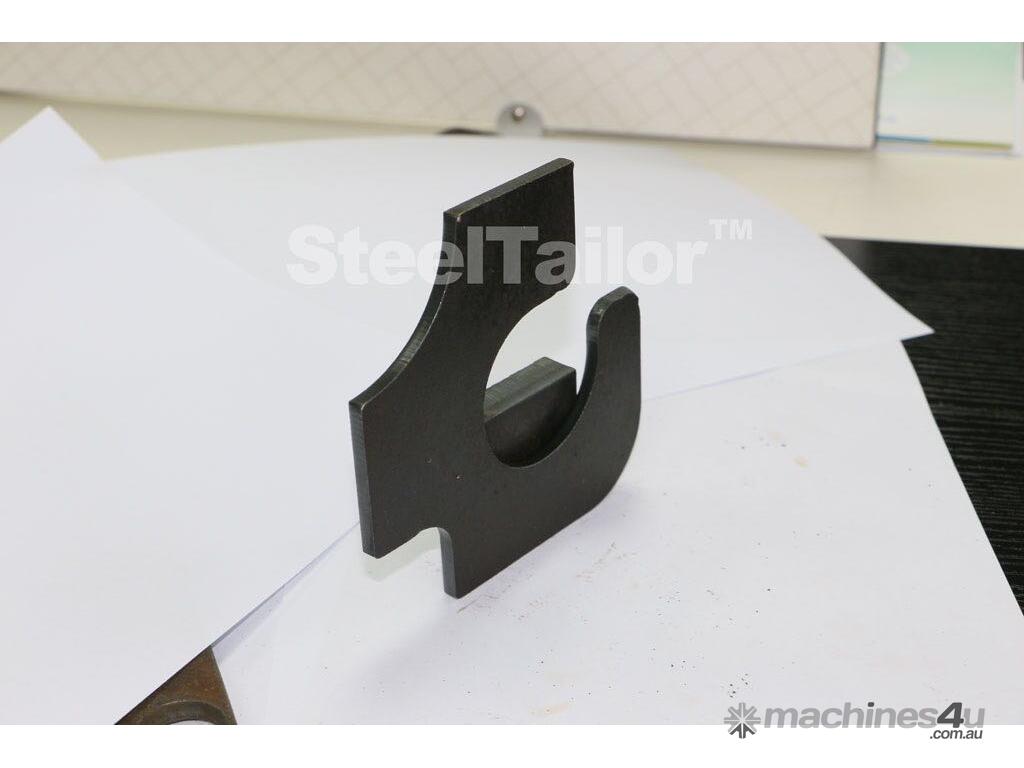

Plasma Cutting & Flame Cutting! 3000mm Cutting Width. Servo motor drive offering ensures precise and stable cutting same as traditional Gantry.
Easy installation and adjustment.

Features
?3000mm Cutting Width.

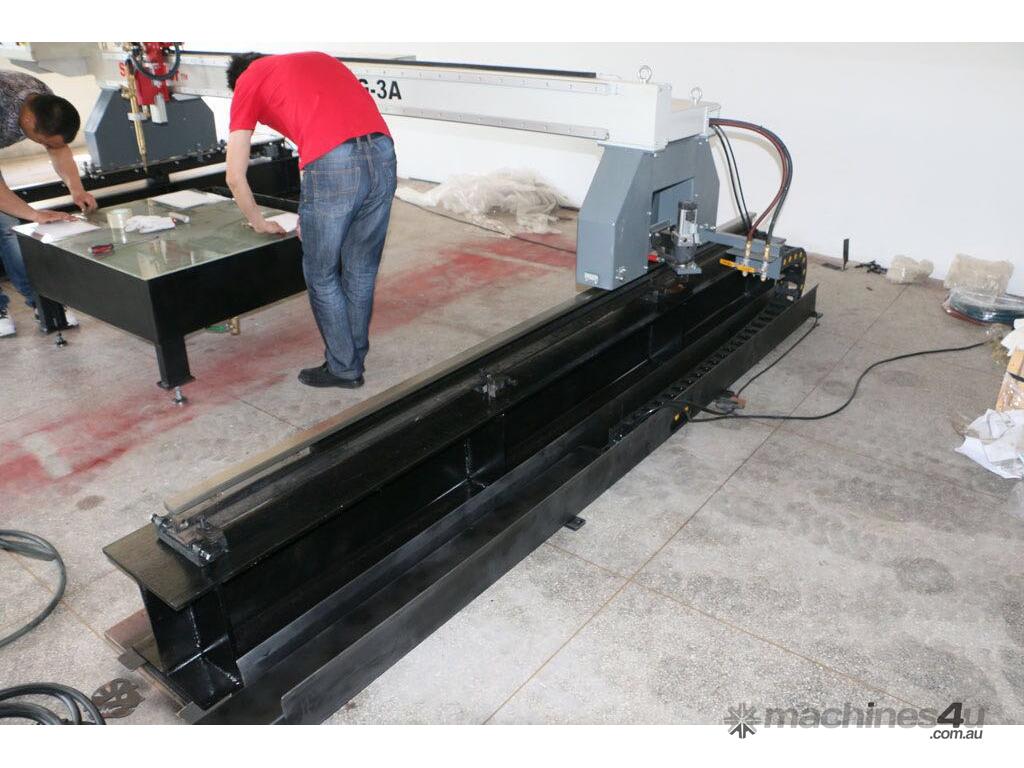

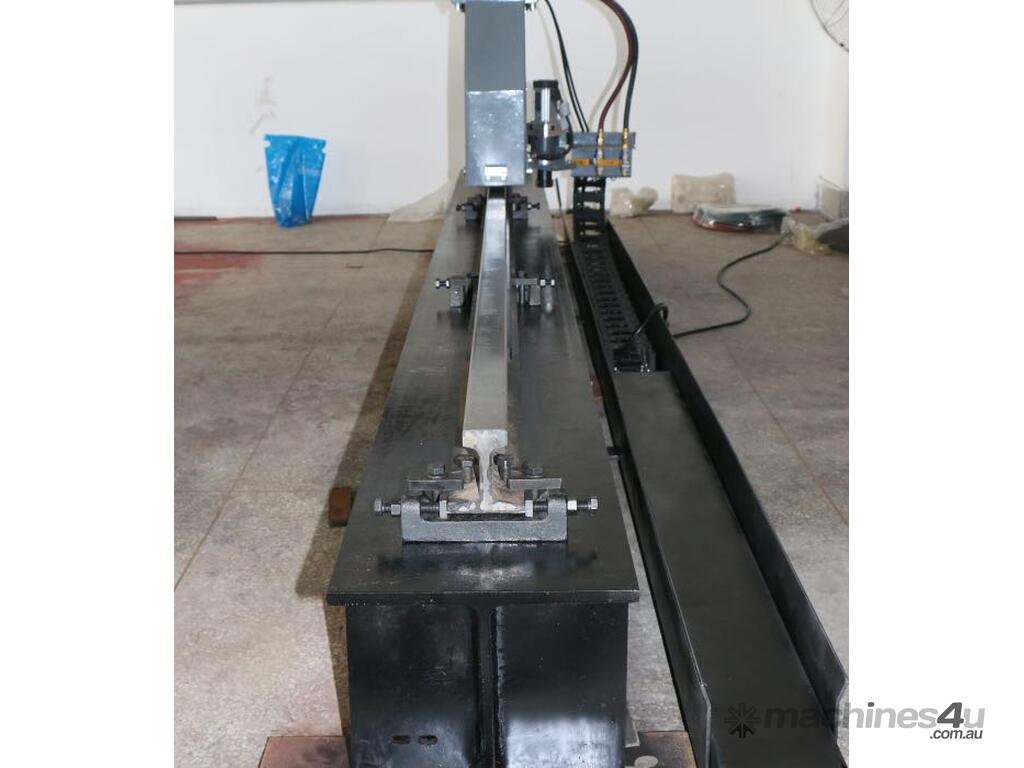

?Cutting Length H Beam Rails & Groove Supplied As Per Customers Required Length.
?No Power Source / Plasma Supplied with this proposal – PMX125 or Maxpro 200 suggested
?Plasma/Oxy-Fuel cutting, Servo Drive

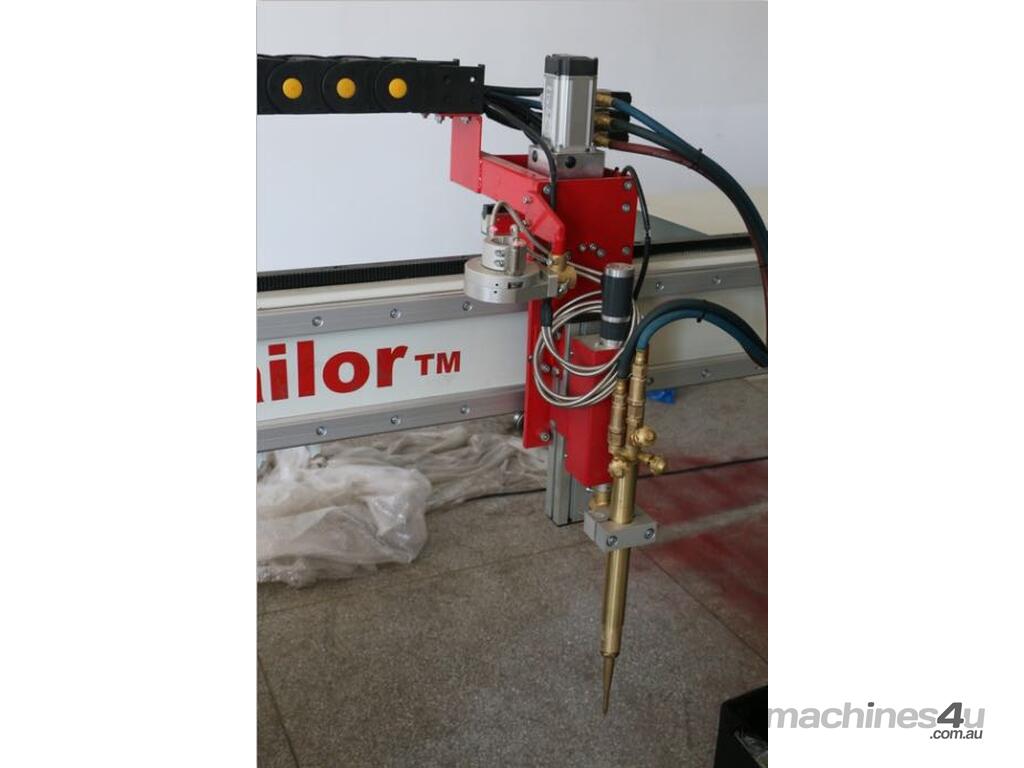

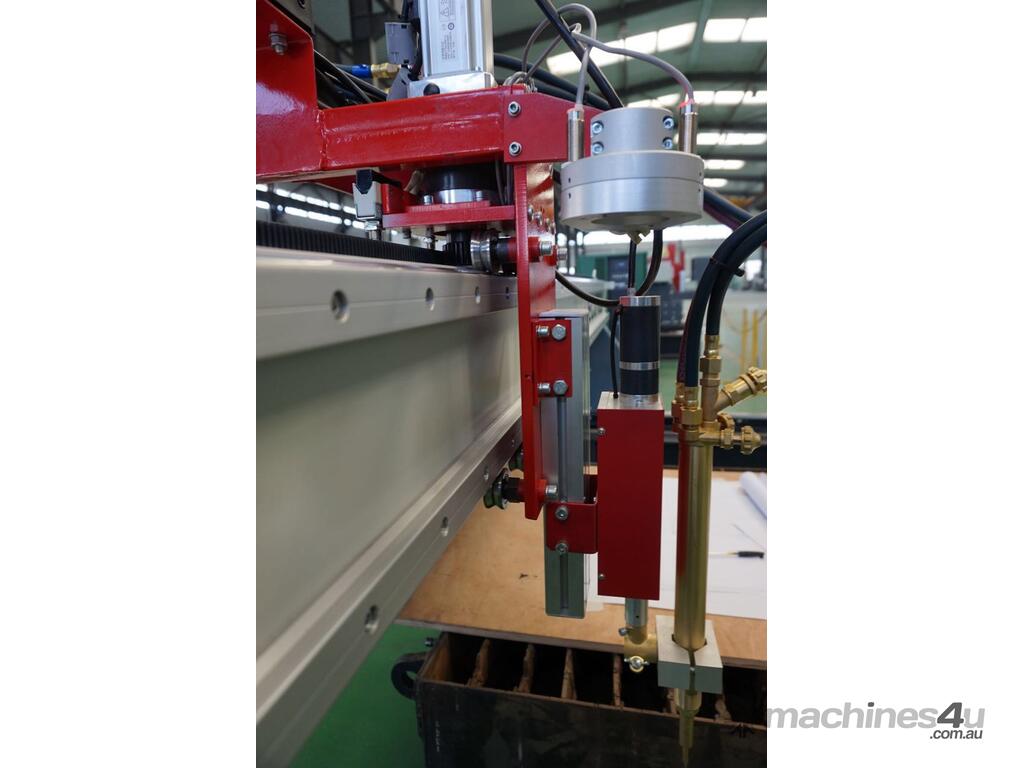

?One (1) Oxy-Fuel Torch included – can accept up to 2 x torches.
?Anti – Collision Device
?Quick cable connector, connecting with Kjellberg or hypertherm plasma power and cutting machine
?Strengthen load capacity, available for 16kg of cutting torch
?Circuit and THC enjoy the function of anti-interference
?R&D on THC detector, which can simulate part of arc voltage output signal of plasma offered by customers

Programming
? Fast Cam Professional with Full Nesting supplied
? Program(nesting shapes), drawing is done by computer in office - additional offline drawing program required
? Save G code into USB
? Program is transferred to G code
? Connect USB with machine controller
? Operate controller ( for this step, no computer is needed)

Configuration
Rails 22Kg / m
Lift Stroke = 100mm
Reducer 40:1
Rack High resistance
Gearing Mode Rack & pinion
CNC & THC F2300T
Servo Motor Panasonic
Electrical Schneider

Technical Data
Type G3
Torch Height Control Automatic Arc voltage THC
CNC System FastCAM Professional – Full Nesting
Input Voltage 240 V
Frequency 50 Hz
Input Power 2KW
Display Color LCD 10.4 ``
Effective Cut Width 3000mm
Machine Width: 4000mm
Longitudinal Length Supplied To Customers Requirements
Machine Height: 1560mm
Cutting Speed 0-10,000 mm/min
Mode of Cutting Flame or Plasma
Cutting Speed Flame 100 ~ 750mm / min
Positioning accuracy 0.5mm / 10,000mm
Repeatability 0.2mm / 10,000mm
Cutting Thickness: Flame: 5 ~ 150mm
Cutting Thickness: Plasma: Subject to plasma selection
Mode of Cutting Type A : Plasma Type B : Plasma/Flame
Z Axis stroke 100mm
Height Control THC – Both Plasma & Flame

Options to be added
?Additional (2nd) Oxy-Fuel Torch: $2800
?Cutting Length H Beam Rails & Groove - Based on Customers Feeding Length $1250 / Linear Meter (Both Sides Included)
?Manually Adjustable Gas Control Box $1500

We guarantee the best service & technical advice
*** BUY DIRECT FROM THE IMPORTER & SAVE ***
* EX STOCK FOR IMMEDIATE DELIVERY AUSTRALIA & N.Z*

MAKE YOUR NEXT PURCHASE AN ``ASSET`` TO YOUR COMPANY!
Please contact us for more information.
