GA32 Portable Power Distribution Boards - Construction & Mine Spec

Our GA32 distribution boards provide a safe and reliable solution for portable power distribution on construction sites, mine sites and major events. Designed for durability and ease of use, all outlets are protected by circuit breakers and RCDs to help maintain safe working conditions on site. Both units are fully portable, reducing setup time and helping minimise overall site costs.

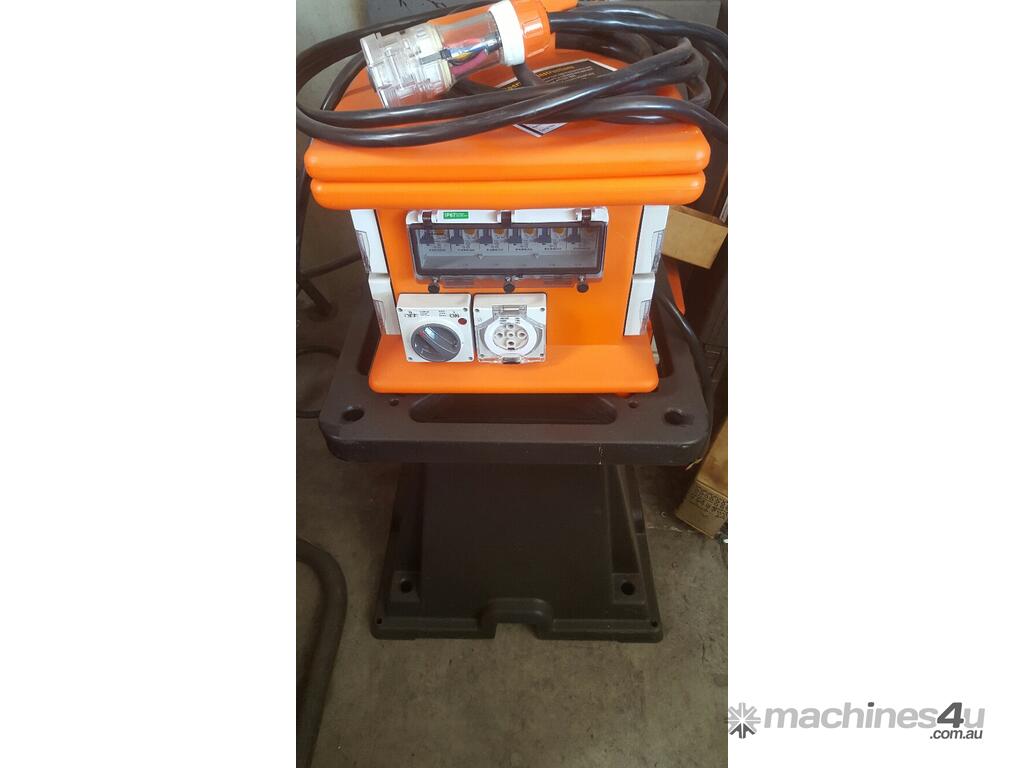

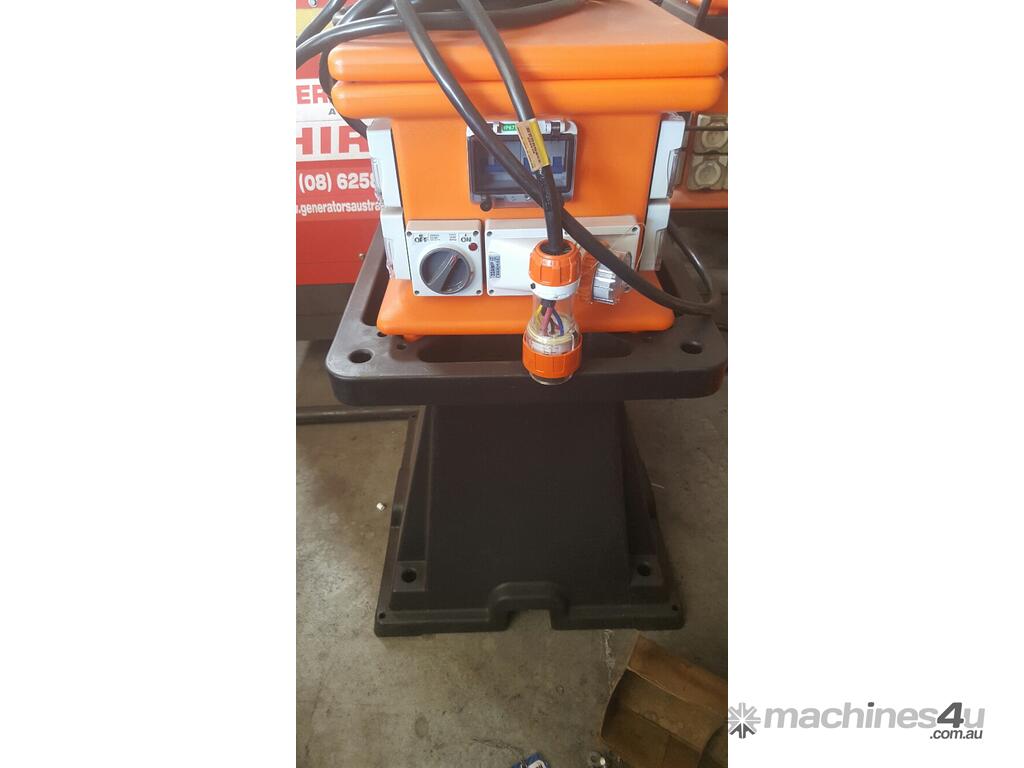

GA32 Distribution Board - 32A
The GA32 is a compact and lightweight distribution board suited to smaller site setups and temporary power requirements.

Key Details

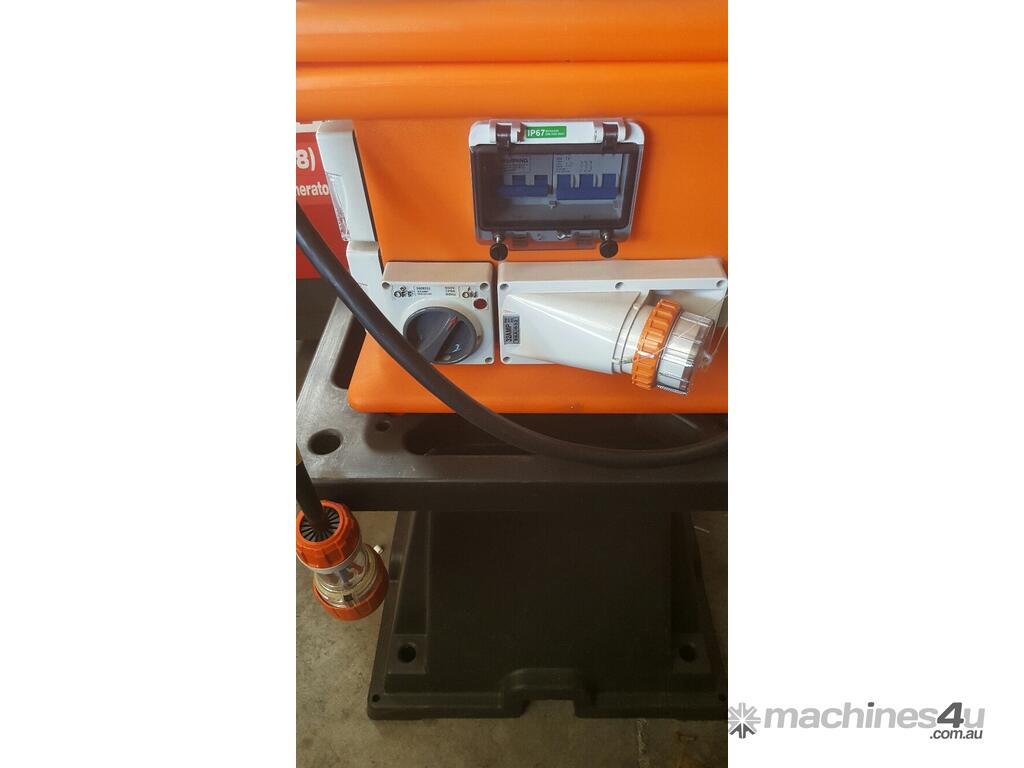

- 1 x 32amp 415V 5 pin IP66 switched cascade point
- 12 x 15amp 240V IP66 auto switched socket outlets
- 1 x 3 pole main isolating switch
- 1 x 32amp 3 pole MCB
- Dimensions (L x W x H): 420 x 420 x 540mm
- Weight: 13.5kg

Applications
- Construction and civil works
- Mining and resources sites
- Events and temporary power setups
- Industrial and maintenance environments
