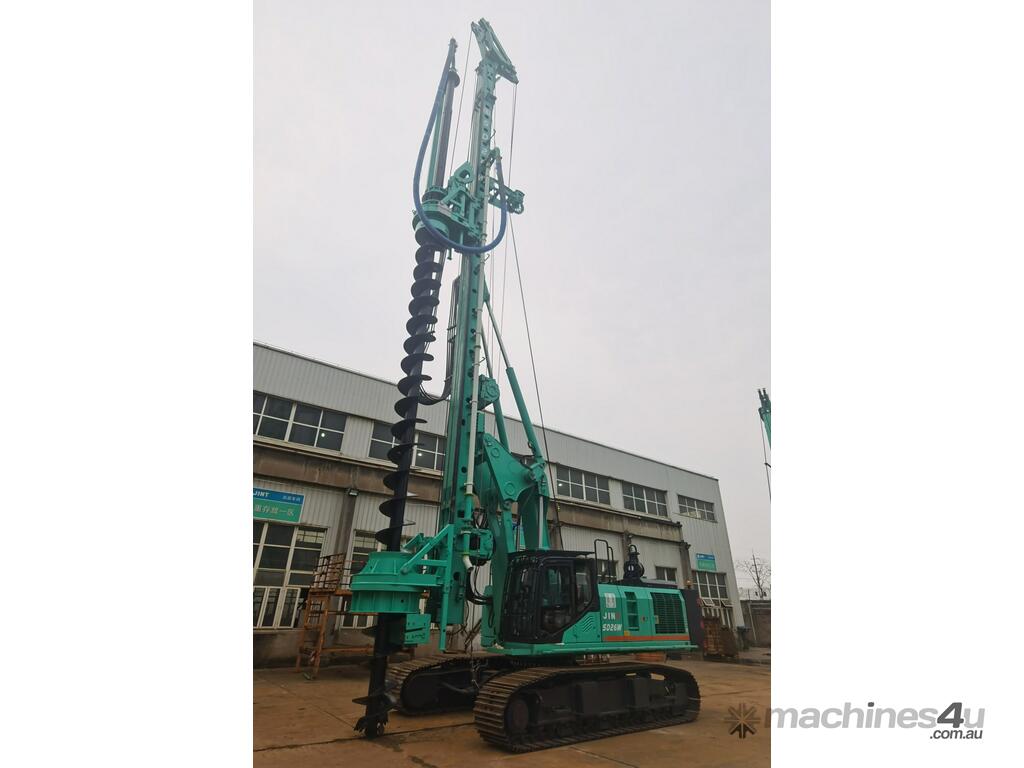

GANZ - LiuGong SD 26W CFA and Kelly spec.

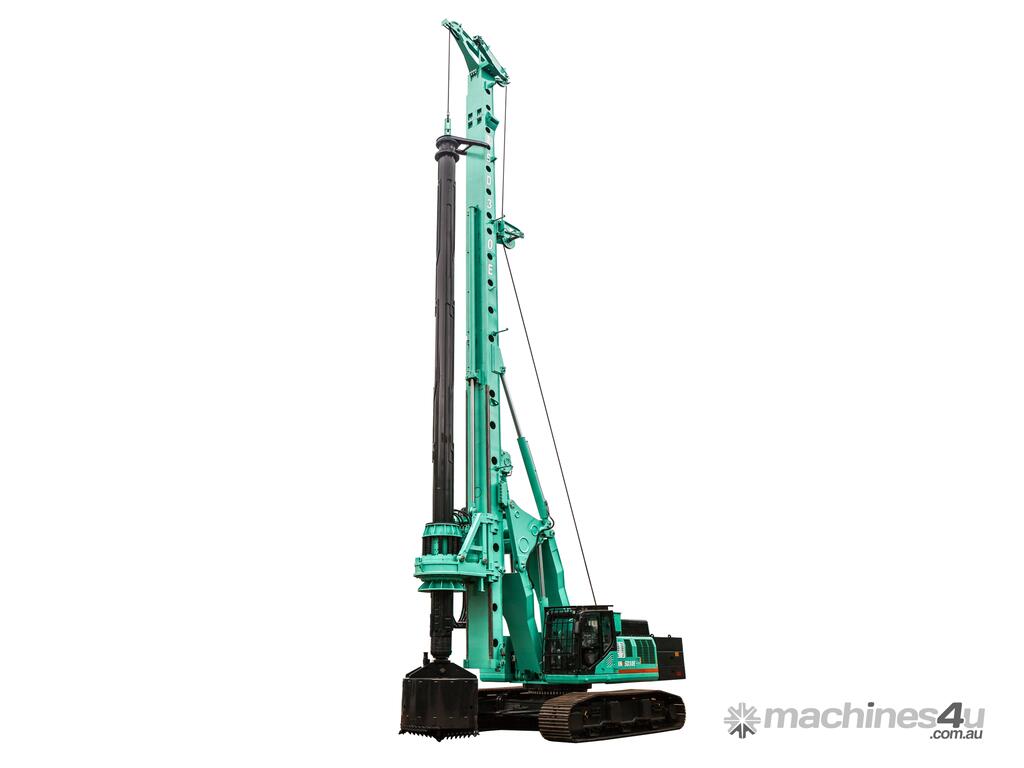

LiuGong's SD26W multi-function drilling rig is the ultimate solution for all your drilling needs. Its innovative technology, robust construction, and optimized design guarantee outstanding performance, enhanced stability, and ease of maintenance. Don't settle for mediocre drilling equipment when you can have the best. Unleash your drilling potential with LiuGong's SD26W drilling rig.

FEATURES

VERSATILITY
The SD26W Multi-Function Drilling Rig is a highly versatile machine that can perform multiple functions, including drilling, rotary drilling, and casing drilling. This versatility allows for a wide range of applications and maximizes the rig's efficiency on various types of projects.

ENHANCED STABILITY
Stability is crucial in ensuring accurate and precise drilling. The SD26W features a stable chassis design and hydraulic leveling system, providing exceptional stability on uneven terrains. This stability reduces the risk of accidents and enhances drilling accuracy, ensuring proper alignment and positioning of drill holes.

EXCELLENT REACH AND DEPTH
The SD26W comes with a long mast and a deep drilling capacity, allowing it to reach greater depths and cover larger areas. This feature is particularly advantageous for projects that require drilling in challenging soil conditions or when extra depth is needed for specialized foundation work.

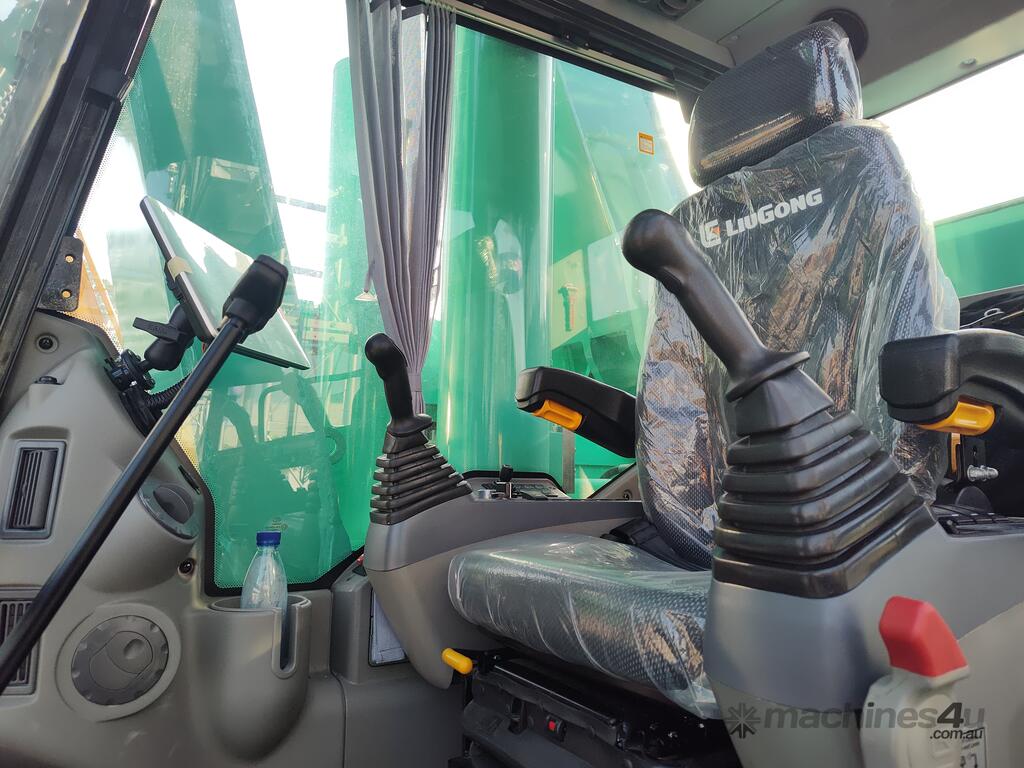

USER-FRIENDLY CONTROLS
LiuGong prioritizes operator convenience and safety. The SD26W is equipped with user-friendly controls that are intuitive and easy to operate. The ergonomic design of the control panel enhances operator comfort, reducing fatigue during long work hours and improving overall productivity.

RELIABLE AND DURABLE
LiuGong is renowned for its high-quality construction equipment. The SD26W is built with durability and longevity in mind, using top-grade materials and components. This rig is designed to withstand the rigors of demanding job sites, providing long-term reliability and reducing maintenance needs.

SPECIFICATIONS:

SD26W

Working height (mm) :24,070
Weight with standard bit and kelly bar (kg) :90,000
Max dep (m) 4-58/5-73
Max diameter- 2,200 mm
Max diameter - 2,200 mm
Upper chassis JS70

Engine -Cummins QSL 9 Euro III
Rated power (kWrpm) : 2722100

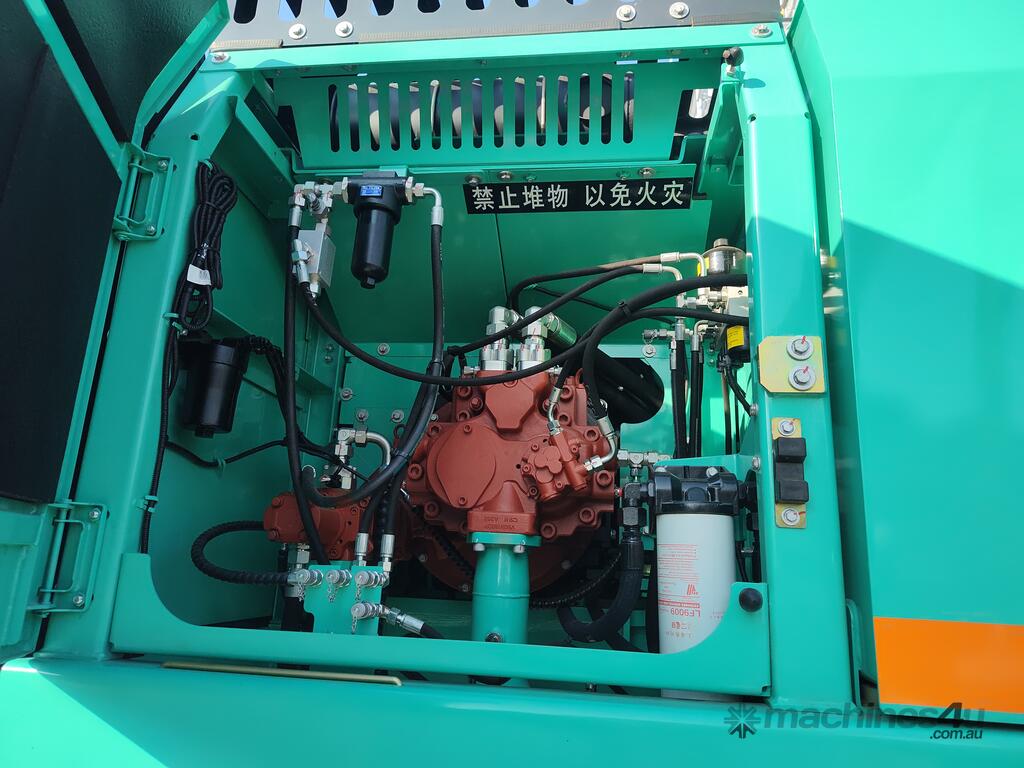

Hydraulic flow (L/min) : 304×2+146
Hydraulic pressure (Mpa) : 34.3
Fuel tank-650l
Hydraulic oil tank -440l

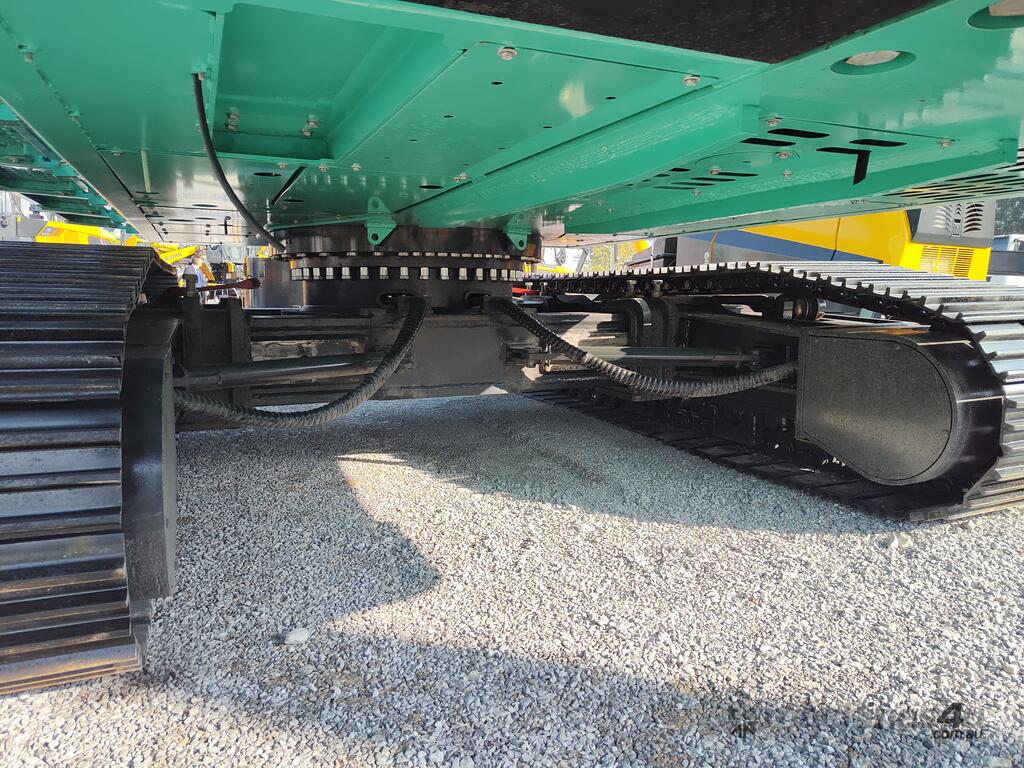

Extendable undercarriage JT75A
Track shoe width (mm) : 800
Undercarriage length(mm) : 5,600
Undercarriage width retraction/extension (mm) : 3,200?4,300
Traction force (kN) : 600
Travelling speed (km/h) : 1.7

Rotary head -
Rotation torque (kN·m) : 260
Rotation speed (r/min) : 6?32

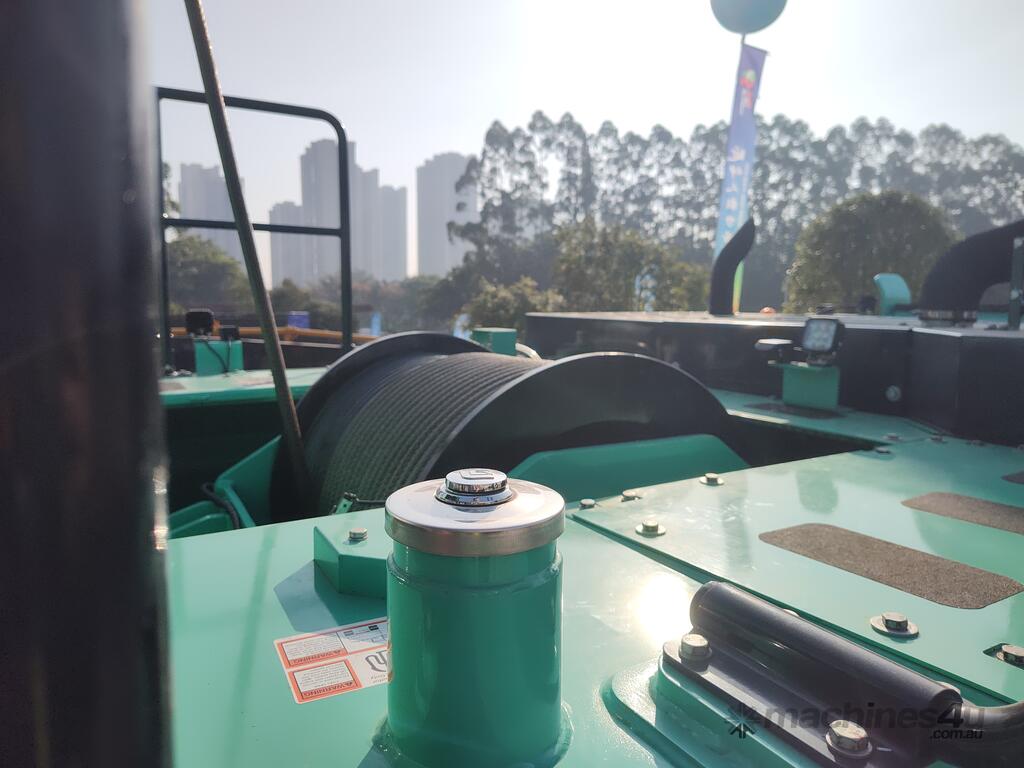

Main winch -
Single line pull (kN) : 270
Rope diameter(mm) : 32
Max lifting speed(m/min) : 70

Aux winch
Single line pull (kN) : 110
Rope diameter (mm) : 20
Max lifting speed (m/min) : 45

Crowd winch system -
Stroke (mm) : 15,000
Pushing force (kN) : 350
Pulling force (kN) : 350

At GANZ International, we provide years of experience, we provide the international equipment markets with top-quality products and unparalleled after-sales support.

We excel in supplying and servicing the world's finest new and used foundation and piling equipment. Our expertise spans Heavy Foundations, Construction, Material Handling, and Agricultural Equipment, making us industry leaders in versatile and problem-solving machinery. At GANZ, we bring innovation and technical know-how to every project, ensuring adaptability and overcoming any challenge. Partnering with us means having a passionate, experienced team at your side.

Go to the Ganz showroom on Machines4u to see the rest of our machinery, send Ganz a message about the item you are interested in discussing, or give Ganz International a call, we are happy to answer any of your questions.

* CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION *
