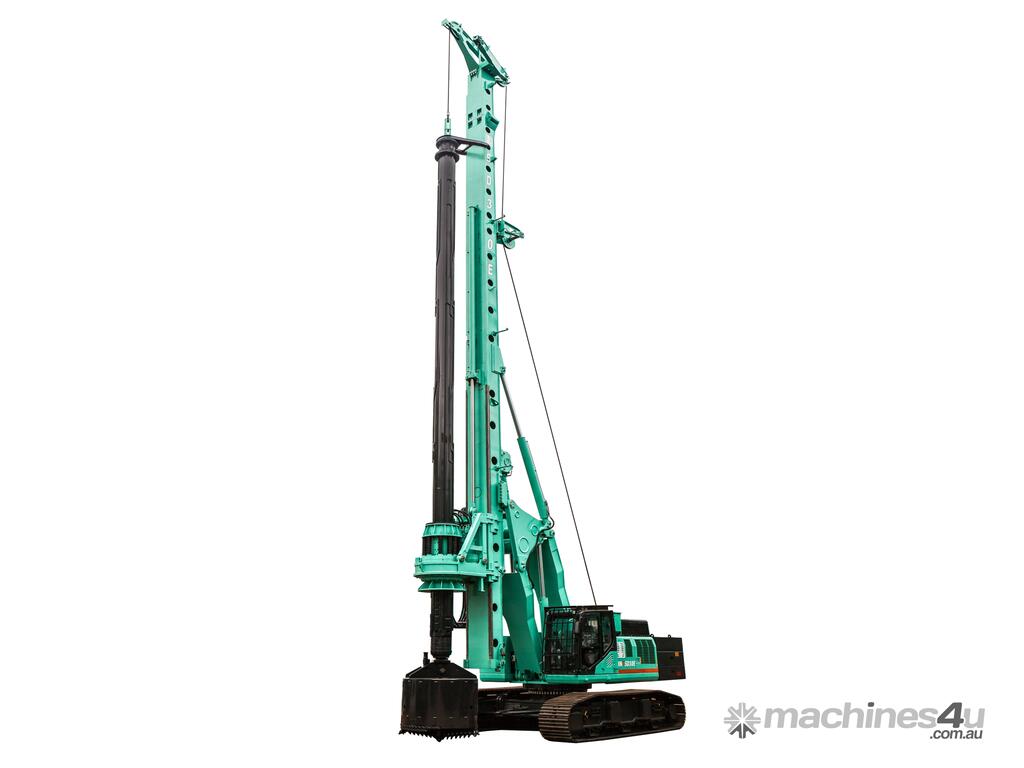

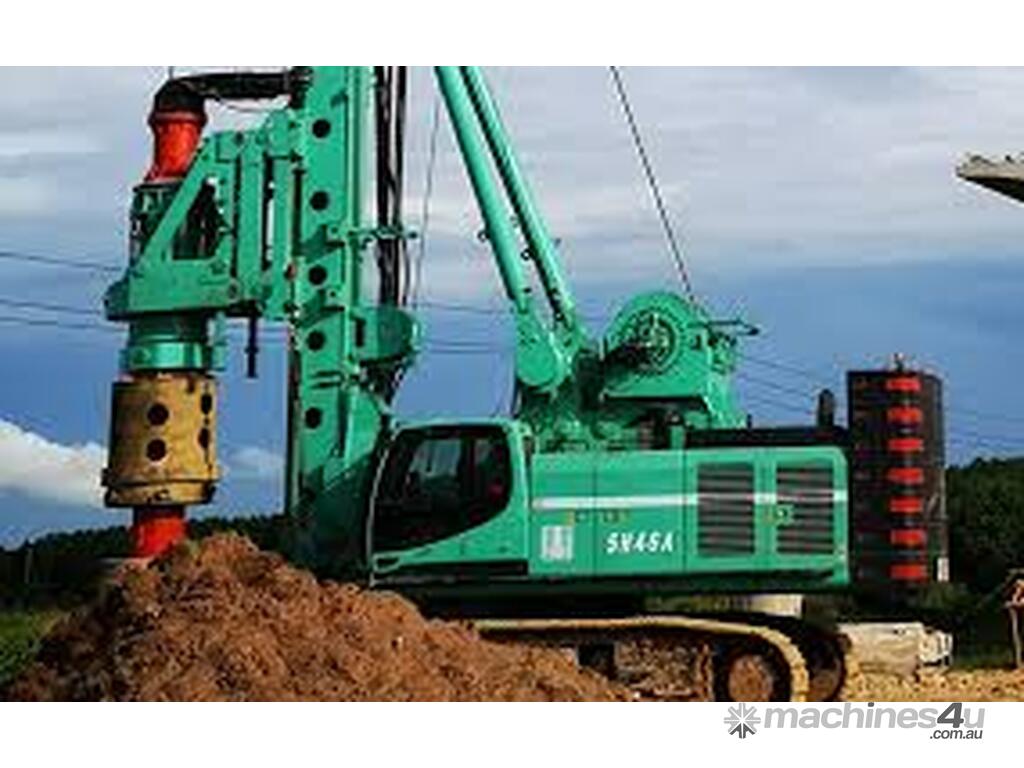

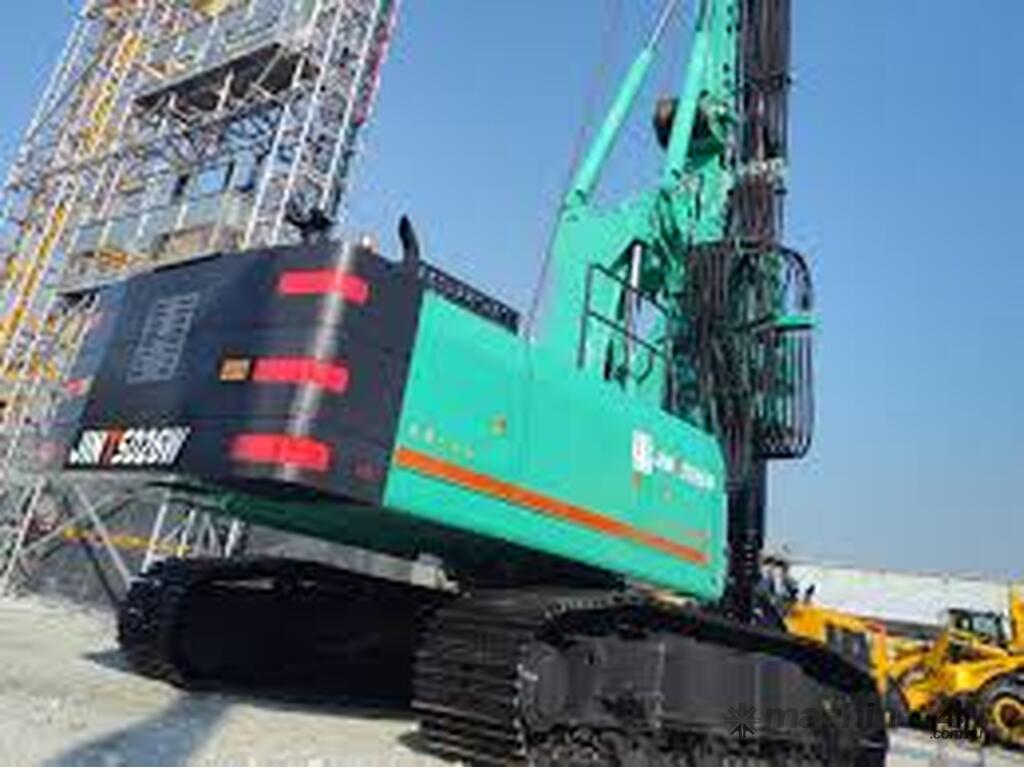

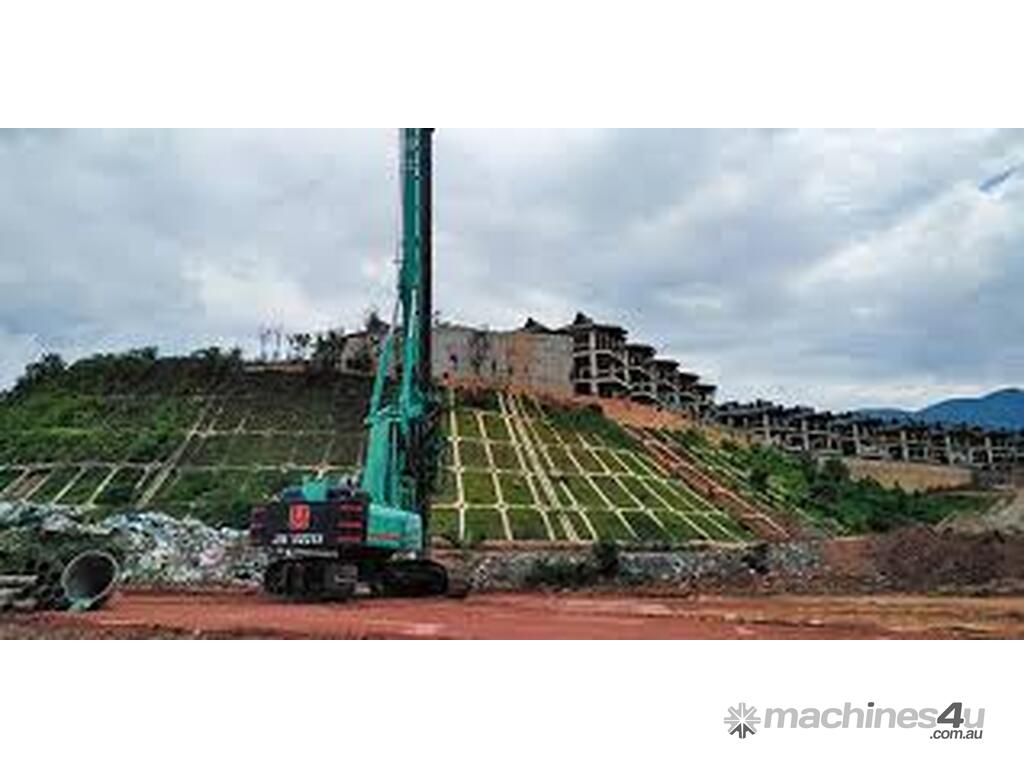

GANZ - Liugong SD30E Multi-Function Drilling Rig

LiuGong's robust drilling machines are equipped with a wide range of smart functions. The integration of new technology, and features from modern hydraulic piling machinery enable LiuGong's multi-function drills to surpass performance parameters of other basic drill rigs, allowing you to perform various drilling tasks with a single compact unit. LiuGong's multi-function drill rigs get you the results in the most challenging places.

FEATURES

POWERFUL ENGINE & REMOTE CONTROL OPERATION
The SD30E is a highly versatile drill rig that can perform a variety of drilling tasks, such as anchor drilling, jet grouting, and DTH drilling. This multi-functional capability makes it suitable for a wide range of applications in construction, mining, and geotechnical engineering. The SD30E is equipped with a powerful engine that delivers high torque and reliable performance. This ensures efficient and effective drilling operations, even in challenging terrains or geological conditions. The drill rig can be operated remotely, allowing operators to maintain a safe distance during drilling operations. This feature enhances operator safety and reduces the risk of accidents or injuries.

OPERATOR COMFORT, SAFETY & ENVIRONMENTAL CONSIDERATIONS

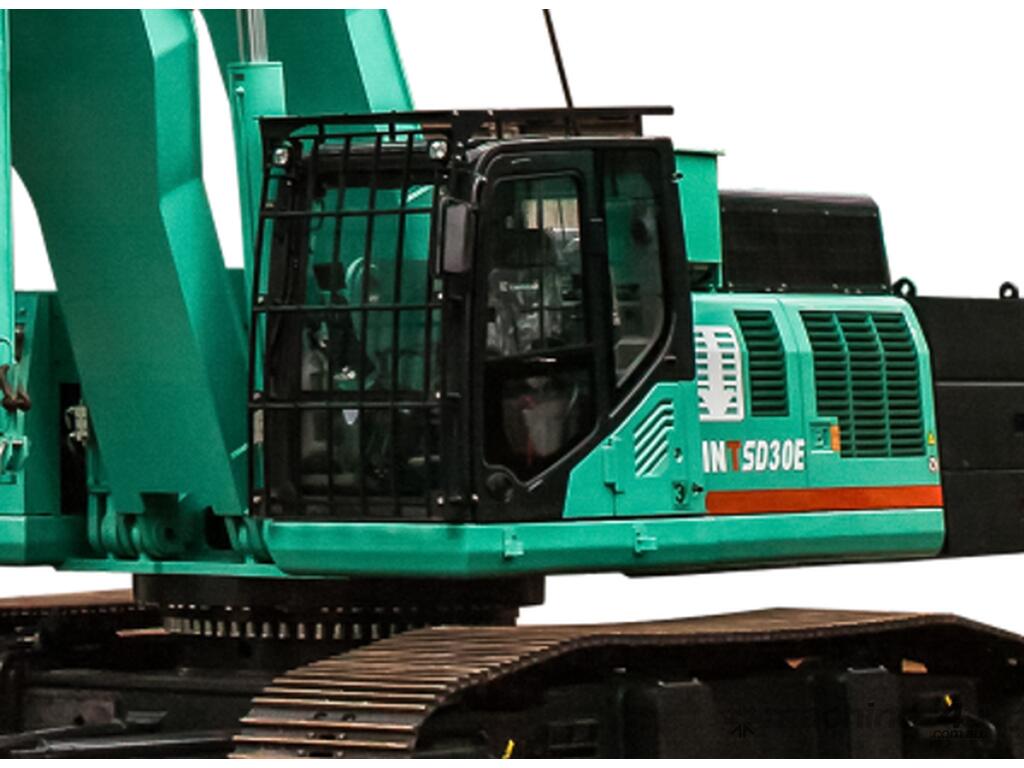

The SD30E is designed with operator comfort and safety in mind. It features a spacious and ergonomic cabin that provides a comfortable working environment. Additionally, safety features such as emergency stop buttons, anti-collision systems, and hydraulic lockouts contribute to operator safety during operation.

Equipped with robust tracks or wheels, the SD30E can operate in various terrains, including rough or uneven surfaces. This allows for enhanced mobility and flexibility on different job sites. The SD30E incorporates environmentally friendly design elements, such as lower fuel consumption and reduced emissions. This makes it an environmentally conscious choice for drilling operations.

ADVANCED DRILLING CONTROL SYSTEM & EASY MAINTENANCE
The SD30E is equipped with an advanced drilling control system that provides precise control over drilling parameters such as rotation speed, torque, and feed pressure. This enables operators to achieve accurate and consistent drilling results. The SD30E offers high drilling efficiency, thanks to its advanced hydraulic system and optimized drilling parameters. This allows for faster drilling rates, reducing time and maximizing productivity on the job site. The SD30E is built with a robust and durable structure, capable of withstanding tough working conditions. This ensures reliable performance and longevity, reducing the need for frequent repairs or replacements. The drill rig is designed for easy maintenance, with accessible service points and components. Routine maintenance tasks can be carried out quickly, minimizing downtime and maximizing operational efficiency.

SPECIFICATIONS:
SD30E

Working height (mm) : 24,620
Total weight with standard kelly bar and drilling bit (kg) : 100000
Chassis LJ01B

Engine -
Power (kWrpm) : 2991900
Flow capacity of hydraulic system (L/min) : 2×380+164
Hydraulic operating pressure (MPa) : 34.3
Capacity of fuel tank -650l
Capacity of hydraulic oil tank- 420l

Retractable undercarriage - JT80
Width of track shoe (mm) : 800
Length of crawler (mm) : 5,600
Width of crawler (retract /extend) : (mm) : 3300-4400
Traction force (kN) : 500
Travel speed (km/h) : 1.5

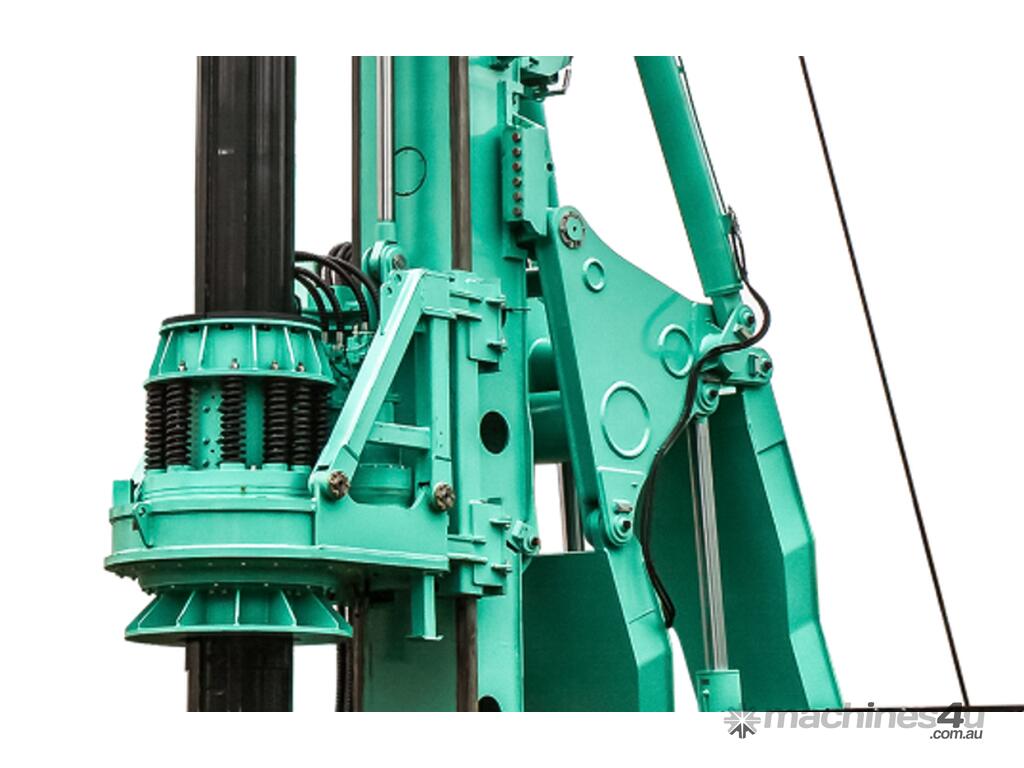

Rotary head -
Rotation torque (kN·m) : 300
Rotation speed (r/min) : 5~30

Main winch -
Max single line pull (kN) : 330
Max single line pull (kN) : 330
Wire rope diameter (mm) : 36
Max hoisting speed (m/min) :65

Auxiliary winch -
Single line pull (kN) : 75
Wire rope diameter (mm) : 18
Max hoisting speed (m/min) : 45

Crowd cylinder -
Stroke (mm) : 5,700
Crowd force (kN) : 300
Pulling force (kN) : 300

At GANZ International, we provide years of experience, we provide the international equipment markets with top-quality products and unparalleled after-sales support.

We excel in supplying and servicing the world's finest new and used foundation and piling equipment. Our expertise spans Heavy Foundations, Construction, Material Handling, and Agricultural Equipment, making us industry leaders in versatile and problem-solving machinery. At GANZ, we bring innovation and technical know-how to every project, ensuring adaptability and overcoming any challenge. Partnering with us means having a passionate, experienced team at your side.

Go to the Ganz showroom on Machines4u to see the rest of our machinery, send Ganz a message about the item you are interested in discussing, or give Ganz International a call, we are happy to answer any of your questions.

* CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION *
