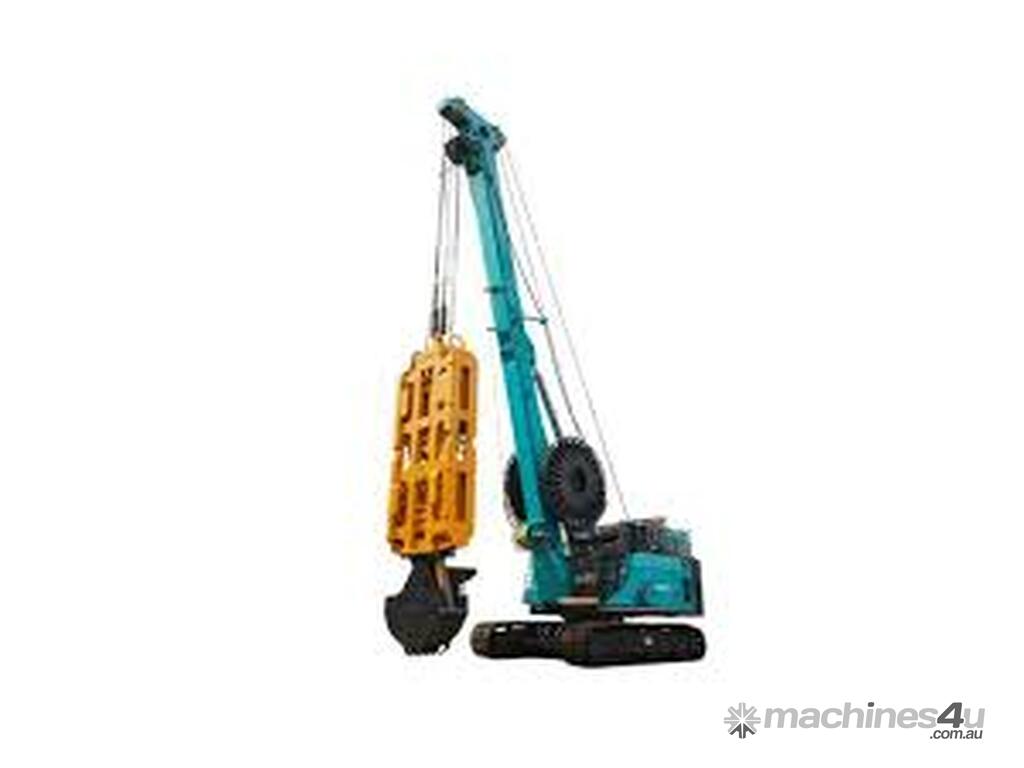

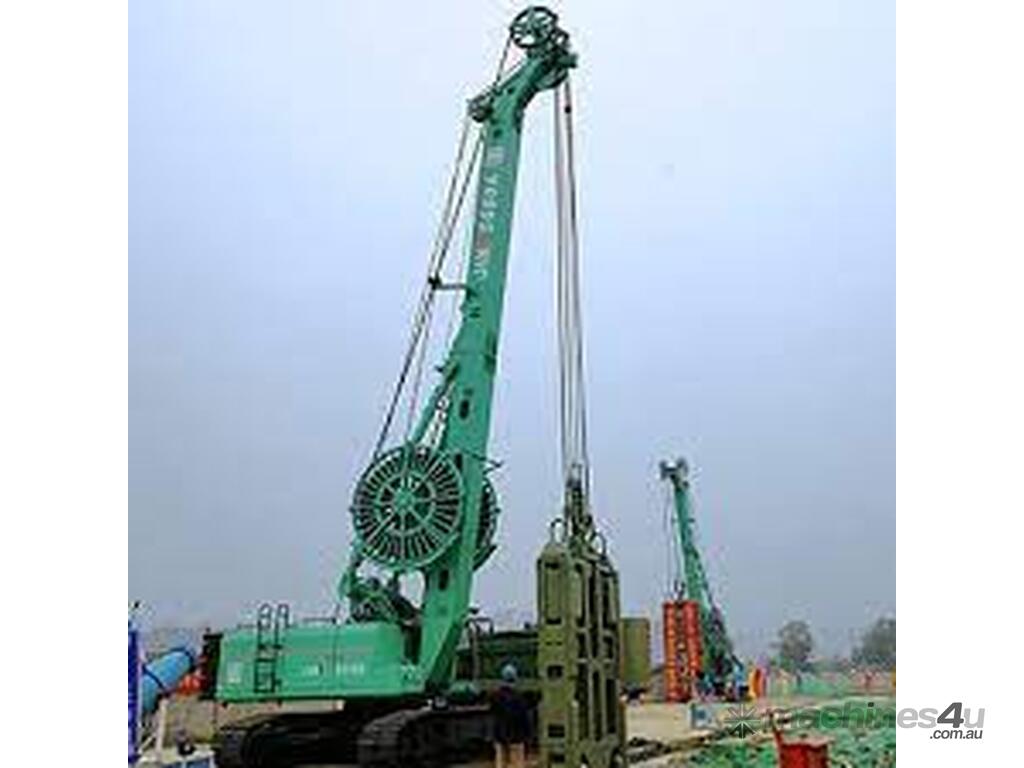

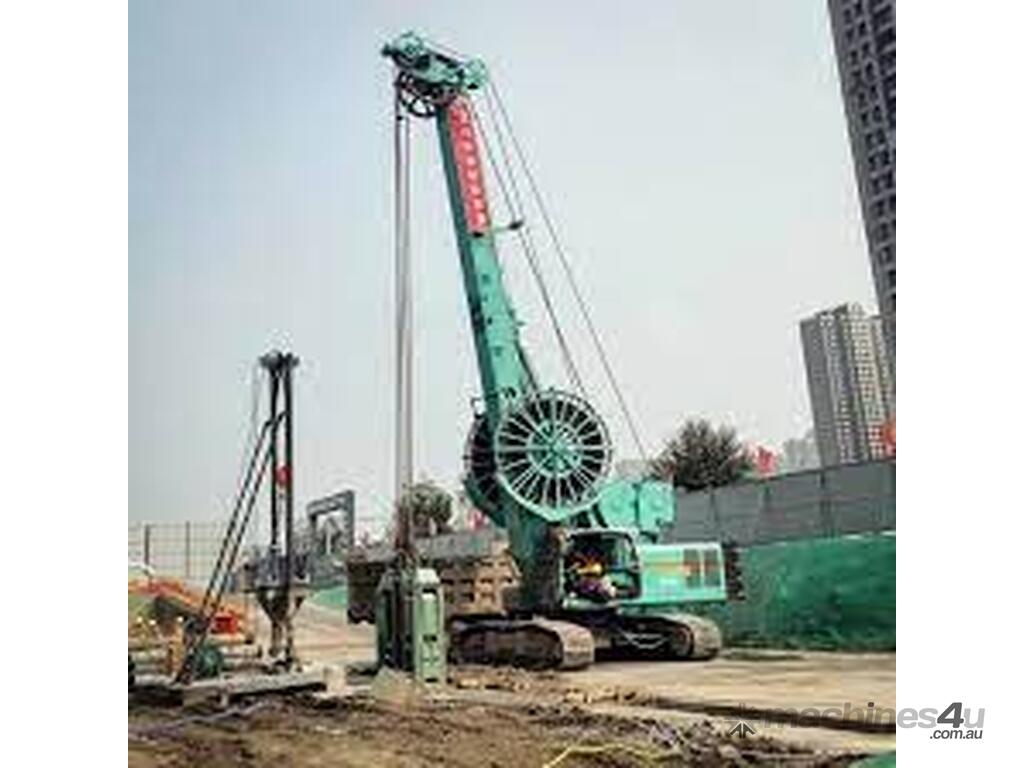

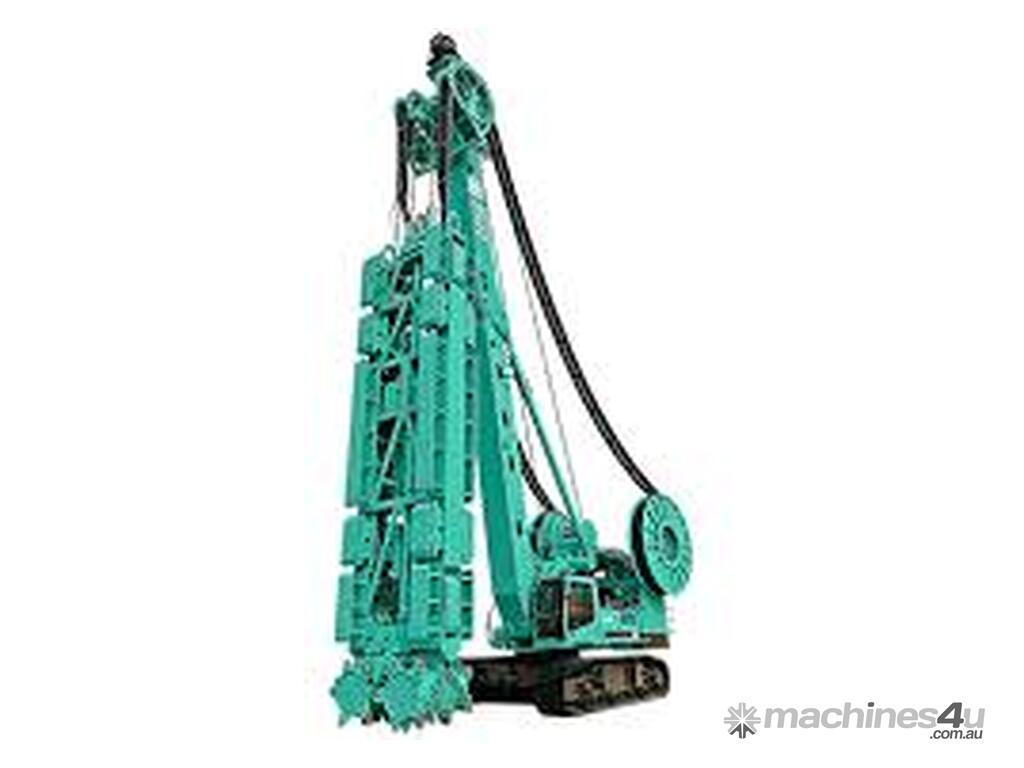

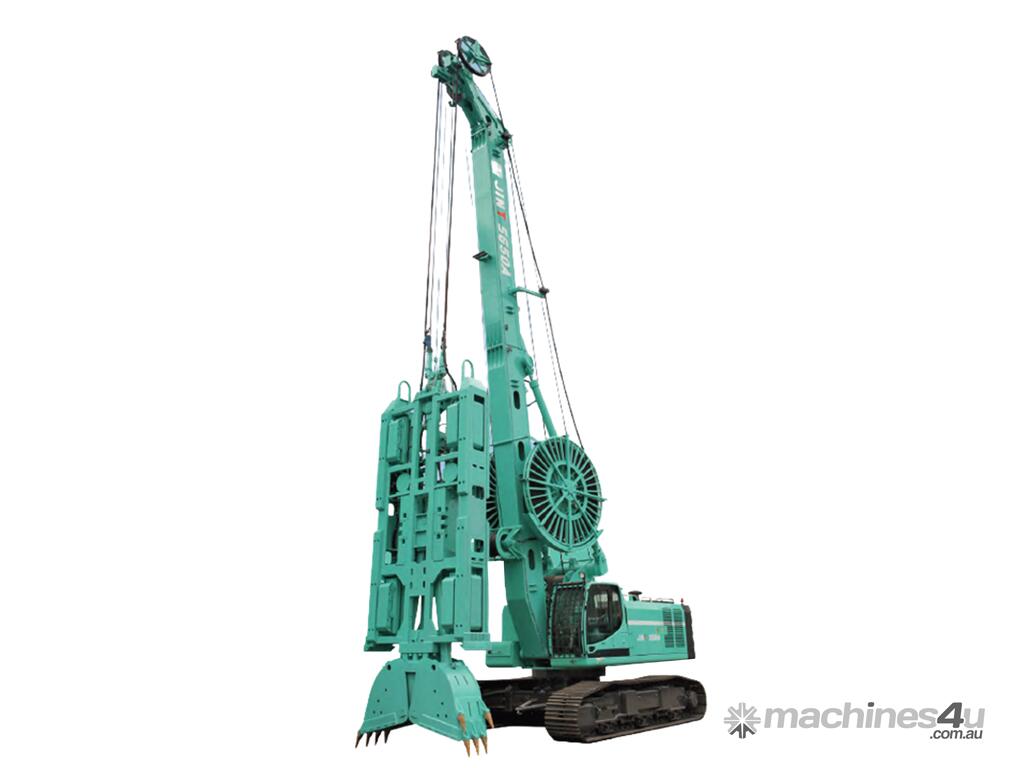

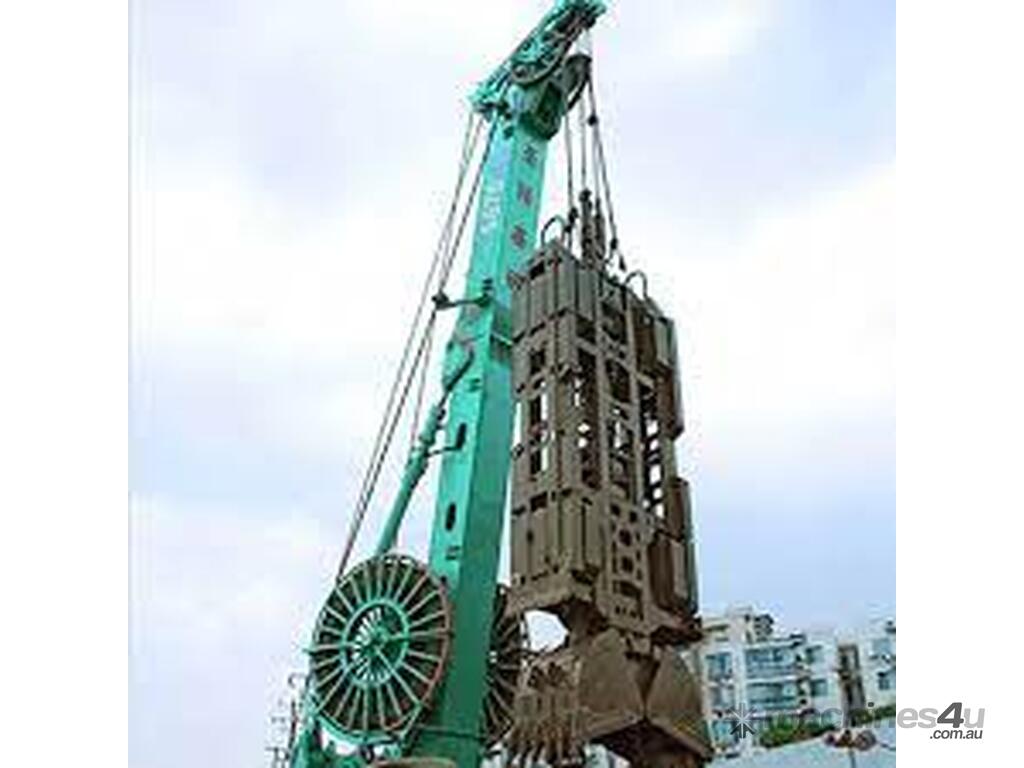

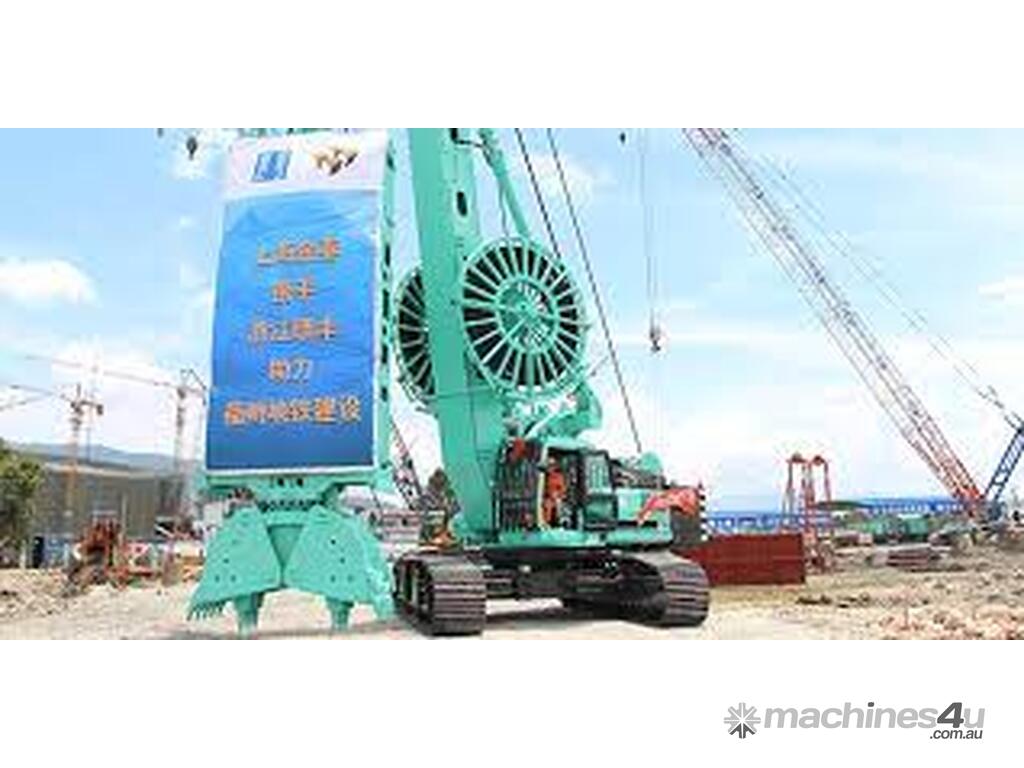

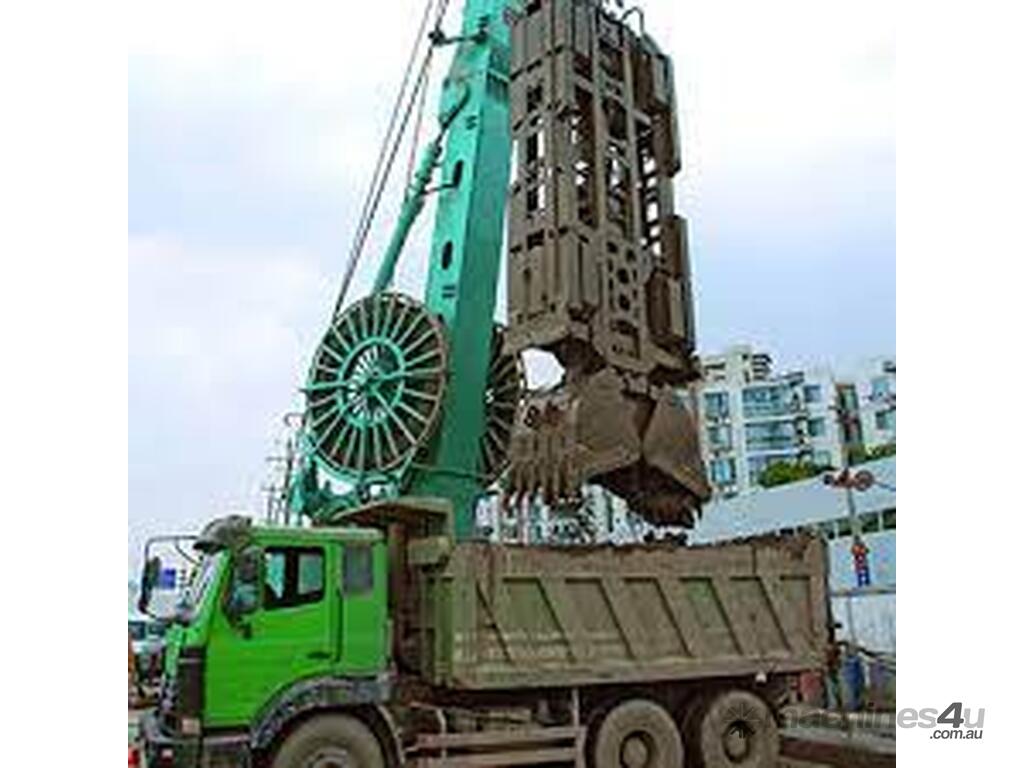

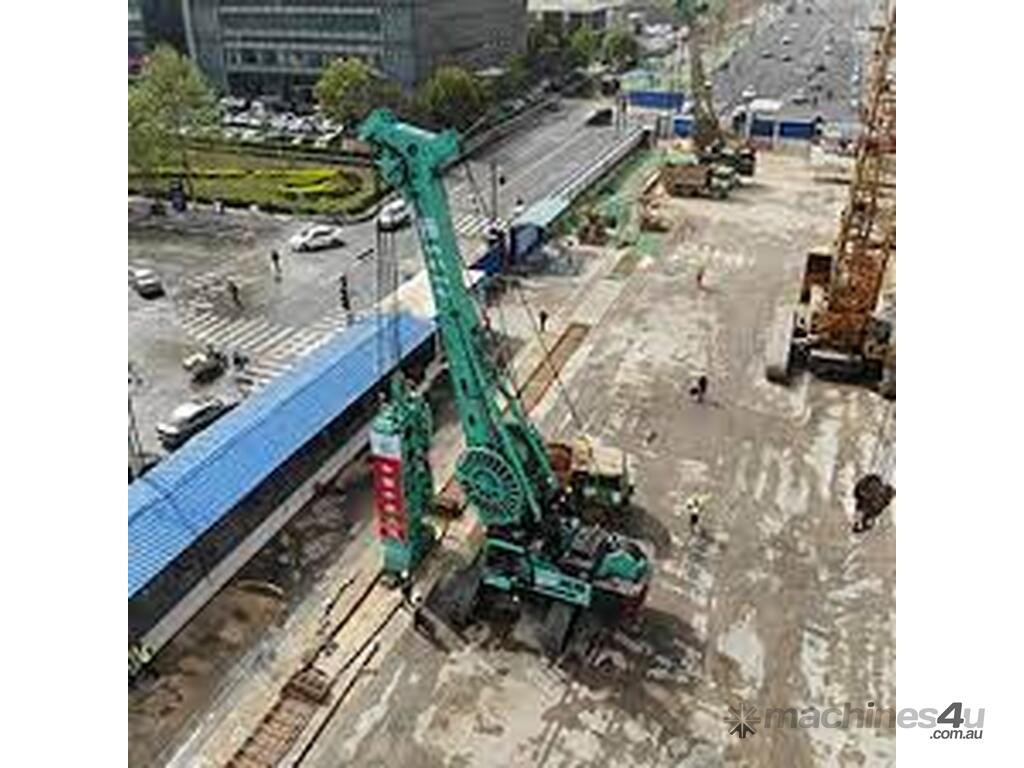

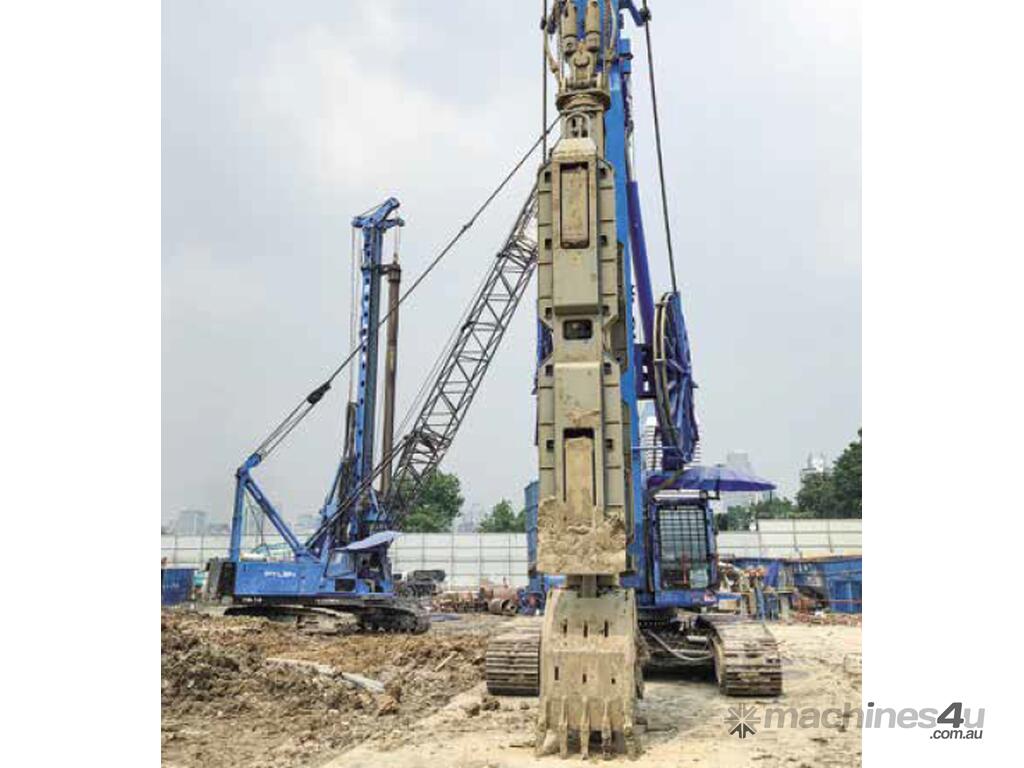

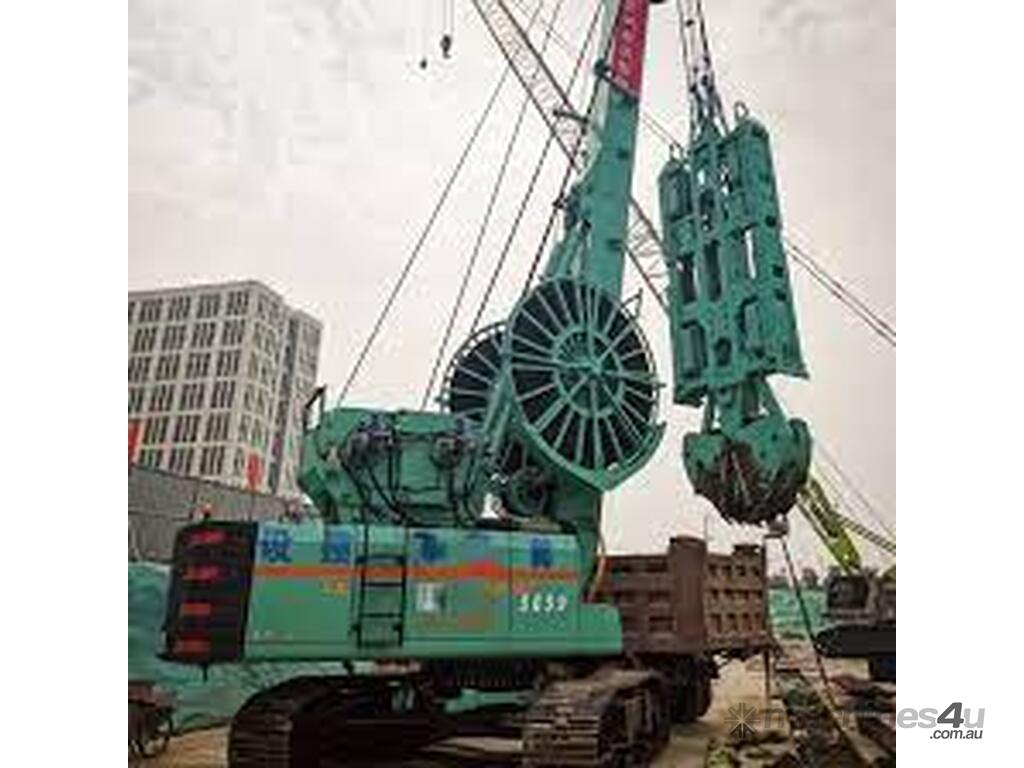

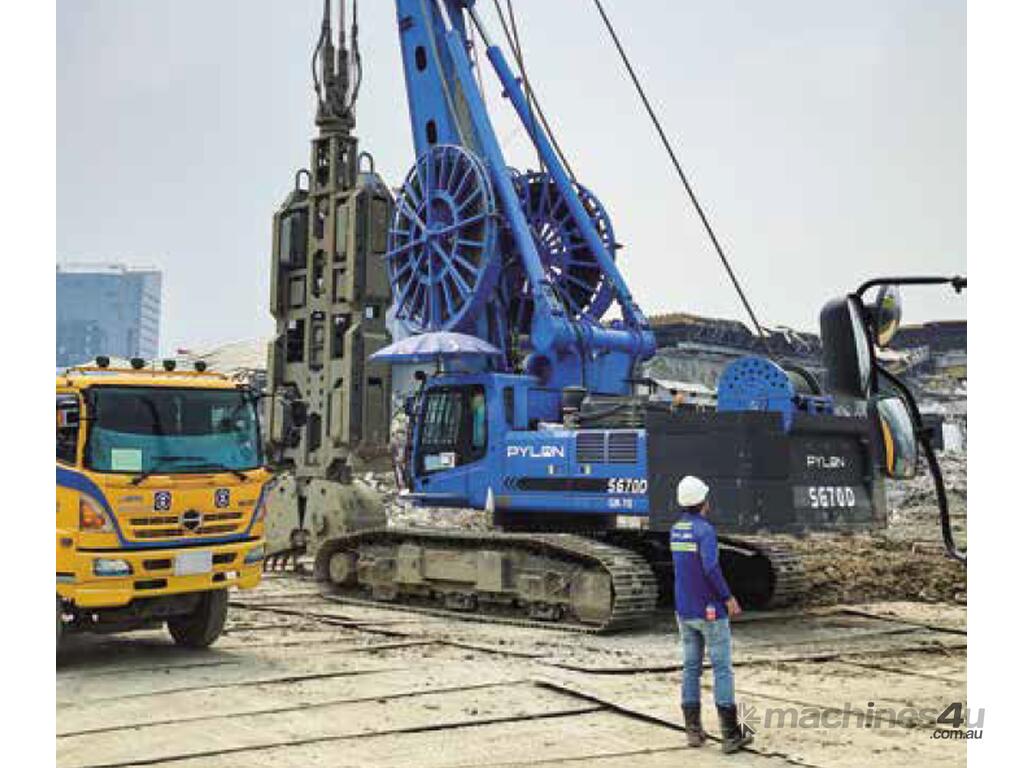

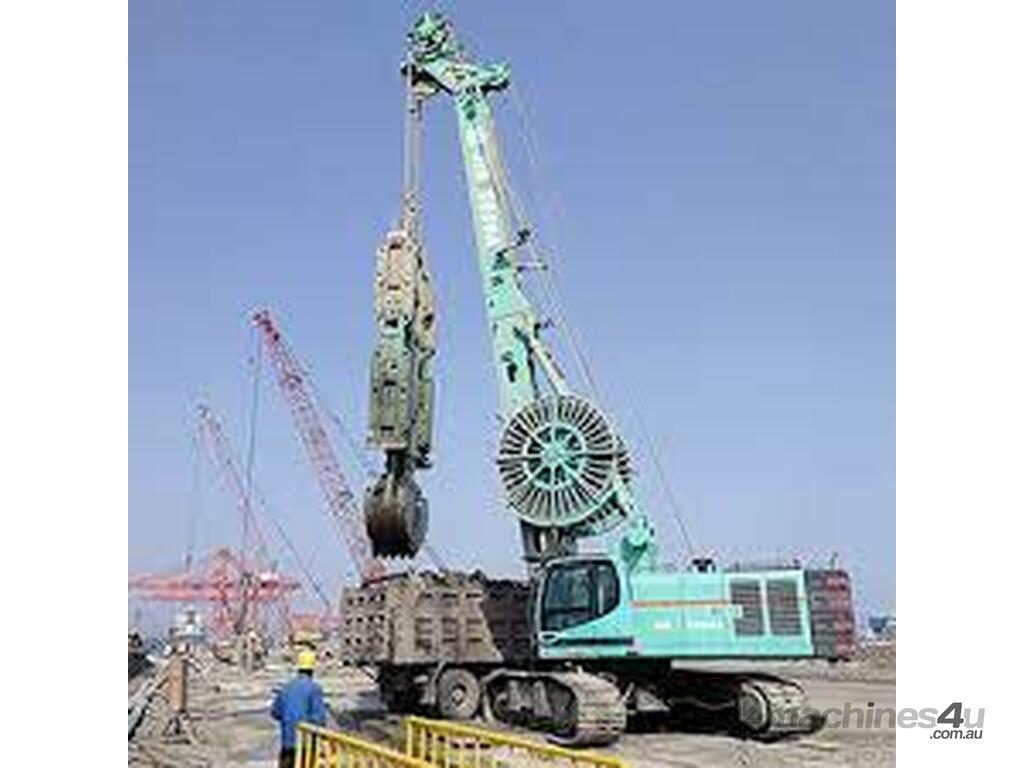

GANZ - Liugong SG70D Hydraulic Diaphragm Wall Grab

LiuGong's The SG70D Hydraulic Diaphragm Wall Grab stands out with its imported Cummins QSM11 EFI turbocharged engine, offering powerful performance while maintaining low noise and emissions. The utilization of trusted and high-performance hydraulic components ensures reliability and stability. The double winch design enables faster lifting and lowering, improving slotting efficiency and fuel economy. The advanced programmable inclinometers enhance excavation monitoring and optimization. With energy-saving features and improved control system, the SG70D promotes high efficiency, deep trench excavation capability, and environmental sustainability.

FEATURES

CUMMINS QSM11 EFI TURBOCHARGED ENGINE & RELIABLE AND HIGH-PERFORMANCE HYDRAULIC COMPONENTS:

The SG70D is equipped with an imported Cummins QSM11 EFI turbocharged engine, meeting Euro III emissions standards. This engine provides strong power, ensuring efficient and reliable performance during diaphragm wall construction. It operates with low noise levels and reduced emissions, promoting environmental friendliness. The SG70D features hydraulic components from well-known, reputable brands renowned for their reliability, stability, and high-performance. These components contribute to the grab's overall efficiency and productivity, ensuring smooth and precise operation.

DOUBLE WINCH TYPE & ADVANCED PROGRAMMABLE INCLINOMETERS
The SG70D utilizes a double winch design, enabling faster lifting and lowering speeds. This design enhances the slotting efficiency, resulting in increased productivity and reduced excavation time. The improved efficiency also contributes to fuel economy, reducing overall operating costs. The SG70D is equipped with advanced programmable inclinometers that record and store the excavation process of the grab. This feature enables efficient monitoring and analysis of the excavation operation, allowing for better control and optimization of the diaphragm wall construction process. As a result, the working efficiency is improved and the grab's ability for deep trench excavation is enhanced.

SPECIFICATIONS:
SG70D

Wall width (m) :0.8~1.5
Max. depth (m) : 80Max. lifting force (kN) : 700
Single line pulling force (kN) : 2 x 350

Weight of grab (t) : 23.5-33.5
Total weight without grab (t) : 95

Dimension-
Height (mm) :18,300
Max. height from grab to ground (mm) :5,500
Crawler length (mm) :5,820
Distance from grab center to slew cente (mm) :4675~5345
Distance from slew center to rear end (mm) 4,695

Base machine -
Diesel engine:QSM11-Tier3
Max. engine speed (rpm) : 1,900
Rated power (kW) : 300
System pressure (MPa) : 35
System flow (L/min) : 2 x 380

Model :JT85
Track outer width (mm) : 3400~4580
Track shoe width (mm) :800Traction force (kN) :700
Walking speed (km/h) : 1.5

At GANZ International, we provide years of experience, we provide the international equipment markets with top-quality products and unparalleled after-sales support.

We excel in supplying and servicing the world's finest new and used foundation and piling equipment. Our expertise spans Heavy Foundations, Construction, Material Handling, and Agricultural Equipment, making us industry leaders in versatile and problem-solving machinery. At GANZ, we bring innovation and technical know-how to every project, ensuring adaptability and overcoming any challenge. Partnering with us means having a passionate, experienced team at your side.

Go to the Ganz showroom on Machines4u to see the rest of our machinery, send Ganz a message about the item you are interested in discussing, or give Ganz International a call, we are happy to answer any of your questions.

* CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION *
