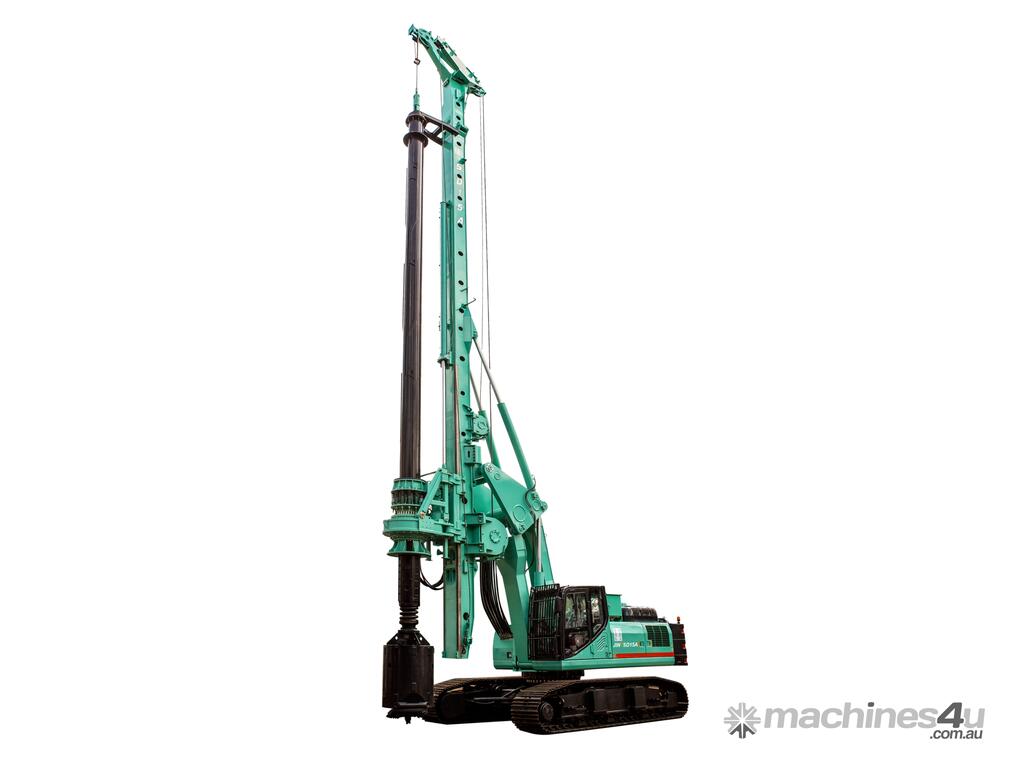

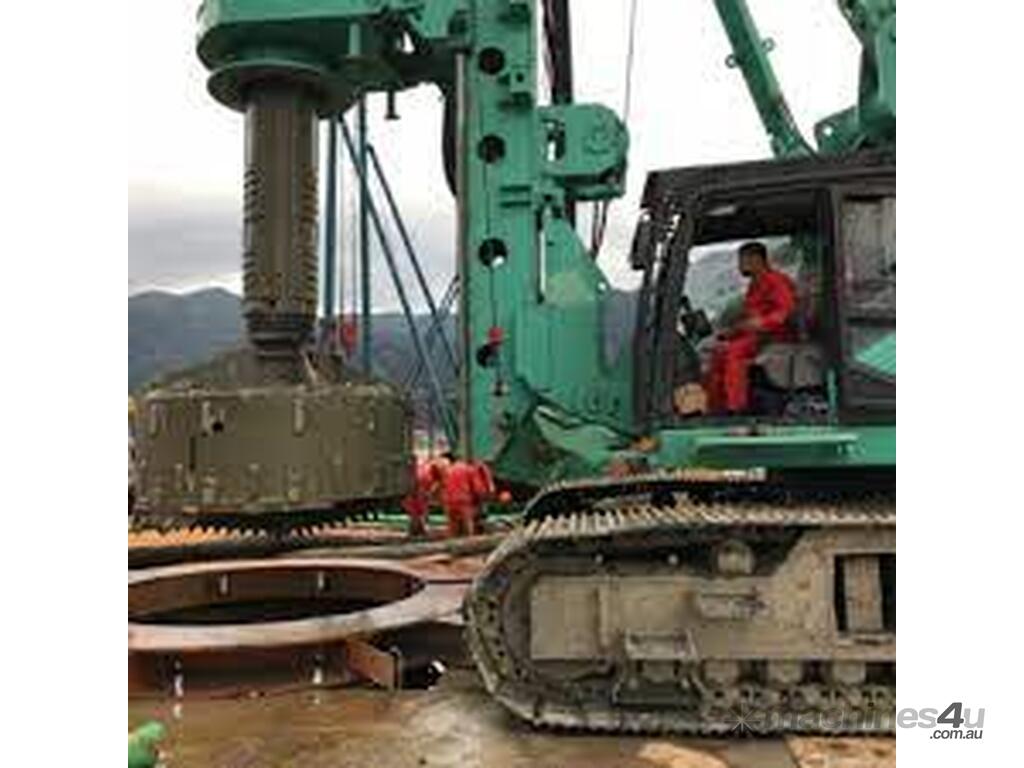

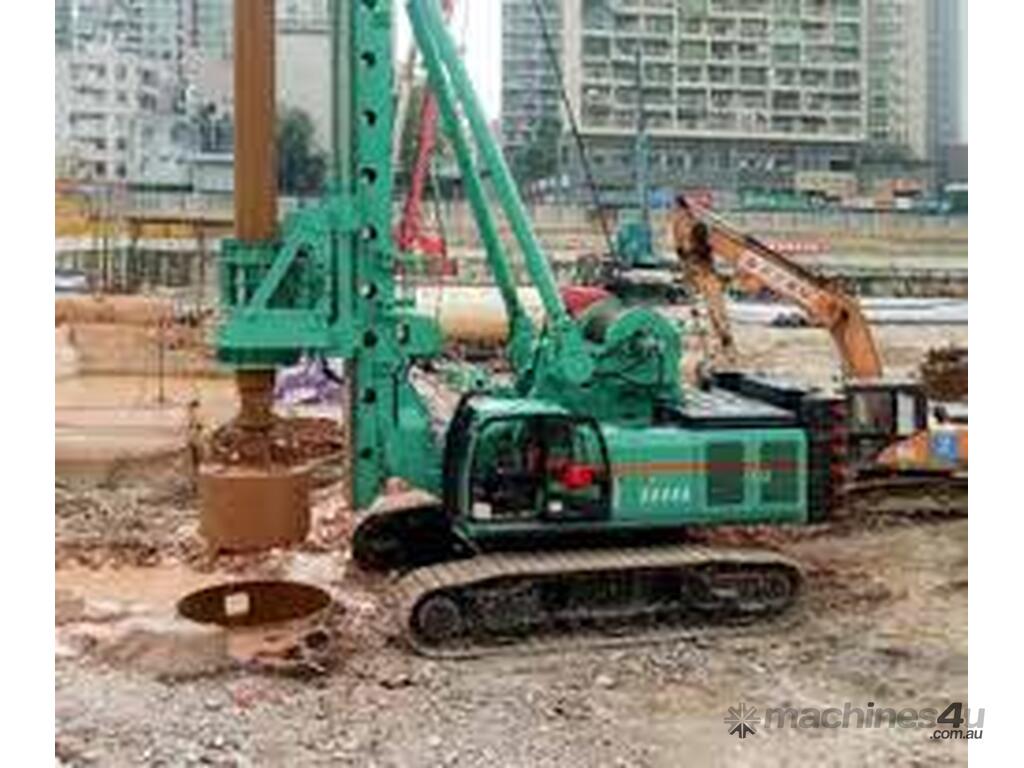

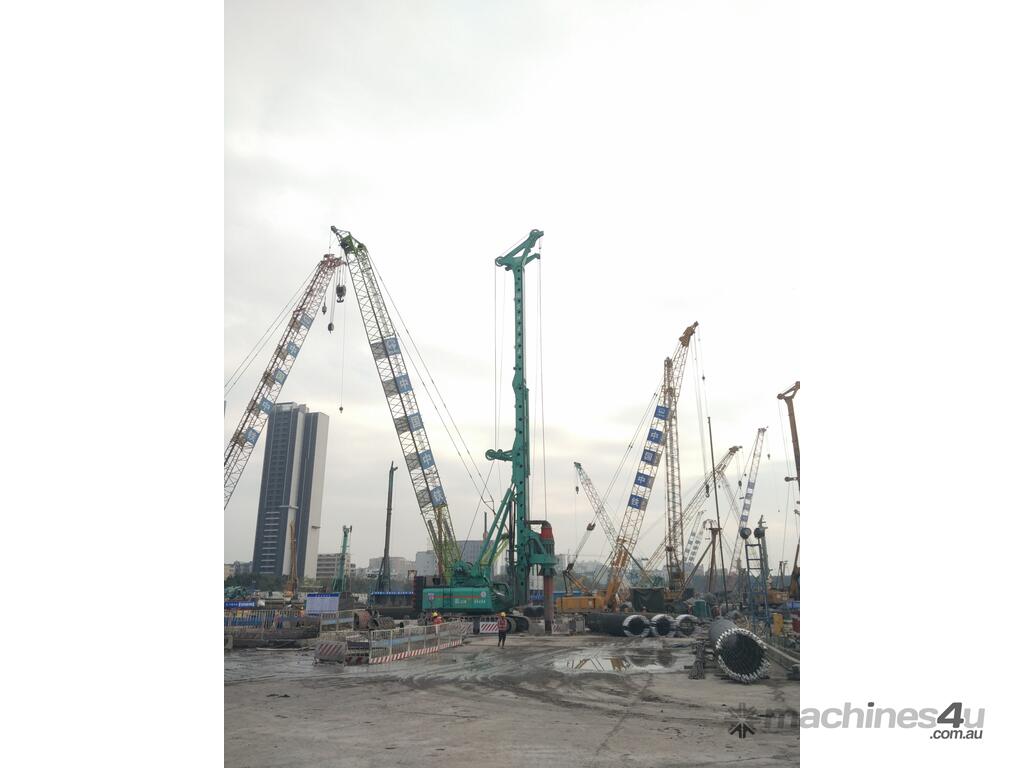

GANZ - Liugong SH46A Multi-Function Drilling Rig

LiuGongs' SH46A Multi-Function Drilling Rig provides powerful and efficient capabilities for large and deep pile foundation construction. With its robust engine, specialized chassis design, quality components, modern hydraulic technology, optimized machine layout, superior pressure capacity, high rock penetration efficiency, and versatility, the SH46A is an ideal choice for ultra-deep and super-large pile foundation projects. Its advanced features and reliable performance contribute to optimal productivity, safety, and successful completion of demanding construction projects.

FEATURES

POWERFUL ENGINE
The SH46A is equipped with an imported Cummins engine from the United States, providing a robust power output of 380 kW. This high power capacity enables the rig to handle large and deep pile foundation construction projects efficiently.

SPECIAL CHASSIS DESIGN & HIGH-QUALITY COMPONENTS
The SH46A features a specialized chassis that is co-developed by Jintai and Hyundai. This design ensures stability and maneuverability, allowing the rig to operate effectively even in complex and challenging terrain. The SH46A incorporates internationally recognized and high-quality brand key components. This ensures reliability, durability, and optimal performance. The use of premium components contributes to the rig's efficient and long-lasting operation.

SUPERIOR PRESSURE CAPACITY & HIGH ROCK PENETRATION EFFICIENCY

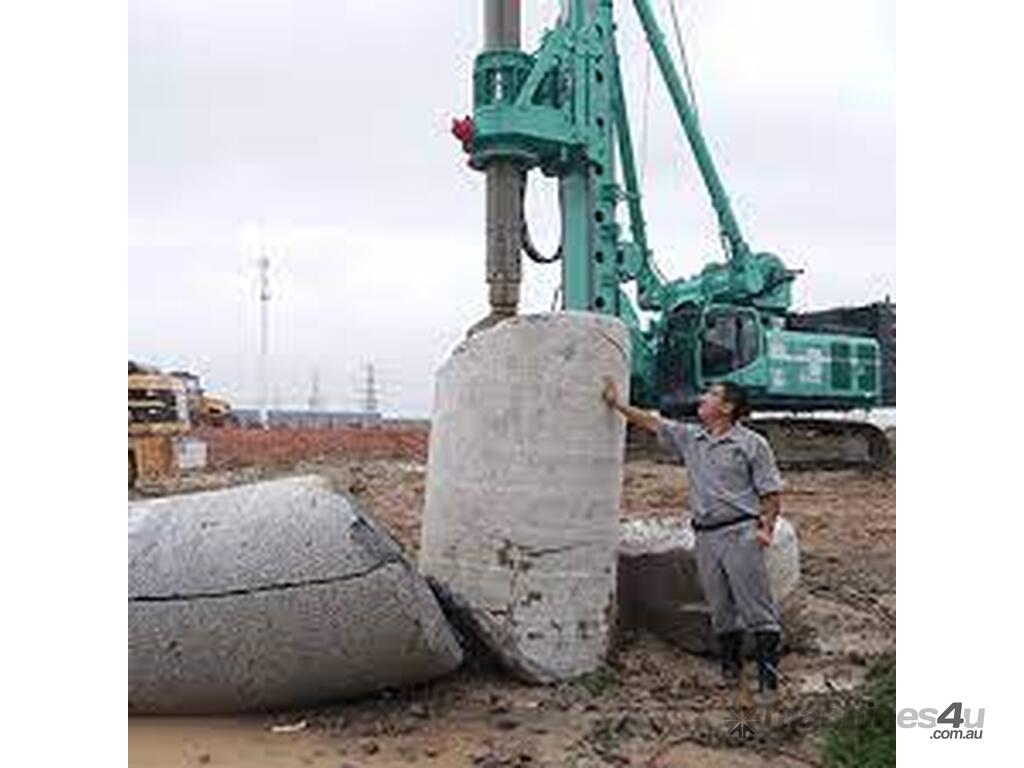

The SH46A is equipped with a super high-pressure system, allowing it to exert significant force during pile driving. This feature enables the rig to tackle ultra-deep and super-large pile foundation projects effectively. The superior pressure capacity enhances the rig's efficiency and productivity. The SH46A is specifically designed to excel in rock strata. It offers high rock penetration efficiency, making it suitable for projects that involve challenging geological conditions. This capability reduces downtime and increases the overall speed of construction.

SPECIFICATIONS:

SH46A
Height(mm) : 31,390
Total weight without drilling tools (kg) : 140,000
Upper carrier JS120

Engine -CUMMINS QSX15
Rated power (kWrpm) : 3801800
Hydraulic system flow (L/min) : 2×435+144
Hydraulic system pressure (Mpa) : 33
Capacity of fuel tank(L) : 910
Capacity of hydraulic oil tank(L) : 580

Retractable undercarriage - JT100
Crawler shoes width (mm) : 900
Crawler length (mm) : 6.360
Crawler width retract/extend (mm) : 3500-5000
Traction force (kN) : 818
Travel speed (km/h) : 1.5

Rotary head -
Rotary torque (kN.m) : 460
Rotary speed (rpm) : 6-24

Main winch -
Max. single line pulling force (kN) : 500
Wire rope diameter (mm) : 40
Max. lifting speed (m/min) : 60

Auxiliary winch -
Single line pulling force (kN) : 110
Wire rope diameter (mm) : 18
Max. lifting speed (m/min) : 40

Crowd cylinder system -
Standard Stroke(mm) : 6,000
Crowd force (kN) : 400
Pulling force (kN) : 480

Crowd winch system (option) -
Standard/Max. Stroke (mm) : 11000-22000
Crowd force (kN) : 460
Pulling force (kN) : 460
