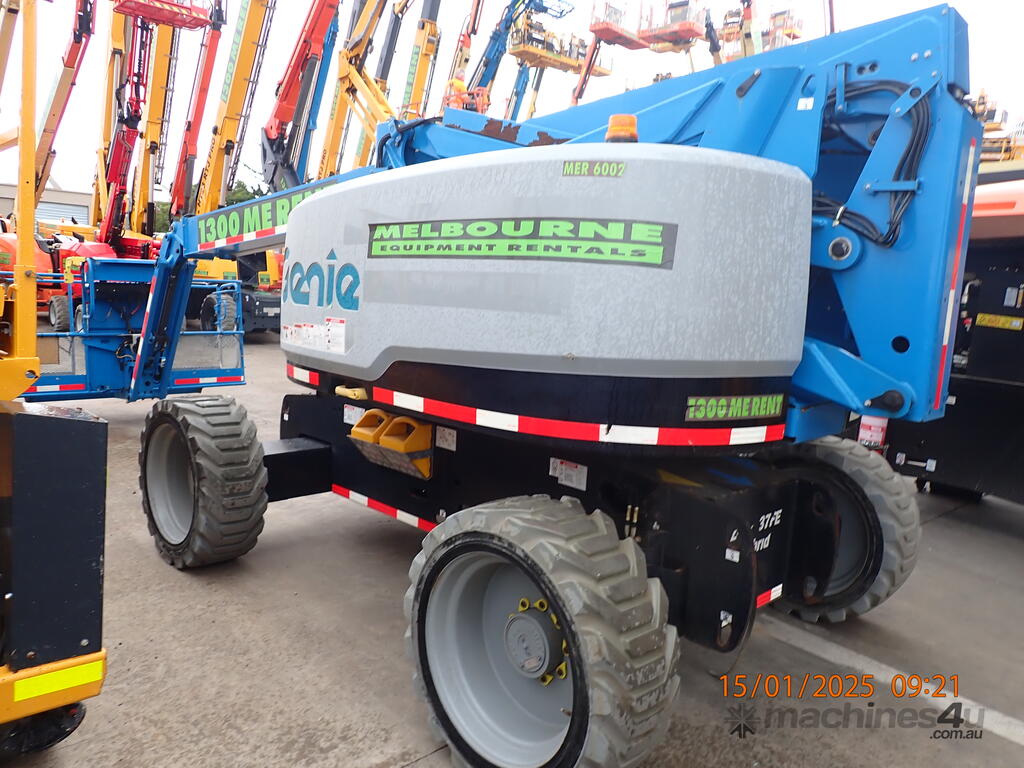

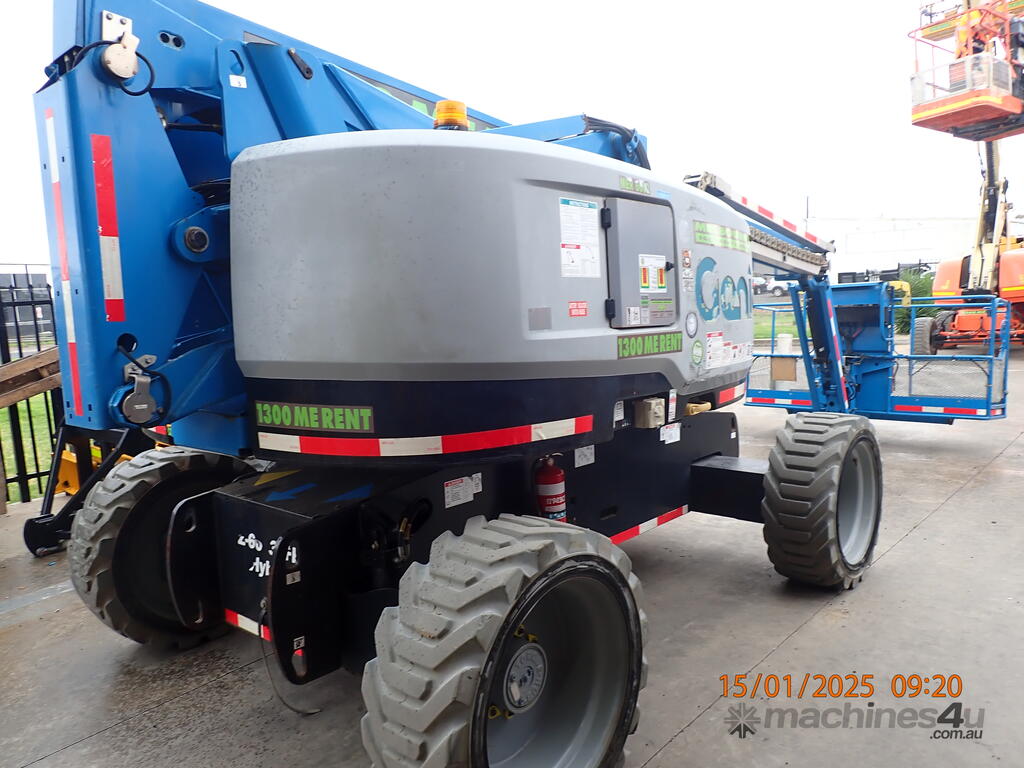

The Genie Z-60/37 FE is a hybrid articulated (knuckle) boom lift, designed to deliver versatile performance on both indoor and outdoor job sites with reduced emissions and lower operating costs. It combines electric drive technology with a diesel generator for maximum flexibility and efficiency.
?? Key Features
Hybrid Power System:
Dual-mode operation — all-electric for emission-free use and hybrid (diesel + electric) for extended runtime.
Jobsite Versatility:
Full-time 4WD with active oscillating axle for traction on rough terrain.
Exceptional Reach:
Working height: ~20.16 m (65 ft 7 in)
Horizontal outreach: ~11.15 m (36 ft 7 in)

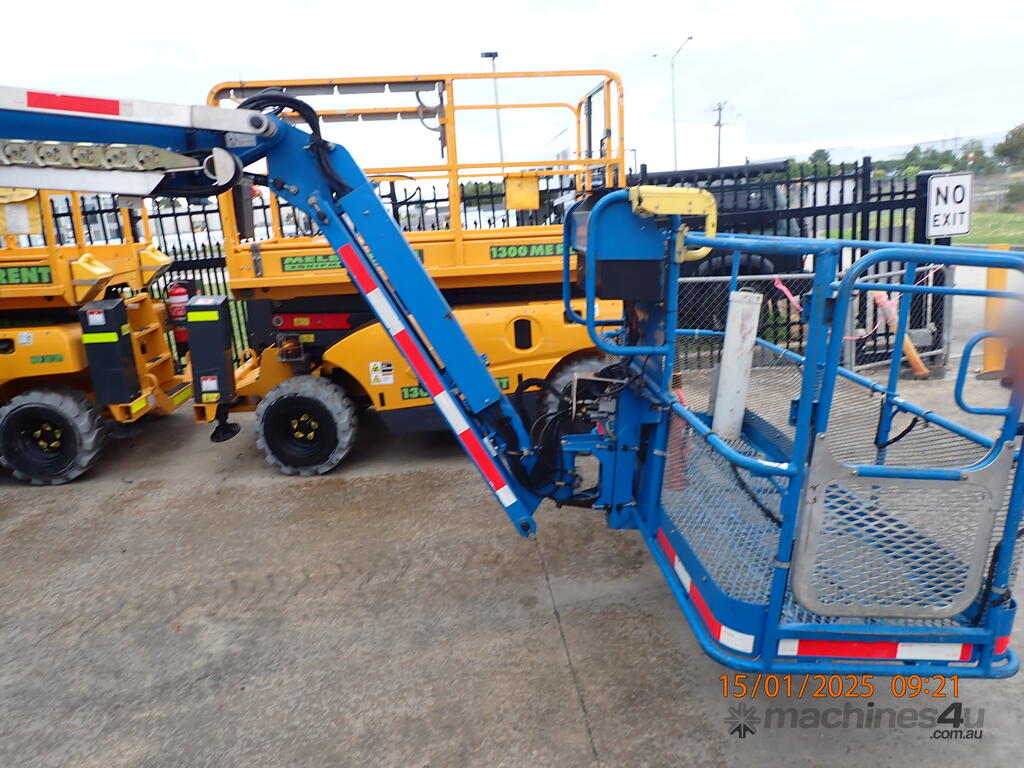

Articulating Jib:
1.52 m (5 ft) articulating jib with ~135° range of motion for precise positioning.

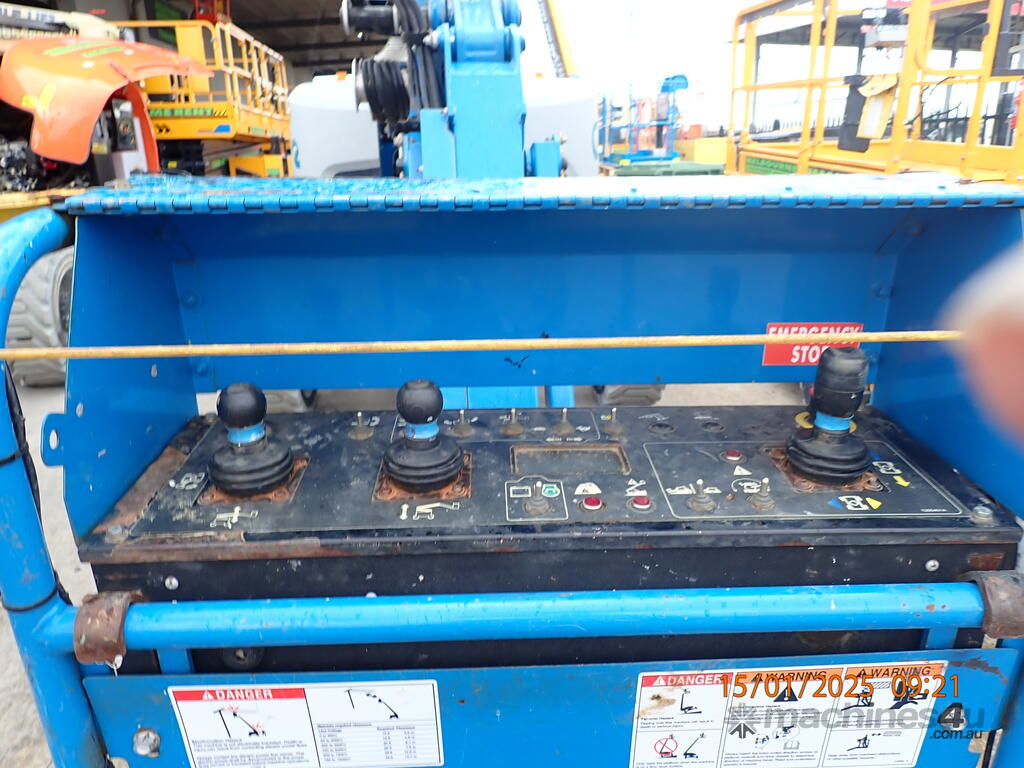

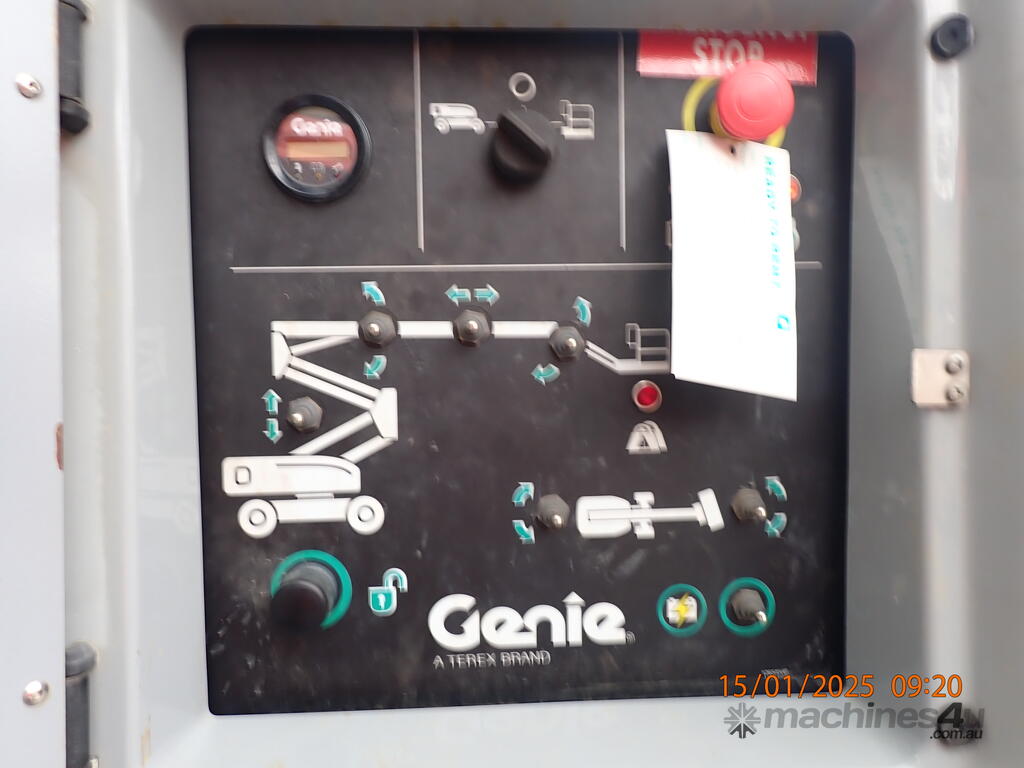

Smooth Control:
Dual parallelogram linkage and fully proportional controls.
Efficient Performance:
High-efficiency AC drive system simplifies maintenance and improves drive performance.
Genie Fast Mast™:
Faster boom deployment and retrieval.

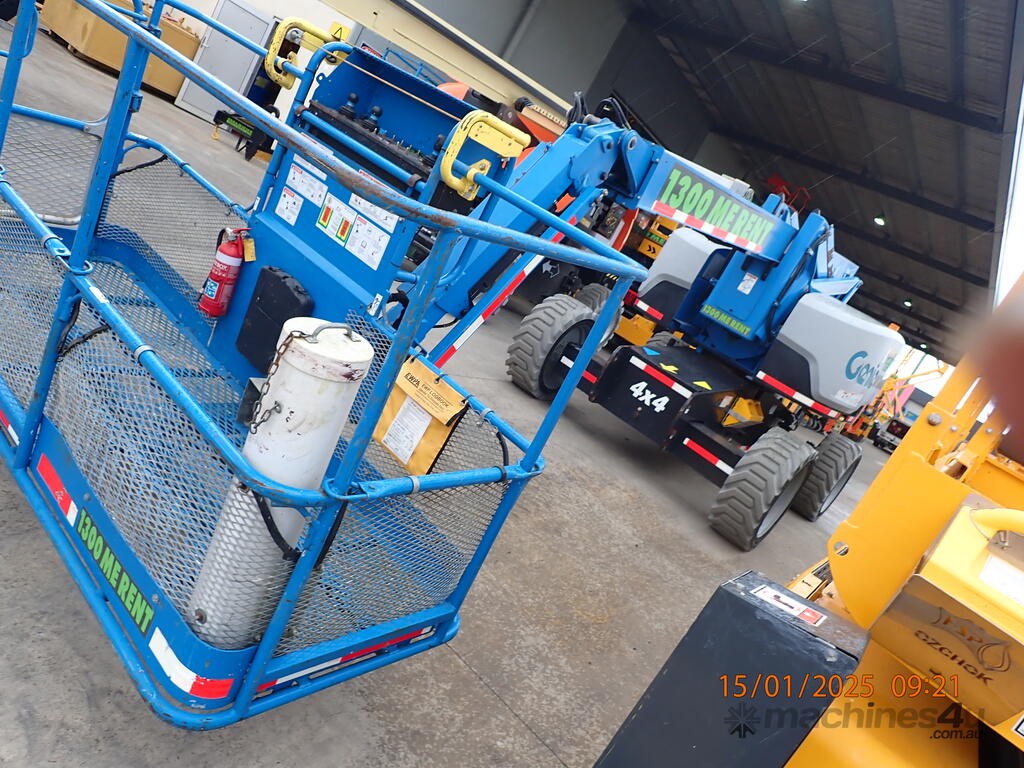

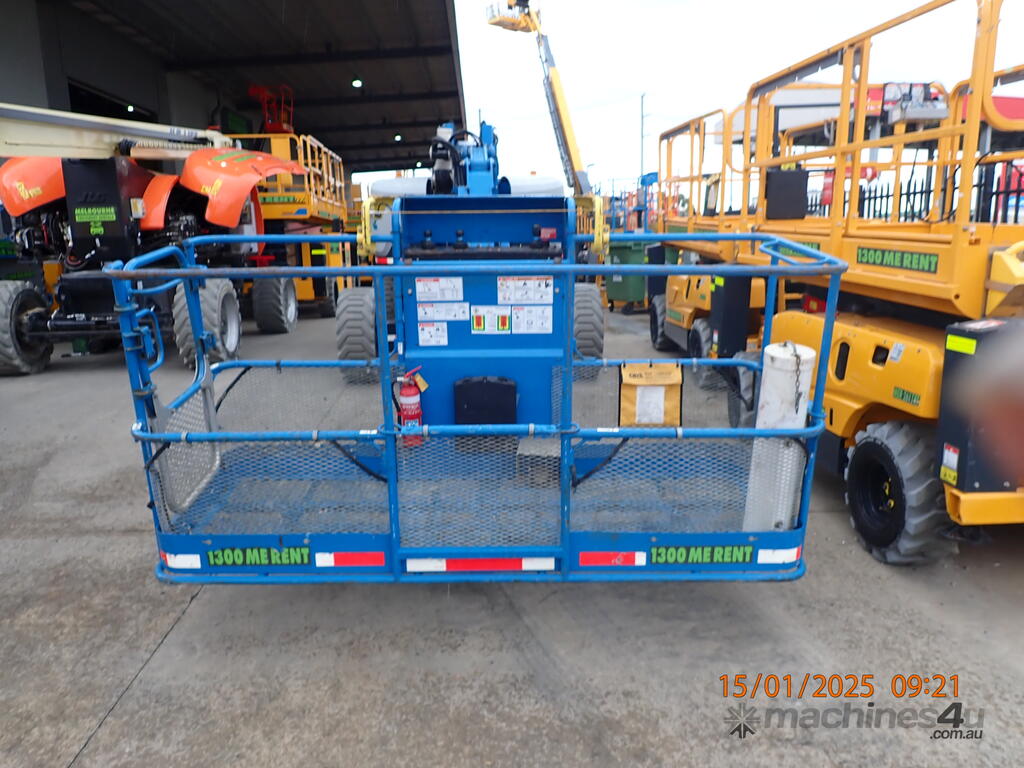

Platform Capacity:
Up to 227 kg (500 lb) capacity.
???? Power & Runtime
Electric Mode: Operates for a full workday with zero local emissions on a single battery charge.
Hybrid Mode: Combines battery with an onboard diesel generator for extended runtime — up to a week on one tank of fuel.
???? Terrain & Control
Track rough terrain easily thanks to full-time oscillating axle and four-wheel drive, with approximately 45% gradeability.
