GHD-32 Industrial 4MT Geared Head Drilling Machine Ø40mm Drilling Capacity Includes Automatic Feed

HAFCO METALMASTER GHD-32 Industrial 4MT Geared Head Drilling Machine Ø40mm Drilling Capacity Includes Automatic Feed & Tapping
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: D177

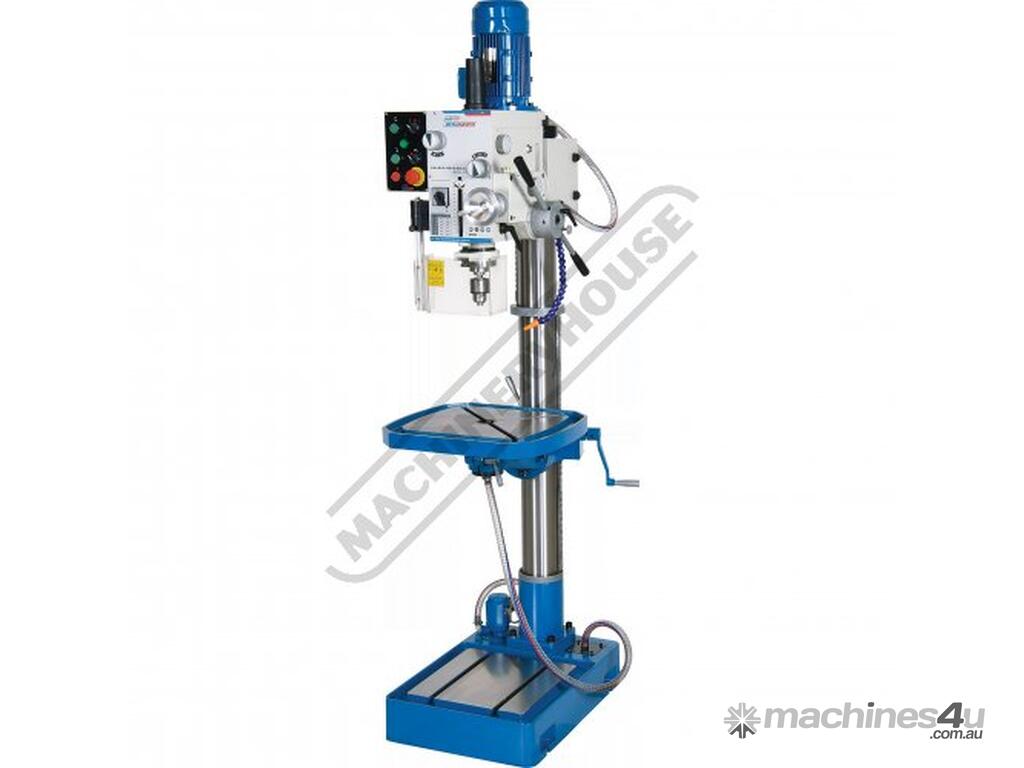

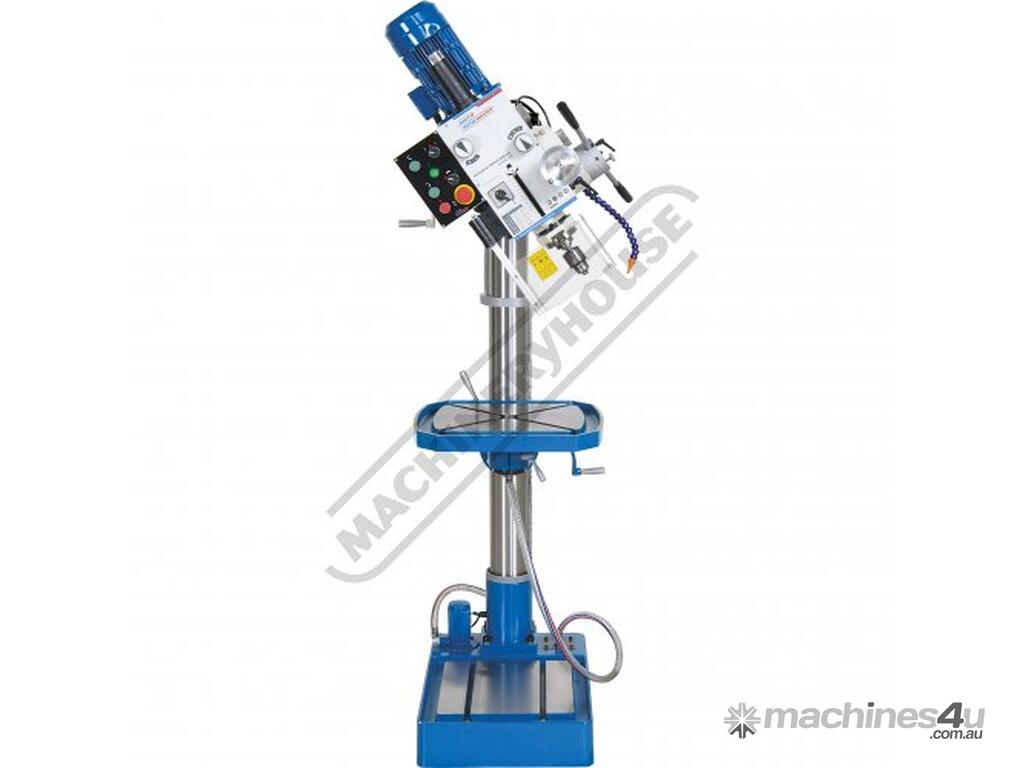

The GHD-32 Industrial 4MT Geared Head Drilling Machine is the next model up from the GHD-22 & GHD-30V. This drill is our entry level machine with a 4 morse taper spindle to handle holes up to 40mm. it also has all the goodies like auto feed, thread tapping function, tilting & rotating large cast table and a rack & pinion height adjustable work table and drill head.

Another notable feature to point out on this model is that the head swivels ±90º from vertical offering even more scope to drilling holes at the desired angle required. The coolant pump system with and adjustable flexible hose to direct the fluid on the drill will prolong the life of your drill bits. The machine offers 12 spindle speeds from 95 – 3300rpm to drill a wide range of holes in many types of materials. A great all-rounder machine that will surely add value to your business for a small investment.

Features:
Ideal for industrial workshop use

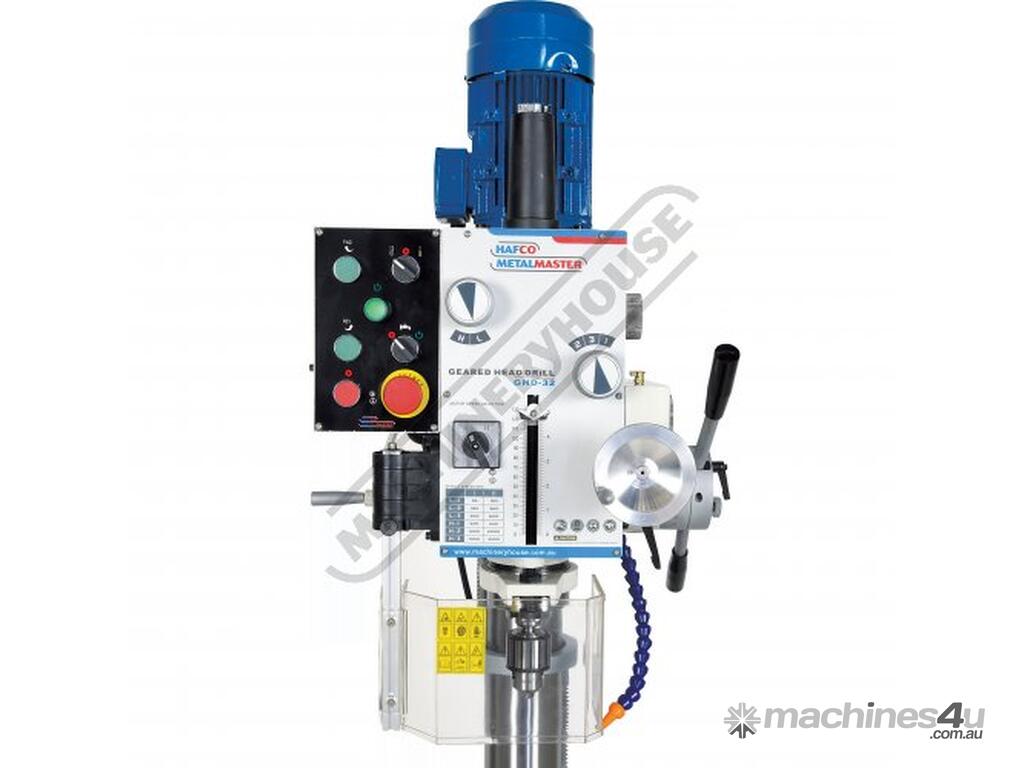

4MT geared head machine
Thread tapping with auto reverse

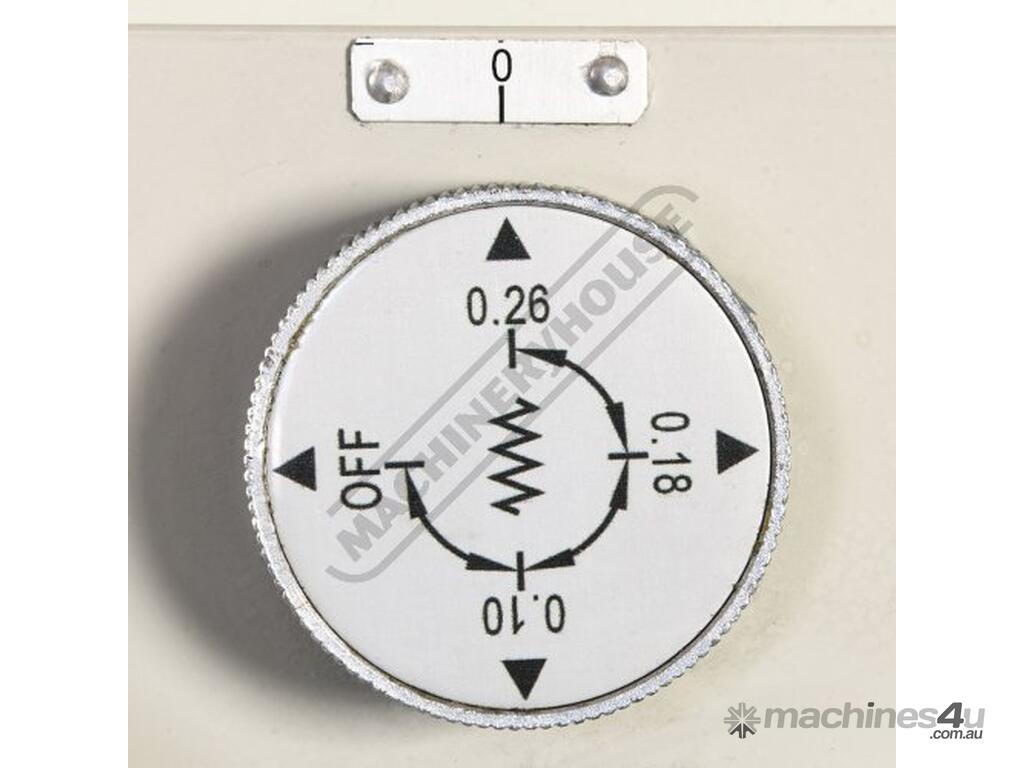

Automatic feed range (0.1 0.18 0.26mm/rev)

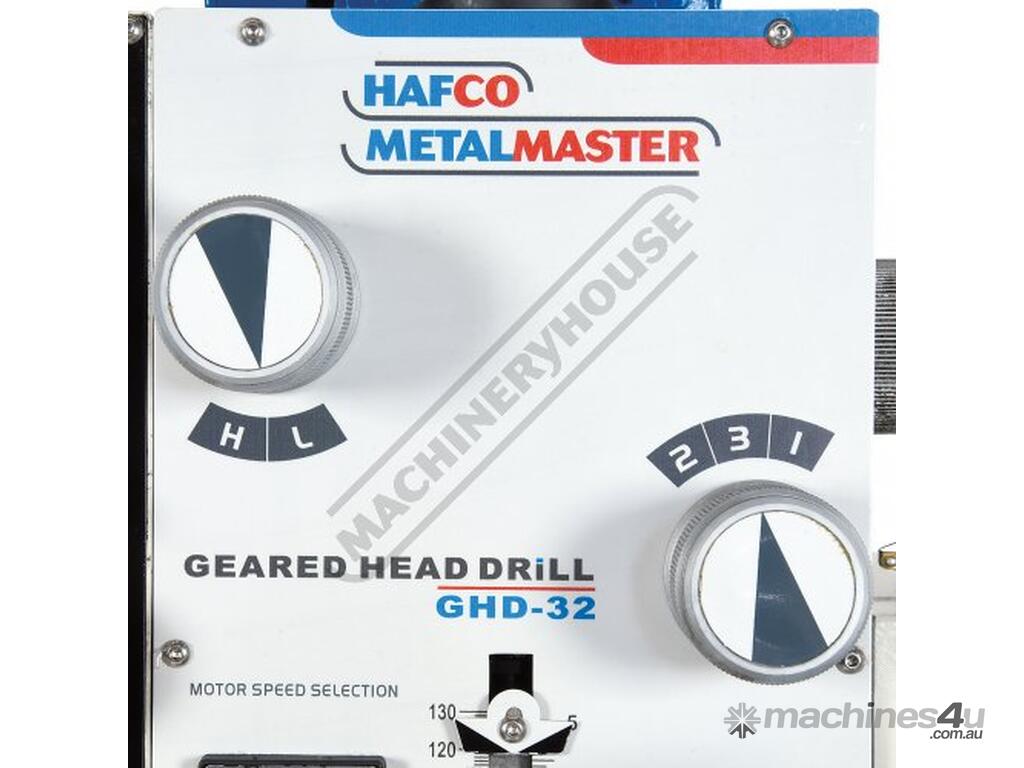

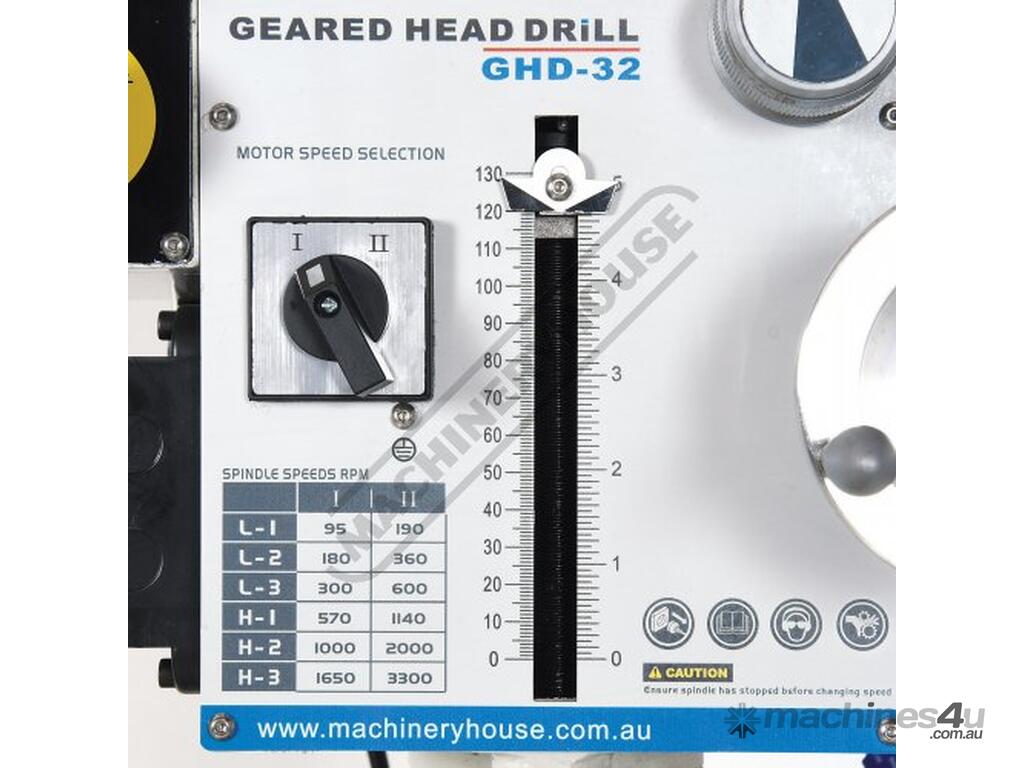

12 drilling speeds 95-3300rpm 415V motor

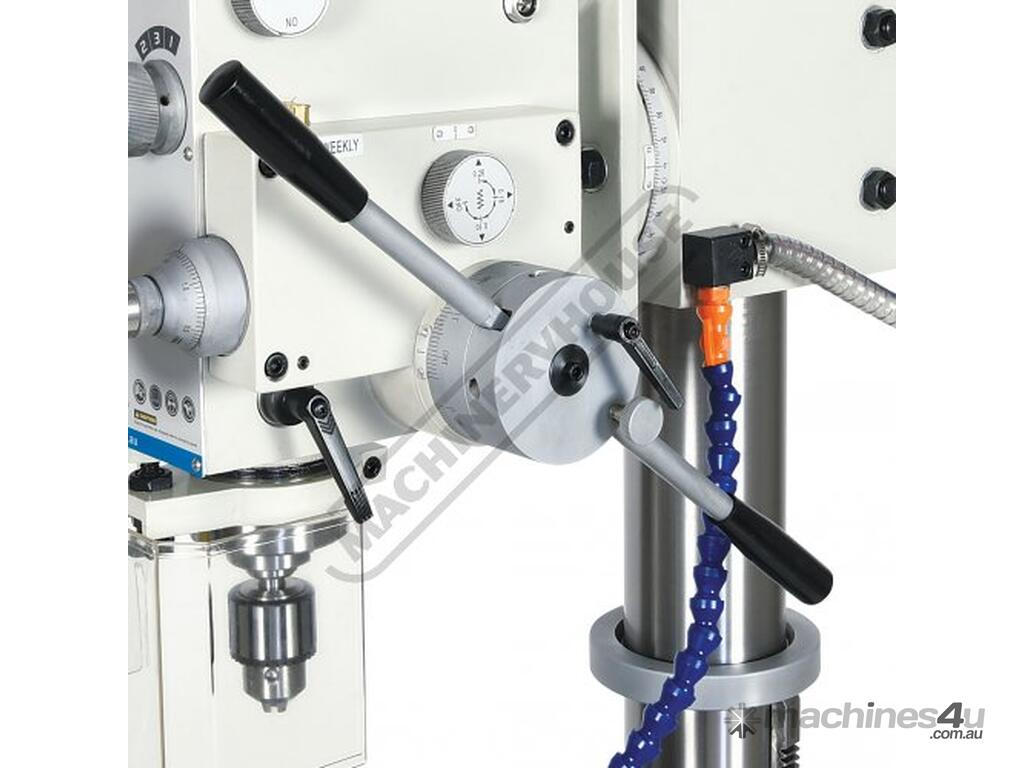

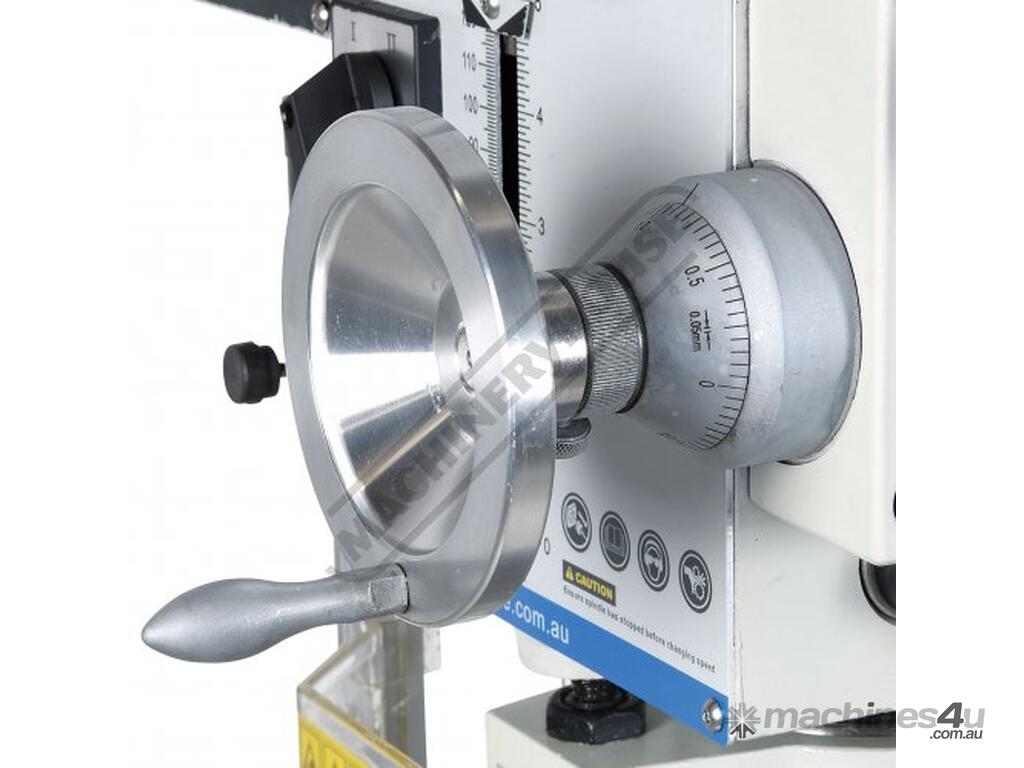

Micro down feed adjustment

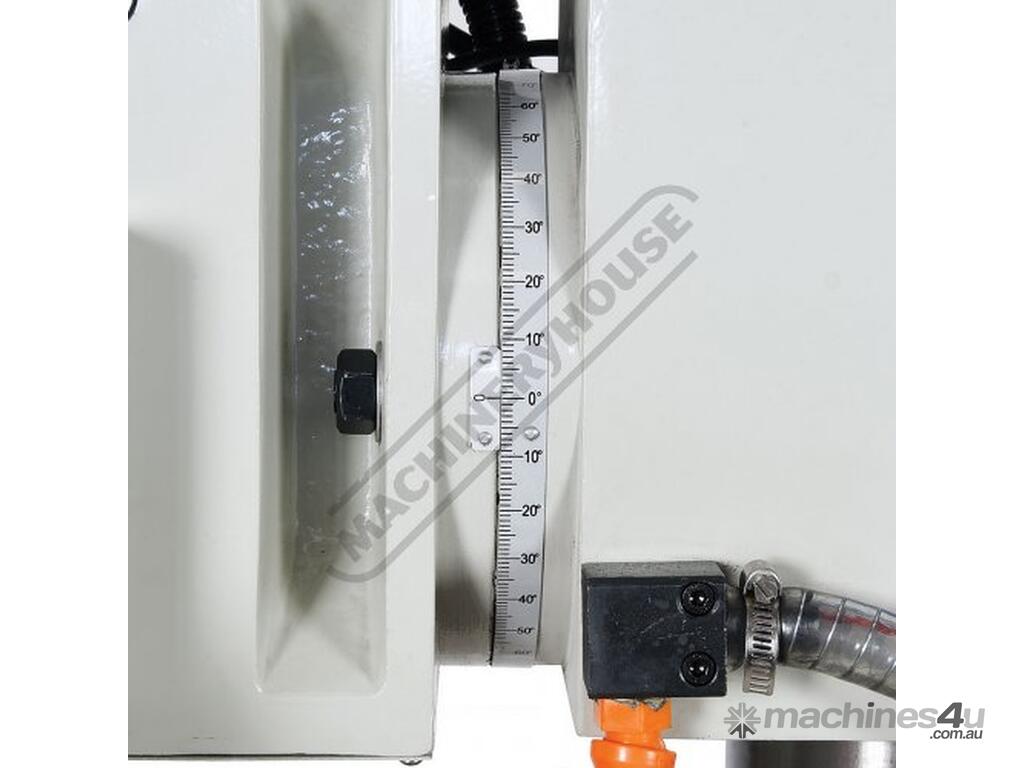

Tilting / swivel head ±90º

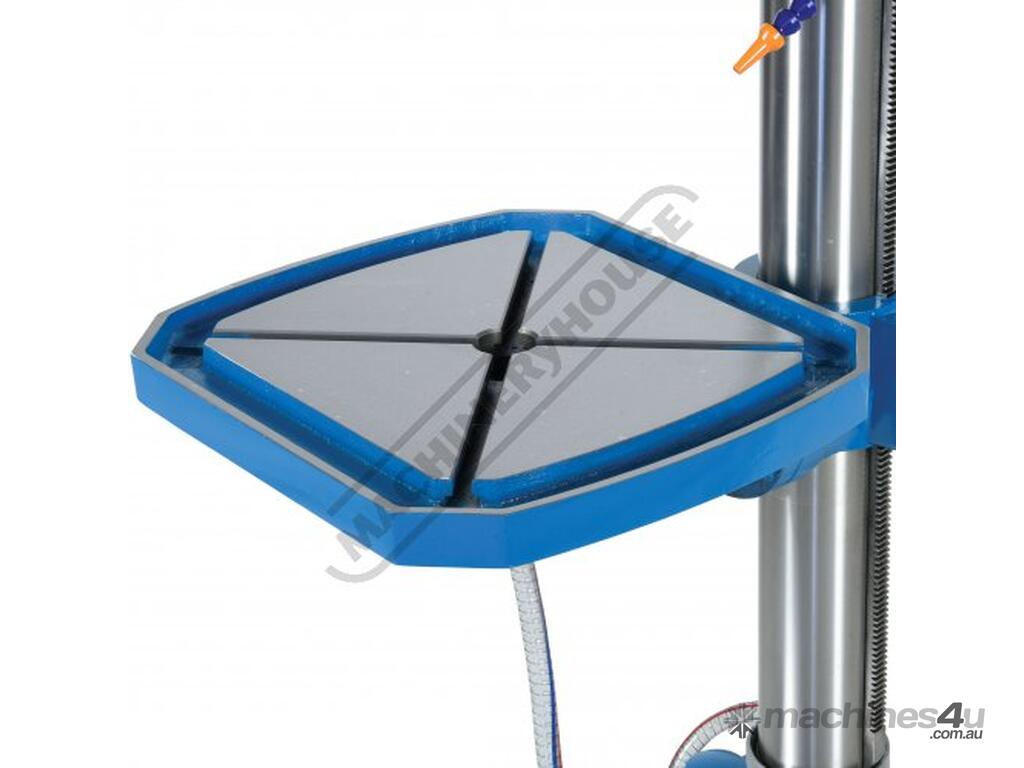

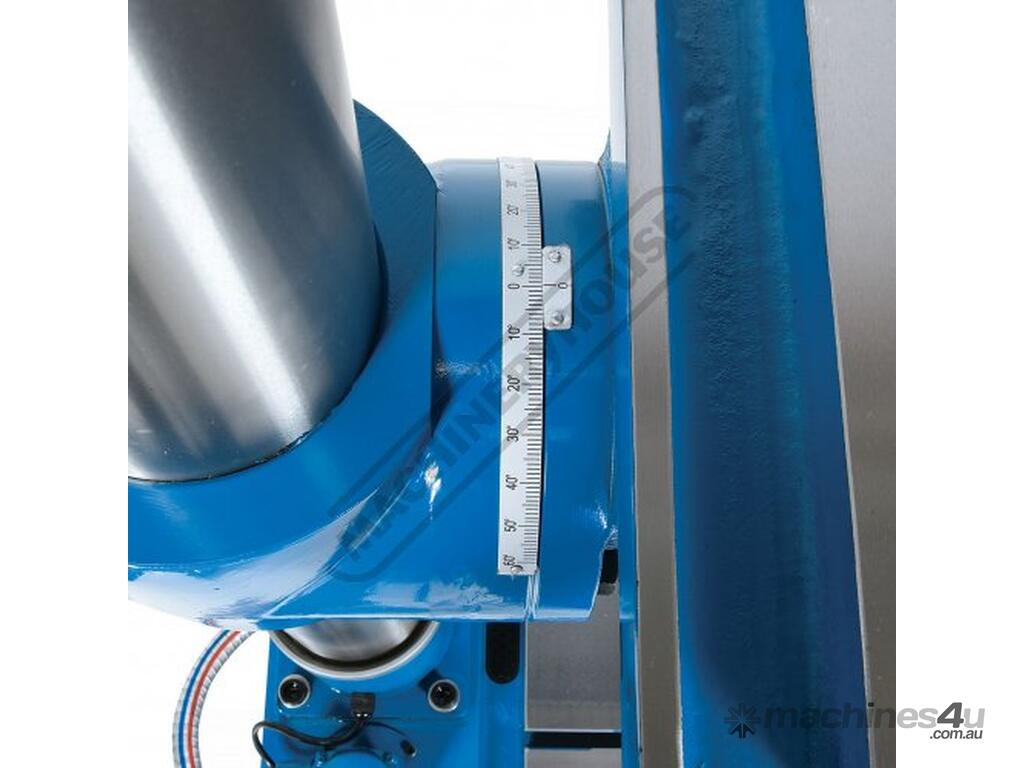

Tilting & rotating rectangle work table

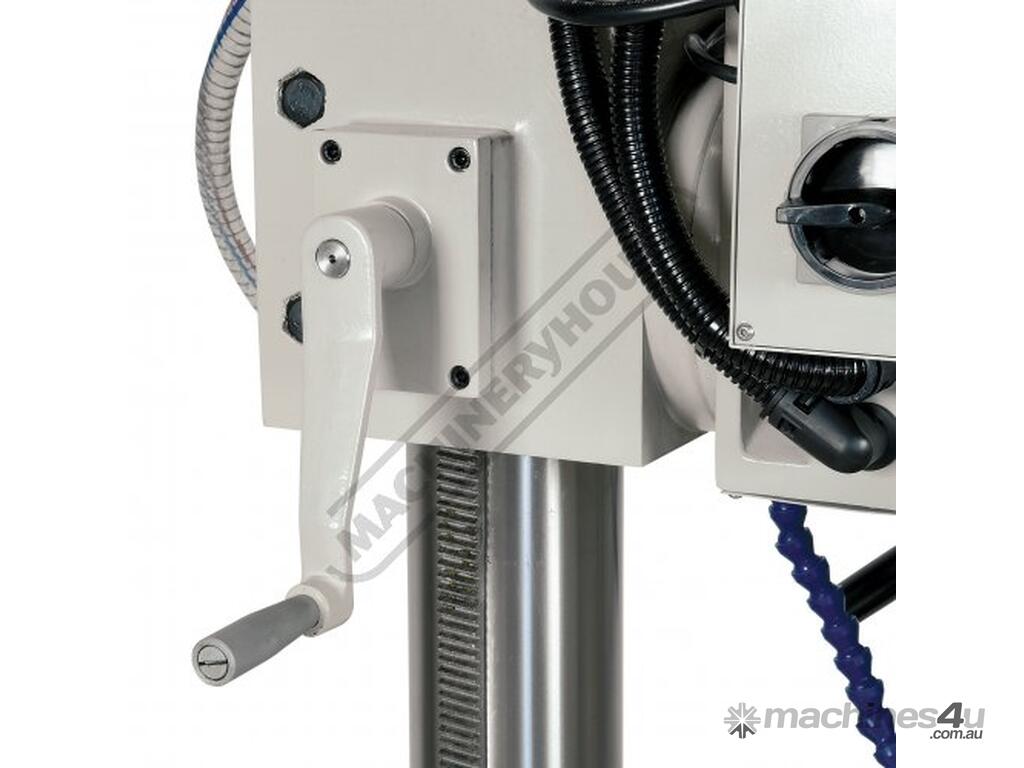

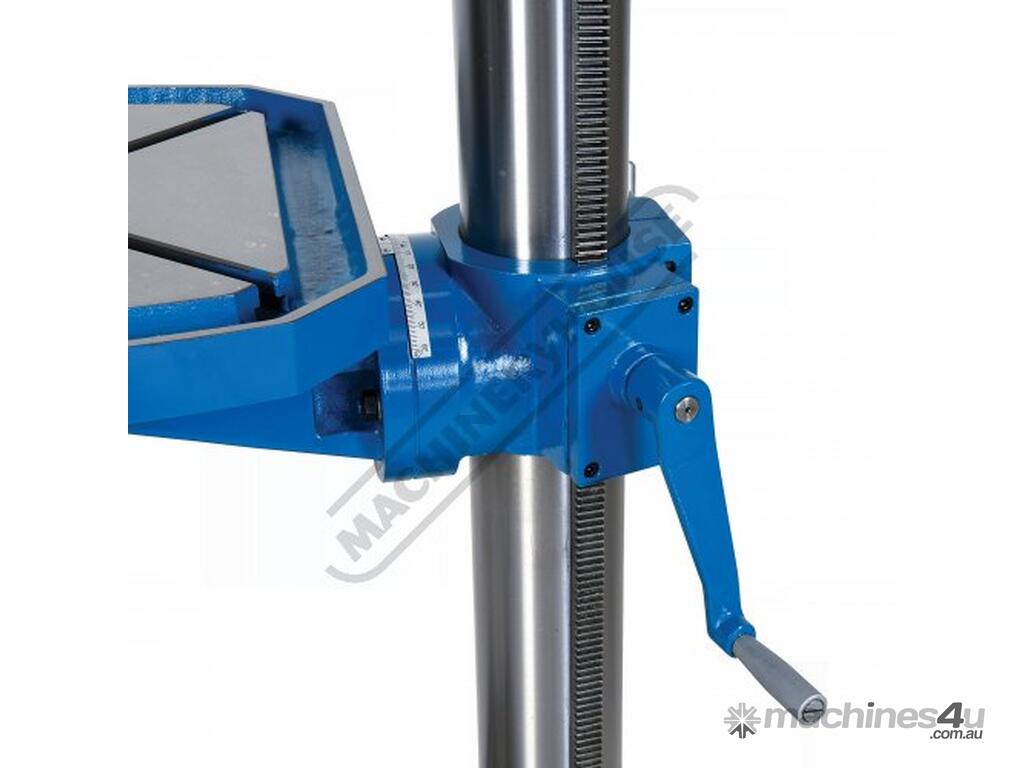

Rack & pinion table & drill head
Adjustable accurate depth setting for increased productivity

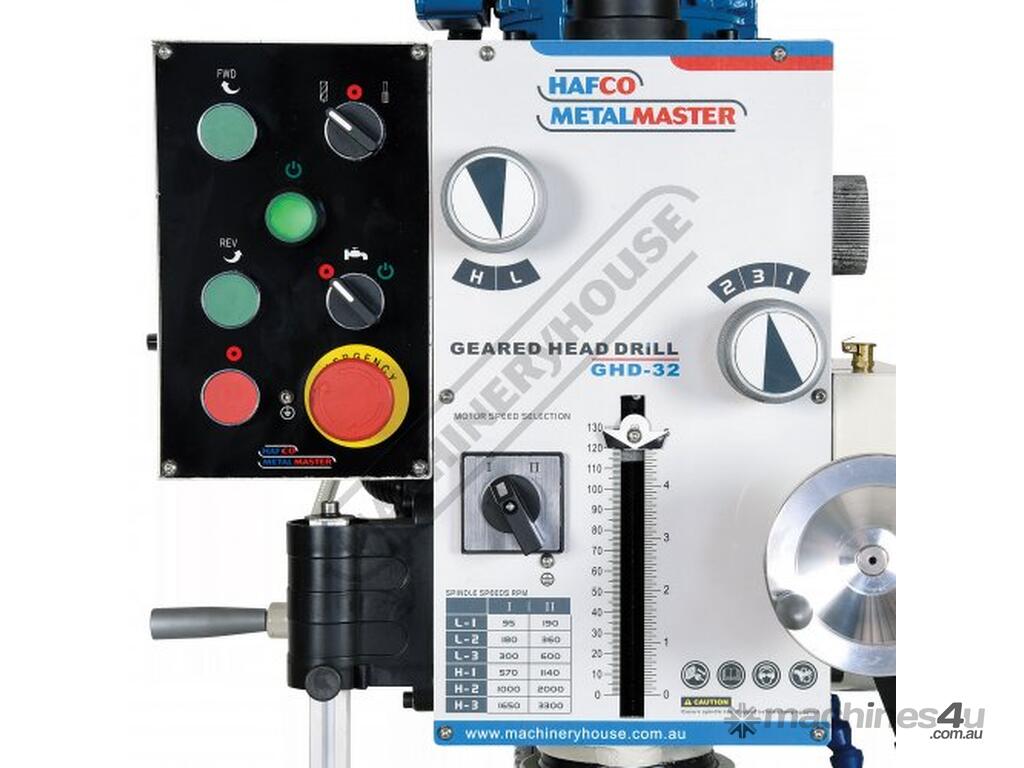

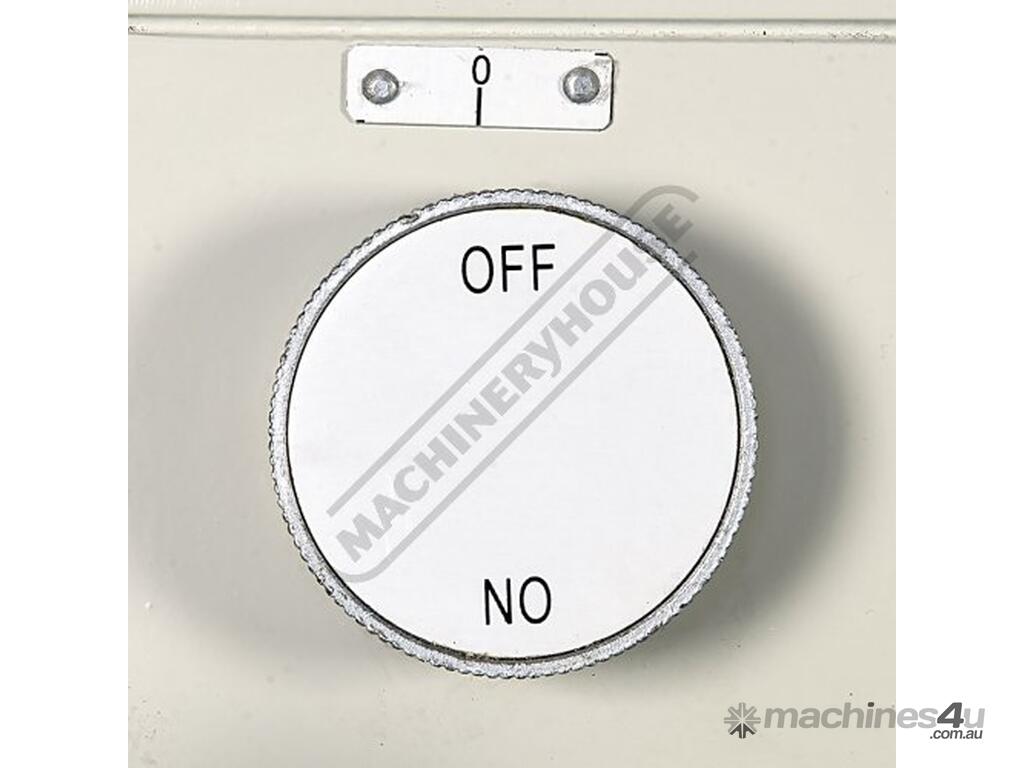

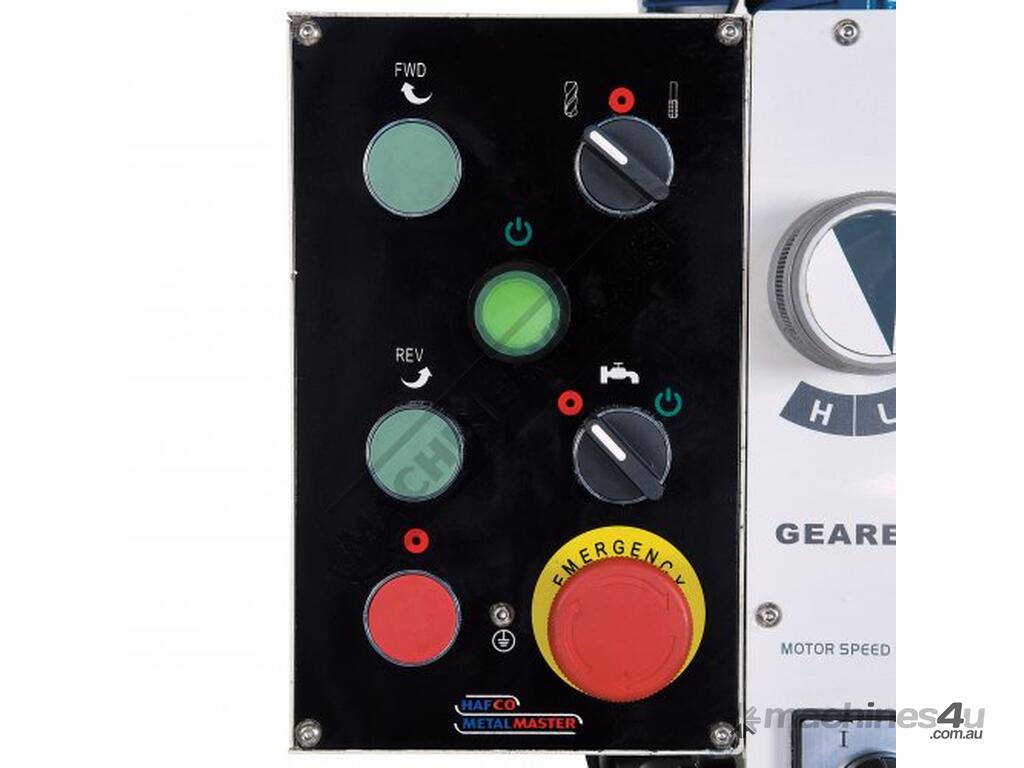

Forward/reverse & safety stop switches

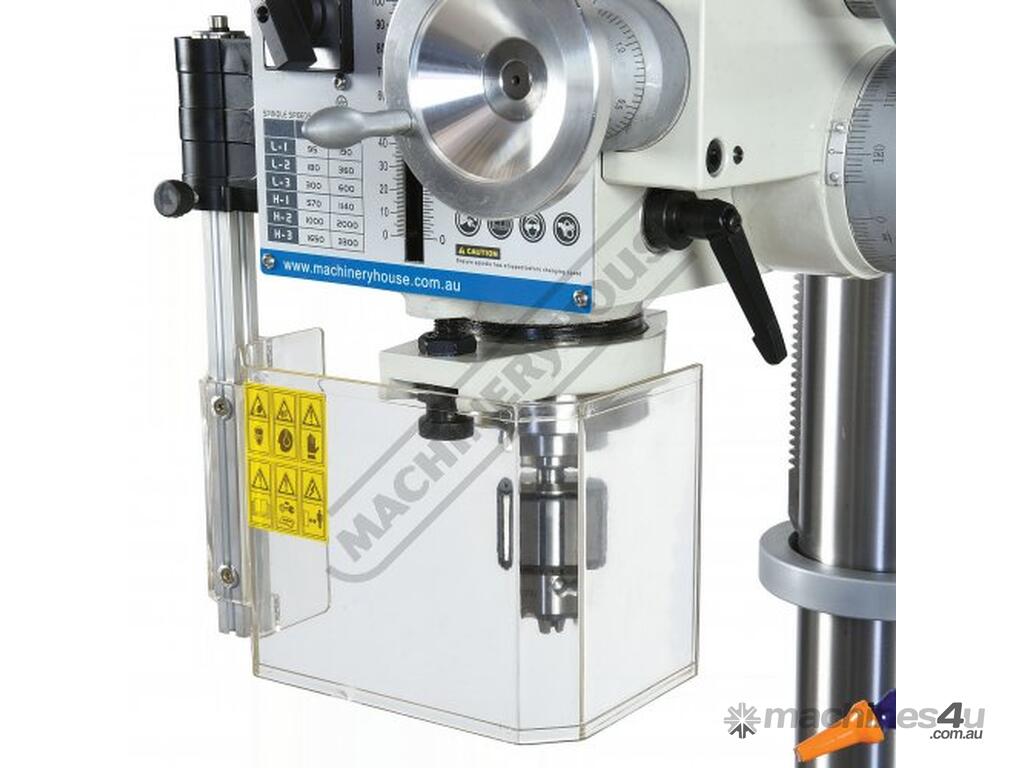

Swivel safety drilling chuck guard
T slotted work table and base

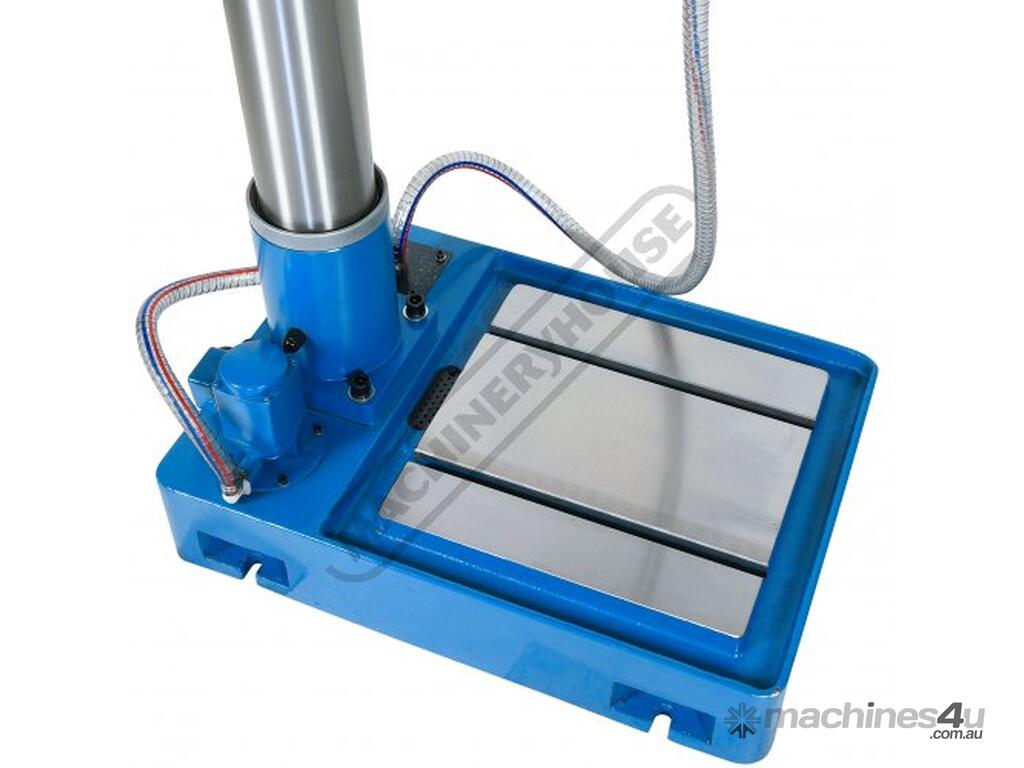

Includes coolant pump system & drill chuck

Includes:

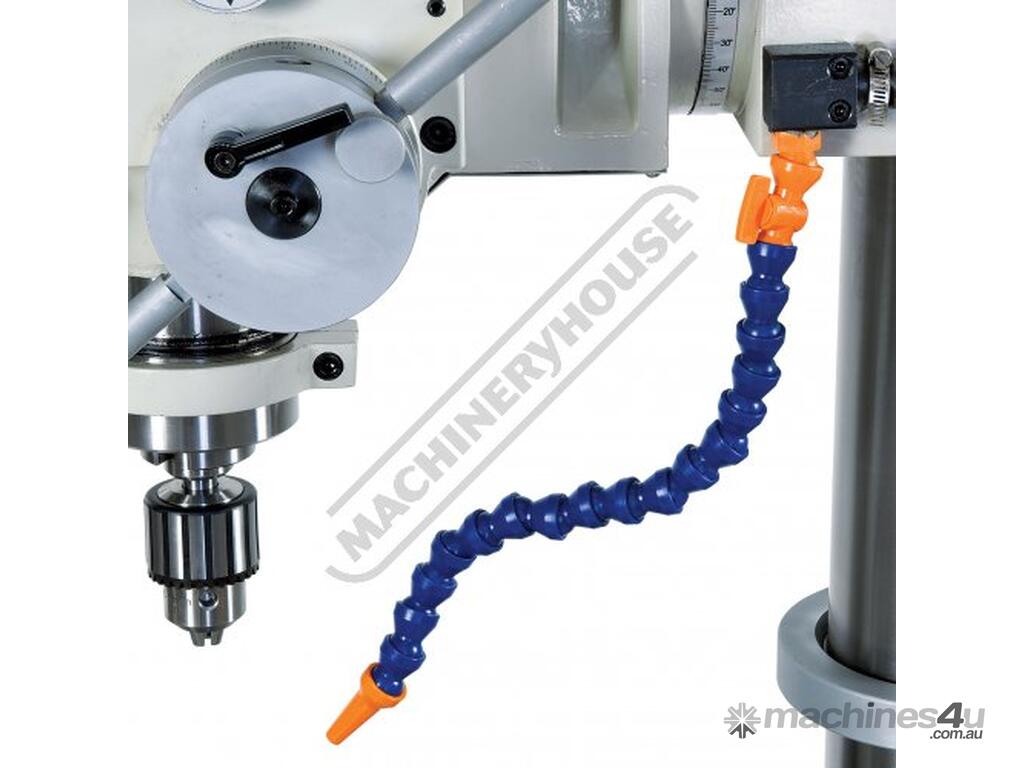

- Coolant pump system

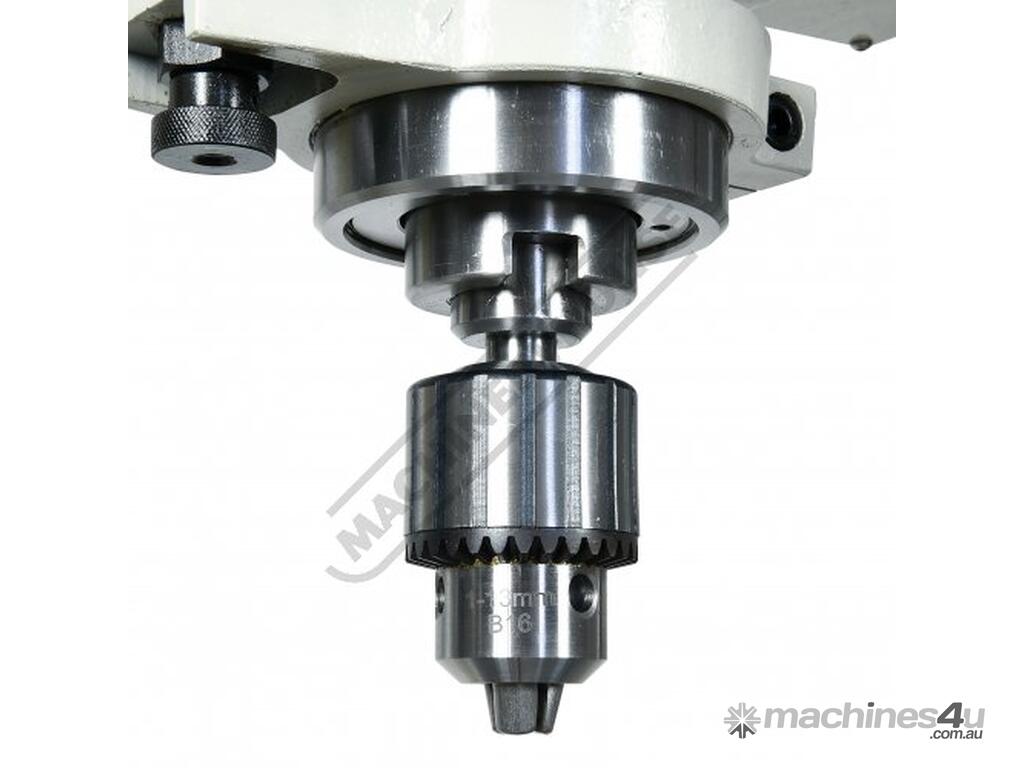

- Keyed drill chuck and arbor
- Chuck key to suit
- Drill drift tool to remove drill chuck or taper shank drills
- Safety chuck guard
- Drawbar



Specifications:
ORDER CODE: D177
MODEL: GHD-32
Drilling Capacity (mm): Ø40
Thread Tapping Capacity (Metric): M16
Spindle Taper (MT): 4
Spindle Travel (mm): 120
Throat Depth (mm): 273
Quill Diameter (mm): 75
Column Diameter (mm): 115
Spindle To Table (mm): 720
Spindle To Base (mm): 1175
Table (Type): Rectangle
Table Size (mm): 490 x 460
T-Slot Size (mm): 14
Automatic Quill Feed (mm/rev): 0.1, 0.18, 0.26
Work Light (Includes): ~
Coolant System (Includes): Yes
Spindle Speed Steps (No.): 12
Spindle Speed Range (rpm): 95 ~ 3300
Motor Power (kW / hp): 1.5 / 2
Voltage / Amperage (V / amp): 415
Full Height (mm): 1890
Shipping Dimensions (L x W x H) (cm): 90 x 90 x 190
Nett Weight (kg): 320
