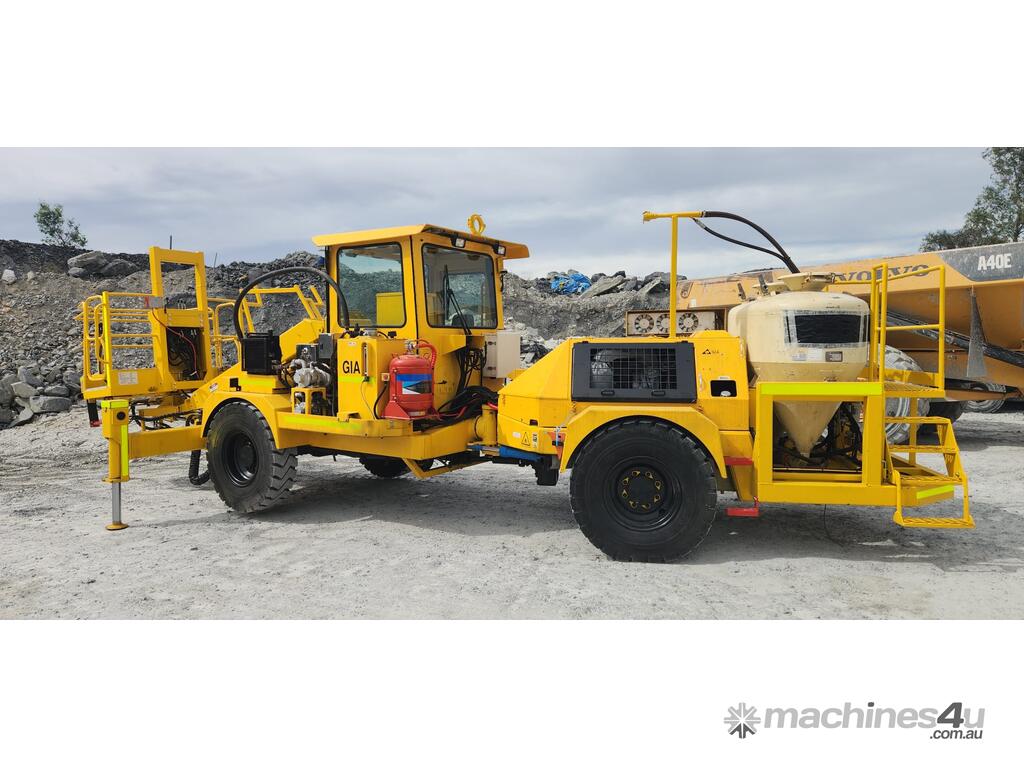

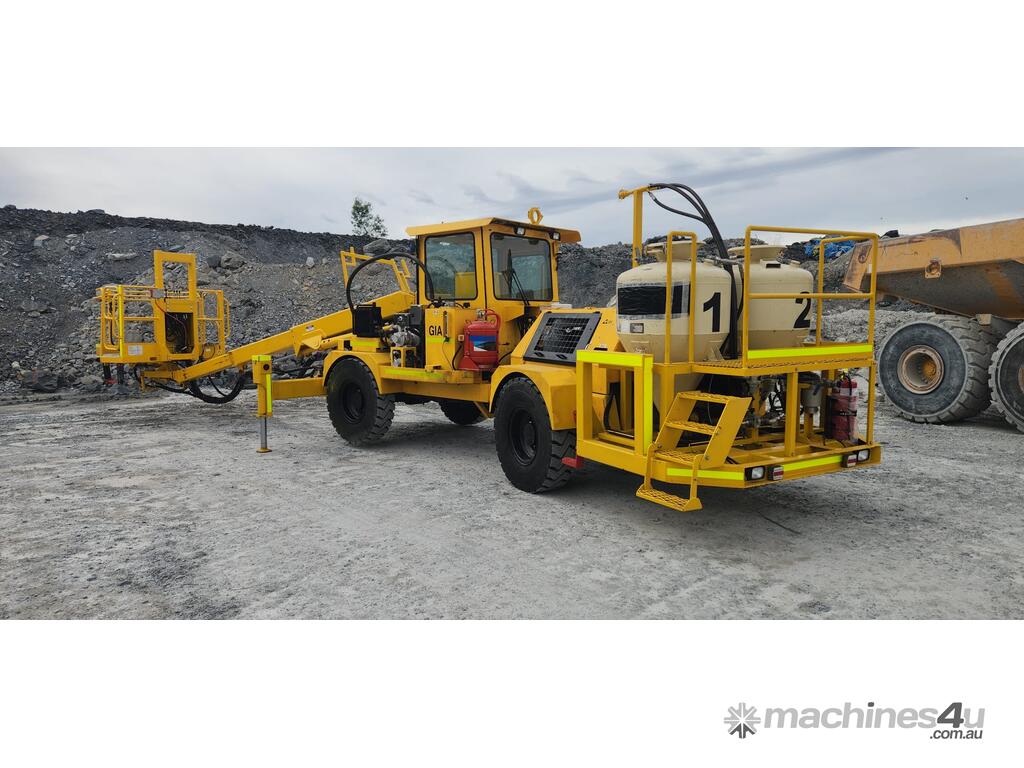

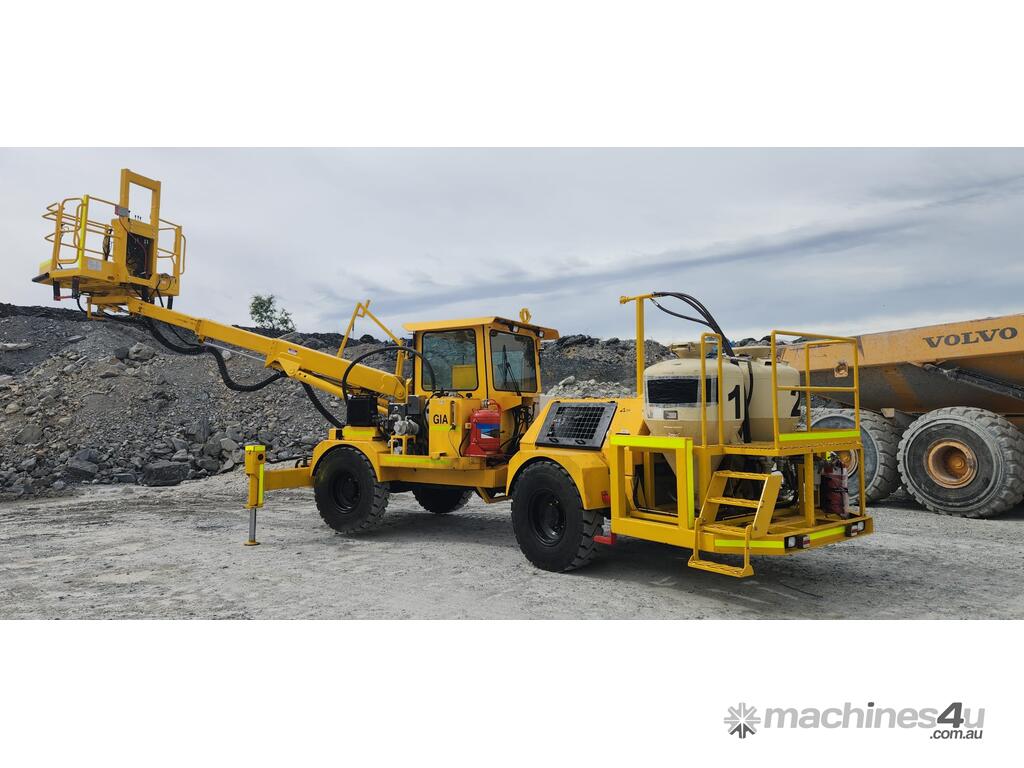

GIAmech ANFO CHARGE WAGON - 2 UNITS AVAILABLE

TECHNICAL SPECIFICATIONS:

SERIAL NUMBER: GIA-0708 / GIA-200017
DATE OF MANUFACTURE: 2007


CARRIER:

Perkins 1104TA Diesel engine rated at 106KW 2200 RPM
Dana 112 axle’s front and rear. Articulated Steering 40 deg.
Hydraulically applied four wheel internal wet disc brakes. SAHR Park Brakes
12.00 X 20, 20 ply tyres. Spare wheel.
Clark Powershift FT-24000 Transmission – 3 forward , 3 reverse gears
6 Kmh 1st Gear, 12 Kmh 2nd Gear , 25 Kmh 3rd Gear
Enclosed Cabin c/w air conditioning
AFFF Fire Suppression System

LOW VOLTAGE SPECIFICATIONS:
24 Volt – Compliant to AS4242
Amber Strobe via isolation switch.
Isolation switch – engine to shut down
CAT jump start receptacle

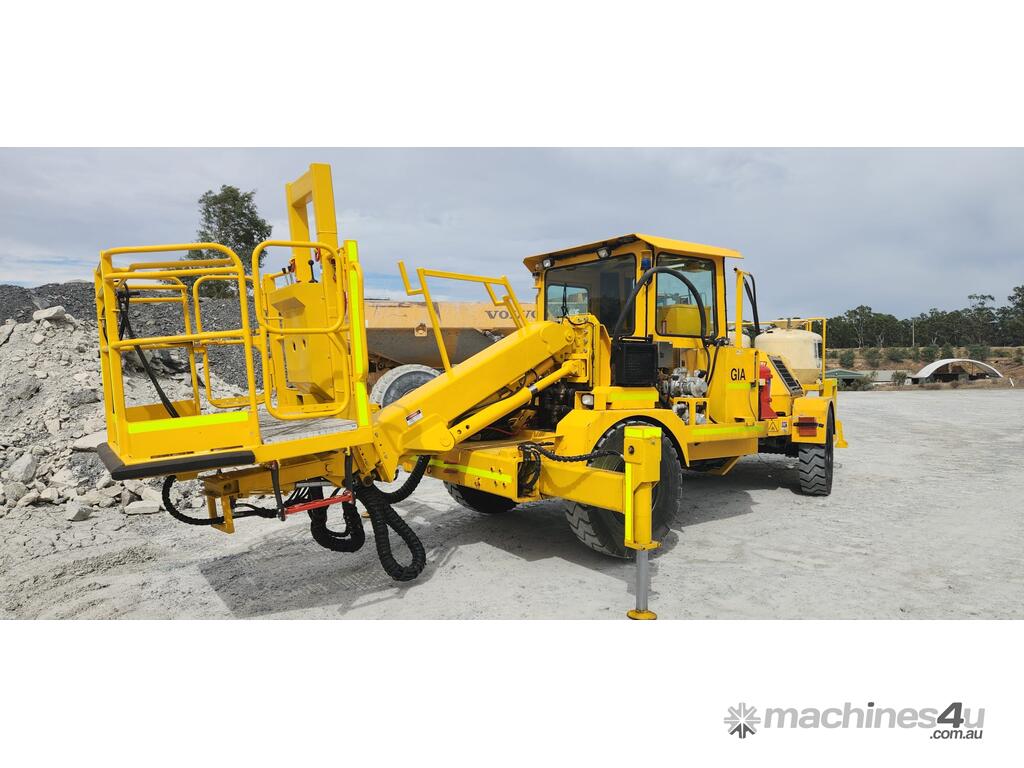

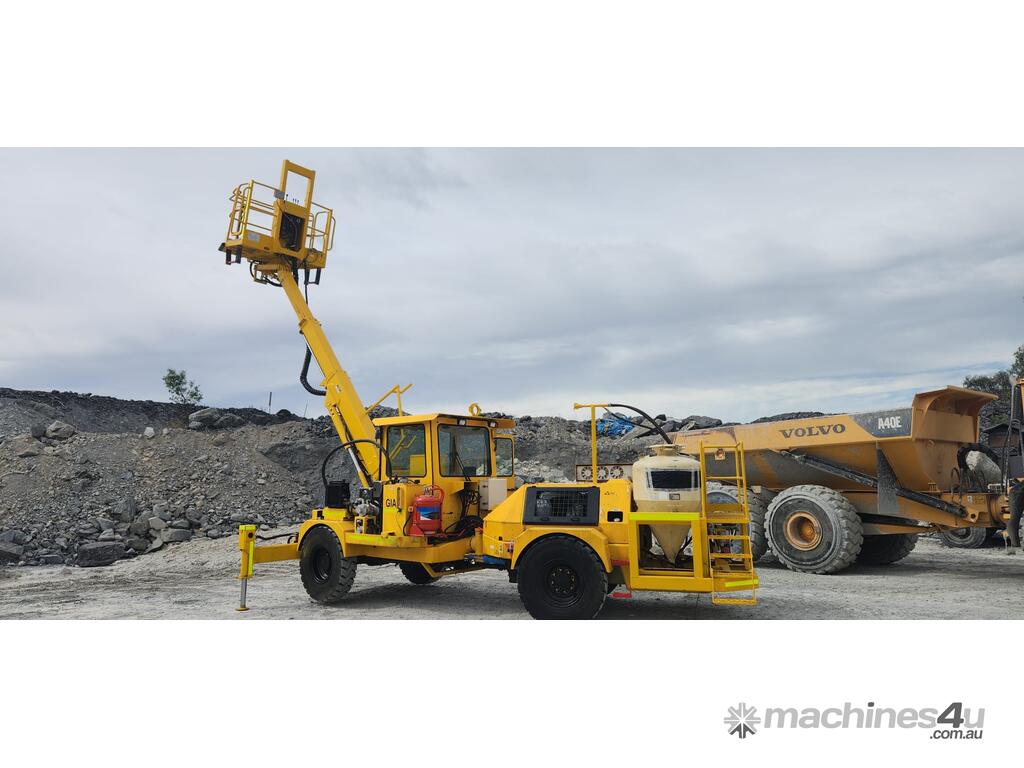

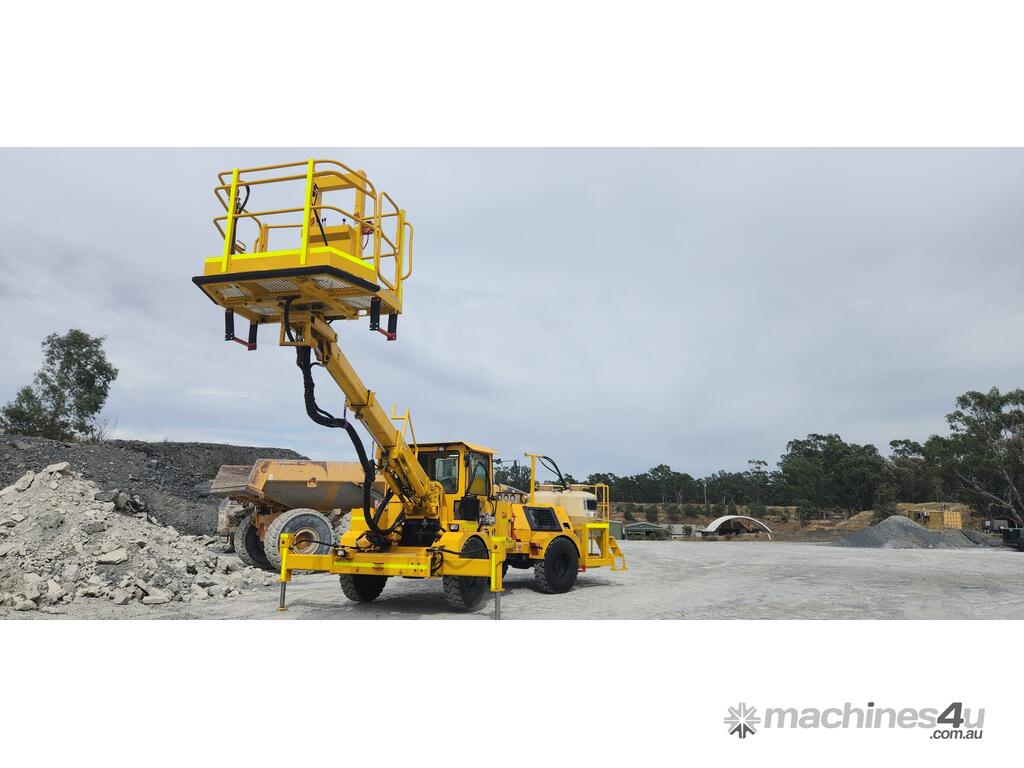

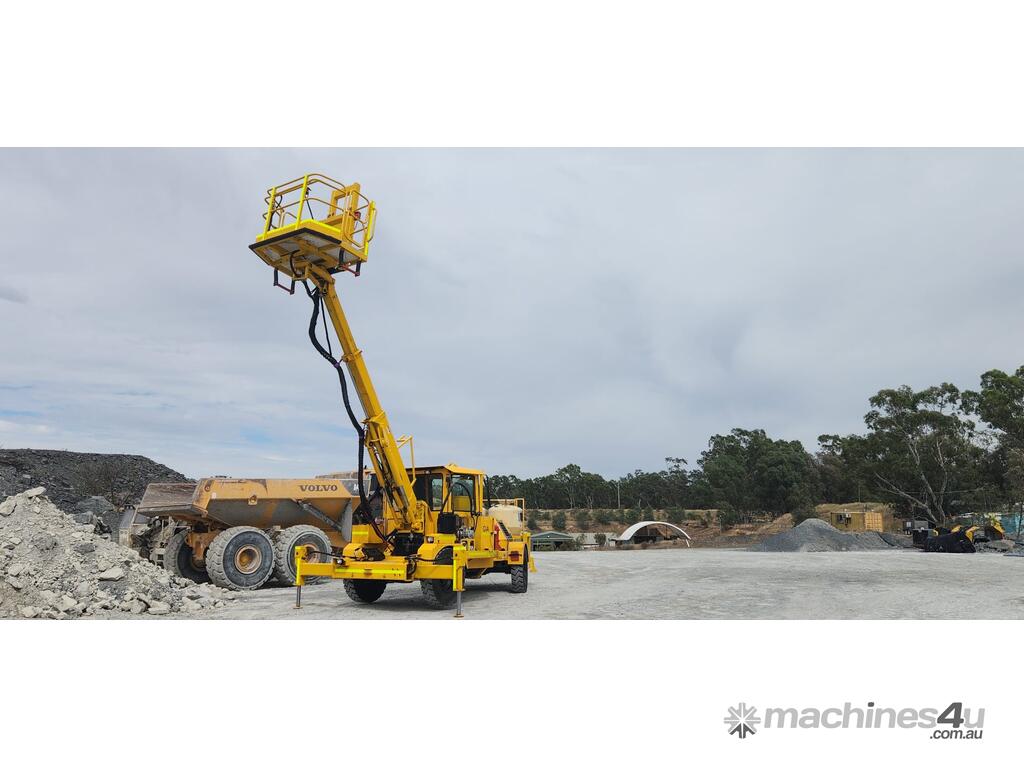

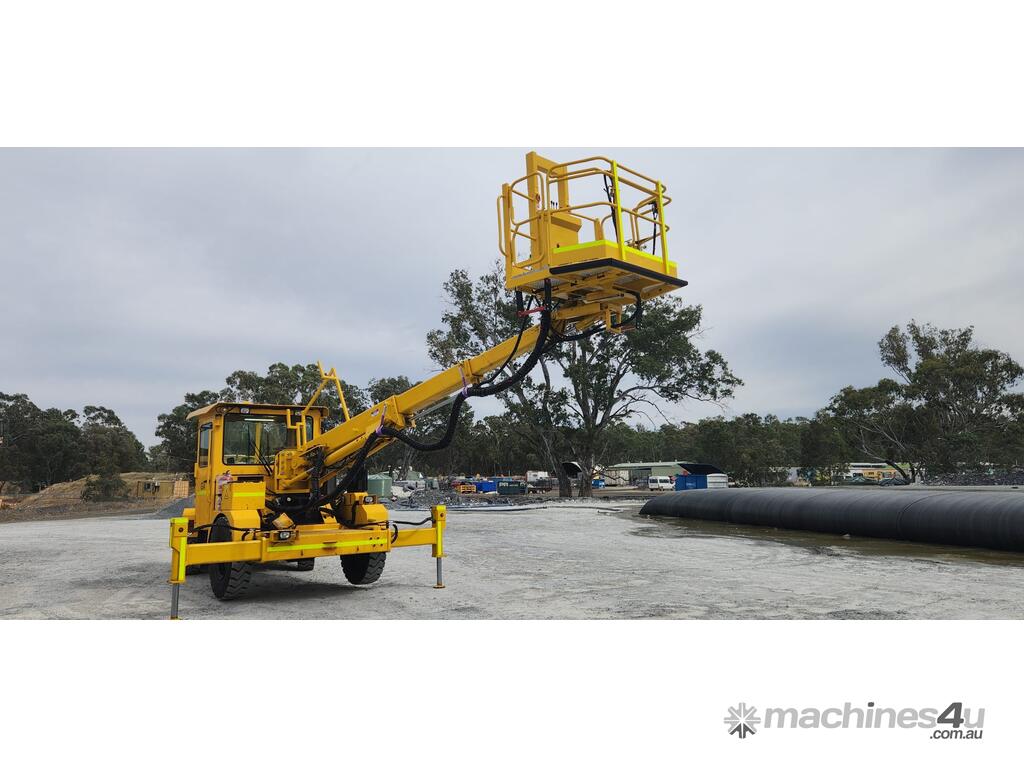

BOOM:

TTS SP25B-1 Elevated Working Platform– In current certification
Normet Style Working Basket - Maximum Load in Basket 650Kg
Boom swing 45 deg
Boom Elevation +60 deg / - 35 deg
Working Range 4.4m to 6.8m
2 extendable front jack legs.

ANFO SYSTEM:

2 x 500L Stainless Steel Normet ANFO kettles – In current certification.
Controls in basket for charging and blowing
Selector control valve in basket to switch between vessels
Earth straps
