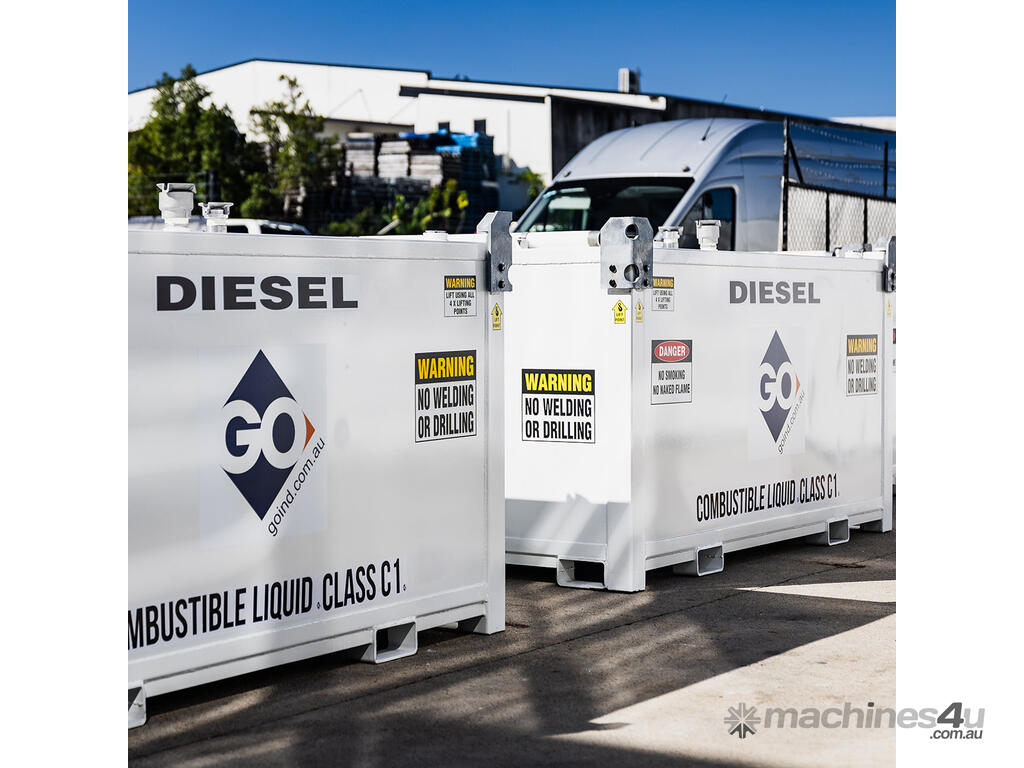

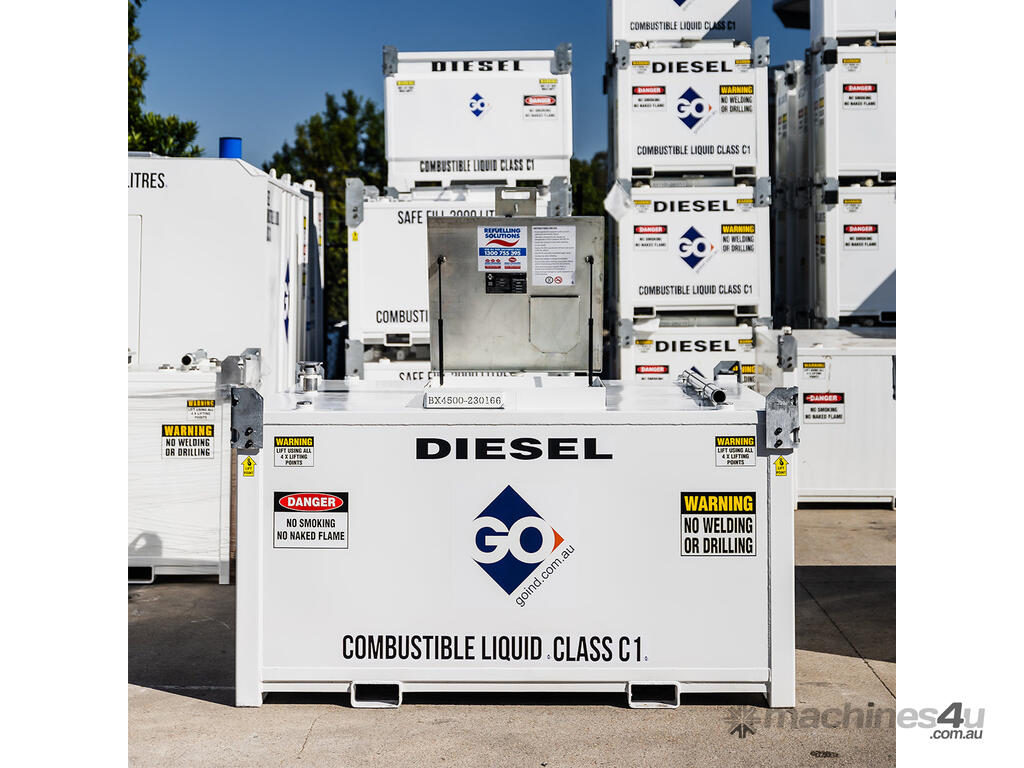

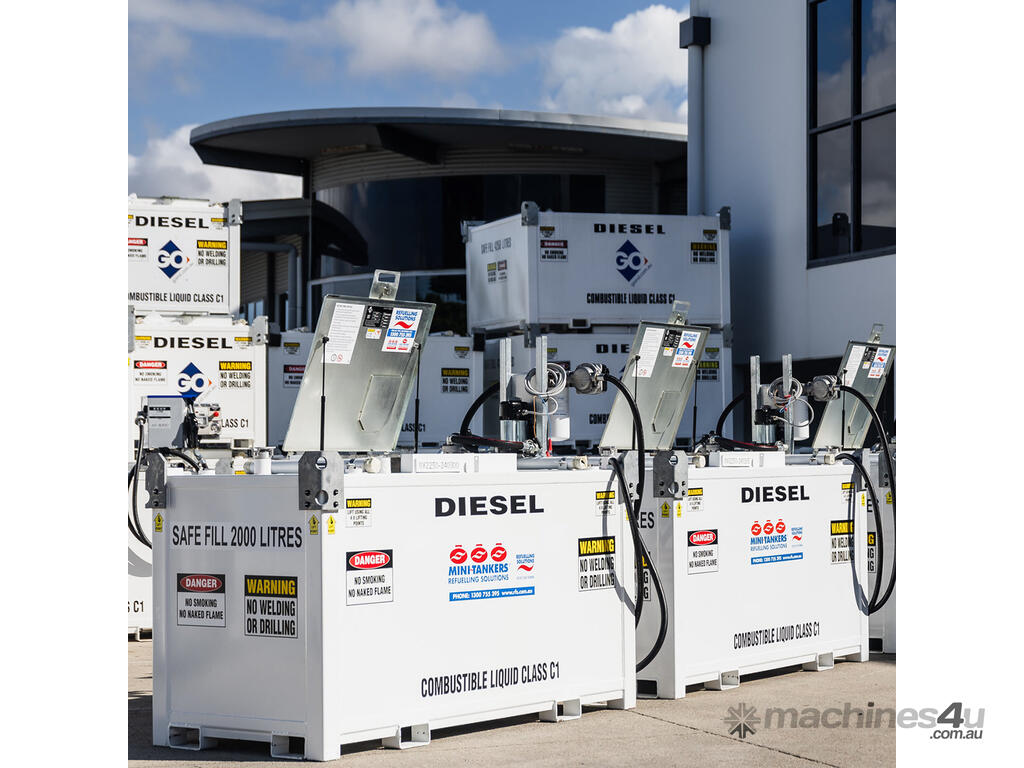

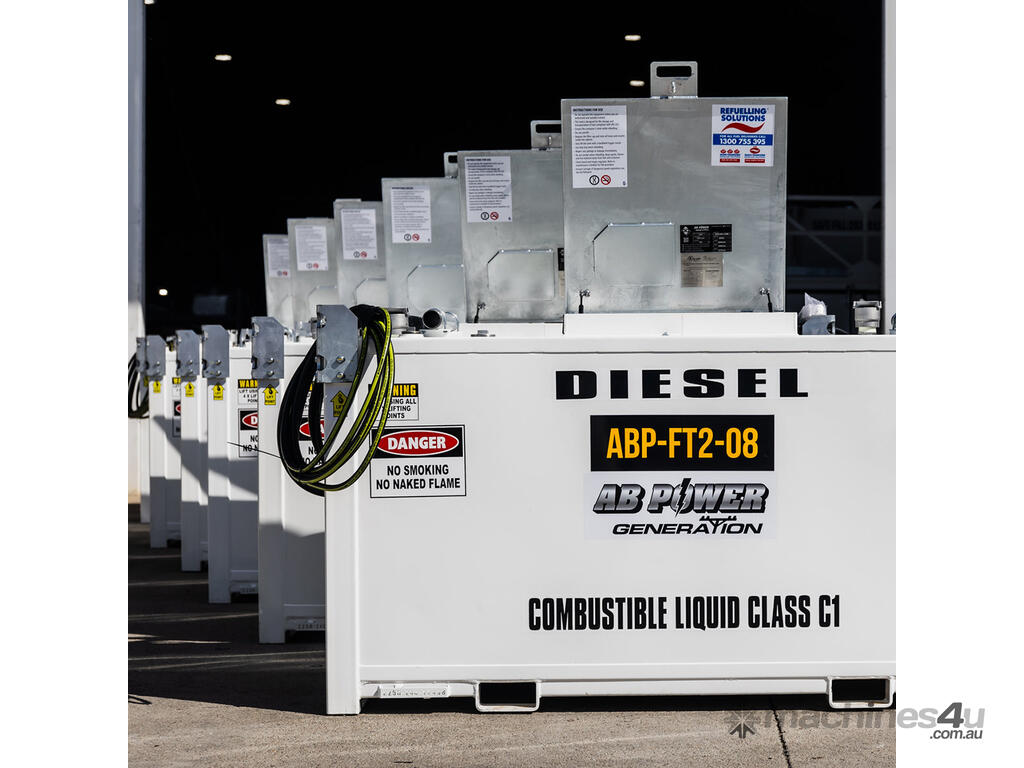

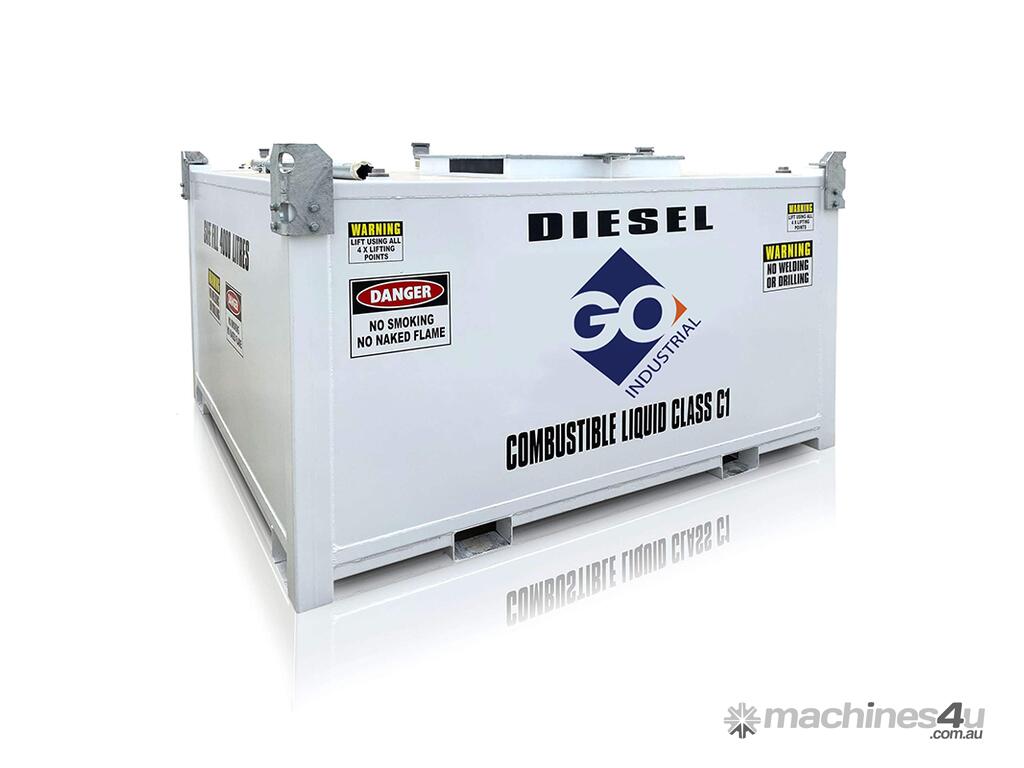

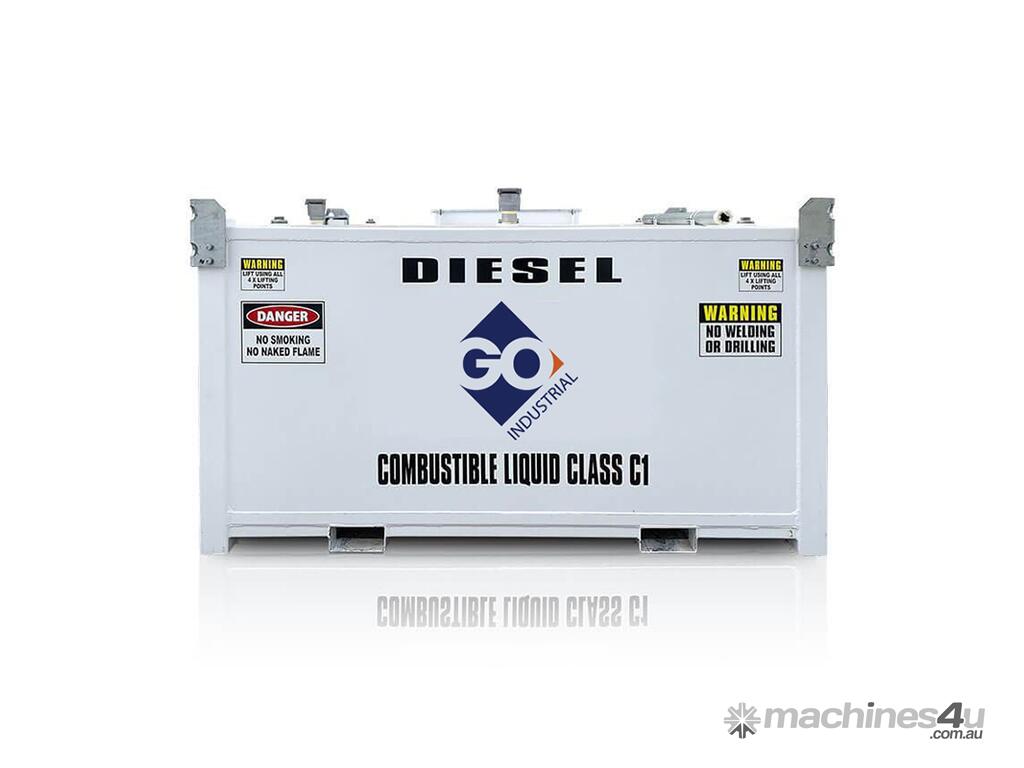

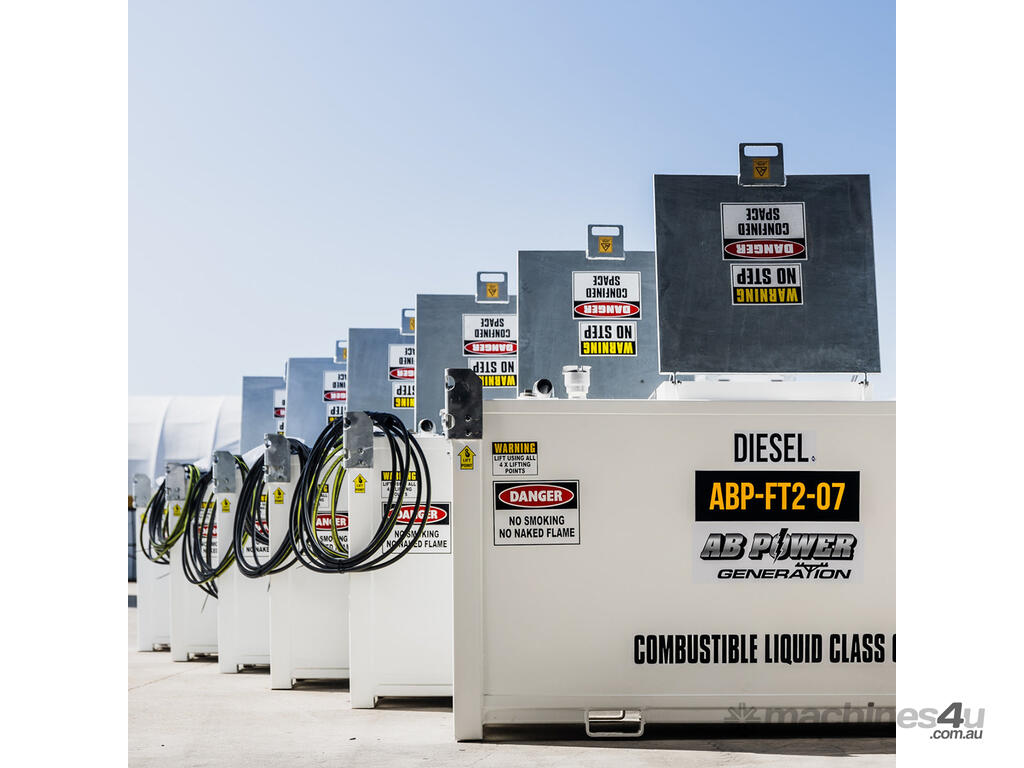

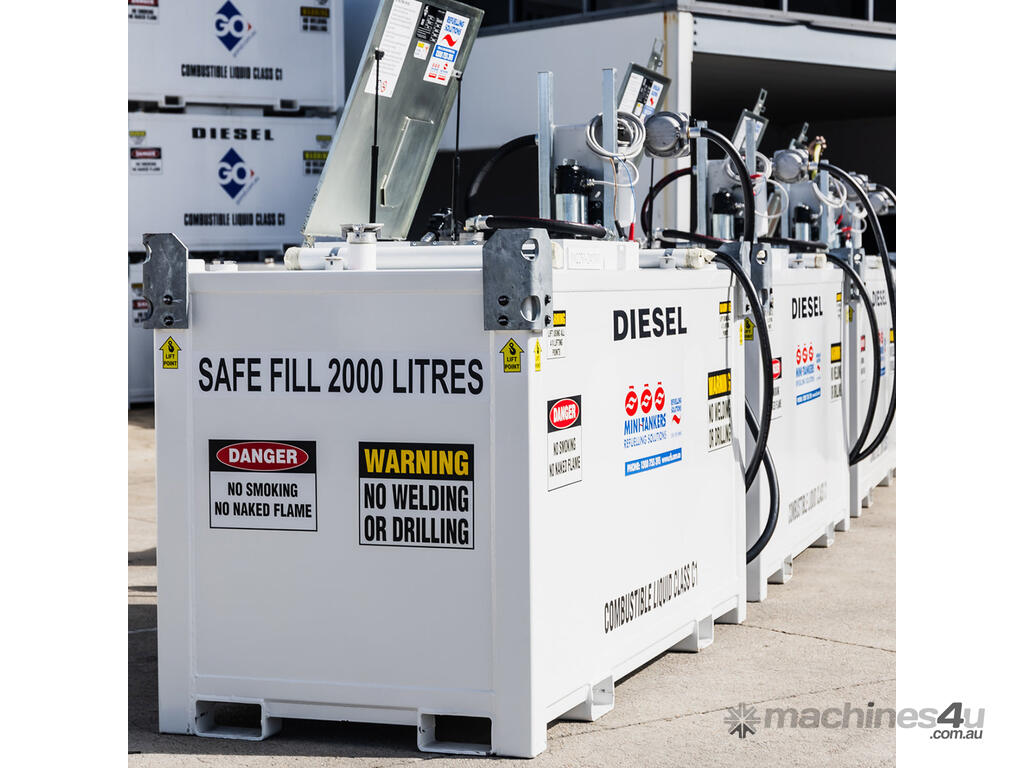

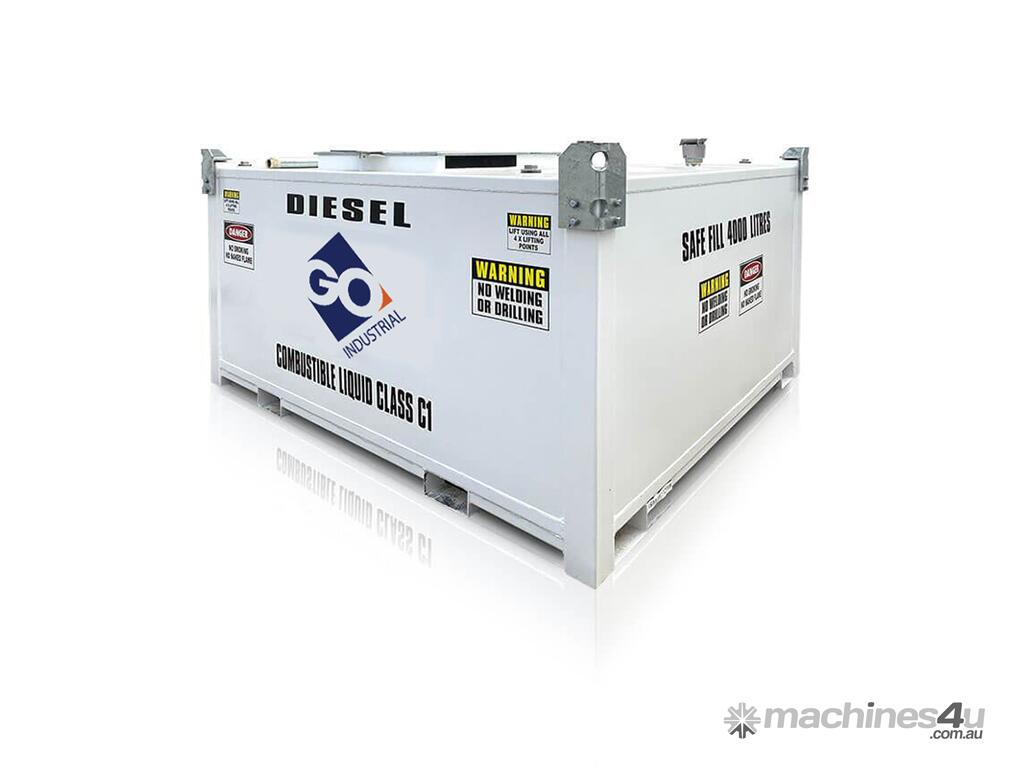

GO Box Self Bunded Tanks - 4500L

4,500L Capacity

The GO BOX Self Bunded Tank range is a comprehensive range of smaller capacity Self Bunded tanks designed for the transport and storage, dispensing, metering and filtration of Diesel, Petrol, Lubricants and Waste Oil. This economical, yet robust, range of Self Bunded Tanks are fully baffled, and feature crane lifting lugs, rated to lift tanks up to 6600L, full of product.

Industry leading robust self bunded tank range.
Product Range 250L | 600L | 1100L | 2250L | 3300L | 4500L | 5500L | 6600L | 8800L | 11000L
Fully certified to lift and move with liquid up to 6600L (BOX-6.6)
4 x Way Forklift Pockets
Designed and approved for the storage and transport of diesel, petrol, lubricants and waste oil
Mild Steel Internal Tank and Wetted Parts - Heavy duty mild steel External tank
UN31AY Designed and Approved for the transport of dangerous goods up to and including 3300L
Designed and approved to AS1940 and AS1692 for static storage applications


Features
UN31AY APPROVAL
Self Bunded Tank with UN31A/Y approval for the transport of Dangerous Goods by Road, Rail and Sea, Packaging Groups II & III up to and including 3300L model

LIFTING CERTIFICATION
The full range up to and including the 6600L model (BOX-6.6) has been engineered and tested. Certification of the lifting lugs is available at an additional cost

FOUR WAY FORKLIFT POCKETS
The GO Box Self Bunded Tank range has been designed with 4 x way forklift pockets to allow for easy lifting, loading and transport within your operation

MULTIPLE OUTLETS AND INLETS
The GO BOX has been designed to be able to be retrofitted with a huge array of dispensing, filtration, electronic fluids management and automatic tank gauging equipment. Each tank is supplied with the following ports:

1 x 25mm (1”) Suction Spear
2 x 13mm (1/2”) Suction Spear
3 x 40mm (1 1/2”) Return Point
1 x Spare 80mm (3”) Socket
4 x Spare 50mm (2”) Socket Top of Tank
50mm (2”) Fill Point - Splash Fill Only
Additional 50mm (2”) hose entry and exit sockets on top of tank.

SIZE RANGE
The GO BOX Self Bunded Tank range are available in a range of capacities, ideal for transportation by either truck or shipping container and suit most hydrocarbons storage and transport requirements. Sizes include 250L | 660L | 1,100L | 2,250L | 3,300L | 4,500L | 5,500L | 6,600L | 8,800L | 11,000L

AFFORDABLE QUALITY
The ultimate in quality at very affordable prices.

STANDARDS
Our design meets strict quality standards, are PPG2 compliant and EU approved. Designed and approved to AS1692, AS1940-2017, UL142, ULC-S601, ULC-S603, BS799, UN31AY

COLOUR
Colour is AS2700 "Colour Standards for General Purposes" N14 White

STACKING
Can be stacked 3 high when empty and 2 high when full.

EXTRA PROTECTION
6,600L (BOX-6.6), 8,800L (BOX-8.8) and 11,000L (BOX-11) models are supplied with Overfill Protection Valve/Anti-Syphon Valve and Overfill Alarm Unit.

BAFFLED
Fully Baffled - designed and approved to move with liquid in the tank.

**Please see Brochure for full Specifications
