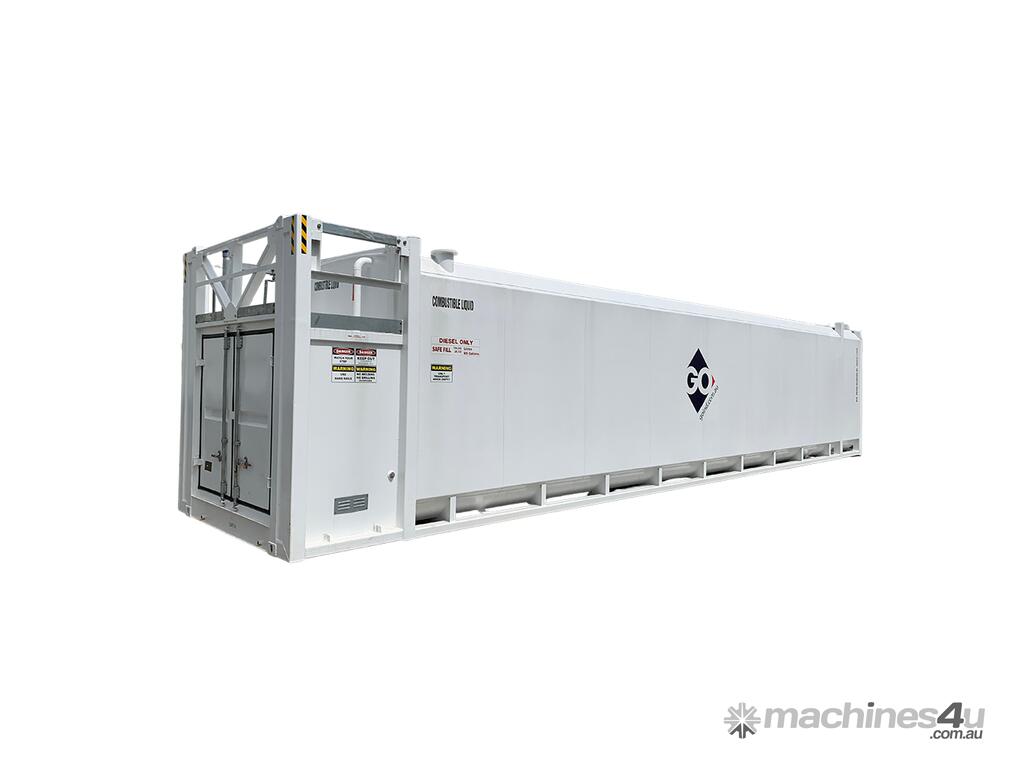

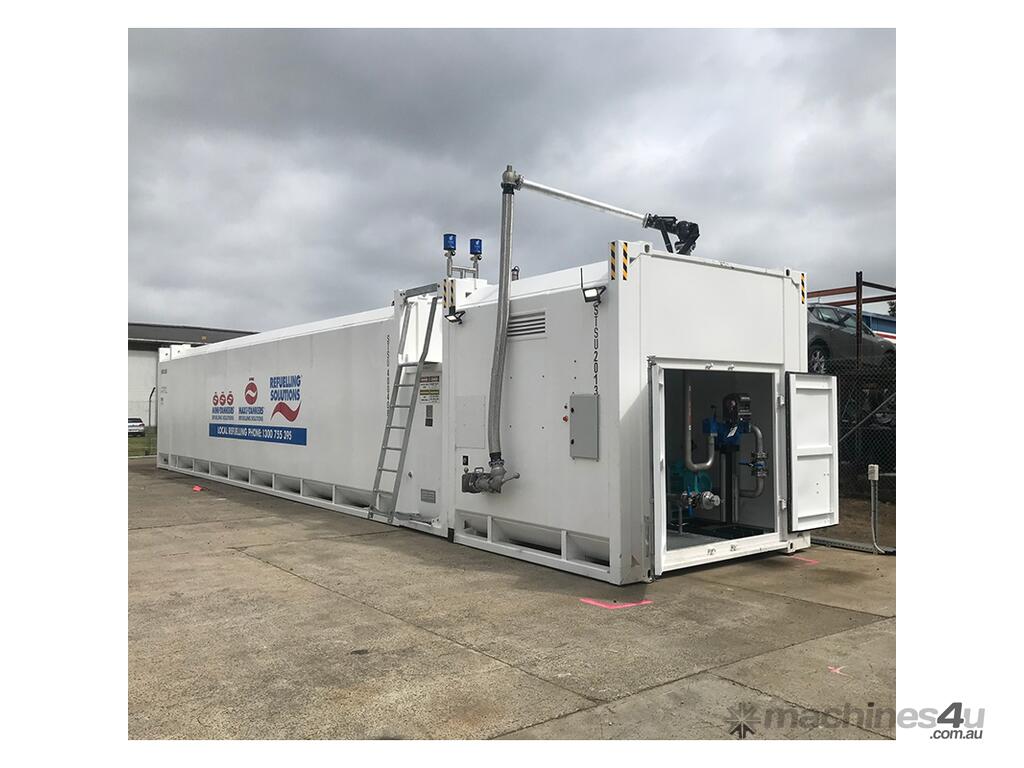

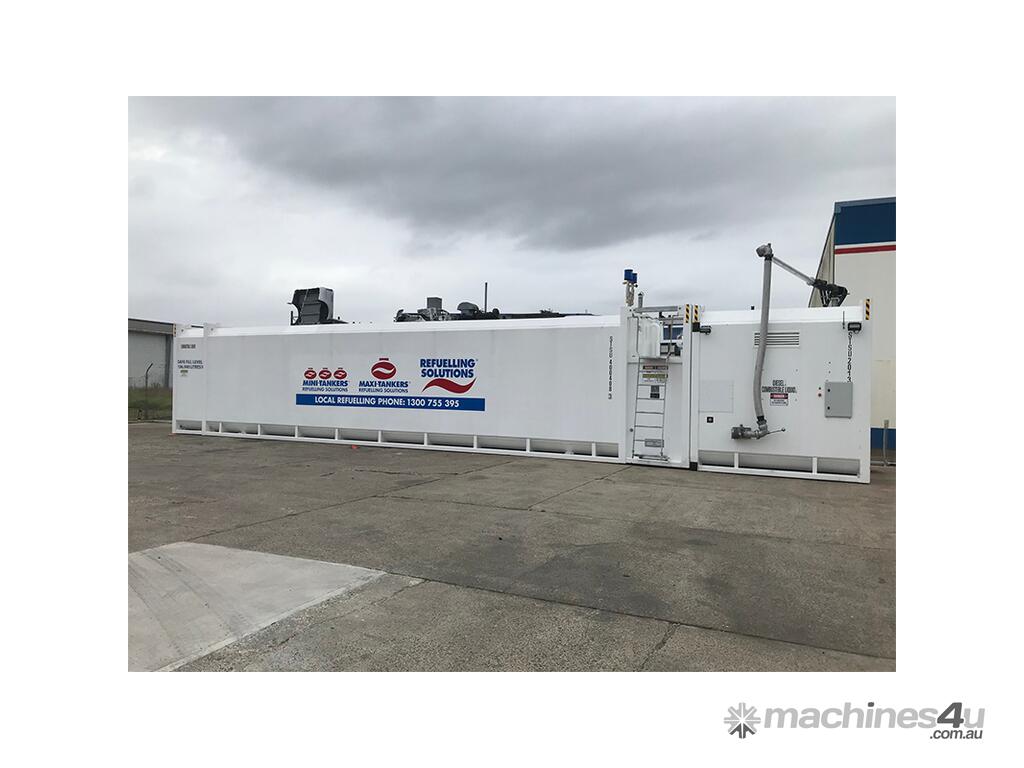

GO Containerised Self Bunded Tank - 18,000L

The GO Containerised Self Bunded Tank Range is designed and approved as a standard intermodal shipping container footprint. Each GO Containerised Self Bunded Tank is provided with a CSC plate allowing the tank to be shipped via Road, Rail or Sea as a standard container.

We can supply a range of materials for the primary and secondary tanks allowing the GO Containerised Self Bunded Tank to be used to store a wide variety of fluids. Design options include the ability to supply multiple compartments in the one tank footprint allowing for the site storage of multiple fluids.

Available in 12Kl / 18kL / 30kL / 38kL / 69kL / 75kL / 80kL / 90kL / 110kL
CSC Plated as 10FT / 20FT / 40Ft / 48FT Container
6mm Primary and 6mm Secondary Tanks
Bunded, lockable, weatherproof, pump bay housing

Features
UL LISTED
Approved to UL142 / ULC-S601 - certificate #20120912-Mh39221

SELF BUNDED TANK (DOUBLE WALL)
Self Bunded Tank (Double Wall) Unique Rounded Rectangular Design

CONTAINER FOOTPRINT
Manufactured to standard 10ft, 20ft, 40ft and 48ft container footprint.

CSC PLATED
CSC Plated as a Standard Shipping Container. Can be transported via Sea / Rail or Road.

SELF BUNDED TANK PROFILE
Rounded Rectangular tank profile maximises storage footprint whilst maintaining full under self bunded tank visibility for long term tank fuel / oil storage applications

APPROVALS
Designed and approved to UL142, ULC-S601, BS799, AS1940-2017, AS1692, AS1657

INTEGRATED VALVING
GO designed and manufactured 80mm (3") Anti Syphon Valve and Overfill Protection Valve. Option to fit the new Banlaw Pressure-less Overfill Protection System

OVERFILL ALARM
Battery Operated (12V) Overfill Alarm

FILL INLET
Supplied with 80mm (3") Fill Line including Sch 40 Pipe, ANSI 150# Flanges, Camlock Male Fitting with Dust Cap, Fire Safe Ball Valve for isolation and Wafer Style Non Return Valve.

SUCTION OUTLET
supplied with 80mm (3") Suction Line including Sch 40 Pipe, ANSI 150# Flanges terminating with a Fire Safe Ball Valve.

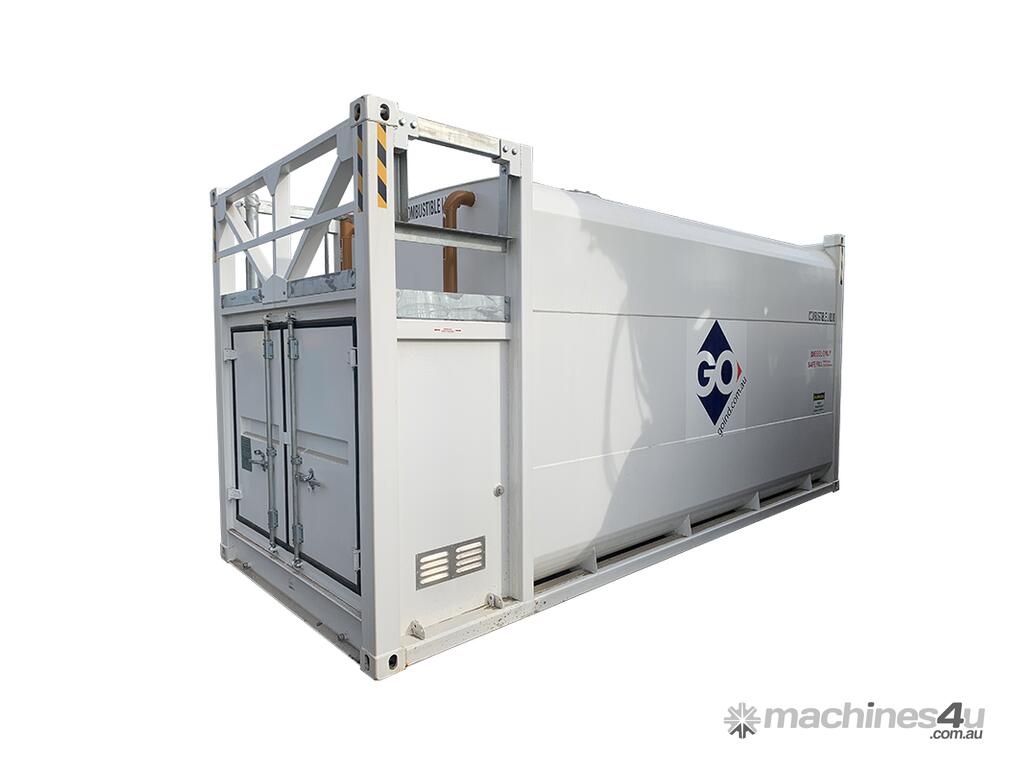

BUNDED PUMP BAY HOUSING
Choice of Integrated or Clip On Bunded (Contained) Pump Bay Housing featuring removable side panels to allow for simple multiple tank connection for tank farm applications. The bunded pump bay housing is supplied with heavy duty lockable container doors with weather proof seals.

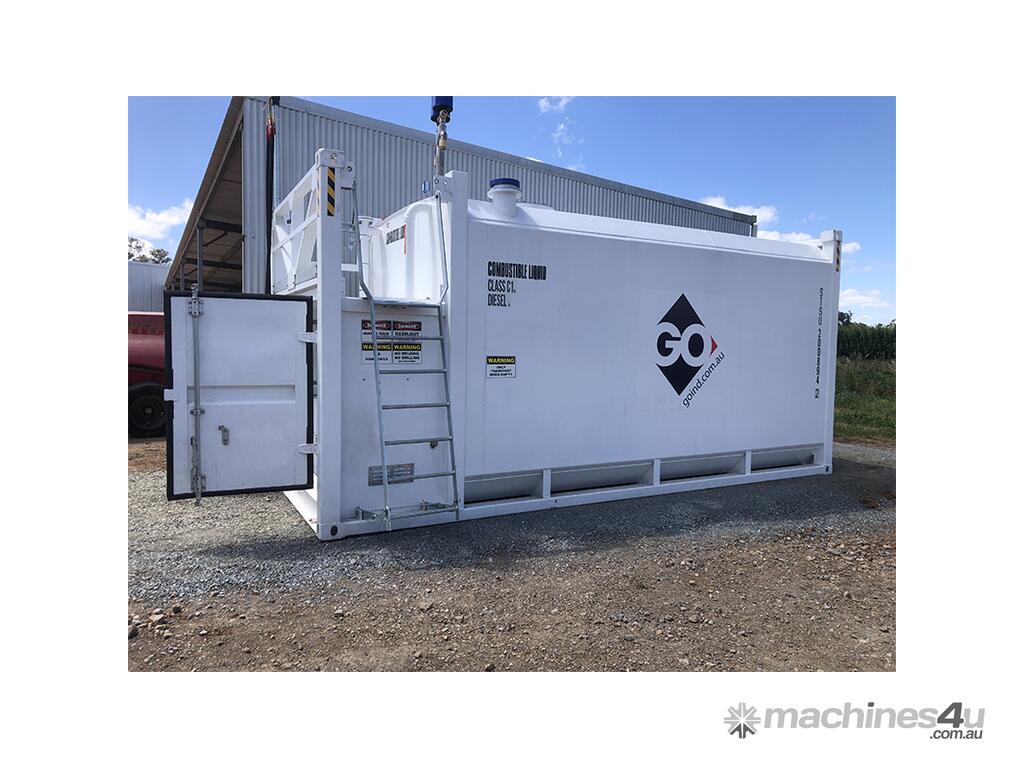

LADDER + PLATFORM
Integrated Ladder / Platform designed to AS1657. Platform designed to allow for ladder connection to either side of the tank providing flexibility for site positioning and operation. Infill pieces can be added in multiple tank farm applications to provide for a complete walk through platform system linking all tanks together. Side staircase modules are available to be simply attached at each end of the tank farm to complete the tank top access system.

MANWAY
600mm Manway with Integrated Ladder down into the tank module (2 x manways provided on all tanks larger than 12 000L) to assist with degassing for future tank maintenance

PAINT SPECIFICATION
Paint Colour RAL9003 Signal White/ Tanks aresandblasted to SA2 Standard. Hempel MarinePaint 3 Stage process. Primer Hempadur 1530.2nd Coat Hempadur Hi-Build 4520. Final CoatHempathane Enamel 55100 Finished dry fi lmthickness no less than 180 um

OPTIONAL BAFFLES
Option for baffling in order to allow the tank to be moved with liquid.

LIQUIDS COMPATIBILITY
Suitable for the storage and dispensing of chemicals, diesel, lubricants, gasoline (petrol) and waste oil.

MULTIPLE COMPARTMENT
multiple compartment tanks are available in all footprints to allow the storage of multiple grades / types of liquids such as various grades of lubricants or different fuels

DE-WATERING
Rounded Floor Profile with engineeredlow point. Tank fitted with25mm Suction Line for WaterRemoval
Materials of Construction
Standard - Grade 250 Carbon Steel Primary and Secondary Tanks
Optional - range of materials such as 304 Stainless Steel and 316 Stainless Steel primary and secondary tanks allowing the storage of a range of fluids

**Please see Brochure for full Specifications
