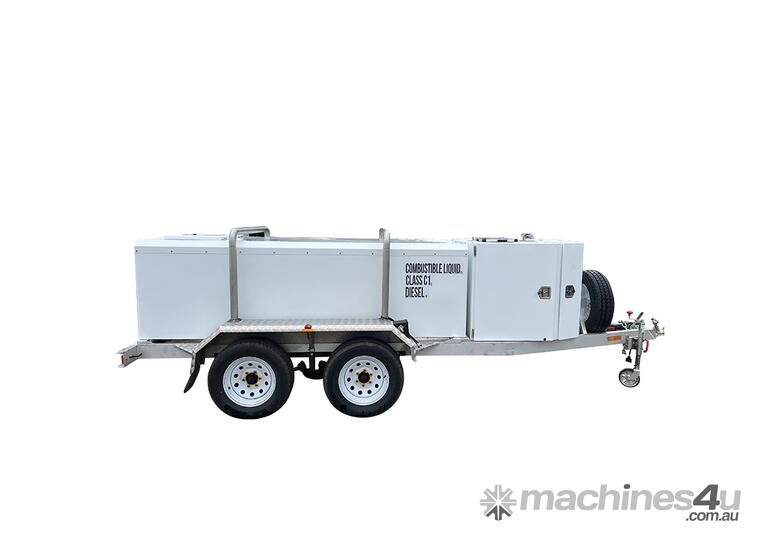

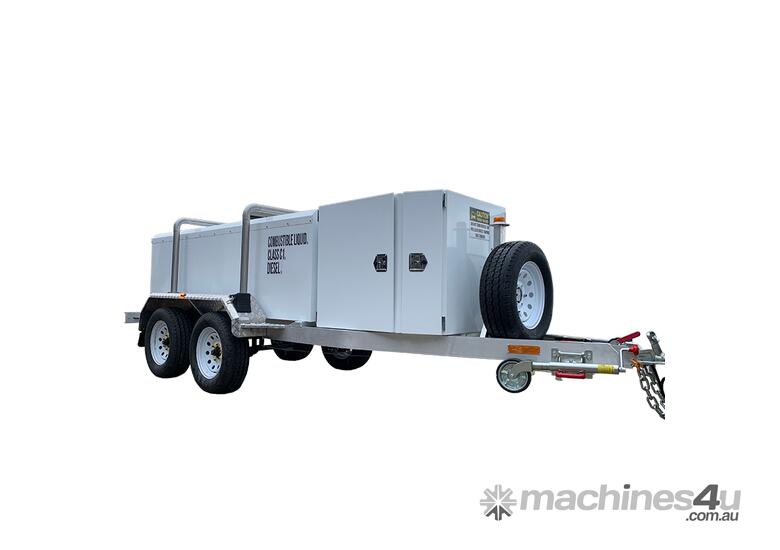

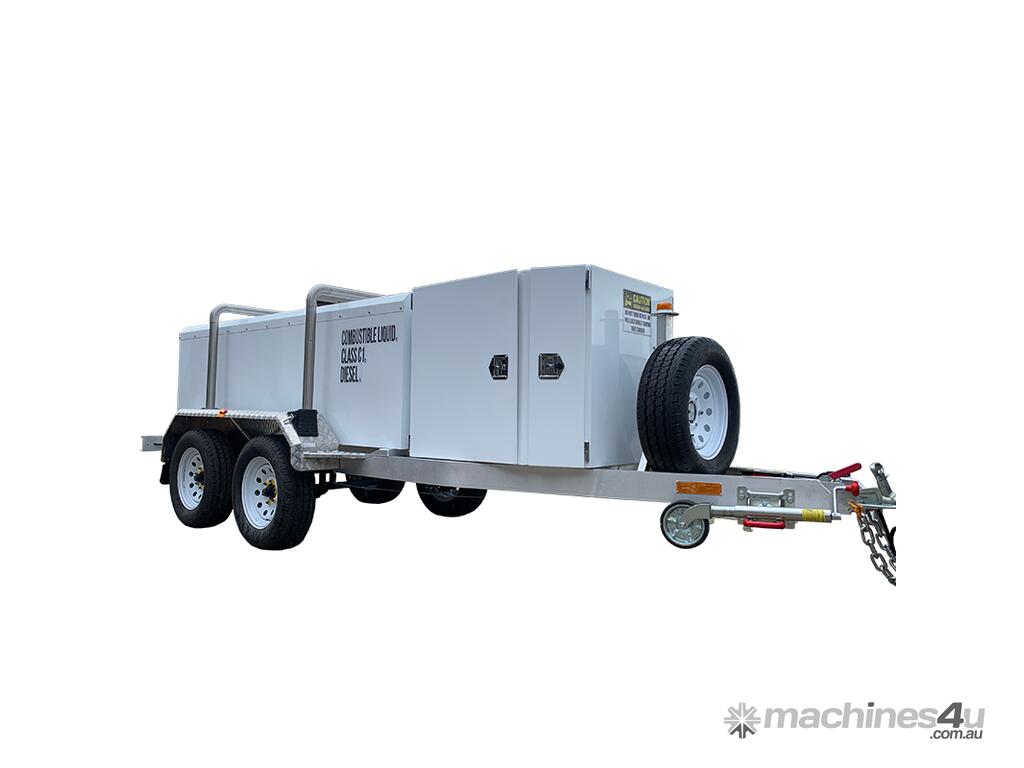

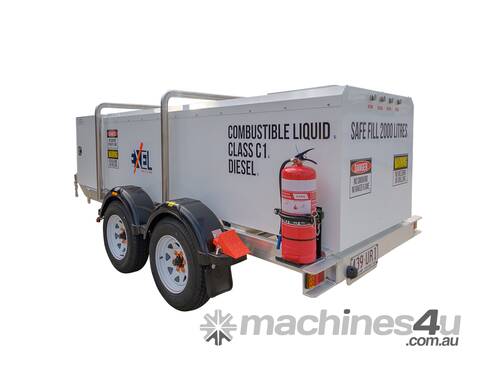

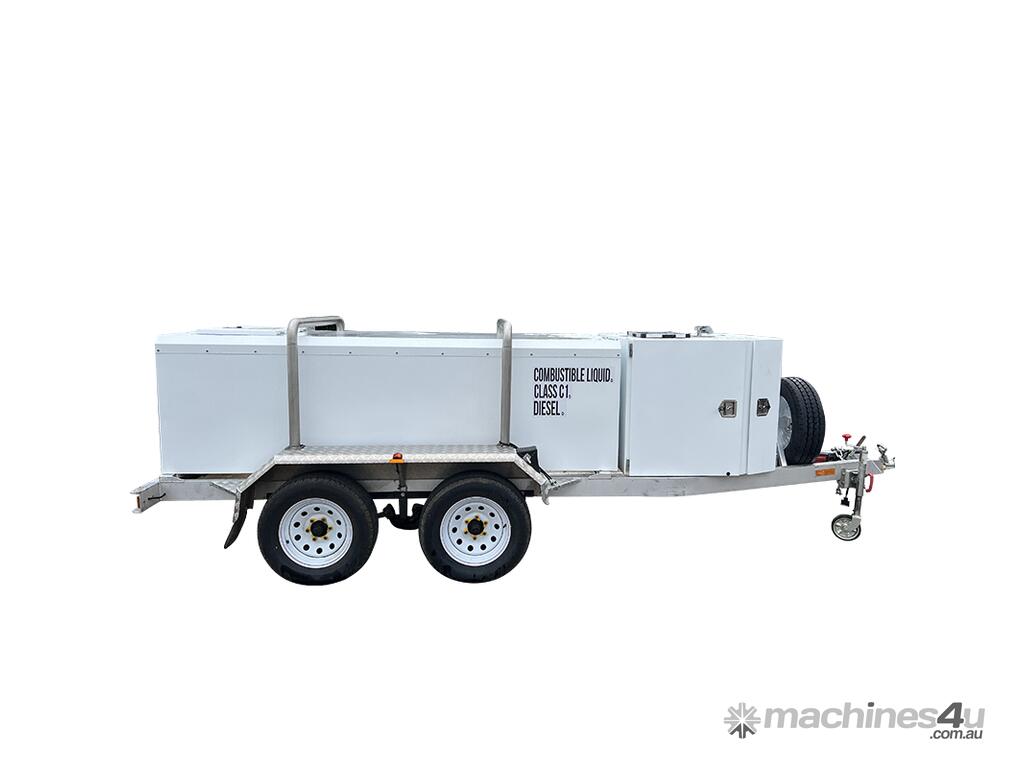

GO Fuel Trailer Self Bunded Low Profile Dual Axle 2000L

FUEL TRAILER 2000L Self Bunded Low Profile Dual Axle SBHD2000

Overview
Fully designed and manufactured in Australia, for Australia's unique conditions. The GO Industrial 2000L Self Bunded Fuel Trailer is an industry leading solution for the transportation and dispensing of diesel fuel.

The trailer design stands up to the rough and tumble treatment afforded by customers in the Construction, Civil Contracting, Contract Mining, Mining, Oil and Gas, Drilling and Exploration industries.

Details

Self Bunded - True self bunded, tank in tank design.
GTM - 3000 KG | ATM - 3000 KG | EST TARE 400 KG |
Lightweight, Yet Strong - lightweight strong aluminium chassis
Fully Approved - designed and approved to meet the requirements of AS1692, AS1940 and Australian Dangerous Goods Transport Regulations.

Specifications
Self Bunded - True self bunded, tank in tank design.
Dimensions - 5240mm L x 1810mm W x 1150mm H
GTM - 3000 KG | ATM - 3000 KG | EST TARE 1100 KG |
Lightweight, Yet Strong - lightweight strong aluminium chassis
Fully Approved - designed and approved to meet the requirements of AS1692, AS1940 and Australian Dangerous Goods Transport Regulations.
Tried and Proven - since inception we have supplied more than 150 units of both our 1250L and 2000L Self Bunded Trailers into the Australian, and indeed global, markets.
Heavy Duty - designed for on and off road applications - beware of cheaper imitations !!
Removable Inner Tank - The primary tank module can be removed for maintenance
Separate Tank and Trailer Chassis - the secret of our success, our tank body is protected from the twisting and rigours associated with off-road towing and use. Our chassis is designed to take the mechanical stresses and strains of in field use, protecting the tank body from the risks of cracking over time.

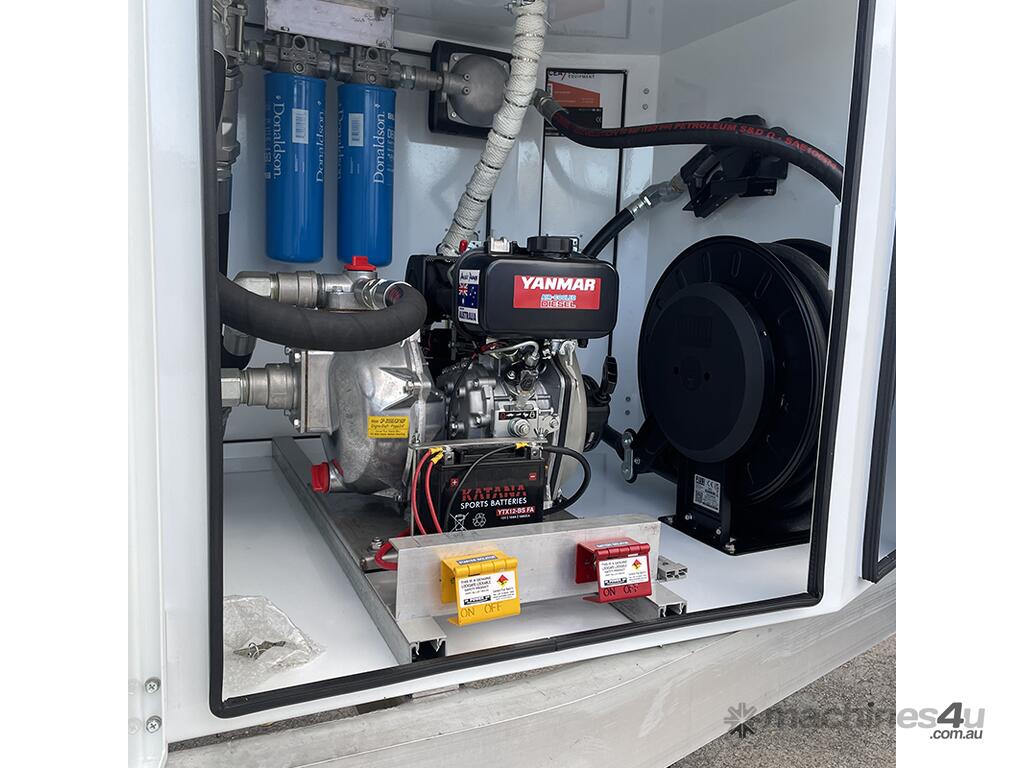

Pump Bay - drawbar mounted, fully bunded, weatherproof, pump bay housing. 2 x lockable reverse opening full length access doors. The bunded pump bay is fed by an independent DN40 suction line with foot valve preinstalled. The foot valve guarantees a prime of fuel on your pump providing less strain on the pump on start up and quicker dispensing of fuel on site. The bunded pump bay has been designed large enough to store all your required dispensing equipment including prep pump strainer, pump, filter, meter, hose reel, nozzle, battery etc.
Dispensing Options - common dispensing options include 12V Solar and Electric Start Diesel Driven
Baffled - our self bunded tank module is fully baffled ensuing stability when towing loaded.

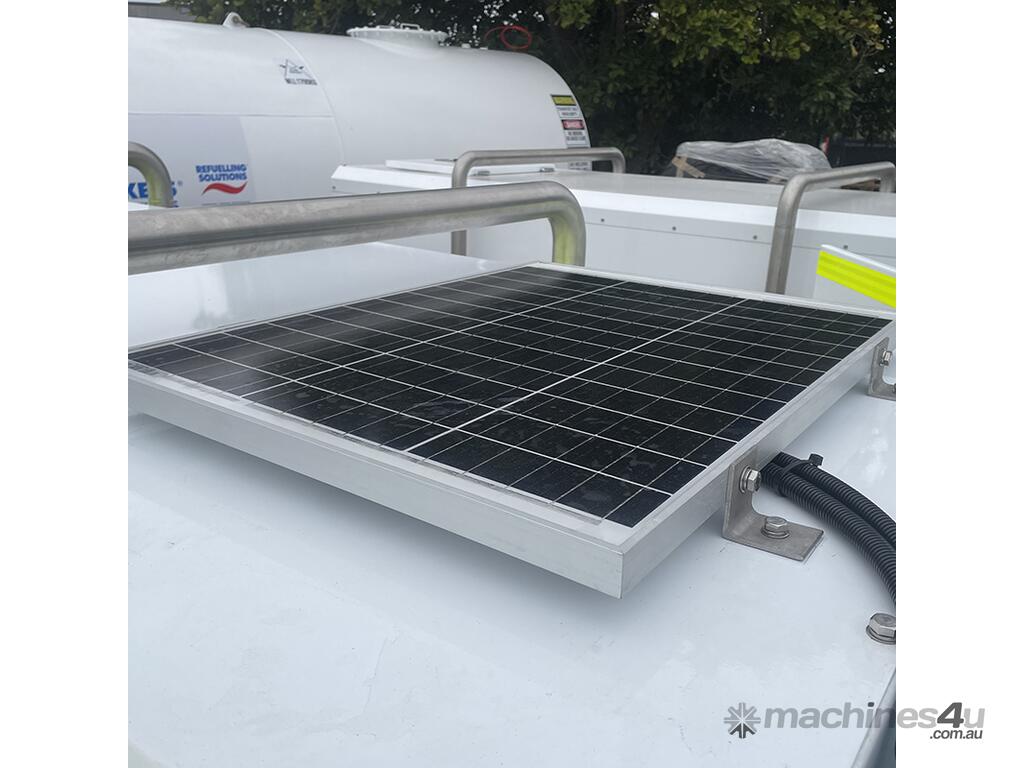

Roof Mounting Options - The trailer roof allows for mounting of Spill Kit or Solar Panels
Roll Bars - Supplied fitted with Heavy Duty Stainless Steel Roll Bars
Running Gear - 235/65 Light Truck Tyres | 16" White Sunraysia Style Rims | 6 Stud Pattern | Spare Tyre with Spare Tyre mounting assembly..
Fully Lockable - all aspects of the trailer can be locked, discouraging access and ensuing theft of fuel from the trailer
Contents Management - Calibrated aluminium dipstick with optional mechanical dial type level indicator
Spare Ports - Numerous spare ports for connection of support equipment,
Fill Tube - Anti static fill tube
Bunded Fill Point - Fully bunded fill point to catch any drips and drops during refilling operations
Removable Hatch - Removable hatch for access to the inside of the primary tank
Flashing Light - 12V Amber Flashing Light with extension pole to warm passing vehicle traffic of refuelling operations
Easy to Tow - Low profile, aerodynamic style provides a low centre of gravity.
Under 3 Tonne - Gross weight is less than 3 tonne
Electric Braking System - each trailer is fully fitted with 10" electric brakes to comply with all Australia State and Territory requirements for braking of a trailer under 3 tonne.
Chassis - Lightweight yet strong aluminium, dual axle chassis with 7 Leaf Rocker Roller suspension system
Guards - 3mm Aluminium Tread Plate Tandem Guards
Axles - 2 x 50mm Square 1500 KG Rated Axles
Lighting - LED Multi-Volt (12-24V ADR Approved) Trailer Lighting
Trailer Hitch Options - choice of Hitch assemblies including 50mm Ball, Tregg, Pintle Ring
Jockey Wheel - Heavy Duty Swing-away Jockey Wheel
Fire Protection - 9kg Fire extinguisher
Tow and Leave - couple the GO Industrial 2000L Self Bunded Fuel Trailer to Stationary Diesel Engines, such as generators, lighting towers, compressors or pumps, using our 2 x suction connection points and 2 x return connection points. These suction and connection points are conveniently located at the rear of the trailer for simple / quick connection to site equipment. We provide foot valves on the 2 x suction points to ensure that you retain a prime on the suction line to your generator, lighting tower, compressor or pump.
