GRE 485 Glazing Robot

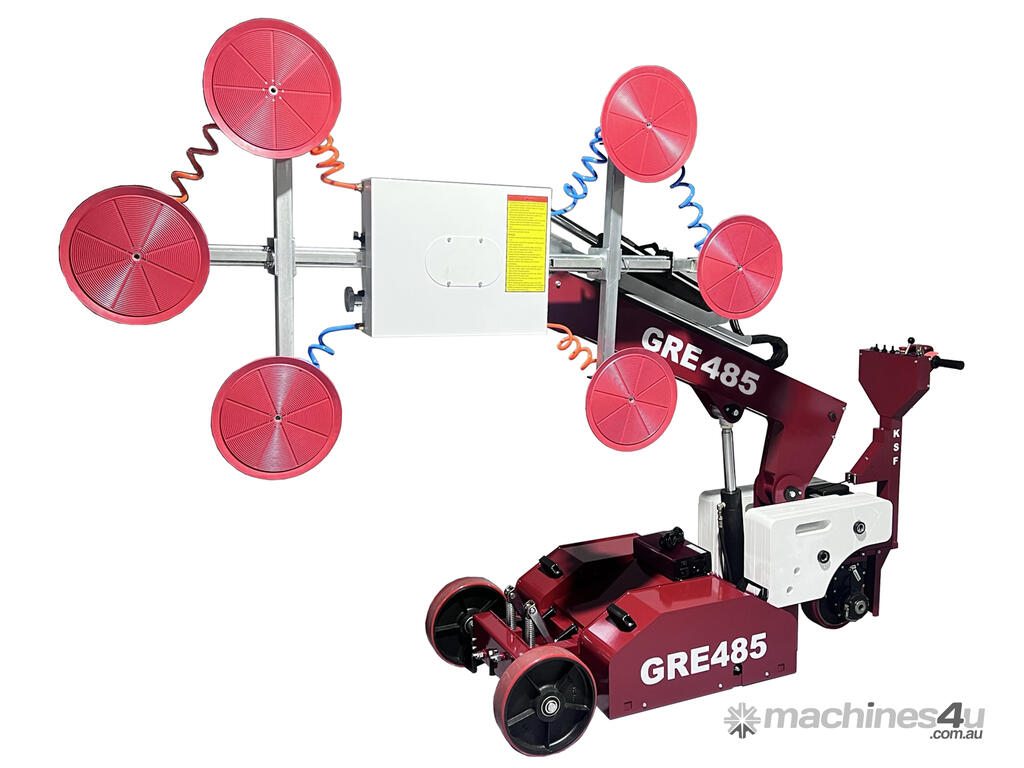

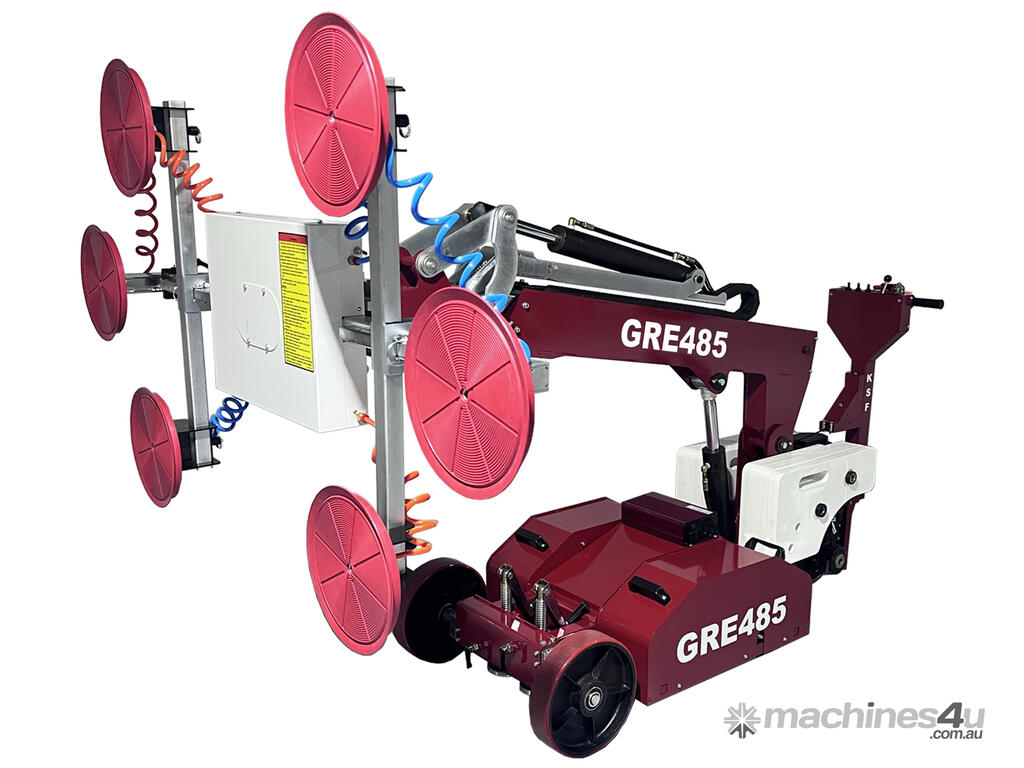

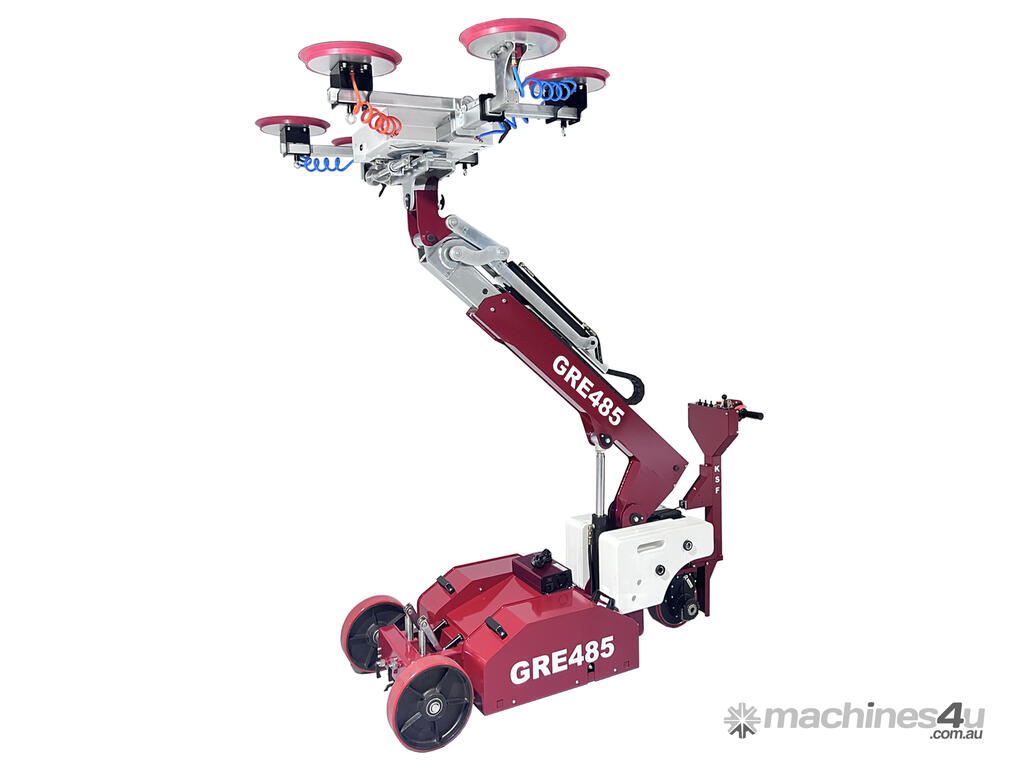

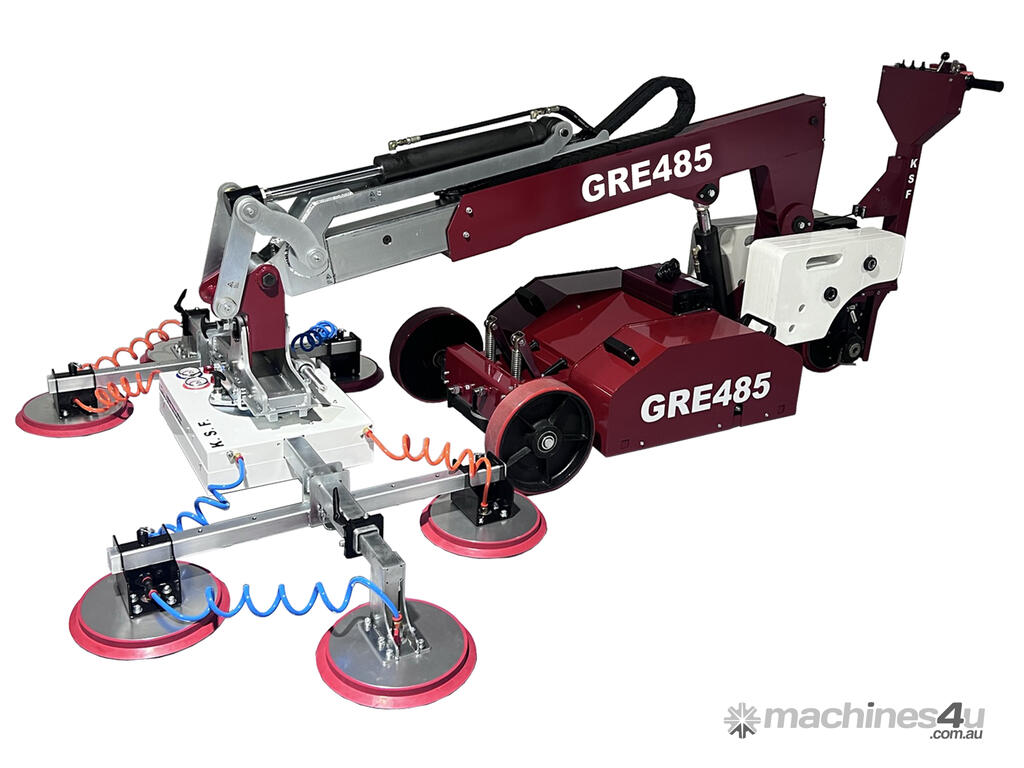

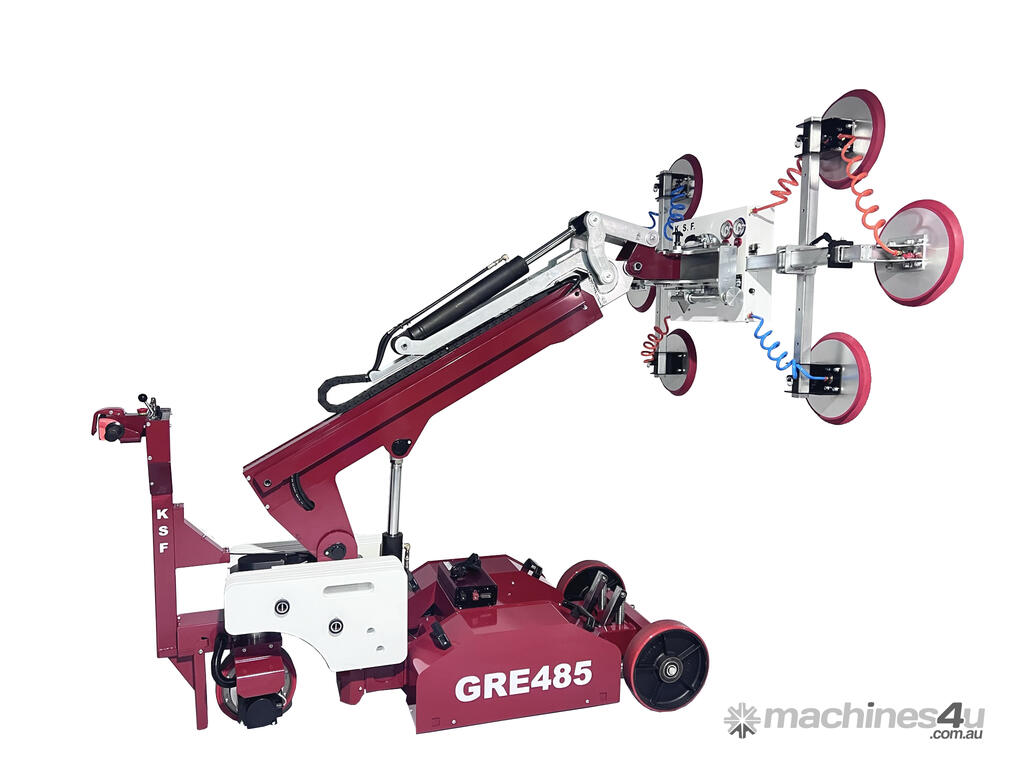

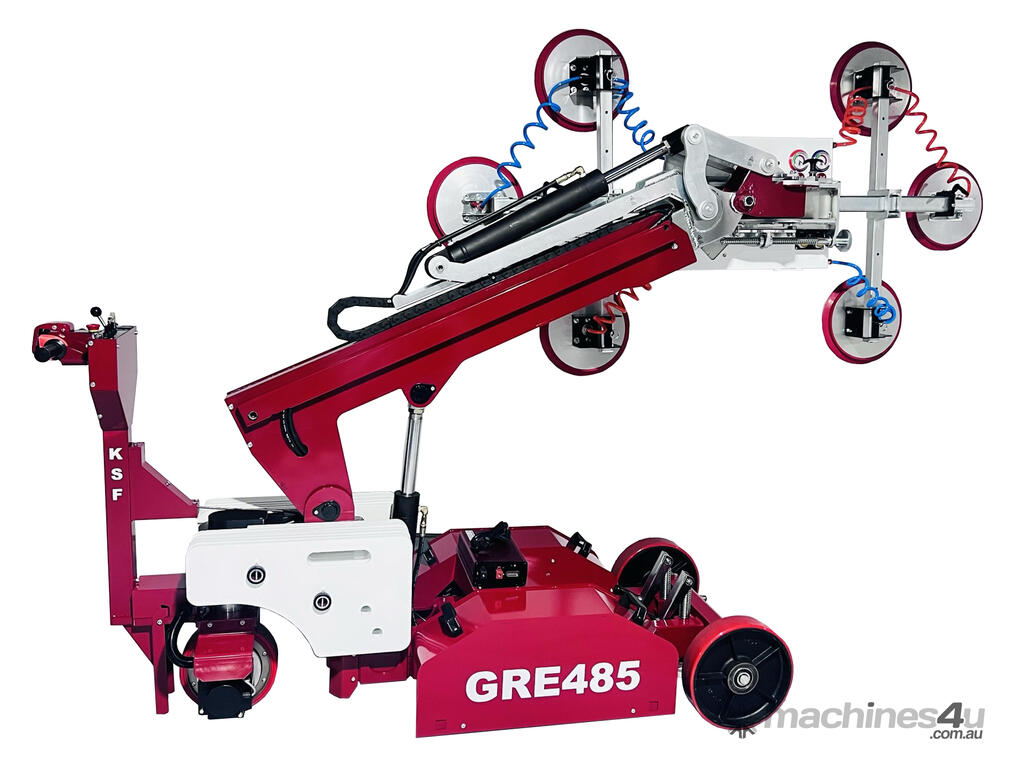

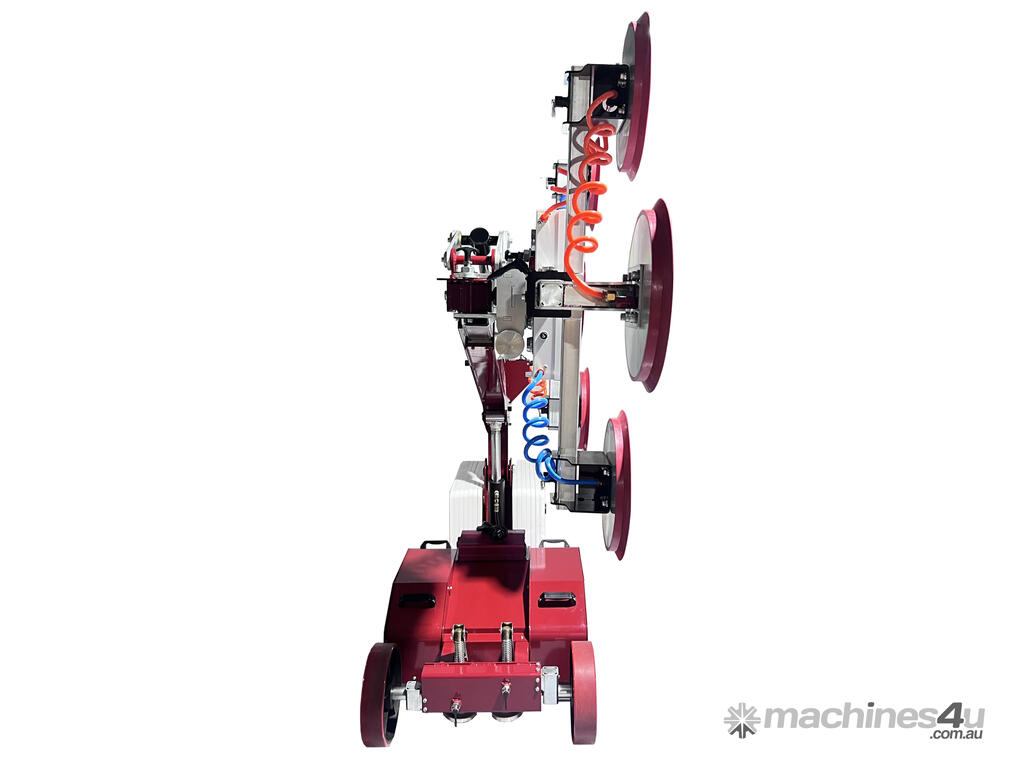

GRE485 Electric Glass Lifting Robot
The GRE485 Electric Glass Lifting Robot is a purpose-built, self-propelled glazing robot engineered for safe, efficient transport and installation of large glass panels. With a maximum load capacity of 485 kg, this machine is ideal for challenging jobsites—whether unloading, transporting, or installing heavy façade glass in commercial or industrial applications.

Key Features
• Rated for up to 485 kg load capacity.
• Boom reach/telescopic arm fully extended capacity up to 190 kg.

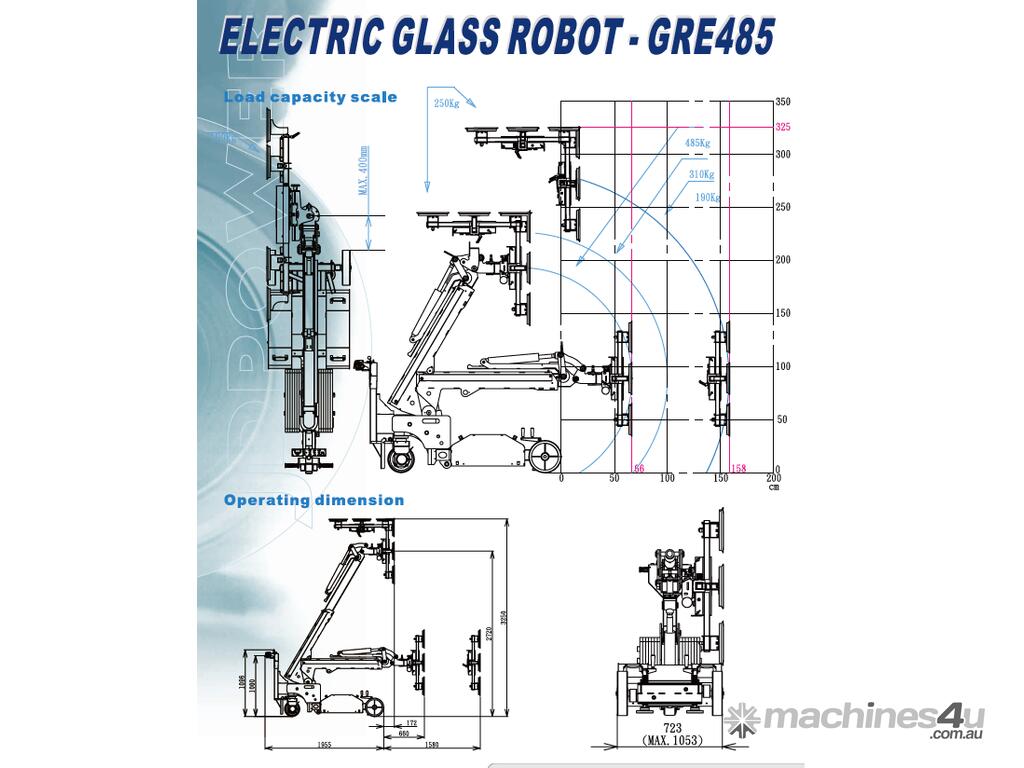

• Vertical lifting height around 3.25 m for overhead installations.
• Auto-drive speed up to 5 km/h with precise hydraulic control.
• Compact footprint—maneuvers through narrow aisles and doorways with adjustable base width (723 mm to 1,053 mm).
• Equipped with six pneumatic suction cups for stable glass handling.

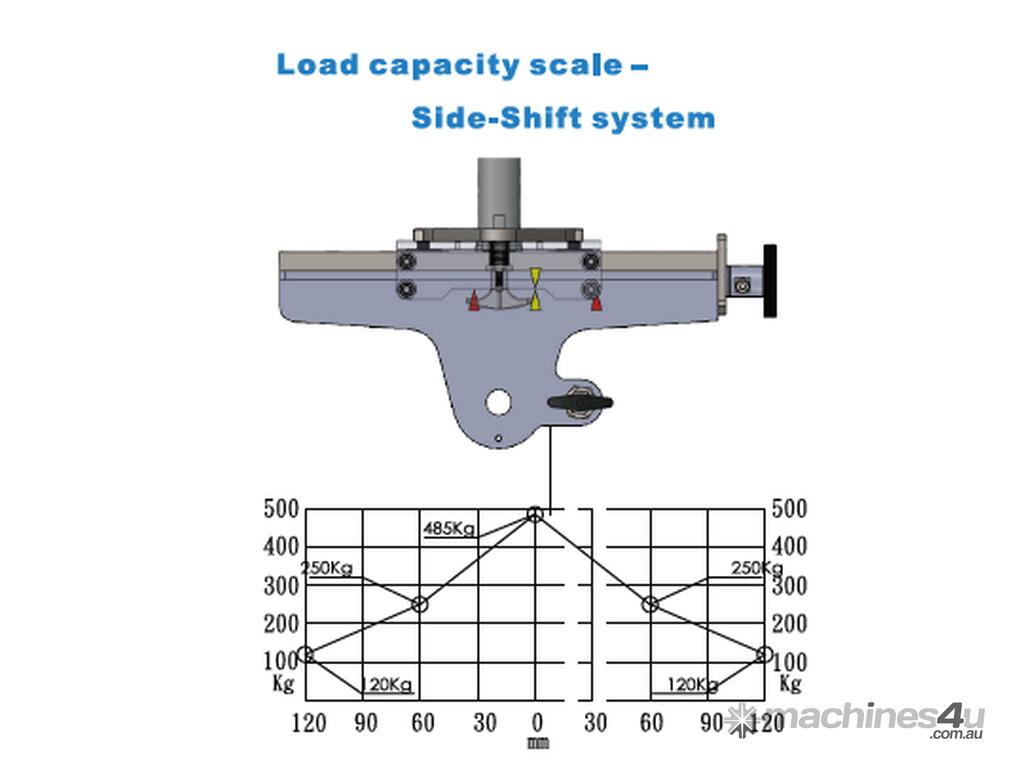

• Side-shift cradle adjustment (±120 mm) for precise positioning.
• Integrated tip-over alarm and safety-stop detector.
• Removable counterweights for easier transport.

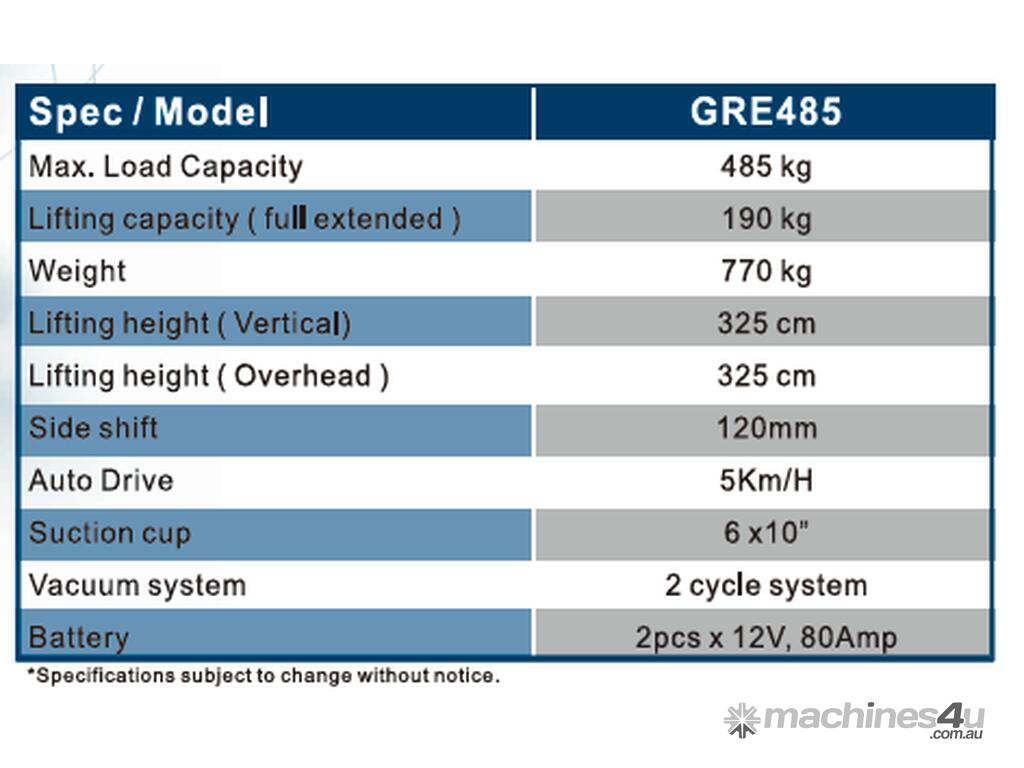

Technical Specifications
Specification Value
Max Load Capacity 485 kg
Extended Load Capacity (boom fully extended) 190 kg
Self-drive Speed Up to 5 km/h
Side-Shift Cradle Adjustment ±120 mm
Base Width (extended) 723 mm – 1,053 mm
Weight Approx. 770kg
Battery 2 ×12V, 80A

Ideal Applications

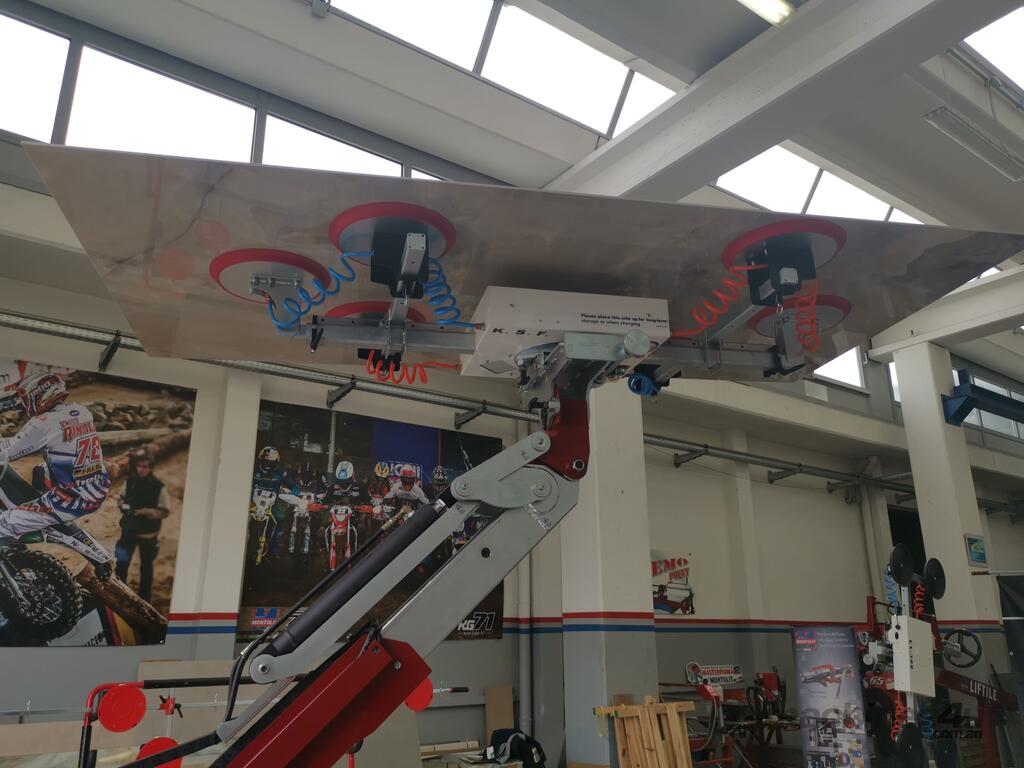

• Installing large glazing panels in commercial façade systems, curtain walls, and high-rise windows.
• Construction sites where space is constrained and mechanical manoeuvring is essential.
• Projects requiring precise and safe lifting of heavy glass panels, reducing workforce strain and risk.
