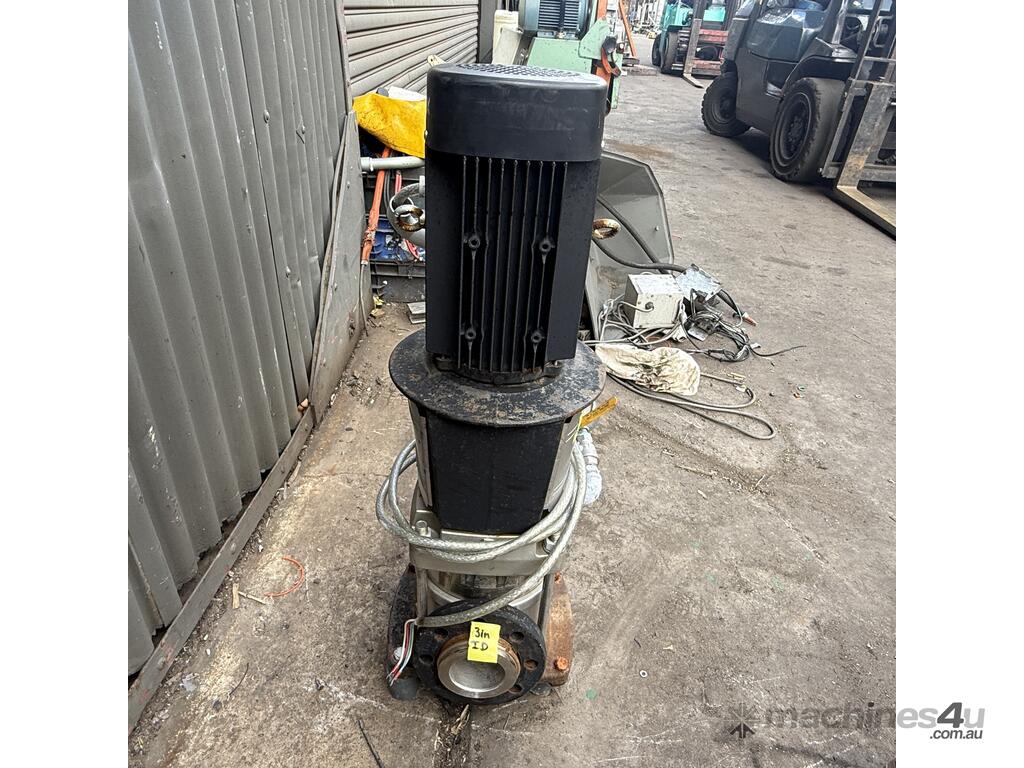

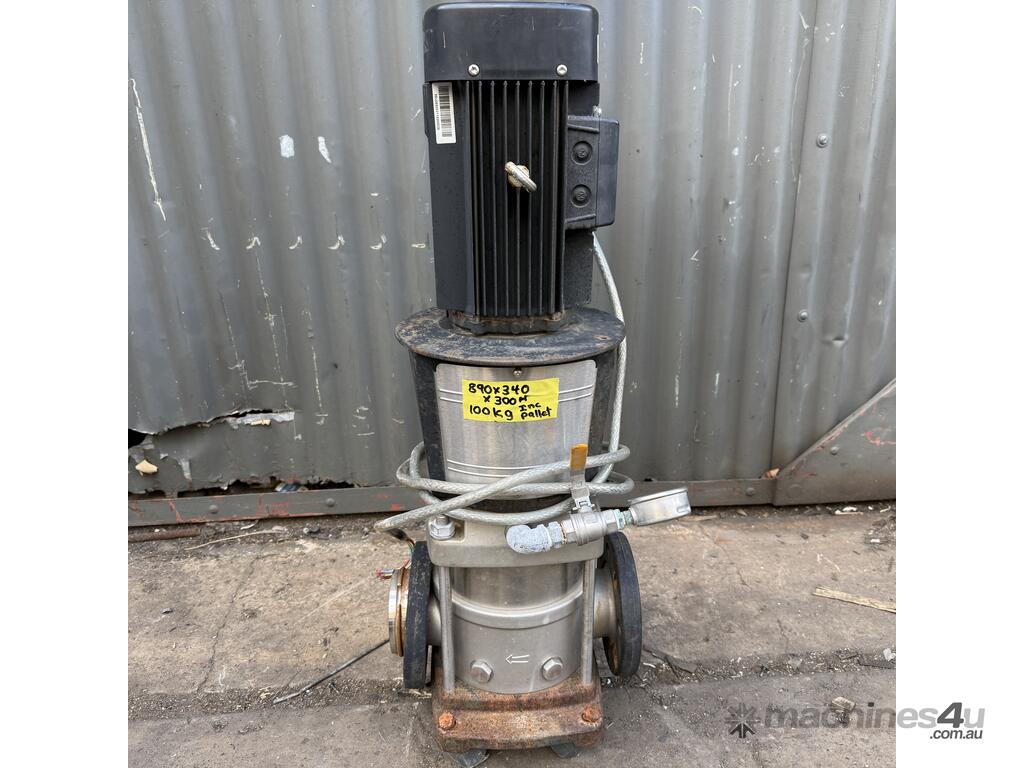

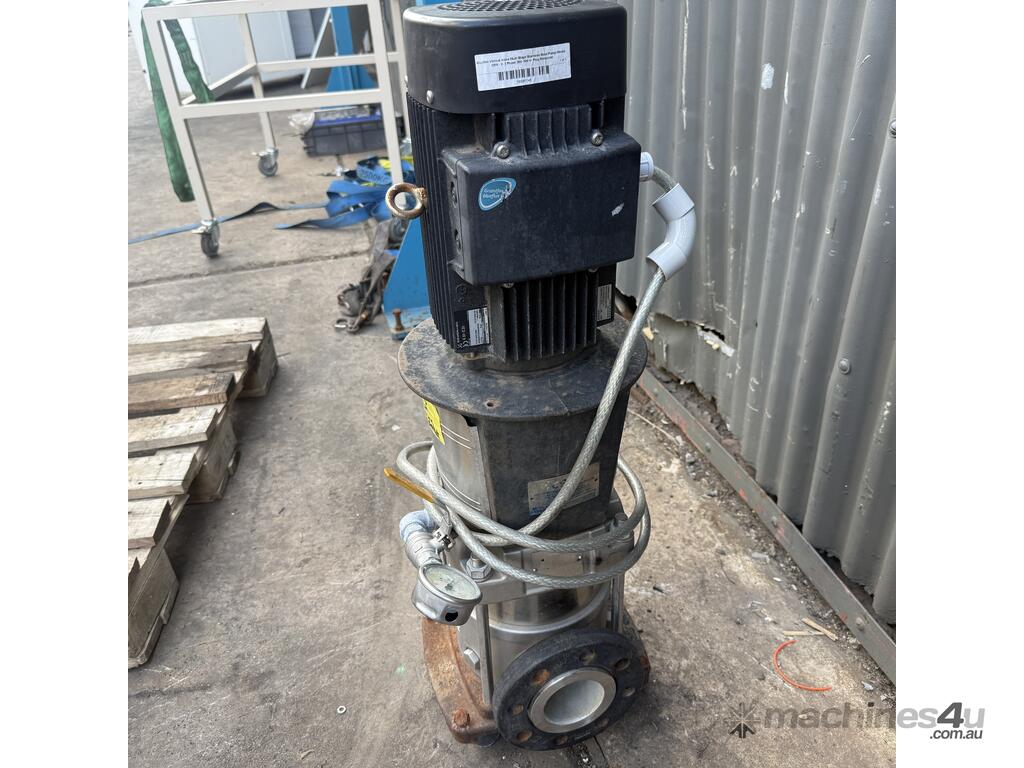

GRUNDFOS 2.2kW Vertical multistage centrifugal pump 3" DN80 CRN32-1-1 B-F-G-/-HOOV

Grundfos CRN 32 Vertical Multistage Centrifugal Pump – 2.2 kW – 3" Inlet

Pump: CRN B-F-G-/-HOOV

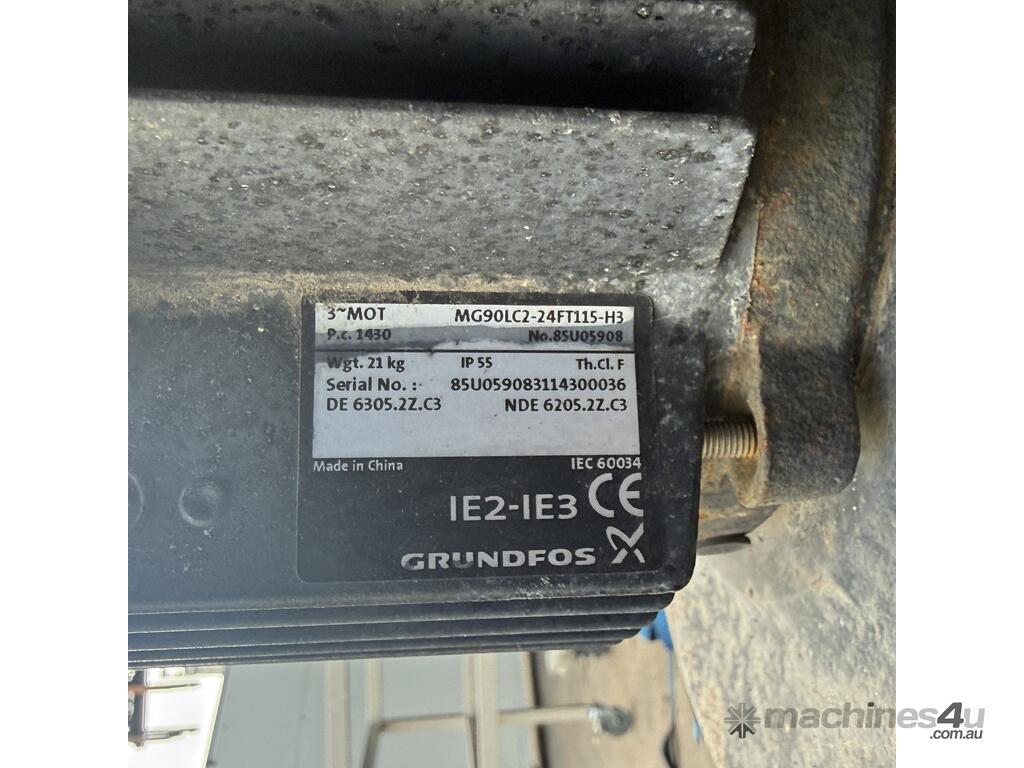

Motor: MG90LC2-24FT115-H3 No.85U05908
Overview
Industrial Grundfos vertical multistage centrifugal pump, suitable for clean water, process water, filtration, circulation, and general industrial pumping applications. Compact footprint with vertical design and high efficiency IE2/IE3 motor.

Key Specifications
Brand: Grundfos

Pump Type: Vertical multistage centrifugal pump

Series / Type: CRN

Motor Power: 2.20 kW

Motor: Grundfos / IEC motor

Motor Efficiency: IE2 / IE3

Phase: 3-phase

Frequency: 50 / 60 Hz

Speed: ~2890–2910 rpm (50 Hz)

Ingress Protection: IP55

Insulation Class: F

Hydraulic Data (from nameplate)
Flow: approx. 30 m³/h

Head: approx. 16–19.7 m

Max Pressure: 16 bar

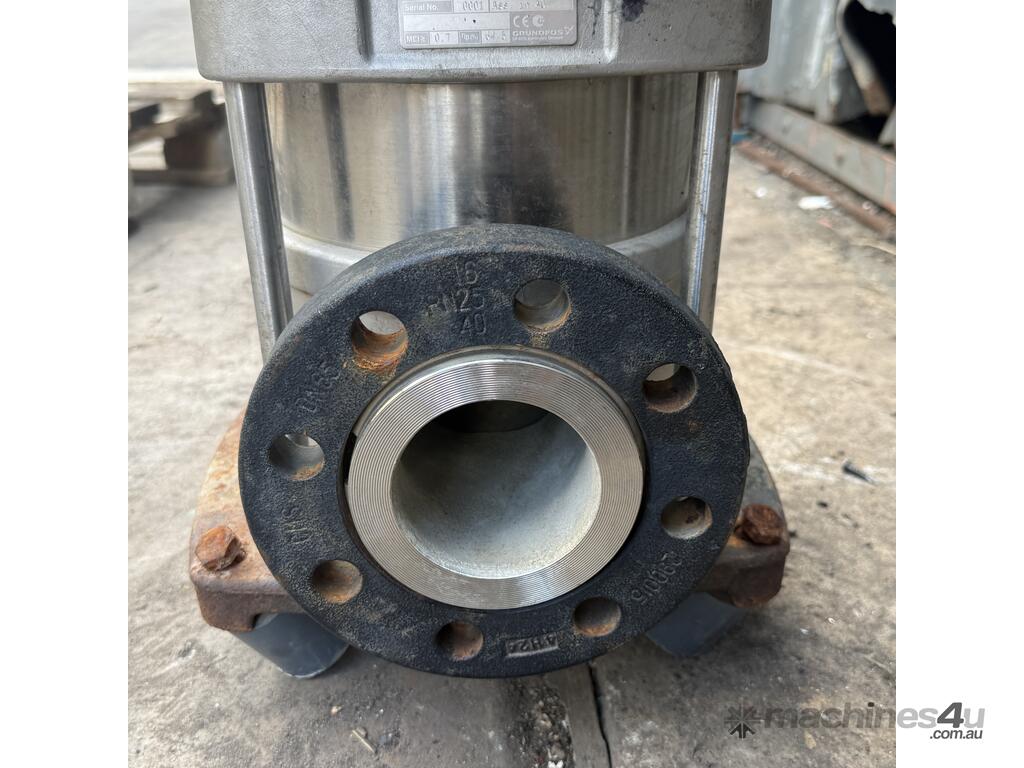

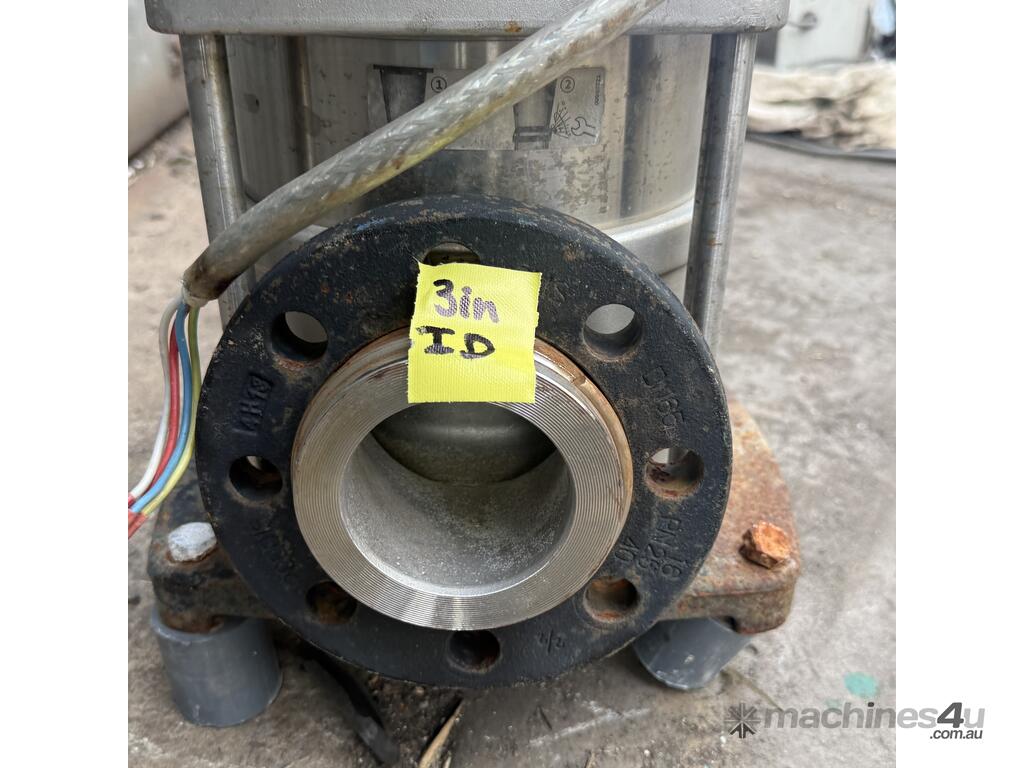

Inlet / Outlet: 3-inch flanged (DN80)

Material: Stainless steel pump body (CRN series)

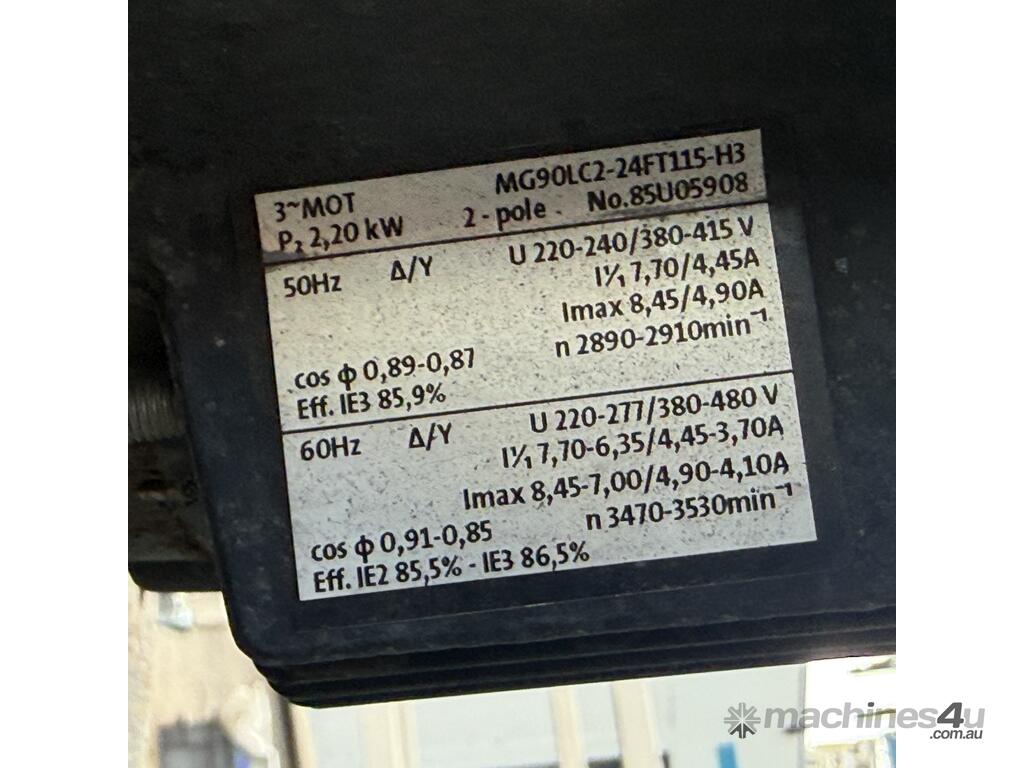

Electrical
Voltage (50 Hz): 220–240 V ? / 380–415 V Y

Current: approx. 7.7 / 4.45 A

Cos ?: 0.89–0.87

Efficiency: up to ~86%

Dimensions & Weight

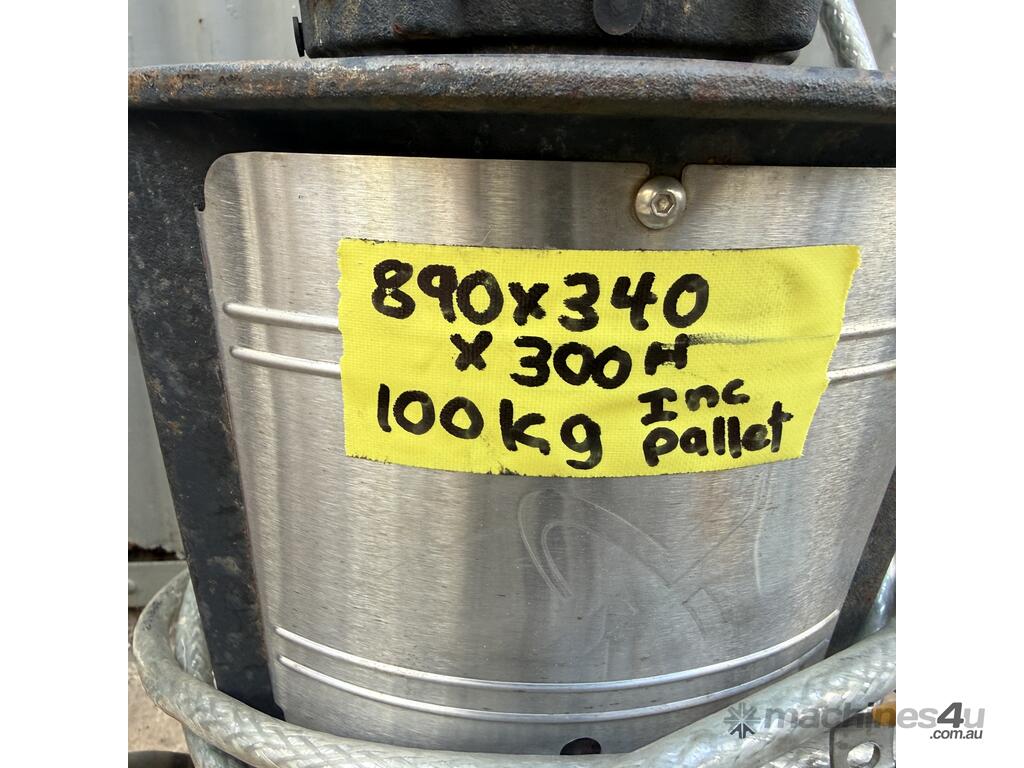

Approx. 890 × 340 × 300 mm

Approx. 100 kg


Contact and inspection of goods

Please contact Tim Marshman with any questions. This item may be inspected by appointment at 9 Vernon Smith Court, Ottoway, South Australia
