Gantry type Milling Machine width 820mm - 1000mm - 1300mm X Lengths 1300mm - 3500mm

GMC1800 GMC2200 GMC2700 GMC3000 Gantry Machine Center
Quick Details
Main motor power:15-18.5KW /15-18.5KW /22-26KW/22-26KW
Distance from spindle surface to table surface:(mm) 150-1150/280-1280/280-1280 /280-148
Max tool length:400mm

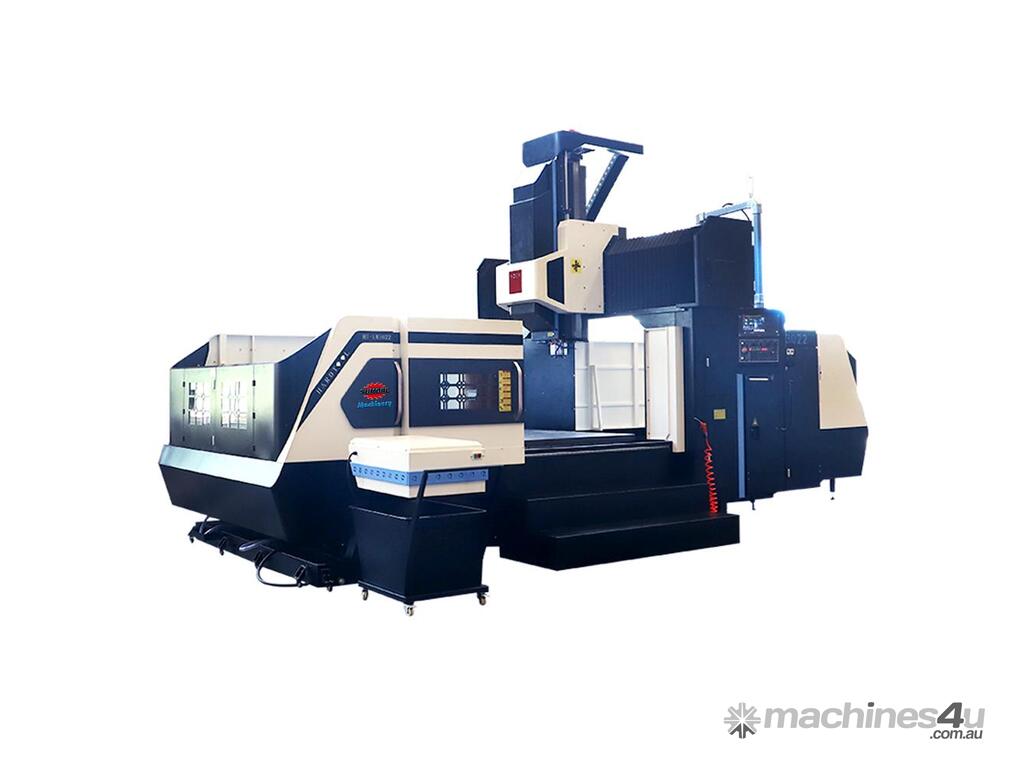

1800mm CNC Gantry Type Vertical Machining Center is available in 5 length of machining capabilities, GMC1800 GMC2200 GMC2700, 3000 and 4000.

Equipment (optional: 3-axis, 4-axis and 5-axis gantry machining centers. Can also customize according to your requirements.

Parameters: X/Y/Z axis max travel: 2000/2500/3000/3500*1850*800mm Gantry width: 1600mm Table size WXL: 1300*2000/2500/3000/3500mm

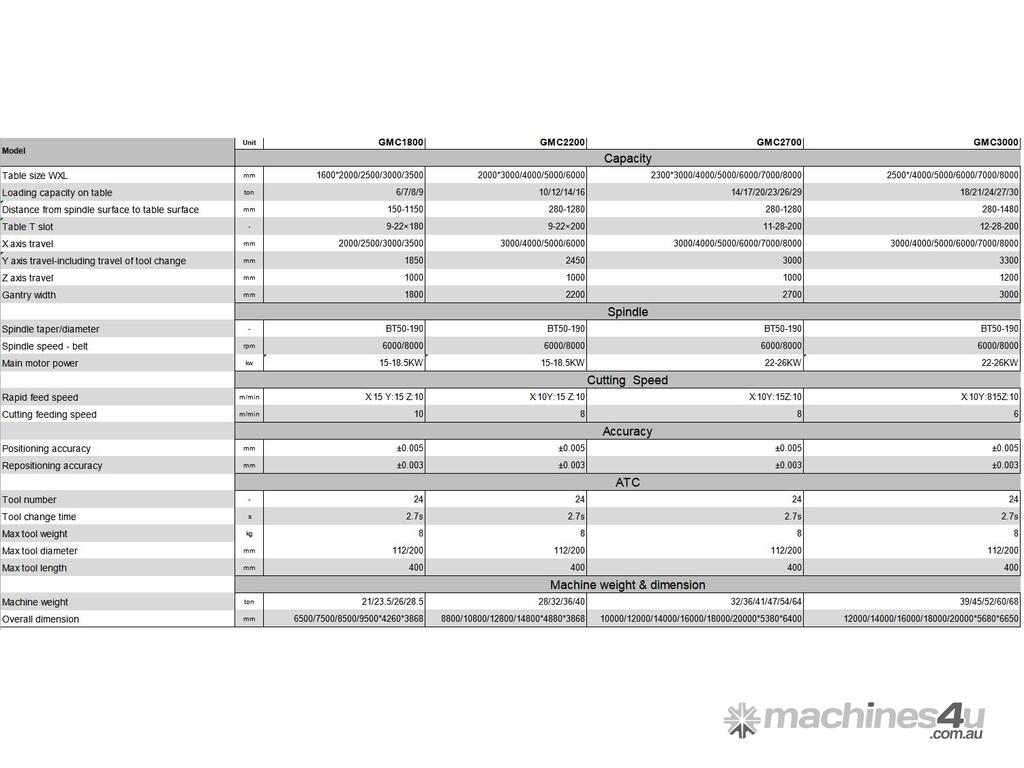

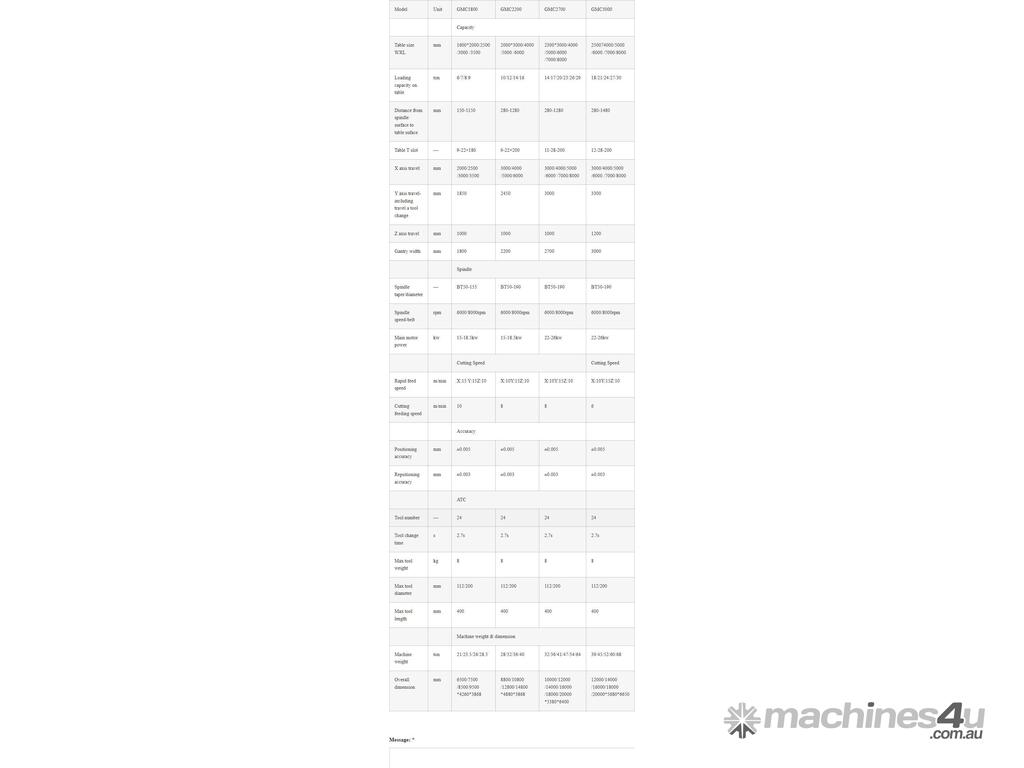

Specification
High Quality CNC Gantry Milling Machine Center Gantry type horizontal 5 axis cnc machining center Gantry Machining Center Main Feature: Gantry milling machine machining center cnc inherits the advantages of rigid rigidity, structural symmetry and strong stability of the traditional gantry machine frame. It introduces the international advanced dynamic rigid design concept and optimizes the design of moving parts. The machine tool has large torque and fast response characteristics, and is suitable for various mechanical processing situations.

We can offer several models of Gantry Mills at great prices reply to this machine and supply your x y z dimensions for quote.
