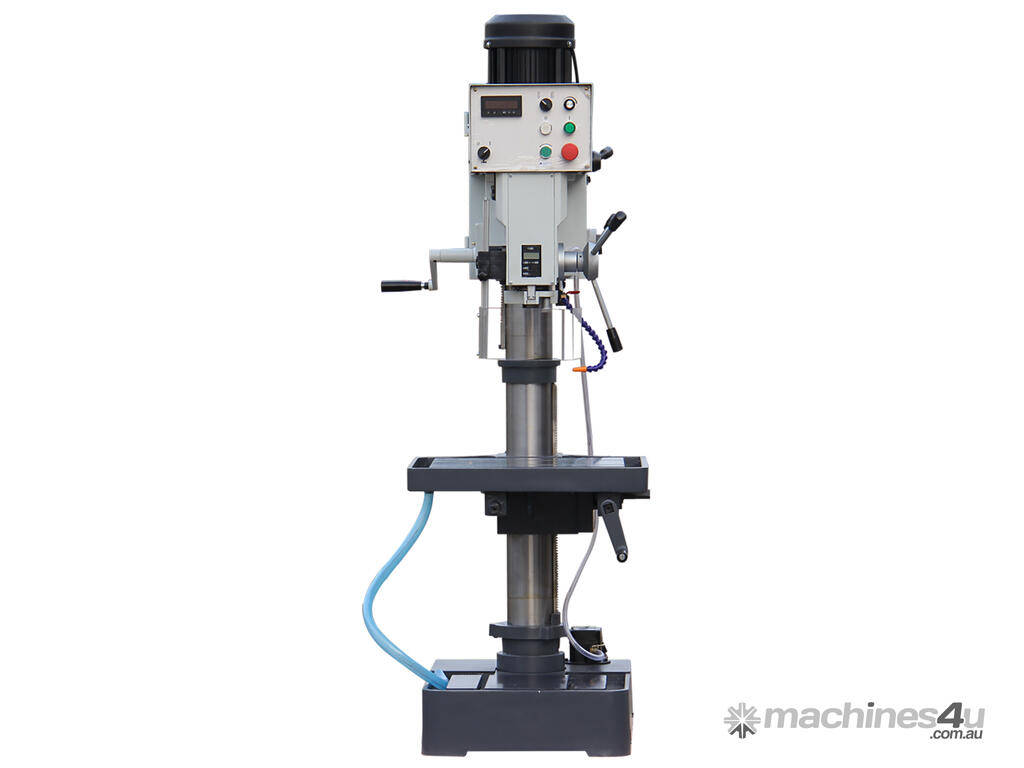

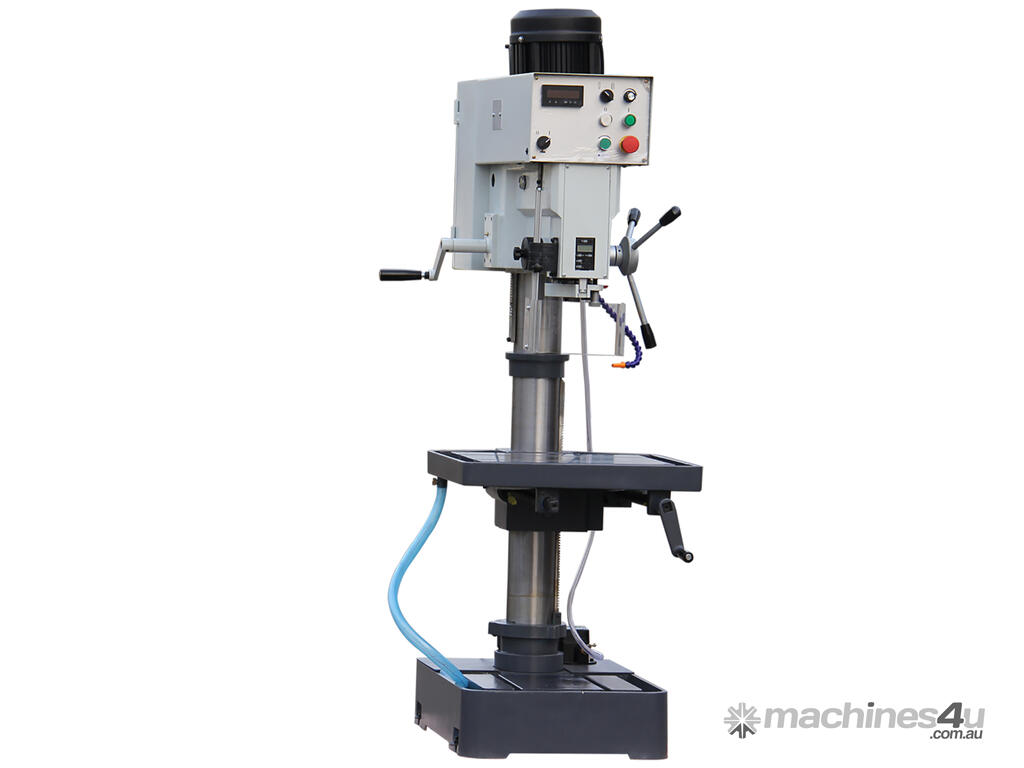

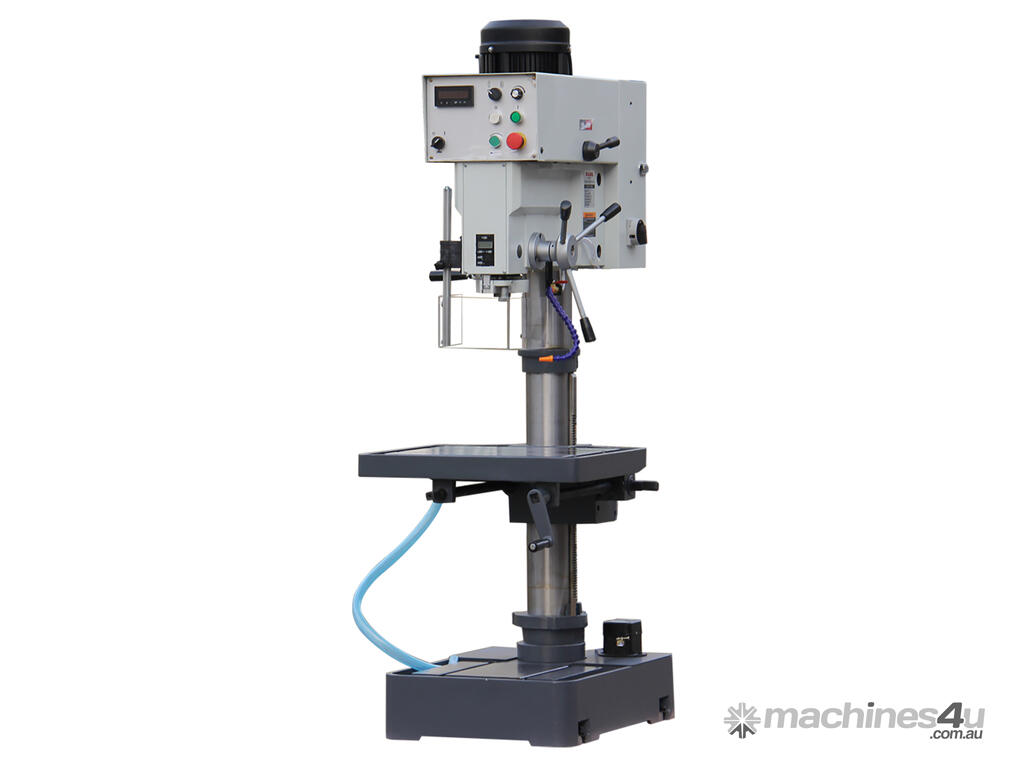

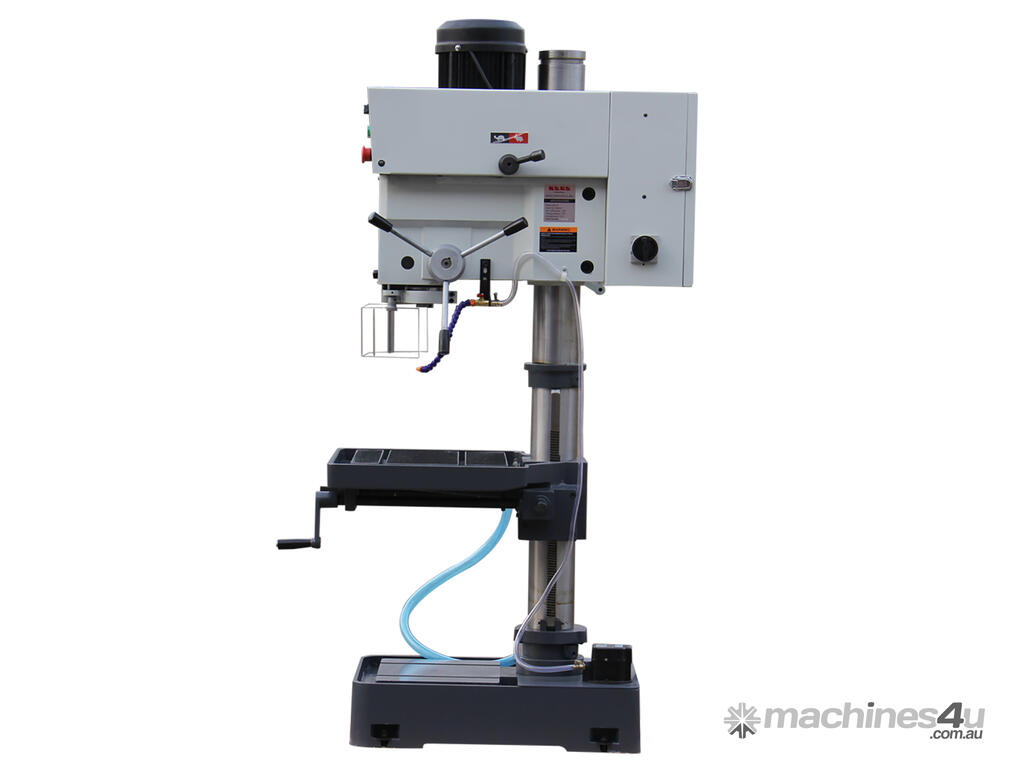

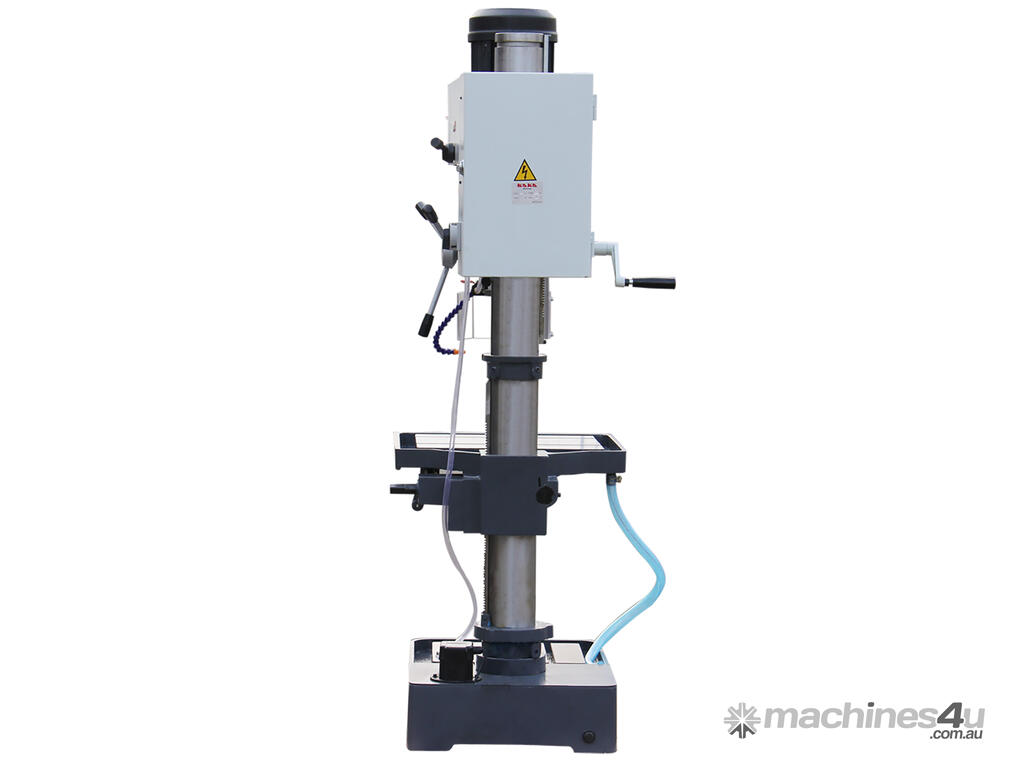

The KANG Pillar Drill DP-32 is a robust, heavy-duty floor-standing drill press designed for precision drilling in workshops, fabrication shops, and manufacturing environments. This column-style pillar drill delivers reliable performance even at maximum capacity, ensuring long-term accuracy and durability. Powered by a 2.2kW single-phase motor, it's ideal for Australian users with standard household or workshop power setups—no need for three-phase conversions. The inverter-driven head allows variable speed control from 65 to 2000 RPM, making it versatile for drilling through steel, cast iron, aluminium, and other materials. Features like manual quill feed, an integrated coolant system, and enhanced safety measures make it a safe, efficient choice for professionals upgrading from bench models or starting a serious workshop setup. With a compact footprint (base size: 486mm x 688mm) and a weight of 340kg, it's suitable for garages, small factories, or trade schools.
Precision and Stability for Aussie Workshops: Built with a 115mm column and 75mm spindle for vibration-free drilling, perfect for accurate fabrication tasks in Australia's diverse industries like automotive, construction, and mining equipment maintenance.
Variable Speed Control for Versatility: Inverter-driven motor adjusts speeds seamlessly, allowing optimal performance across materials without gear changes, saving time and reducing wear in high-demand environments.
Integrated Coolant System Boosts Efficiency: Extends drill bit life and improves cut quality, ideal for prolonged use in hot climates where overheating can be an issue, helping you complete jobs faster with fewer interruptions.
Enhanced Safety Features for Compliance: Includes an emergency stop button, automatic shut-off safety guard, etc. to protect users in professional or educational settings.
Single-Phase Power Compatibility: Runs on standard 240V power outlets, making it accessible for home workshops, small businesses, or remote sites without costly electrical upgrades.
Long-Term Reliability and Value: Heavy construction ensures years of dependable service, reducing downtime and maintenance costs— a smart investment for the fabricators seeking quality at a competitive price.

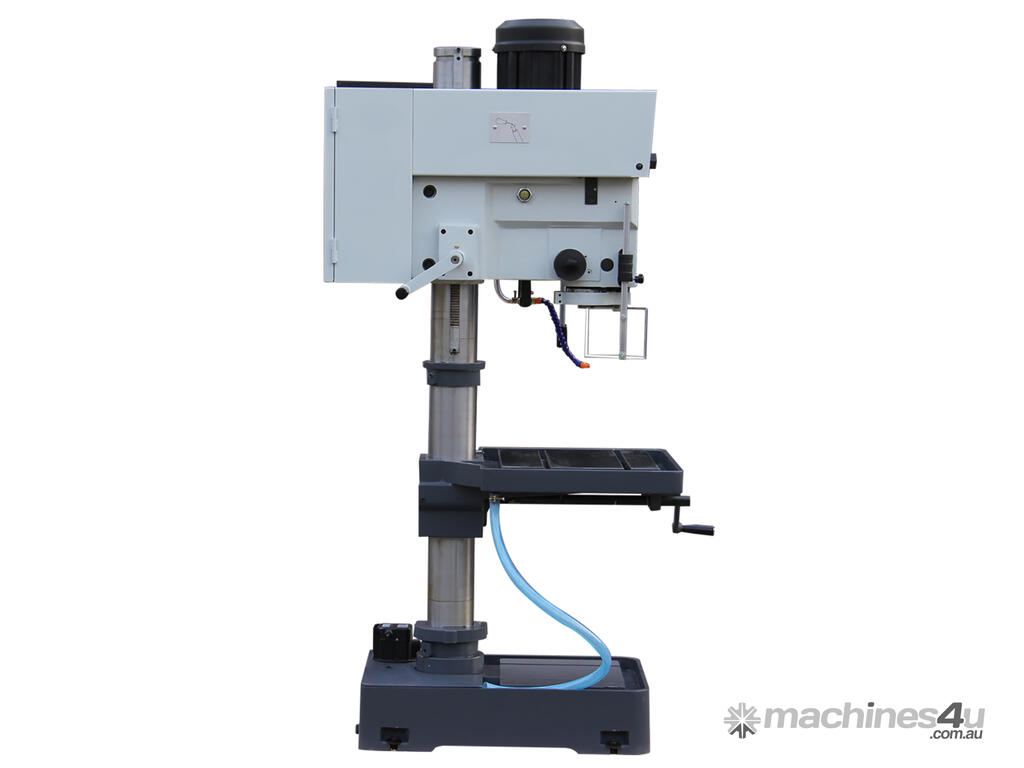

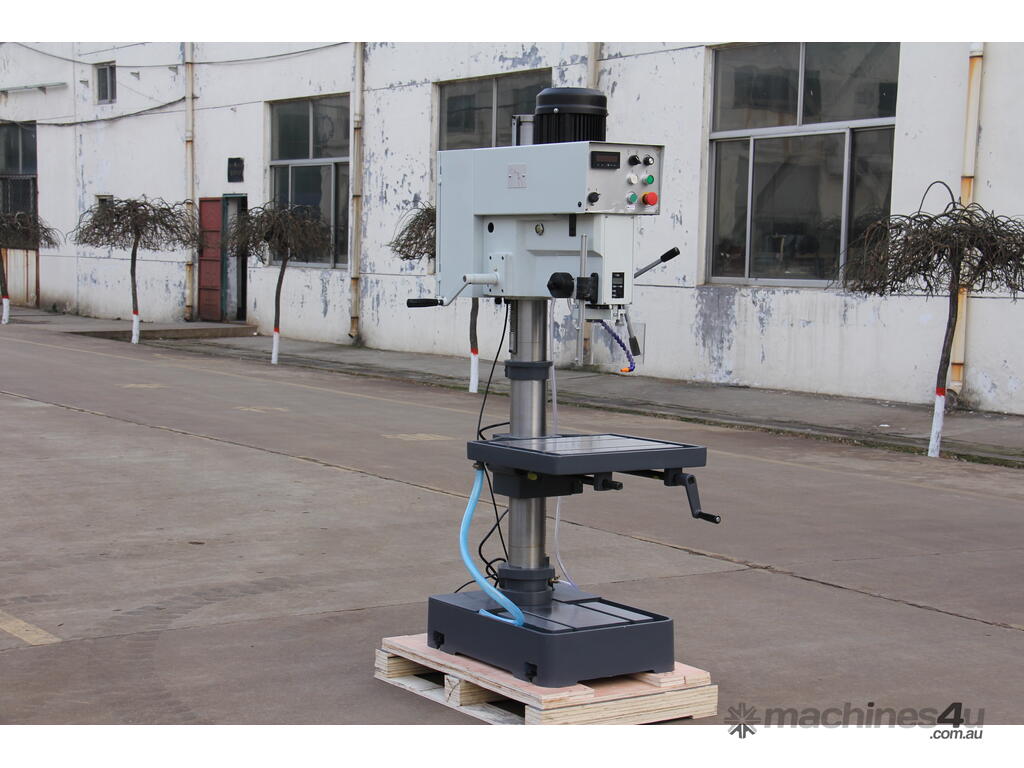

KANG INDUSTRIAL DP-32 Gear Head Pedestal Drill
Variable speed, 32mm drilling capacity
Features
Single phase power, 2.2kW powerful motor
MT3 spindle taper, max. drilling 32mm dia.
Forward & Reverse switch, tapping system? 16mm steel

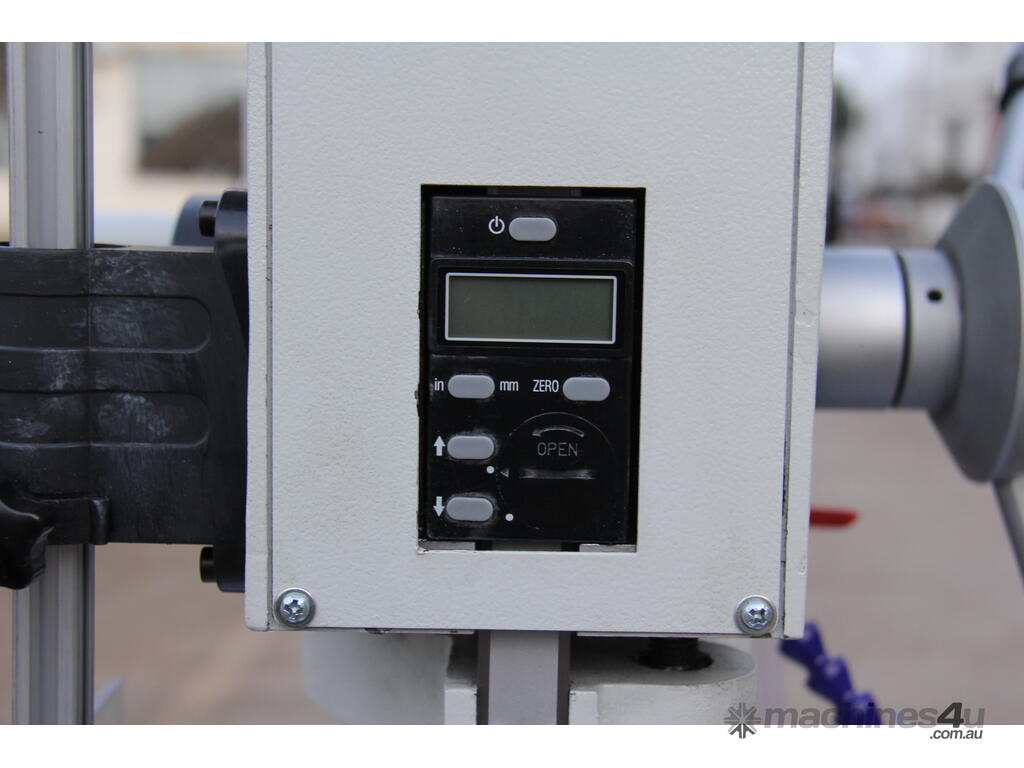

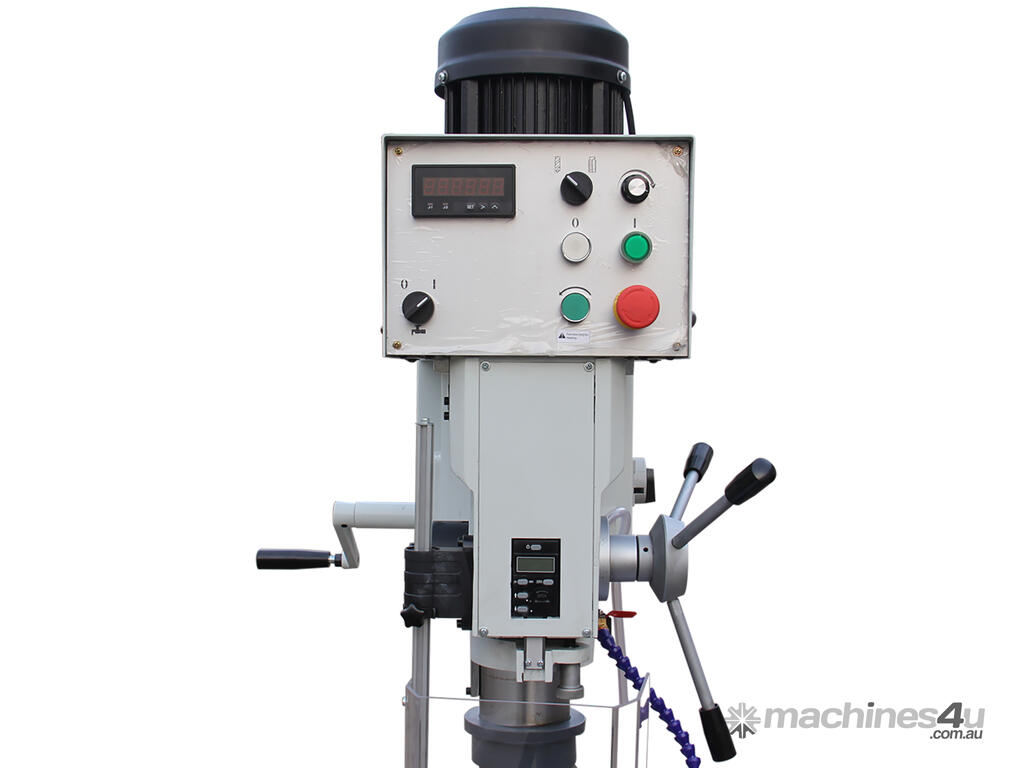

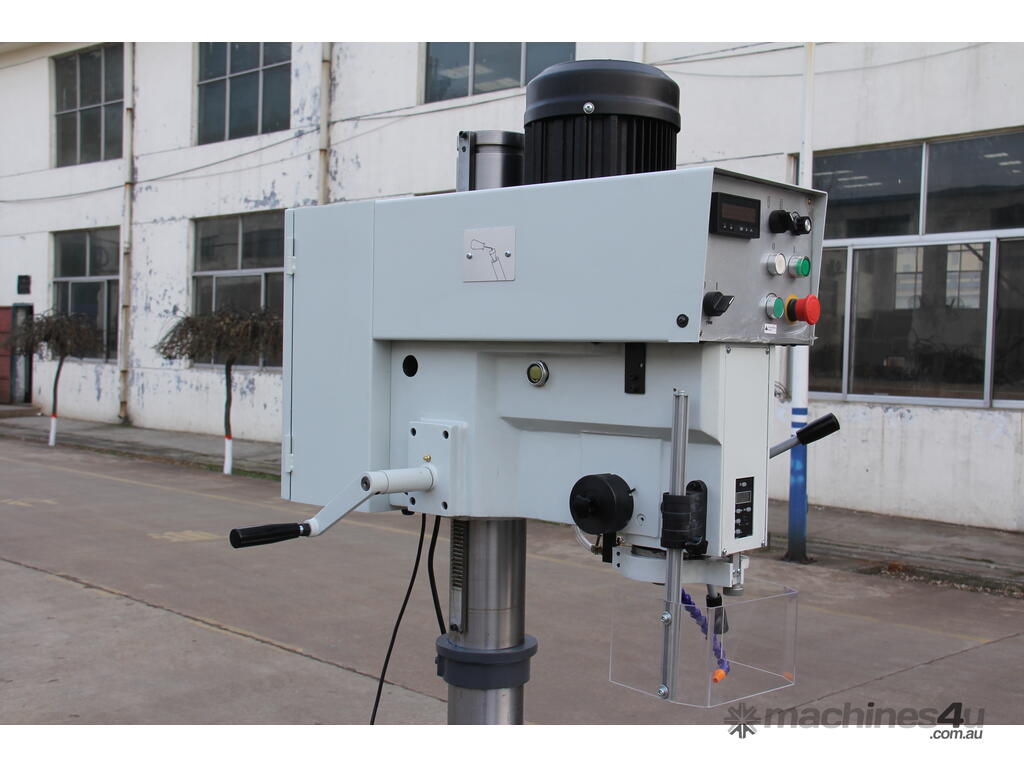

RPM digital display and digital depth reader
Inverter variable drilling speed
Gear drive with high torque
Cast iron frame for long durability
Standard coolant system with working light
Specifications
SKU 190030
Model DP-32
Drilling capacity 32 mm
Tapping capacity M16
Swing 323 mm
Spindle taper MT3
Spindle travel 150 mm
Spindle speed High speed 245-2000 rpm Low speed 65-540 rpm
Spindle nose to table 530 mm
Spindel nose to base 1180 mm
Quill dia. 75 mm
Column dia. 115 mm

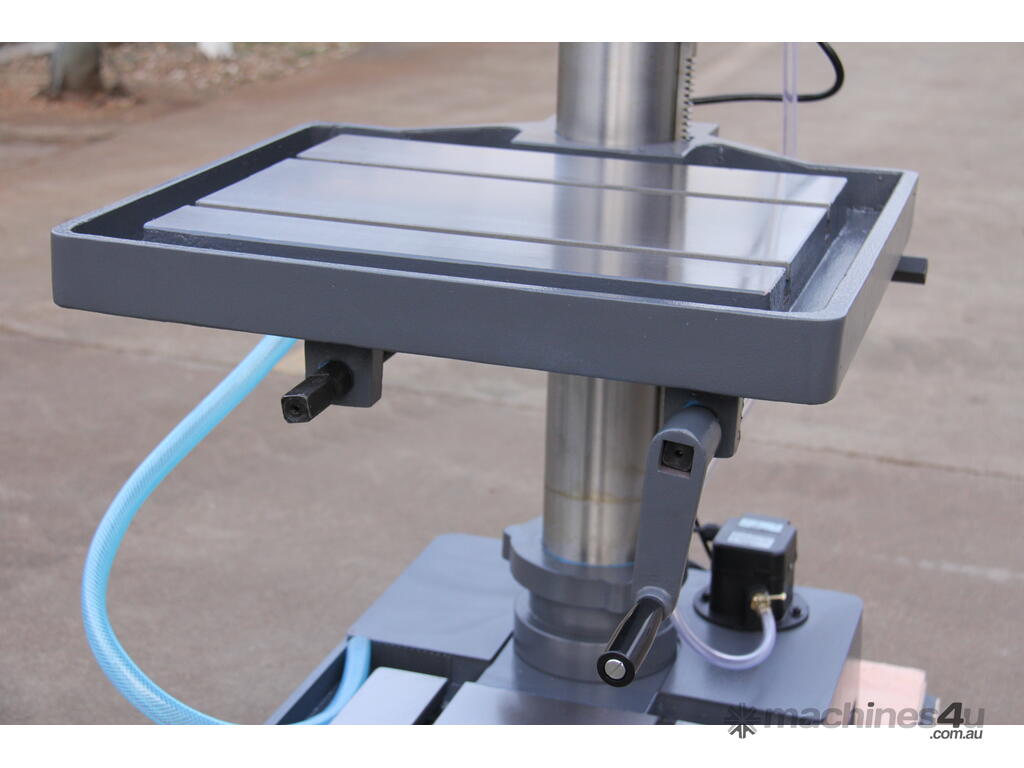

Table size 560x475 mm
Table slot 16 mm
Base size 688x486 mm
Motor power 2.2 kW
Packing size 95x64x200 cm
N.W./G.W. 340/398 kg
