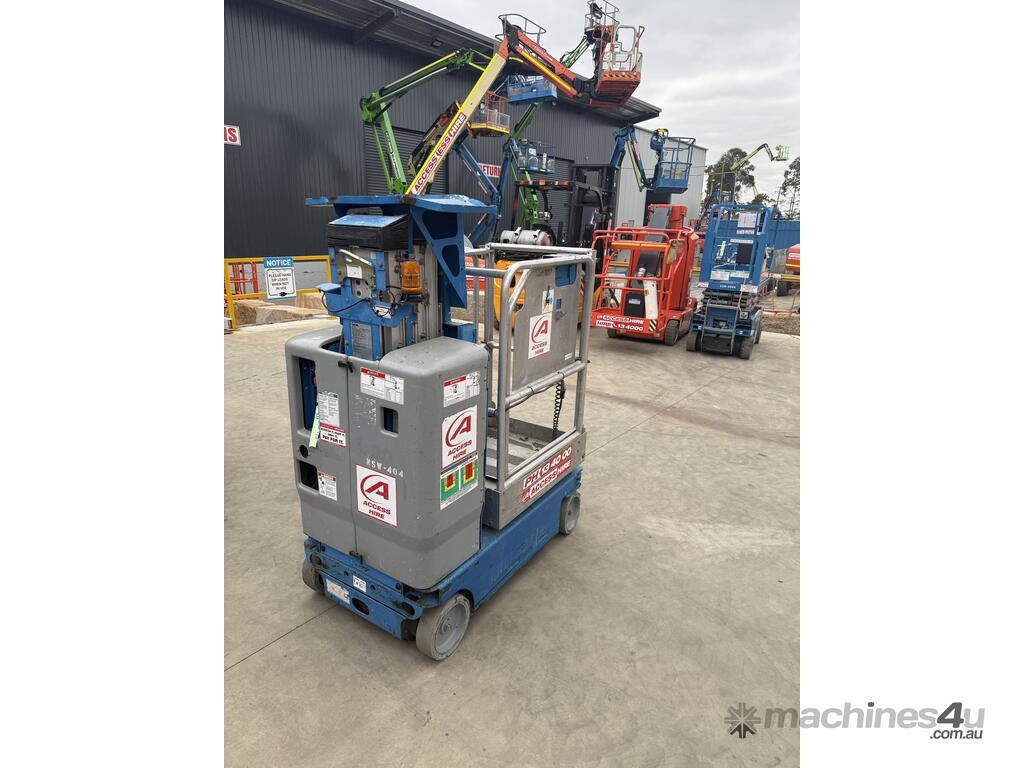

Our 2015 Genie GR-15 Electric Man Lift is a compact, self-propelled vertical mast lift designed for efficient access in tight indoor spaces. With a platform height of 14ft 8in (4.47m) and a working height of 20ft 8in (6.47m), it provides safe, reliable elevation for one operator and tools. Built with a solid steel mast and non-marking tyres, it’s ideal for maintenance, installation and warehouse operations where clean, precise movement is essential.
Powered by a 24V DC system (four 6V 225Ah batteries), the GR-15 delivers quiet, emission-free performance. Its zero inside turning radius allows exceptional manoeuvrability in confined areas, while proportional controls provide smooth lift and drive functions. The lightweight design and low ground pressure make it suitable for sensitive floor environments.
Features:
- Platform Height: 14ft 8in (4.47m)
- Working Height: 20ft 8in (6.47m)
- Capacity: 227kg (500lbs)
- Power Source: 24V DC (four 6V 225Ah batteries)
- Gradeability: 30%
- Drive Speed: 4km/h stowed, 0.8km/h raised
- Turning Radius: Zero inside / 1.32m outside
- Tyres: Solid non-marking, 25 × 8 × 20cm (10 × 3 × 8in)
- Weight: 1,026kg
- Hydraulic Capacity: 8.33L
- Standards: ANSI A92.6, CE, CSA B354.2 compliant
Applications:
- Indoor maintenance and electrical work
- Facility fit-outs and warehousing
- Retail and commercial property service
- Light construction and access tasks
