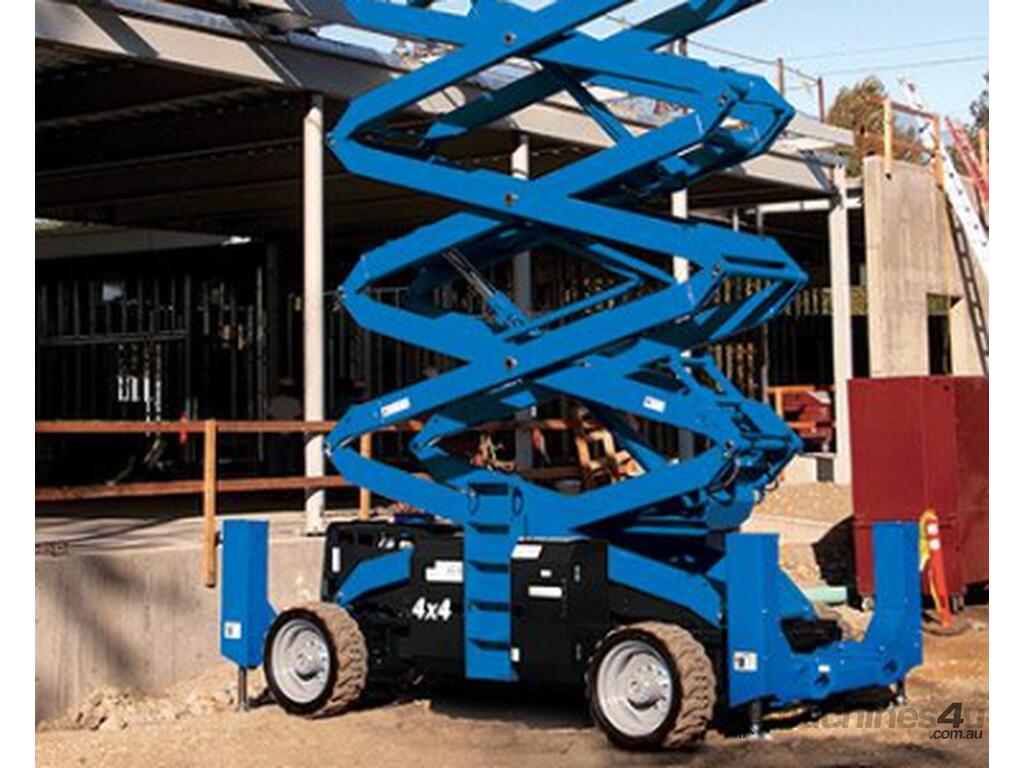

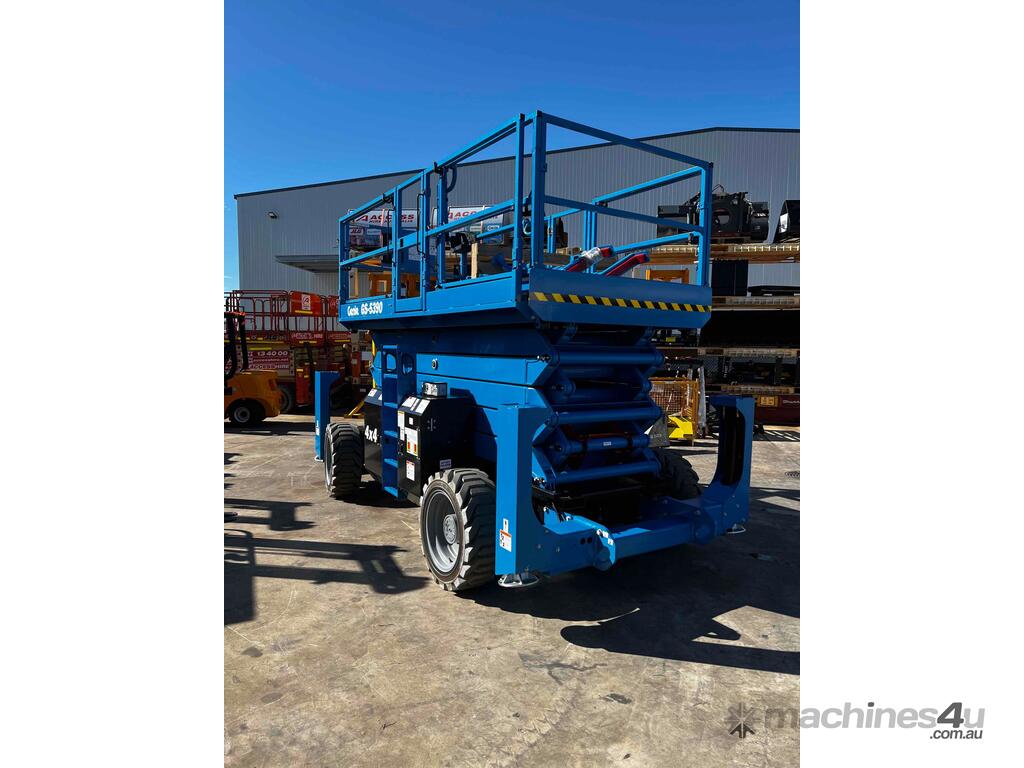

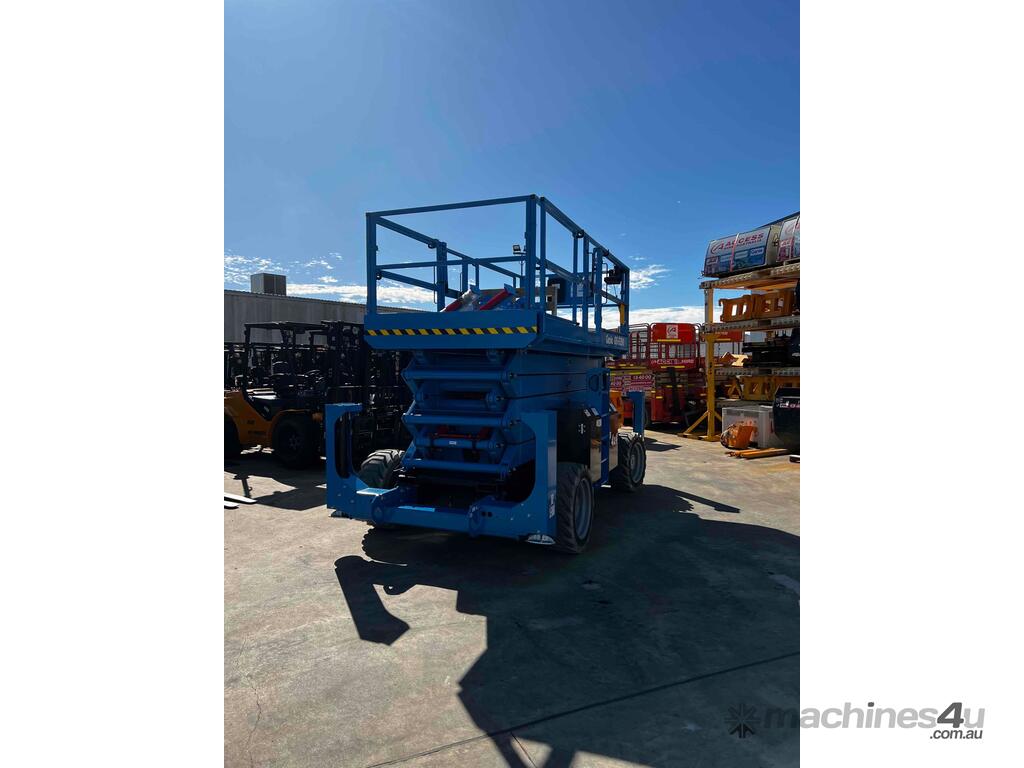

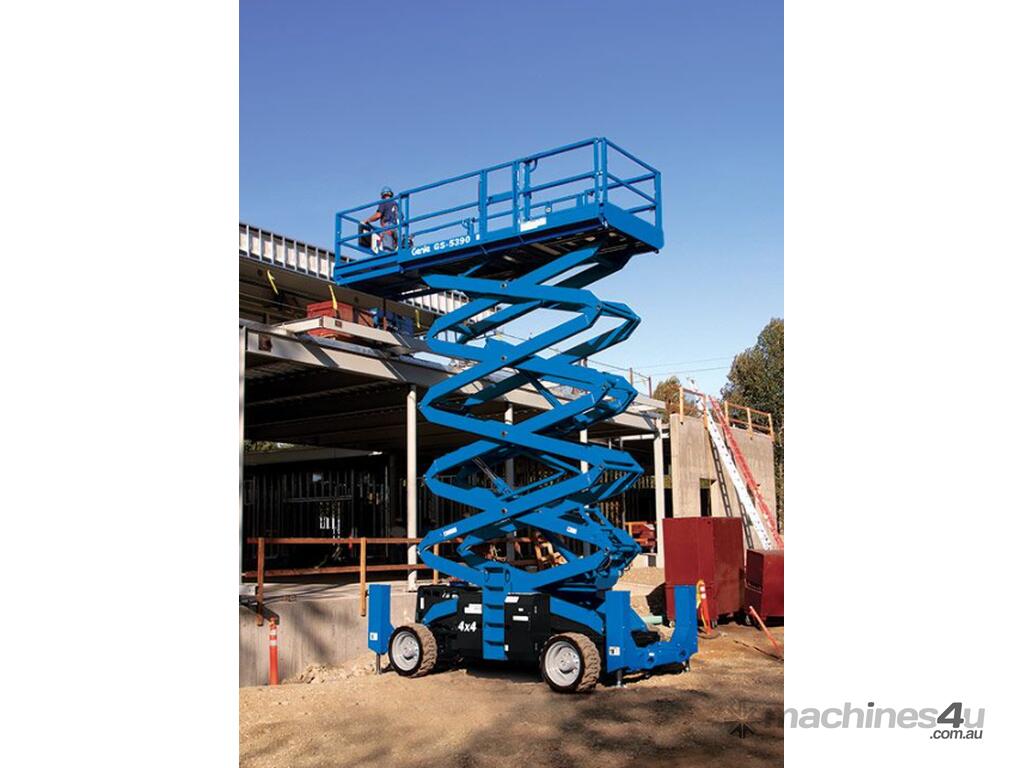

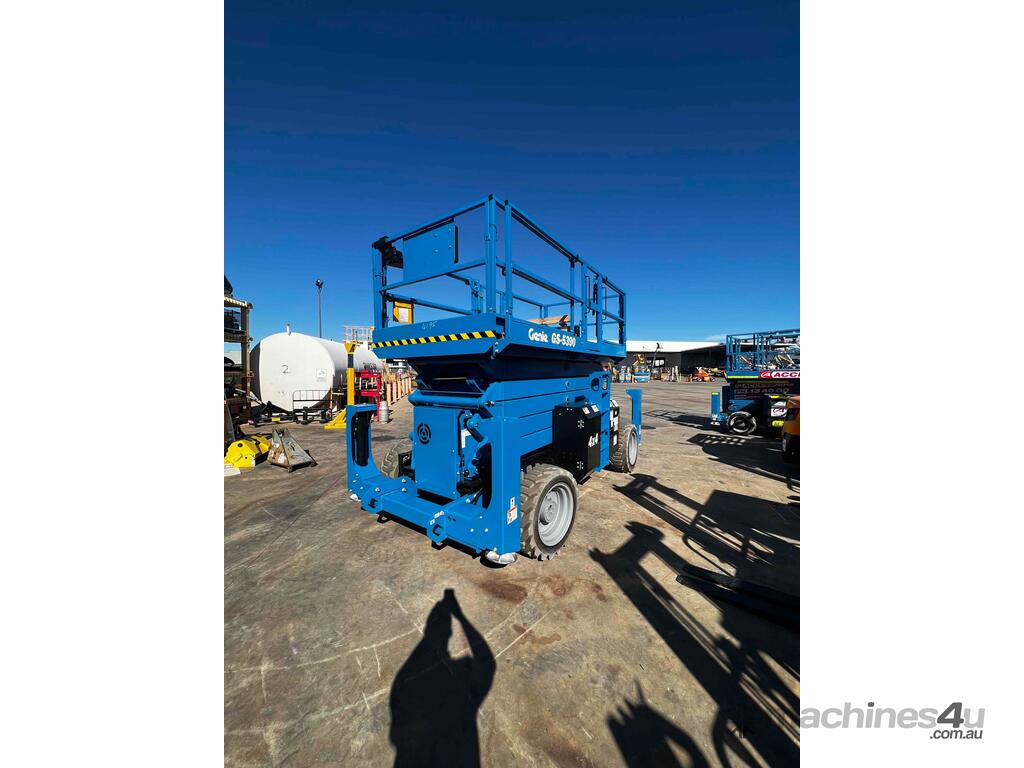

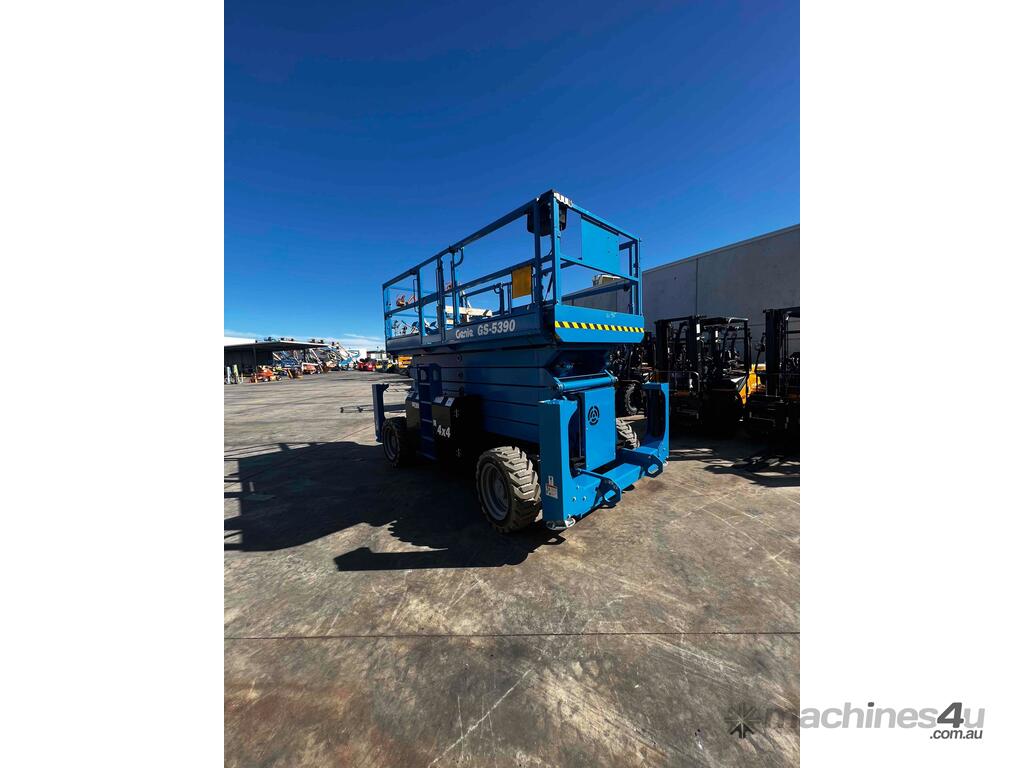

The Genie GS-5390RT is a brand new 53 ft diesel rough terrain scissor lift with full-time 4WD, built for high-capacity work on demanding outdoor sites.
Key Details:
- Platform height: 16.15 m (53 ft)
- Working height: 18.15 m (59 ft)

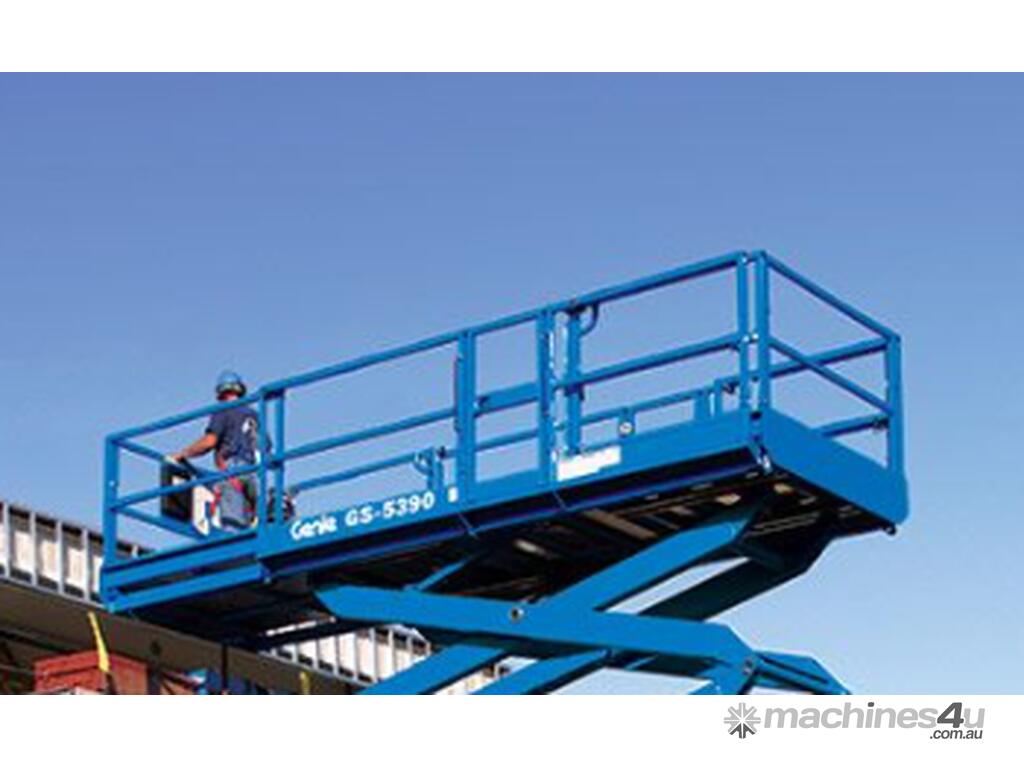

- Platform size: 3.98 × 1.83 m with dual extensions (1.52 m front, 1.22 m rear)
- Lift capacity: 680 kg (1,500 lb)

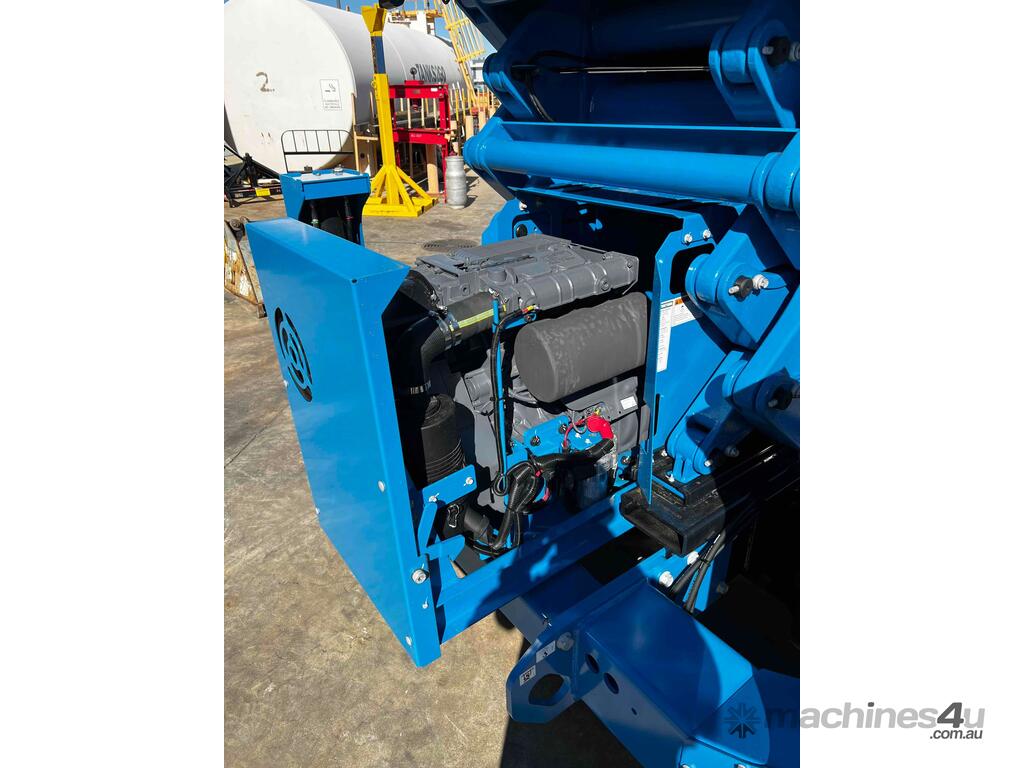

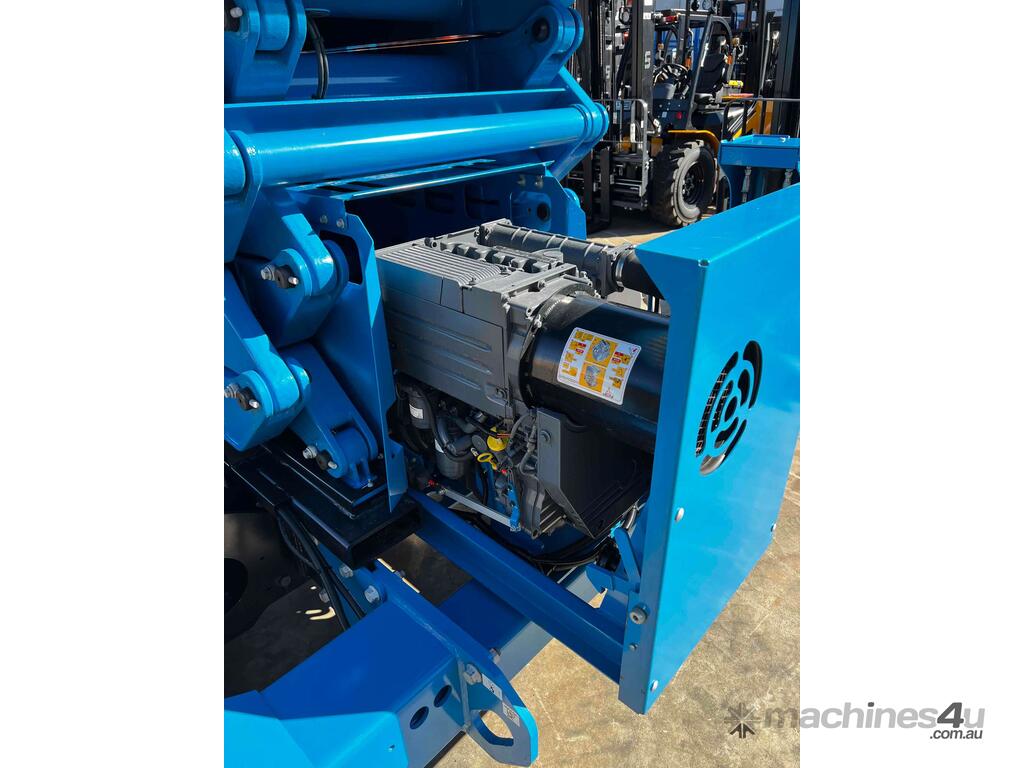

- Power: Deutz 36 kW (49 hp) diesel engine
- Drive: 4WD with oscillating axle
- Gradeability: 40%
- Width: 2.29 m
- Weight: 8,274 kg
Performance and Features:
- Dual deck extensions for a total platform length of 6.57 m (21 ft 6.5 in)
- Proportional lift and drive controls
- Hydraulic outriggers with automatic levelling
- Foam-filled rough terrain tyres
- Tilt sensor with audible alarm
- 55 sec raise / 49 sec lower time
- Ground clearance: 0.36 m
- Meets AS 1418.10, ANSI A92.6, and CSA B354.2 standards
Applications:
- Large-scale construction and infrastructure
- Steel erection and formwork
- High-reach maintenance and installations
- Mining and industrial site work
A reliable, high-reach diesel scissor lift designed for tough Australian job sites and off-road terrain.
