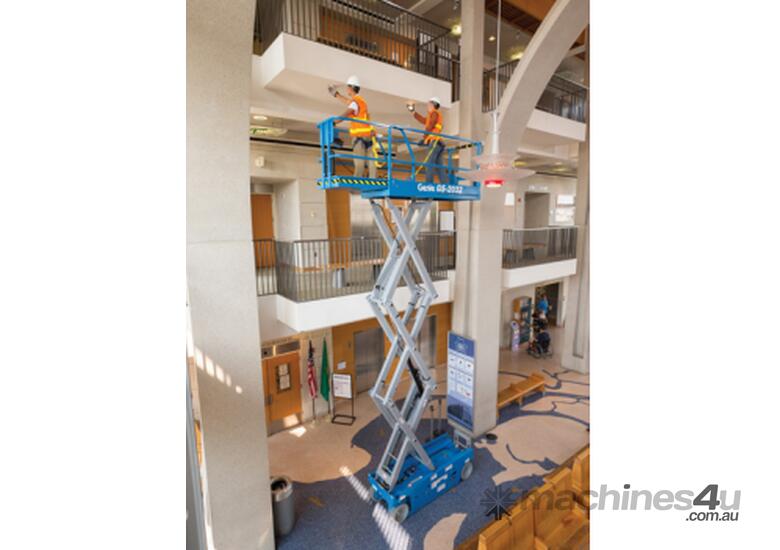

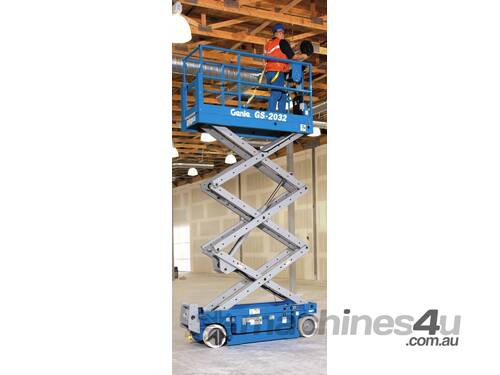

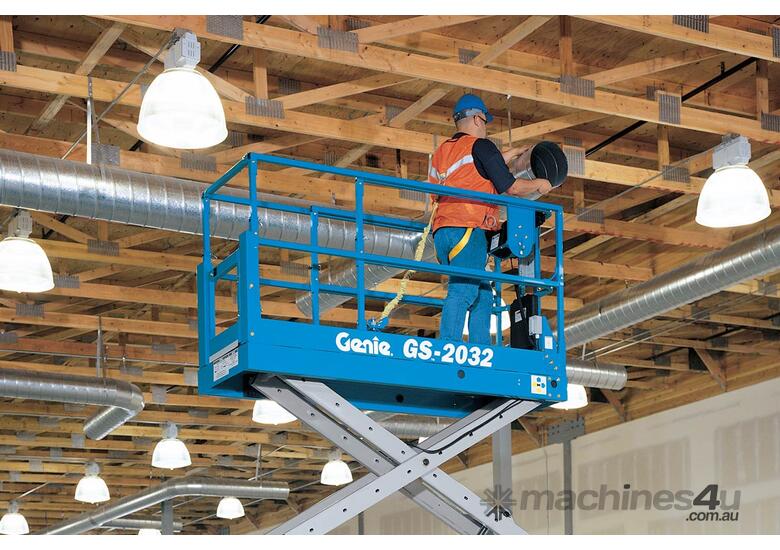

Genie GS2032 20'foot Electric Scissor Lift

**NEW Genie GS2032 20 foot Electric Scissor Lift


The ever-expanding line of Genie® electric scissor lifts offers you unmatched performance and versatility – boosting work site productivity. Genie® electric scissor lifts are exceptionally mobile, letting you manoeuvre in tight worksites. Plus, they're productive and efficient, allowing maximum workspace for larger loads and more workers.

Specifications

Model GS-2032
Working height* 8.1 m
Platform height 6.1 m
Sliding rail design (standard)
Height stowed, 2.13 m
Height stowed, rails lowered 1.78 m
Fold down rail design (optional)
Height stowed 2.13 m
Height stowed, rails folded 1.78 m
Platform height - stowed 99 cm
Length - stowed 2.44 m
Width 81 cm
Wheelbase 1.85 m
Ground clearance - pothole guards retracted 8.9 cm
Ground clearance - pothole guards deployed 2.2 cm
Platform length 2.26 m
Platform width 81 cm
Platform length extended 3.18 m
Guardrail height, 1.10 m
Toeboard height 15 cm
Lift capacity, 363 kg
Extension deck lift capacity 113 kg
Turning radius outside 2.13 m
Turning radius inside zero
Power source 24V (4 6V 225 AH batteries)
Drive speed - stowed 3.5 km/h
Drive speed - raised 0.8 km/h
Raise/lower speed 30/26 sec
Controls 24V DC proportional
Tyres (solid rubber) 38 x 13 x28 cm
Gradeability 30%/16.7°
Drive dual front wheel
Multiple disc brakes dual rear wheel
Weight, ** 1,825 kg
