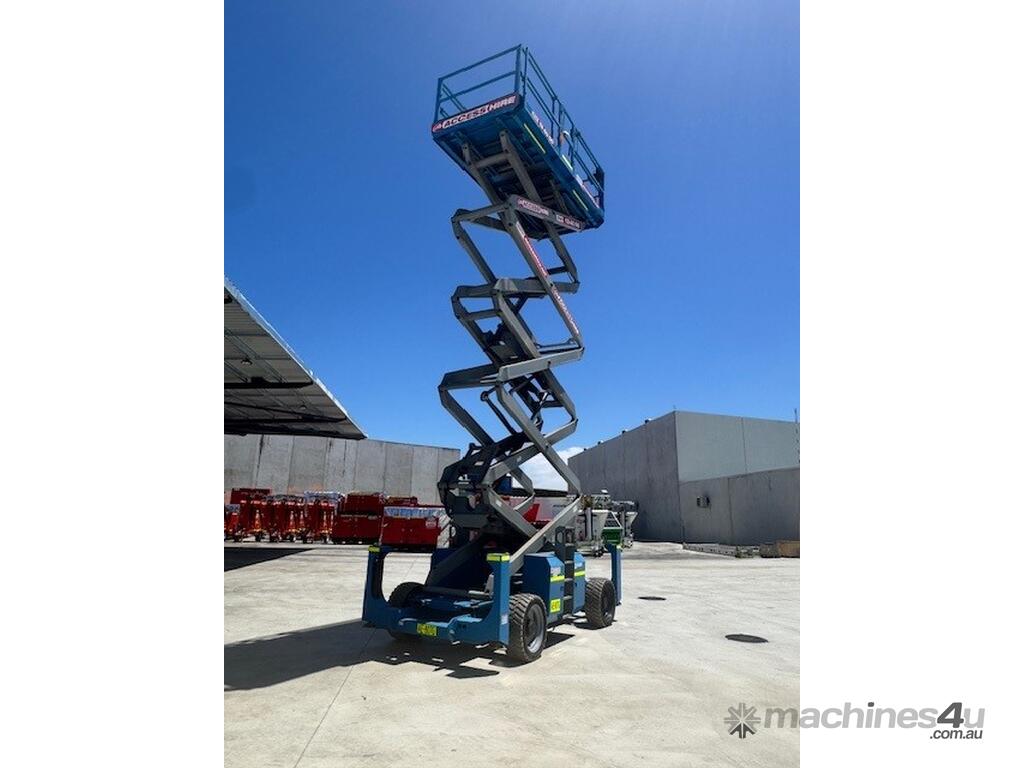

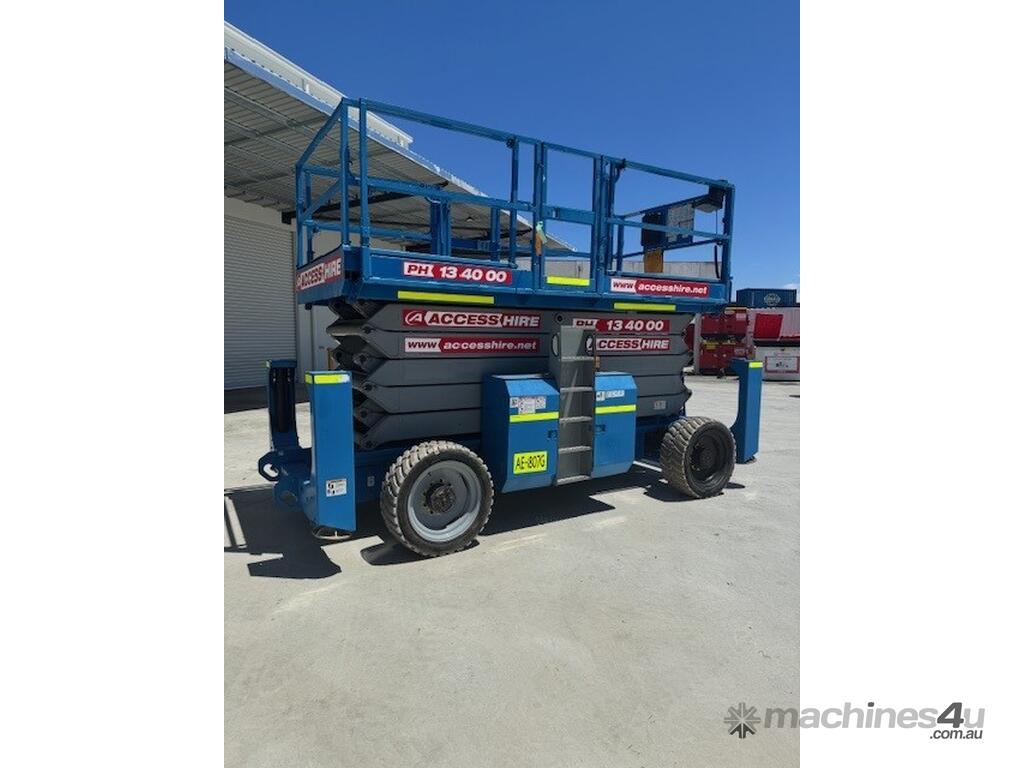

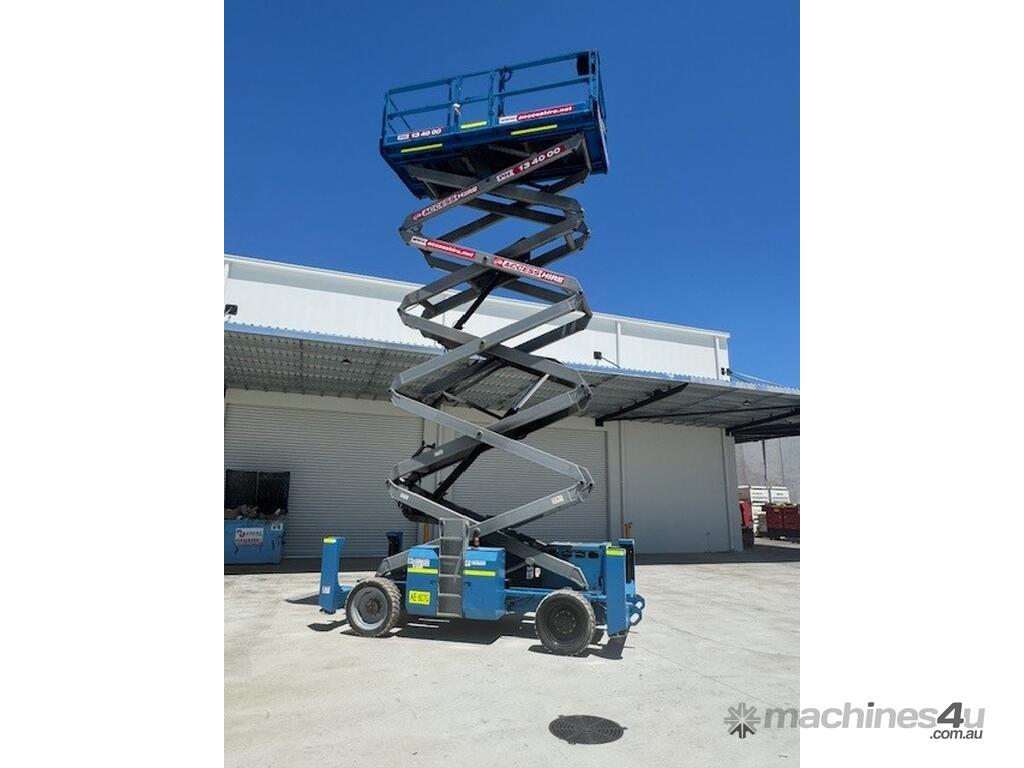

Genie GS5390 RT 59ft Rough Terrain Scissor Lift - 680kg SWL

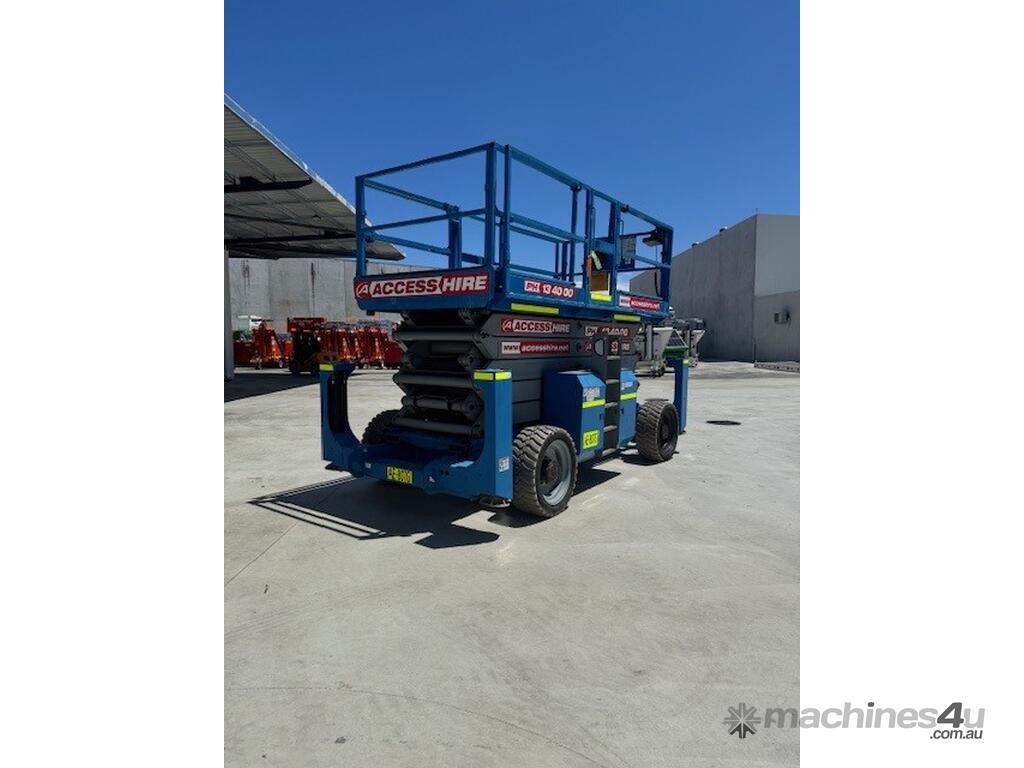

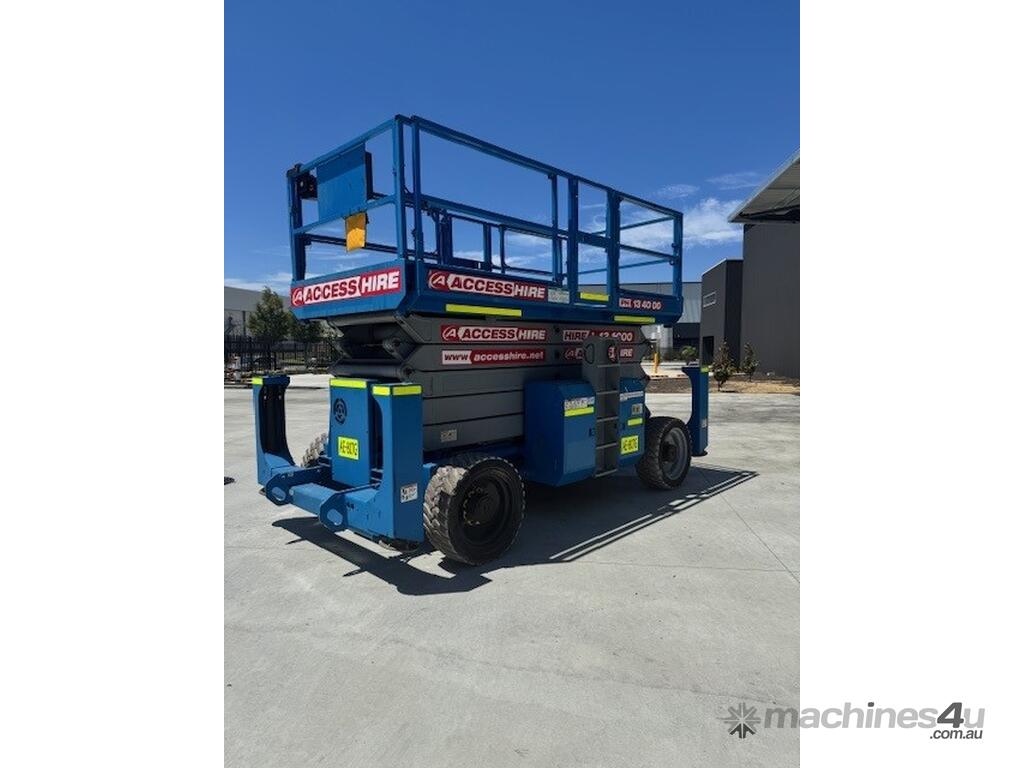

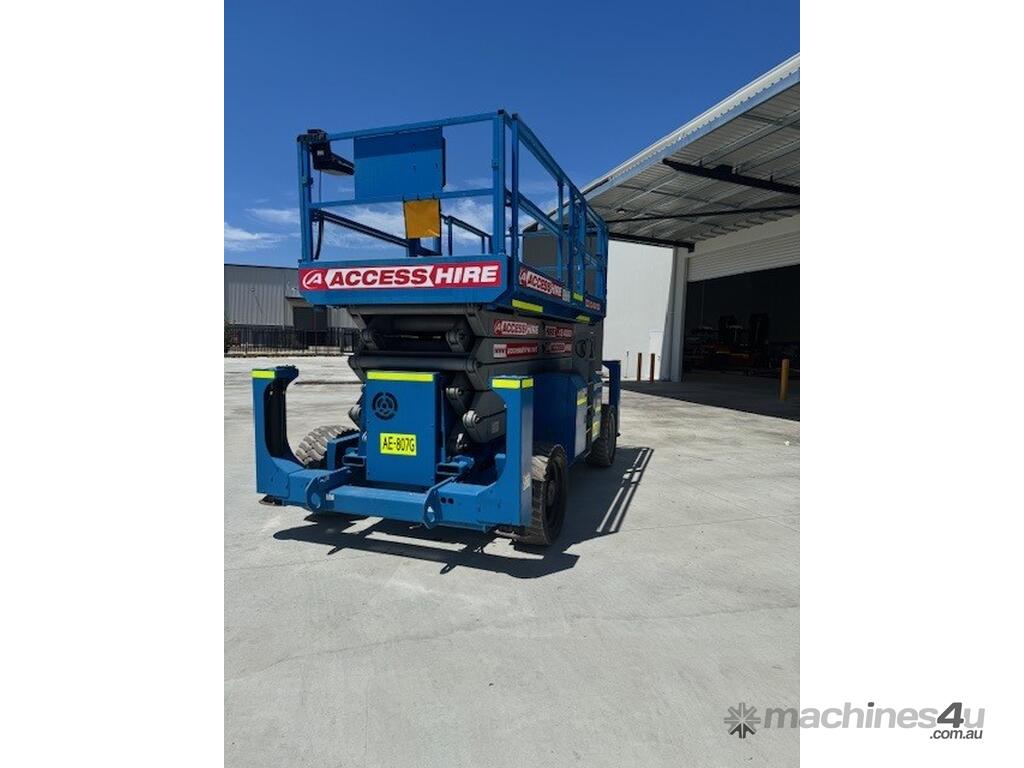

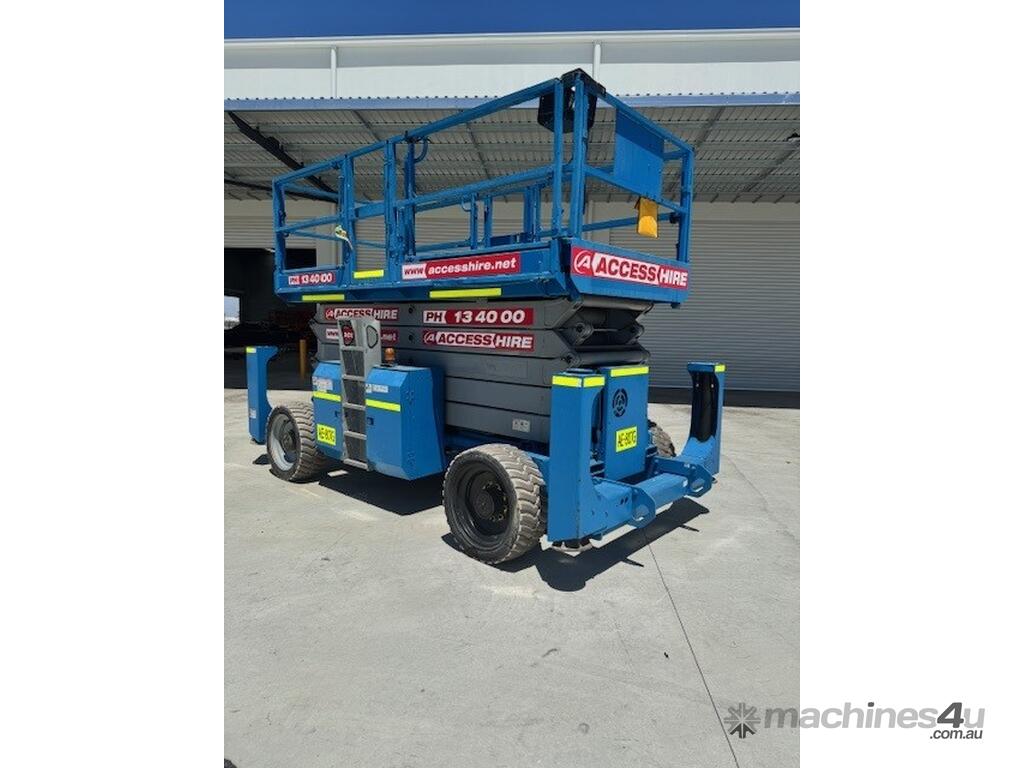

The Genie GS-5390 RT is a high-reach 59ft rough-terrain scissor lift designed for heavy-duty outdoor construction and industrial access. It delivers a working height of 59ft (18.15m), platform height of 53ft (16.15m), and a 680kg lift capacity. Its large 3.98m × 1.83m platform with dual 1.52m extension decks provides a wide working area. With 4WD, 40 percent gradeability, and foam-filled rough-terrain tyres, the GS-5390 RT offers strong performance on uneven ground.

Features:

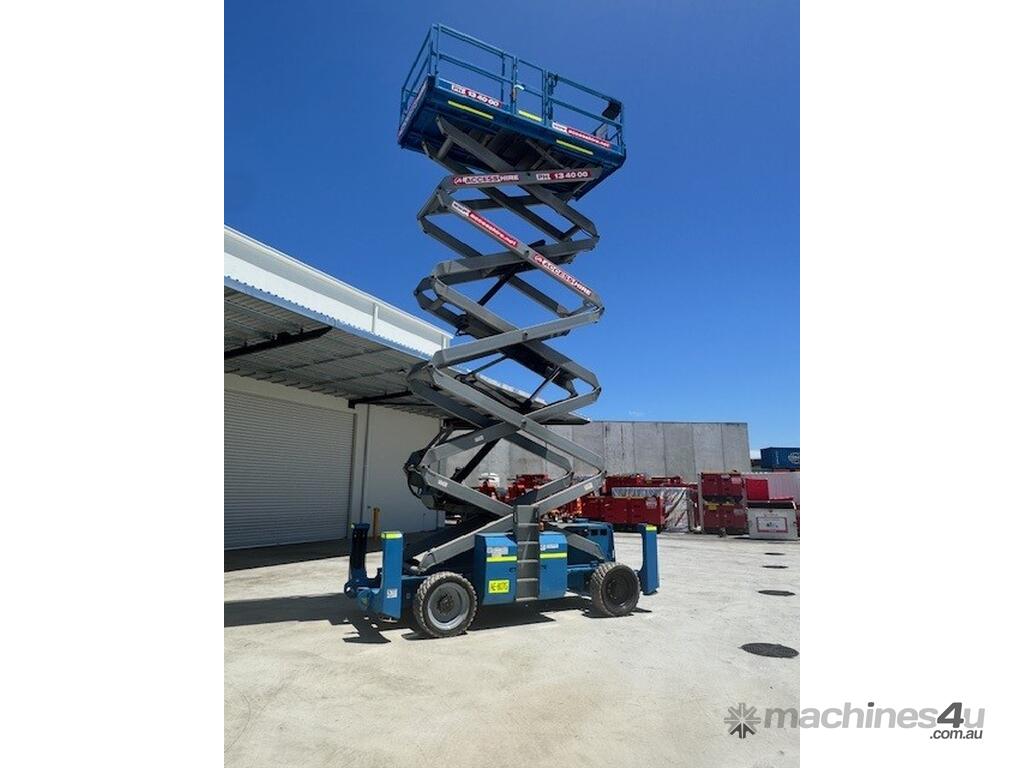

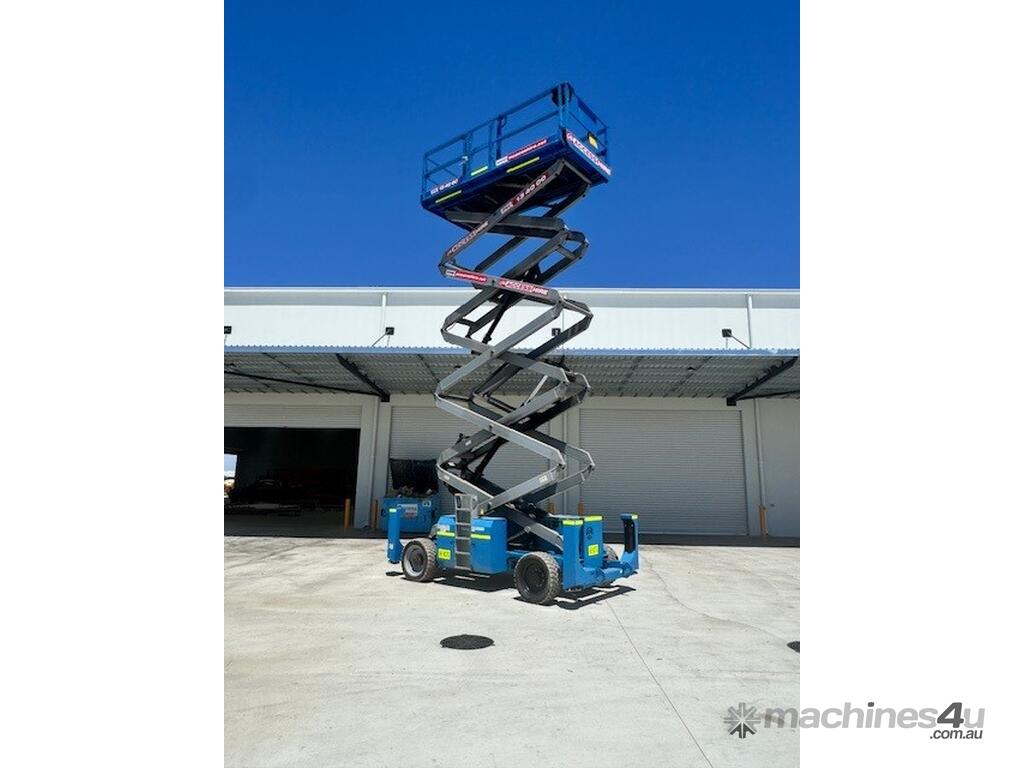

- Platform Height: 53ft (16.15m) / Working Height: 59ft (18.15m)

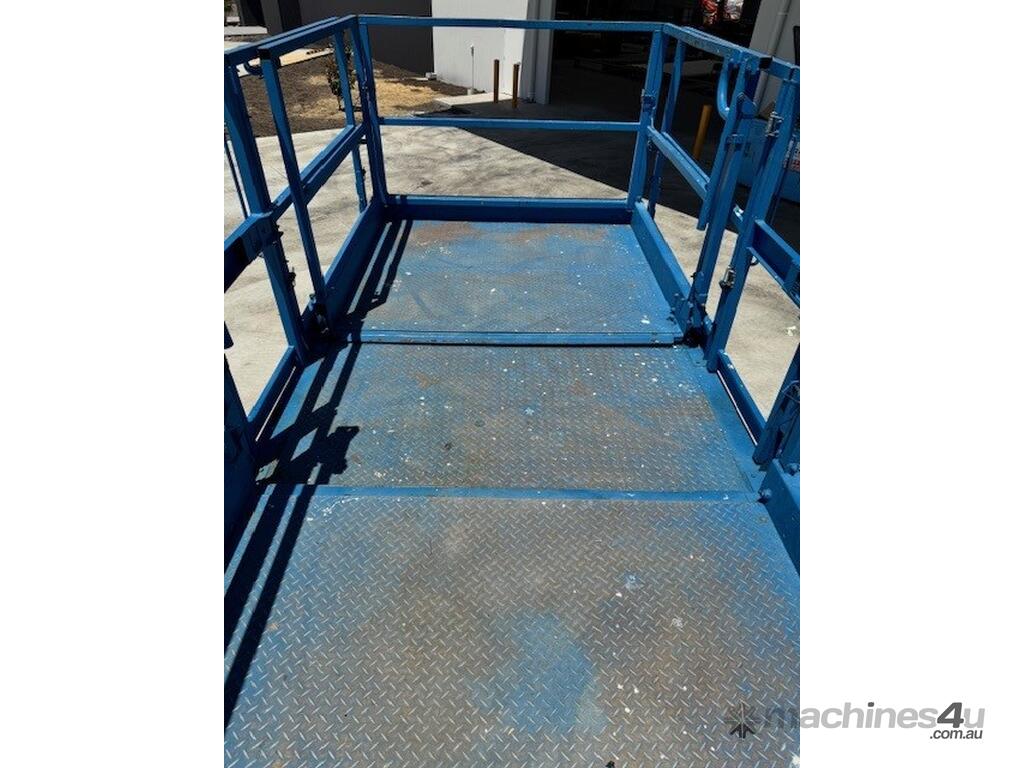

- Platform Size: 3.98m × 1.83m
- Deck Extensions: Two 1.52m front and rear
- Capacity: 680kg
- Capacity on Extension: 227kg
- Drive Speed: 6.4km/h stowed / 1.1km/h raised
- Gradeability: 40 percent
- Turning Radius: 2.65m inside / 5.5m outside
- Outrigger LeveIing: 7% front to back / 12% side to side
- Tyres: 12 × 33in foam-filled rough terrain
- Power: Deutz D2011L03 3-cyl diesel 36kW
- Fuel Tank: 113.6L
- Hydraulic Tank: 113.6L
- Weight: 8,274kg

Applications:
- High-reach construction
- Structural and façade installation
- Industrial maintenance
- Outdoor elevated work requiring maximum platform size and stability
