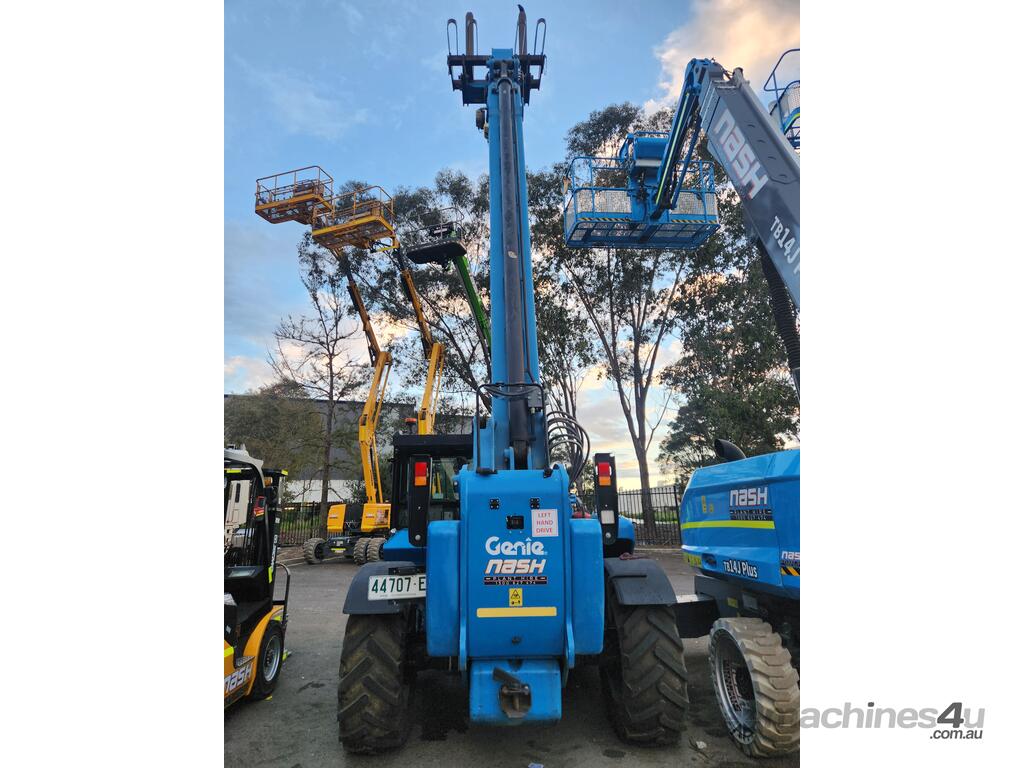

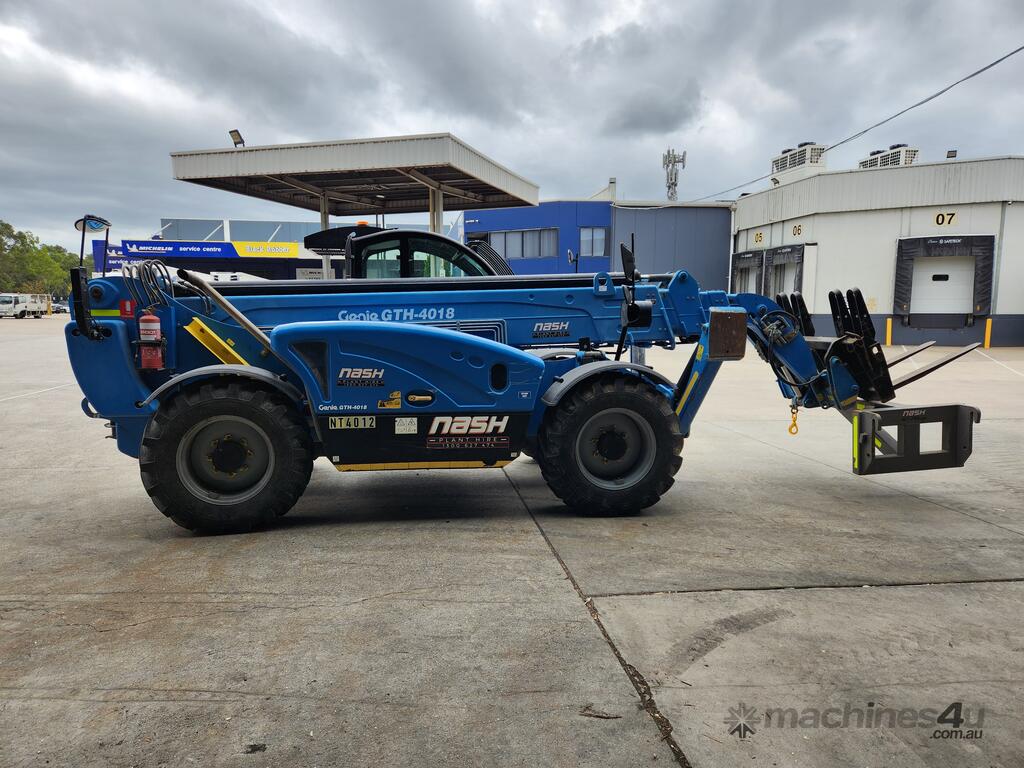

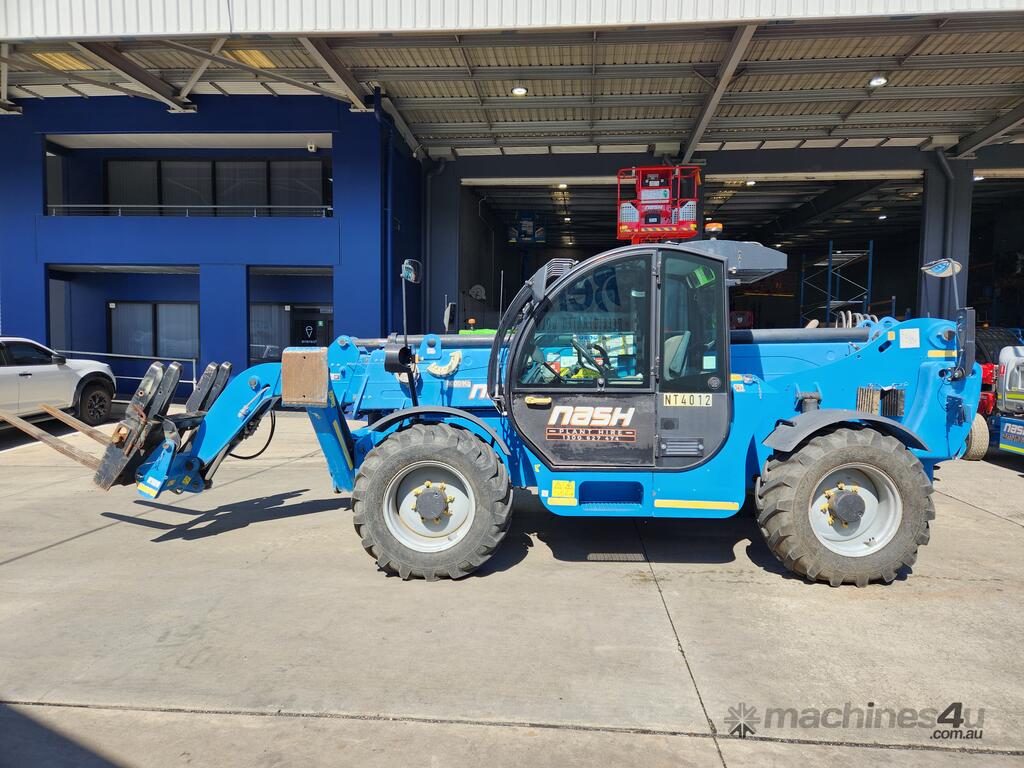

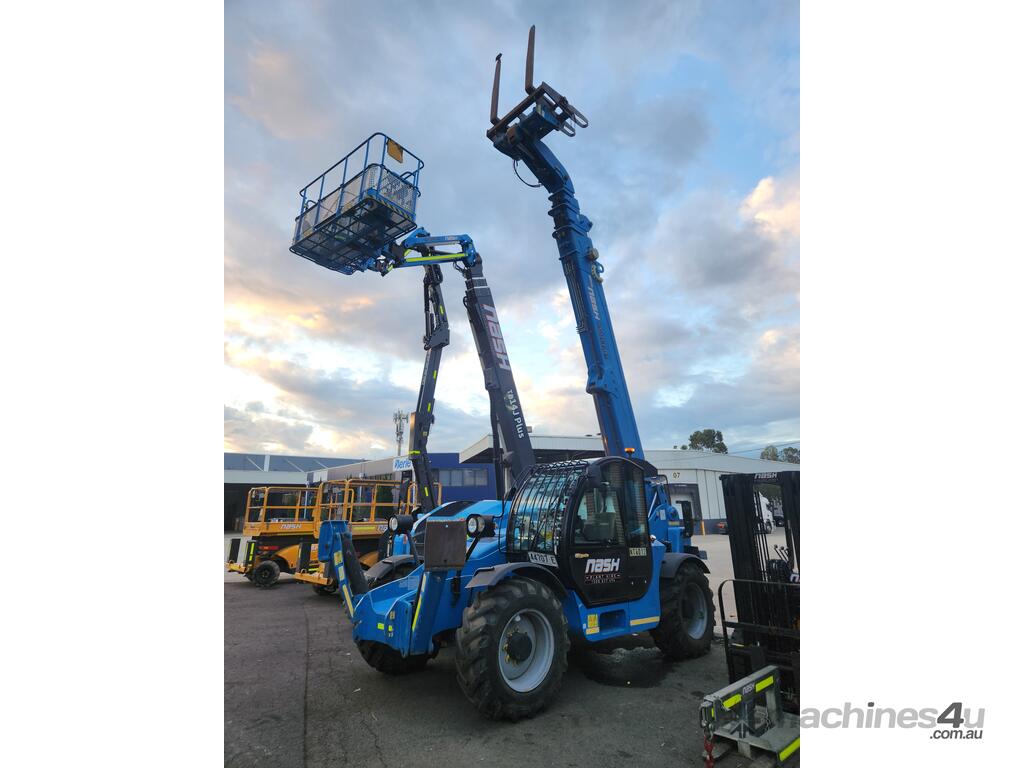

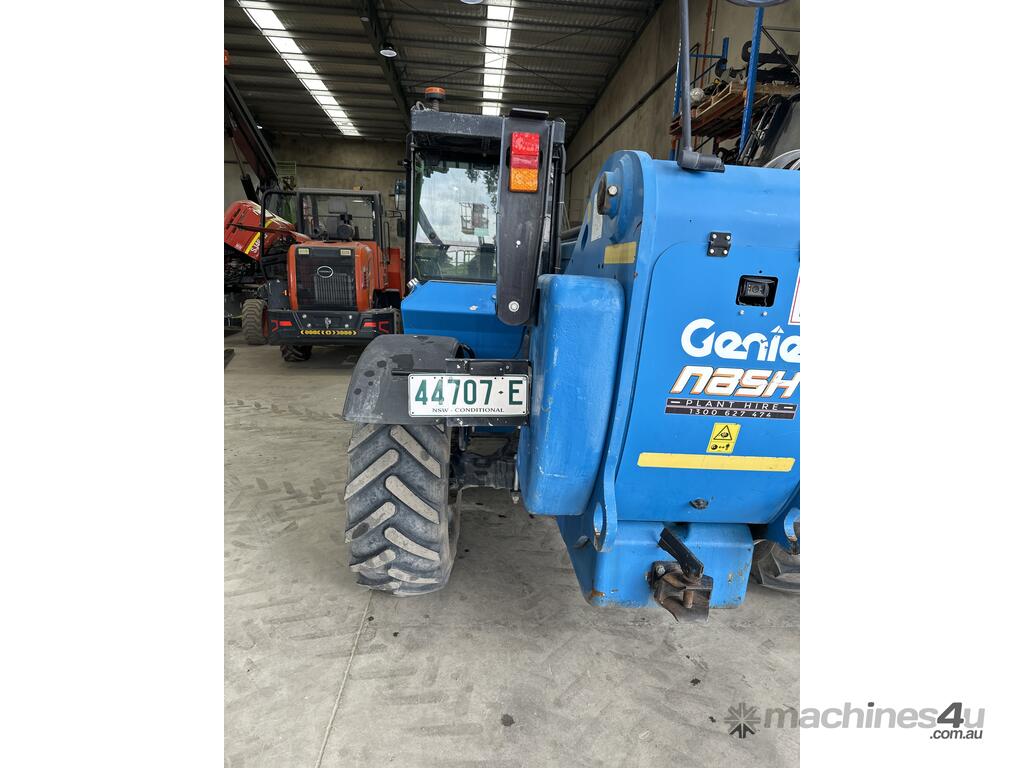

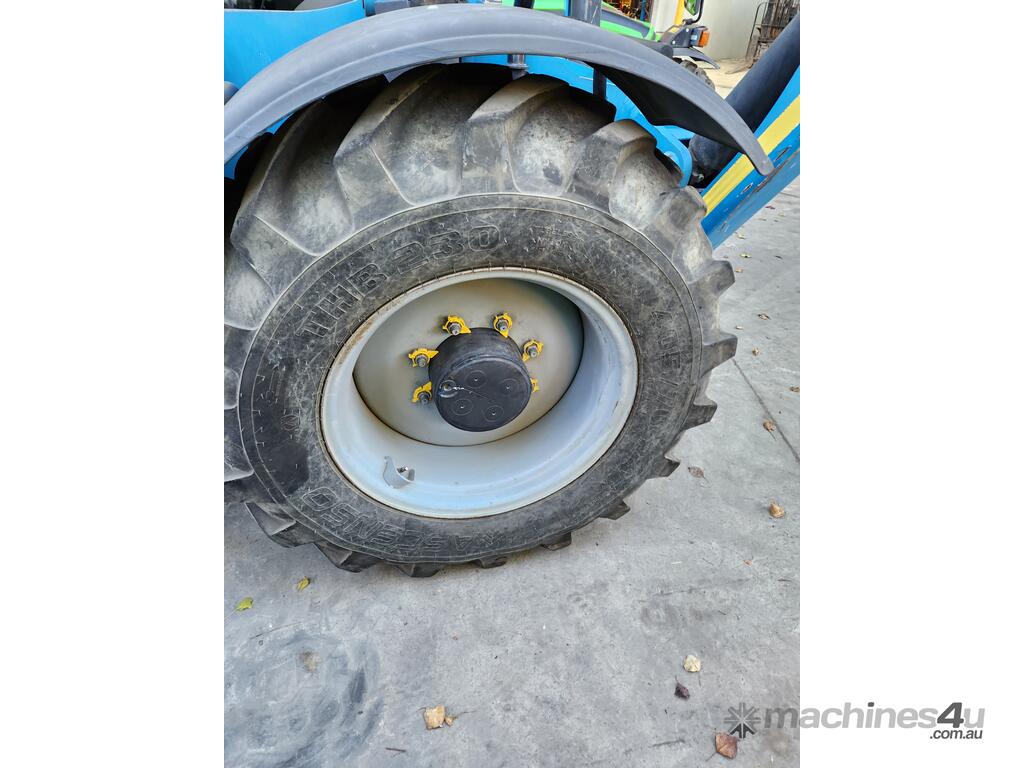

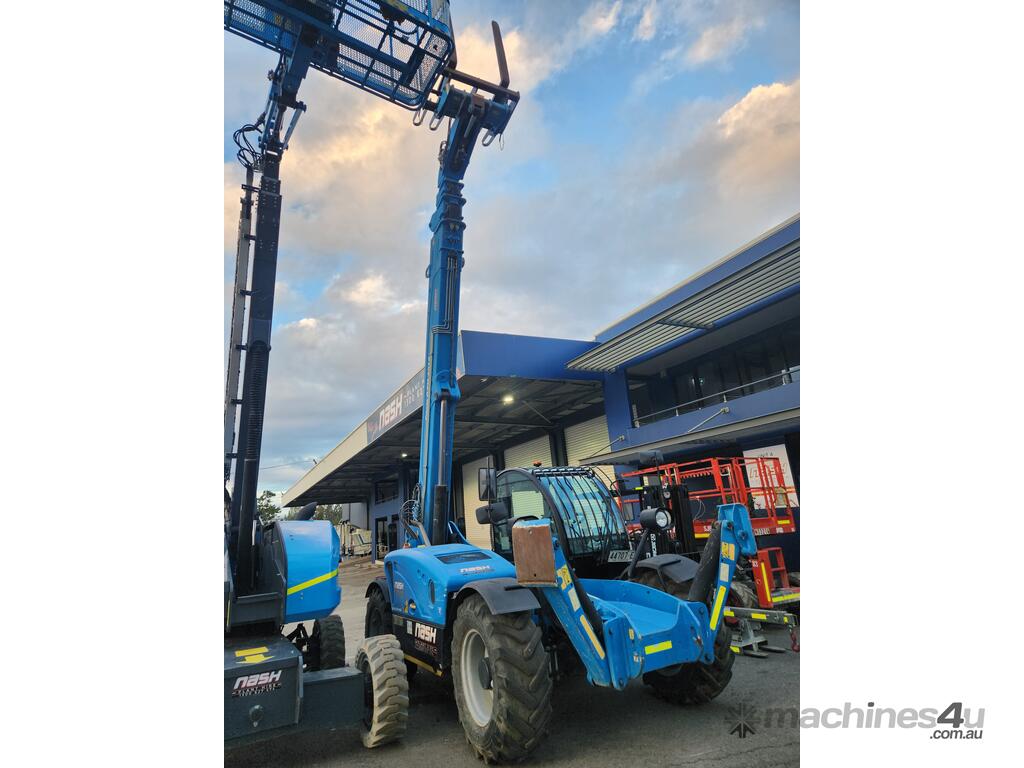

Genie GTH4018 - 4T 18M Diesel Telehandler

Diesel 4.0T Genie Telehandler is rough terrain, outdoor unit able to lift up to 4. tonne (8818lbs) at the height of up to 17.61 metres (57.8ft). Designed for construction, agriculture, and commercial use.

Machine Details

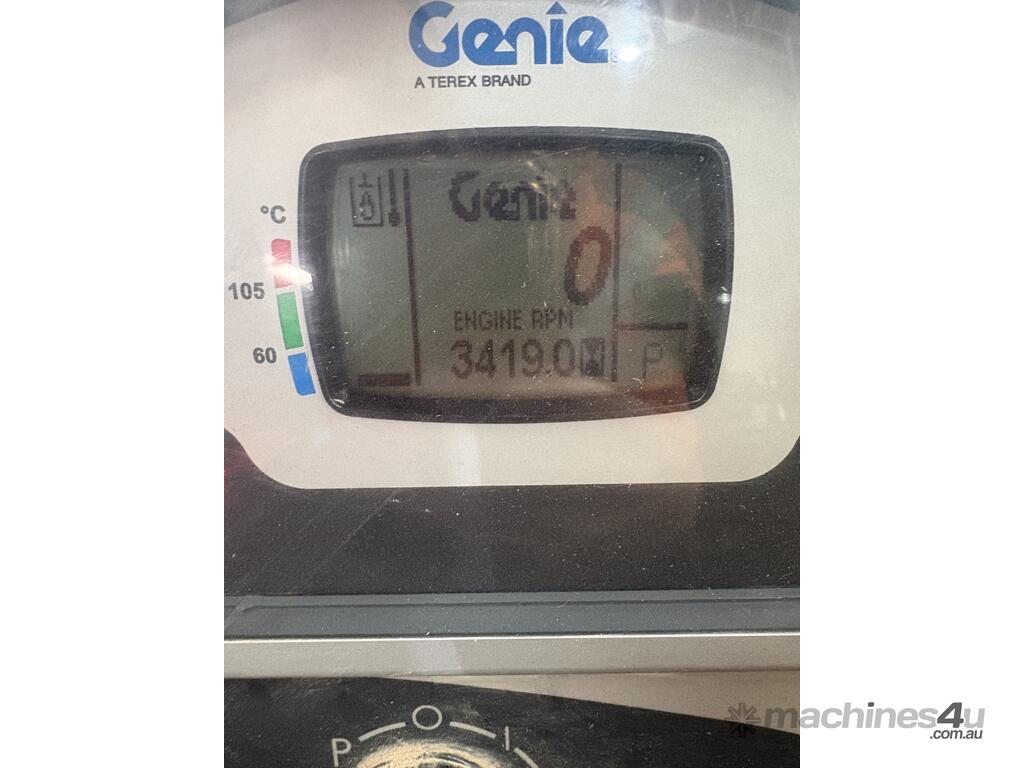

- Hours - 3419
- Date Of Manufacture - 2017
- Full-Service History
- Up to date 90 Day + Annual Inspection
- Machine is in good condition

Machine Features
- Load Management System (LMS) with: - Dynamic colour coded load chart- 7? colour display- Reversing camera- Optional front camera- Optional iButton user access control

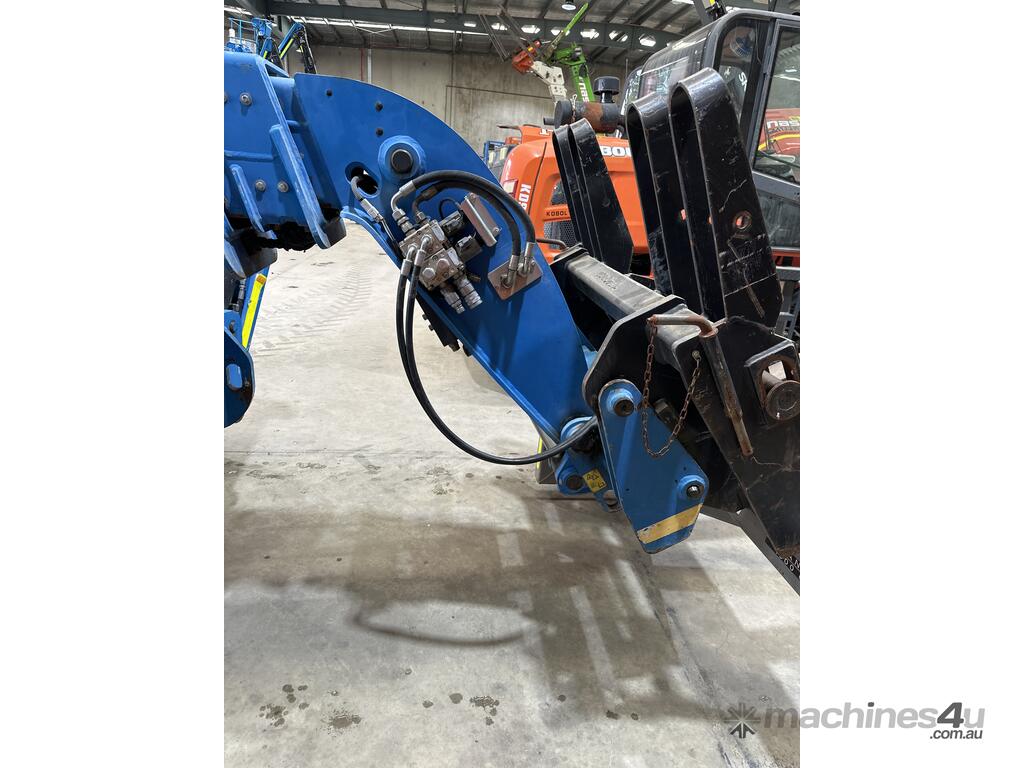

- Hydraulic quick coupling for attachments
- 4WD
- Four Wheel Steer
- 3 steering modes - front wheel steer- crab steer- coordinated steer
- Power assisted steering
- Front Outriggers
- Hydrostatic Transmisson with variable displacement pump
- Multifunction electroproportional 4x1 joystick
- Angle and length indicators on boom correspond to load charts

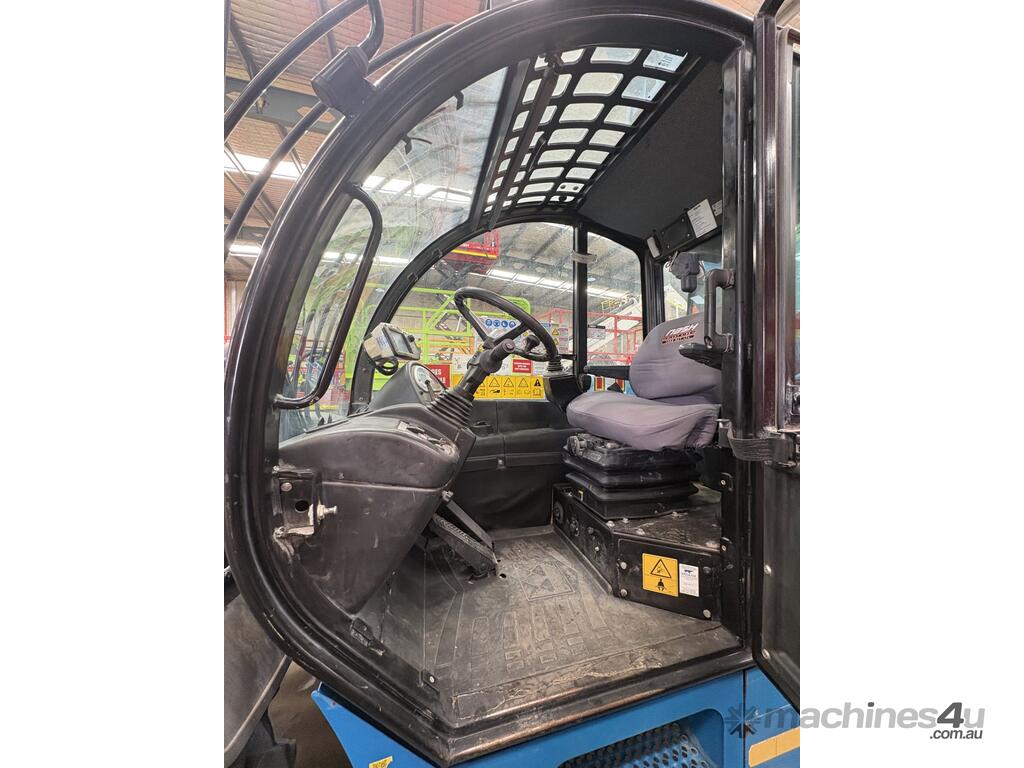

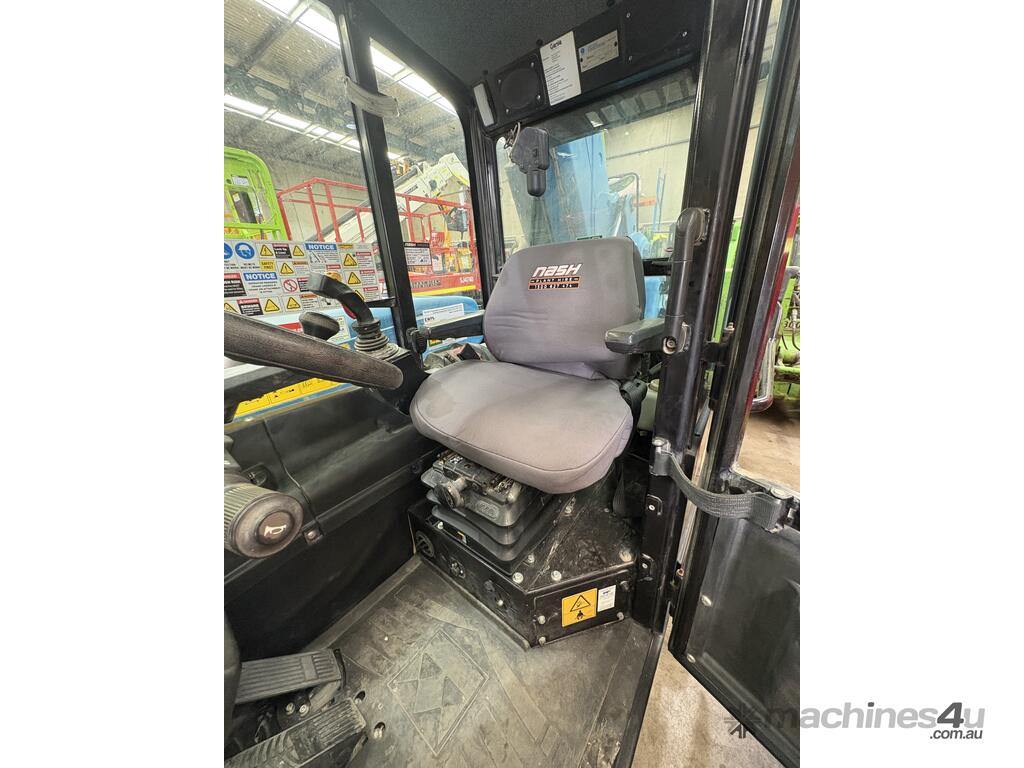

- Adjustable suspended seat with operator detection seat contact switch
- Battery disconnection switch
- Large diameter steering wheel
- Front & rear windscreen wipers
- Sunshield
- Roof protection grid
- Two side view mirrors & rear fish eye mirror
- Front & rear lights
- Side mounted engine for easy access to components
- Oil immersed, multi-disc brakes on both axles
- Lockable fuel tank
- Maintenance collar
- Rear wheel alignment system
- Road/jobsite switch
- Air conditioning
- Hydraulic line on boom

Machine Specs
- Lifting Height Maximum with Outriggers - 17.61m
- Lifting Height Maximum without Outriggers - 17.38m
- Lifting Capacity Maximum - 4,000KG
- Lift Capacity at Maximum Height - 2,000KG
- Forward Reach Maximum - 13.33m
- Lift Capacity at Maximum Reach - 500KG
- Reach at Maximum Height - 0.89m
- Height - 2.44m
- Width - 2.42m
- Cab Width - 93cm
- Ground Clearance - 35cm
- Overall Width, Outriggers Extended - 2.87m
- Overall Length - 7.77m
- Obstruction Angle - 40 Degrees
- Departure Angle - 46 Degrees
- Inside/Outside Turning Radius - 1.87m/3.55m
- Drive Speed Max - 27KM/H
- Fork Plate Rotation - 138 Degree
- Lifting/Lowering Speed - 15 Secs/10 Secs
- Extension/Retraction Speed - 23 Secs/16 Secs
- Fuel Tank Capacity - 170L
- Engine Oil Capacity - 9.6L
- Hydraulic Oil Tank Capacity - 112L
- Weight - 12,640KG
