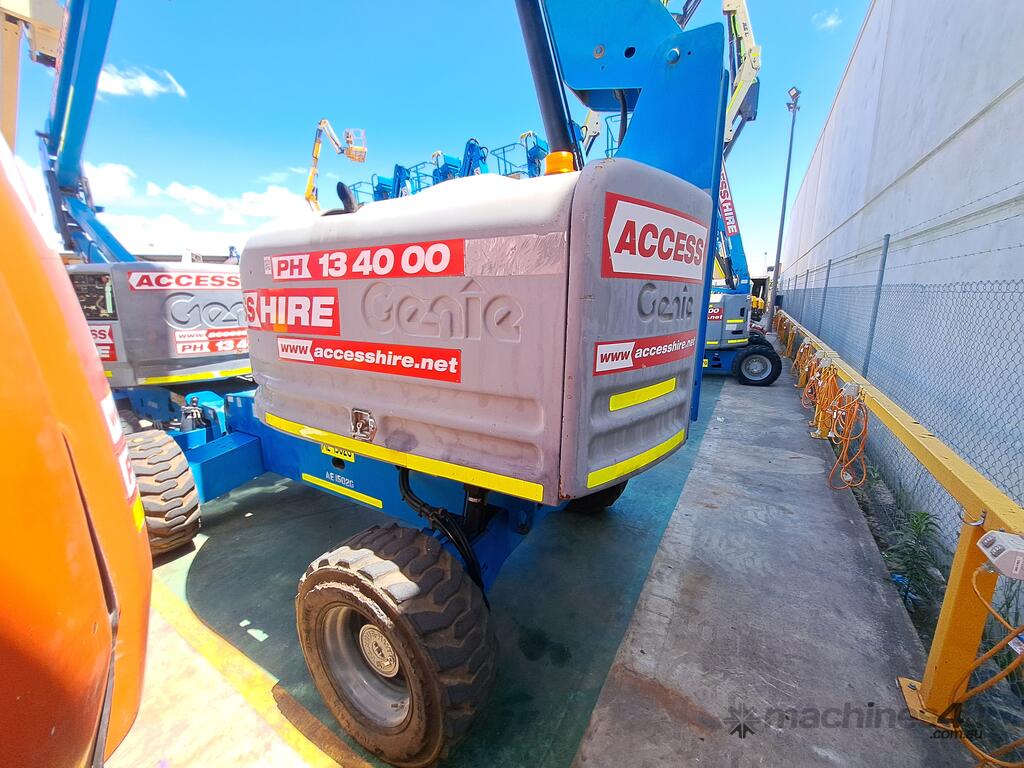

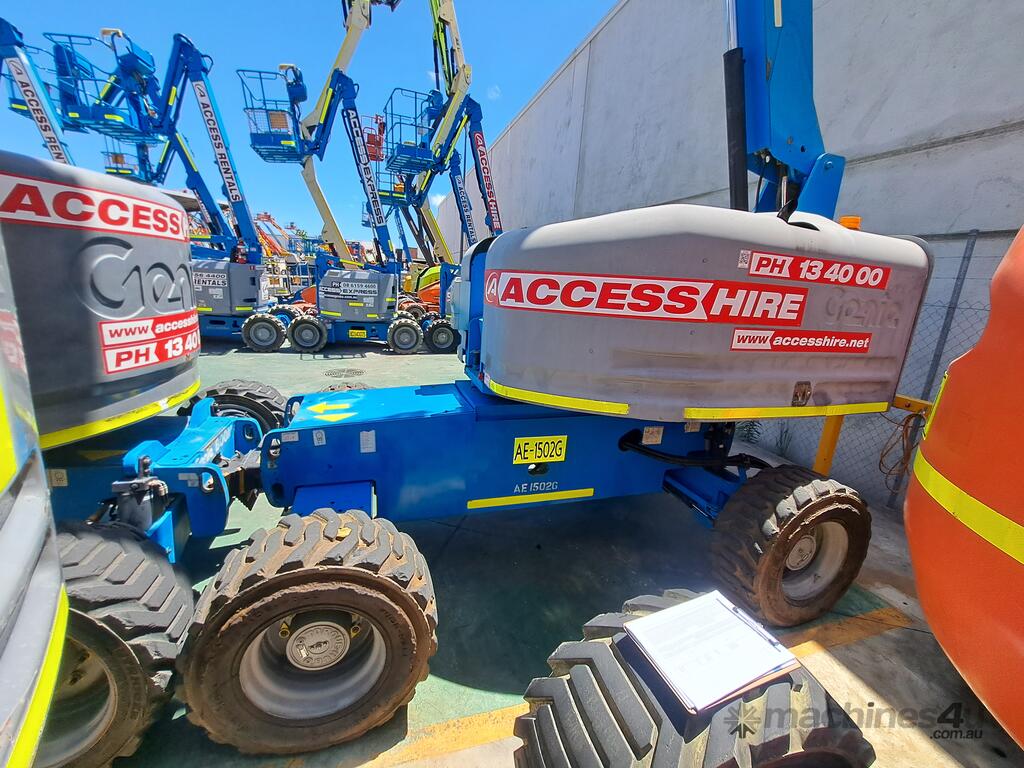

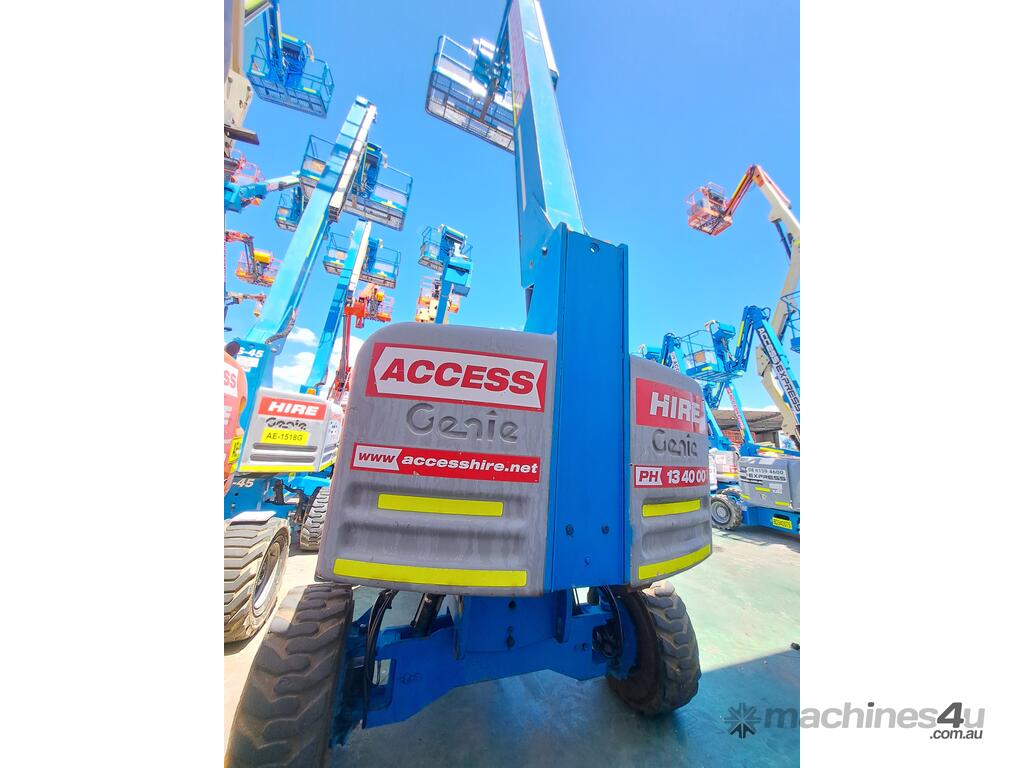

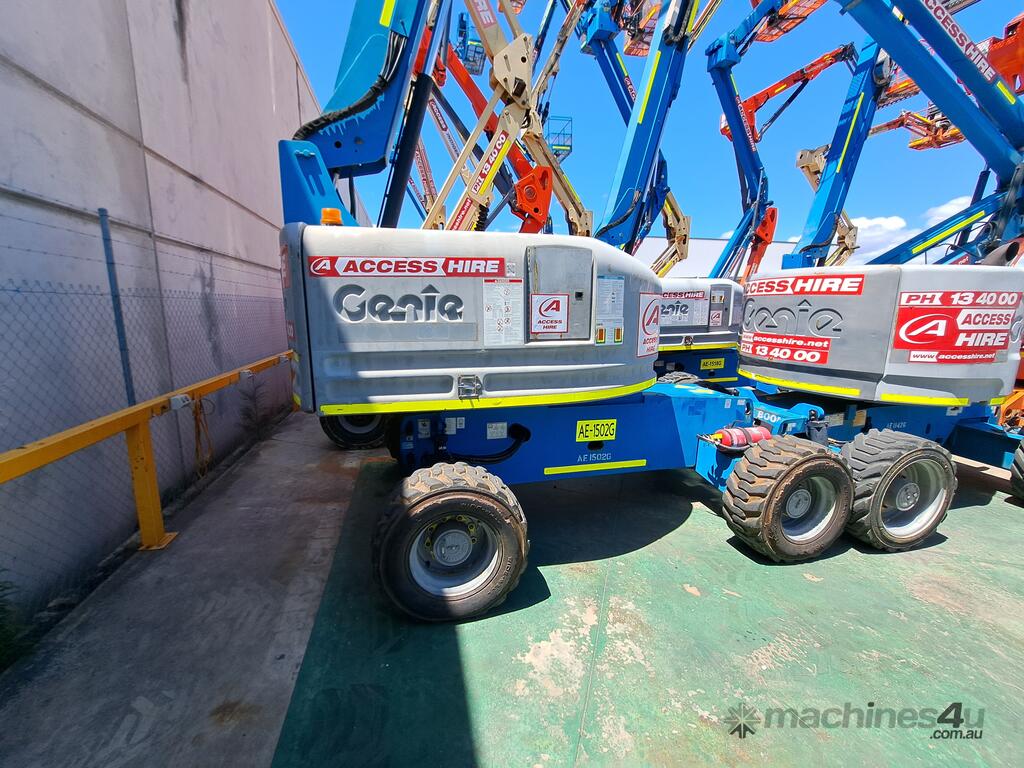

Genie S45 2008 45ft Telescopic Boom Lift - 227kg SWL, Diesel, 4WD

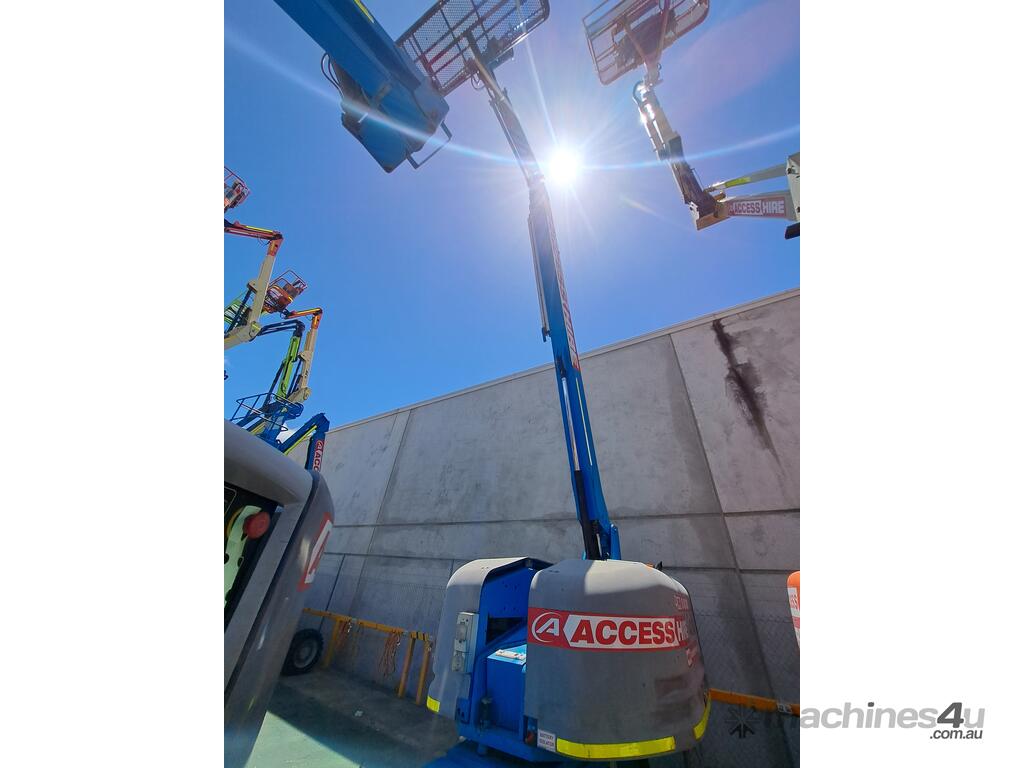

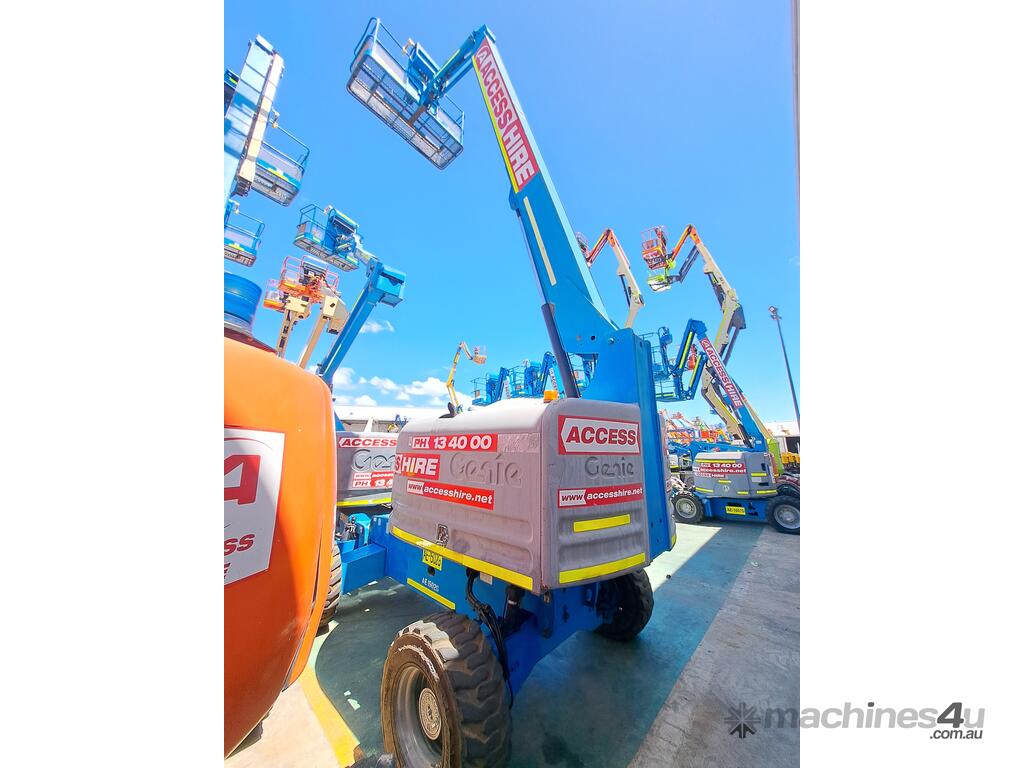

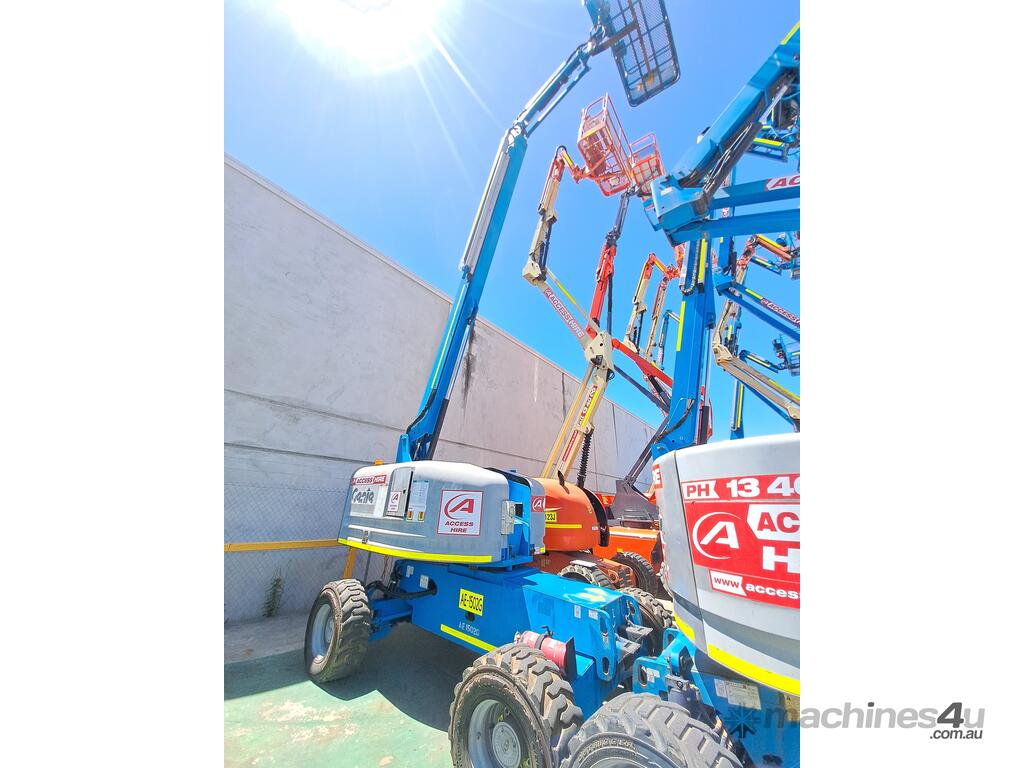

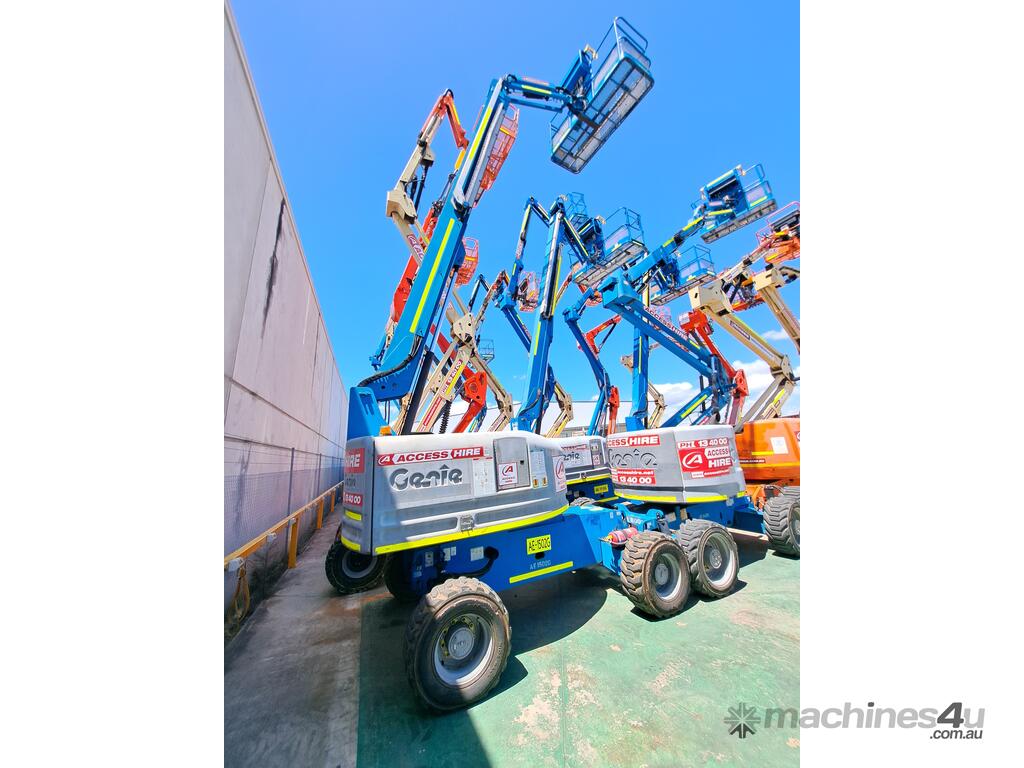

The Genie S-45 is a durable diesel-powered telescopic boom lift built for reliable performance and reach on demanding job sites. It offers a maximum working height of 15.72 m and a horizontal outreach of 11.18 m, providing excellent access for outdoor construction, maintenance, and industrial projects.

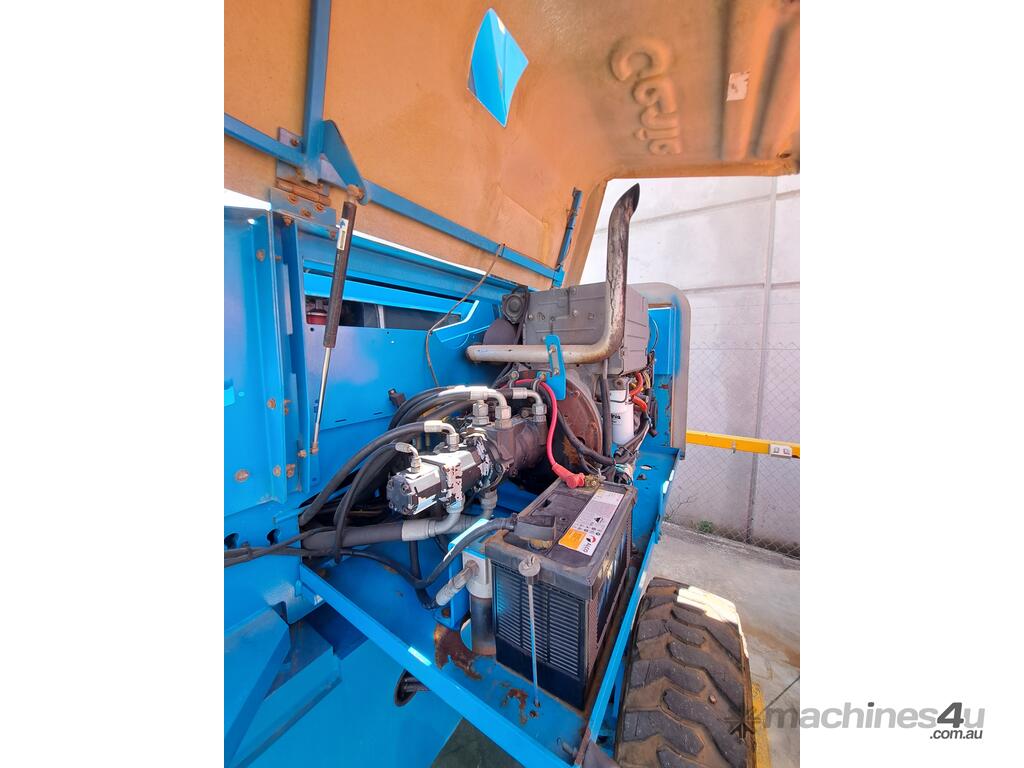

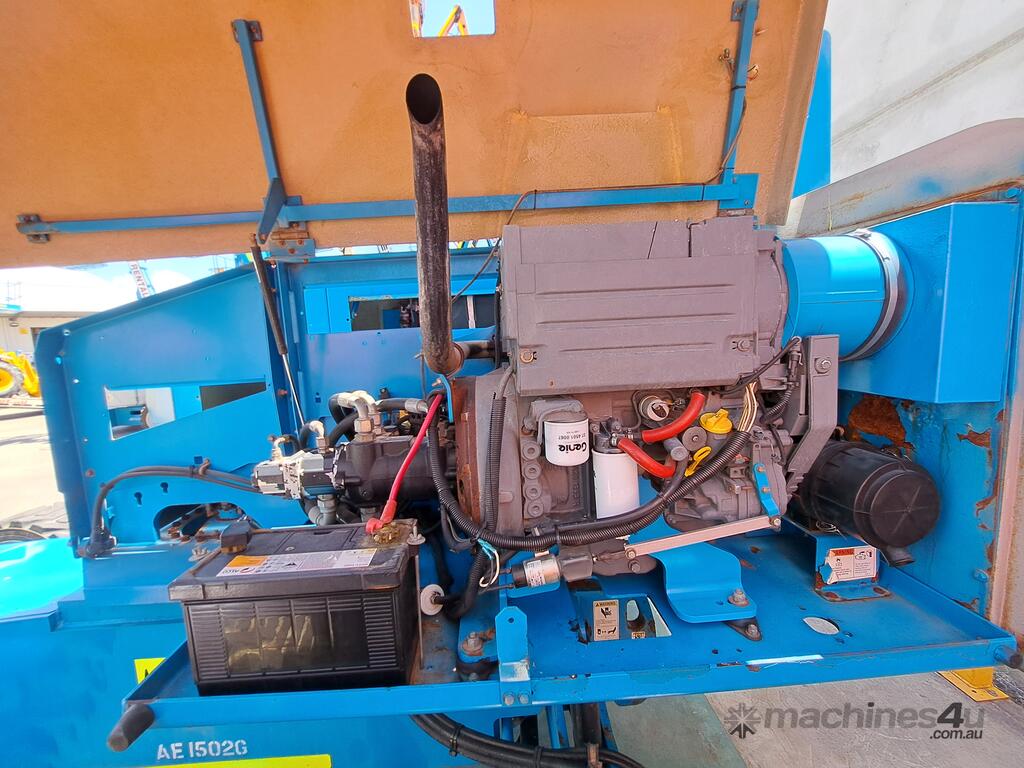

Powered by a Deutz D2011L03i 3-cylinder diesel engine (34.3 kW / 46 hp), the S-45 delivers consistent power with smooth proportional controls. The boom features 360° continuous rotation, a 160° platform rotation, and a 135° jib articulation, allowing for accurate positioning at height.

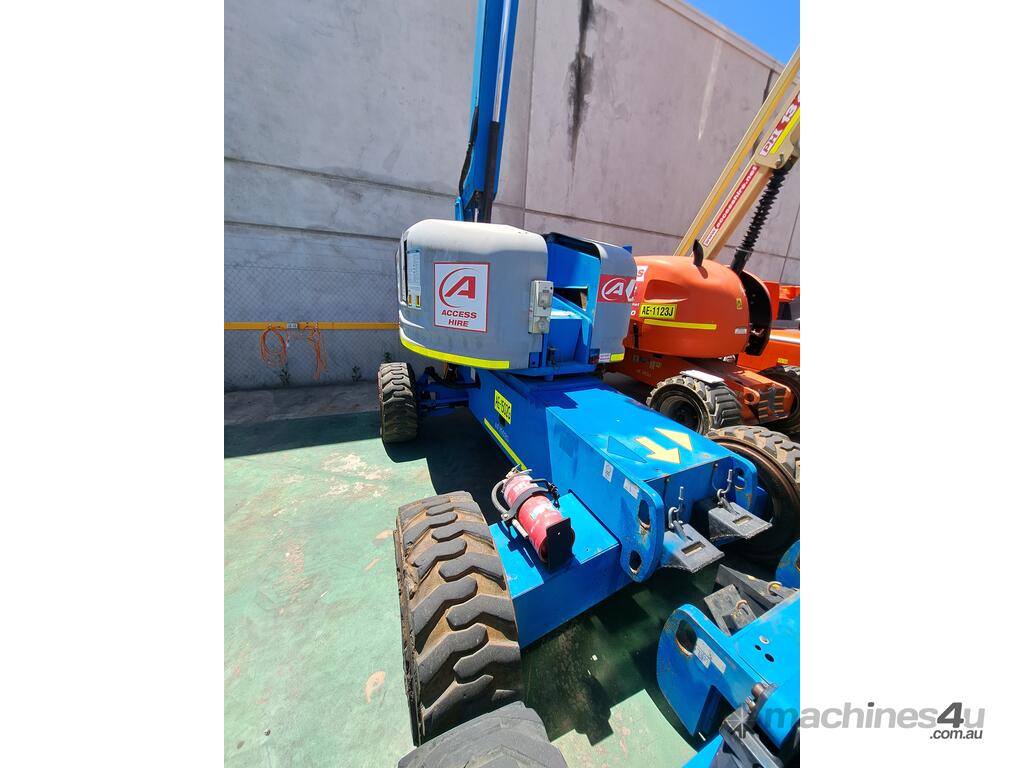

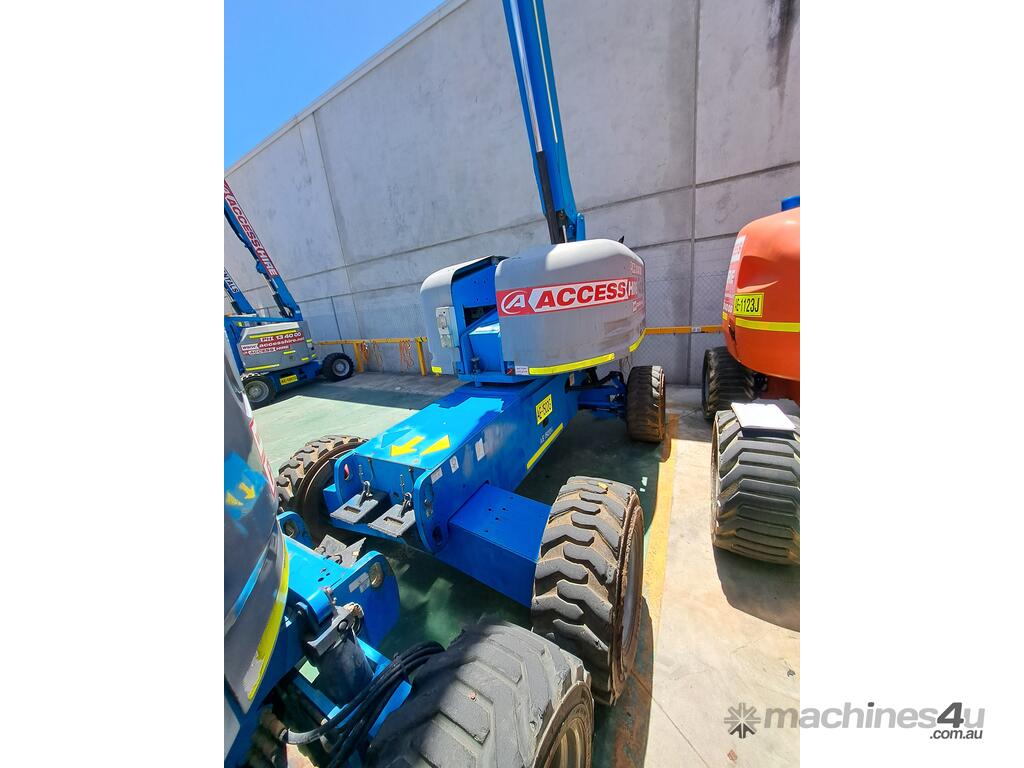

The platform supports a 227 kg lift capacity, suitable for two operators with tools. With a 40% gradeability and foam-filled rough-terrain tyres, this model ensures superior traction and stability on uneven ground. Its compact transport length of 6.80 m and 2.20 m wheelbase make it easy to maneuver and transport between sites.

Designed for productivity and safety, the S-45 includes automatic platform leveling, tilt alarm, and proportional 12V DC controls, ensuring smooth and secure operation across all elevations.

Features
- Working height: 15.72 m (51 ft)
- Platform height: 13.72 m (45 ft)
- Horizontal reach: 11.18 m (36 ft 8 in)
- Platform capacity: 227 kg (2 occupants)
- Engine: Deutz D2011L03i diesel, 34.3 kW (46 hp)
- Drive speed: 7.7 km/h (stowed), 1.1 km/h (raised)
- Gradeability: 40%
- Turret rotation: 360° continuous
- Jib rotation: 135°
- Platform rotation: 160°
- Ground clearance: 0.32 m
- Tyres: 12-16.5 in foam-filled rough terrain
- Hydraulic tank: 170 L
- Fuel tank: 76 L

Applications
- Construction and steelwork installation
- Building and facility maintenance
- Industrial plant servicing
- Electrical, lighting, and signage work
- Outdoor and uneven-terrain operations
