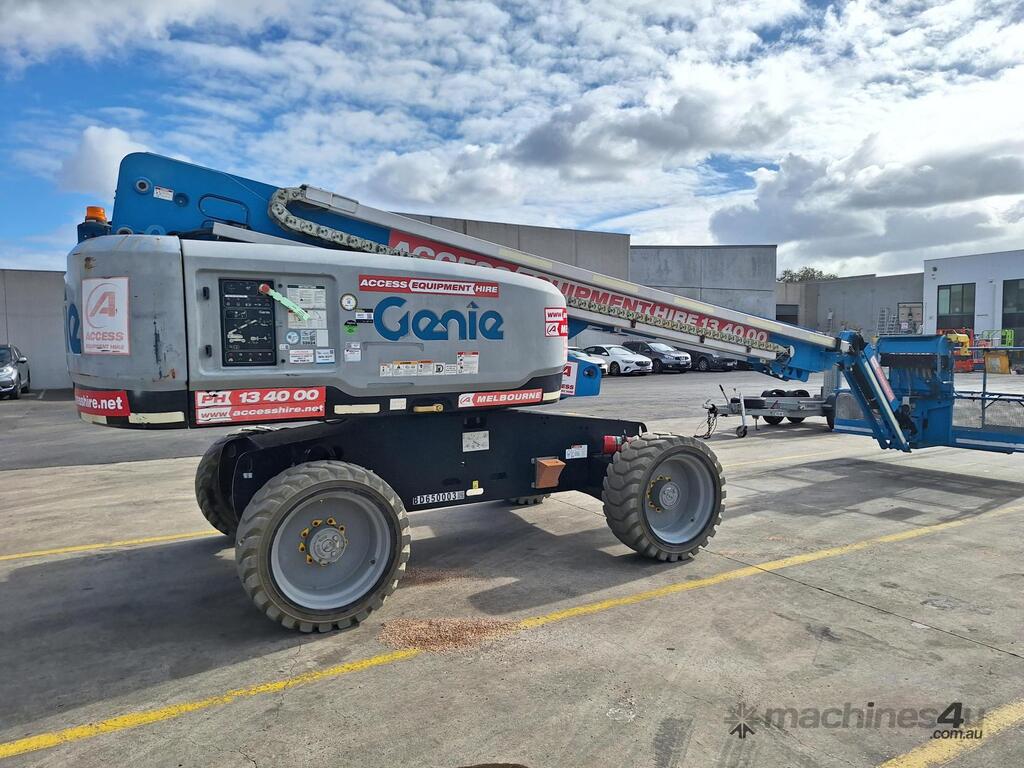

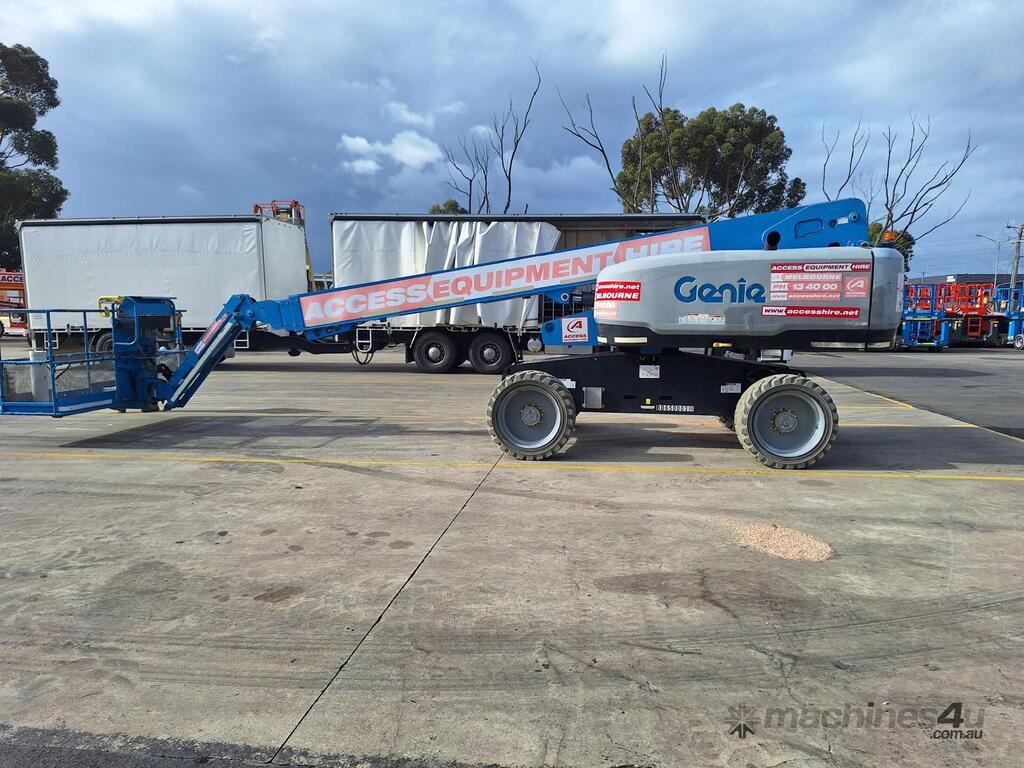

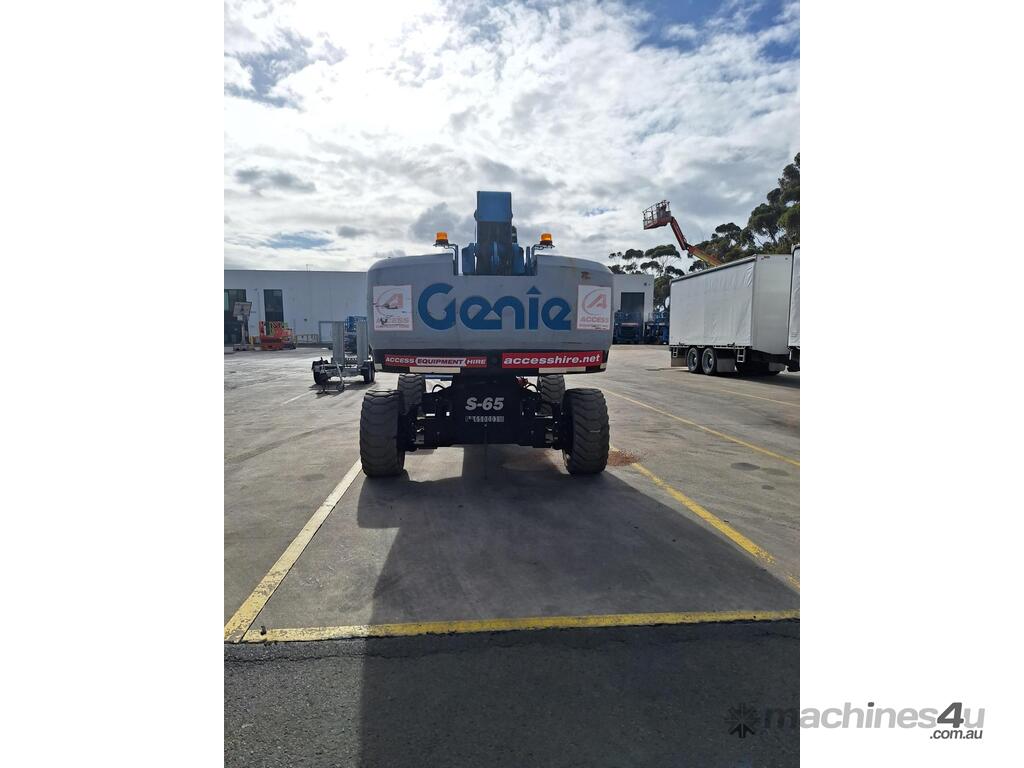

Genie S65 65 ft Telescopic Boom Lift - 227 kg SWL Diesel

The Genie S-65 is a 65 ft diesel telescopic boom lift designed for construction maintenance and industrial access. It provides a working height of 21.80 m (71 ft) and horizontal reach of 17.10 m (56 ft 2 in). Below ground reach is 2.72 m (8 ft 11 in). With 4WD traction and 360-degree continuous turntable rotation the S-65 delivers reliable performance on rough terrain. Operating weight is 10,349 kg.

Features:
- Platform Height: 19.80 m (65 ft)
- Working Height: 21.80 m (71 ft)
- Horizontal Reach: 17.10 m (56 ft 2 in)
- Below Ground Reach: 2.72 m (8 ft 11 in)
- Platform Capacity: 227 kg (500 lb)
- Platform Rotation: 160°
- Vertical Jib Rotation: 135°
- Turntable Rotation: 360° continuous
- Drive: 4WD
- Drive Speed (stowed): 4.8 km/h
- Gradeability (4WD): 45%
- Turning Radius (inside): 2.36 m
- Turning Radius (outside): 5.72 m
- Power: Deutz D2011L03i diesel 34.3 kW
- Fuel Tank: 132 L
- Hydraulic Tank: 170 L
- Tyres: 355/55 D625 foam filled
- Operating Weight: 10,349 kg

Applications:
- Construction and building access
- Industrial and facility maintenance
- Mechanical and electrical installation
- External inspection and repair work
