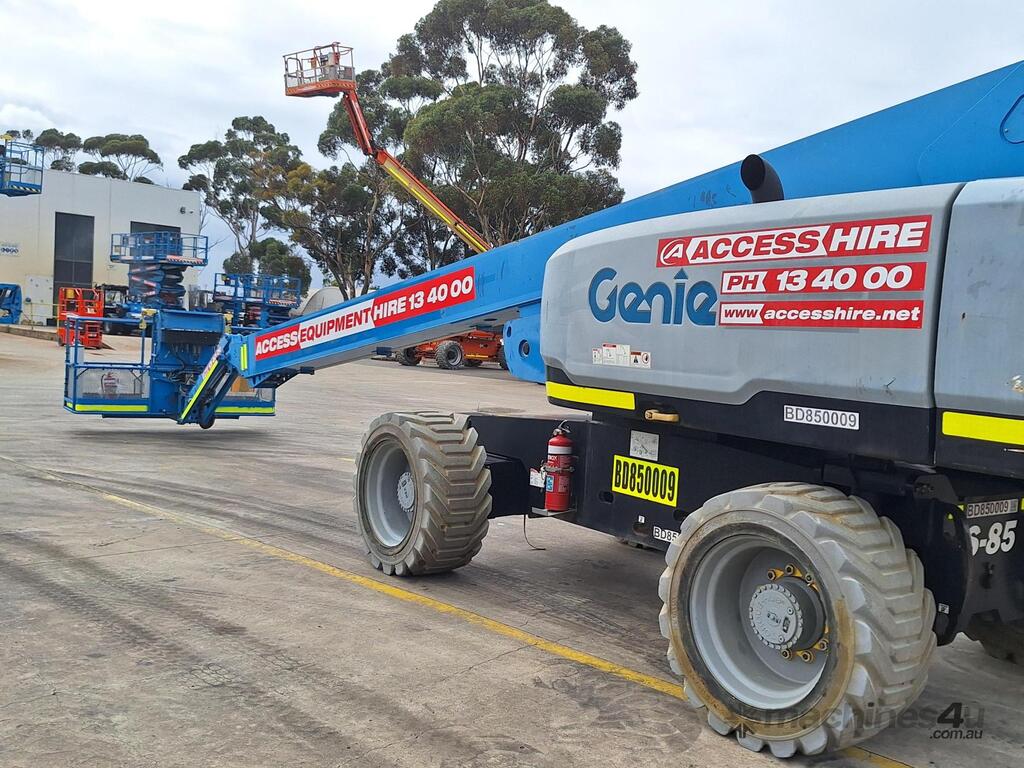

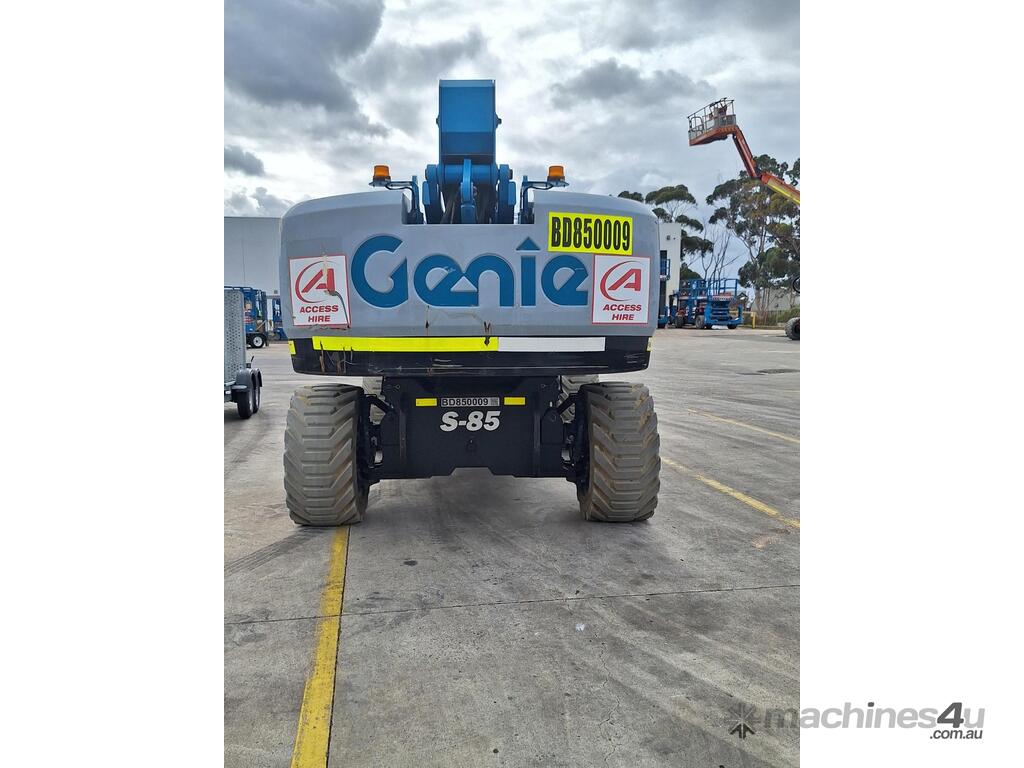

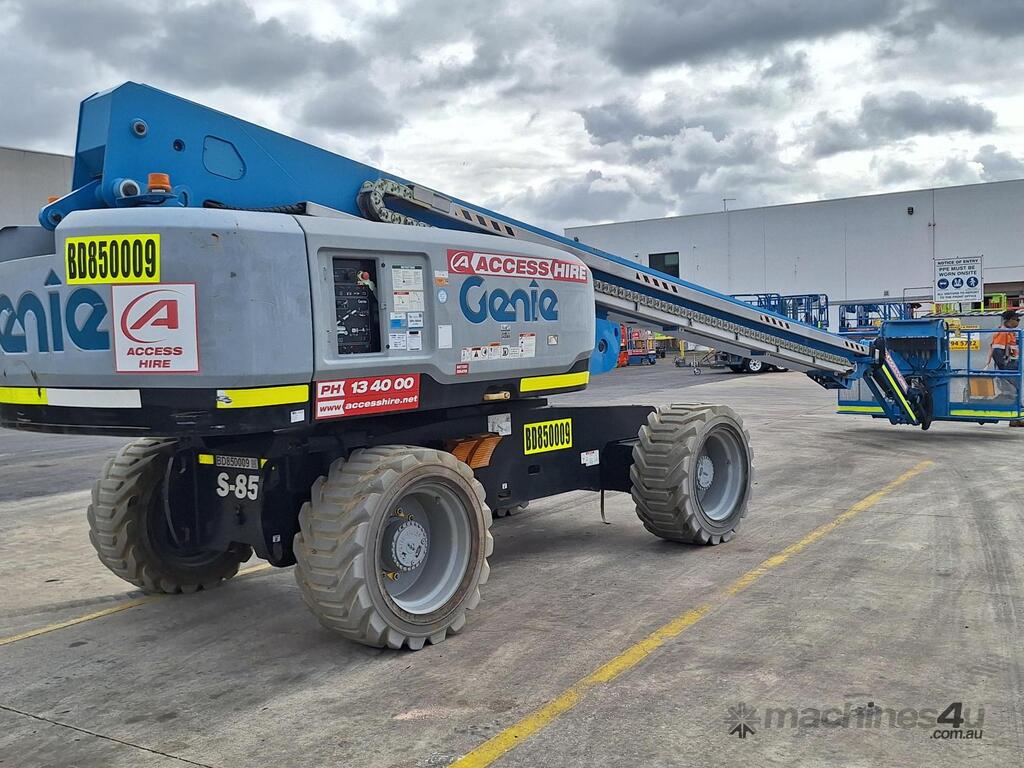

Genie S85 85 ft Telescopic Boom Lift - 227 kg SWL Diesel

The Genie S85 is an 85 ft diesel telescopic boom lift designed for construction maintenance and industrial access. It provides a working height of 27.91 m (91 ft) and horizontal reach of 23.32 m (76 ft 6 in). Below ground reach is 2.90 m (9 ft 6 in). With 4WD traction and 360-degree continuous turntable rotation the S-85 delivers strong performance on rough terrain. Operating weight is 17,563 kg.

Features:
- Platform Height: 25.91 m (85 ft)
- Working Height: 27.91 m (91 ft)
- Horizontal Reach: 23.32 m (76 ft 6 in)
- Below Ground Reach: 2.90 m (9 ft 6 in)
- Platform Capacity: 227 kg (500 lb)
- Platform Rotation: 160°
- Vertical Jib Rotation: 135°
- Turntable Rotation: 360° continuous
- Drive: 4WD
- Drive Speed (stowed): 5.3 km/h
- Gradeability (4WD): 45%
- Turning Radius (inside): 3.66 m
- Turning Radius (outside): 6.55 m
- Power: Deutz turbo diesel 55 kW
- Fuel Tank: 132 L
- Hydraulic Tank: 151 L
- Tyres: Foam filled rough terrain
- Operating Weight: 17,563 kg

Applications:
- Construction and building access
- Industrial and facility maintenance
- Mechanical and electrical installation
- External inspection and repair work
