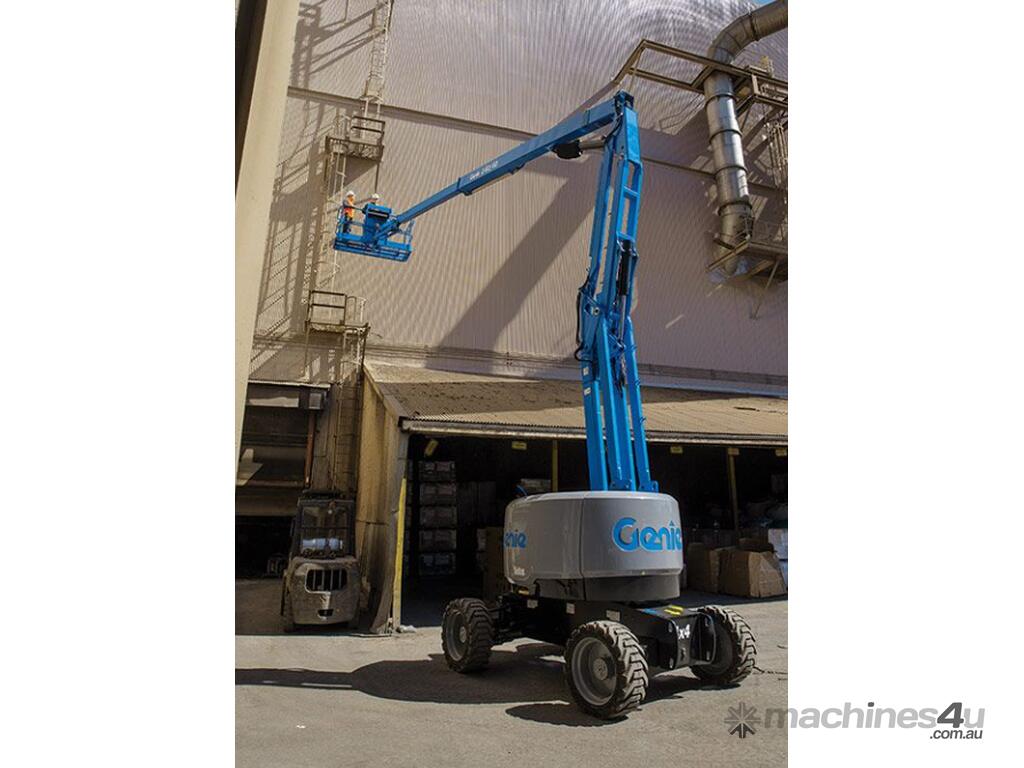

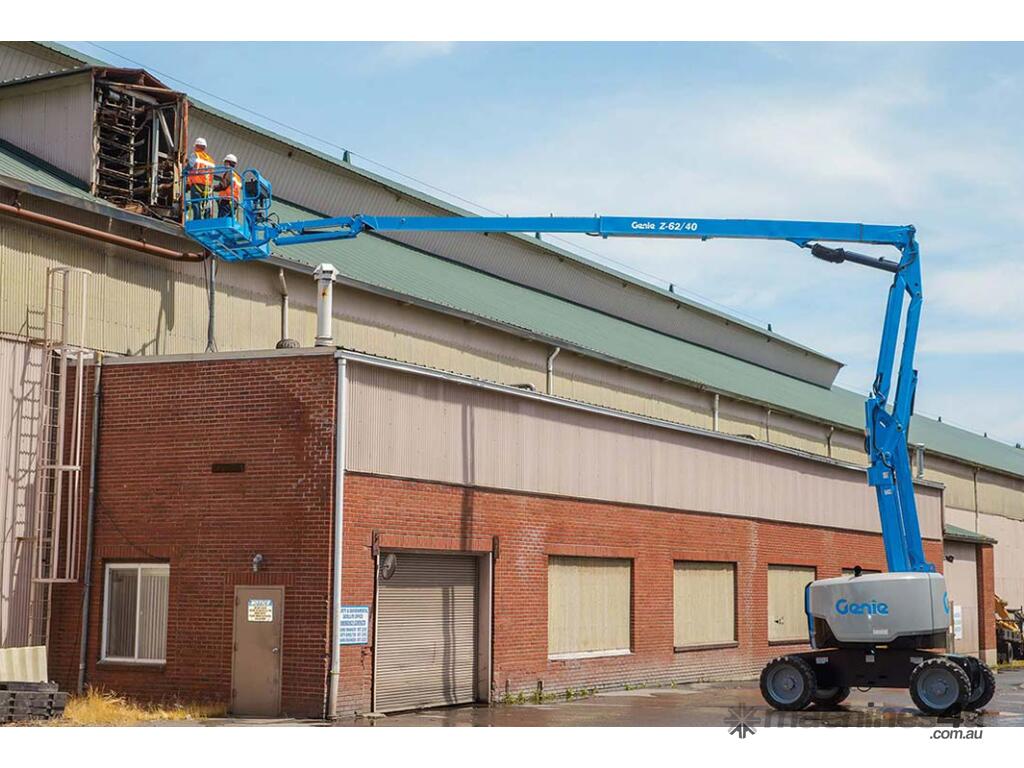

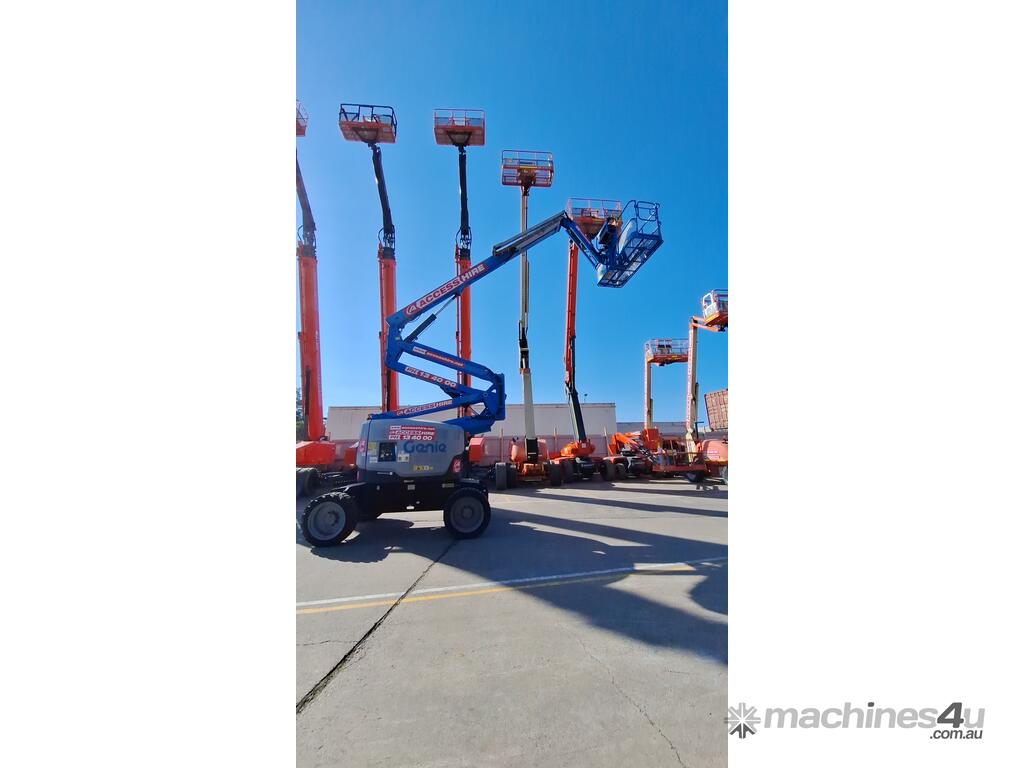

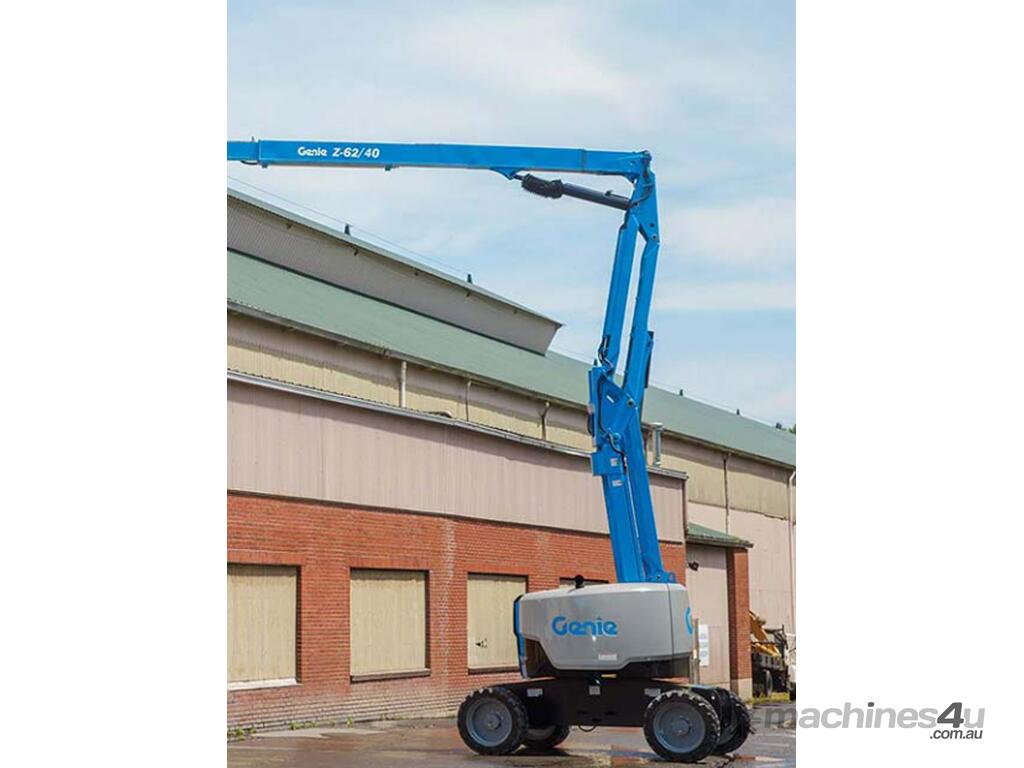

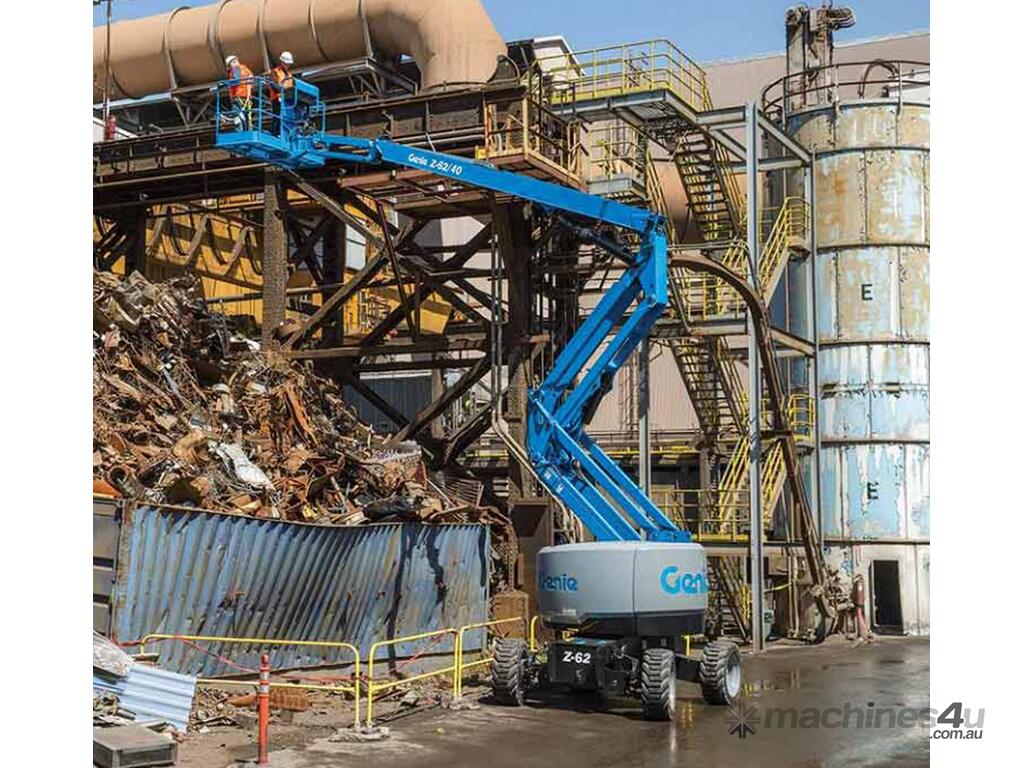

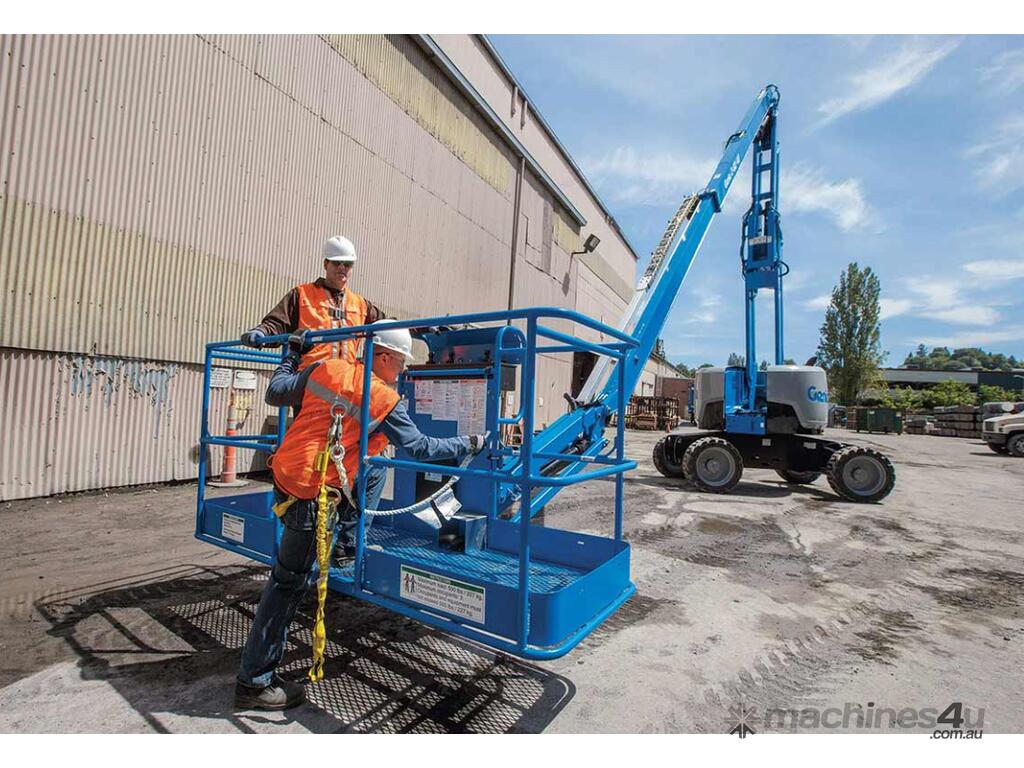

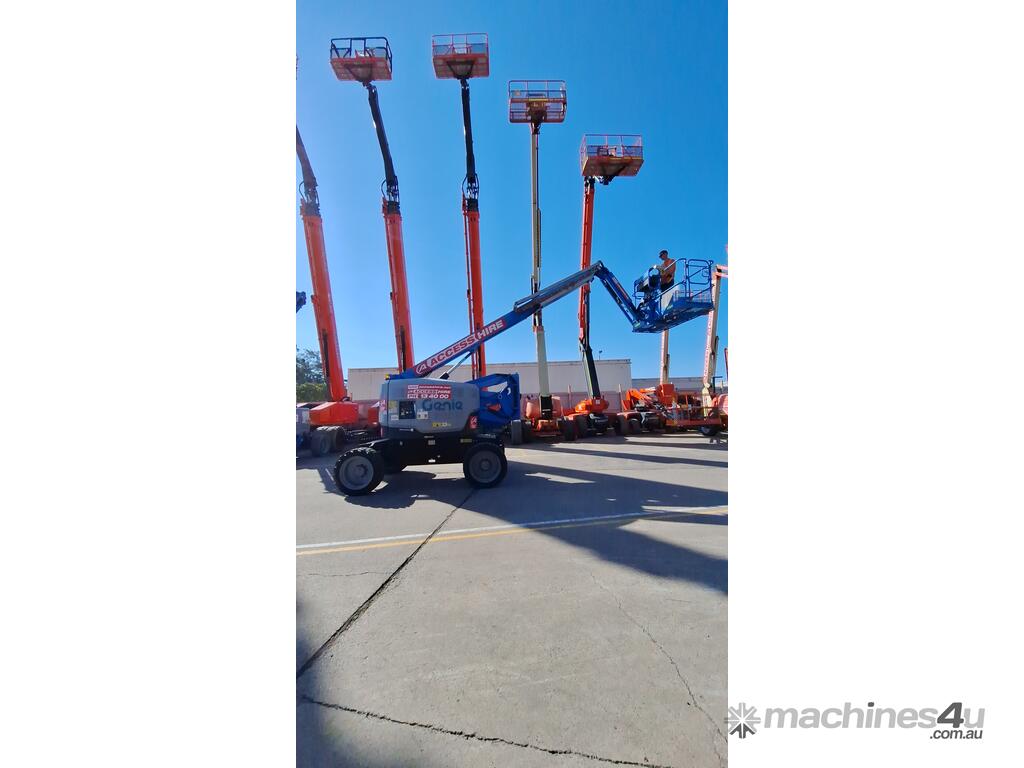

The Genie Z-62/40 is a 68ft diesel articulating boom lift designed for construction, maintenance, and industrial access where up-and-over capability is required. It provides a working height of 67ft 11in (20.87m), horizontal outreach of 40ft 9in (12.42m), and up-and-over clearance of 25ft 7in (7.80m). With an articulating jib, 4WD traction, and 360° continuous turntable rotation, the Z-62/40 delivers strong performance on rough terrain. Maximum operating weight is 10,886kg.
Features:
- Platform Height: 61ft 11in (18.87m)
- Working Height: 67ft 11in (20.87m)
- Horizontal Reach: 40ft 9in (12.42m)
- Up and Over Clearance: 25ft 7in (7.80m)
- Platform Capacity: 227kg (500lb)
- Jib: 5ft (1.52m) articulating

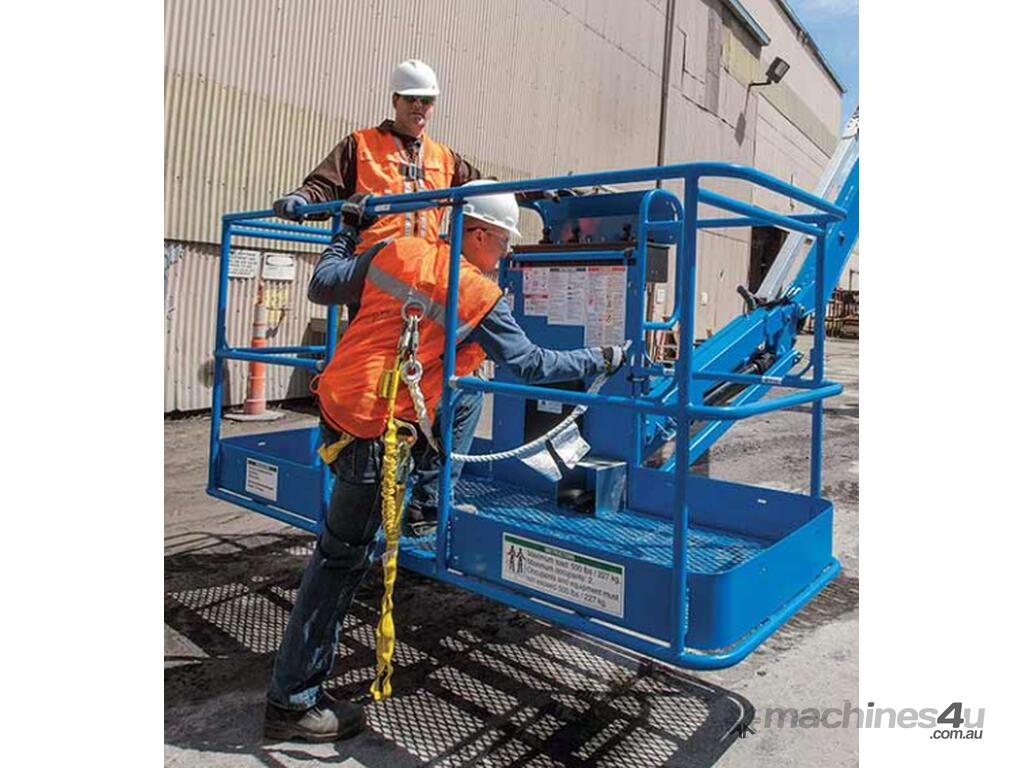

- Platform Rotation: 160°
- Vertical Jib Rotation: 135°
- Turntable Rotation: 360° continuous

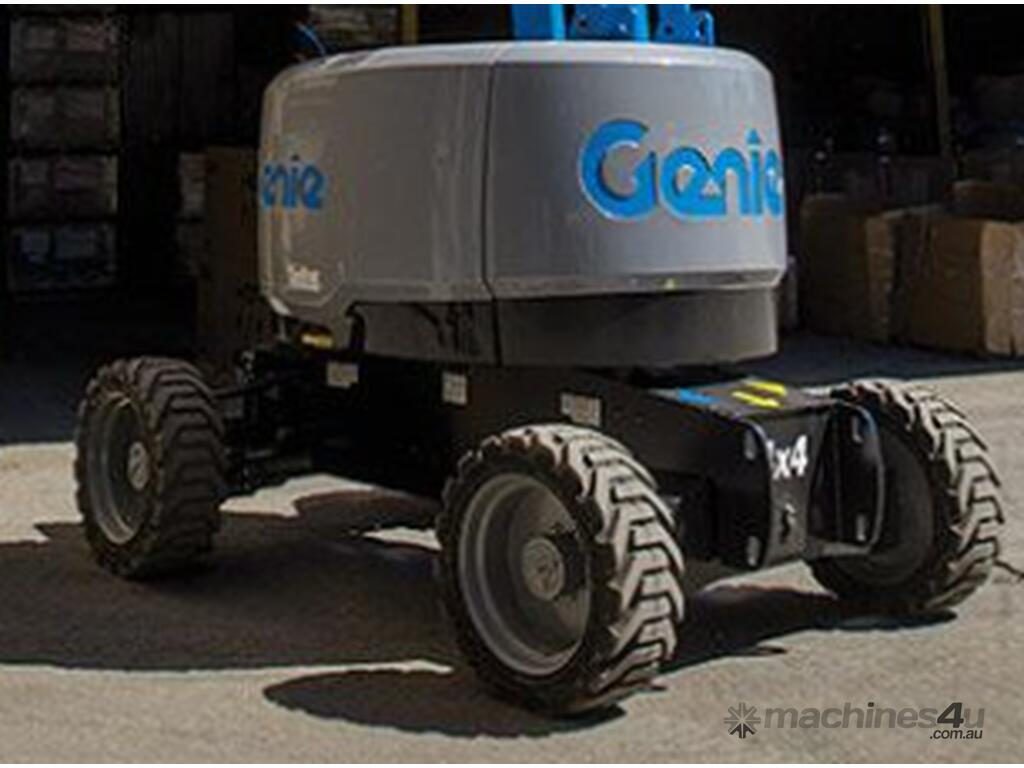

- Drive: 4WD
- Gradeability (4WD, stowed): 45 percent
- Power: Deutz D2011L03i diesel, 35.8kW (48hp)
- Tyres: 355/55D625 rough terrain, foam filled
- Max Operating Weight: 10,886kg
Applications:
- Construction and building access
- Industrial and facility maintenance
- Mechanical and electrical installation
- External inspection and repair work
