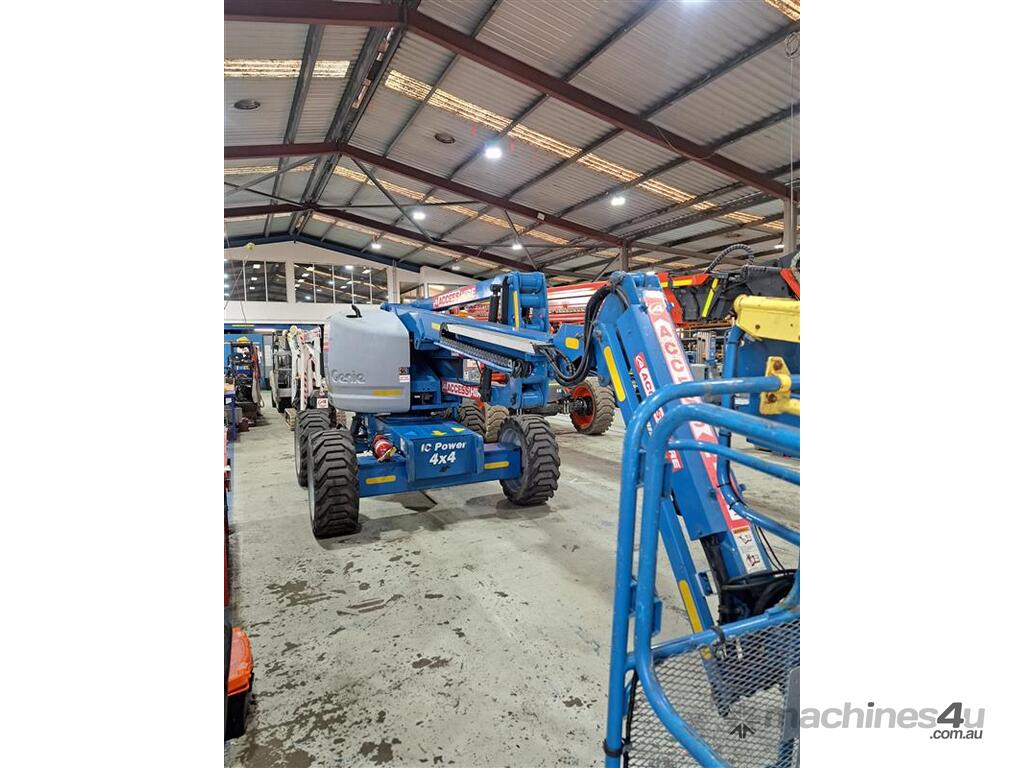

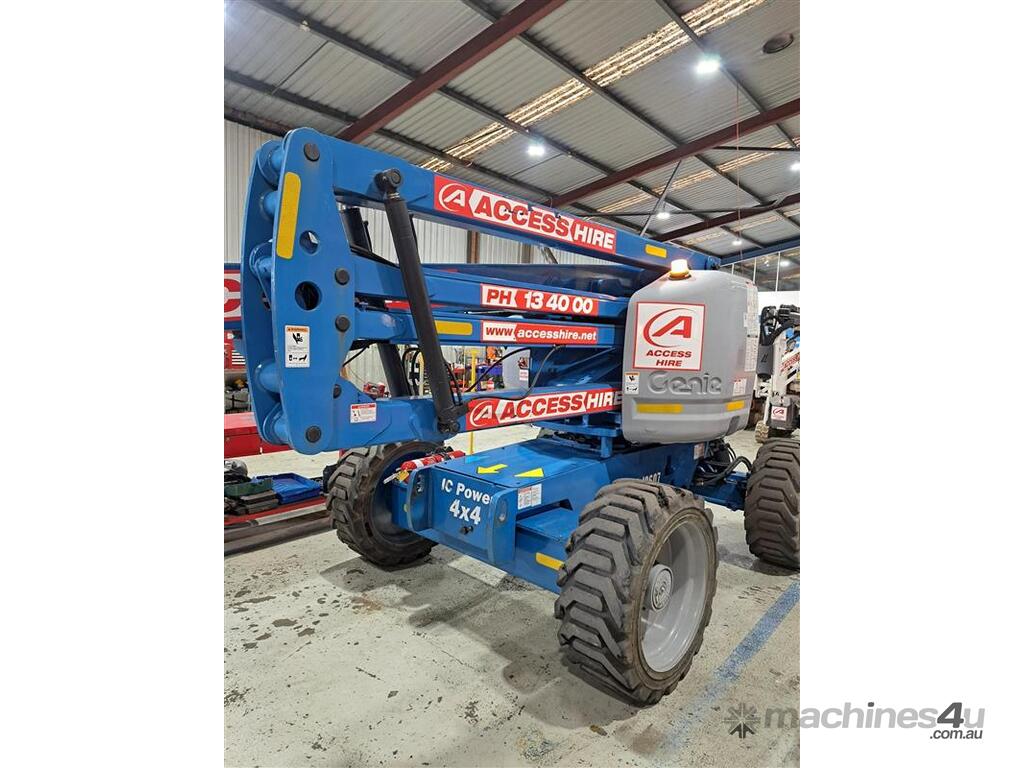

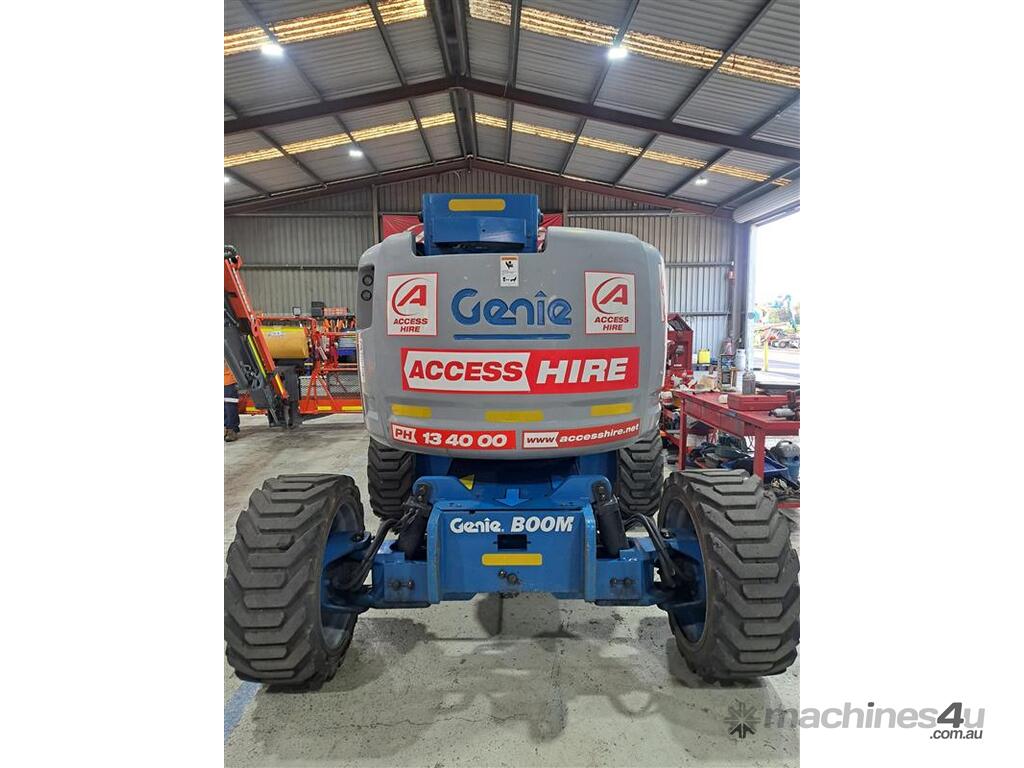

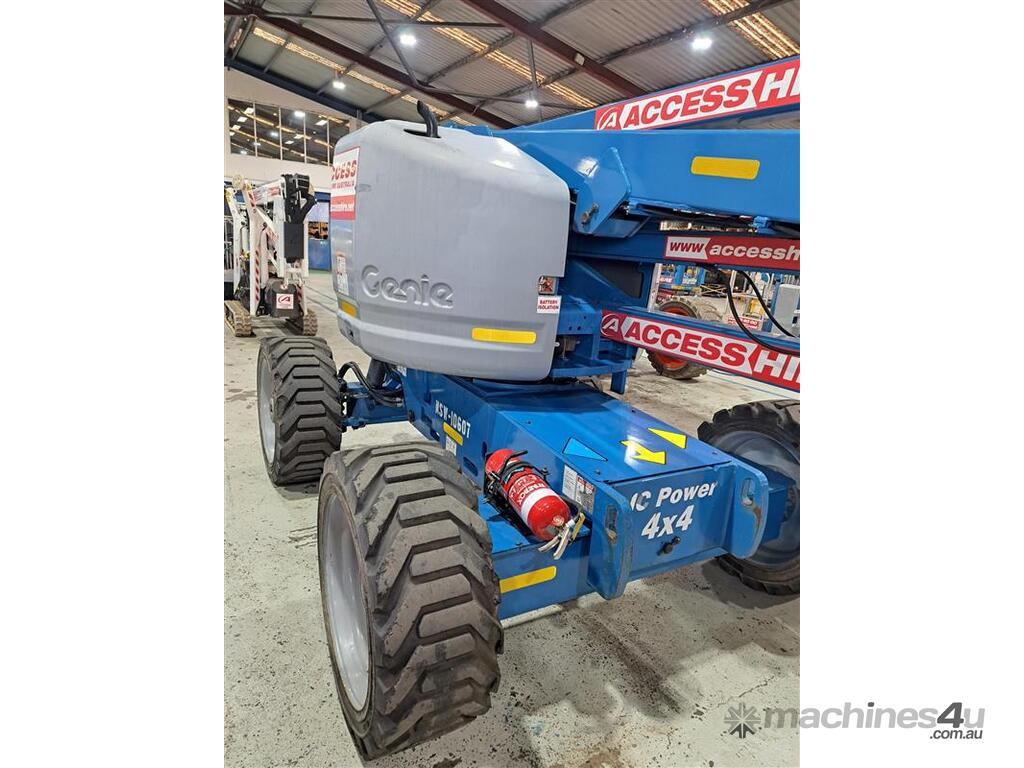

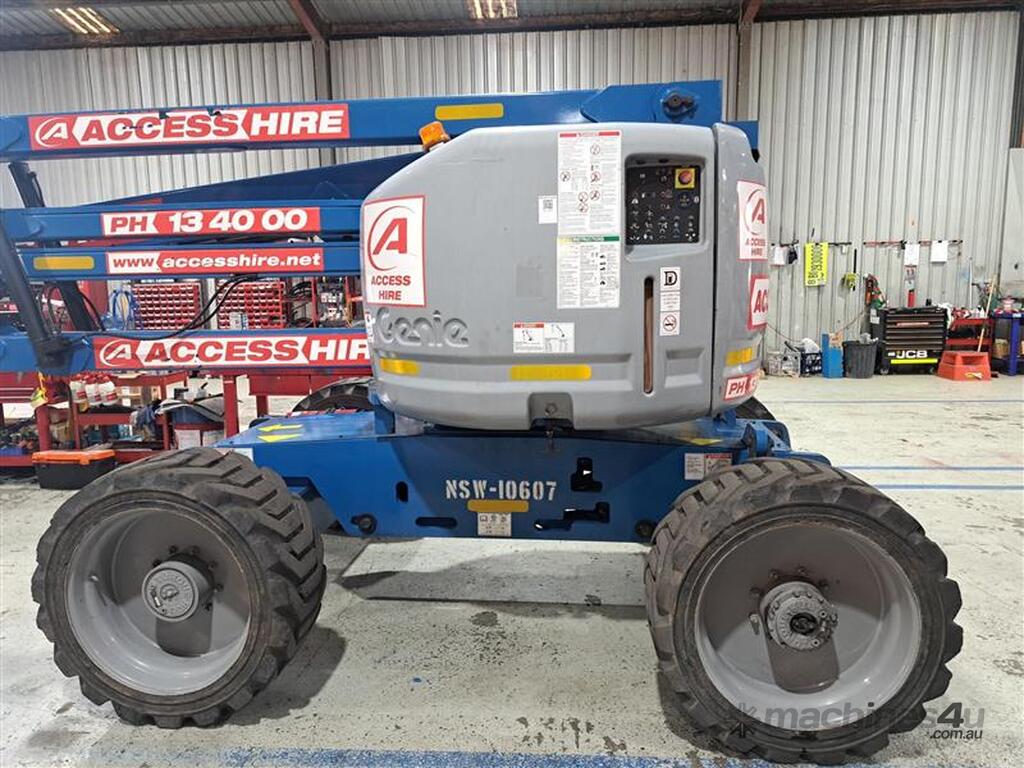

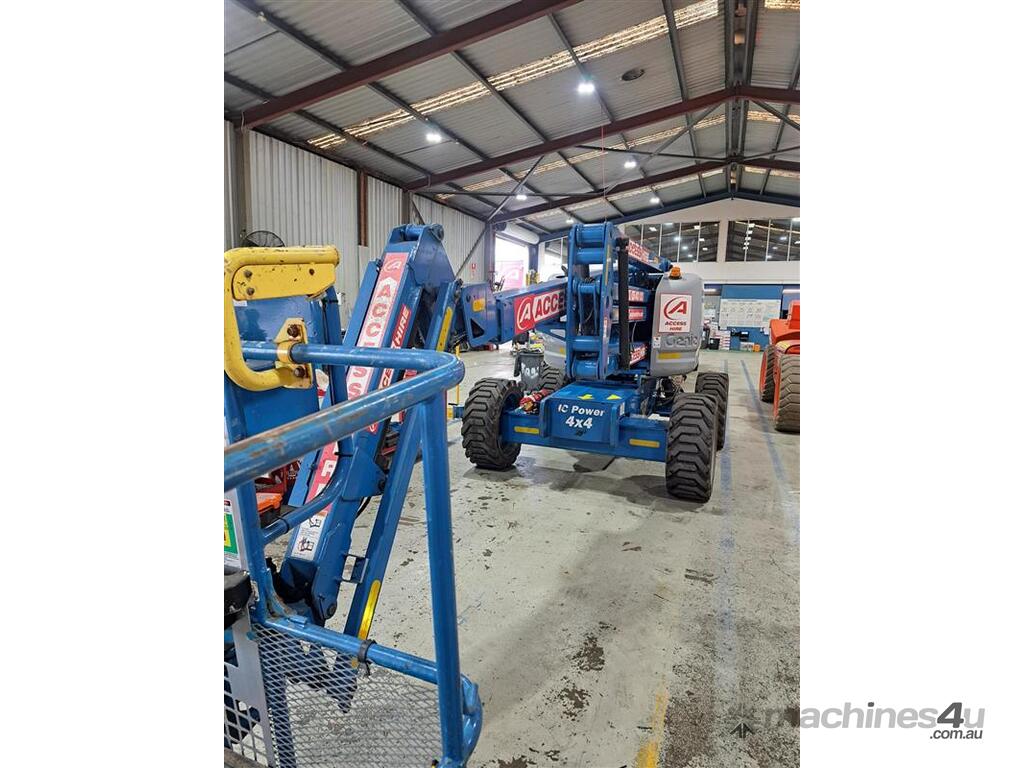

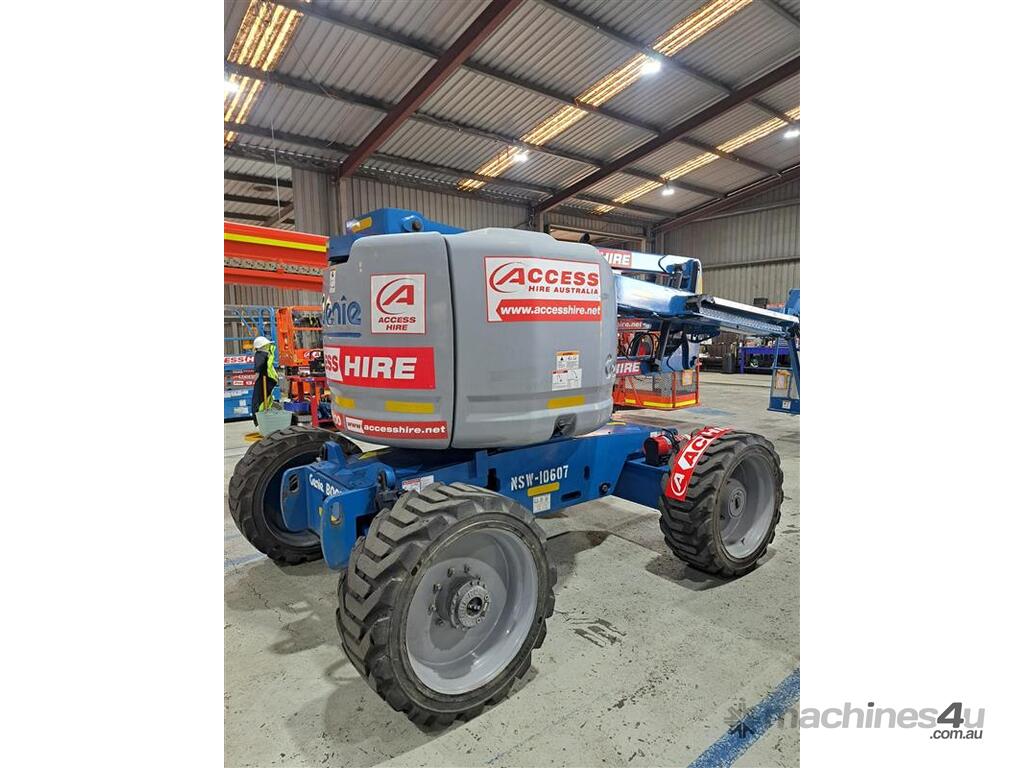

Genie Z51/30J RT 2012 51ft Diesel Articulating Boom Lift - 227kg SWL, 4WD

The Genie Z-51/30J RT is a rough-terrain diesel articulating boom lift designed for high-reach access and excellent maneuverability on outdoor job sites. It offers a platform height of 51 ft 2 in (15.59 m) and a working height of 57 ft 8 in (17.59 m), with a horizontal outreach of 30 ft 9 in (9.37 m) and up-and-over clearance of 24 ft 3 in (7.39 m). Powered by a 48 hp Deutz diesel engine and supported by 4WD with active oscillation, the Z-51/30J ensures smooth operation on slopes and uneven ground. The self-leveling platform, 355° non-continuous turntable, and 160° rotation give operators flexibility and precision at height.

Features:
- Platform Height: 51 ft 2 in (15.59 m) with a working height of 57 ft 8 in (17.59 m)
- Capacity: 227 kg (500 lbs) lift capacity
- Horizontal Reach: 30 ft 9 in (9.37 m) with 24 ft 3 in (7.39 m) up-and-over clearance

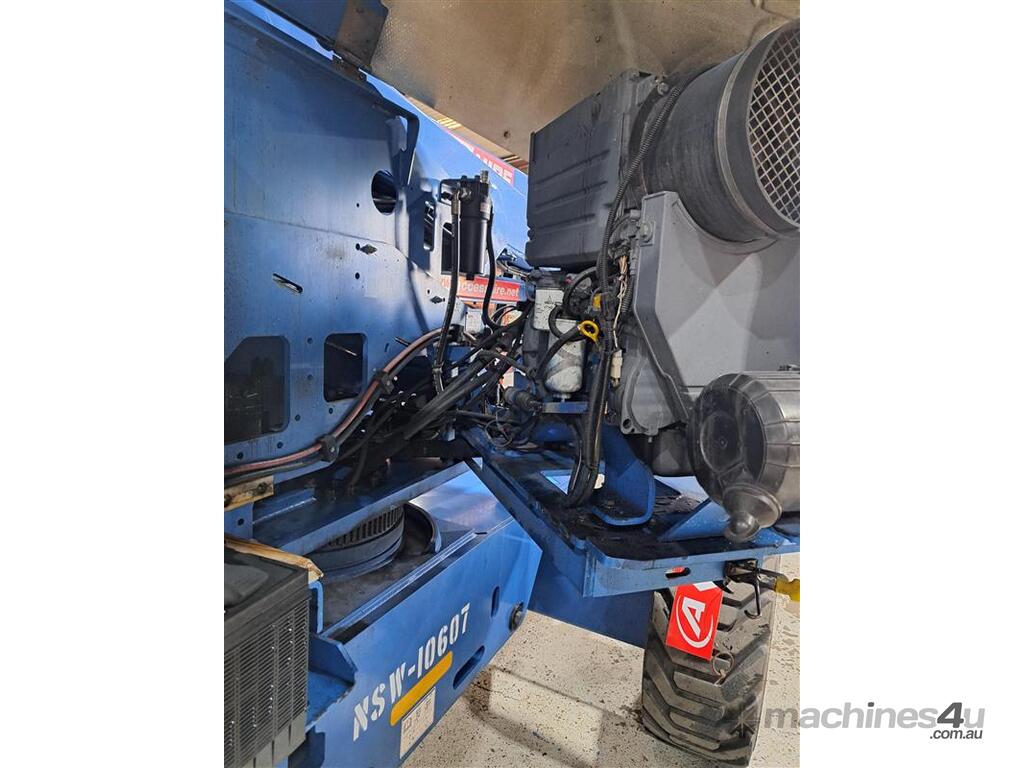

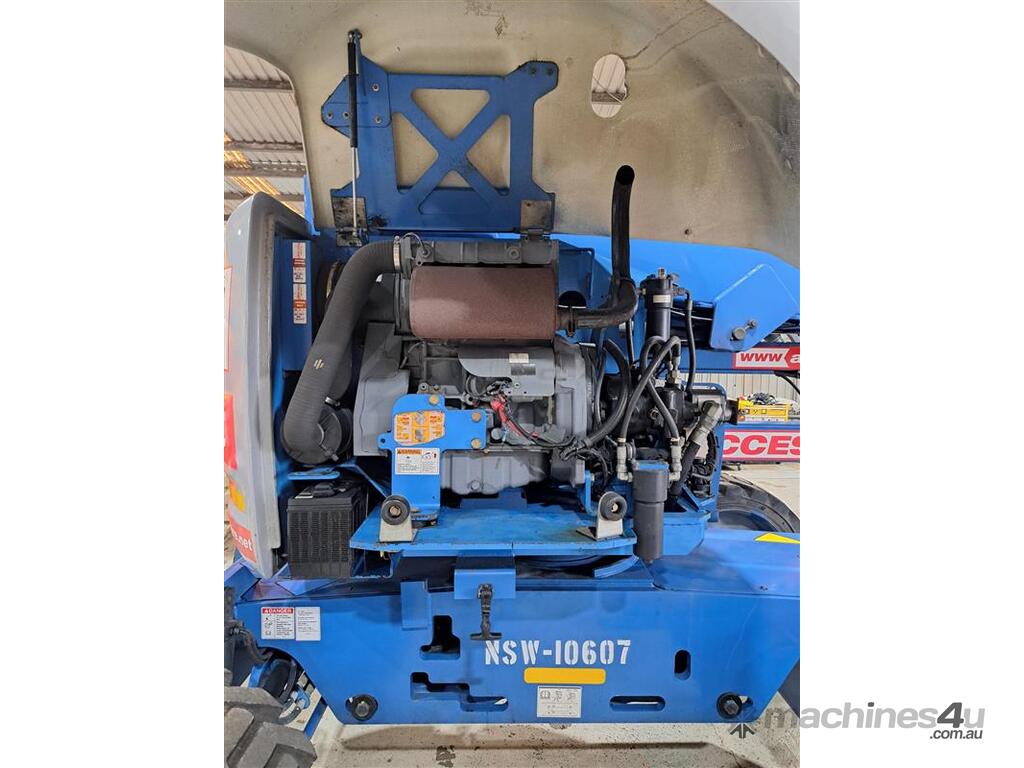

- Power Source: 48 hp (35.8 kW) Deutz D2011 diesel engine
- Mobility: 4WD with 45% gradeability and 1.68 m inside turning radius

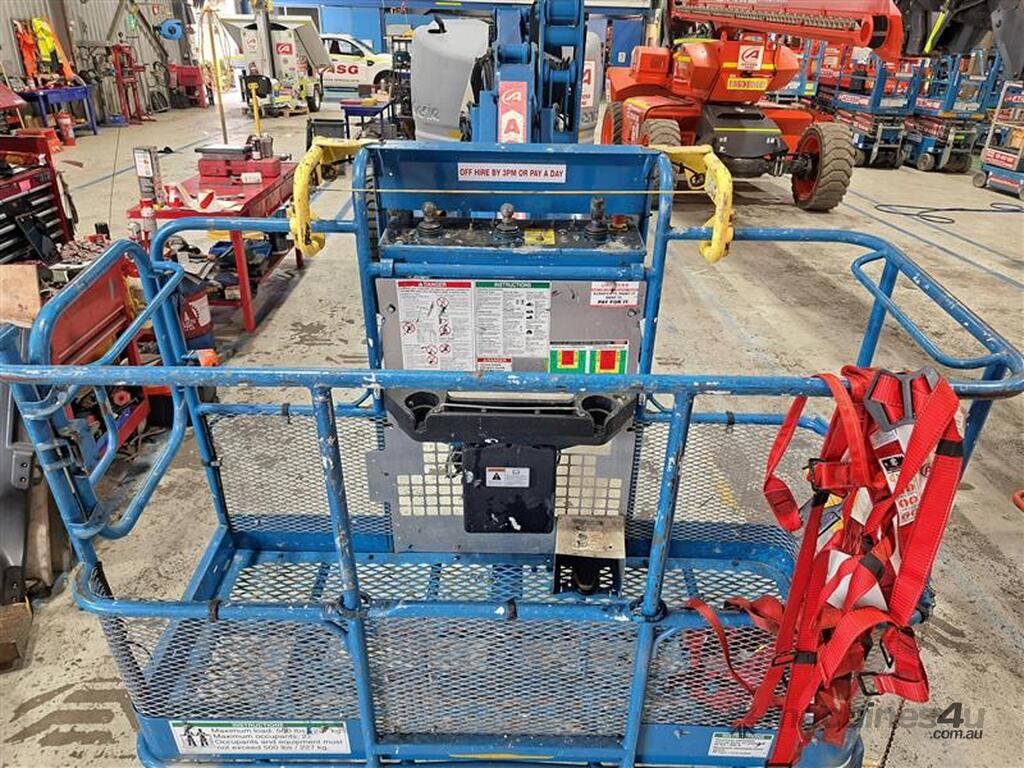

- Jib & Platform: 1.52 m (5 ft) jib boom with 135° vertical rotation and 160° platform rotation
- Turntable: 355° non-continuous rotation
- Safety & Comfort: Tilt and descent alarms, proportional joystick controls, dual flashing beacons, foam-filled tyres
- Weight: 7,404 kg

Applications:
- Outdoor construction and maintenance
- Facility access across uneven or sloped ground
- Utilities and signage installation
- Heavy-duty industrial and infrastructure work
