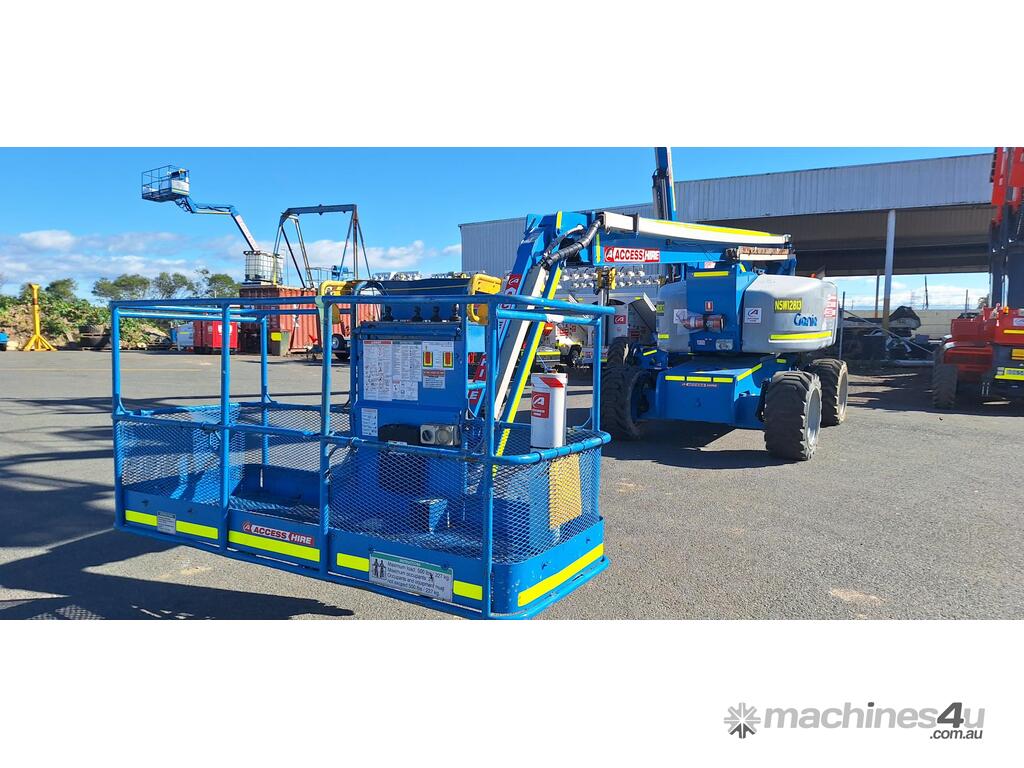

Genie Z80/60 2010 84ft Diesel Articulating Boom Lift – 227kg SWL, 4WD

The Genie Z-80/60 is a high-reach diesel articulating boom lift engineered for heavy-duty outdoor applications. With a platform height of 78 ft (23.77 m) and a working height of 84 ft (25.77 m), it delivers exceptional horizontal outreach of 60 ft (18.29 m) and up-and-over clearance of 29 ft (8.83 m). Powered by a 78 hp Deutz diesel engine, it features 4WD, four steering modes (front, rear, crab, coordinated), full-time oscillating axles, and a 6 ft (1.83 m) jib with 135° vertical articulation. Full-time positive traction drive, foam-filled rough-terrain tyres, and proportional joystick controls ensure smooth, safe operation across demanding sites.

Features:
- Platform Height: 78 ft (23.77 m) with a working height up to 84 ft (25.77 m)
- Capacity: 227 kg (500 lbs) rated lift load
- Outreach: 60 ft (18.29 m) horizontal reach; 29 ft (8.83 m) up-and-over clearance
- Power Source: Deutz TD 2011 L04i diesel engine, 58 kW (78 hp)
- Mobility: 4WD, full-time oscillating axle, 45% gradeability, four steering modes
- Platform: 8 ft × 3 ft (2.44 m × 0.91 m) with 160° rotation and 6 ft (1.83 m) jib boom
- Safety & Control: Hydraulic rotation, ALC 1000 diagnostics, tilt alarm, foam-filled tyres
- Weight: 17,010 kg

Applications:
- High-rise construction and façade access
- Heavy industrial and mining maintenance
- Infrastructure, stadiums, and transport yards
- Any elevated outdoor work requiring long horizontal outreach
