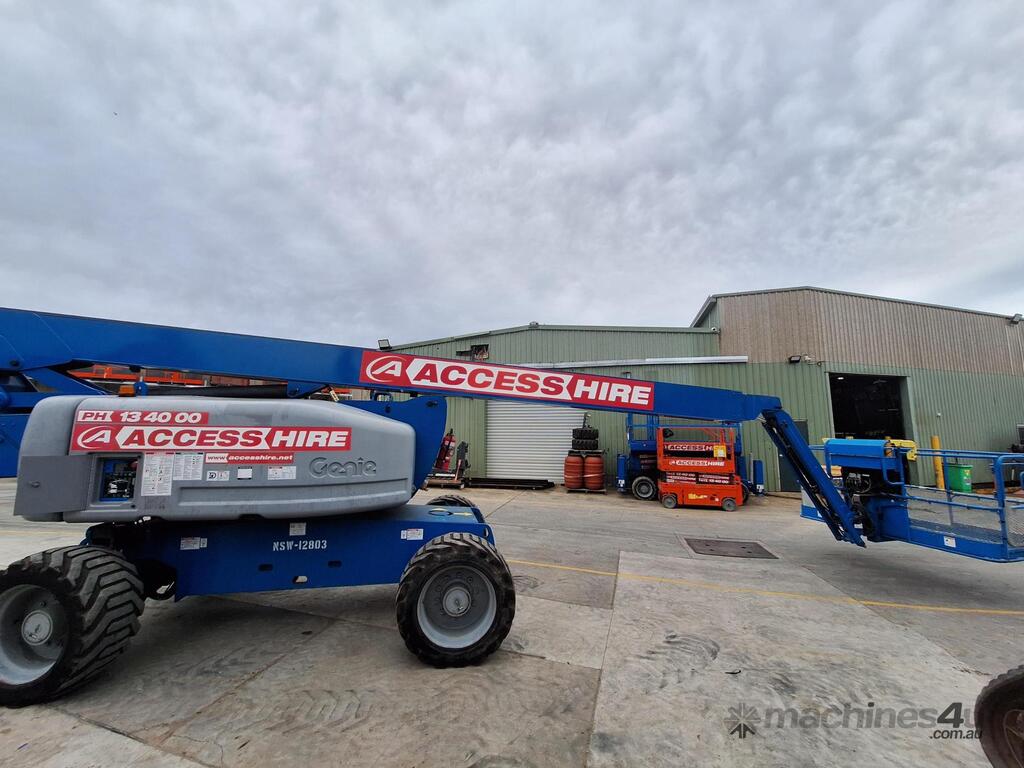

Our Genie Z-80/60 is a high-reach diesel articulating boom lift engineered for heavy-duty outdoor applications. With a platform height of 78ft (23.77m) and a working height of 84ft (25.77m), it delivers exceptional horizontal outreach of 60ft (18.29m) and up-and-over clearance of 29ft (8.83m). Powered by a 78hp Deutz diesel engine, it features 4WD, four steering modes, and a 6ft jib with 135° vertical articulation. Full-time oscillating axles, positive traction drive, and non-marking foam-filled tyres ensure smooth, safe operation across rugged terrain.
Features:
- Platform Height: 78ft (23.77m) for a working height up to 84ft (25.77m).
- Capacity: 227kg (500lbs) rated lift load.
- Outreach: 60ft (18.29m) horizontal reach; 29ft (8.83m) up-and-over clearance.
- Power Source: Deutz TD 2011 L04i diesel engine, 58kW (78hp).
- Mobility: 4WD with 45% gradeability and four-wheel steering (incl. crab, coordinated).
- Platform: 8ft x 3ft (2.44m x 0.91m) with 160° rotation and 6ft (1.83m) jib.
- Safety & Control: Hydraulic rotation, ALC 1000 diagnostics, tilt alarm, and configurable lift limits.
Applications:
- High-rise construction and facade access
- Heavy industrial and mining maintenance
- Infrastructure, stadiums, and transport yards
- Any elevated outdoor work requiring long horizontal outreach
