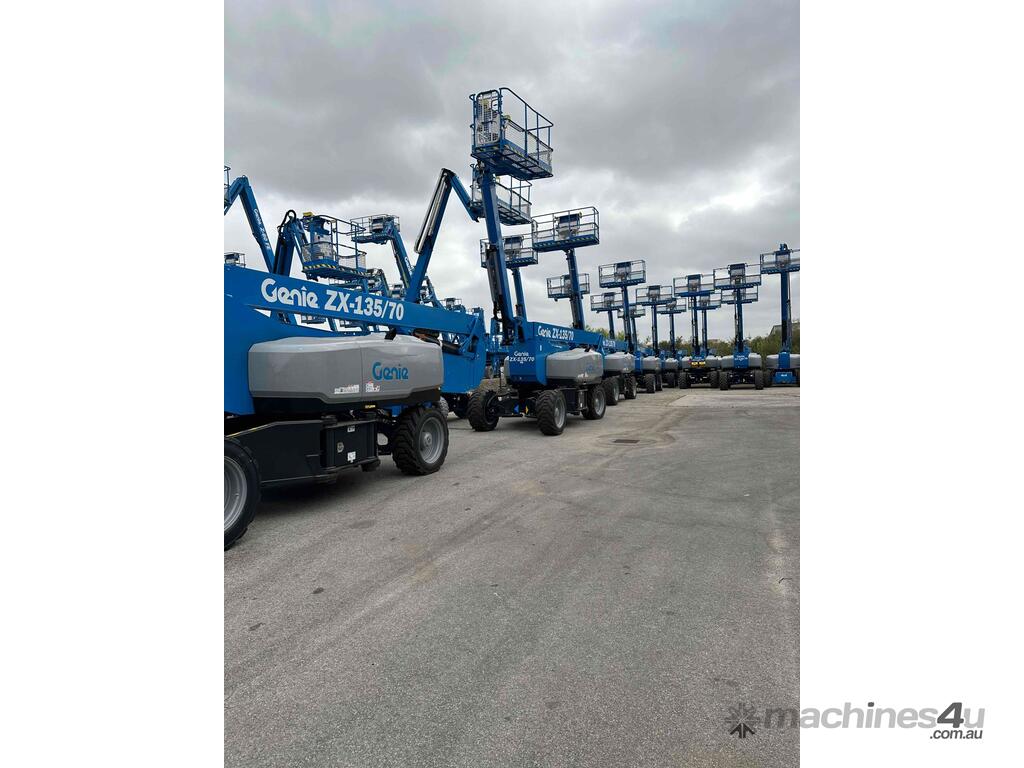

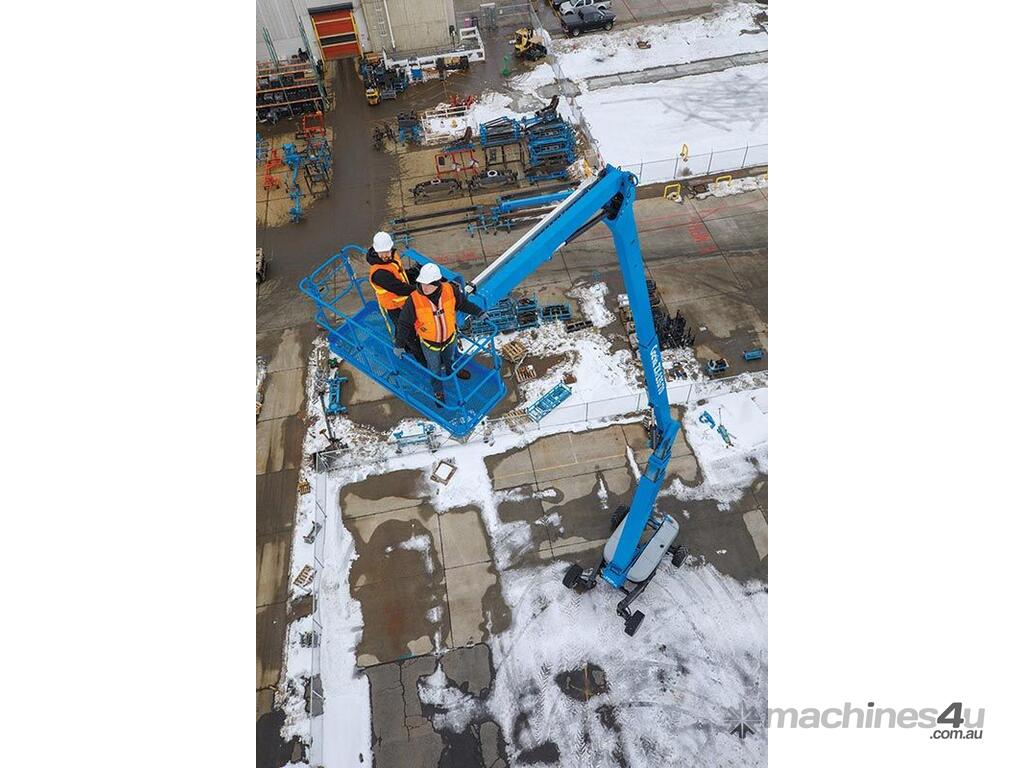

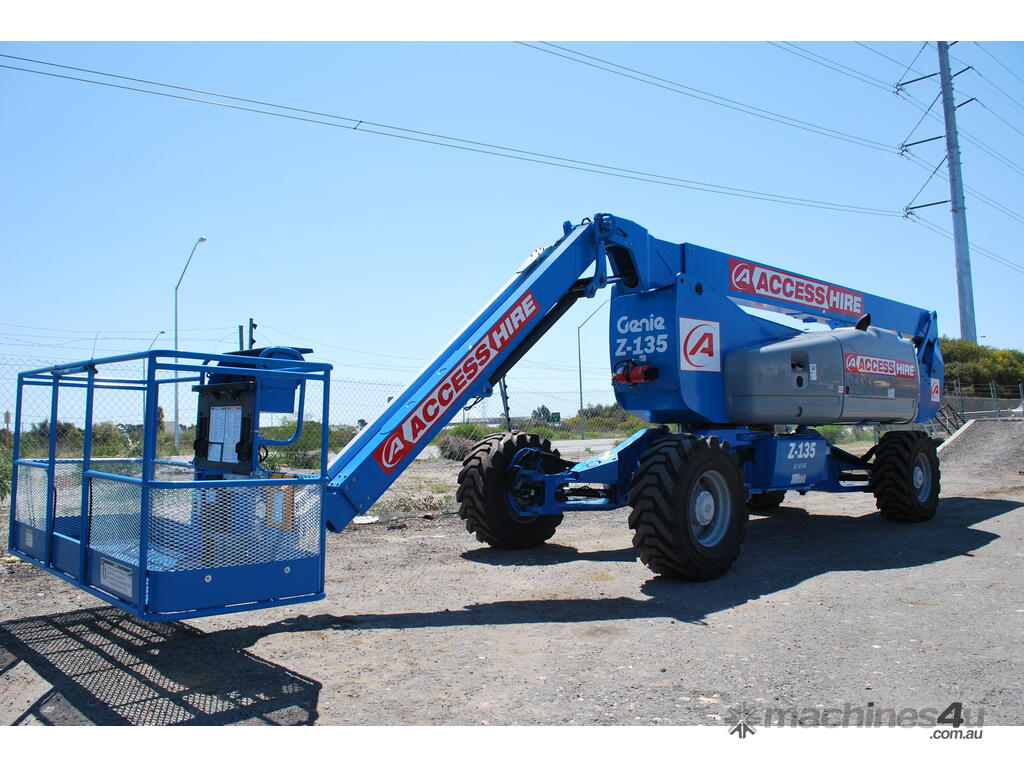

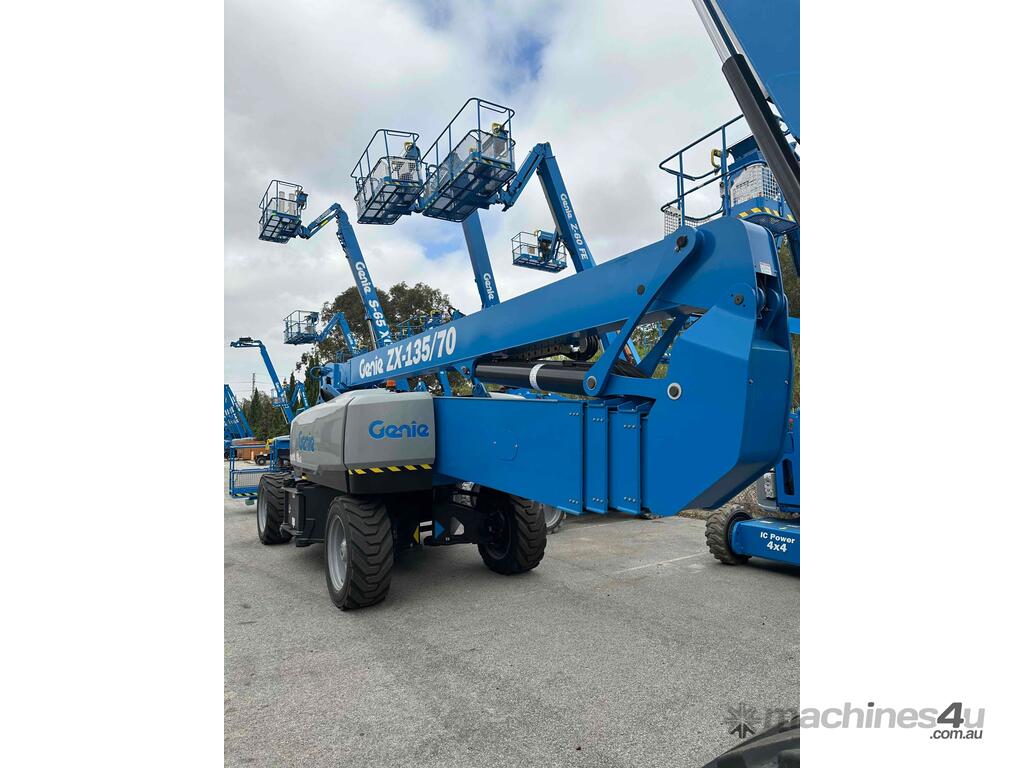

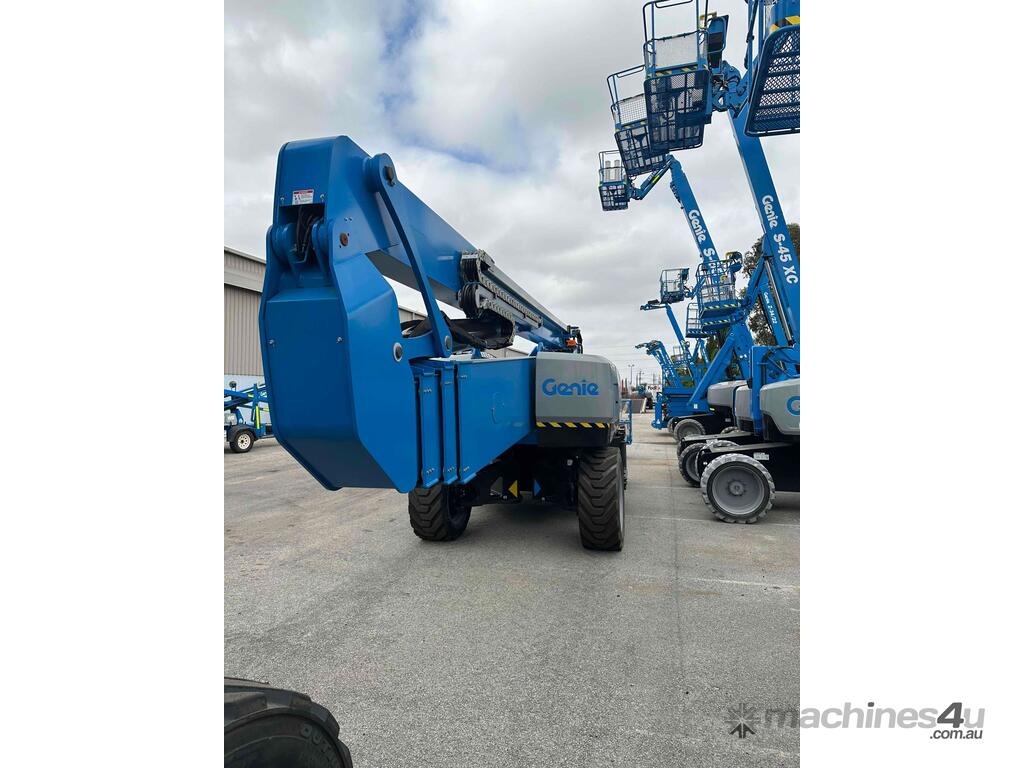

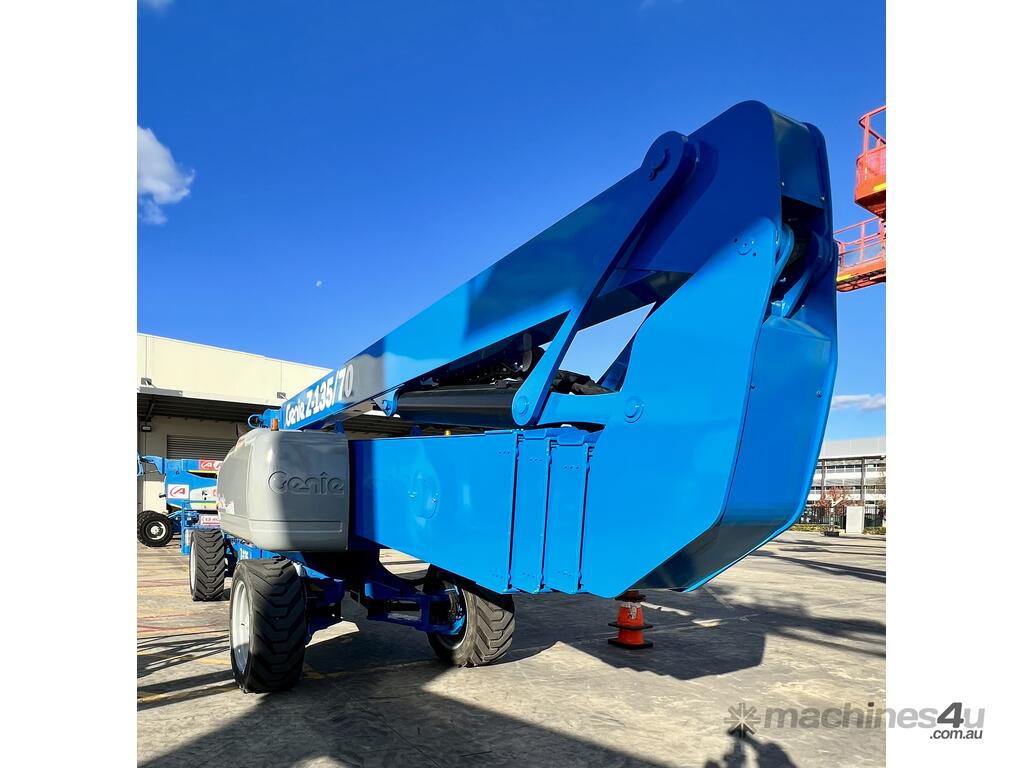

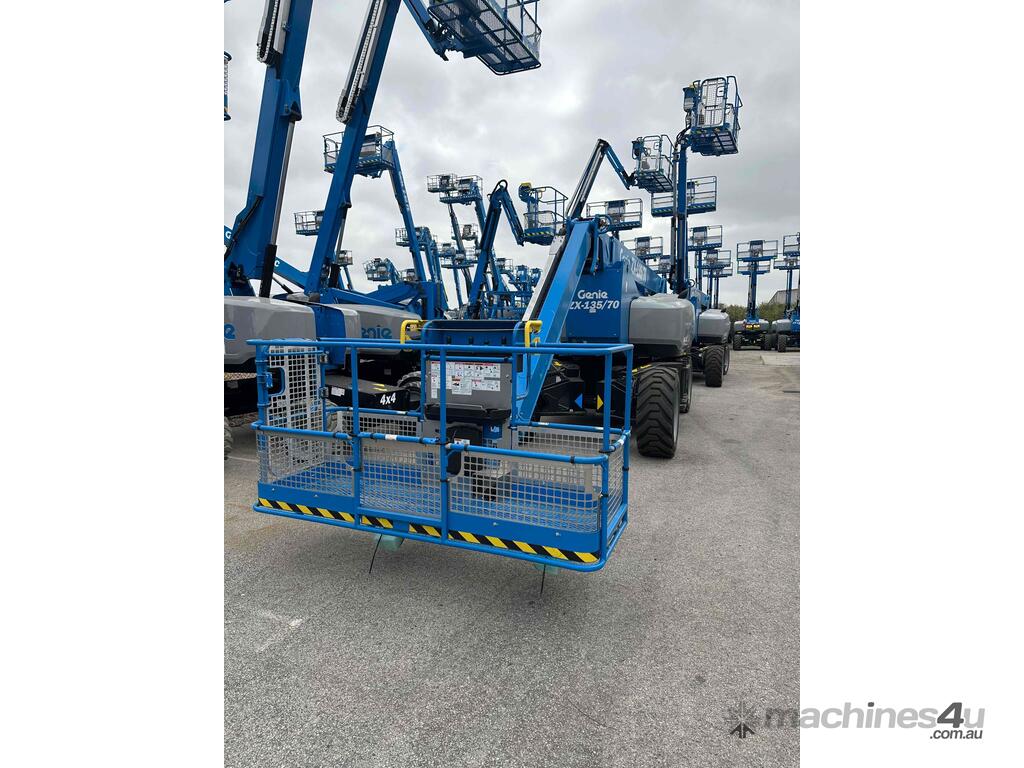

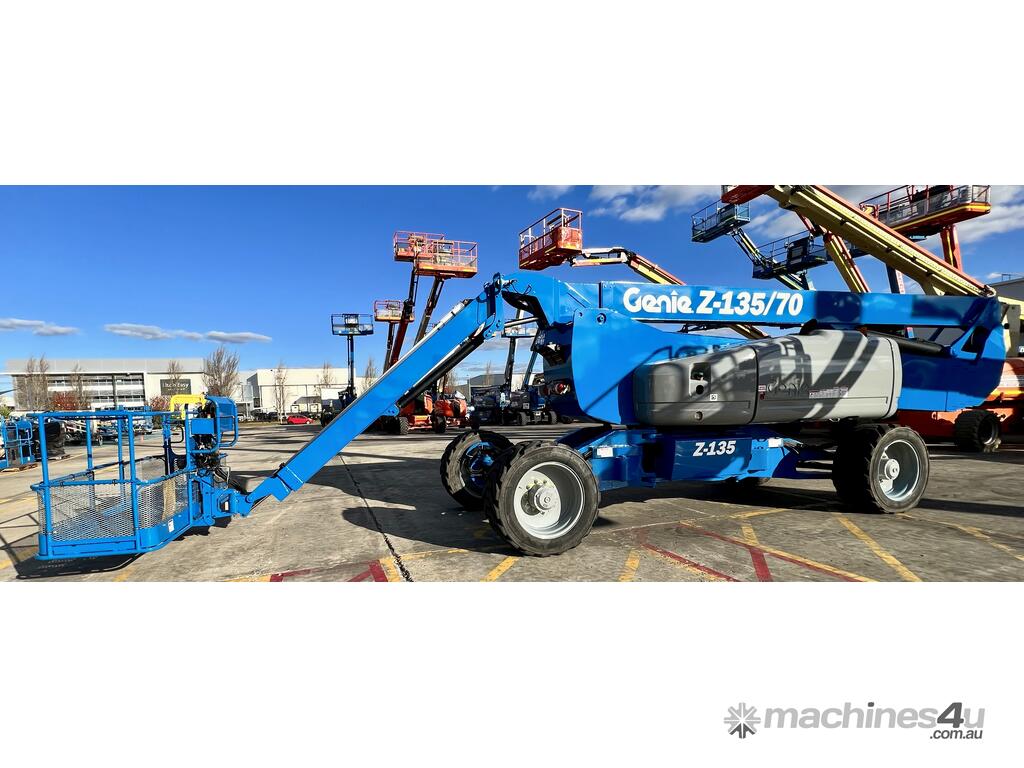

The Genie ZX-135/70 is a high-reach articulating boom lift built for tough elevated work where long outreach and strong up-and-over access are essential. It delivers a maximum working height of 43.15m, a horizontal reach of 21.26m, and an impressive up-and-over clearance of 23.01m, making it ideal for construction maintenance and industrial use. The lift supports 272kg, giving room for two workers and tools. Its extendable axles improve stability on uneven ground and the rough-terrain foam-filled tyres support smooth operation outdoors. With four-wheel drive and four-wheel steer the ZX-135/70 performs well in tight or sloped areas while the diesel engine offers steady reliable power. A 2.44m platform with 160° rotation and a 110° vertical jib gives operators more precise positioning for overhead tasks.
Features
- Working height: 43.15m
- Horizontal reach: 21.26m
- Up-and-over clearance: 23.01m
- Lift capacity: 272kg

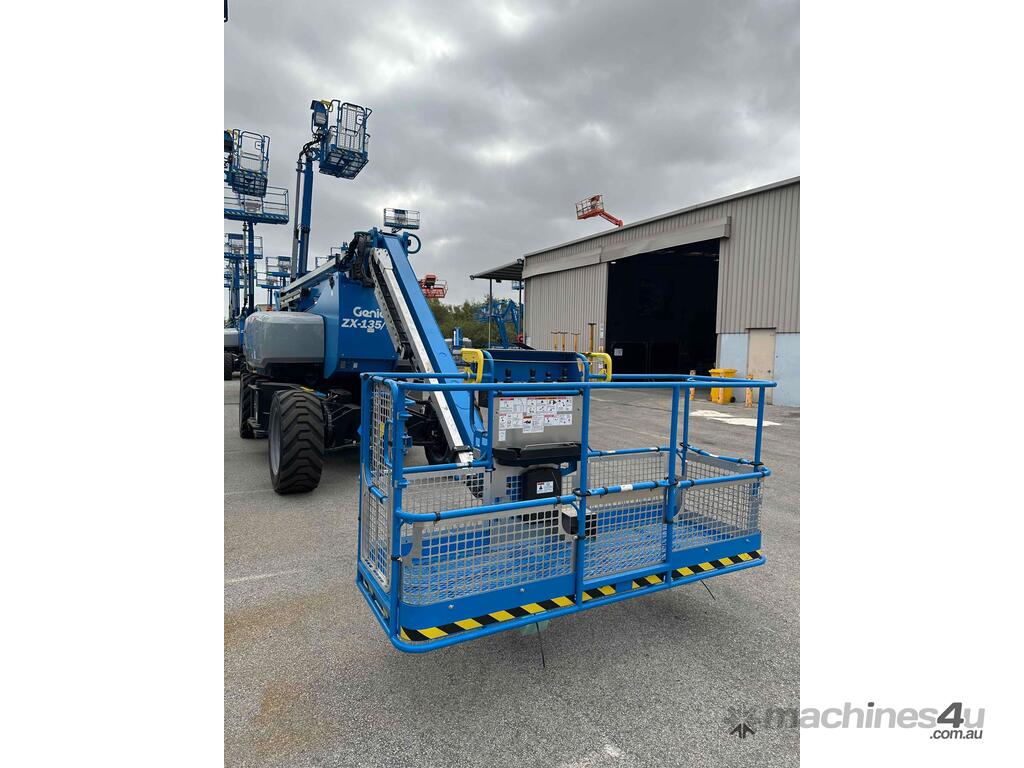

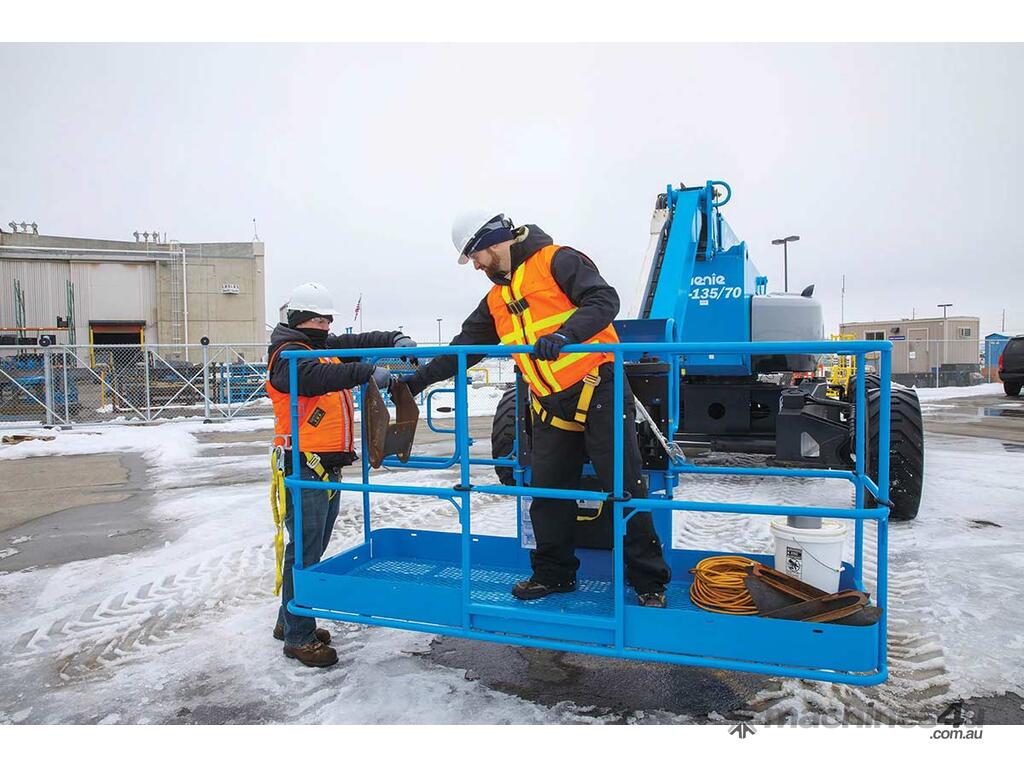

- Platform size: 0.91m x 2.44m
- Platform rotation: 160°
- Jib rotation: 110°
- Drive speed: 4.5km/h stowed
- Gradeability: 45%

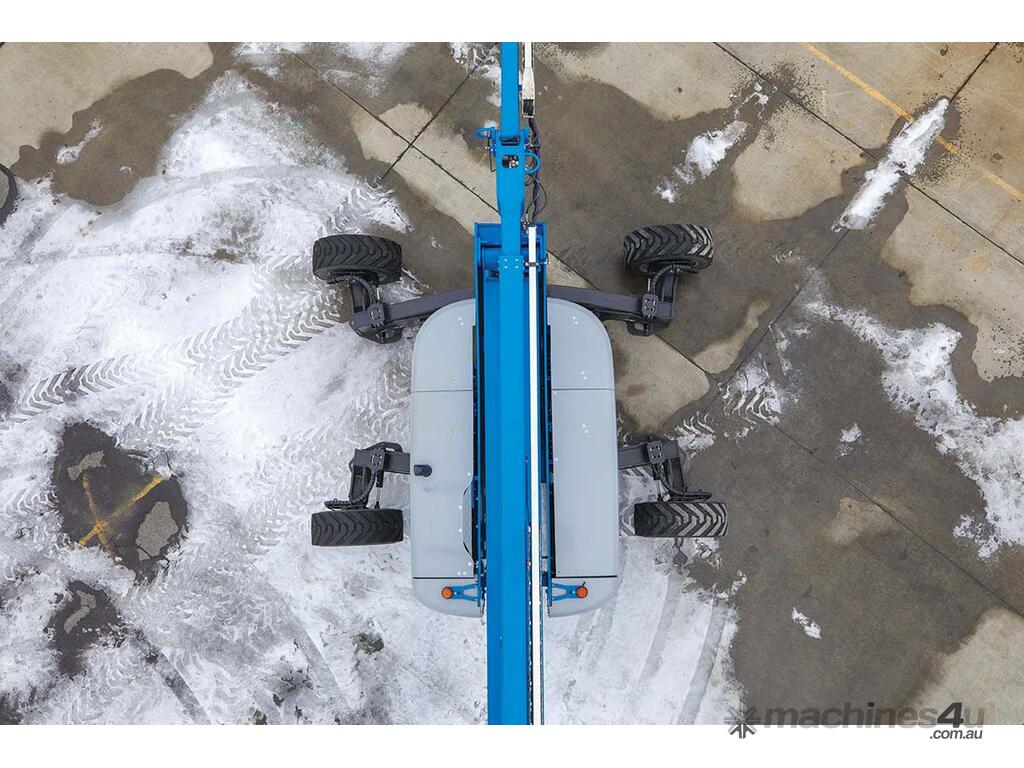

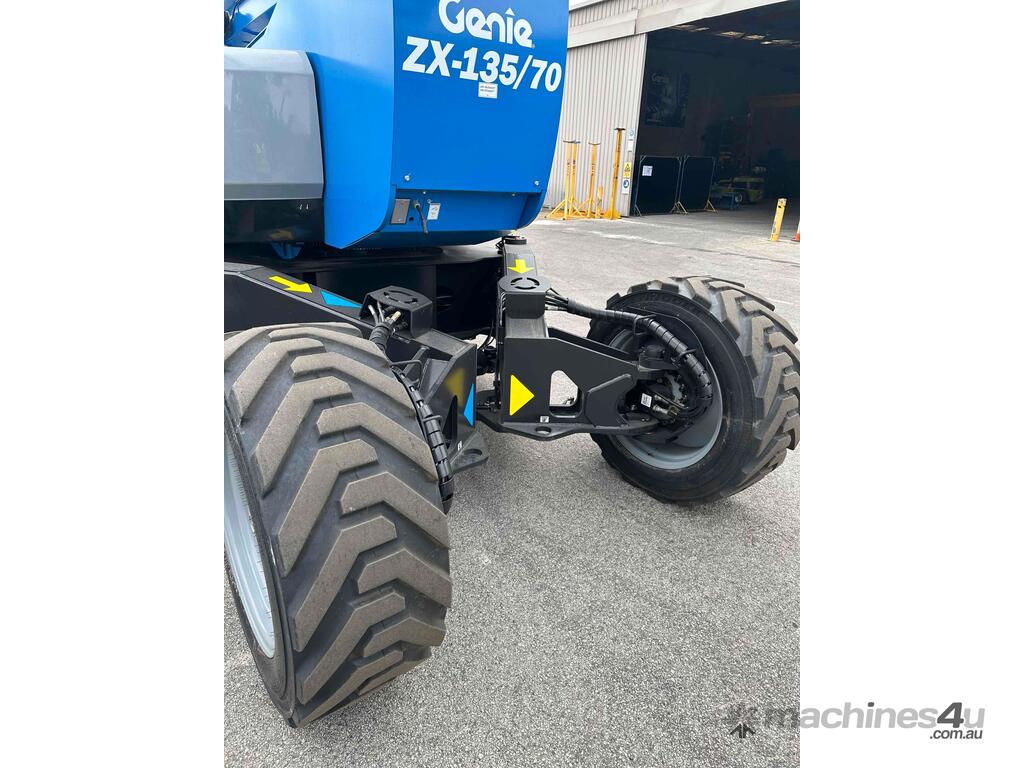

- Four-wheel drive with extendable axles
- Foam-filled rough-terrain tyres
- 360° continuous turntable rotation
- Power source: Deutz 55kW diesel engine
Applications
- Construction
- Industrial maintenance
- Building fit-outs
- Outdoor elevated work
- Infrastructure projects
