New turbosol Concrete Equipment for sale - Giotto Mono 215v

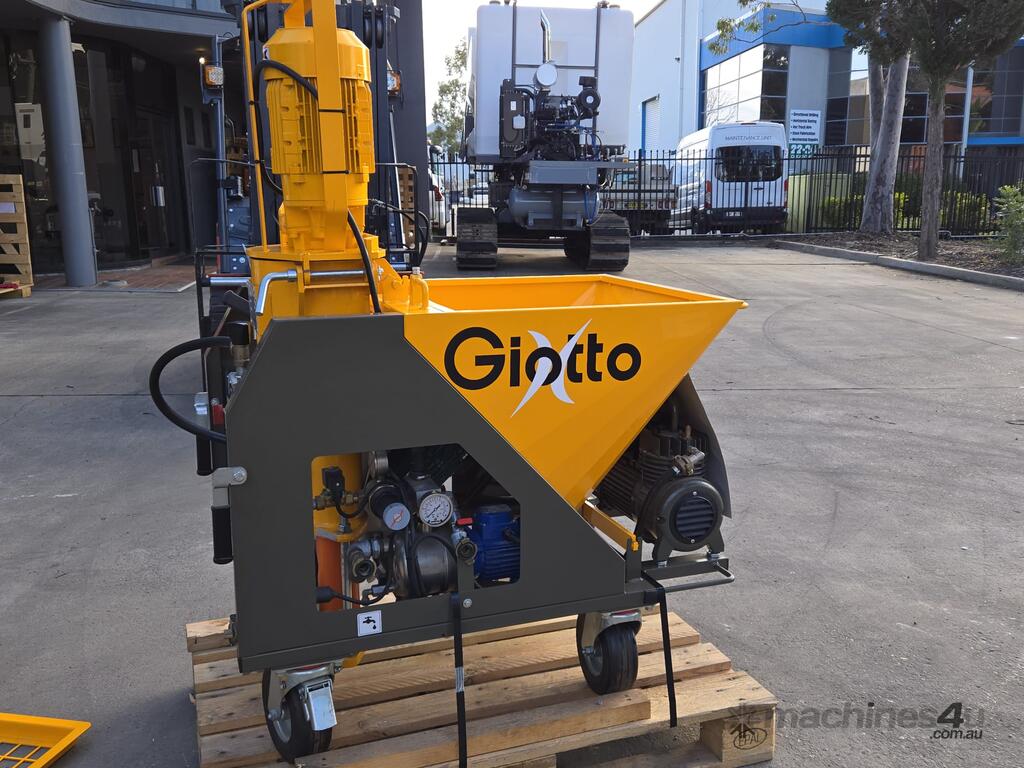

TURBOSOL GIOTTO MONO.

CGS Equipment distributors for Australian and New Zealand are proud to offer a high quality Italian manufactured TURBOSOL GIOTTO MONO Plastering Machine.

GIOTTO MONO is a single-phase plastering machine ideal for dosing, mixing, pumping and spraying dry mix materials from bag or silo.

Giotto Mono specifications are as follows:
• Power Supply Tension - 230 V
• Auxiliary controls tensions - 24 V
• Motor - 3.0 kW plaster pump 0.25 cell dosing hopper
• Worm gear pump - Turbosol - D5 2.5 Eco
• Max. aggregate size - 4 mm
• Output* - 13–16-18 l/min
• Max. working pressure - 40 bar
• Hopper capacity - 110 l
• Delivery Distance* - 20 m
• Delivery height - 10 m
• Filling height - 99 cm
• Delivery manifold - Ø 25 mm
• Size (L x W x H) - 115 x 65 x 147 cm
• Weight - 247 kg

Built with a modular bent trolled steel body, it’s equipped with a highly efficient geared motor and 3-speed frequency inverter.

The wear and tear components are universal and interchangeable.

Thanks to its special assembly, GIOTTO MONO delivers great performance with extremely low energy-consumption.

It can be disassembled into parts to facilitate the transport on the floor.
