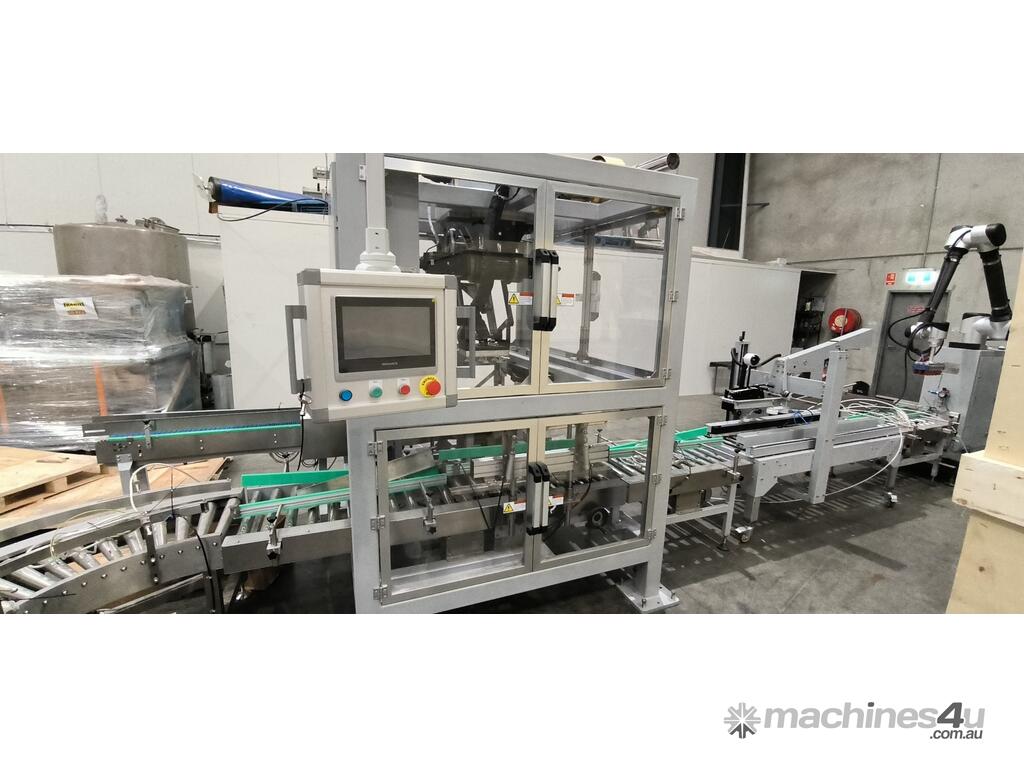

Glass jar filling and packing system, carton erector, carton sealing machine and filling machine.

In commisioning state, ready for viewing in middle of june.

Complete packing line solution for glass jar. From 100ml to 1kg jar. Different pack arrangement available.
From 1800-10000bpm

1. State of the art monobloc (4000bpm) 16 station rinse (Air or solution), 16 station fill and 5 capping stations.
Can fill sauce, gallic paste, ginger paste.
All servo driven station, can adjust fill of each individual head on the fly.
Lug capper, cap elevator.
Mixing hopper reserve tank.

2. State of the art carton opener and bottom seal, with all axes driven by servo motor for quick positionning from HMI.
Standard model steel frame powder coated. or SS304.
PLC + 9 servo control system. The system can do recipe function for quick change over.
Specifications:
3 model available, CE400, CE500, CE650.
Erecting speed: 5-30bpm, 5-30bpm, 5-25bpm.
Lenght of the box: L145-430mm, L280-500mm, L270-650mm.
Width of the box: W85-350mm, W150-400mm, W180-500mm.
Height of the box: H105-350mm, H150-400mm, H150-450mm.

3. Pick and place in a box system, up to 28kg payload.
Pick jar and place them in a box automatically.
Different pack arrangement, 2X3, 2X4, 3X4.

4. Automatic case sealer and top closing.

5. Robotic arm for palletising, 2 pallets system for continious run.

KG Foods equipments also supply a complete range of Vertical Form Fill Seal machines, filling machine, carton erector which are highly reliable, heavy duty and technologically advanced. Our packaging machines are supported by a team of factory trained engineers who are customer focused and committed to keeping you producing efficiently.

We specialise in bagging systems and pouch packing solutions.

Our goal at KG Foods equipments is to supply, design and manufacture flexible packaging systems. Equipment that our customers can confidently rely upon for their current and future production needs. All the machines are tested in full production and bein seein before hand.
