Great New Fibre Laser (MAXPHOTONICS 3.0kW laser source)

INCREDIBLE PRICE FOR SHORT TIME ONLY.
INCLUDES
MAXPHOTONICS LASER SOURCE
FREE DELIVERY SYDNEY - MELBOURNE - BRISBANE METRO AREAS
2 YEAR WARRANTY ON THE LASER SOURCE

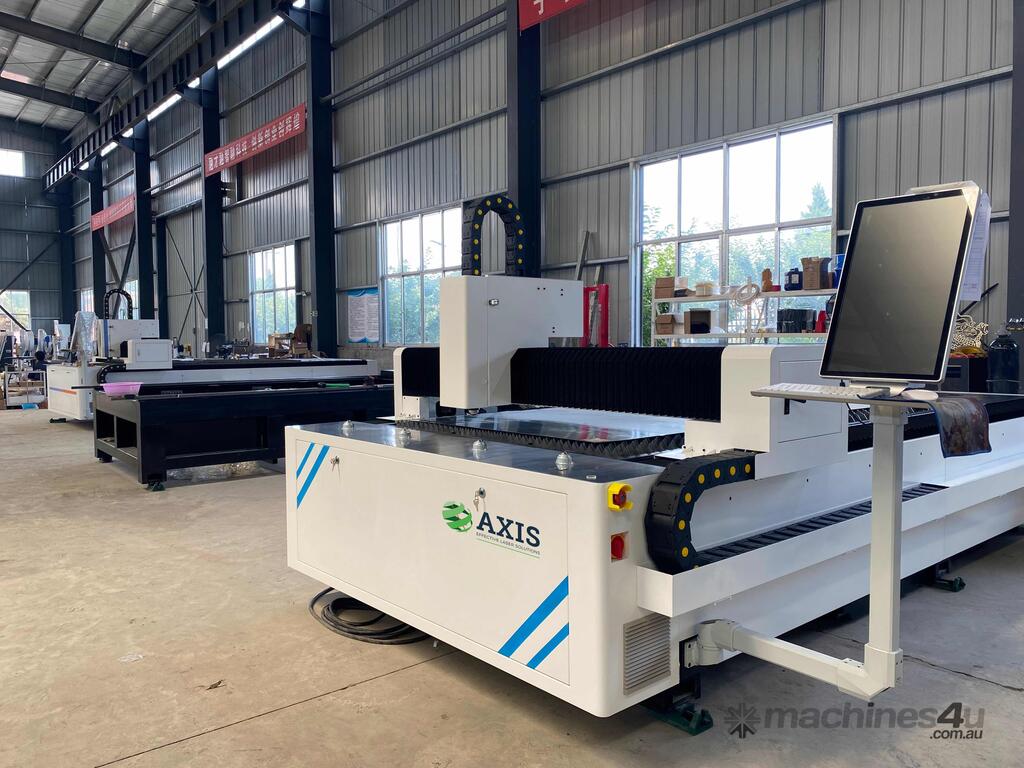

3000mm x 1500mm 3.0KW fibre laser laser cutting machine

This price is for the 3.0kW Max version which is especially made to handle the demands of cutting Aluminium and other highly reflective materials.

This is not just some cheap brand.
AXIS Quality
AXIS Reliability

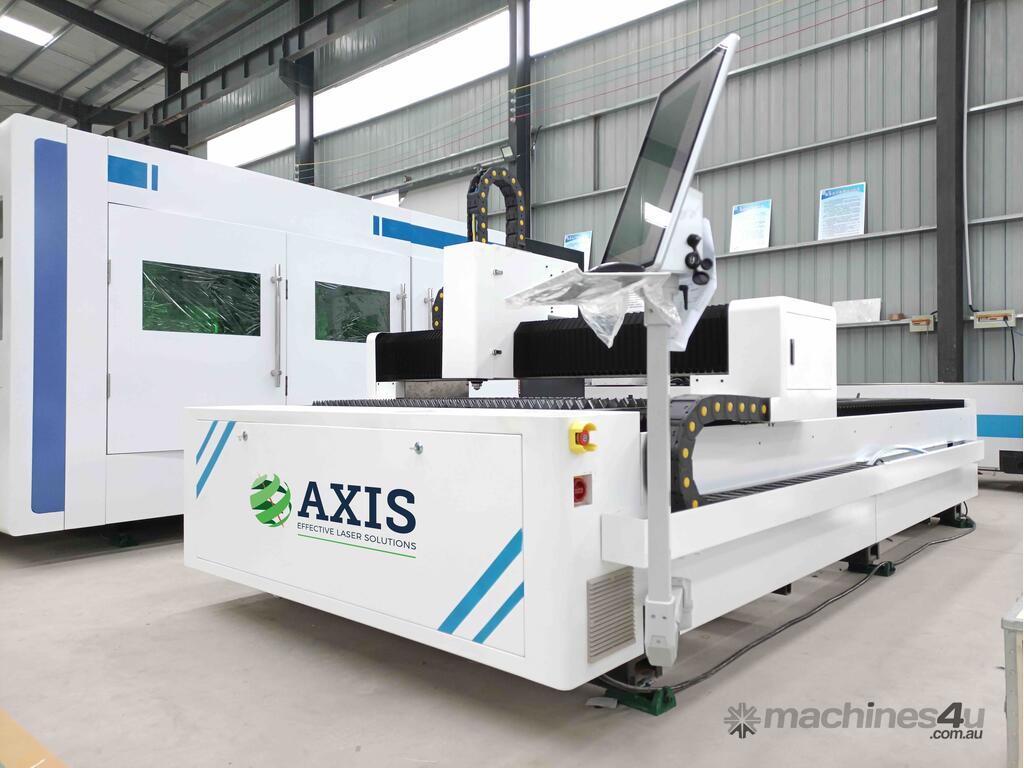

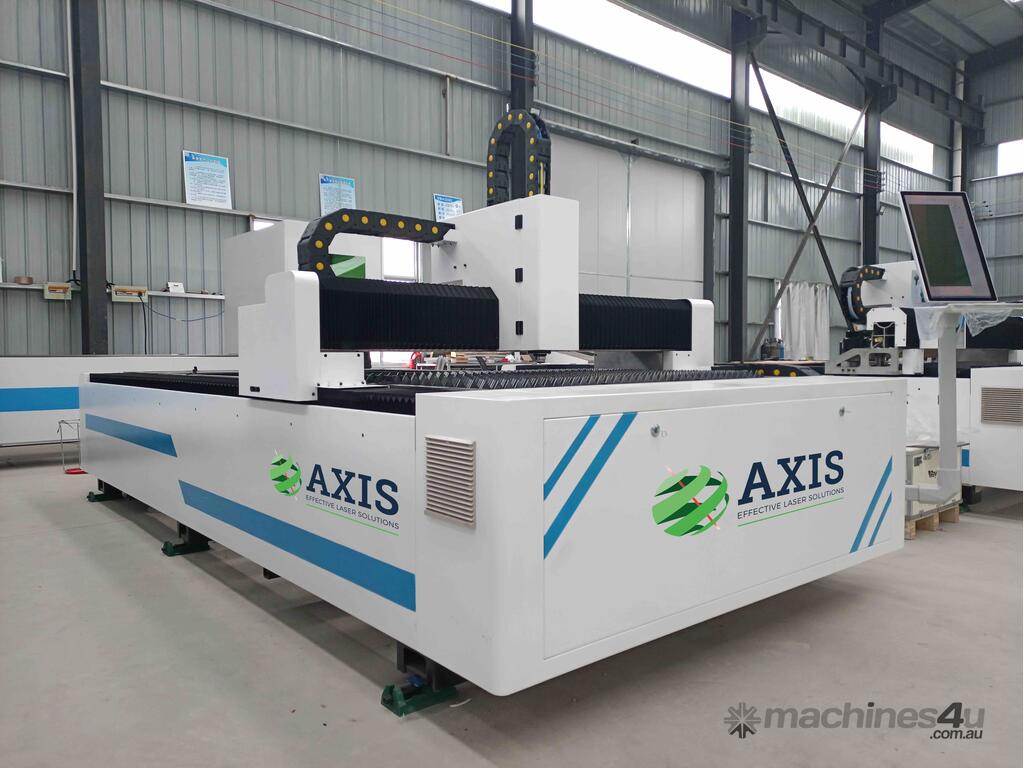

AS-FLXO laser cutting machine is an open-type structure, single platform. Easy to load and unload from the front, left and right sides. Equipped with a fibre laser device, the laser power is from 1.5 kW to 3kW.

The machine bed is welded by high-strength carbon structural steel with an annealing furnace 600deg high-temperature treatment for 24 hours, and ageing treatment and finishing after rough machining can ensure the complete release of welding stress and no deformation during long-term operation of the equipment.

Aerospace standards cast aluminium beam, with high accuracy, good toughness, corrosion resistance, anti-oxidation, low density, and greatly increased processing speed.

The intelligent visible control system, autofocus cutting head, high precision durable linear guide transmission parts, imported servo motor and reducer ensure high stability and high cutting speed and accuracy.

Model Range: AS-FLXO
Power Range: 1kw-3kw MAX, IPG or Raycus
Machining area (length x width): 3000*1500
Positioning accuracy of X / Y axis: ±0.05mm/m
Repeated positioning precision of X / Y axis: ±0.02mm/m
Maximum cutting speed: 80m/min
Maximum acceleration: 0.8G
Rated voltage of power supply: 400V 3PH 50HZ
Total power protection level: IP54

Configuration
# Laser Source: MAX
# Control System: Raytools XC3000

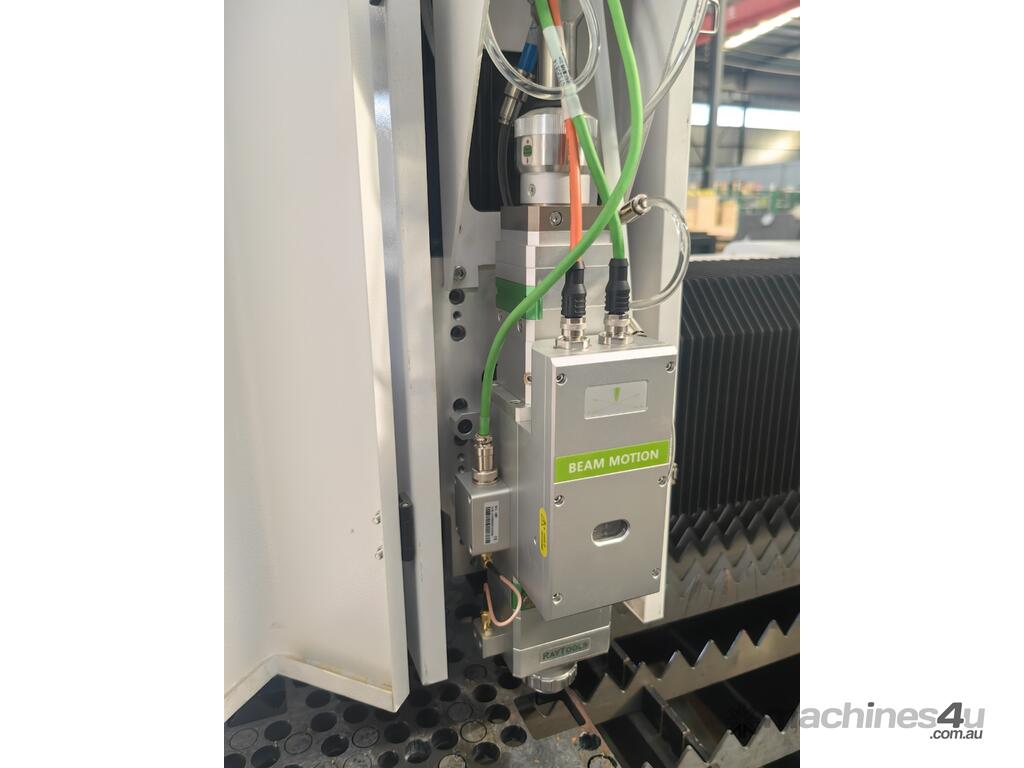

# Automatic cutting head: Raytools BM110
# Rack and pinion transmission system: Taiwan YYC
# Reducer: Shimpo

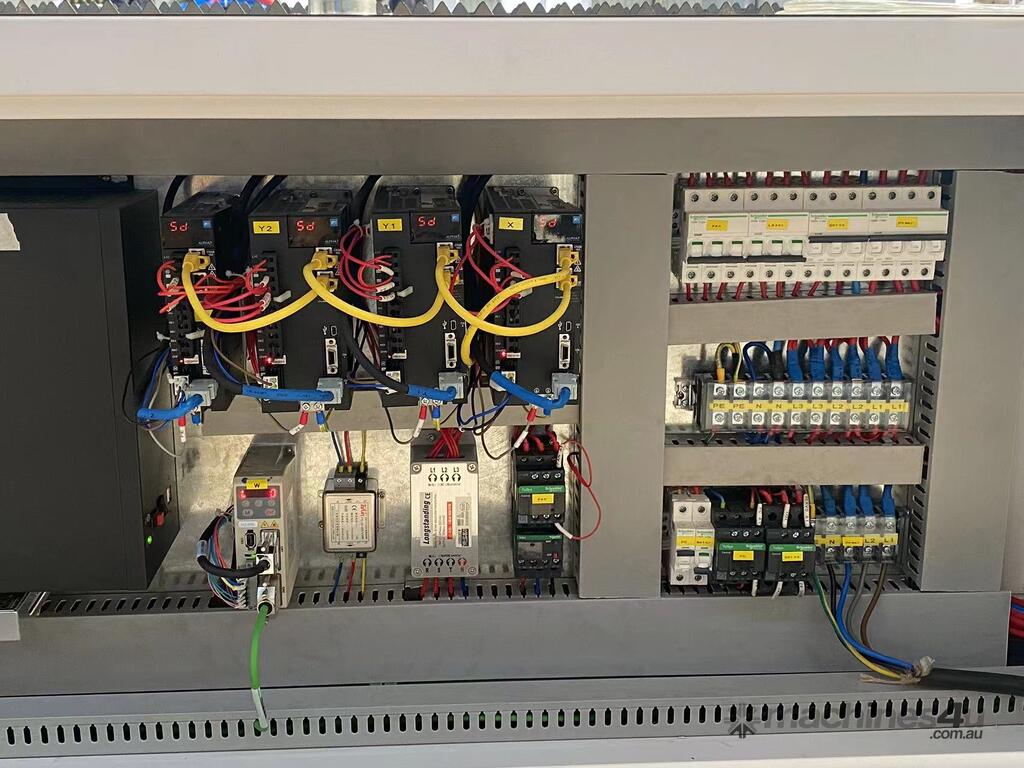

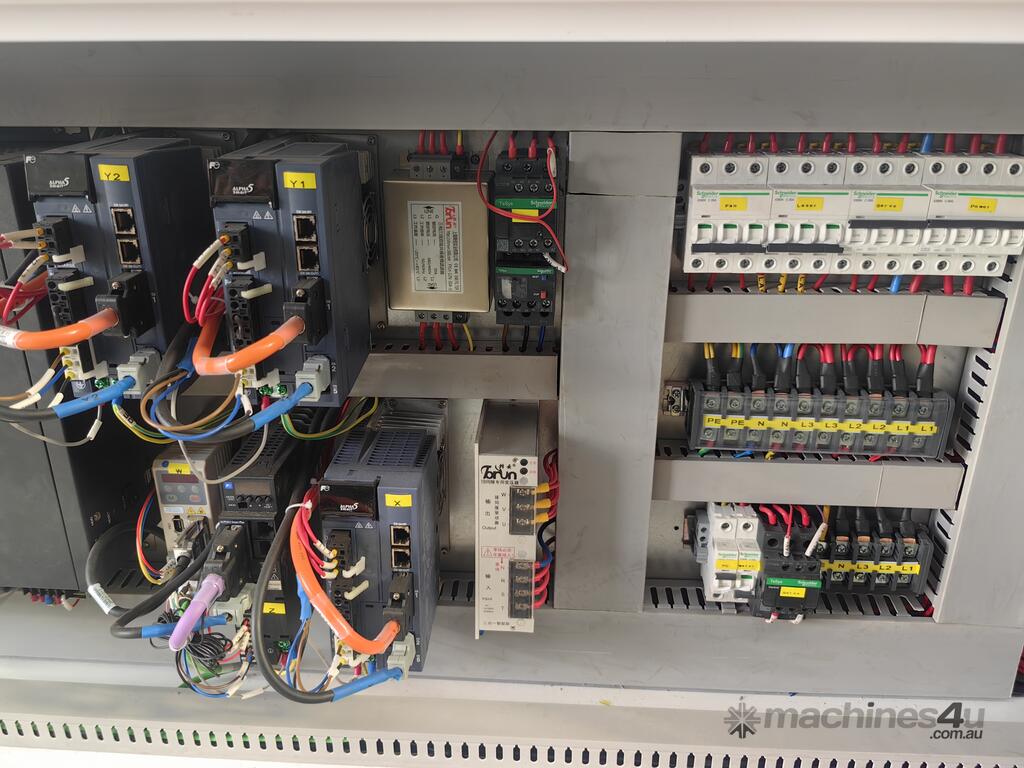

# Driver and servo motor: Inovance
# Guide rail: Taiwan HIWIN
# Pneumatic component: Japan SMC

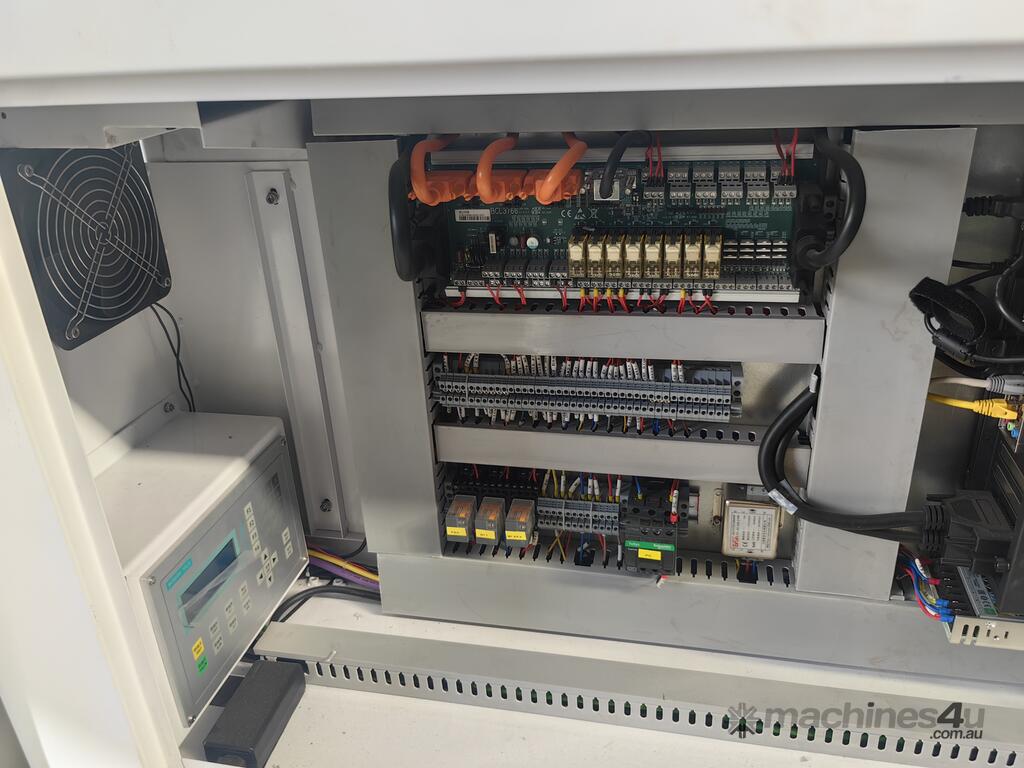

# Electronic components:Chint

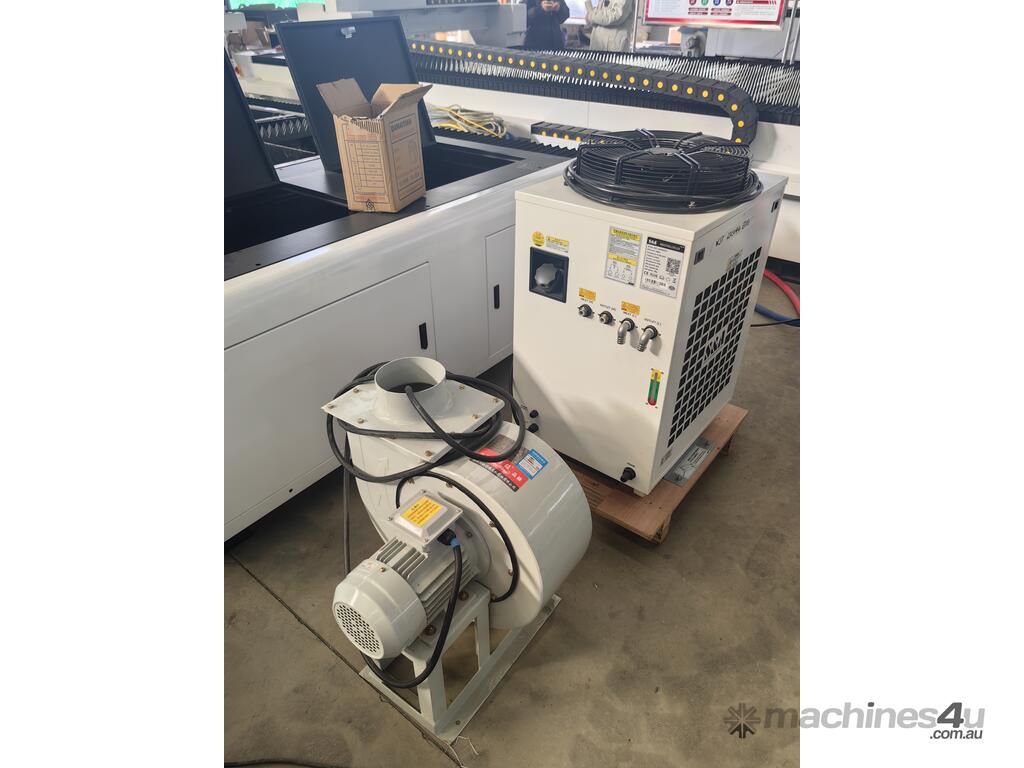

# Water chiller: China S&A

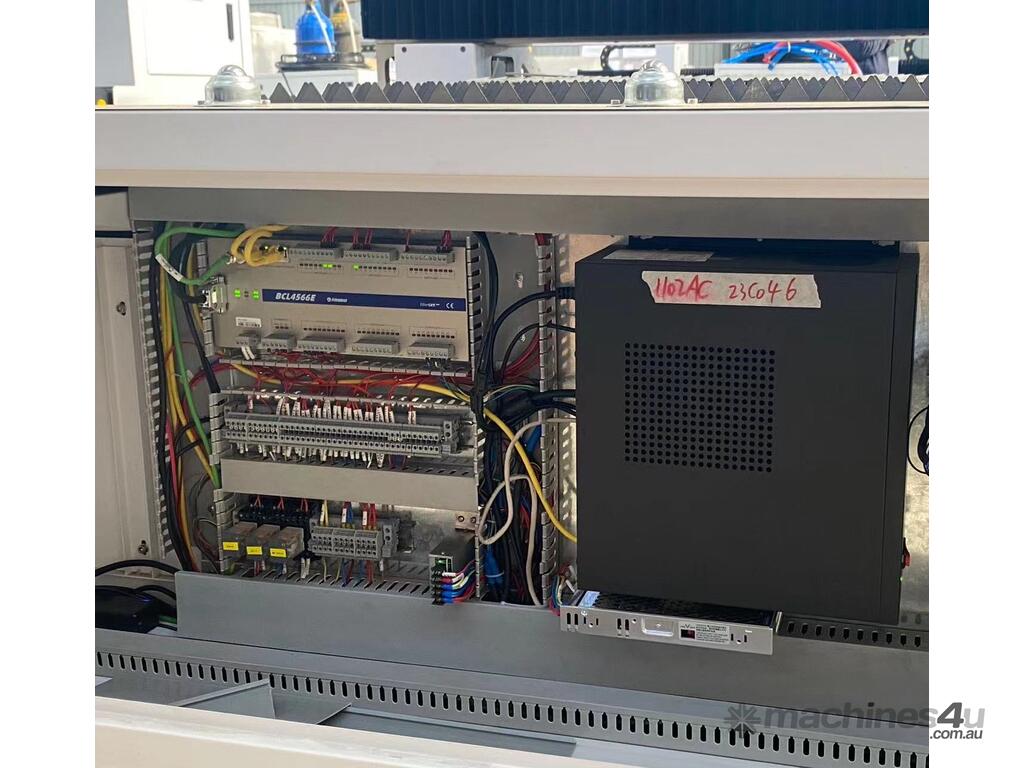

# Industrial computer Advantech
# 5.5kw exhaust fan
# 50kva voltage stabiliser (3kw) / 30kva voltage stabiliser (1.5kw)

3kw MAX, laser cutting ability
- Mild Steel up to 16mm
- Stainless Steel up to 8mm
- Aluminum up to 6mm

1.5kw MAX, IPG or Raycus laser cutting ability
- Mild Steel up to 14mm
- Stainless Steel up to 4mm
- Aluminum up to 3mm

Raytools XC3000 control system
*Process database can be expanded as clients require.
*Fly cut, down jump, compensate, lead, micro-joint, pre-pierce, multilevel pierce and film cut etc…
*Auto FindEdge, manual FindEdge, auto sort and break point cut, etc…
*Cooling point and triangle cut.
*Auto sort: auto transferred to system recognized format, auto sorted and generate to NC or PART files.
*Compatible to various lasers.
*Compatible to processing by manual G code modification
*Communication: EtherCAT protocol control with real-time refresh cycle 1ms.
*Accuracy: path 0.005mm, positioning 0.001mm, repeated positioning 0.002mm.
*Maximum cutting 80mm/min, maximum dry motion 250m/min.
*Safety: overload protection to axis moment, real-time monitoring to axis moment to stop and upload servo alarm.
*FindEdge: Auto FindEdge and manual FindEdge (Auto FindEdge can turn angle automatically by detecting slight angle deviation of metal material).
*Alarm: alarm log export to give reference to operator.
*Friendly maintenance: auto calibration and break point mode.

Please contact PLASQUIP SMPS for more information and for installation cost.
