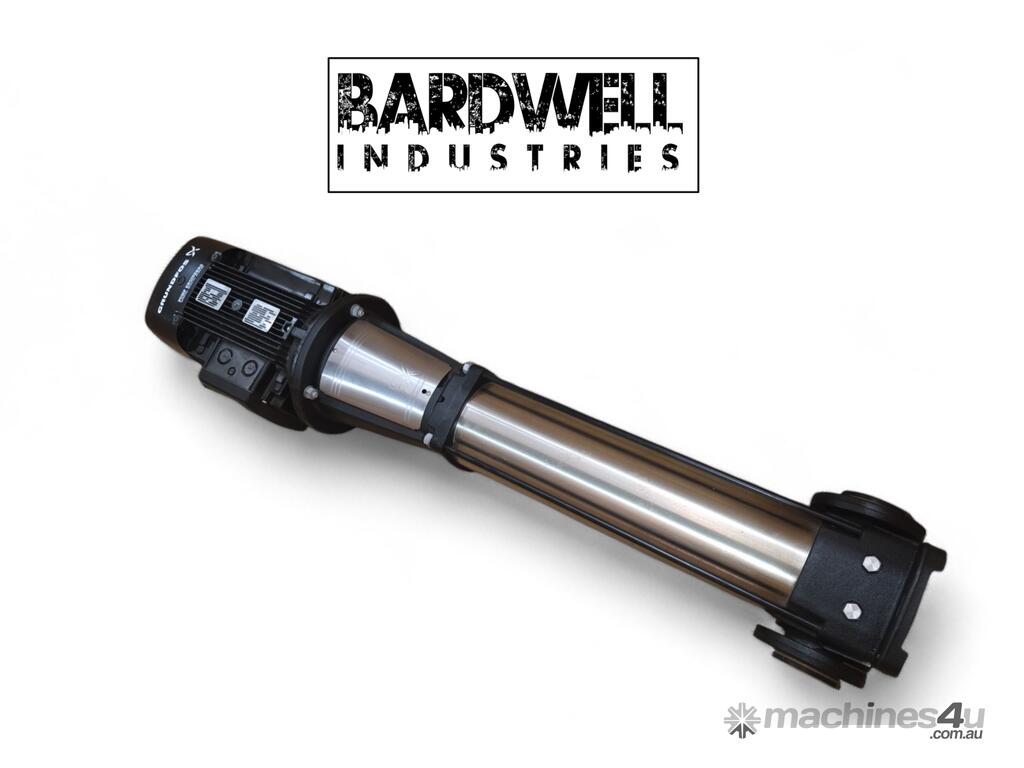

Grundfos CR32-10-2 Vertical Multistage Centrifugal Pump - 18.5 kW, 10 Stages

Brand: Grundfos
Condition: Opened - never used
Included Components: 1 x Pump and Motor
Weight: 320.00 kg
Grundfos CR Vertical Multistage Centrifugal Pump - 18.5 kW, 10 Stages

High-efficiency, inline multistage pump designed for demanding industrial and commercial applications

Specifications:

Model: CR A-F-A-E-HQQE
Product No.: 96122024
Rated Flow: 30 m³/h
Rated Head: 146.3 m
Maximum Head: 187 m
Stages: 10
Motor Power: 18.5 kW (IE3 efficiency class)
Motor Speed: 2940-2950 rpm
Voltage: 3 x 380-415 D / 660-690 Y V
Current: 34.5-32.5 / 20.0-18.8 A
Frequency: 50 Hz
Shaft Seal: HQQE (Silicon Carbide/EPDM)
Max Operating Pressure: 30 bar
Liquid Temperature Range: -30°C to 120°C
Ambient Temperature Range: up to 60°C
Inlet/Outlet Connection: DN 65, DIN flanges
Enclosure Class: IP55
Insulation Class: F
Net Weight: 201 kg
Country of Origin: Denmark
Materials:

Pump Head & Base: Cast Iron (EN-GJS-500-7 / ASTM A-06)
Impellers & Intermediate Chambers: Stainless Steel (EN 1.4301 / AISI 304)
Bearings: Silicon Carbide
Support Bearings: Graflon
Applications:

Suitable for water supply, pressure boosting, industrial process systems, boiler feed, and water treatment applications.


Location: Morwell, VIC

Shipping: Available Australia-wide

For more information or to arrange an inspection, please get in touch.
