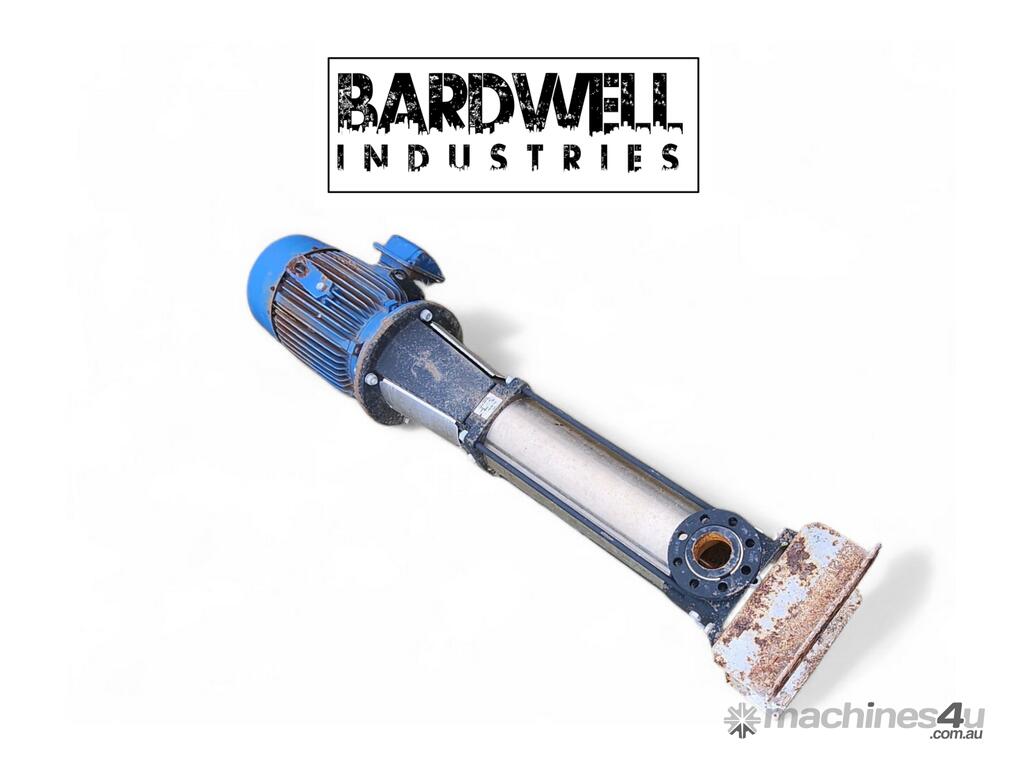

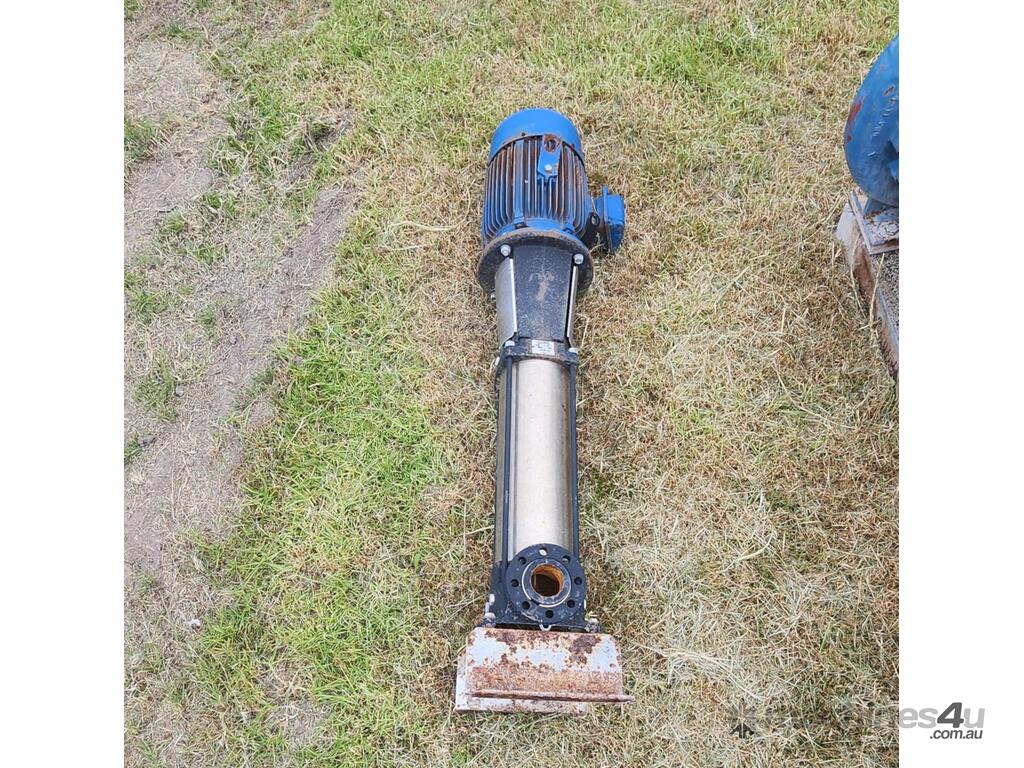

Grundfos Vertical Multistage Centrifugal Pump

Brand: Grundfos
Condition: Used
Included Components: 1 x Pump and Motor
Weight: 320.00 kg
CR 32-8 A-F-A-E-HQQE Vertical Multistage Centrifugal Pump
High-performance in-line pump for demanding industrial applications

This robust vertical, non-self-priming multistage centrifugal pump is designed for installation in pipeline systems and mounting on a foundation. Ideal for handling water in high-pressure systems with precision and durability.

Key Specifications:

Model: CR 32-8 A-F-A-E-HQQE
Type: Vertical in-line multistage centrifugal pump
Rated Flow: 30 m³/h
Rated Head: 121 m
Pump Speed: 2923 rpm
Liquid: Water (range -30 to 120°C, selected temp: 20°C)
Pump Orientation: Vertical
Shaft Seal: Single, HQQE (EN 12756)
Curve Tolerance: ISO9906:2012 3B
Approvals: CE, EAC, UKCA, SEPRO
Drinking Water Approvals: WRAS, ACS
Construction & Materials:

Impellers & Chambers: Stainless Steel (EN 1.4301 / AISI 304)
Pump Head & Base: Cast Iron (EN-GJS-500-7 / ASTM A-06)
Bearings: SIC with Graflon support bearing
Coupling: Cast iron split type
Connections: DIN flanges (Inlet & Outlet DN 65, PN 40)
Motor Details:

Type: 3-Phase IEC Motor, Model 160MD
Rated Power: 15 kW (IE3 Efficiency Class)
Voltage: 380-415D / 660-690Y V
Frequency: 50 Hz
Speed: 2930-2950 rpm
Enclosure Class: IP55
Insulation Class: F
Efficiency at Full Load: 91.9%
Power Factor (cos ?): 0.89-0.87
Operating Conditions:

Max Operating Pressure: 30 bar
Ambient Temperature Limit: 60°C
Pressure Rating at Temp: 30 bar -30°C to 120°C
Installation: On fabricated steel base, terminal box at 6 o’clock position
Dimensions & Weight:

Net Weight: 182 kg
Gross Weight: 221 kg
Shipping Volume: 0.805 m³
Condition: Used - fully functional and well-maintained

Contact us for more information or to arrange inspection. A premium solution for high-pressure fluid systems in industrial, commercial, or municipal applications.
