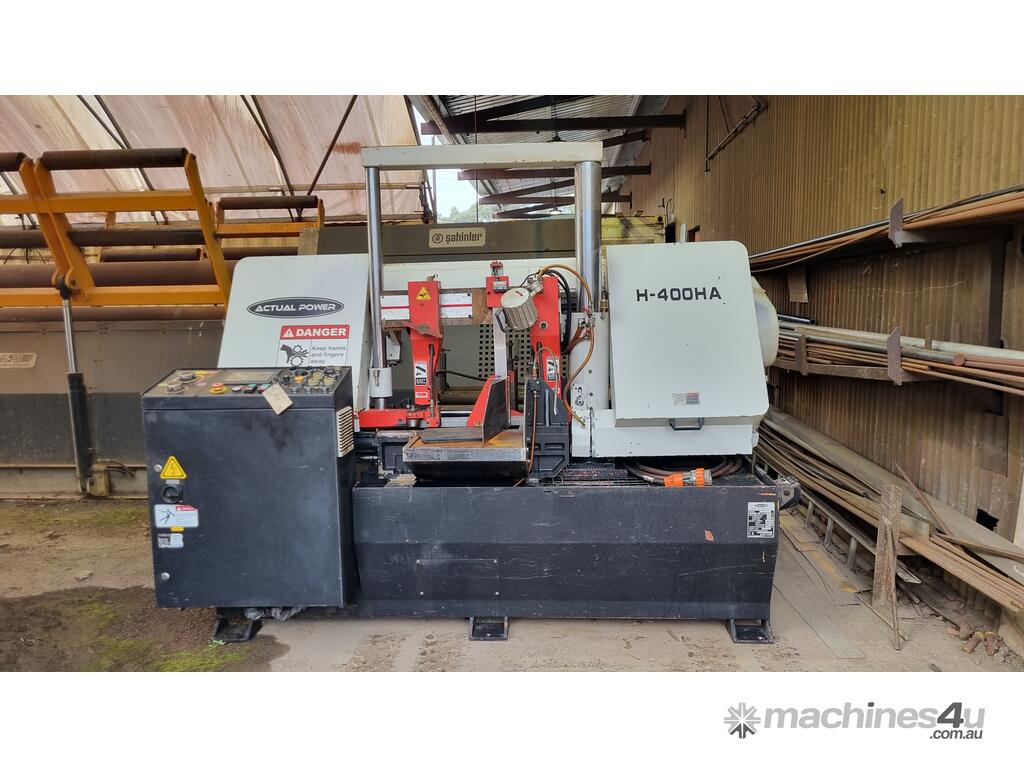

H-400HA-NC - NC Double Column Metal Cutting Band Saw

H-400HA-NC - NC Double Column Metal Cutting Band Saw - Automatic Hitch Feed
Includes Inverter Variable Blade Speed Control, Auto Kerf Compensation, Auto Trim Cut, LCD Touch Screen, Hydraulic Vice Clamping & Hydraulic Downfeed Control
420 x 400mm (W x H) Rectangle Capacity

Overview
Manufactured in Taiwan


Fully automatic and intelligent HMI touch screen programmable NC control accepts many different job quantities and lengths complete with hydraulic vice clamping and hitch feed system


Functions:
1. AUTOMATIC KERF COMPENSATION: Blade thickness for multiple indexing: This function allows and calculates the blade thickness into the programmed cut length so you achieve your desired length required (factory pre-set)


2. AUTOMATIC LOCATE TRIM CUT: When the material is placed in rear vice and this function is selected the machine will automatiy find the material end and set up trim cut to the programmed value


3. "SAVE-A-BLADE": To prevent carbide blade tooth deformities. This function retracts the material back approx 3mm away from the blade preventing the carbide blade teeth rubbing on the material on the return after completion of cut. This is activated via selecting the carbide blade function on the control panel


4. AUTOMATIC MATERIAL ZERO POINT LOCATION: This function automatiy finds the start point of the material preventing unnecessary trim cut waste


5. AUTOMATIC SHUT-OFF: For finished jobs or out of stock


6. SIMPLIFIED SELF DIAGNOSTICS: Error code display


7. LCD SCREEN: With touch screen display


Features
Bundle and single cutting mode switch includes bundle cutting clamps (nesting fixture)
Idle wheel motion proximity switches shuts off machine if blade breaks or slips
Coolant system incorporating a wash down hose with trigger gun
Back-tilted saw frame for longer blade life
Inverter controlled infinitely variable blade speed 20-100mpm
Material height sensor for beam to rapid down and start cut feed rate when reached material
Precision feed pressure & feed rate dual valve system for optimal performance in any material
Hydraulic operated carbide blade guides with additional ball bearing guides provides superior accuracy and reduce friction for longer blade life
Large double columns precision ground for additional support



Automatic (work height) material sensor with rapid approach
Automatic hydraulic blade tensioning system with maximum pressure of 30kg/cm2
Electrical and hydraulic safety interlock prevents machine starting if vices not securely clamped
Synchronised power driven blade cleaning brush removes swarf from blade
Double retracting vice jaws (feeding vice only) reduces friction from jaws rubbing on material during the feeding process
Full stroke hydraulic cylinder vice provides quicker set-up of jobs
Hydraulic swarf conveyor directs excess waste to side of machine
Fitted with vibration dampening device for better cut finishes, blade wear & blade life
Dual vice clamping providing burr free cut


Saw has been replaced by a larger Saw, in excellent working condition, comes with 2 roller table and bundle Jig attachments, plus 2 new Blades

Can load onto transport - Located in Tomago NSW
