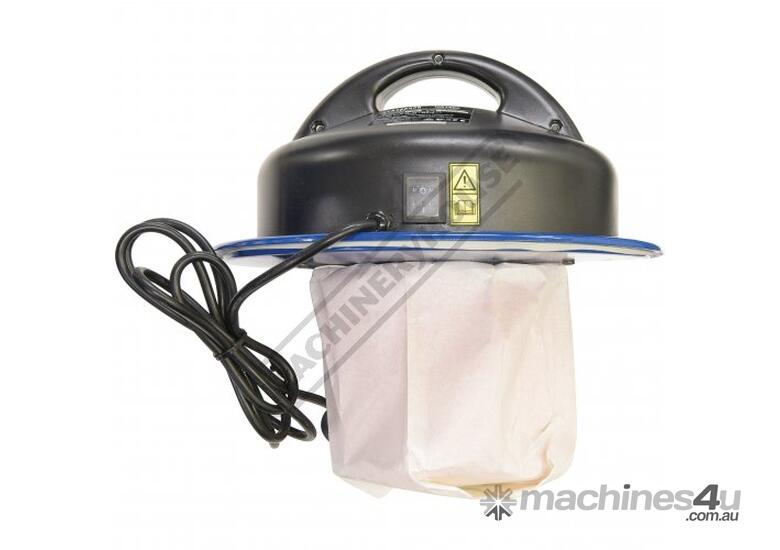

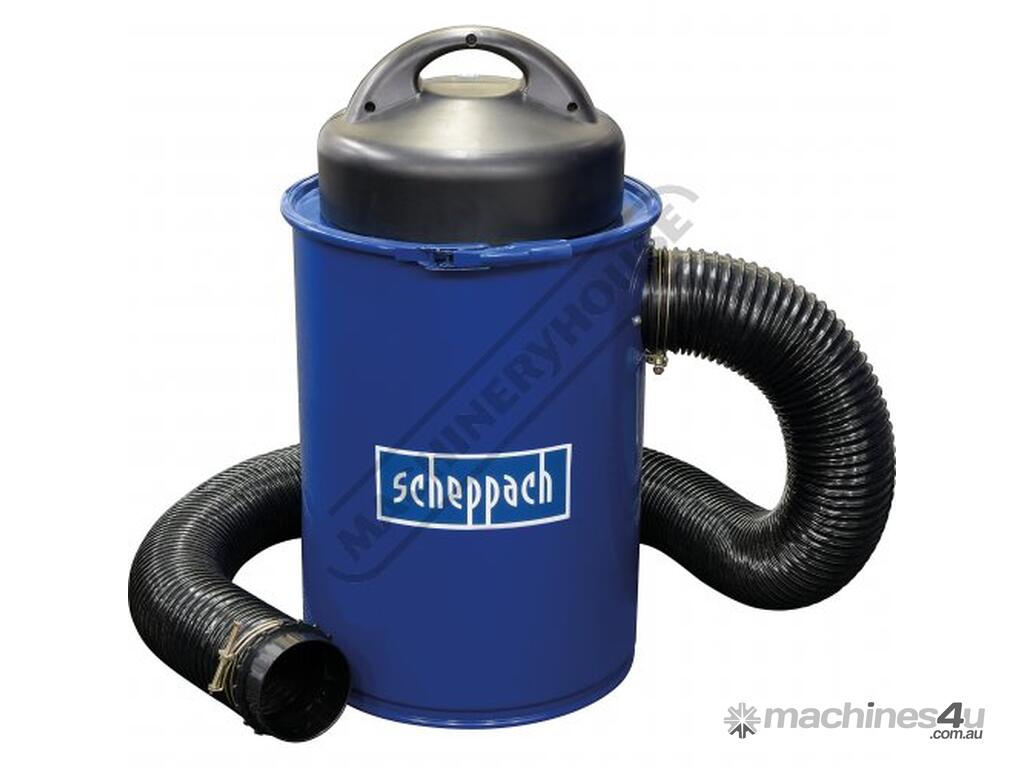

SCHEPPACH HA-1000 Dust Collector 50 Litre 109cfm - HPLV System
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W885
The HA-1000 makes a great addition to the home workshop.
When it comes to suction power the HA-1000 surpasses all conventional centrifugal extractors in spite of being the smallest and most cost-efficient unit in our range. Also its compact design makes it easily portable and ideal were space is limited.

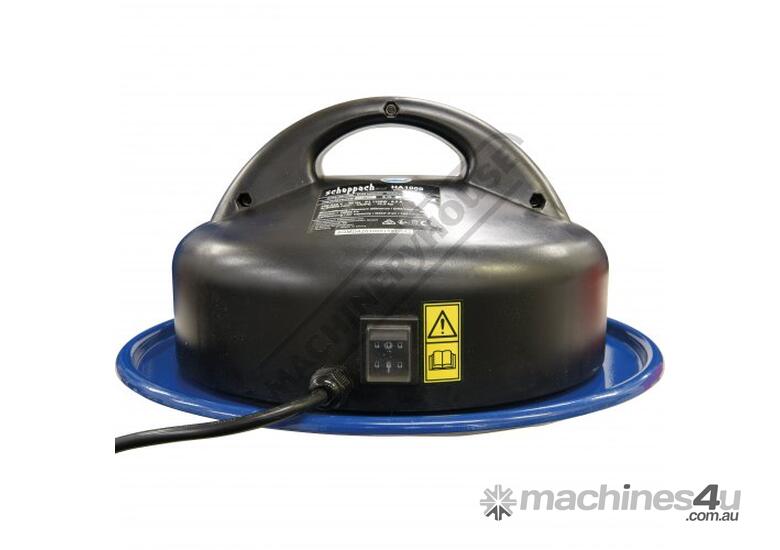

HPLV = High Pressure Low Volume System: HPLV extractors operate more like a standard vacuum cleaner as high pressure is increased or maintained when the inlet diameter is restricted or reduced. This extractor features a powerful 1100W through – flow motor design drawing dust & wood chips into a large Steel canister storage drum prior to entering both cardboard cartridge and paper bag filters; giving 2 levels of filtration down to 0.5 – 1 micron. This portable extractor is intended & ideal for the home workshop removing wood chips and dust from woodworking machines & power tools especially fitted with reduced ports from Ø100mm to Ø32mm.
Application examples Bandsaws, Scroll Saws, Sanders, and Power Tools etc. The Waste content can easily be emptied via a single quick action clamp. This extractor is also supplied with 2 metres of Ø100mm diameter hose.
Features:
German design & technology
1100W 240V motor
Handle for easy moving
Suction connector set for all small machines
Filter cartridge
Polyester needle-felt filter bag
Low pressure 2500Pa
Filter area 0.3m²
Filtration 5 micron
Filling capacity 50 litres
Hose length 2000mm
Hose connection Ø100mm
Noise level 77dB (A)
Certificate CE
Dimensions: Ø400 x 700mm (W x H)
Weight approx. 14kg

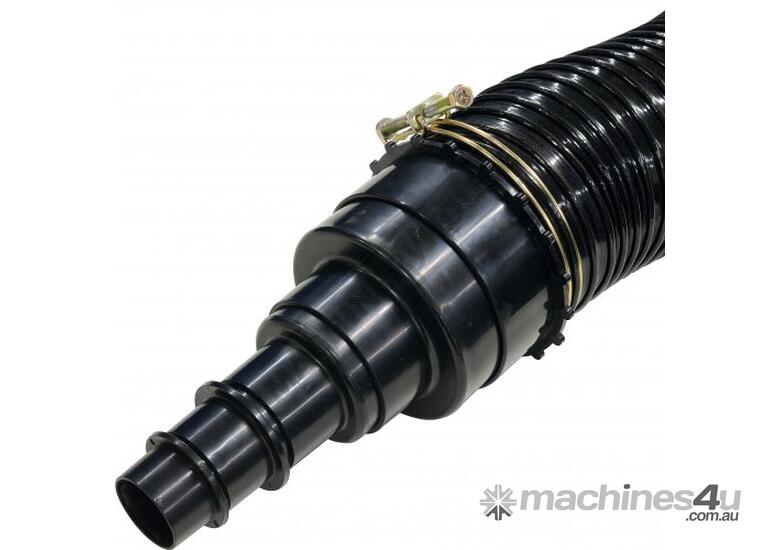

Includes:
- 2 x hose clamps
- 1 x 100-68mm reducer
- 1 x 63-45mm reducer
- 1 x 40-40mm reducer
- 1 x 35-35mm reducer
- 2 meters of Ø100mm hose
- Hose adaptor fitting
- Spare filter bags
Specifications:
ORDER CODE: W885
MODEL: HA-1000
Type: Dust Collector
Type: ~
Airflow (CFM): 109
LPHV - Low Pressure High Volume (Yes / No): No
HPLV - High Pressure Low Volume (Yes / No): Yes
Inlets / Diameter (No. / mm): 1 x Ø100
Outlets / Diameter (No. / mm): ~
Motor Power (kW / hp): 1.1 / 1.5
Voltage (V / amp): 240 / 10
Floor Space (W x D x H) (mm): 350 x 350 x 650
Shipping Dimensions (L x W x H) (mm): 700 x 420 x 420
Nett Weight (kg): 14
