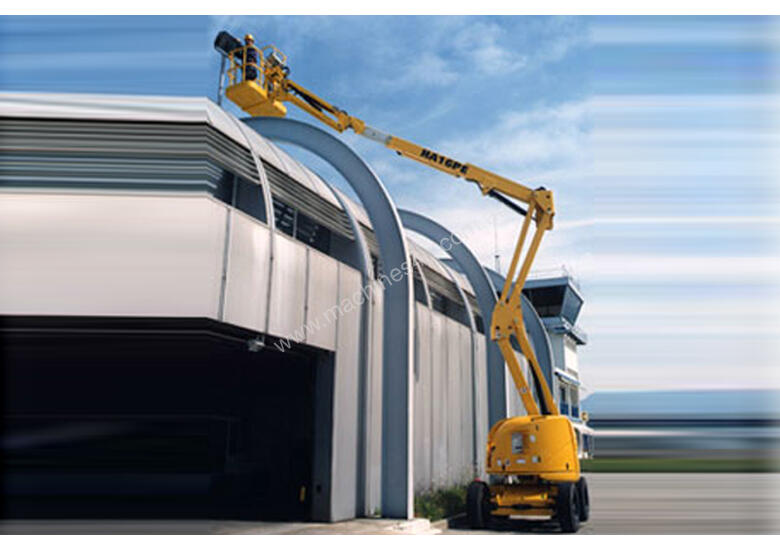

Haulotte HA 15IP
Features:
2 wheel drive and 4 wheel steer
Hydraulic brakes
45 amp 48 V battery charger
Load limiter in cage
220 V/16 A power line to cage
5° tilt alarm
12 V Battery / electrical control system
Emergency hand pump
Free wheeling device
Hour meter
Slewing block pin
Towing hooks / lifting eyes
Specifications:
• Chassis Type 2 Wheel Drive
• Boom Type Articulating Boom
• Hydraulic Fly Boom N/A
• Platform Rotation 180 degrees
• Maximum Working Height(m) 15
• Maximum Platform Height(m) 13
• Maximum Horizontal Reach(m) 8.50m
• Lift Capacity / SWL(kg) 230kg
• Weight / Outreach Limited N/A
• Turret Rotation N/A
• Outrigger Stabilisers N/A
• Minimum Transport Length(m) 5.5
• Minimum Transport Width(m) 1.83
• Minimum Transport Height(m) 2.2
• Power 48Volt - Battery - DC
• Weight(kg) 7300 kg
