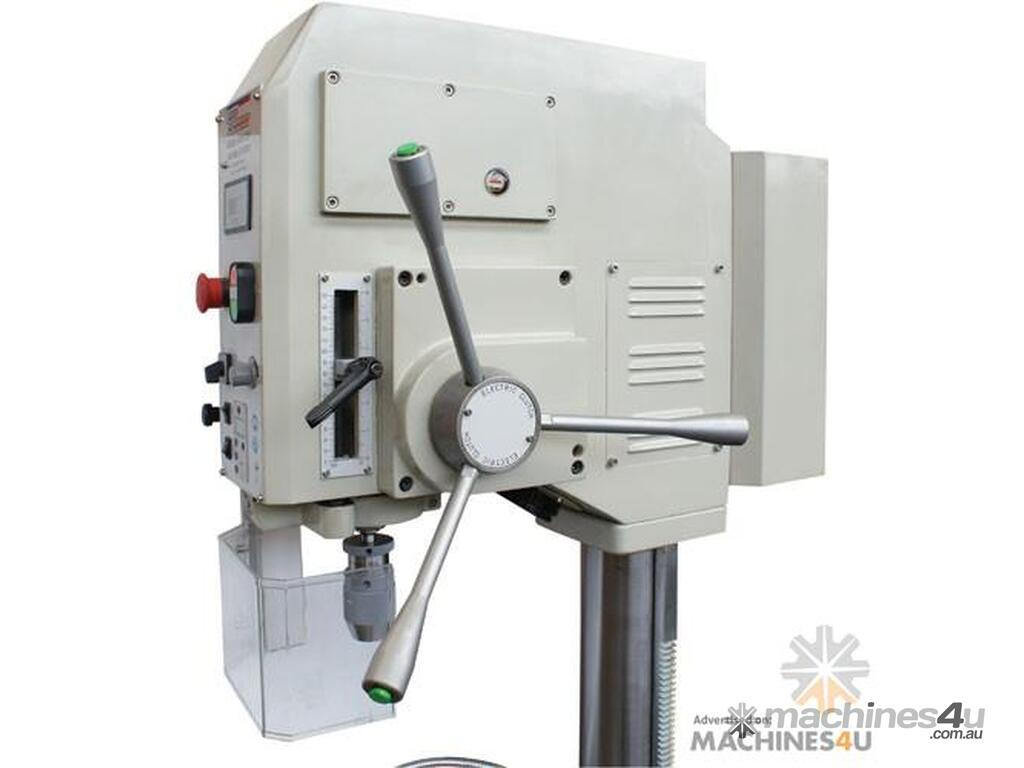

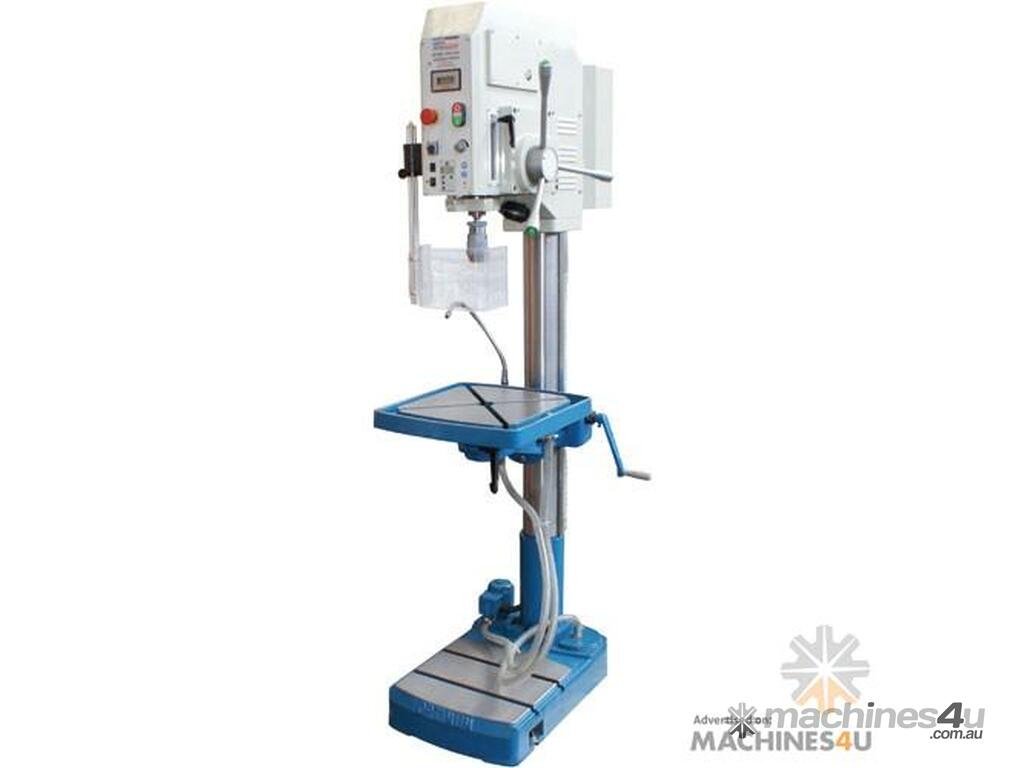

HAFCO GHD 30V 3 MT Industrial Geared Head & Variable Speed Pedestal Drill

GHD-30V - Geared Head Drill (240V)

CALL FOR OUR BEST PRICE

31.5mm Drilling Capacity with Automatic Feed & Tapping
3MT

Features
31.5mm drill capacity with 125mm spindle travel
Geared head drilling machine with low, medium, & high selector
Variable speed from 50-2850rpm with digital display
Automatic start drill function for repetition work
Automatic Power Feed with range of (0.06, 0.09, 0.12mm/rev)
Automatic thread tapping with auto reverse upon reaching the pre-set depth

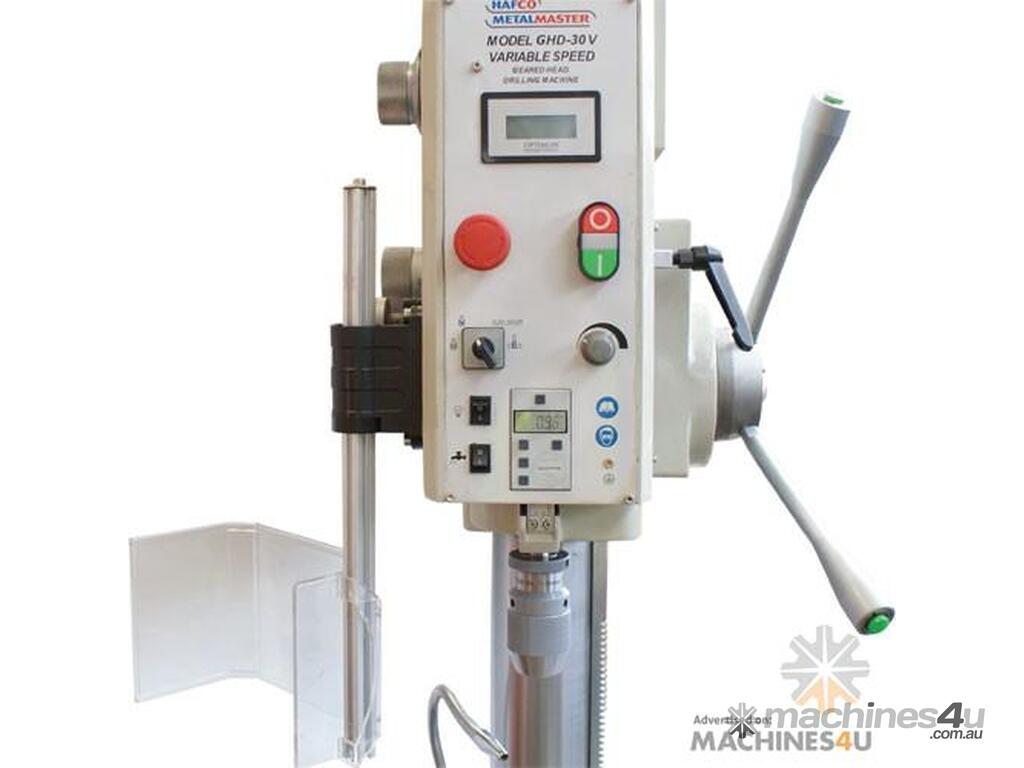

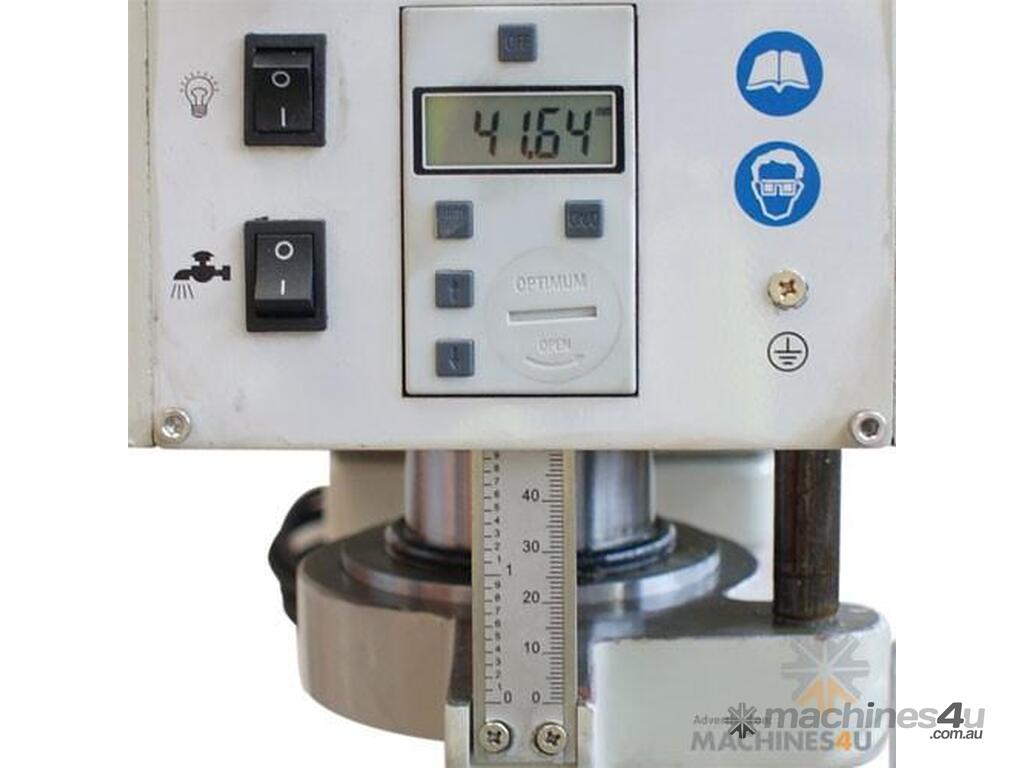

Digital readout depth gauge mounted on front panel
Adjustable accurate depth setting for increased productivity
Chuck guard with safety micro-switch
Drill ejector incorporated in machine
Work light mounted in convenient location
T slotted work table & base
Rack & pinion wind-up table

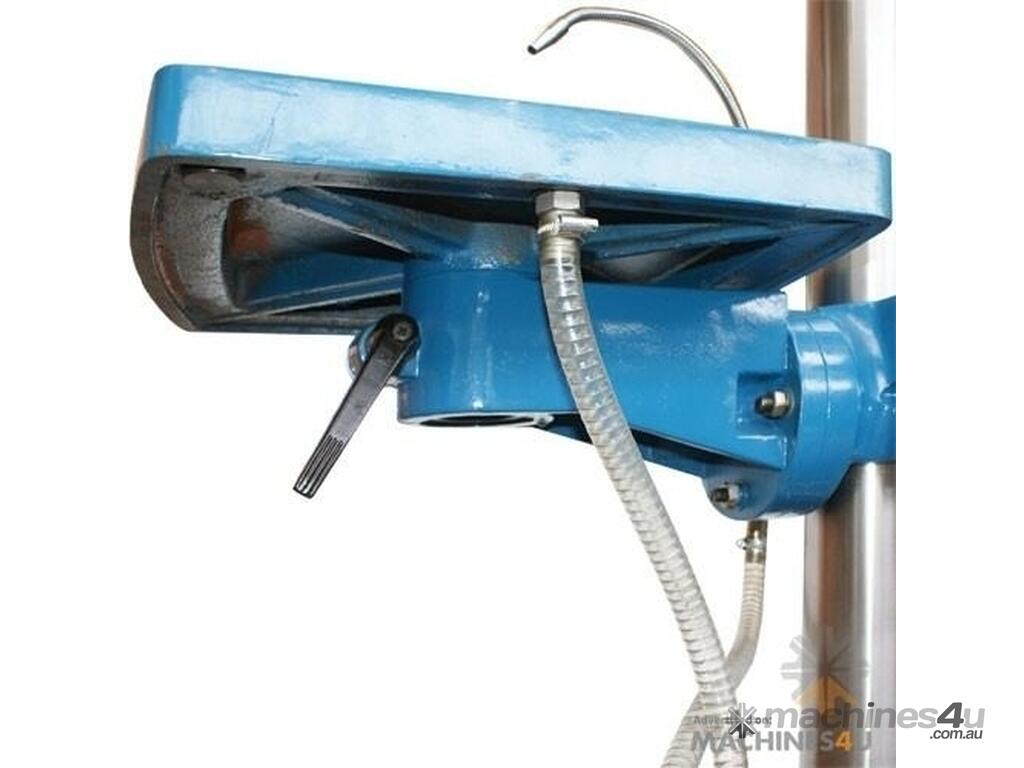

Square work table tilts to ±45º & rotates 360º
Coolant pump system with flexible hose
2.2kW / 3hp motor 240V

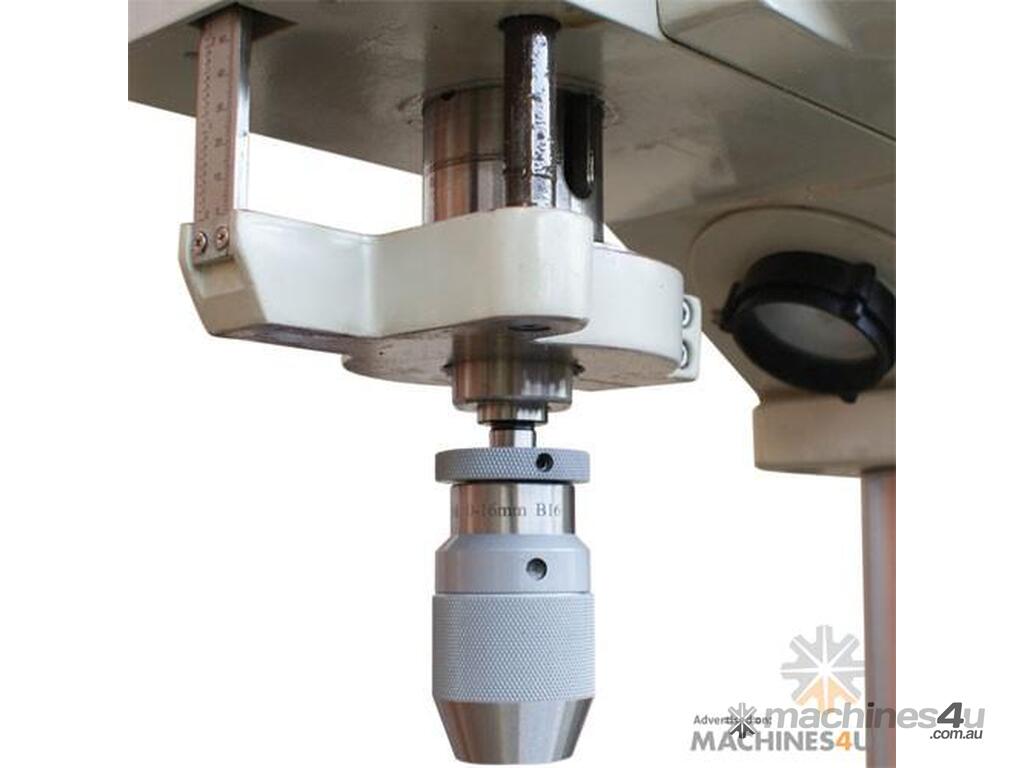

Includes 16mm keyless drill chuck and arbor

Includes
12 months warranty
Coolant pump system
16mm keyed drill chuck and arbor
Chuck key to suit
Drill drift tool to remove drill chuck or taper shank drills

Specifications:
ORDER CODE:D176
MODEL:GHD-30V
SPINDLE SIZE:3MT
DRILLING CAP:31.5mm
THREADING CAP:~
AUTO FEED:
SPEEDS:3 (Variable)
RANGE (RPM):50-2850rpm
COLUMN DIA:115mm
DRILL DEPTH:125mm
QUILL DIA:62mm
THROAT DEPTH:285mm
TABLE SIZE:426 x 400
SPINDLE TO TABLE:790mm
SPINDLE TO BASE:1270mm
FULL HEIGHT:1940mm
MOTOR:3hp/2.2kW
VOLTAGE: 240V
WEIGHT (NETT):368kg

All prices and specifications are subject to change and are GST exclusive
