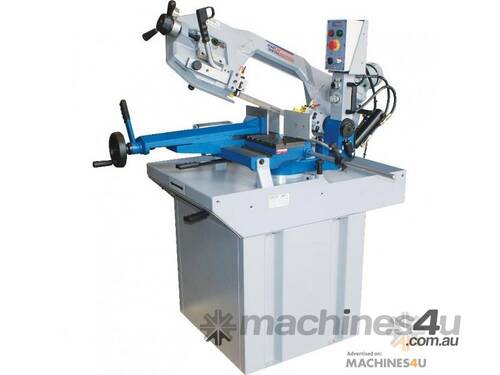

HAFCO METALMASTER Mitre Cutting Bandsaw EB-280DSV

HAFCO METALMASTER Mitre Cutting Bandsaw EB-280DSV

CALL FOR OUR BEST PRICE

Order Code: B063V
EB-280DSV - Swivel Head Metal Cutting Band Saw (240V)
245 x 180mm (W x H) Rectangle
Electronic Variable Blade Speed 20-90mpm

Features
245 x 180mm rectangular capacity
Electronic variable blade speed, 240V motor
Larger cutting capacity than conventional cold saws
Swivel head double mitre cut to 45º right & left, 60º right

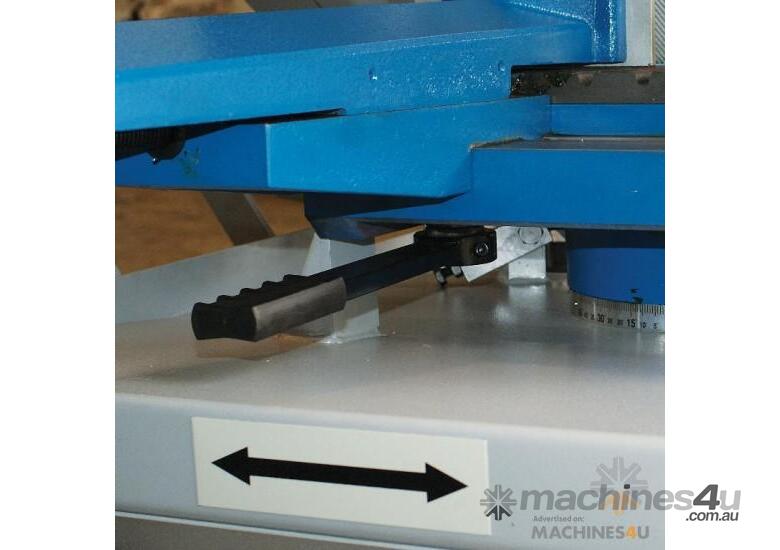

Quick action lock/release lever for swivel head
Heavy-duty gear drive system
Ball bearing blade guides ensures minimal blade clearance wear and increases blade life due to less friction
Blade cleaning brush incorporated into blade guide system
Quick-action lock/release vice

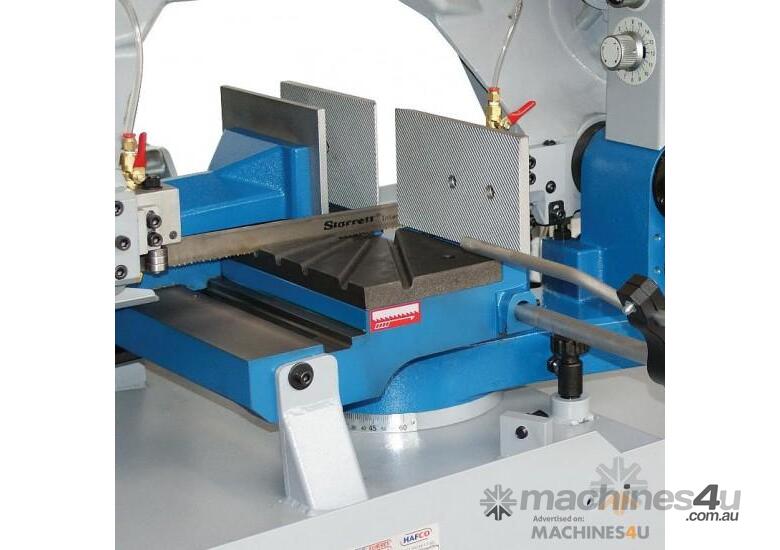

Unique sliding vice design for dual mitre operation
Coolant system for cutting efficiency and blade life
Material support roller for long stock
Control panel mounted for easy access
Adjustable hydraulic cylinder for auto feed
User friendly blade tension system with gauge
Vibration free, low noise operation ensures clean & high precision cuts
Machine stand with integrated cooling fitted as standard

Includes
Stand
Coolant System

Specifications:
ORDER CODE:B063V
MODEL:EB-280DSV
HEAD TYPE:Swivel
CAPACITY at Angle:90 degree
Round:225mm
Square:180 x 1800mm
Rectangle:245 x 180mm
CAPACITY at Angle:60 degree
Round:100mm
Square:100 x 100mm
Rectangle:100 x 100mm
CAPACITY at Angle:45 degree
Round:160mm
Square:160 x 160mm
Rectangle:160 x 160m
BLADE SPEEDS:20/90M/min

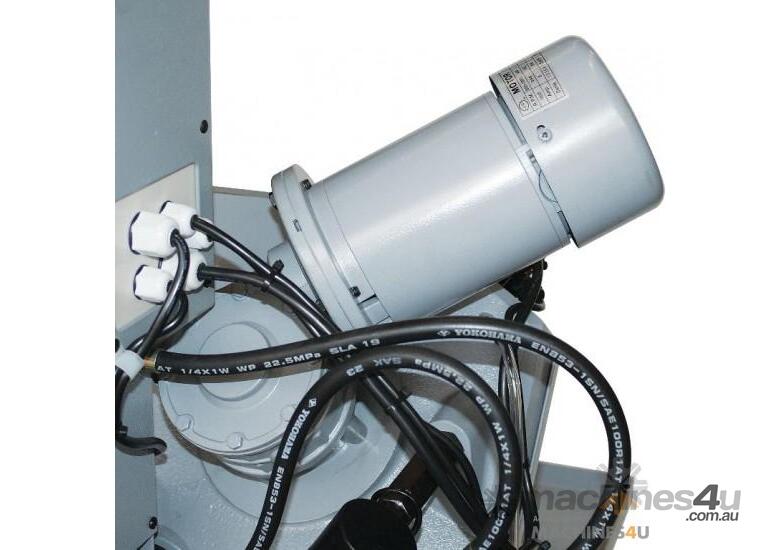

MOTOR:1.5kW 2HP
VOLTAGE:240V
WEIGHT (NETT):280kg

all prices and specifications are subject to change
