HARSLE 4012 CNC Press Brake 1200 x 40t

???? HARSLE FlexBend 4012 CNC Press Brake
Compact Power. Precision Bending. Built for Real Production.

Are you struggling with inconsistent bends, limited workshop space, or slow manual setups?

The HARSLE FlexBend 4012 delivers industrial-grade bending performance in a compact footprint — ideal for fabrication shops, general engineering, maintenance departments, and precision manufacturers who demand accuracy without taking up half the workshop.

This is not a hobby machine. It’s a serious CNC press brake built with high-end European components and designed for reliability, repeatability, and productivity.

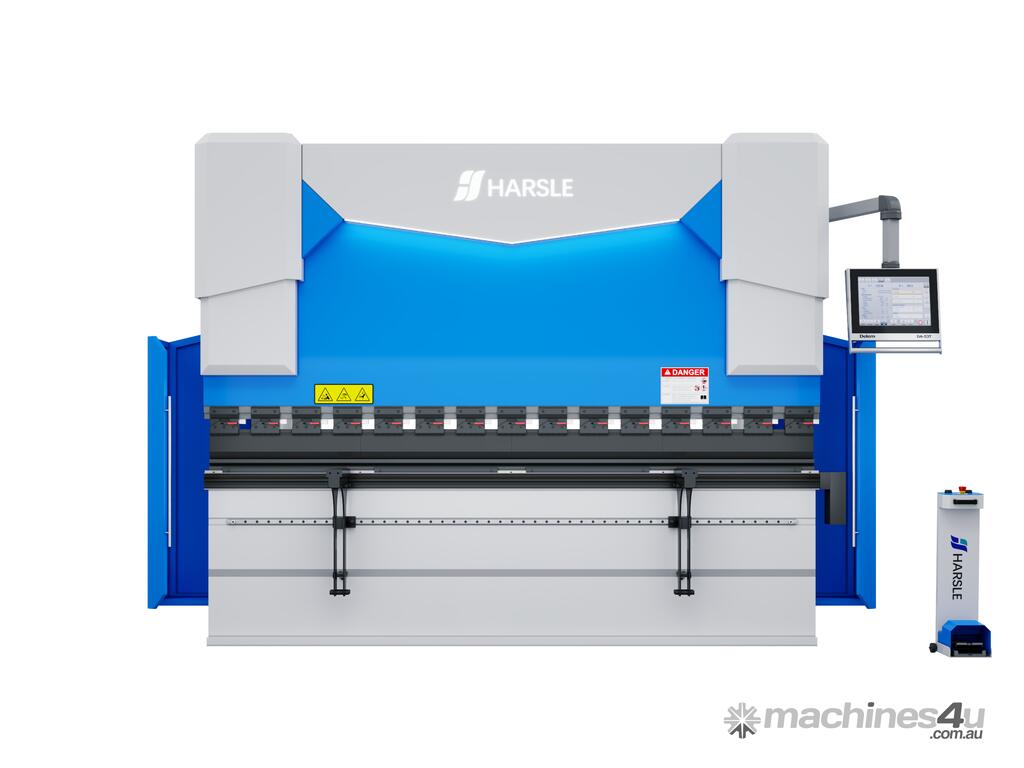

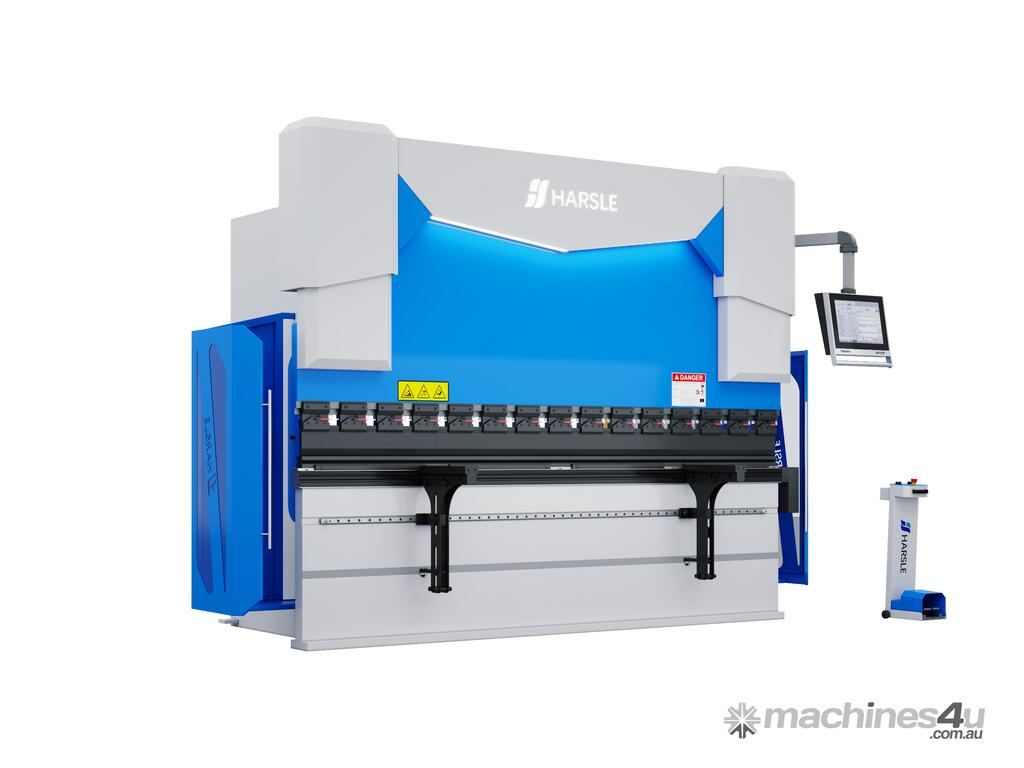

HARSLE FlexBend 4012 Press Brake

???? Key Specifications

Model: FlexBend 4012
Bending Force: 400 kN (40 Ton)
Bending Length: 1200 mm
Distance Between Columns: 1000 mm
Throat Depth: 250 mm
Ram Stroke: 160 mm
Daylight Opening: 430 mm
Table Width: 100 mm

? Speed

Rapid Speed: 200 mm/sec

Working Speed: 0–15 mm/sec

Return Speed: 160 mm/sec

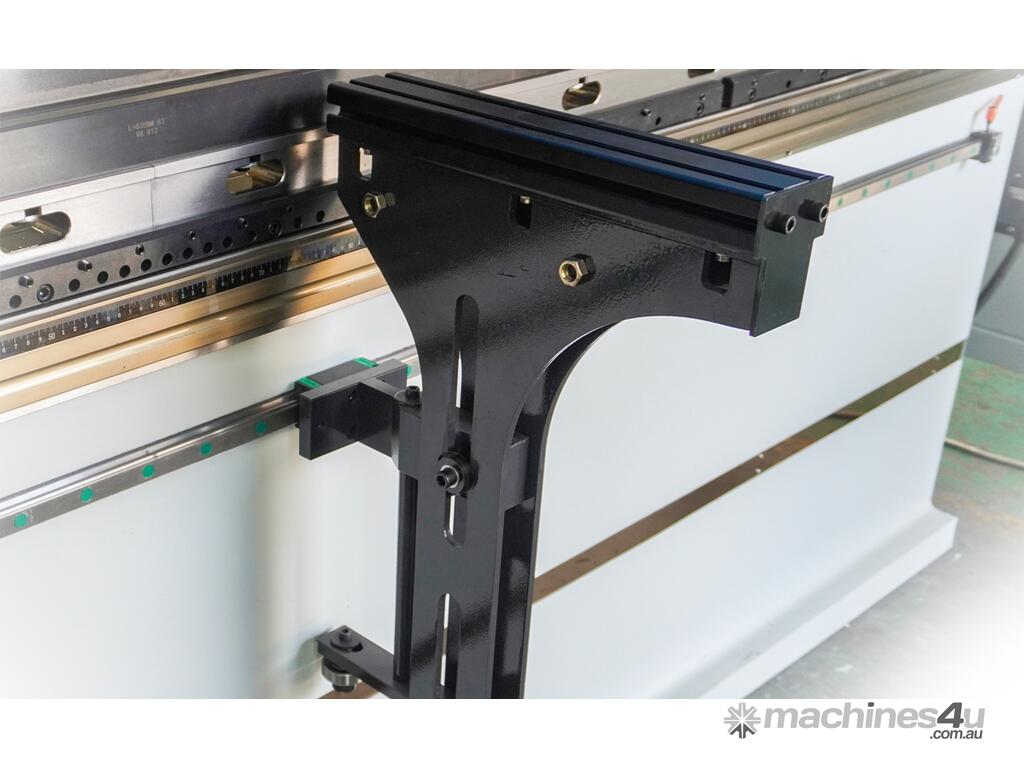

???? Backgauge

X-Axis Travel: 400 mm

R-Axis Travel: 160 mm

Positioning Accuracy: ±0.05 mm

2 Stop Fingers

?? Drive System

5.5 kW Main AC Motor

28 MPa Hydraulic Pressure

85L Oil Tank

???? Advanced Control Options

DELEM DA-53Tx

Features include:
? 2D Programming
? Bend sequence calculation
? Tool library
? Offline software capability
? Multi-language interface

The DA-58Tx option offers 18.5” touchscreen control with powerful 2D programming and networking capability.

???? Built for Accuracy & Longevity

Robotic welded frame

High-temperature stress relief process

Electro-hydraulic synchronous control

CNC crowning capability

HIWIN ball screws & linear guides

GIVI linear encoders

This ensures minimal deflection, consistent bend angles, and long-term structural stability.

???? Safety Features

? Back Light Curtain
? Laser Protection (Optional)
? Safety PLC (Optional)
? Safety Door Switch
? Monitor Valve System
? Safety Guard Switch

Designed to meet modern workshop safety standards while protecting operators and equipment.

?? Optional Upgrades

Servo Pump System (Up to 72% energy savings, 50dB lower noise)

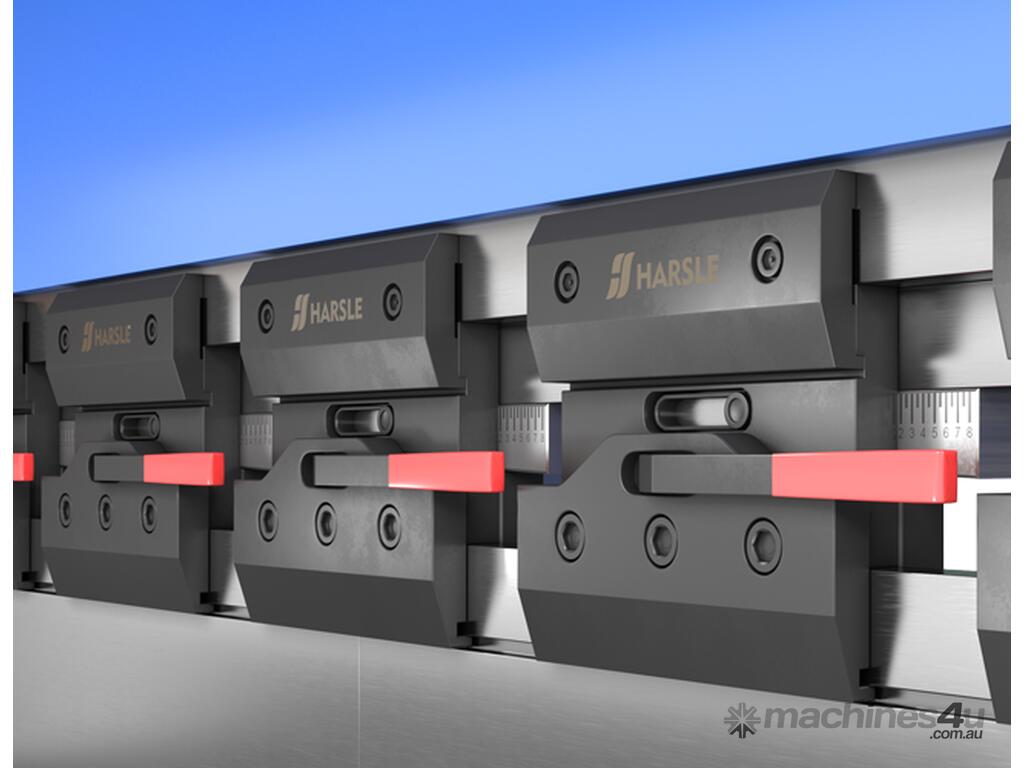

Hydraulic Tool Clamping

AMADA-Type Tool Clamps

Robotic Bending Cell Integration

Digital Twin System (with robot option)

Oil Cooler

Electrical Cabinet AC

???? Automation Ready

The FlexBend 4012 can be integrated into:

Robotic bending cells

Industry 4.0 environments

Digital twin simulation systems

Increase OEE by up to 15% with robotic integration and predictive maintenance capability.

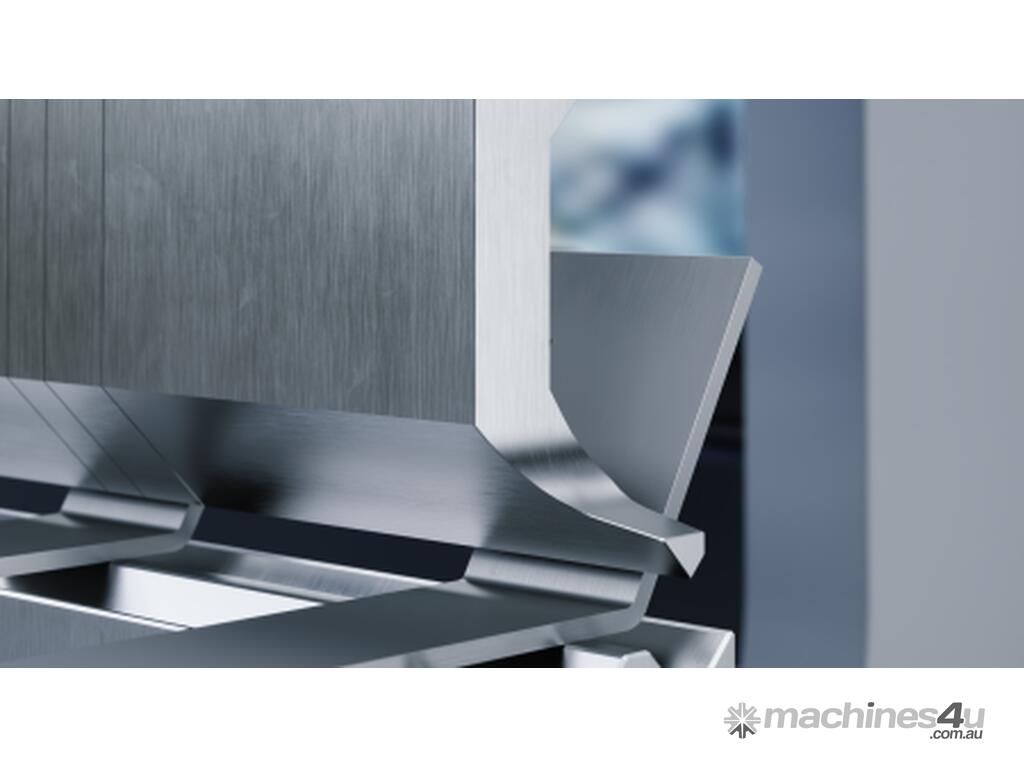

???? Standard Tooling Included

1 Set Sash Punch

1 Set Double V Die

Additional tooling options available.

???? Supplied & Supported by Industrial Laser Solutions

? Australian supplied
? Professional installation & commissioning
? Operator & maintenance training
? Preventative maintenance programs
? Rapid response service
? Local stock of consumables & spare parts

At Industrial Laser Solutions, we support manufacturers who value uptime, precision, and long-term reliability.
