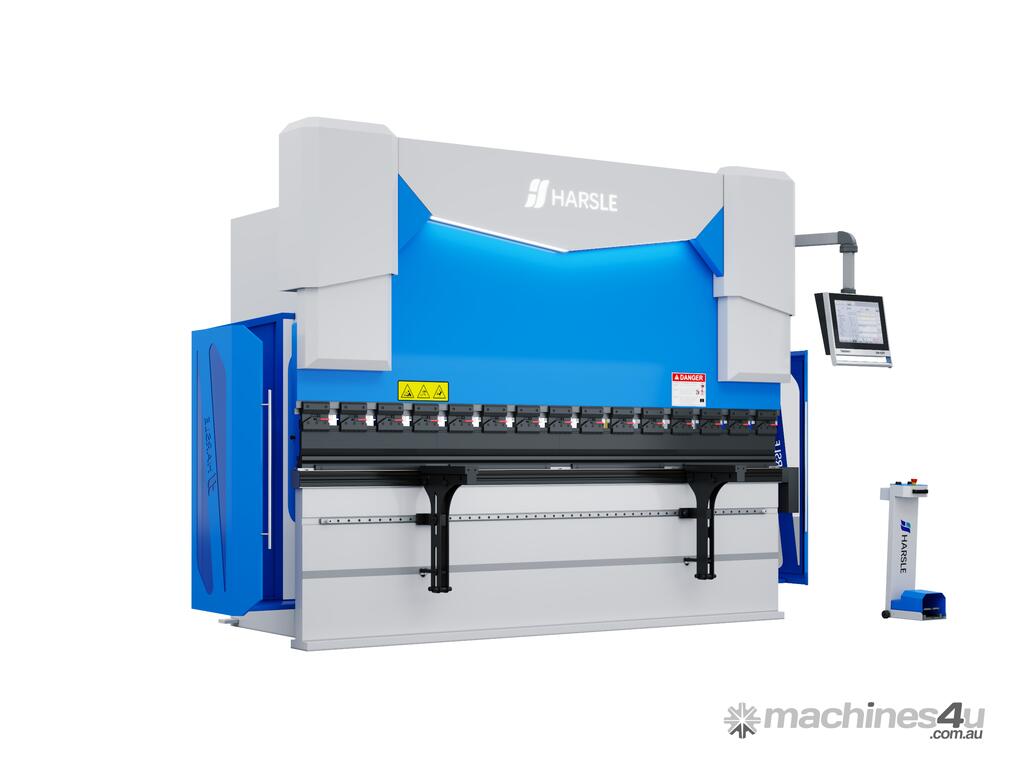

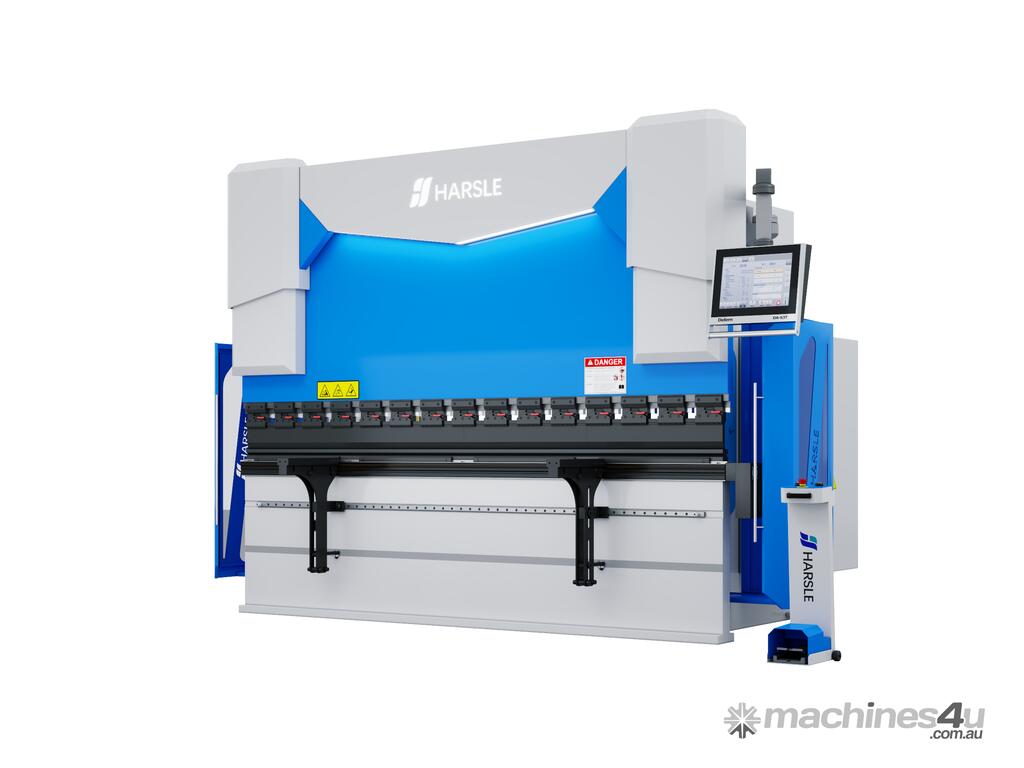

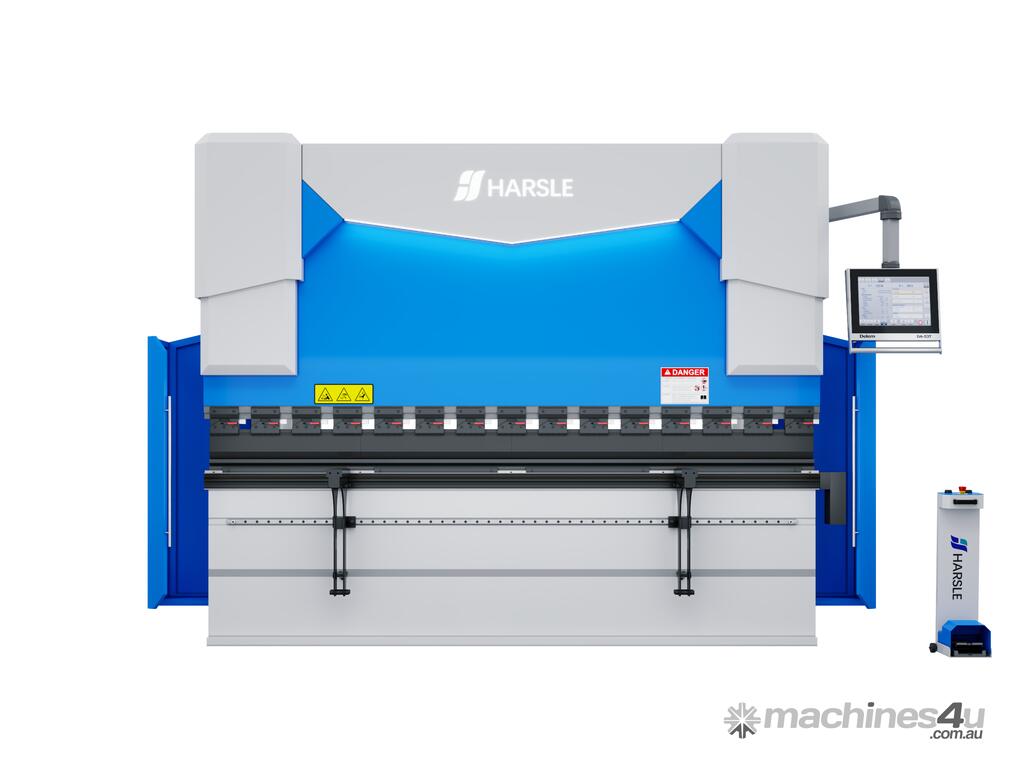

HARSLE 6325 CNC Press Brake 2500 x 60t

???? HARSLE FlexBend 6325 CNC Press Brake
63 Tonne | 2500mm Bend Length | CNC Crowning | Automation Ready

Need more tonnage and length without jumping to a massive footprint machine?

The HARSLE FlexBend 6325 delivers serious bending capability with 63 tonnes of force across 2.5 metres — ideal for general fabrication, structural components, electrical enclosures, brackets, stainless fabrication and precision production work.

Built with premium European components and designed for accuracy, repeatability and long-term reliability.

HARSLE FlexBend 6325 Press Brake

???? Key Specifications (Metric)

Bending Force: 630 kN (63 Ton)
Bending Length: 2500 mm
Distance Between Columns: 2100 mm
Throat Depth: 300 mm
Ram Stroke: 160 mm
Daylight Opening: 450 mm
Table Width: 100 mm

? Speed

Rapid Speed: 160 mm/sec

Working Speed: 0–15 mm/sec

Return Speed: 160 mm/sec

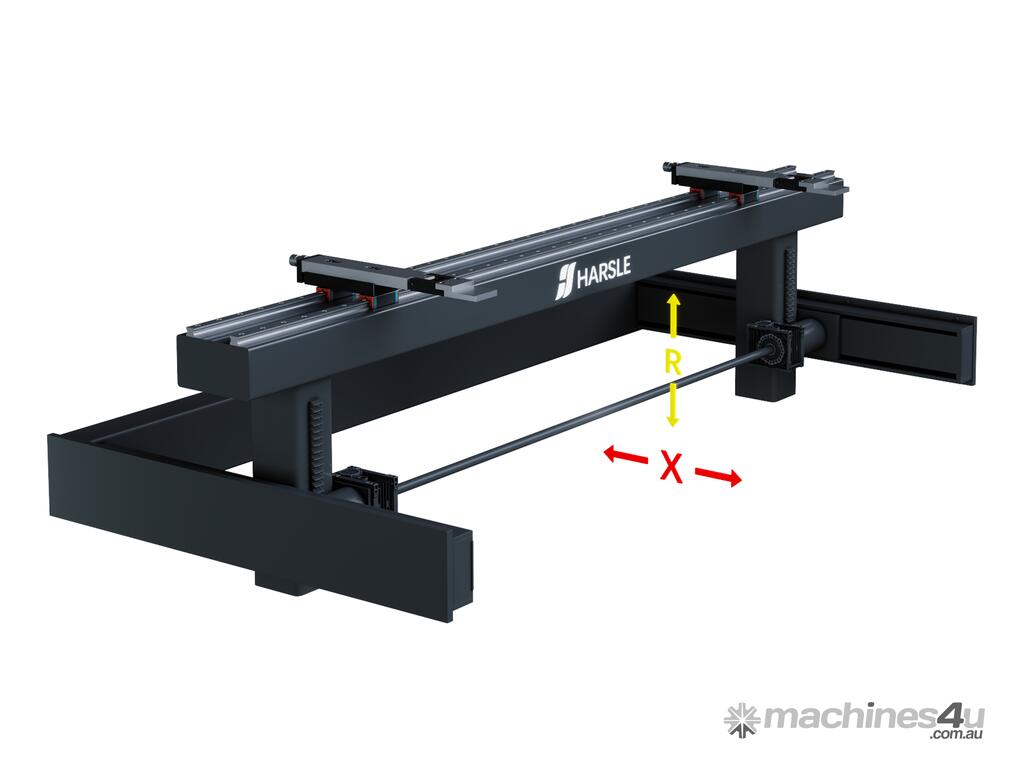

???? Backgauge

X-Axis Travel: 550 mm

R-Axis Travel: 160 mm

Positioning Accuracy: ±0.05 mm

4 Stop Fingers

???? CNC Crowning – Standard Precision

The CNC crowning system (shown in the brochure page 5) automatically compensates for table and ram deflection, ensuring:

? Uniform bend angle across full 2500mm length
? Reduced rework
? Improved repeatability
? Better quality control

No more chasing inconsistent angles on longer parts.

???? Controller Options

Available with:

DELEM DA-53Tx

Features include:
? 2D programming
? Bend sequence calculation
? Tool library
? Offline software capability
? Multi-language interface
? Networking (DA-58Tx option)

The DA-58Tx 18.5” touchscreen is ideal for shops wanting advanced 2D programming and improved workflow efficiency.

???? Built for Industrial Production

Robotic welded heavy-duty frame

High-temperature stress relief process

Electro-hydraulic synchronous Y1/Y2 system

HIWIN ball screws & linear guides

GIVI linear encoders

Rexroth hydraulic valves

Schneider electrical components

Siemens (Innomotics) main motor

This isn’t entry-level. It’s built for real manufacturing environments.

? Optional Servo Pump System

Upgrade to the servo pump unit and achieve:

? Up to 72% energy savings
? Lower noise (~50dB reduction)
? Improved positioning accuracy
? Reduced heat generation

Ideal for shops running high cycle volumes.

???? Automation & Industry 4.0 Ready

The FlexBend 6325 can integrate with:

Robotic bending arms (ABB / ESTUN options)

Digital Twin system (included when robot selected)

Industry 4.0 production environments

Increase OEE by up to 15% with robotic integration and predictive maintenance capability.

???? Safety Features

? Back Light Curtain
? Safety PLC (Optional – OMRON)
? Laser Protection (Optional – DSP/AKAS)
? Safety Door Switch
? Monitor Valve
? Safety Guard Switch

Built to meet modern workshop safety expectations.

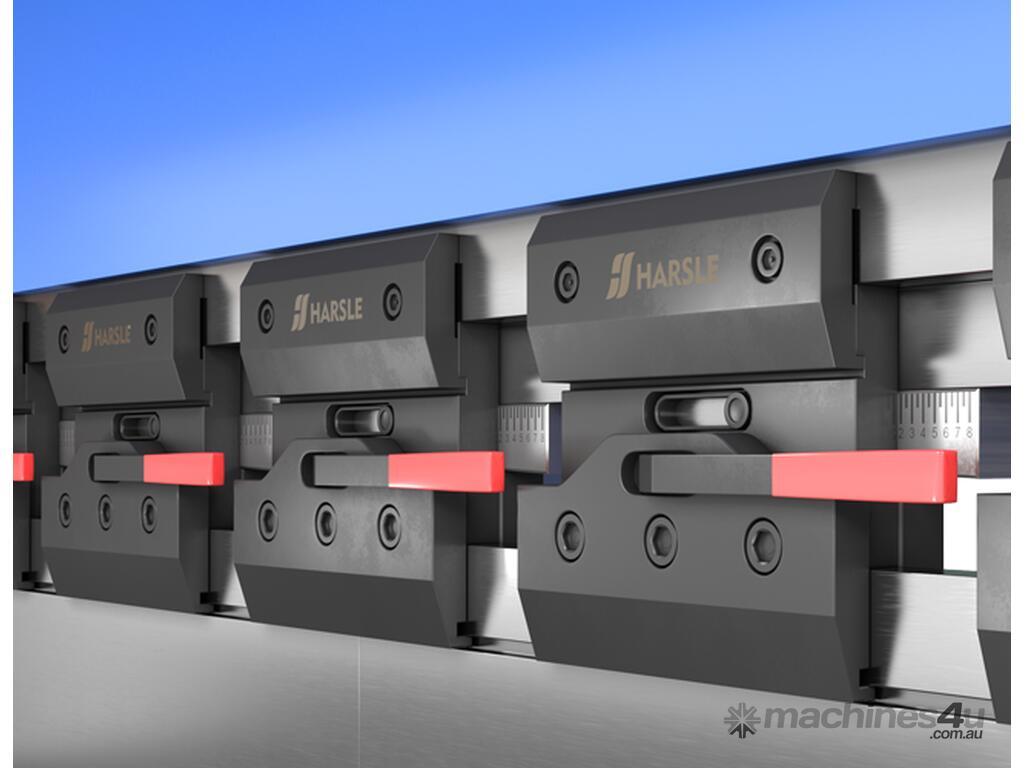

???? Standard Tooling Included

? Sash Punch
? Double V Die

Additional tooling options available including hydraulic clamp, AMADA-style clamp, and fast clamp systems.

???? Supplied & Supported by Industrial Laser Solutions

? Australian supplied
? Professional installation & commissioning
? Operator & maintenance training
? Preventative maintenance programs
? Rapid response service
? Local stock of consumables & spare parts

We support manufacturers who value uptime, precision and long-term reliability.
