HEAD 1500x3000 Waterjet | High-Precision Cold Cutting Solution for AU Fabricators

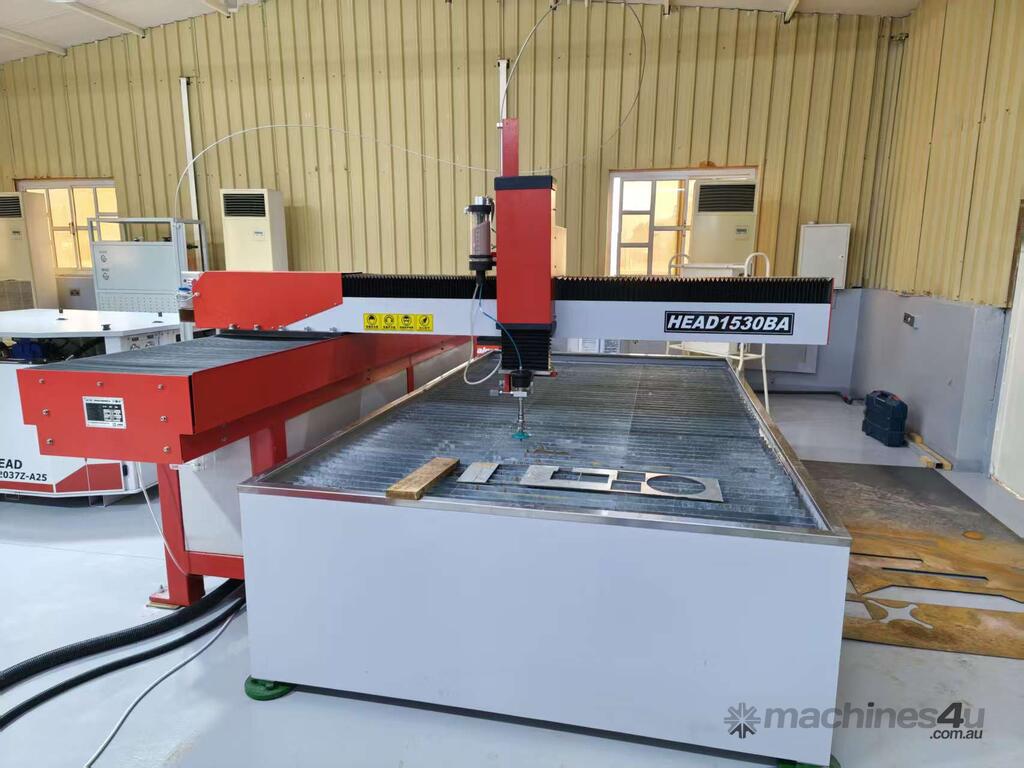

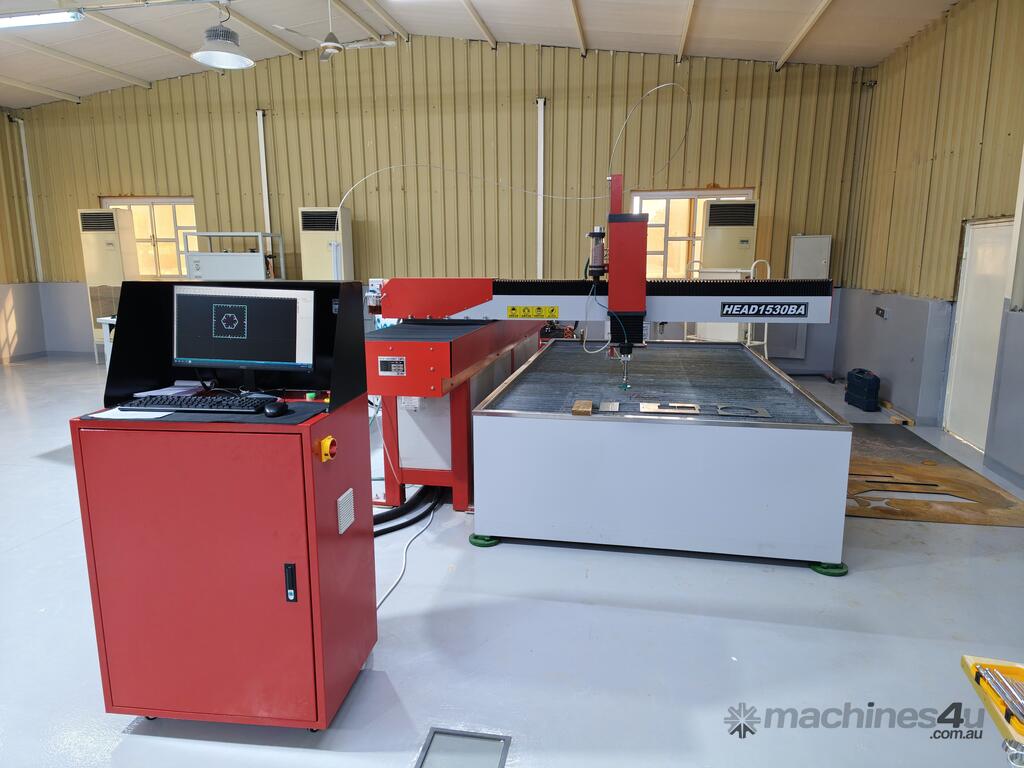

HEAD Cantilever Waterjet Cutting Machine 1500x3000mm Precision Series

This professional-grade cantilever waterjet system is engineered for workshops where high efficiency meets limited floor space. The open-frame design redefines workflow by allowing seamless 3-side loading, making it the premier choice for small-to-medium scale industrial applications.

KEY ADVANTAGES

* 3-SIDE OPEN ACCESSIBILITY

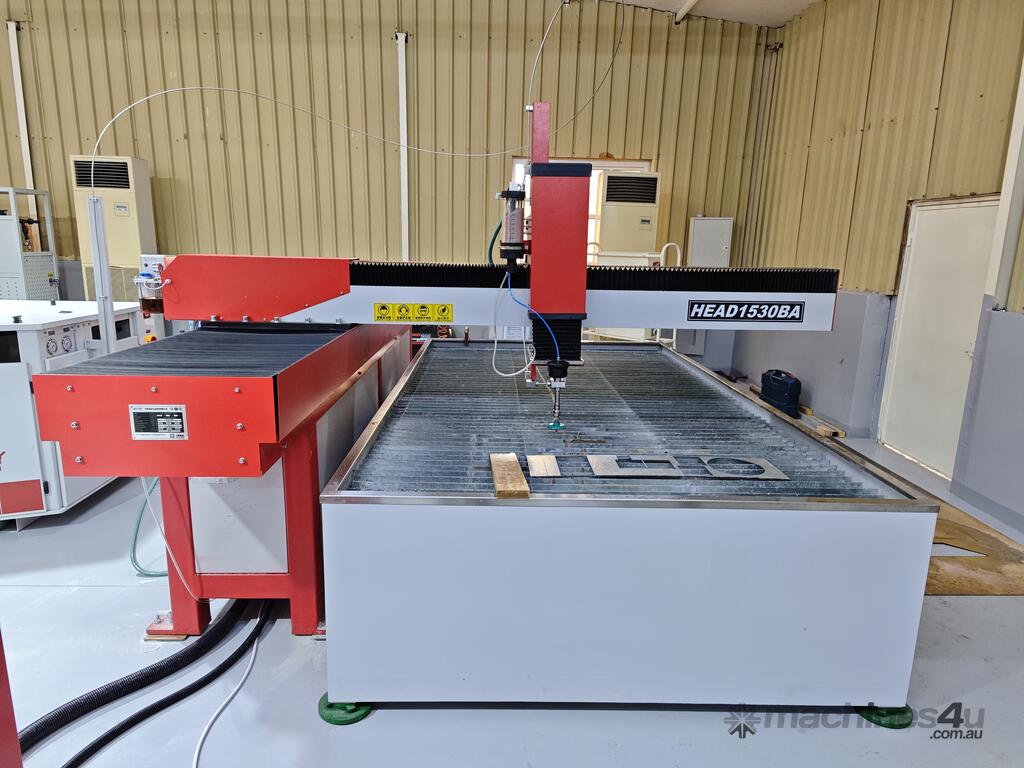

The cantilever structure features a single overhanging beam, providing unobstructed access from three sides. This makes loading heavy stone slabs or metal sheets significantly faster and safer compared to traditional bridge-style machines.
* SMALL FOOTPRINT, INDUSTRIAL POWER
Optimized for the 1500 x 3000 mm (5x10 ft) standard sheet size, this machine offers full-featured industrial capability while occupying minimal floor space—perfect for urban workshops and specialized fabrication studios.
* JAPANESE ENGINEERING AT THE CORE
Powered by Yaskawa (Japan) AC Servo Motors and precision-ground ball screws, the system delivers a cutting accuracy of +/- 0.1mm and industry-leading repeatability.
* VIBRATION-DAMPING CONSTRUCTION
The heavy-duty welded steel frame is thermal-treated to eliminate internal stress, ensuring long-term structural integrity and ultra-smooth cutting edges.
* TRUE COLD CUTTING TECHNOLOGY
Cut anything from titanium and stainless steel to toughened glass and stone with zero heat-affected zones (HAZ). Eliminate warping, hardening, or the need for secondary finishing.

TECHNICAL SPECIFICATIONS

* Working Area (X/Y): 1500 mm x 3000 mm
* Z-Axis Travel: 50 - 200 mm
* Cutting Accuracy: +/- 0.10 mm
* Repeatability: +/- 0.02 - 0.05 mm
* Drive System: Yaskawa AC Servo (Japan)
* Max. Traverse Speed: 6,000 - 18,000 mm/min
* Loading Style: 3-Side Open Cantilever
* Optional Features: 5-Axis Bevel Head, Multi-head, Drilling, Rotary Axis

WHO IT IS FOR

* Custom Fabricators: Looking for a versatile tool to handle metal, stone, and composites without multiple setups.
* Architectural Studios: Needing precise, clean cuts for intricate interior designs or signage.
* Maintenance Workshops: Requiring a reliable, easy-to-load machine for rapid prototyping and repair parts.

GET A QUOTE AND EXPERT CONSULTATION

We help you choose the right configuration for your specific material and thickness requirements.
