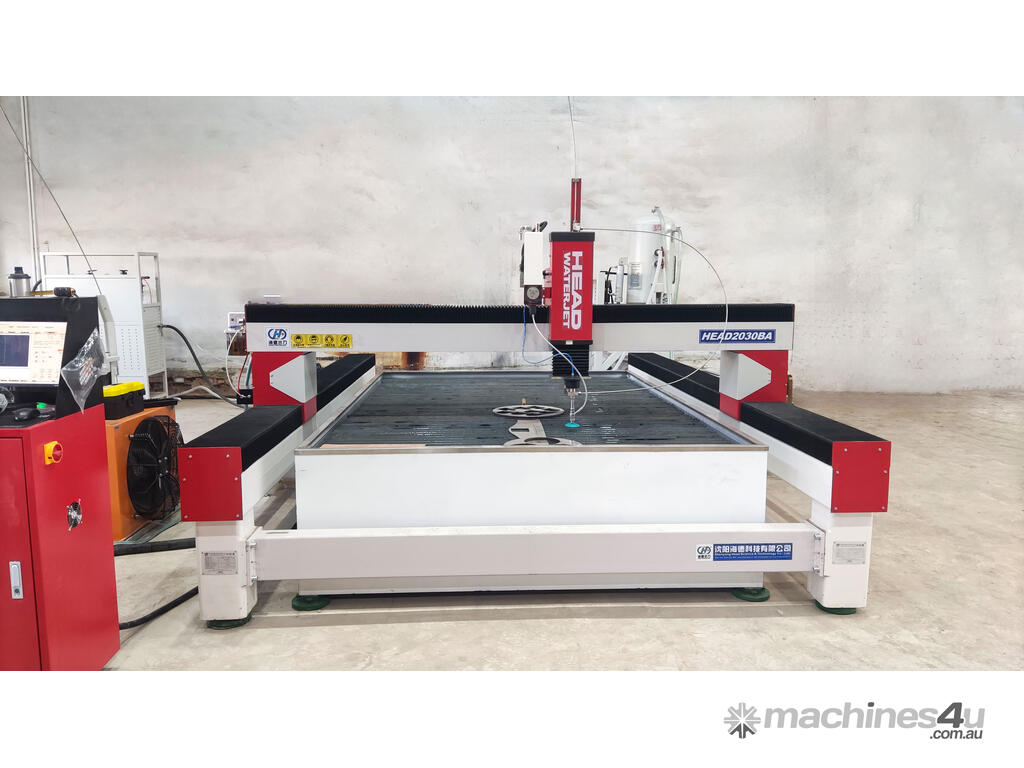

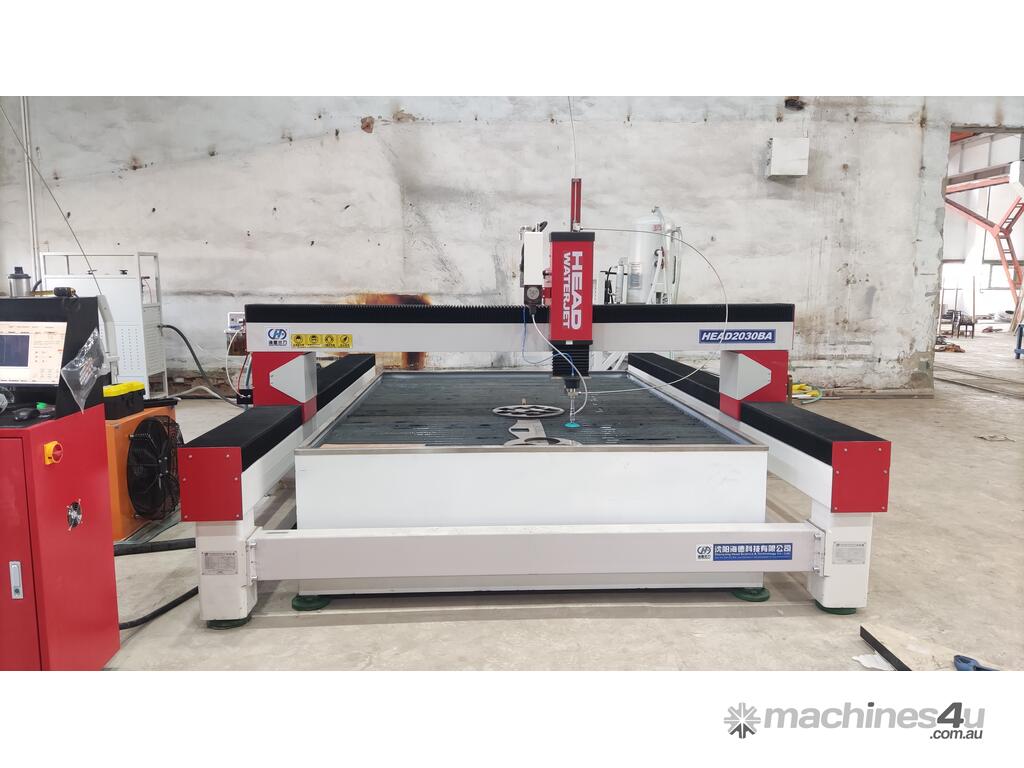

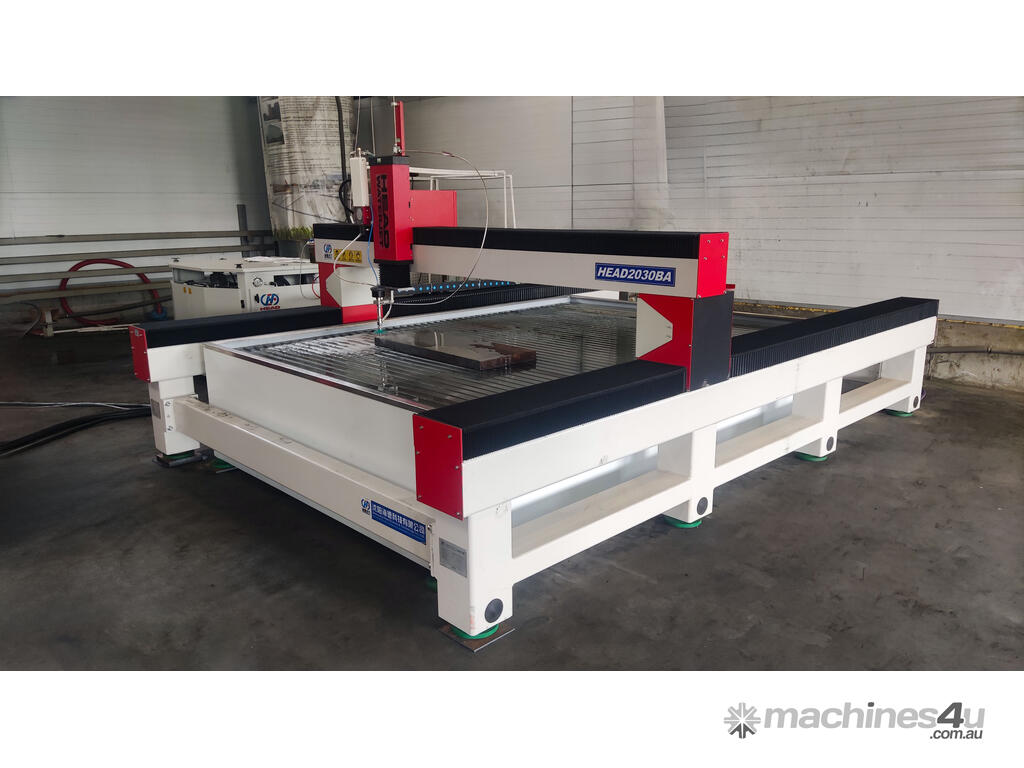

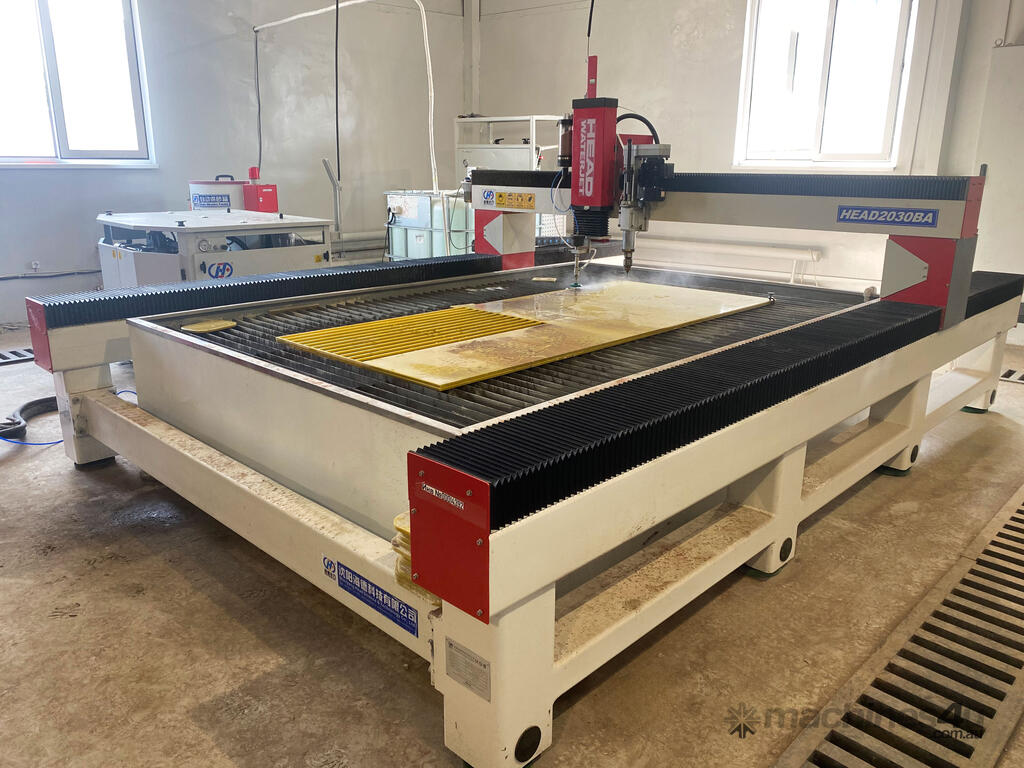

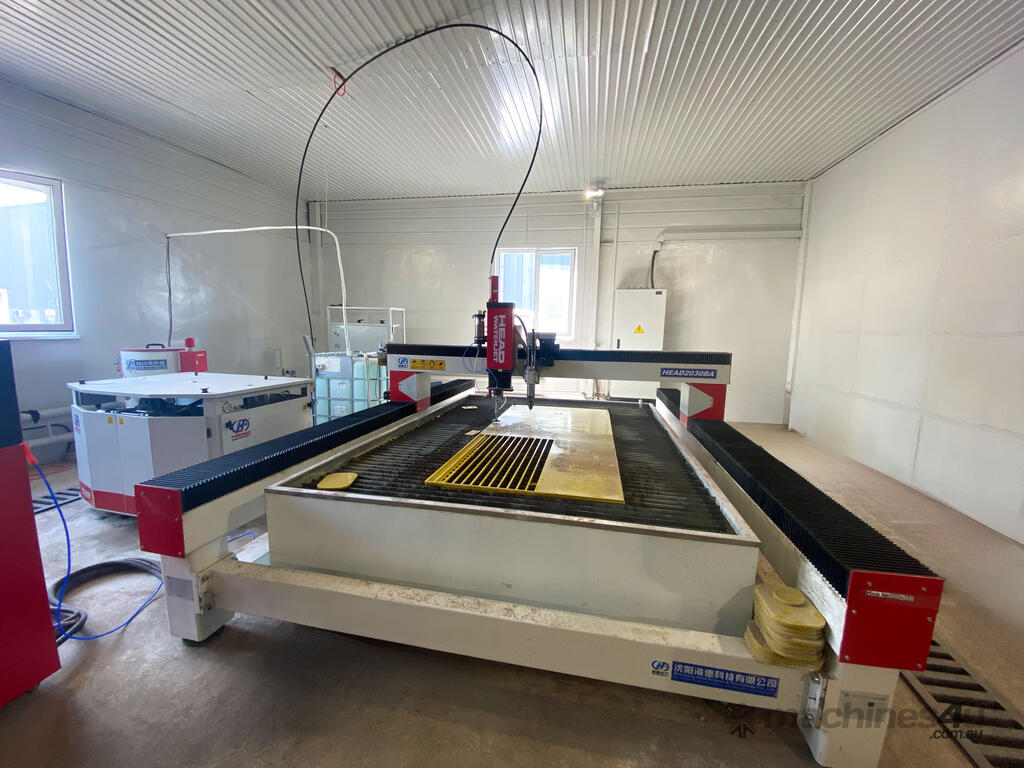

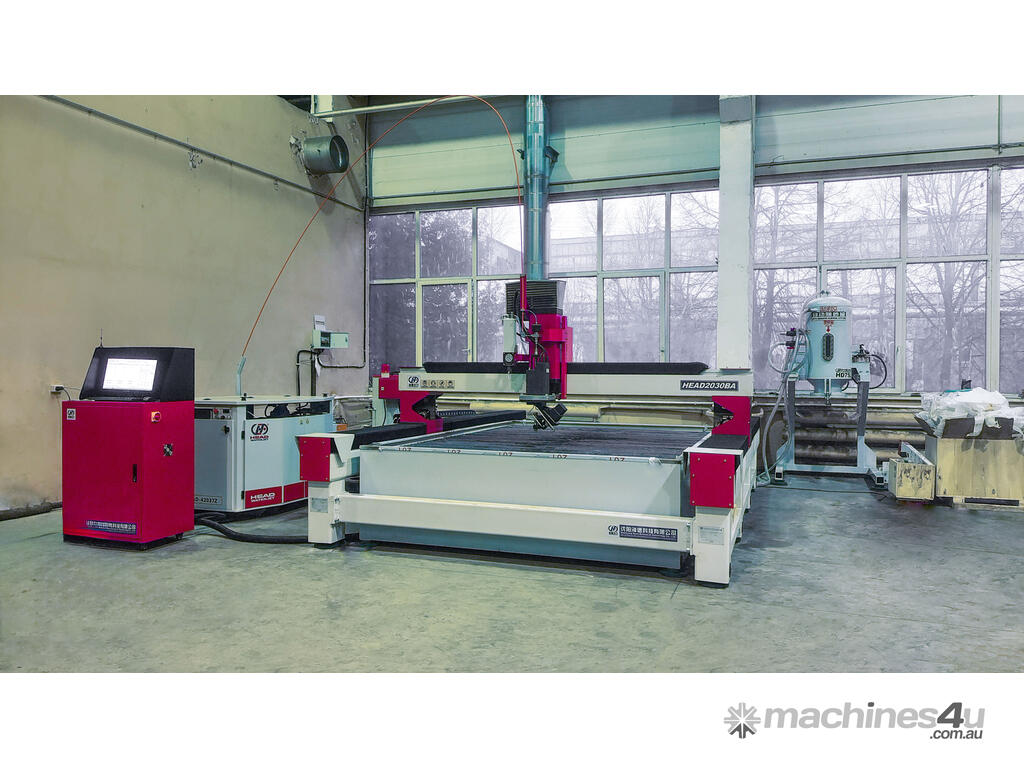

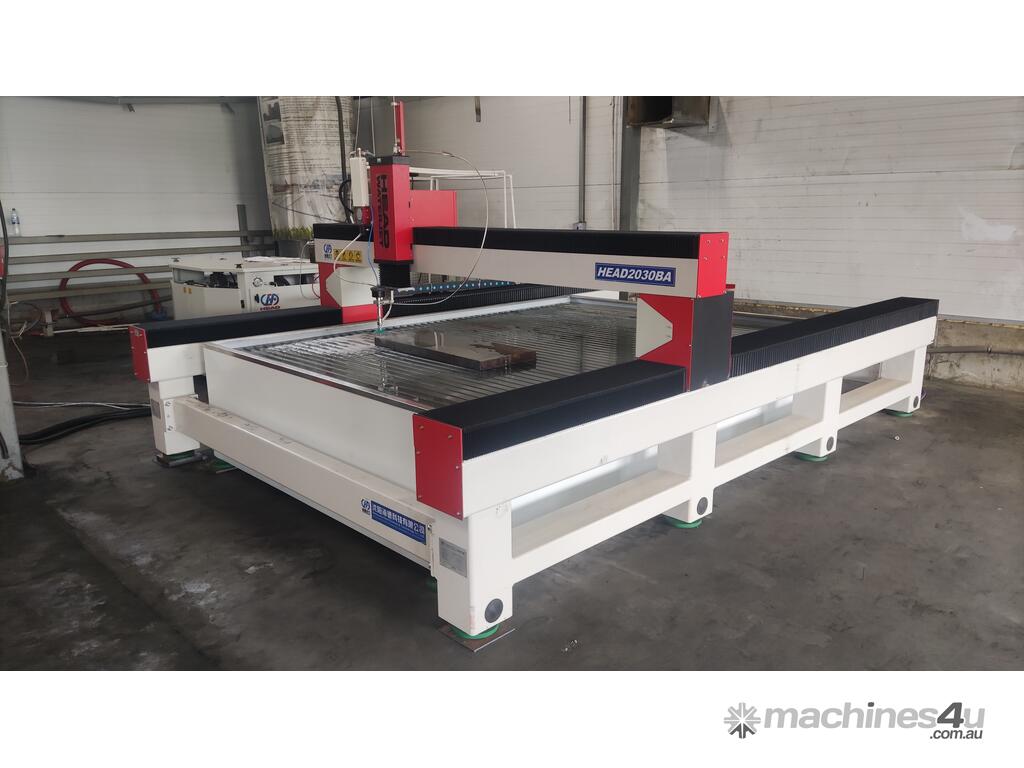

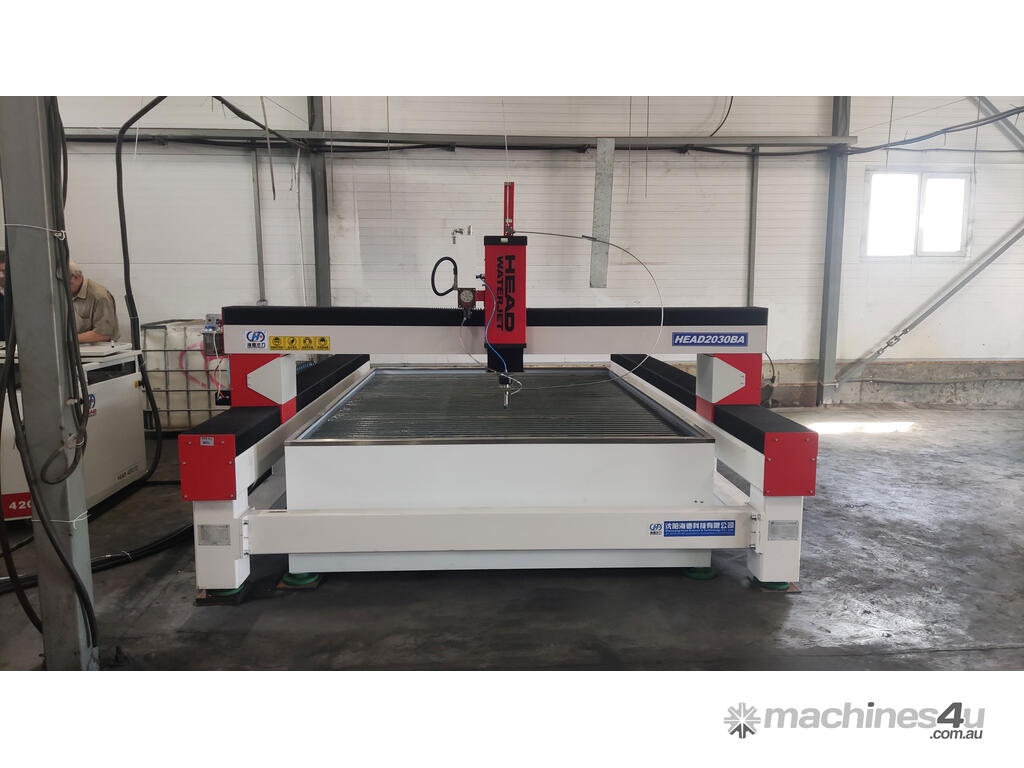

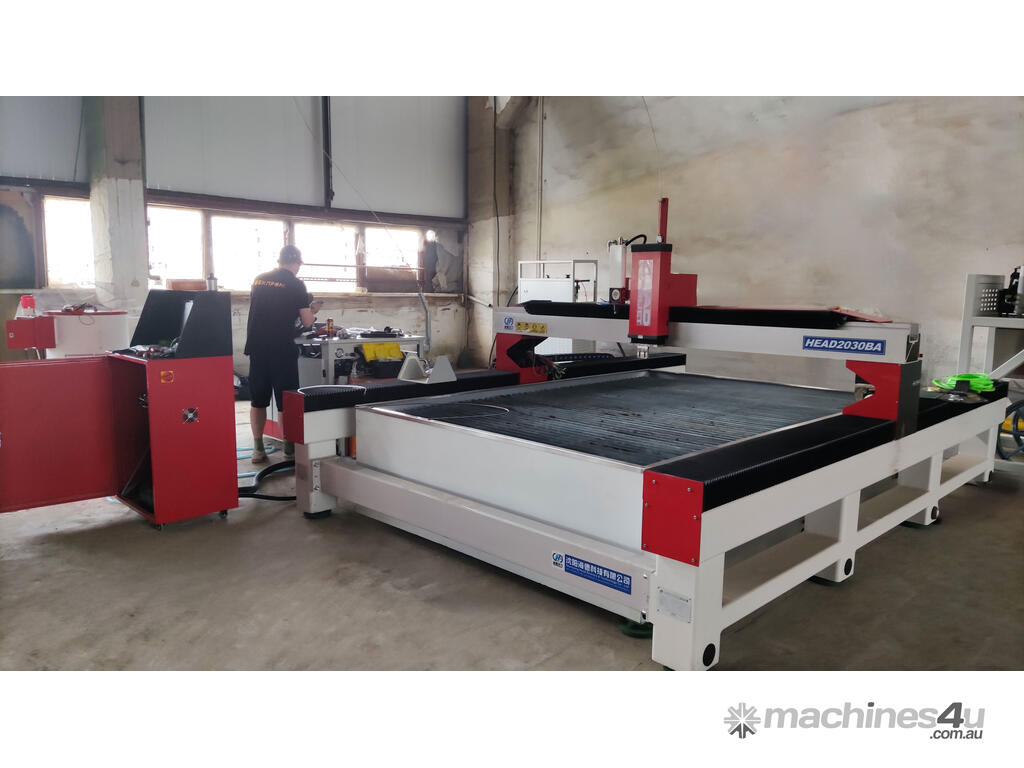

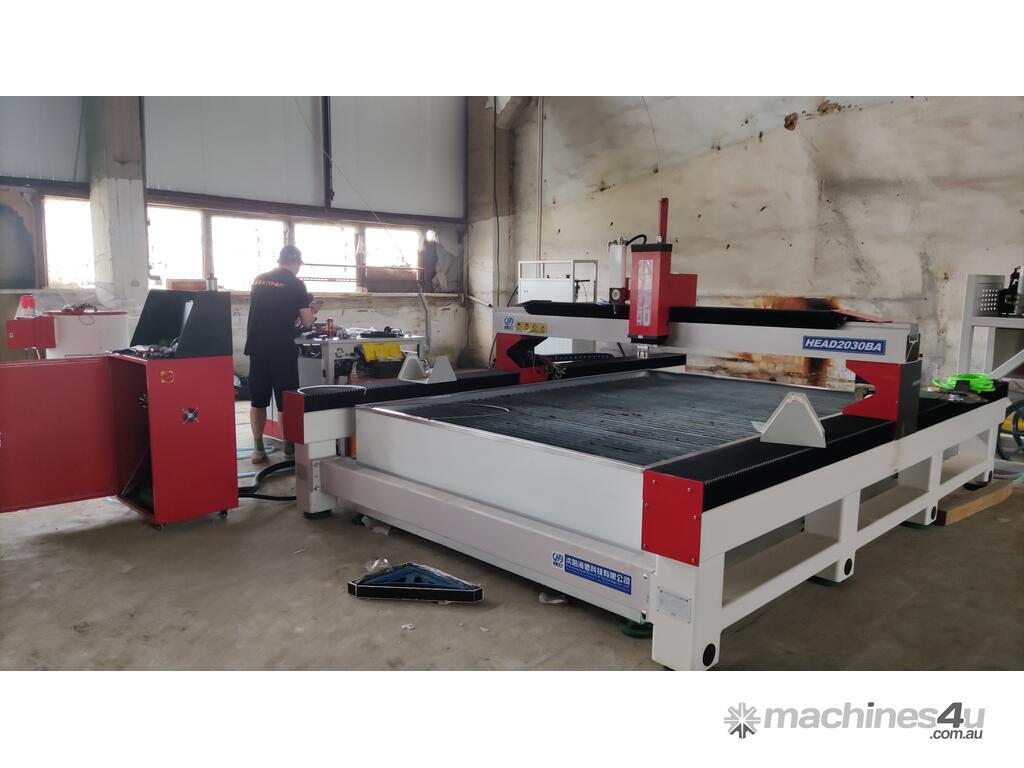

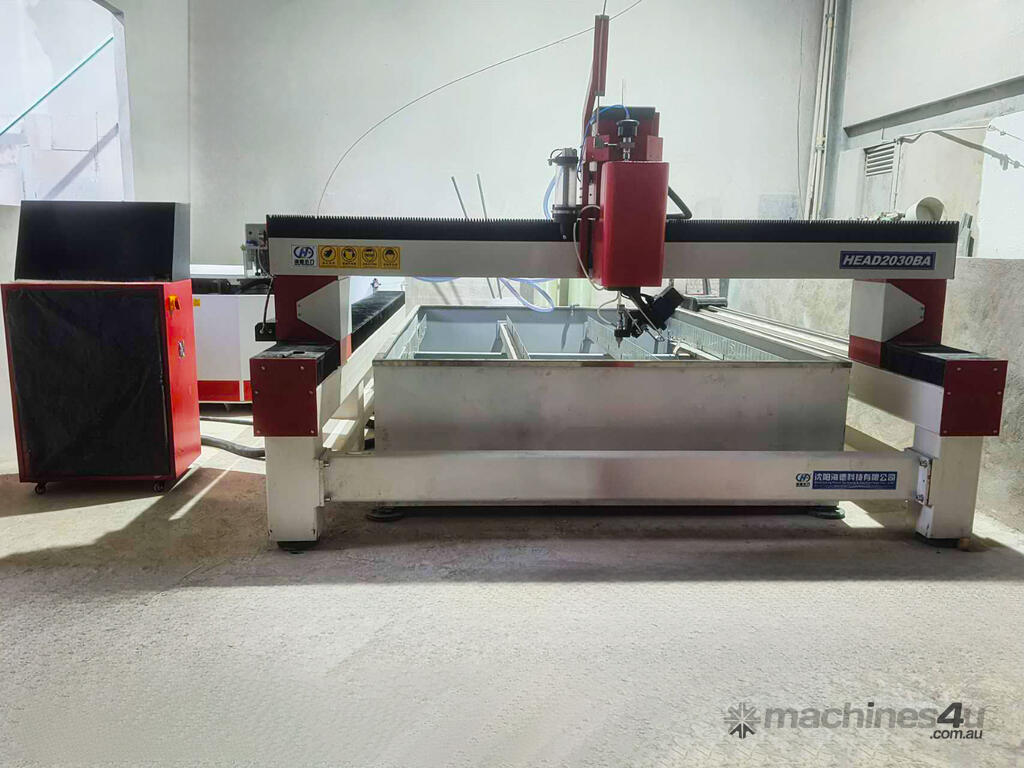

Introducing the HEAD 2030BA, a complete, performance-packaged waterjet solution designed for workshops demanding superior reliability and efficiency. This model isn't a base machine; it's a fully-configured system featuring our most popular and effective upgrades. With its 2m x 3m cutting envelope, the 2030BA is perfectly sized for a huge range of materials and applications, from custom metal fabrication to architectural stone and composite cutting.
This package has been engineered to maximise uptime and minimise running costs, allowing for confident, unattended operation.
Key Features & Benefits (HEAD Advantage):
? High-Efficiency A25 High-Pressure Pump with Air Cooling
The robust A25 intensifier pump delivers consistent and powerful pressure for fast, clean cuts.
Your Benefit: The integrated Air Cooling system eliminates the need for a separate industrial water chiller, reducing complexity, energy consumption, and maintenance requirements. It's a smarter, more reliable solution for Australian conditions.
? Fully Automatic Abrasive System with Shortage Alarm
This system combines a precision Mini Abrasive Control Valve with a large-capacity Automatic Abrasive Feeder.
Your Benefit: Enjoy precise, repeatable abrasive flow control, which drastically reduces garnet consumption and running costs. The feeder and shortage alarm enable long, unattended cutting cycles, freeing up your operator and maximising machine productivity.
? Integrated Water Softener System
This machine comes standard with a frame-mounted water softener assembly.
Your Benefit: Protect your investment. The softener prevents scale buildup in high-pressure components like orifices and seals, significantly extending their life, reducing maintenance downtime, and ensuring consistent cutting performance.
? ATcut Control System with Operator Override
The powerful and user-friendly ATcut 3-axis control system makes job setup quick and simple.
Your Benefit: The exclusive "Override" function gives your skilled operators real-time control to fine-tune cutting speeds and pressures mid-job. This allows for perfect results on complex geometries and varying material quality, minimising scrapped parts.
? Robust & Reliable 3-Axis Cutting Head
Our standard 3-axis cutting head is engineered for durability and precision, delivering exceptional accuracy for all 2D cutting tasks.
Your Benefit: A proven, straightforward design ensures minimal maintenance and delivers reliable, high-quality cutting day in, day out.
Technical Specifications:
Brand: HEAD WATERJET
Model: 2030BA
Cutting Area (X-Y): 2000mm x 3000mm
High-Pressure Pump: A-Series A25 with integrated Air Cooler
Abrasive Delivery: Automatic Feeder w/ Shortage Alarm & Mini Control Valve
Water Treatment: Included Water Softener Frame Assembly
Control System: ATcut 3-Axis Control System with Override Function
Cutting Head: 3-Axis Standard
Cutting Accuracy: ±0.1mm
Repeat Positioning Accuracy: ±0.02mm
